SUBARU BRZ 2014 1.G Owners Manual
Manufacturer: SUBARU, Model Year: 2014, Model line: BRZ, Model: SUBARU BRZ 2014 1.GPages: 488, PDF Size: 6.41 MB

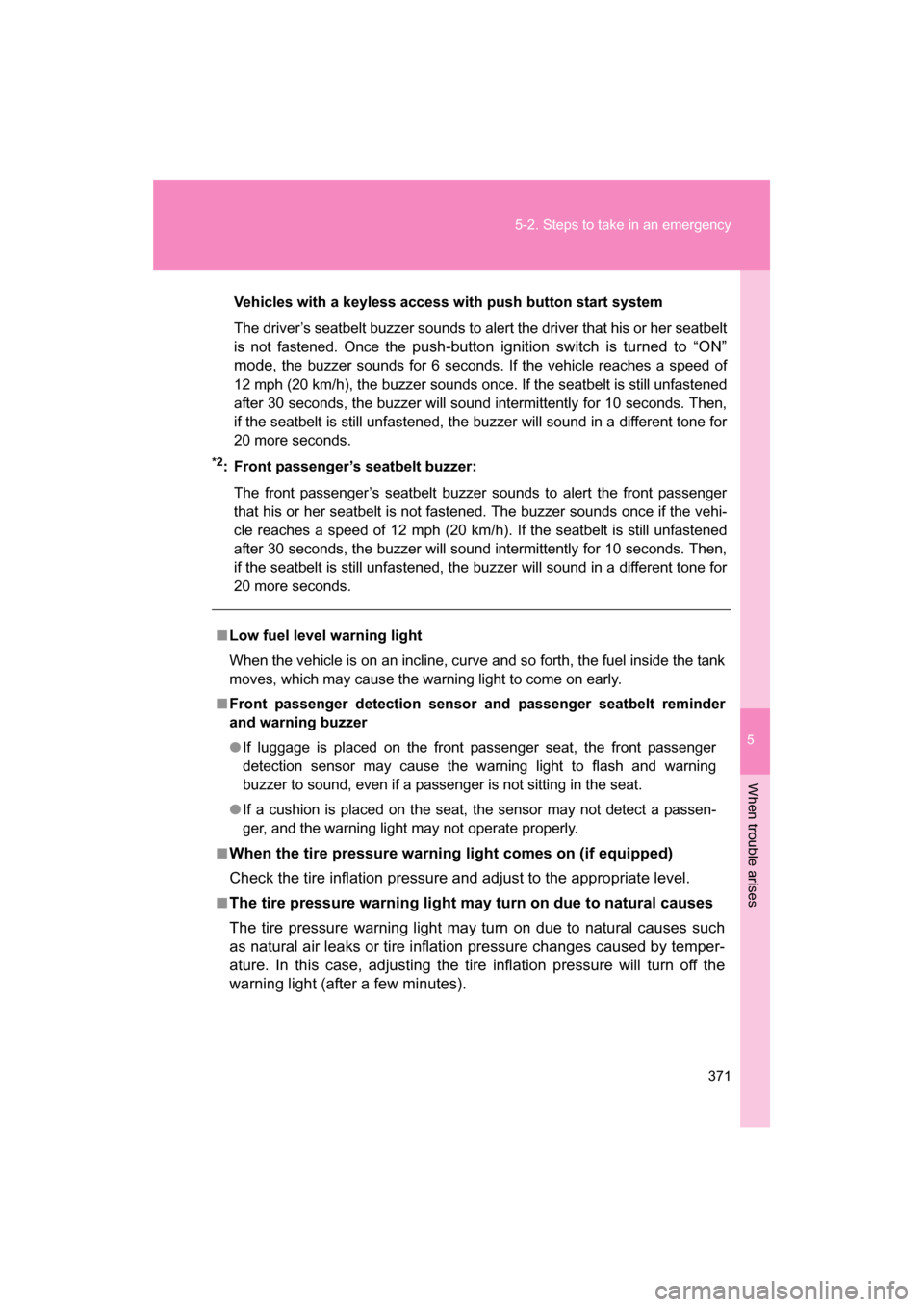

Page 371 of 488

5
When trouble arises
371
5-2. Steps to take in an emergency
Vehicles with a keyless access with push button start system
The driver’s seatbelt buzzer sounds to alert the driver that his or her seatbelt
is not fastened. Once the push-button ignition switch is turned to “ON”
mode , the buzzer sounds for 6 seconds. If the vehicle reaches a speed of
12 mph (20 km/h), the buzzer sounds once. If the seatbelt is still unfastened
after 30 seconds, the buzzer will sound intermittently for 10 seconds. Then,
if the seatbelt is still unfastened, the buzzer will sound in a different tone for
20 more seconds.
*2 : Front passenger’s seatbelt buzzer:
The front passenger’s seatbelt buzzer sounds to alert the front passenger
that his or her seatbelt is not fastened. The buzzer sounds once if the vehi-
cle reaches a speed of 12 mph (20 km/h). If the seatbelt is still unfastened
after 30 seconds, the buzzer will sound intermittently for 10 seconds. Then,
if the seatbelt is still unfastened, the buzzer will sound in a different tone for
20 more seconds.
■Low fuel level warning light
When the vehicle is on an incline, curve and so forth, the fuel inside the tank
moves, which may cause the warning light to come on early.
■Front passenger detection sensor and passenger seatbelt reminder
and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash and warning
buzzer to sound, even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
■When the tire pressure warning light comes on (if equipped)
Check the tire inflation pressure and adjust to the appropriate level.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such
as natural air leaks or tire inflation pressure changes caused by temper-
ature. In this case, adjusting the tire inflation pressure will turn off the
warning light (after a few minutes).
Page 372 of 488

372
5-2. Steps to take in an emergency
■When a tire is replaced with a spare tire (vehicles with a tire pres-
sure monitoring system)
The compact spare tire is not equipped with a tire pressure warning
valve and transmitter. If a tire goes flat, the tire pressure warning light will
not turn off even though the flat tire has been replaced with the spare
tire. Replace the spare tire with the repaired tire and adjust the tire infla-
tion pressure. The tire pressure warning light will go off after a few min-
utes.
■If the tire pressure monitoring system is inoperative (if equipped)
The tire pressure monitoring system will be disabled in the following con-
ditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmit-
ters are used.
●If the ID code on the tire pressure warning valves and transmitters is
not registered in the tire pressure warning computer.
●If the tire inflation pressure is 55 psi (380 kPa, 3.87 kgf/cm 2
or bar) or
higher.
The tire pressure monitoring system may be disabled in the following
conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies
are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If there is a lot of snow or ice on the vehicle, in particular around the
wheels or wheel housings.
●If non-genuine SUBARU wheels are used. (Even if you use SUBARU
wheels, the tire pressure monitoring system may not work properly
with some types of tires.)
●If tire chains are used.
Page 373 of 488

5
When trouble arises
373
5-2. Steps to take in an emergency
■If the tire pressure warning light frequently comes on after blinking
for approximately one minute (if equipped)
If the tire pressure warning light frequently comes on after blinking for
approximately one minute when the push-button ignition switch is turned
to “ON” mode (vehicles with a keyless access with push button start sys-
tem) or the engine switch is turned to the “ON” position (vehicles without
a keyless access with push button start system), have it checked your
SUBARU dealer.
WARNING
■If the tire pressure warning light comes on (if equipped)
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest SUBARU dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur (vehicles with a tire
pressure monitoring system)
The tire pressure monitoring system may not activate immediately.

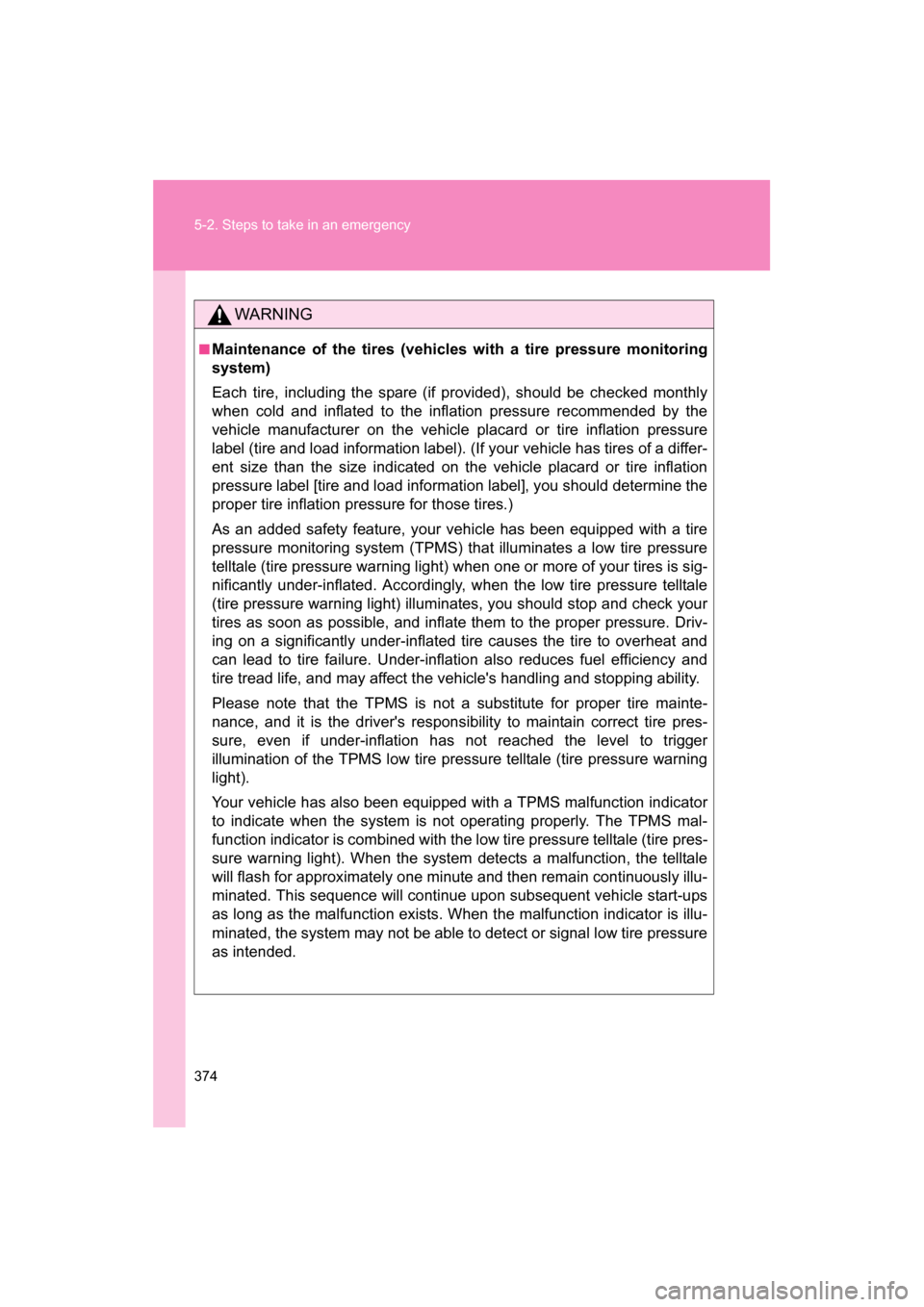

Page 374 of 488

374
5-2. Steps to take in an emergency
WARNING
■Maintenance of the tires (vehicles with a tire pressure monitoring
system)
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a differ-
ent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS) that illuminates a low tire pressure
telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale
(tire pressure warning light) illuminates, you should stop and check your
tires as soon as possible, and inflate them to the proper pressure. Driv-
ing on a significantly under-inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also reduces fuel efficiency an d
tire tread life, and may affect the vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire mainte-
nance, and it is the driver's responsibility to maintain correct tire pres-
sure, even if under-inflation has not reached the level to trigger
illumination of the TPMS low tire pressure telltale (tire pressure warning
light).
Your vehicle has also been equipped with a TPMS malfunction indicator
to indicate when the system is not operating properly. The TPMS mal-
function indicator is combined with the low tire pressure telltale (tire pres-
sure warning light). When the system detects a malfunction, the telltale
will flash for approximately one minute and then remain continuously illu-
minated. This sequence will continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pressure
as intended.

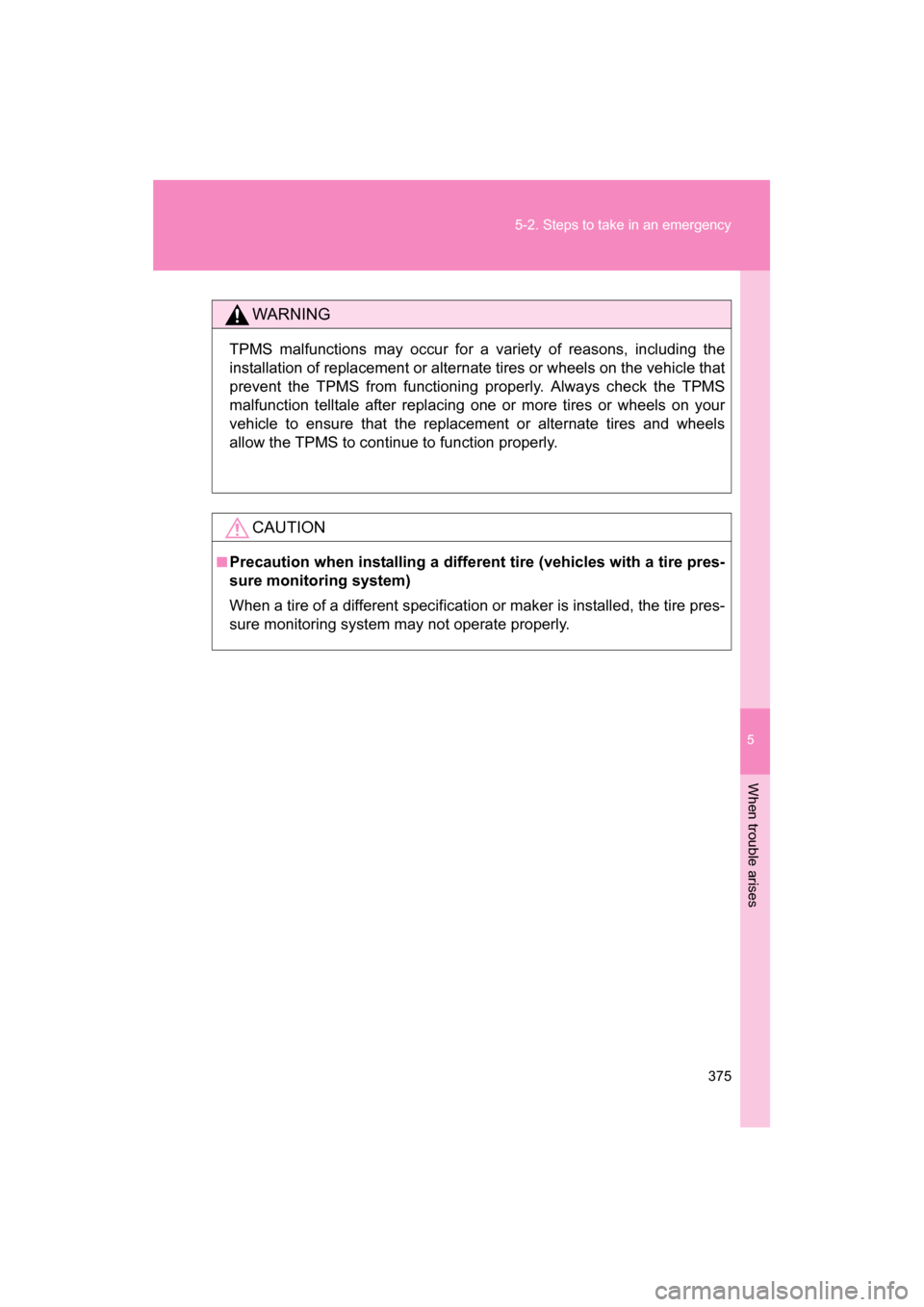

Page 375 of 488

5
When trouble arises
375
5-2. Steps to take in an emergency
WARNING
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly. Always check the TPMS
malfunction telltale after replacing one or more tires or wheels on your
vehicle to ensure that the replacement or alternate tires and wheels
allow the TPMS to continue to function properly.
CAUTION
■Precaution when installing a different tire (vehicles with a tire pres-
sure monitoring system)
When a tire of a different specification or maker is installed, the tire pres-
sure monitoring system may not operate properly.

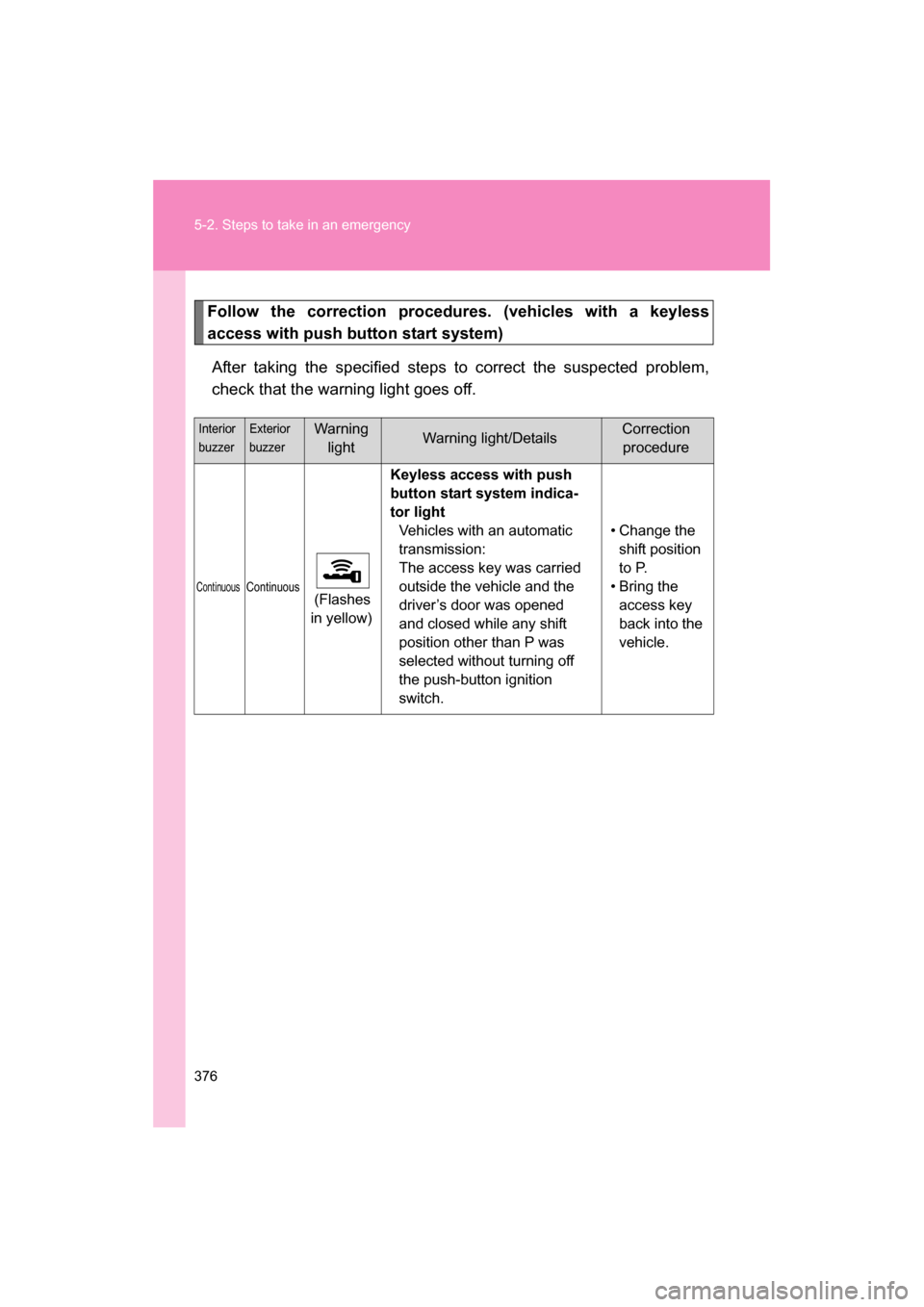

Page 376 of 488

376
5-2. Steps to take in an emergency
Follow the correction procedures. (vehicles with a keyless
access with push button start system)After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Interior
buzzerExterior
buzzerWarning lightWarning light/DetailsCorrection procedure
ContinuousContinuous (Flashes
in yellow) Keyless access with push
button start system indica-
tor light
Vehicles with an automatic
transmission:
The access key was carried
outside the vehicle and the
driver’s door was opened
and closed while any shift
position other than P was
selected without turning off
the push-button ignition
switch.

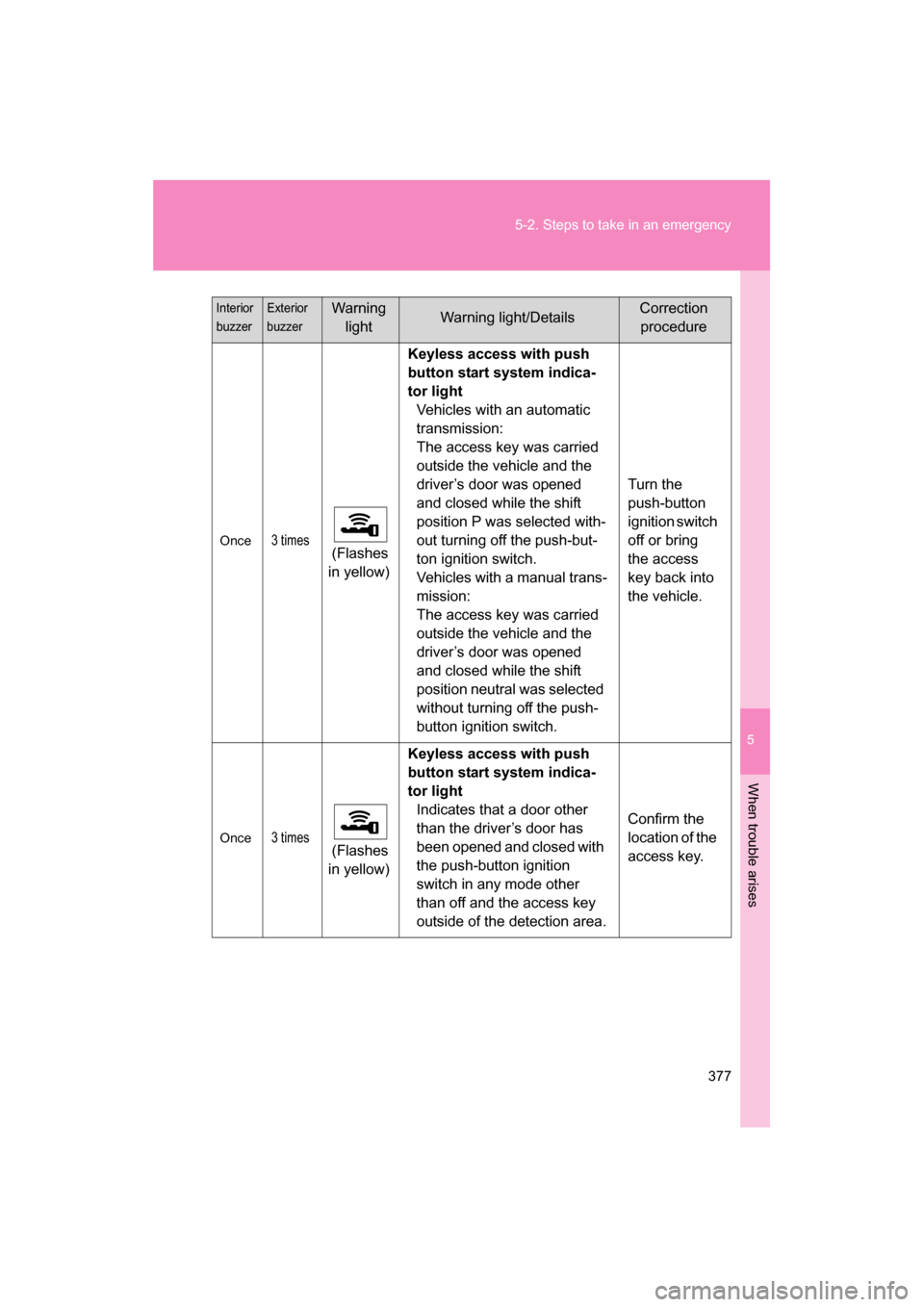

Page 377 of 488

5
When trouble arises
377
5-2. Steps to take in an emergency
Once3 times (Flashes
in yellow) Keyless access with push
button start system indica-
tor light
Vehicles with an automatic
transmission:
The access key was carried
outside the vehicle and the
driver’s door was opened
and closed while the shift
position P was selected with-
out turning off the push-but-
ton ignition switch.
Vehicles with a manual trans-
mission:
The access key was carried
outside the vehicle and the
driver’s door was opened
and closed while the shift
position neutral was selected
without turning off the push-
button ignition switch. Turn the
push-button
ignition switch
off or bring
the access
key back into
the vehicle.
Once
3 times (Flashes
in yellow) Keyless access with push
button start system indica-
tor light
Indicates that a door other
than the driver’s door has
been opened and closed with
the push-button ignition
switch in any mode other
than off and the access key
outside of the detection area. Confirm the
location of the
access key.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection procedure
Page 378 of 488

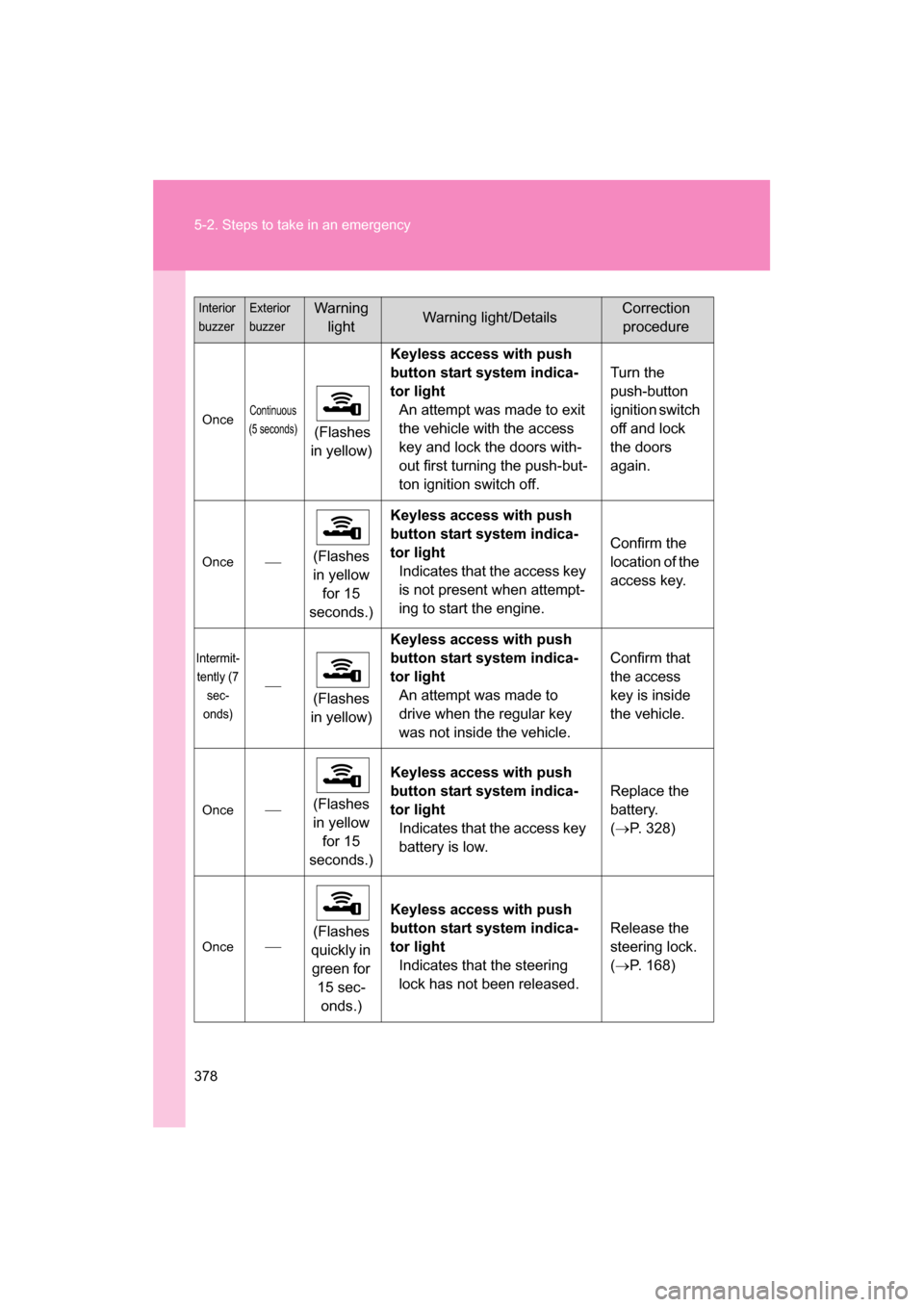

378
5-2. Steps to take in an emergency
OnceContinuous
(5 seconds)
(Flashes
in yellow) Keyless access with push
button start system indica-
tor light
An attempt was made to exit
the vehicle with the access
key and lock the doors with-
out first turning the push-but-
ton ignition switch off. Turn the
push-button
ignition switch
off and lock
the doors
again.
Once (Flashes
in yellow
for 15
seconds.) Keyless access with push
button start system indica-
tor light
Indicates that the access key
is not present when attempt-
ing to start the engine. Confirm the
location of the
access key.
Intermit-
tently (7 sec-
onds)
(Flashes
in yellow) Keyless access with push
button start system indica-
tor light
An attempt was made to
drive when the regular key
was not inside the vehicle. Confirm that
the access
key is inside
the vehicle.
Once (Flashes
in yellow
for 15
seconds.) Keyless access with push
button start system indica-
tor light
Indicates that the access key
battery is low. Replace the
battery. (
→ P. 328)
Once (Flashes
quickly in green for 15 sec-onds.) Keyless access with push
button start system indica-
tor light
Indicates that the steering
lock has not been released. Release the
steering lock. (
→ P. 168)
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection procedure

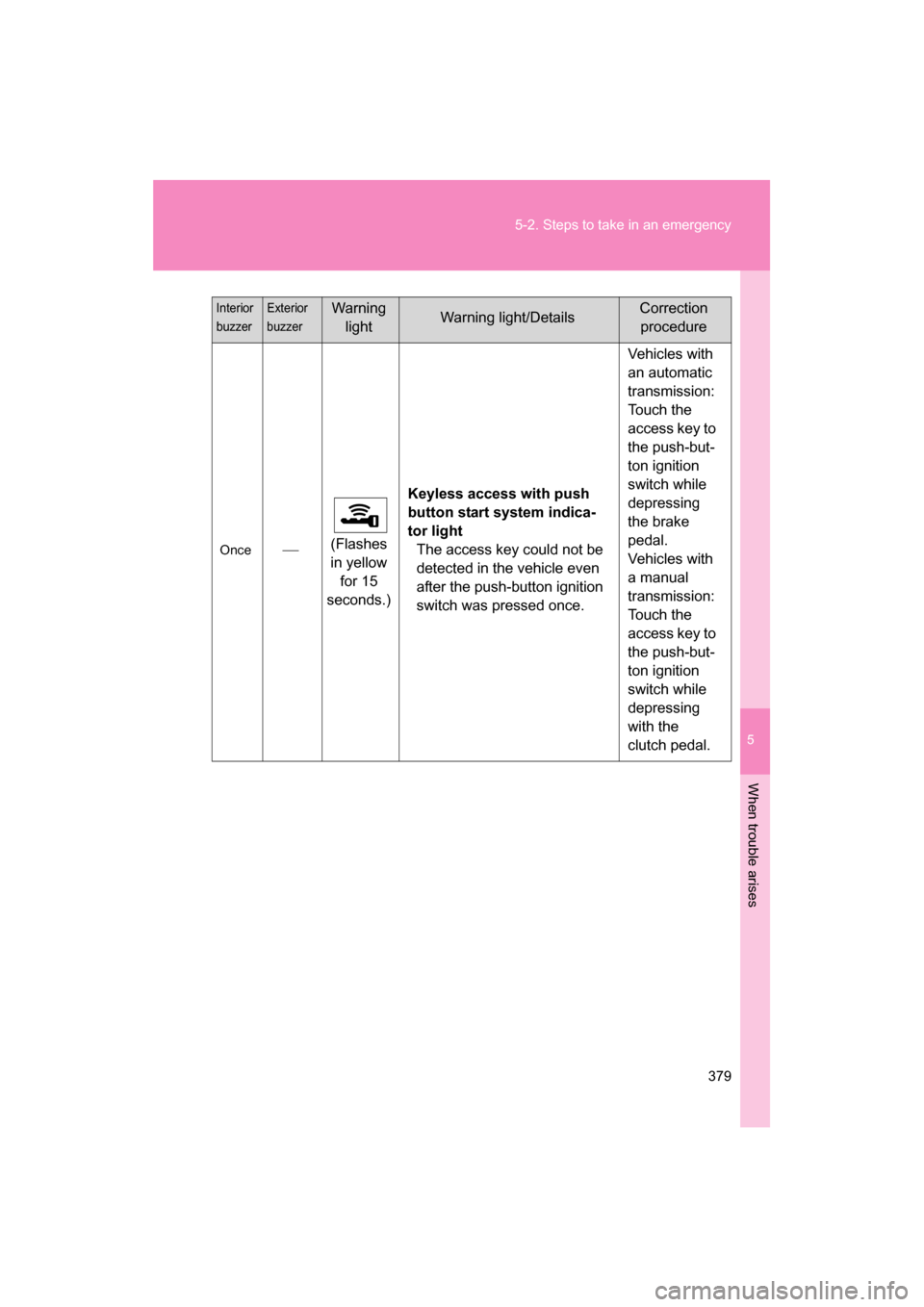

Page 379 of 488

5
When trouble arises
379
5-2. Steps to take in an emergency
Once(Flashes
in yellow
for 15
seconds.) Keyless access with push
button start system indica-
tor light
The access key could not be
detected in the vehicle even
after the push-button ignition
switch was pressed once. Vehicles with
an automatic
transmission:
Touch the
access key to
the push-but-
ton ignition
switch while
depressing
the brake pedal.
Vehicles with a manual
transmission:
Touch the
access key to
the push-but-
ton ignition
switch while
depressing
with the
clutch pedal.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection procedure

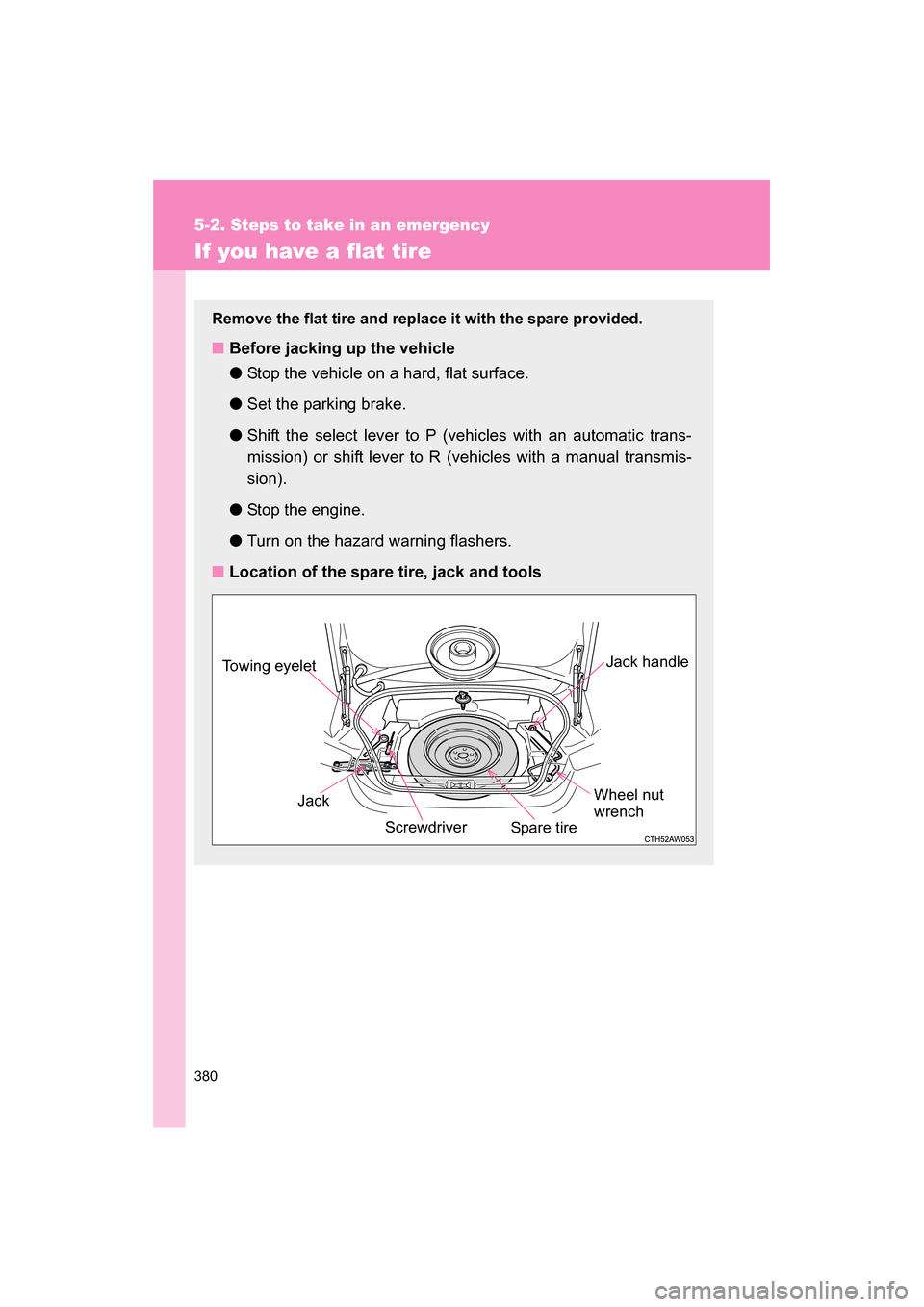

Page 380 of 488

380
5-2. Steps to take in an emergency
If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle ●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the select lever to P (vehicles with an automatic trans-
mission) or shift lever to R (vehicles with a manual transmis-
sion).
● Stop the engine.
● Turn on the hazard warning flashers.
■Location of the spare tire, jack and tools
Jack Jack handle
Spare tire
Towing eyelet
Screwdriver Wheel nut
wrench
