SUBARU BRZ 2017 1.G Navigation Manual

Introduction 29
Before Use

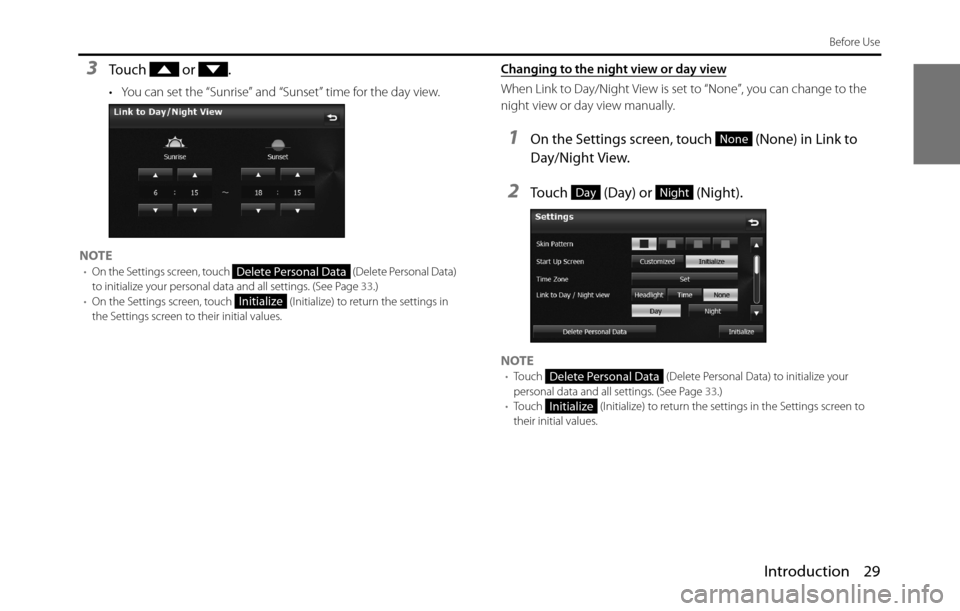

3Touch or .
• You can set the “Sunrise” and “Sunset” time for the day view.
NOTE
•On the Settings screen, touch (Delete Personal Data)
to initialize your personal data and all settings. (See Page 33.)
•On the Settings screen, touch (Initialize) to return the settings in
the Settings screen to their initial values.
Changing to the night view or day view
When Link to Day/Night View is set to “None”, you can change to the
night view or day view manually.
1On the Settings screen, touch (None) in Link to
Day/Night View.
2Touch (Day) or (Night).
NOTE•Touch (Delete Personal Data) to initialize your
personal data and all settings. (See Page 33.)
•Touch (Initialize) to return the settings in the Settings screen to
their initial values.
Delete Personal Data
Initialize
None
DayNight
Delete Personal Data
Initialize

30 Introduction
Before Use

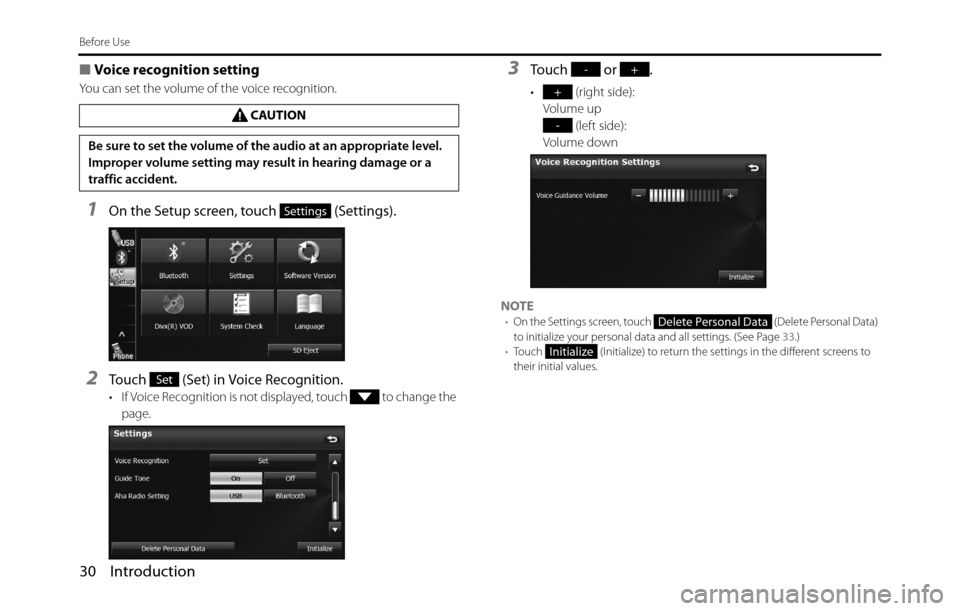

■Voice recognition setting
You can set the volume of the voice recognition.
1On the Setup screen, touch (Settings).
2Touch (Set) in Voice Recognition.
• If Voice Recognition is not displayed, touch to change the
page.
3Touch or .
• (right side):
Volume up
(left side):
Volume down
NOTE
•On the Settings screen, touch (Delete Personal Data)
to initialize your personal data and all settings. (See Page 33.)
•Touch (Initialize) to return the settings in the different screens to
their initial values.
CAUTION
Be sure to set the volume of the audio at an appropriate level.
Improper volume setting may result in hearing damage or a
traffic accident.
Settings
Set
-+
+
-
Delete Personal Data
Initialize

Introduction 31
Before Use

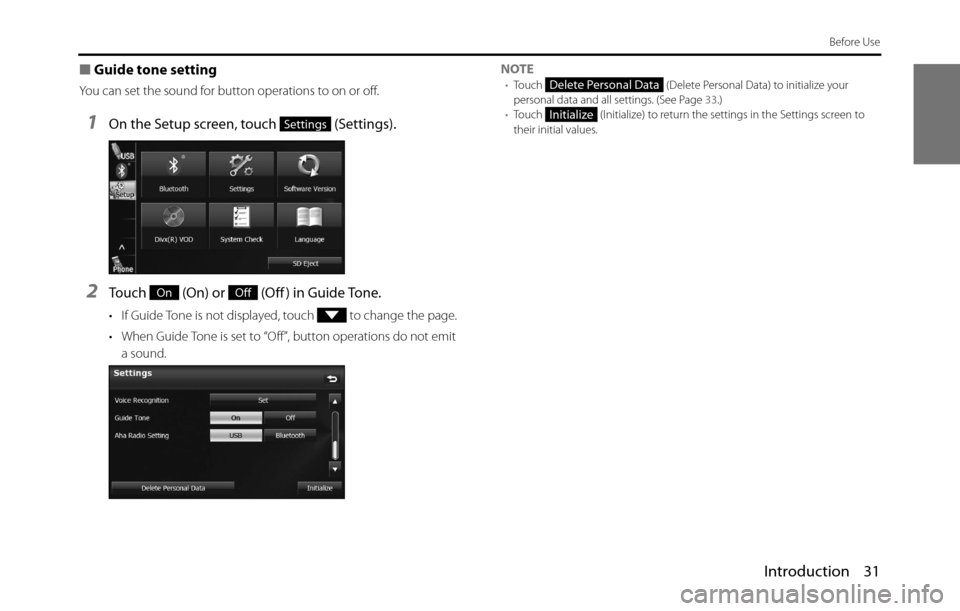

■Guide tone setting
You can set the sound for button operations to on or off.
1On the Setup screen, touch (Settings).
2Touch (On) or (Off ) in Guide Tone.
• If Guide Tone is not displayed, touch to change the page.
• When Guide Tone is set to “Off”, button operations do not emit
a sound.NOTE
•Touch (Delete Personal Data) to initialize your
personal data and all settings. (See Page 33.)
•Touch (Initialize) to return the settings in the Settings screen to
their initial values.
Settings
OnOff
Delete Personal Data
Initialize

32 Introduction
Before Use
■Aha Setting
You can check whether the smartphones with the Aha application
installed are connected. When iPhone and iPod touch and Android
devices are connected at the same time, you can select the smartphone
to use Aha in the Aha Radio Setting.
1On the Setup screen, touch (Settings).
2Touch or in Aha Radio Setting.
• J iPhone and iPod touch
J Android device
• If Aha Radio Setting is not displayed, touch to change the
page.NOTE
•When iPhone and iPod touch and Android devices are connected at the same
time, select the smartphone which you want to use on this Settings screen.
•When the Aha application is installed on the smartphone, the Aha icon
becomes brighter.
•Touch (Delete Personal Data) to initialize your
personal data and all settings. (See Page 33.)
•When Aha Radio Setting is set to “Bluetooth”, you need to register an Android
device with the Aha application installed.
For details on registering a Bluetooth device, see “Using Bluetooth Audio” on
Page 255.
-When the Android device with the Aha application installed is registered,
the following icon is displayed on the Registered Devices List screen.

Settings
USBBluetooth
USB
Bluetooth
Delete Personal Data
“Aha” icon

Introduction 33
Before Use
■Deleting Personal Data
You can delete the data items that you registered and return them to
their factory default values.
Deleted personal data items
Deleting personal data
1Press .
2To u c h .
• If is not displayed, touch .
3Touch (Settings).
Item Deleted data
Navigation • Navigation settings
• Map display setting
• Route learning function
• Indication setting of facilities
• Current position
Settings • Guide tone setting
• Skin pattern setting, Opening screen setting
(including data registered in “Customized”)
• Screen settings
• Link to Day/Night View setting
• Voice recognition setting (including song data
and phone book data)
General audio • Volume setting
• Sound quality setting
• Screen setting
Radio • AM/FM/XM preset channels
• Parental Lock setting
Bluetooth audio • Bluetooth audio registered data
• Settings and edited items related to Bluetooth
audio
Handsfree • Phone book data
• Outgoing call history and incoming call history
• Speed Dial data
• Bluetooth phone registered data
• Unread messages and read messages
• Reply Messages list
• Settings and edited items related to handsfree
messages Item Deleted data
Setup
Setup
Settings

34 Introduction
Before Use

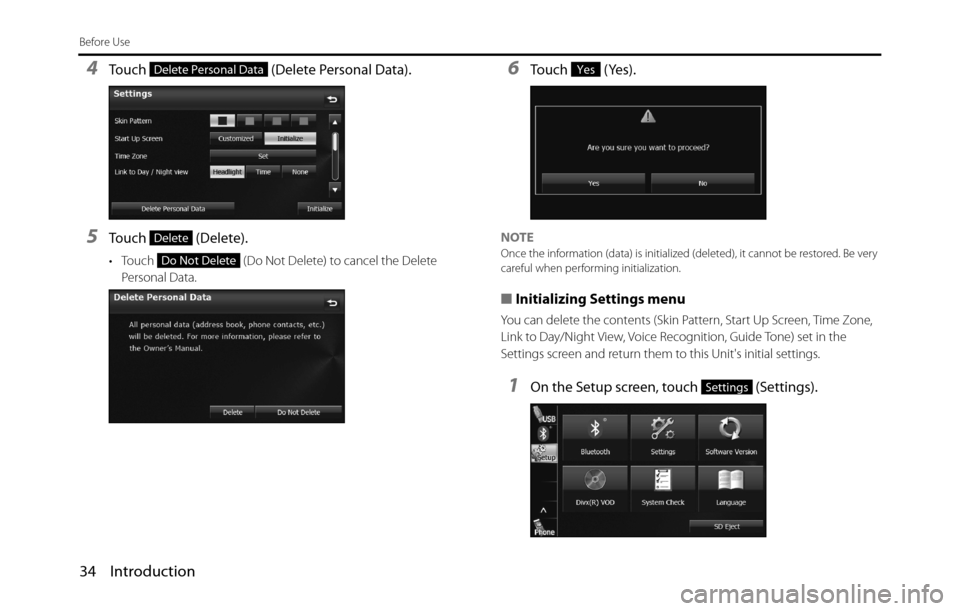

4Touch (Delete Personal Data).
5Touch (Delete).
• Touch (Do Not Delete) to cancel the Delete
Personal Data.
6Touch (Yes).
NOTEOnce the information (data) is initialized (deleted), it cannot be restored. Be very
careful when performing initialization.
■Initializing Settings menu
You can delete the contents (Skin Pattern, Start Up Screen, Time Zone,
Link to Day/Night View, Voice Recognition, Guide Tone) set in the
Settings screen and return them to this Unit's initial settings.
1On the Setup screen, touch (Settings).
Delete Personal Data
Delete
Do Not Delete
Yes
Settings

Introduction 35
Before Use
2Touch (Initialize).
3Touch (Yes).■Language setting
You can change the navigation and audio display language, and the
voice recognition language.
1On the Setup screen, touch (Language).
2Touch the language that you want to use.
Initialize
Yes
Language

36 Introduction
Before Use

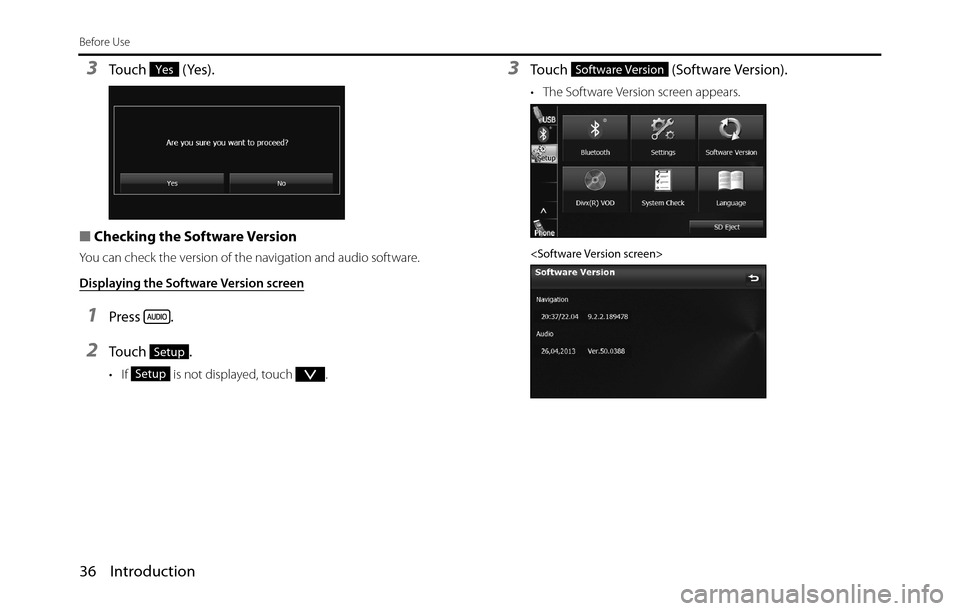

3Touch (Yes).
■Checking the Software Version
You can check the version of the navigation and audio software.
Displaying the Software Version screen
1Press .
2To u c h .
• If is not displayed, touch .
3Touch (Software Version).
• The Software Version screen appears.

Yes
Setup
Setup
Software Version

Introduction 37
Before Use

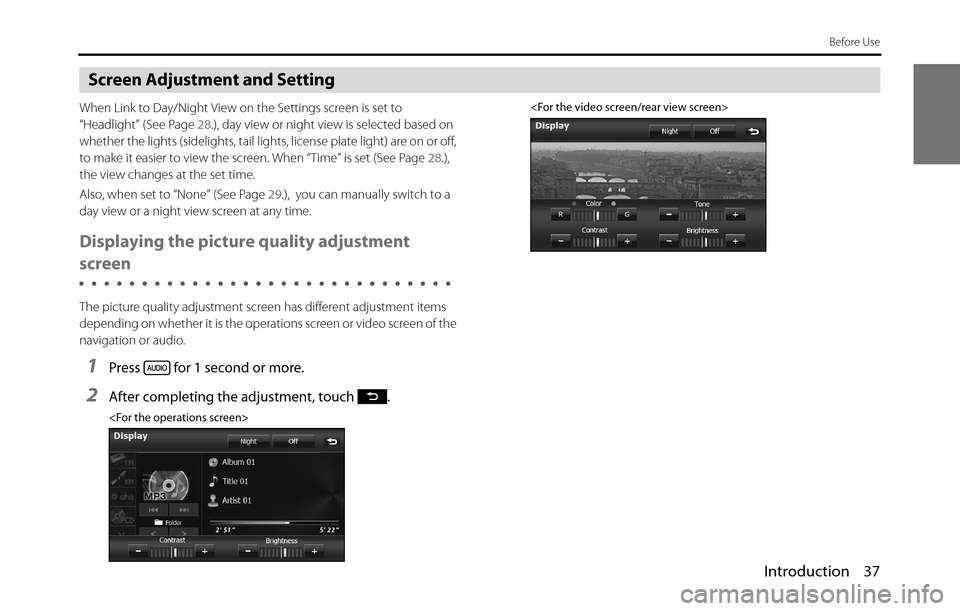

Screen Adjustment and Setting
When Link to Day/Night View on the Settings screen is set to
“Headlight” (See Page 28.), day view or night view is selected based on
whether the lights (sidelights, tail lights, license plate light) are on or off,
to make it easier to view the screen. When “Time” is set (See Page 28.),
the view changes at the set time.
Also, when set to “None” (See Page 29.), you can manually switch to a
day view or a night view screen at any time.
Displaying the picture quality adjustment
screen
The picture quality adjustment screen has different adjustment items
depending on whether it is the operations screen or video screen of the
navigation or audio.
1Press for 1 second or more.
2After completing the adjustment, touch .

38 Introduction
Before Use

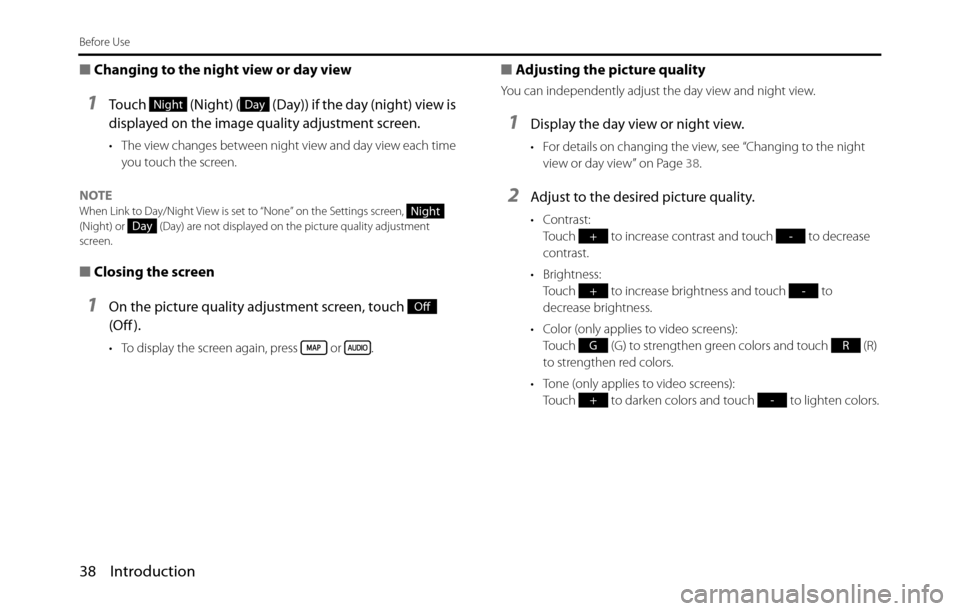

■Changing to the night view or day view
1Touch (Night) ( (Day)) if the day (night) view is
displayed on the image quality adjustment screen.
• The view changes between night view and day view each time
you touch the screen.
NOTE
When Link to Day/Night View is set to “None” on the Settings screen,
(Night) or (Day) are not displayed on the picture quality adjustment
screen.
■Closing the screen
1On the picture quality adjustment screen, touch
(Off ).
• To display the screen again, press or .
■Adjusting the picture quality
You can independently adjust the day view and night view.
1Display the day view or night view.
• For details on changing the view, see “Changing to the night
view or day view” on Page
38.
2Adjust to the desired picture quality.
• Contrast:
Touch to increase contrast and touch to decrease
contrast.
• Brightness:
Touch to increase brightness and touch to
decrease brightness.
• Color (only applies to video screens):
Touch (G) to strengthen green colors and touch (R)
to strengthen red colors.
• Tone (only applies to video screens):
Touch to darken colors and touch to lighten colors.
NightDay
NightDay
Off
+-
+-
GR
+-
