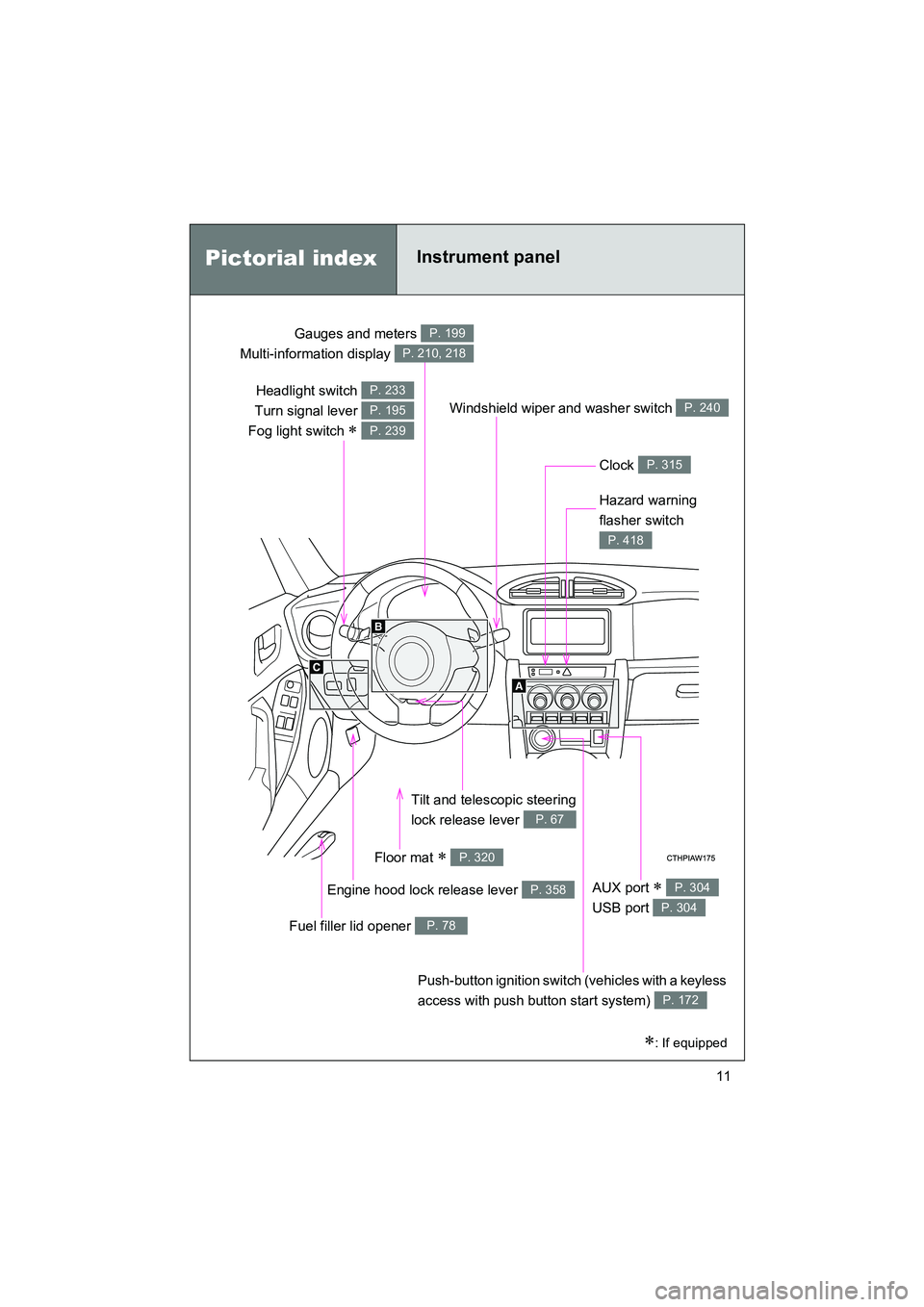

Page 11 of 568

BRZ_U (A4450BE-A)
11
Headlight switch
Turn signal lever
Fog light switch
∗
P. 233
P. 195
P. 239
Gauges and meters
Multi-information display P. 199
P. 210, 218
Clock P. 315
Windshield wiper and washer switch P. 240
Hazard warning
flasher switch
P. 418
Tilt and telescopic steering
lock release lever
P. 67
Floor mat ∗ P. 320
Engine hood lock release lever P. 358
Fuel filler lid opener P. 78
Push-button ignition switch (vehicles with a keyless
access with push button start system)
P. 172
AUX port ∗
USB port P. 304
P. 304
Pictorial indexInstrument panel
∗: If equipped

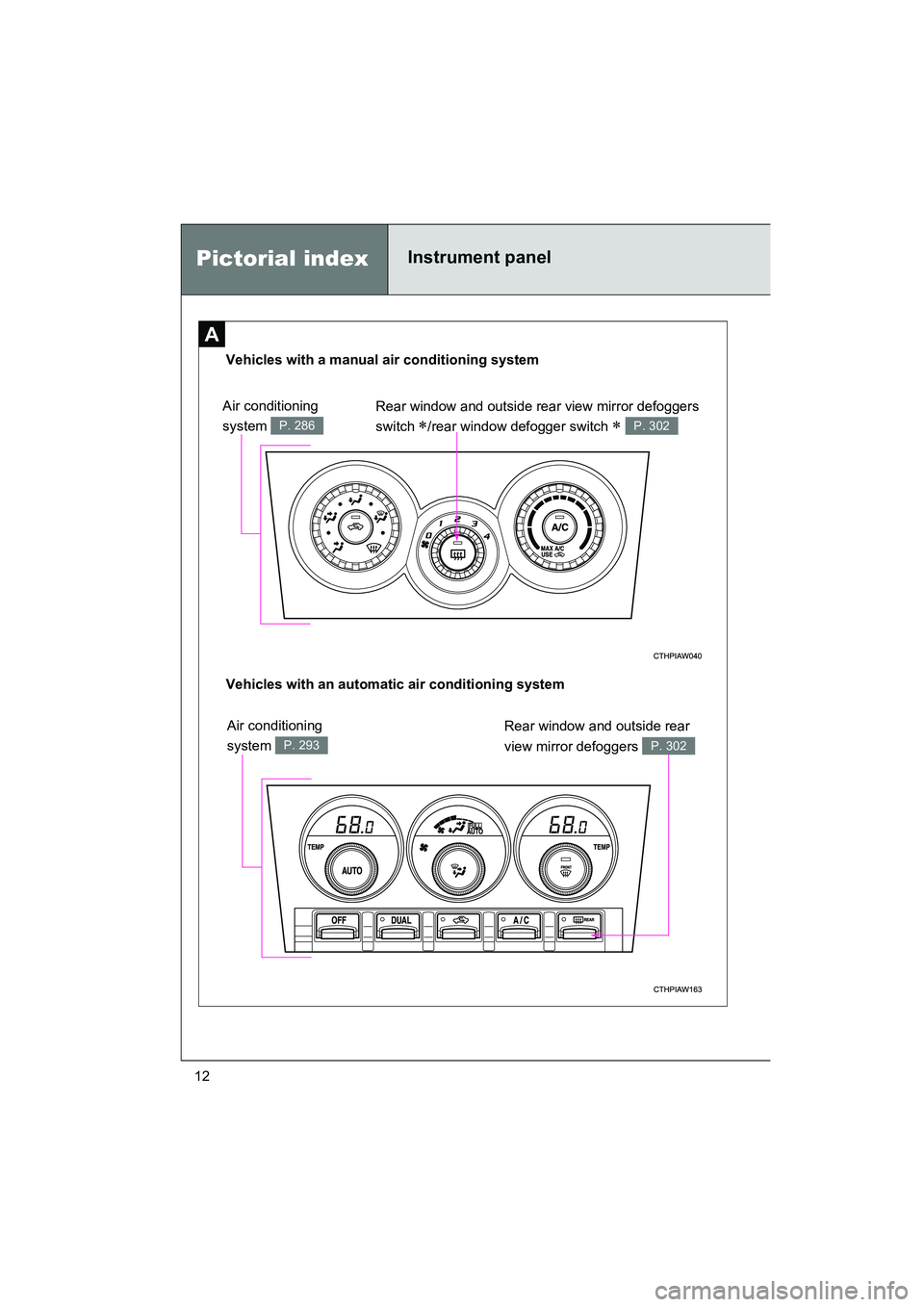

Page 12 of 568

12
BRZ_U (A4450BE-A)
A
Vehicles with a manual air conditioning system
Air conditioning
system
P. 286
Vehicles with an automatic air conditioning system
Rear window and outside rear
view mirror defoggers
P. 302
Air conditioning
system
P. 293
Rear window and outside rear view mirror defoggers
switch
∗/rear window defogger switch ∗ P. 302
Pictorial indexInstrument panel

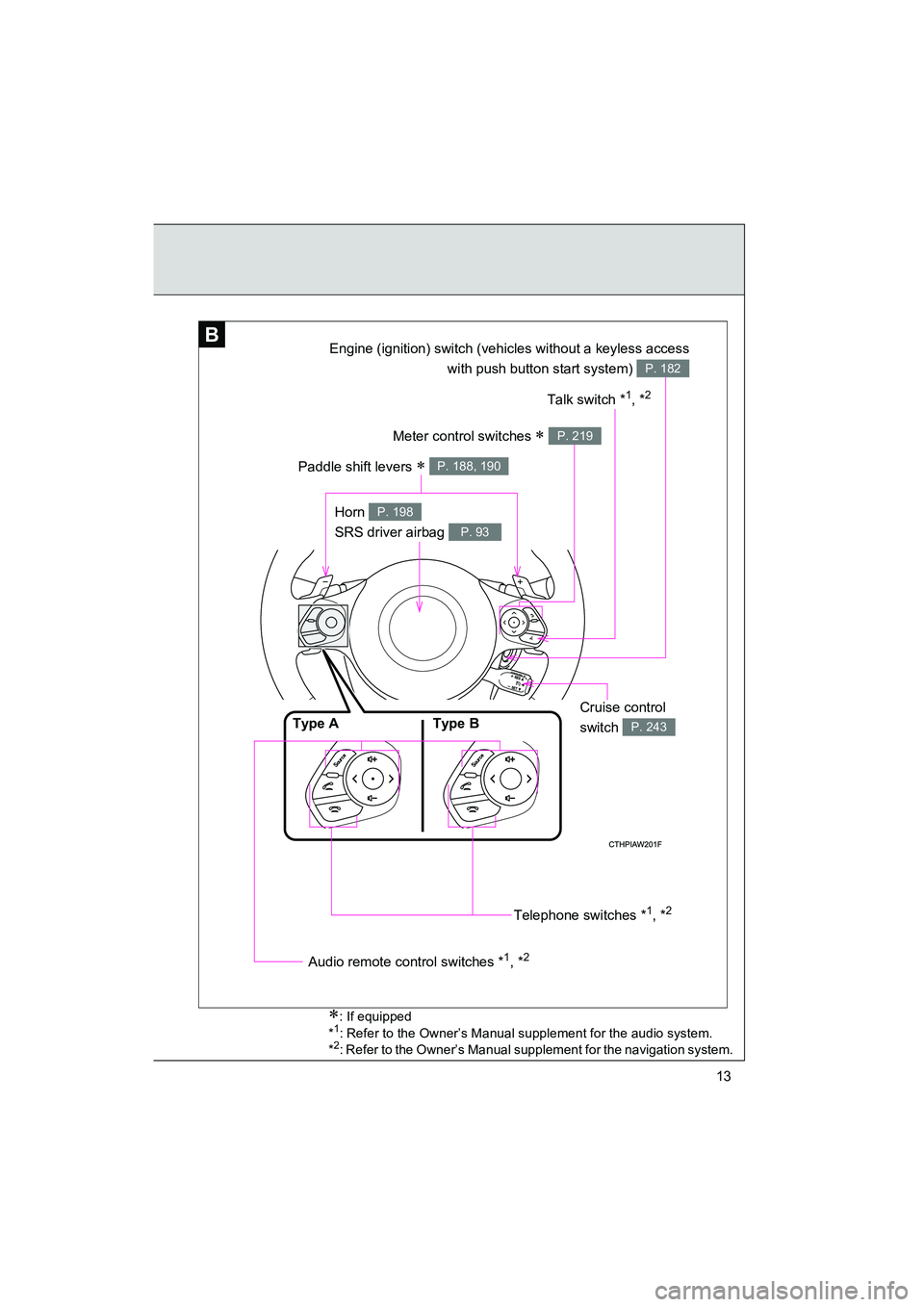

Page 13 of 568

BRZ_U (A4450BE-A)
13
B
Paddle shift levers ∗ P. 188, 190
Cruise control
switch
P. 243
Horn
SRS driver airbag P. 198
P. 93
∗: If equipped
*1: Refer to the Owner’s Manual supplement for the audio system.
*2: Refer to the Owner’s Manual supplement for the navigation system.
Talk switch *1, *2
Type A Type B
Audio remote control switches *
1, *2
Telephone switches *1, *2
Meter control switches ∗ P. 219
Engine (ignition) switch (vehicles without a keyless access with push button start system)
P. 182

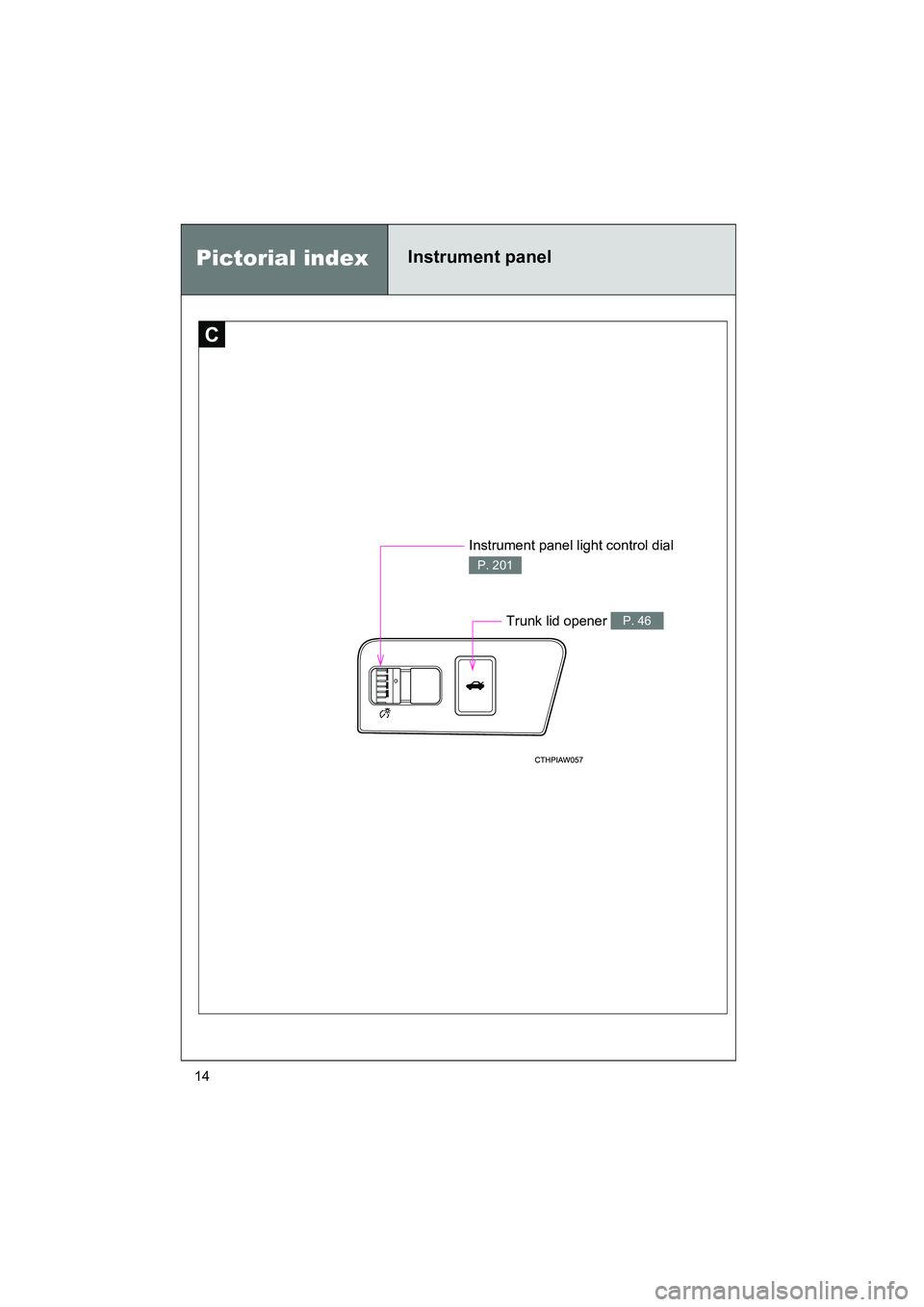

Page 14 of 568

BRZ_U (A4450BE-A)
14
C
Instrument panel light control dial
P. 201
Trunk lid opener P. 46
Pictorial indexInstrument panel

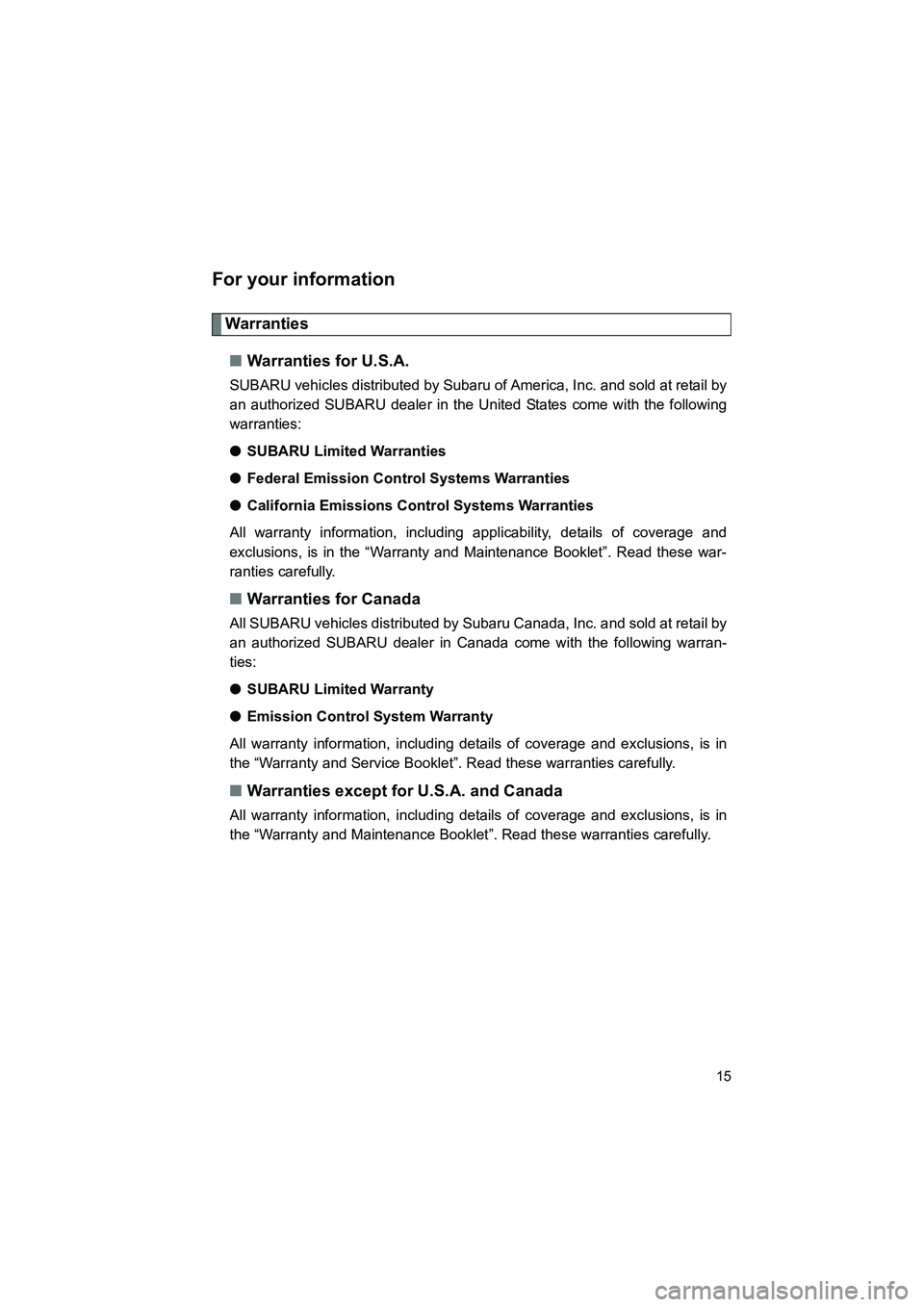

Page 15 of 568

BRZ_U (A4450BE-A)
15
For your information
Warranties■ Warranties for U.S.A.
SUBARU vehicles distributed by Subaru of America, Inc. and sold at retail by
an authorized SUBARU dealer in the United States come with the following
warranties:
● SUBARU Limited Warranties
● Federal Emission Cont rol Systems Warranties
● California Emissions Control Systems Warranties
All warranty information, including applicability, details of coverage and
exclusions, is in the “Warranty and Maintenance Booklet”. Read these war-
ranties carefully.
■ Warranties for Canada
All SUBARU vehicles distributed by Subaru Canada, Inc. and sold at retail by
an authorized SUBARU dealer in Canada come with the following warran-
ties:
● SUBARU Limited Warranty
● Emission Control System Warranty
All warranty information, including details of coverage and exclusions, is in
the “Warranty and Service Booklet”. Read these warranties carefully.
■ Warranties except for U.S.A. and Canada
All warranty information, including details of coverage and exclusions, is in
the “Warranty and Maintenance Booklet”. Read these warranties carefully.

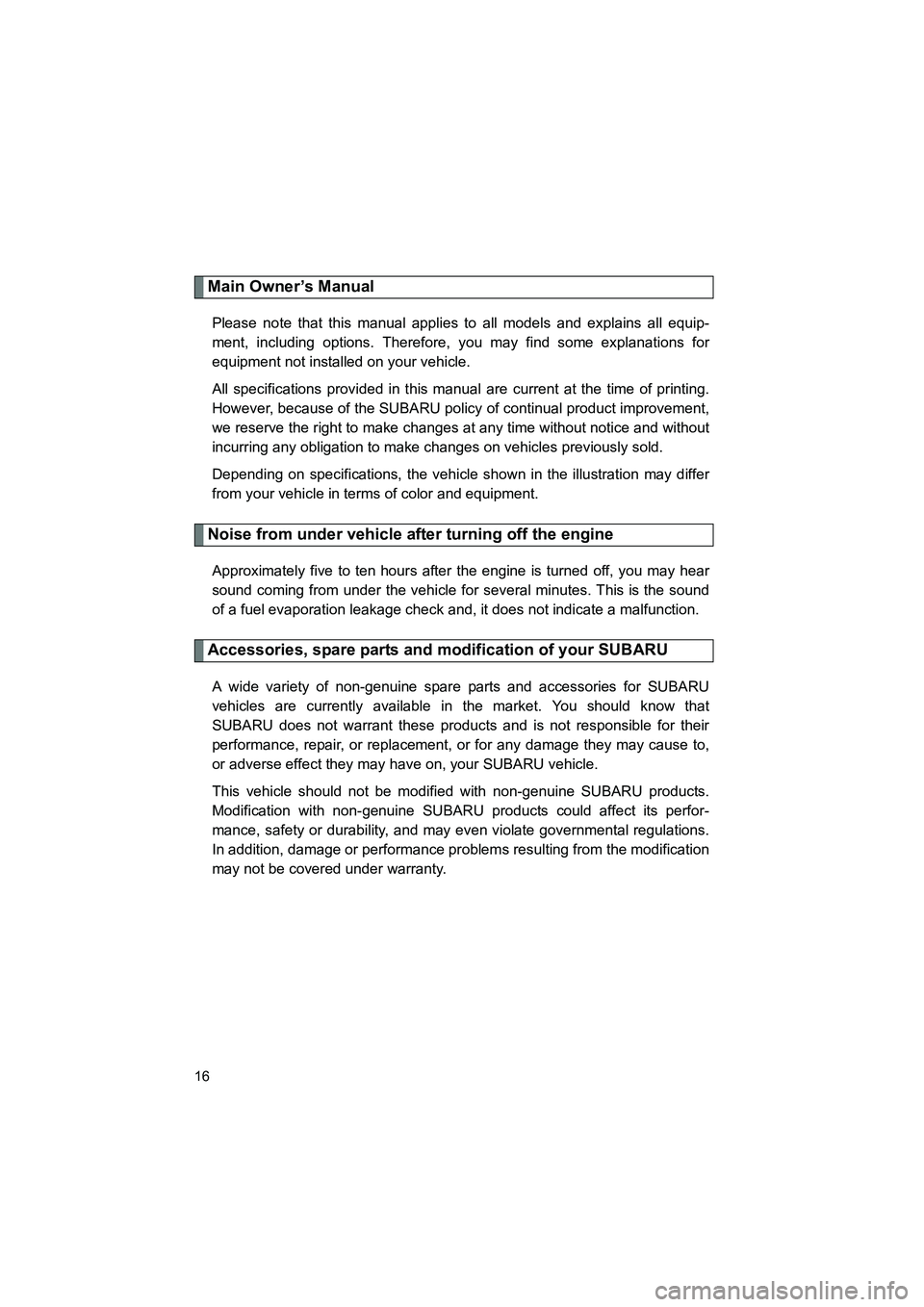

Page 16 of 568

BRZ_U (A4450BE-A)
16
Main Owner’s Manual
Please note that this manual applies to all models and explains all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the SUBARU policy of continual product improvement,
we reserve the right to make changes at any time without notice and without
incurring any obligation to make changes on vehicles previously sold.
Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of color and equipment.
Noise from under vehicle after turning off the engine
Approximately five to ten hours after the engine is turned off, you may hear
sound coming from under the vehicle for several minutes. This is the sound
of a fuel evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your SUBARU
A wide variety of non-genuine spare parts and accessories for SUBARU
vehicles are currently available in the market. You should know that
SUBARU does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your SUBARU vehicle.
This vehicle should not be modified with non-genuine SUBARU products.
Modification with non-genuine SUBARU products could affect its perfor-
mance, safety or durability, and may even violate governmental regulations.
In addition, damage or performance problem s resulting from the modification
may not be covered under warranty.

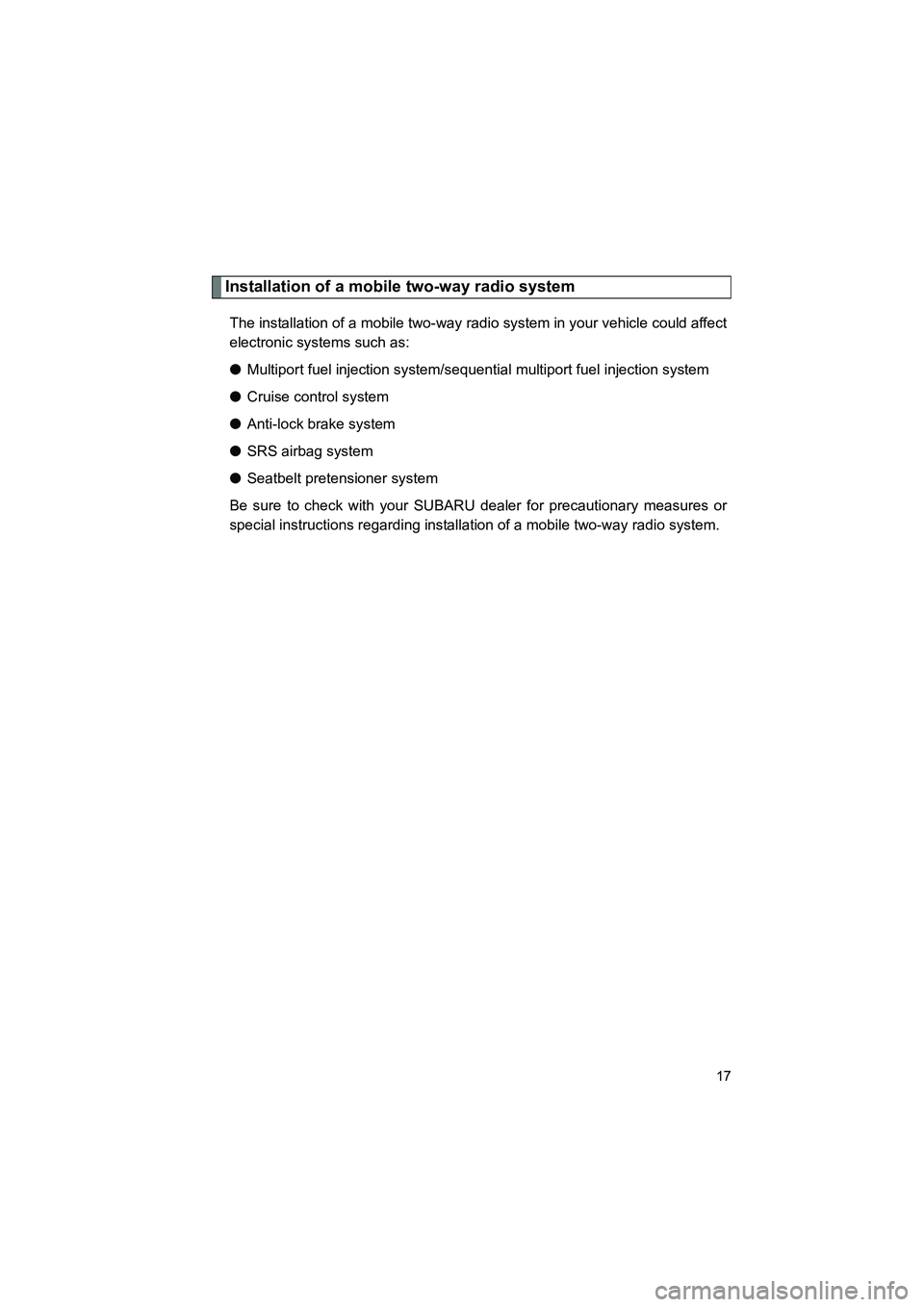

Page 17 of 568

BRZ_U (A4450BE-A)
17
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seatbelt pretensioner system
Be sure to check with your SUBARU dealer for precautionary measures or
special instructions regarding installation of a mobile two-way radio system.

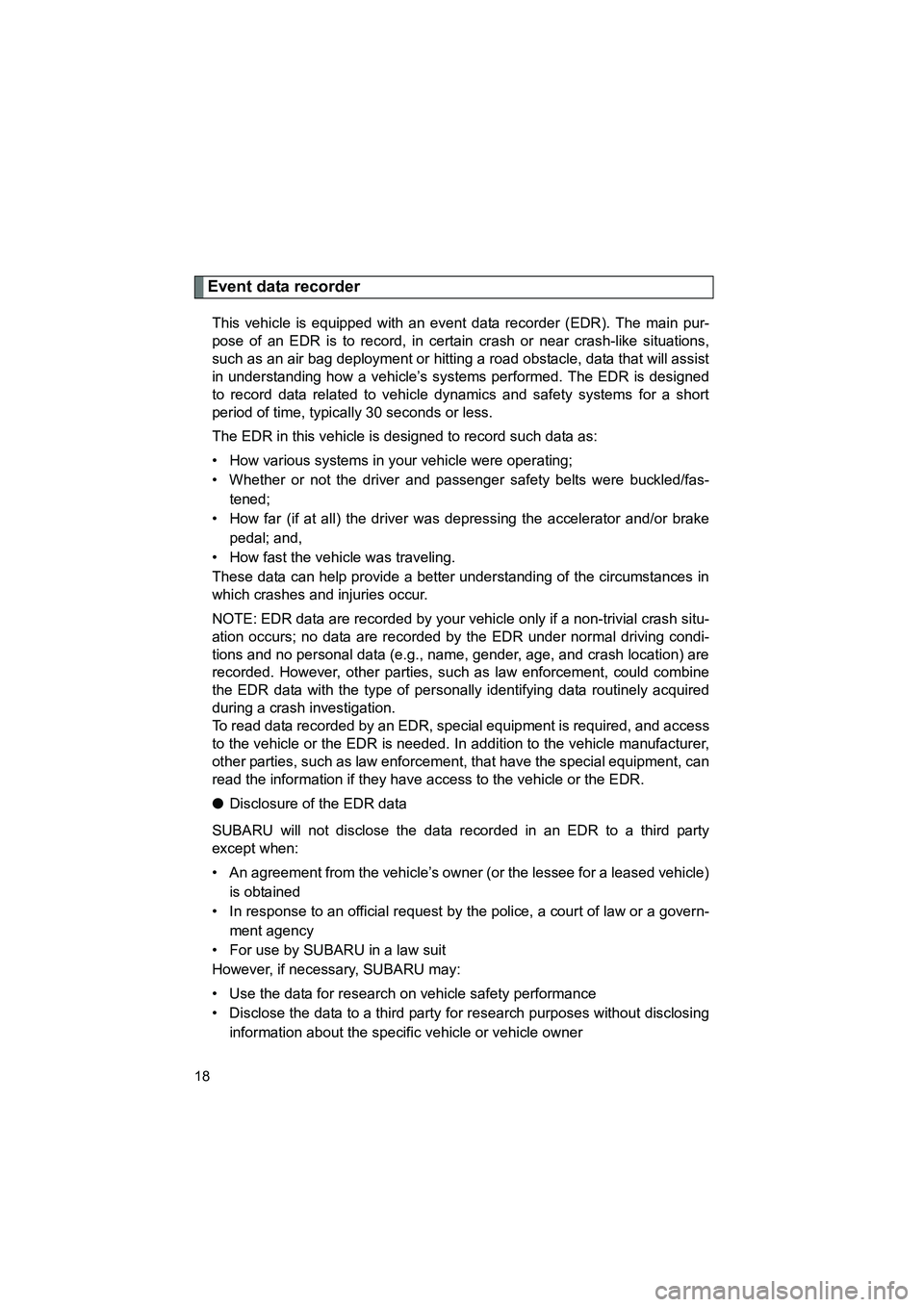

Page 18 of 568

BRZ_U (A4450BE-A)
18
Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed
to record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-
tened;
• How far (if at all) the driver was depressing the accelerator and/or brake
pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ-
ation occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
● Disclosure of the EDR data
SUBARU will not disclose the data recorded in an EDR to a third party
except when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained
• In response to an official request by the police, a court of law or a govern- ment agency
• For use by SUBARU in a law suit
However, if necessary, SUBARU may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing information about the specific vehicle or vehicle owner

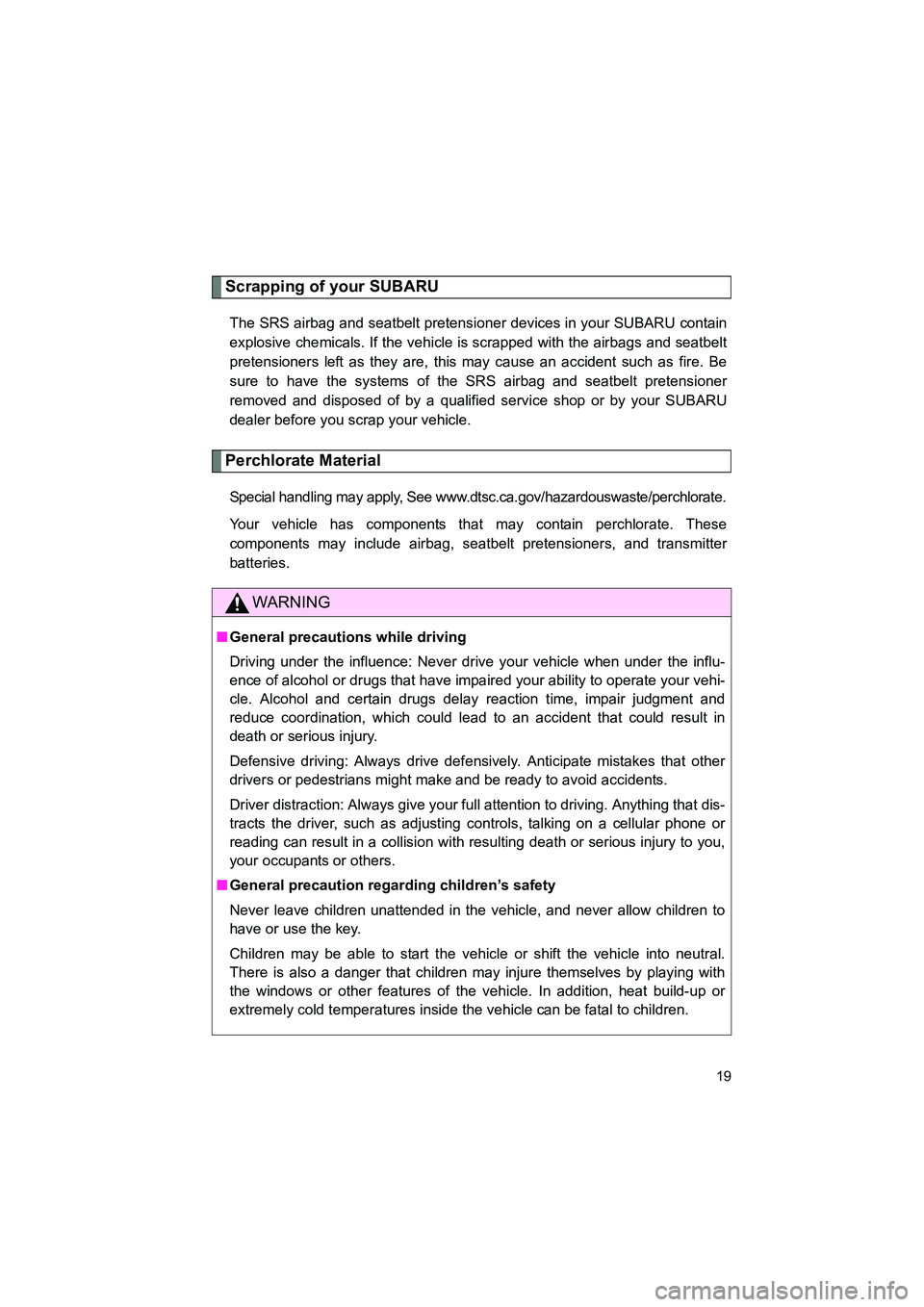

Page 19 of 568

BRZ_U (A4450BE-A)
19
Scrapping of your SUBARU
The SRS airbag and seatbelt pretensioner devices in your SUBARU contain
explosive chemicals. If the vehicle is scrapped with the airbags and seatbelt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seatbelt pretensioner
removed and disposed of by a qualified service shop or by your SUBARU
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These
components may include airbag, seatbelt pretensioners, and transmitter
batteries.
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impa ired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

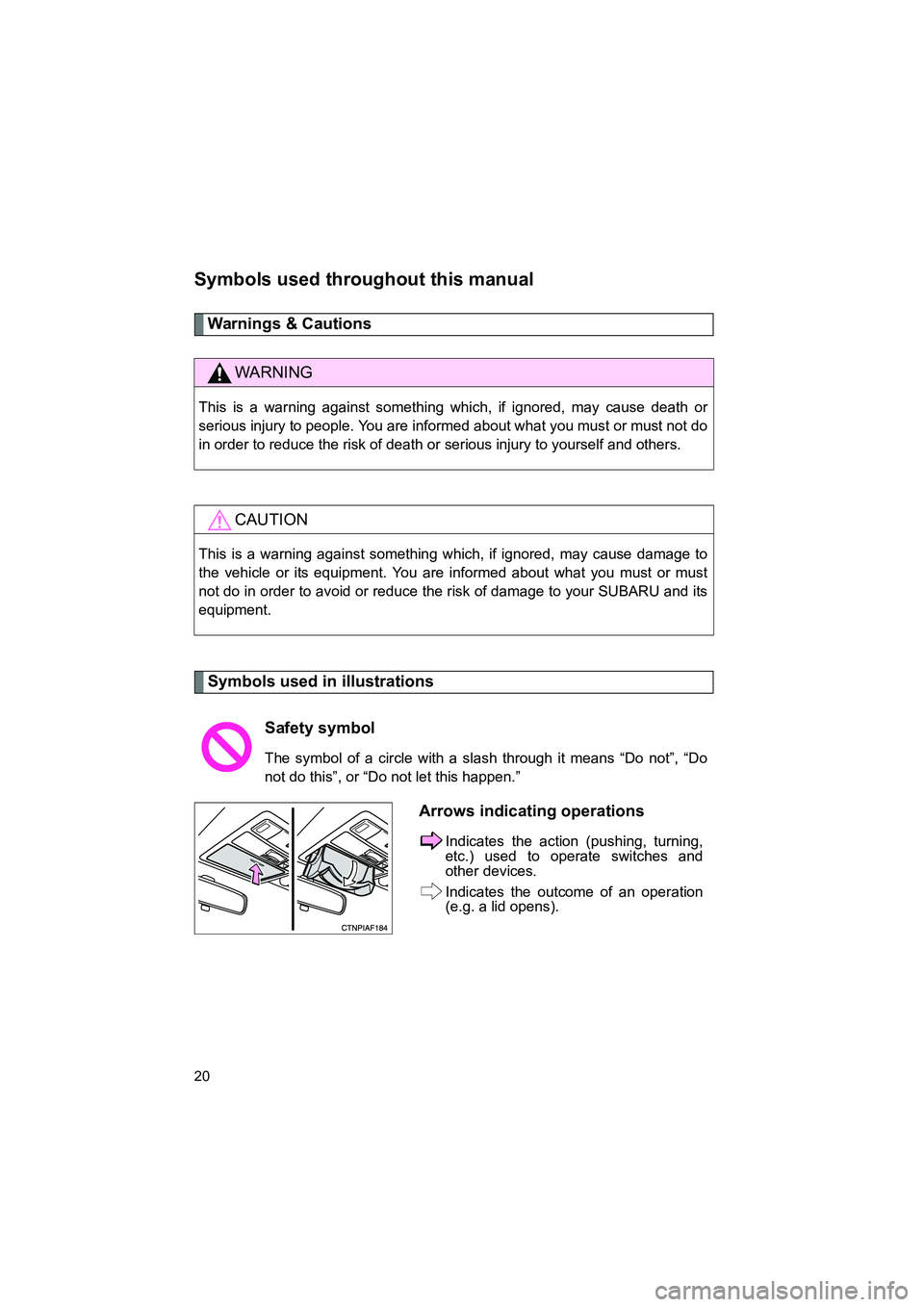

Page 20 of 568

BRZ_U (A4450BE-A)
20
Symbols used throughout this manual
Warnings & Cautions
Symbols used in illustrations
WARNING
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
CAUTION
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your SUBARU and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen.”
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and
other devices.
Indicates the outcome of an operation
(e.g. a lid opens).
