SUBARU BRZ 2018 Owner's Manual

Before driving1
21
BRZ_U (A4450BE-A)

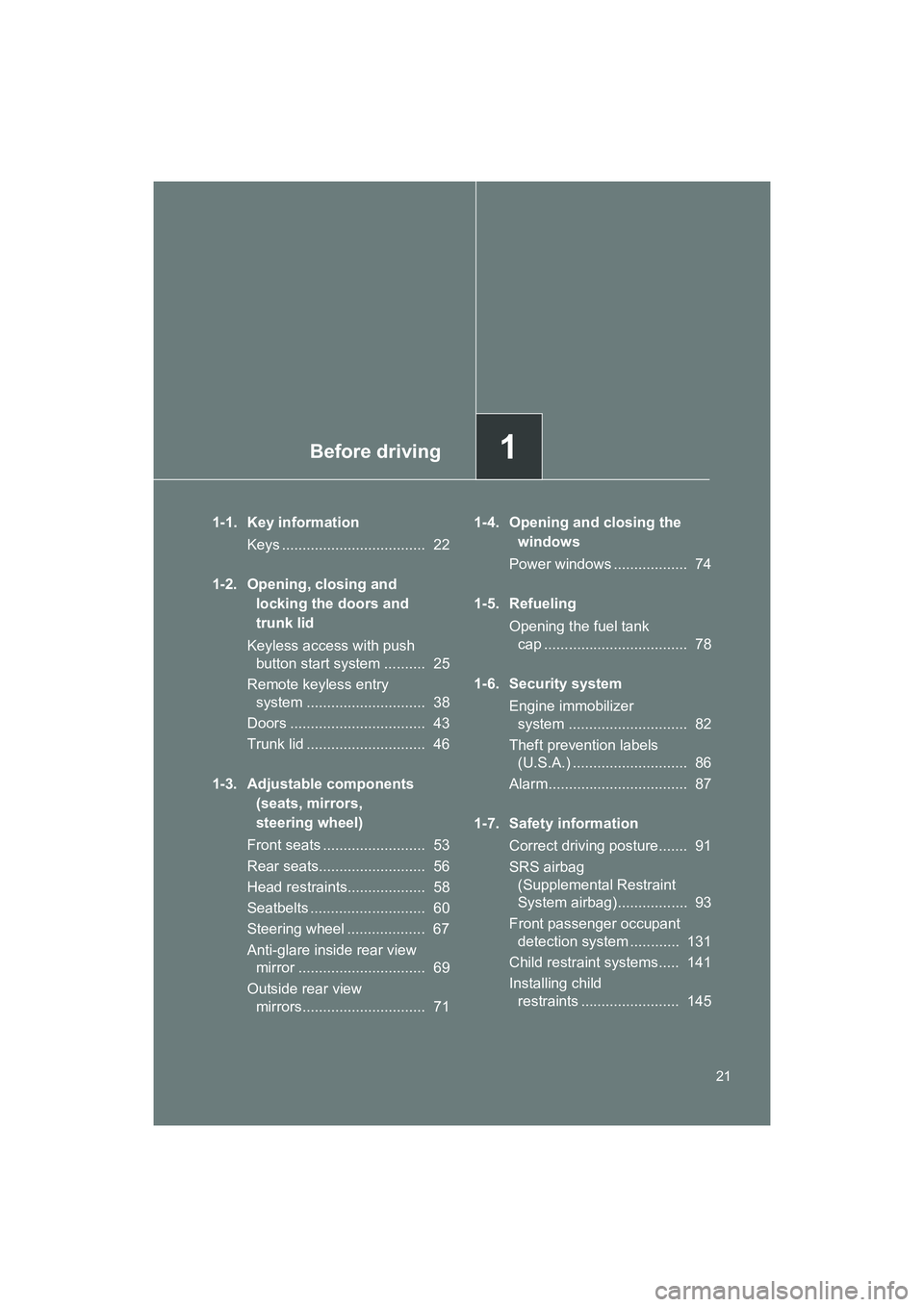

1-1. Key informationKeys ................................... 22
1-2. Opening, closing and locking the doors and
trunk lid
Keyless access with push button start system .......... 25
Remote keyless entry system ............................. 38
Doors ................................. 43
Trunk lid ............................. 46
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 53
Rear seats.......................... 56
Head restraints................... 58
Seatbelts ............................ 60
Steering wheel ................... 67
Anti-glare inside rear view mirror ............................... 69
Outside rear view mirrors.............................. 71 1-4. Opening and closing the
windows
Power windows .................. 74
1-5. Refueling Opening the fuel tank cap ................................... 78
1-6. Security system Engine immobilizer system ............................. 82
Theft prevention labels (U.S.A.) ............................ 86
Alarm.................................. 87
1-7. Safety information Correct driving posture....... 91
SRS airbag (Supplemental Restraint
System airbag) ................. 93
Front passenger occupant detection system ............ 131
Child restraint systems..... 141
Installing child restraints ........................ 145

22
BRZ_U (A4450BE-A)
1-1. Key information

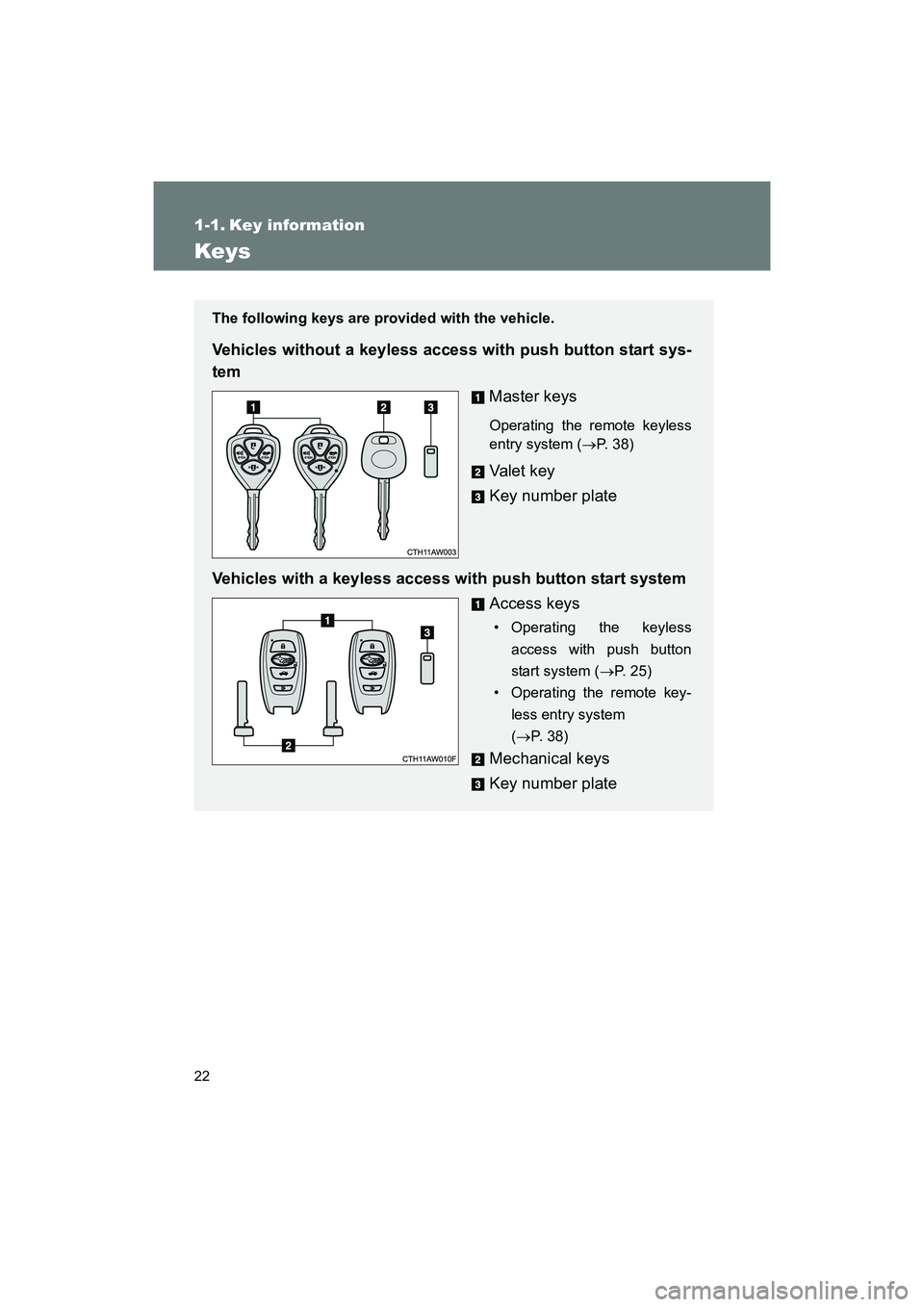

Keys
The following keys are provided with the vehicle.
Vehicles without a keyless access with push button start sys-
temMaster keys
Operating the remote keyless
entry system (→P. 38)
Va l e t k e y
Key number plate
Vehicles with a keyless access with push button start system Access keys
• Operating the keylessaccess with push button
start system ( →P. 25)
• Operating the remote key-
less entry system
(→ P. 3 8 )
Mechanical keys
Key number plate

23
1-1. Key information
1
Before driving
BRZ_U (A4450BE-A)

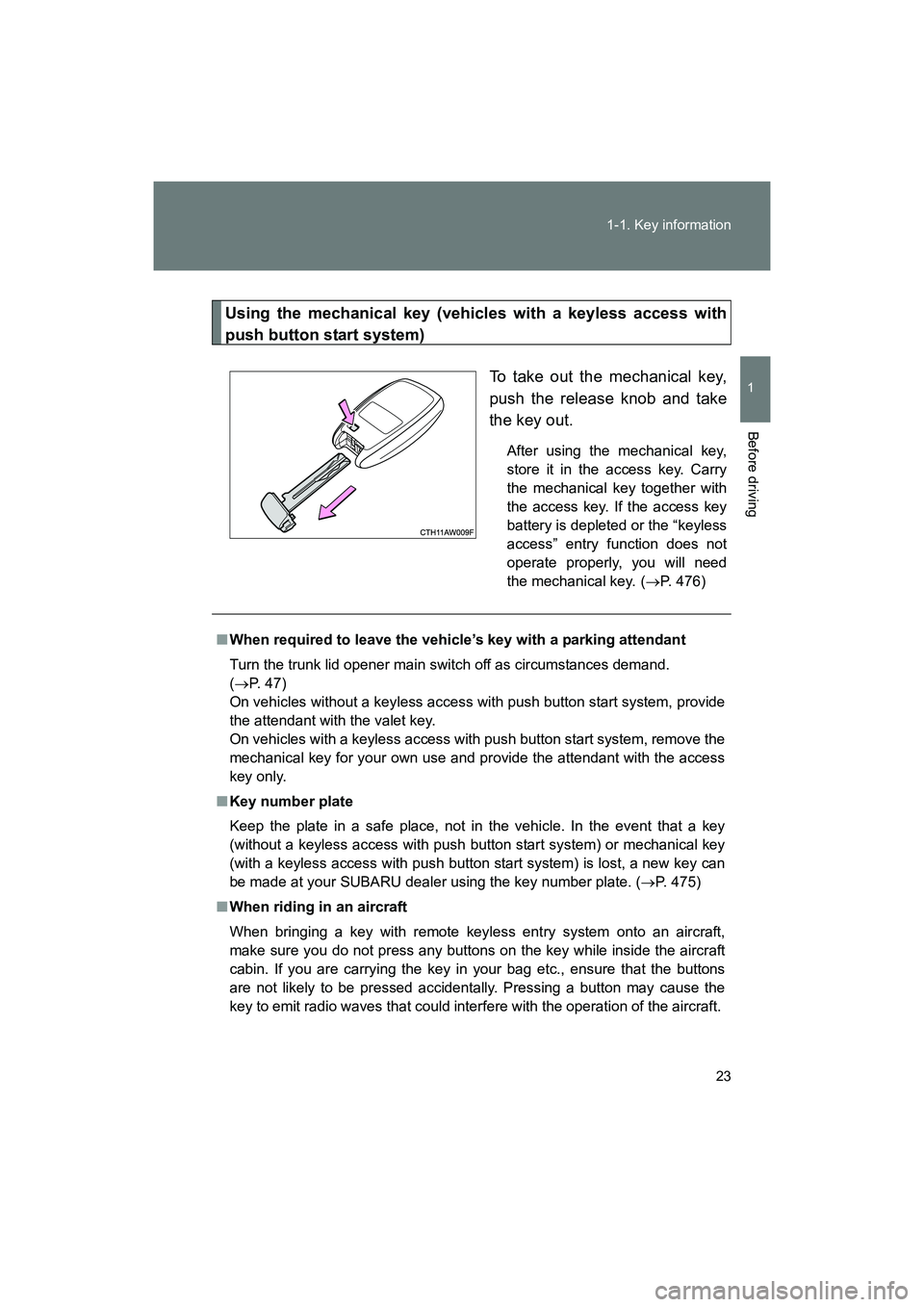

Using the mechanical key (vehicles with a keyless access with
push button start system)
To take out the mechanical key,
push the release knob and take
the key out.
After using the mechanical key,
store it in the access key. Carry
the mechanical key together with
the access key. If the access key
battery is depleted or the “keyless
access” entry function does not
operate properly, you will need
the mechanical key.
(→ P. 476)
■When required to leave the vehicle’s key with a parking attendant
Turn the trunk lid opener main switch off as circumstances demand.
(→ P. 47)
On vehicles without a keyless access with push button start system, provide
the attendant with the valet key.
On vehicles with a keyless access with push button start system, remove the
mechanical key for your own use and provide the attendant with the access
key only.
■ Key number plate
Keep the plate in a safe place, not in the vehicle. In the event that a key
(without a keyless access with push button start system) or mechanical key
(with a keyless access with push button start system) is lost, a new key can
be made at your SUBARU dealer using the key number plate. ( →P. 475)
■ When riding in an aircraft
When bringing a key with remote keyless entry system onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the aircraft.

24 1-1. Key information
BRZ_U (A4450BE-A)

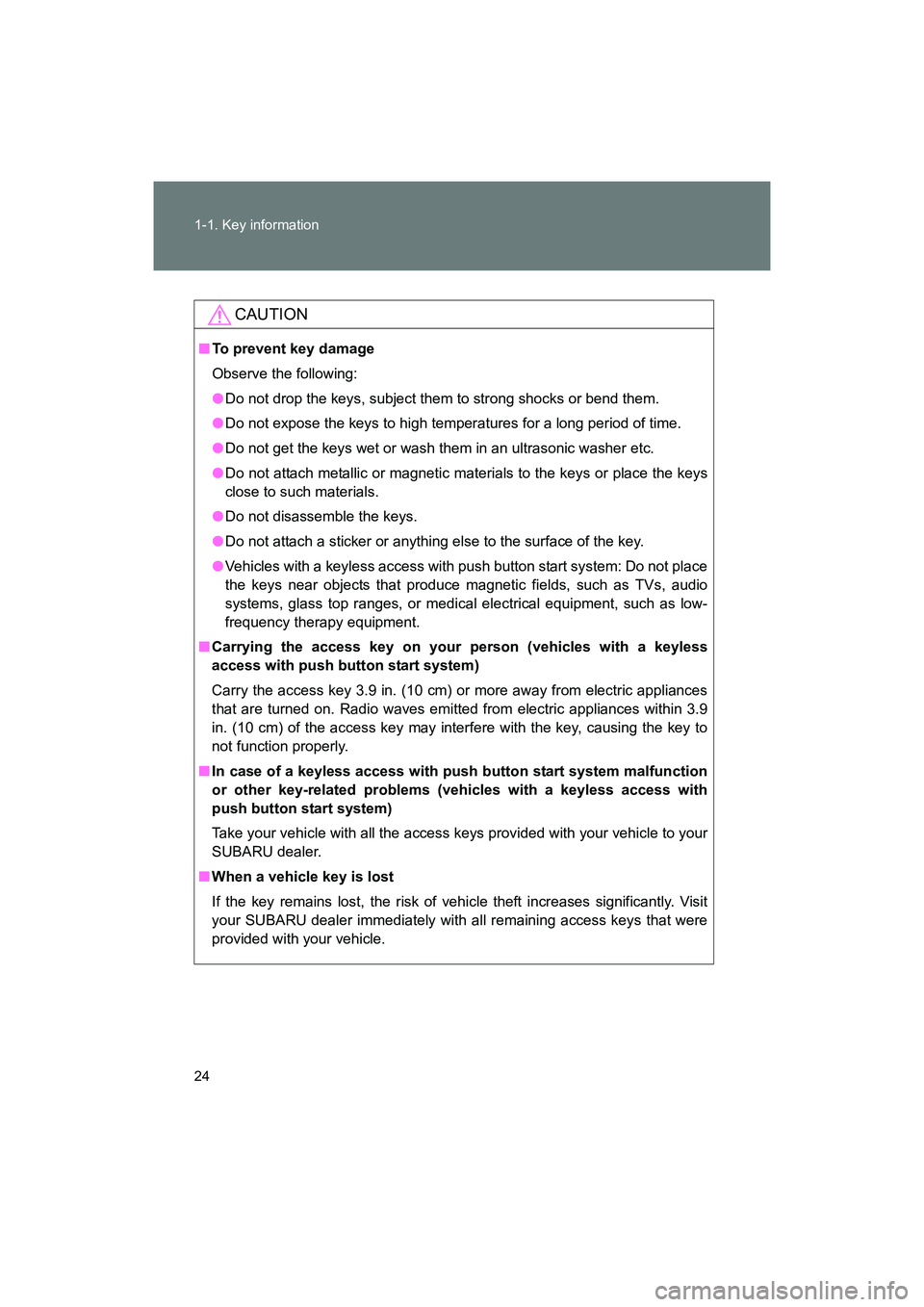

CAUTION
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for a long period of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key.
● Vehicles with a keyless access with push button start system: Do not place
the keys near objects that produce magnetic fields, such as TVs, audio
systems, glass top ranges, or medical electrical equipment, such as low-
frequency therapy equipment.
■ Carrying the access key on your person (vehicles with a keyless
access with push button start system)
Carry the access key 3.9 in. (10 cm) or more away from electric appliances
that are turned on. Radio waves emitted from electric appliances within 3.9
in. (10 cm) of the access key may interfere with the key, causing the key to
not function properly.
■ In case of a keyless access with push button start system malfunction
or other key-related problems (vehicles with a keyless access with
push button start system)
Take your vehicle with all the access keys provided with your vehicle to your
SUBARU dealer.
■ When a vehicle key is lost
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your SUBARU dealer immediately with al l remaining access keys that were
provided with your vehicle.

25
1
Before driving
BRZ_U (A4450BE-A)
1-2. Opening, closing and locking the doors and trunk lid

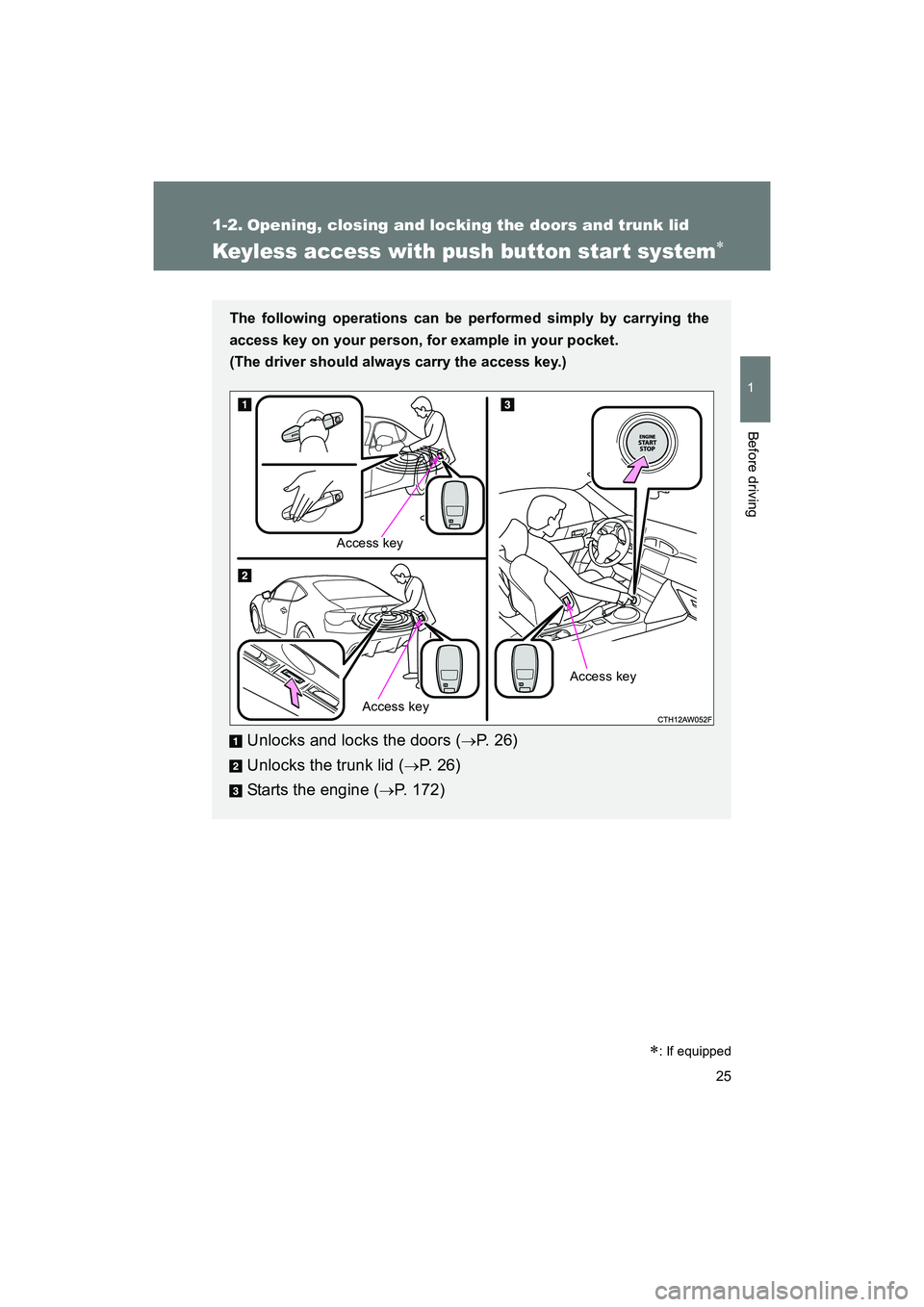

Keyless access with push button start system∗
The following operations can be performed simply by carrying the
access key on your person, for example in your pocket.
(The driver should always carry the access key.)
Unlocks and locks the doors (→P. 2 6 )
Unlocks the trunk lid (
→P. 2 6 )
Starts the engine (
→P. 172)
Access key
Access key
Access key
∗: If equipped

26 1-2. Opening, closing and locking the doors and trunk lid
BRZ_U (A4450BE-A)

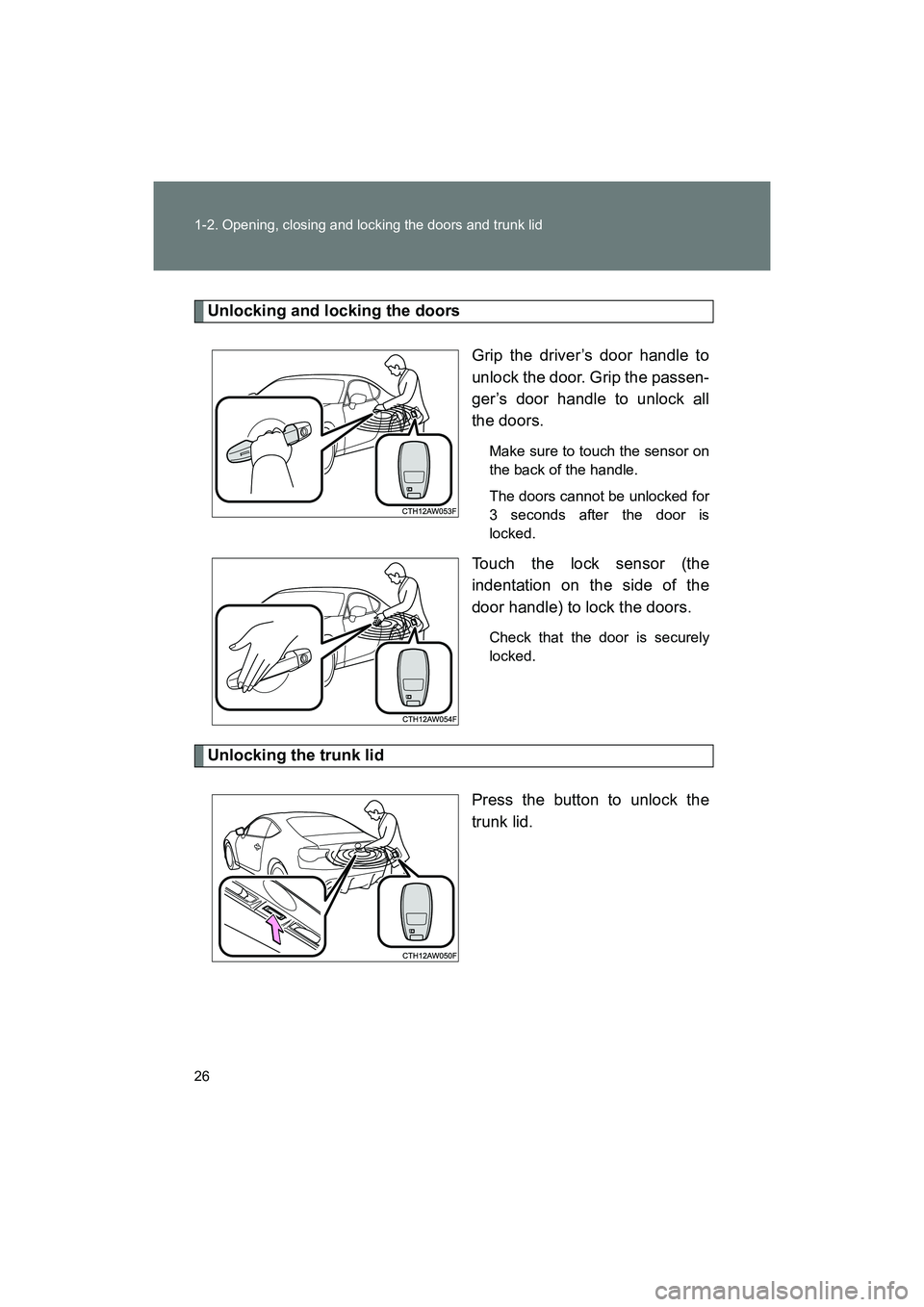

Unlocking and locking the doorsGrip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all
the doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the door is
locked.
Touch the lock sensor (the
indentation on the side of the
door handle) to lock the doors.
Check that the door is securely
locked.
Unlocking the trunk lidPress the button to unlock the
trunk lid.

27
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
BRZ_U (A4450BE-A)

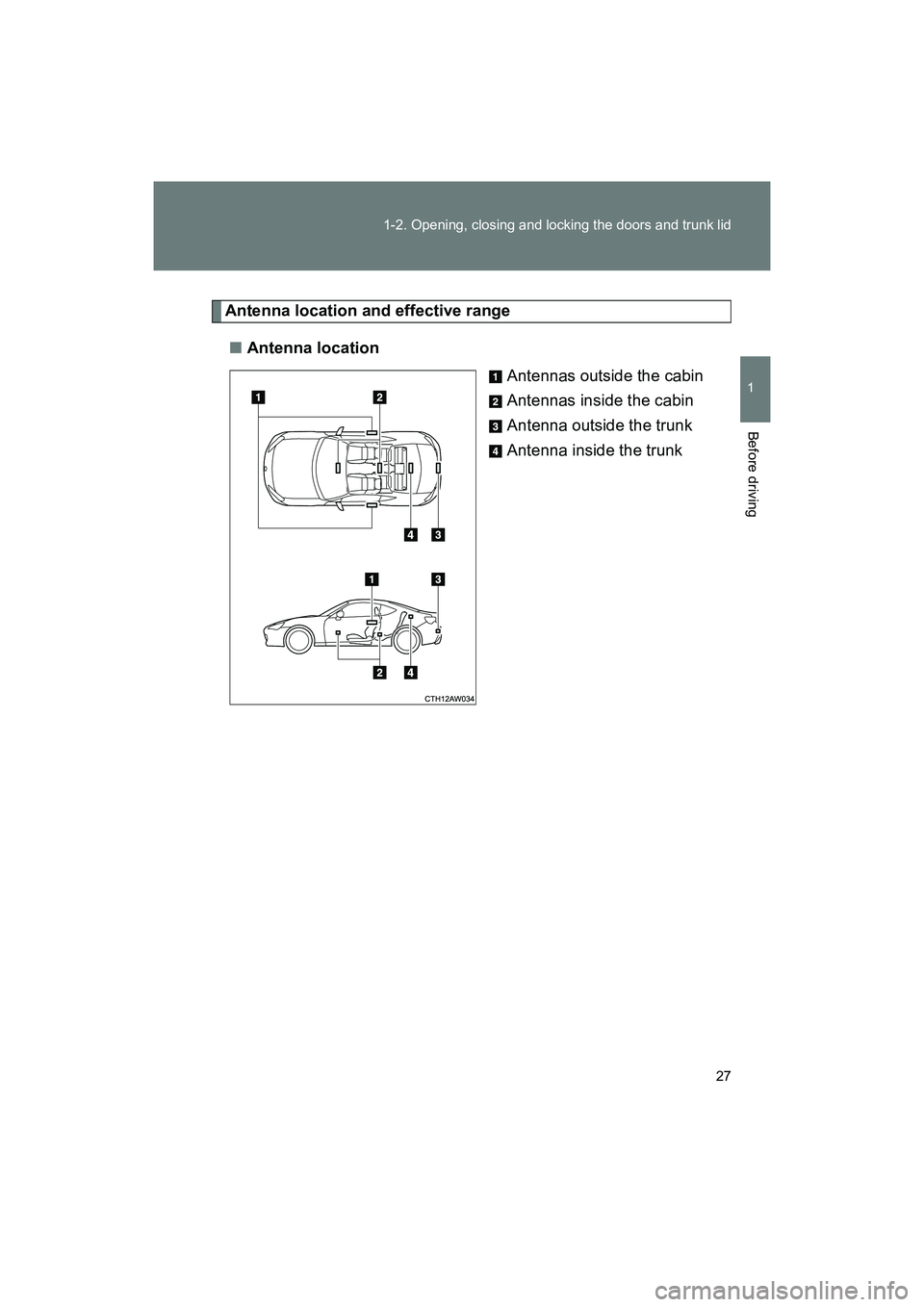

Antenna location and effective range
■ Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk

28 1-2. Opening, closing and locking the doors and trunk lid
BRZ_U (A4450BE-A)■

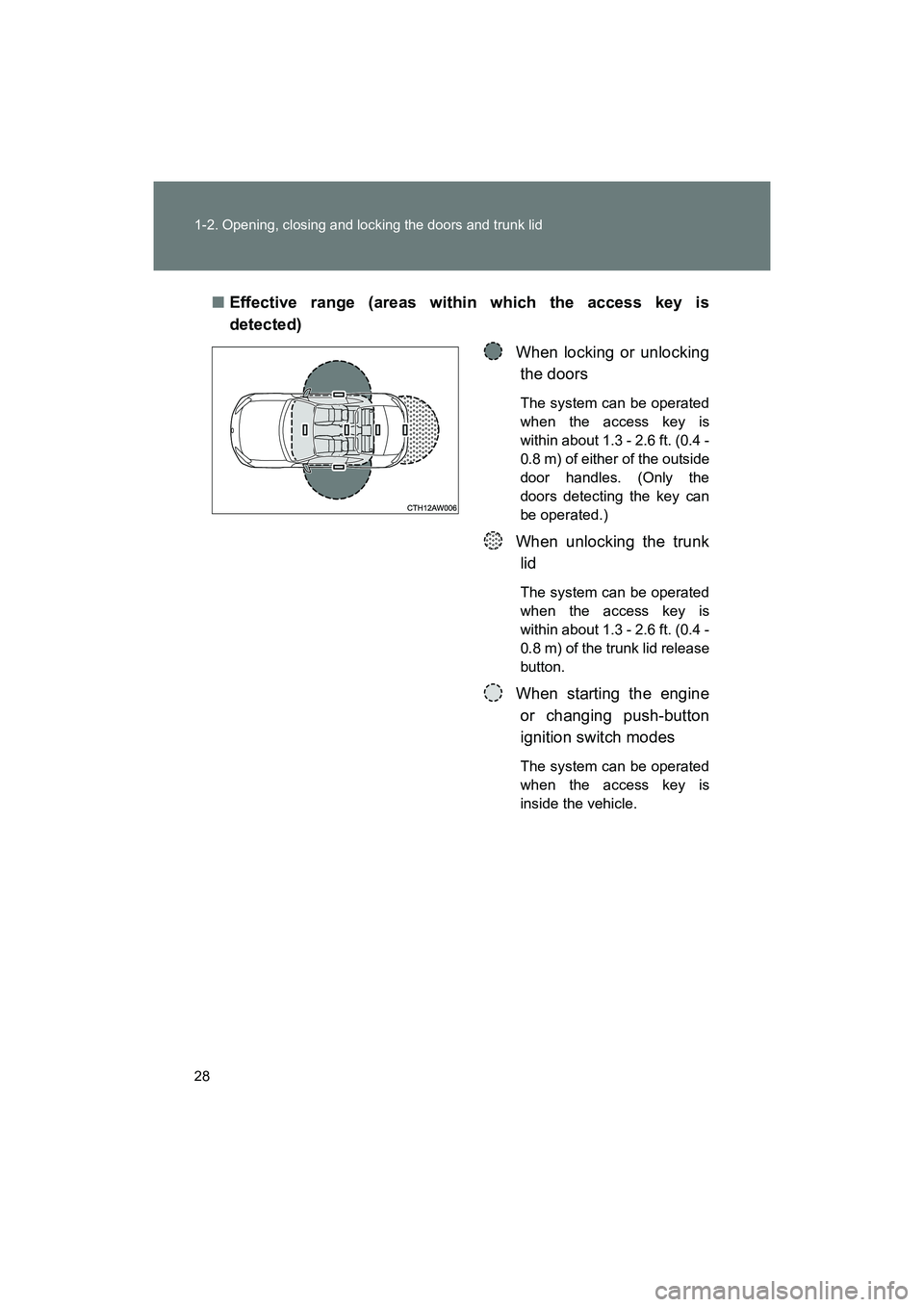

Effective range (areas within which the access key is
detected)
When locking or unlockingthe doors
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of either of the outside
door handles. (Only the
doors detecting the key can
be operated.)
When unlocking the trunklid
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of the trunk lid release
button.
When starting the engine
or changing push-button
ignition switch modes
The system can be operated
when the access key is
inside the vehicle.

29
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
BRZ_U (A4450BE-A)
■

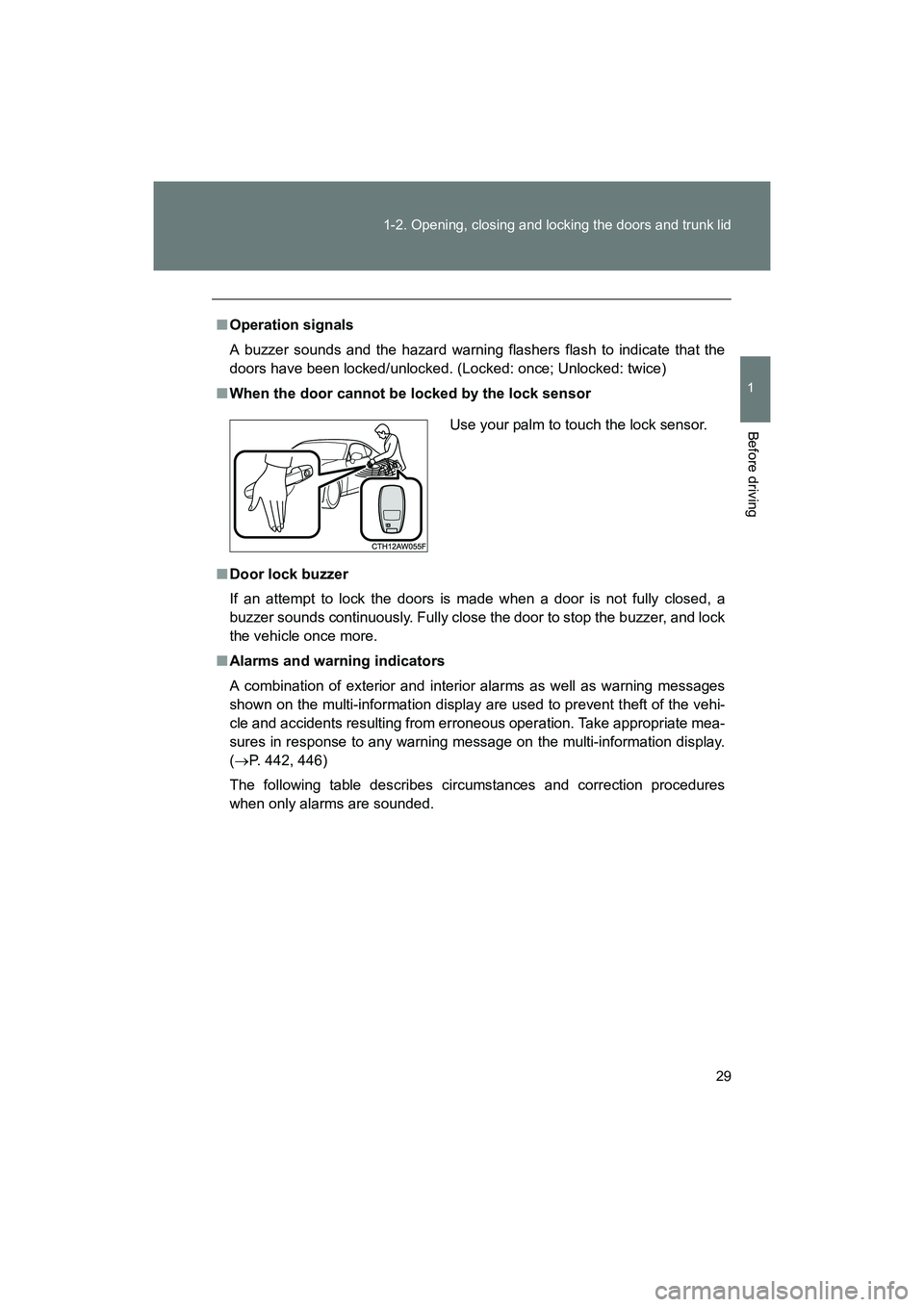

Operation signals
A buzzer sounds and the hazard warning flashers flash to indicate that the
doors have been locked/unlocked. (Locked: once; Unlocked: twice)
■ When the door cannot be locked by the lock sensor
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehi-
cle and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
(→ P. 442, 446)
The following table describes circumstances and correction procedures
when only alarms are sounded. Use your palm to touch the lock sensor.

30 1-2. Opening, closing and locking the doors and trunk lid
BRZ_U (A4450BE-A)

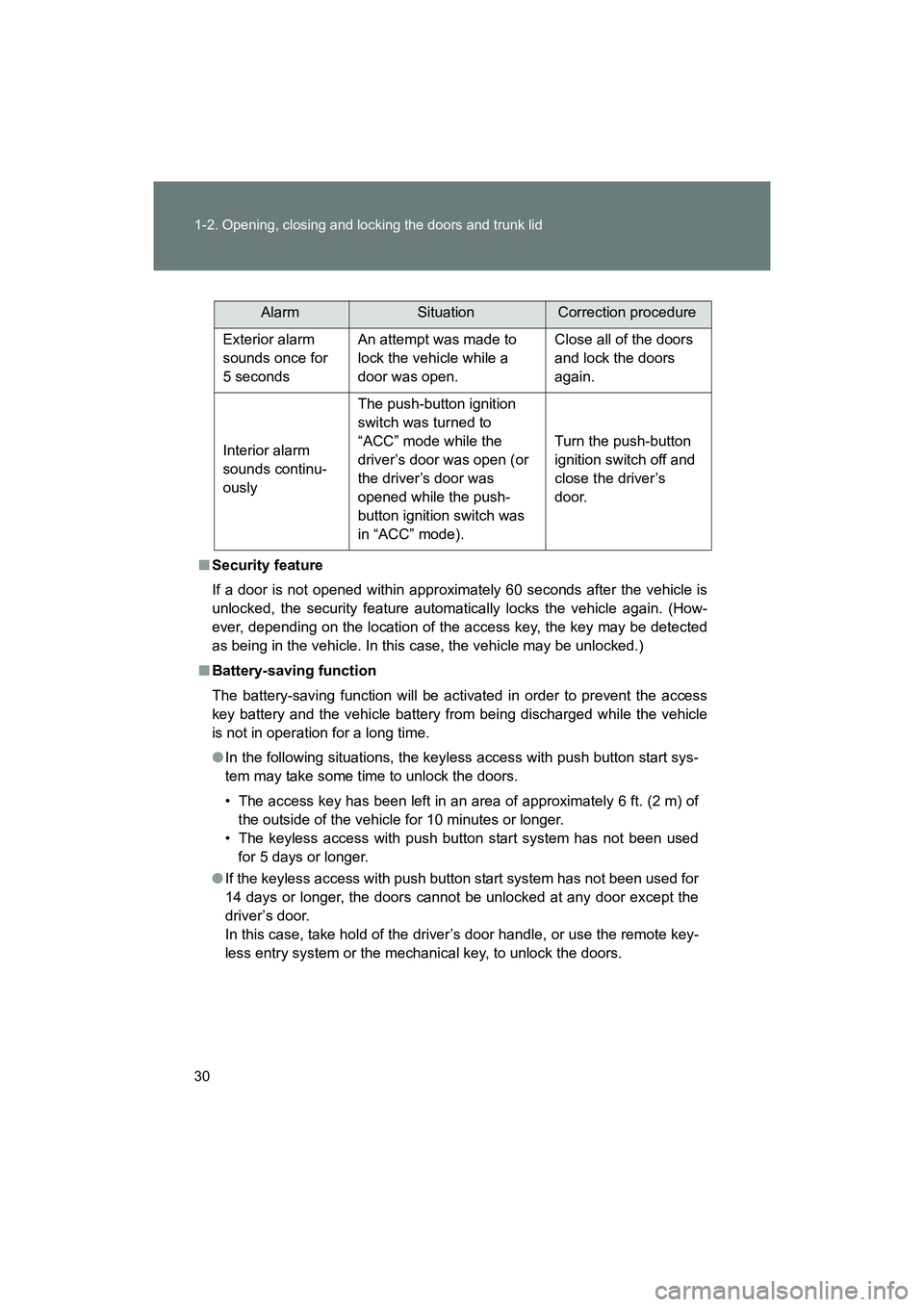

■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the access key, the key may be detected
as being in the vehicle. In this case, the vehicle may be unlocked.)
■ Battery-saving function
The battery-saving function will be activated in order to prevent the access
key battery and the vehicle battery from being discharged while the vehicle
is not in operation for a long time.
●In the following situations, the keyless access with push button start sys-
tem may take some time to unlock the doors.
• The access key has been left in an area of approximately 6 ft. (2 m) of
the outside of the vehicle for 10 minutes or longer.
• The keyless access with push button start system has not been used for 5 days or longer.
● If the keyless access with push button start system has not been used for
14 days or longer, the doors cannot be unlocked at any door except the
driver’s door.
In this case, take hold of the driver’s door handle, or use the remote key-
less entry system or the mechanical key, to unlock the doors.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
5 seconds An attempt was made to
lock the vehicle while a
door was open. Close all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ously The push-button ignition
switch was turned to
“ACC” mode while the
driver’s door was open (or
the driver’s door was
opened while the push-
button ignition switch was
in “ACC” mode). Turn the push-button
ignition switch off and
close the driver’s
door.
