SUBARU BRZ 2018 Owners Manual

191
2-1. Driving procedures
2
When driving
BRZ_U (A4450BE-A)
■

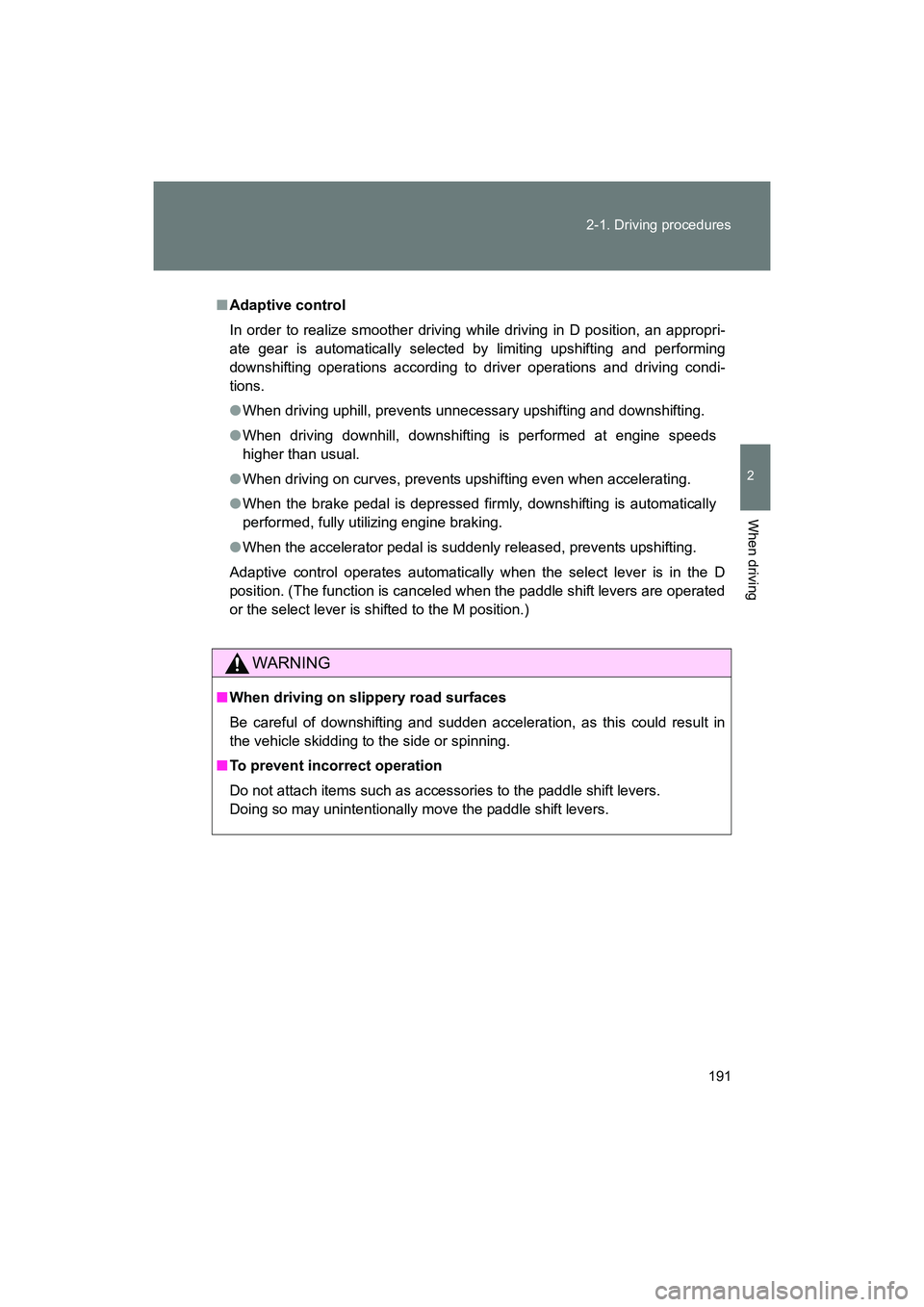

Adaptive control
In order to realize smoother driving wh ile driving in D position, an appropri-
ate gear is automatically selected by limiting upshifting and performing
downshifting operations according to driver operations and driving condi-
tions.
● When driving uphill, prevents unnecessary upshifting and downshifting.
● When driving downhill, downshifting is performed at engine speeds
higher than usual.
● When driving on curves, prevents upshifting even when accelerating.
● When the brake pedal is depressed firmly, downshifting is automatically
performed, fully utilizing engine braking.
● When the accelerator pedal is suddenly released, prevents upshifting.
Adaptive control operates automatically when the select lever is in the D
position. (The function is canceled when the paddle shift levers are operated
or the select lever is shifted to the M position.)
WARNING
■ When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in
the vehicle skidding to the side or spinning.
■ To prevent incorrect operation
Do not attach items such as accessories to the paddle shift levers.
Doing so may unintentionally move the paddle shift levers.

192
2-1. Driving procedures
BRZ_U (A4450BE-A)

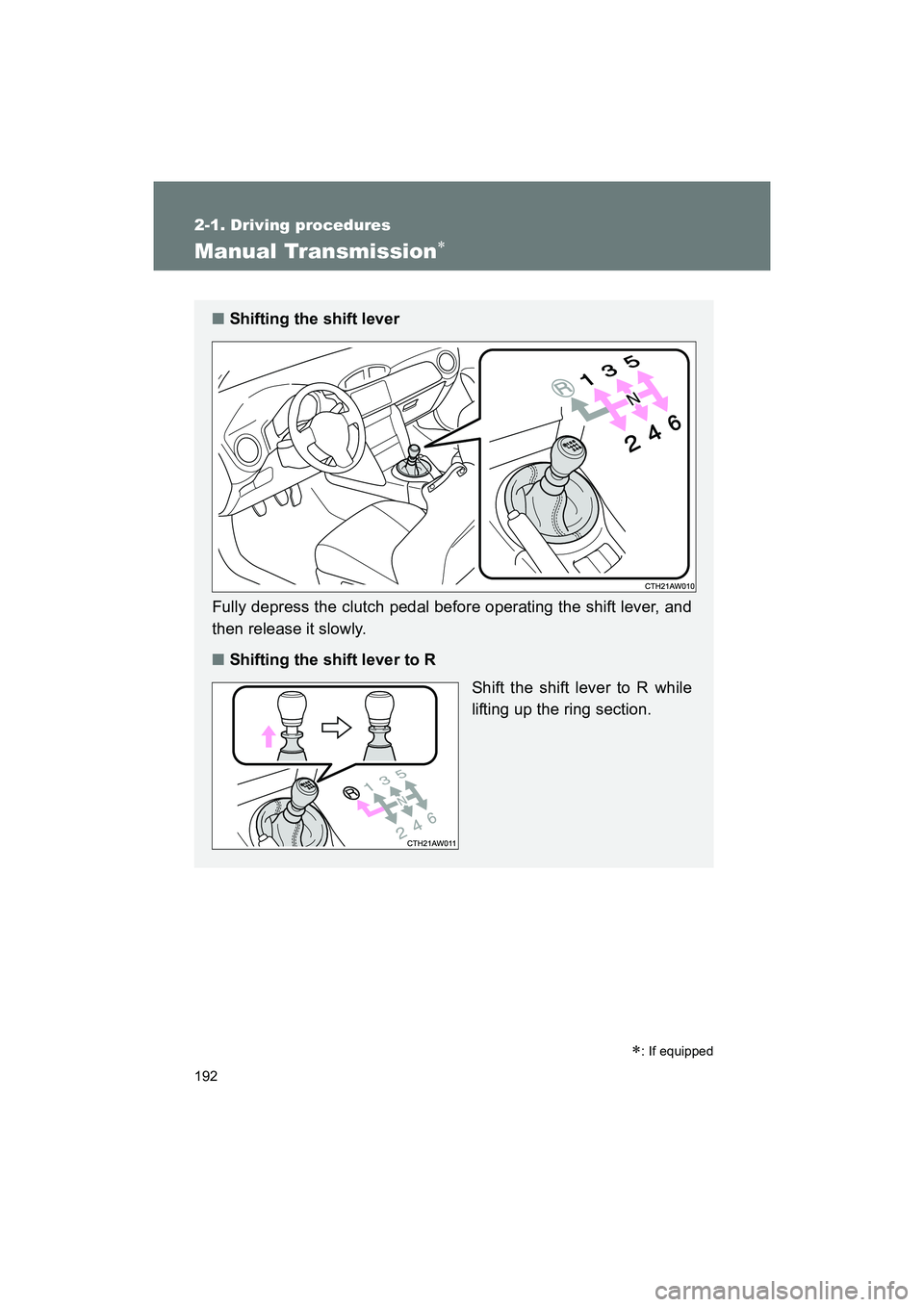

Manual Transmission∗
∗: If equipped
■Shifting the shift lever
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
■ Shifting the shift lever to R
Shift the shift lever to R while
lifting up the ring section.

193
2-1. Driving procedures
2
When driving
BRZ_U (A4450BE-A)

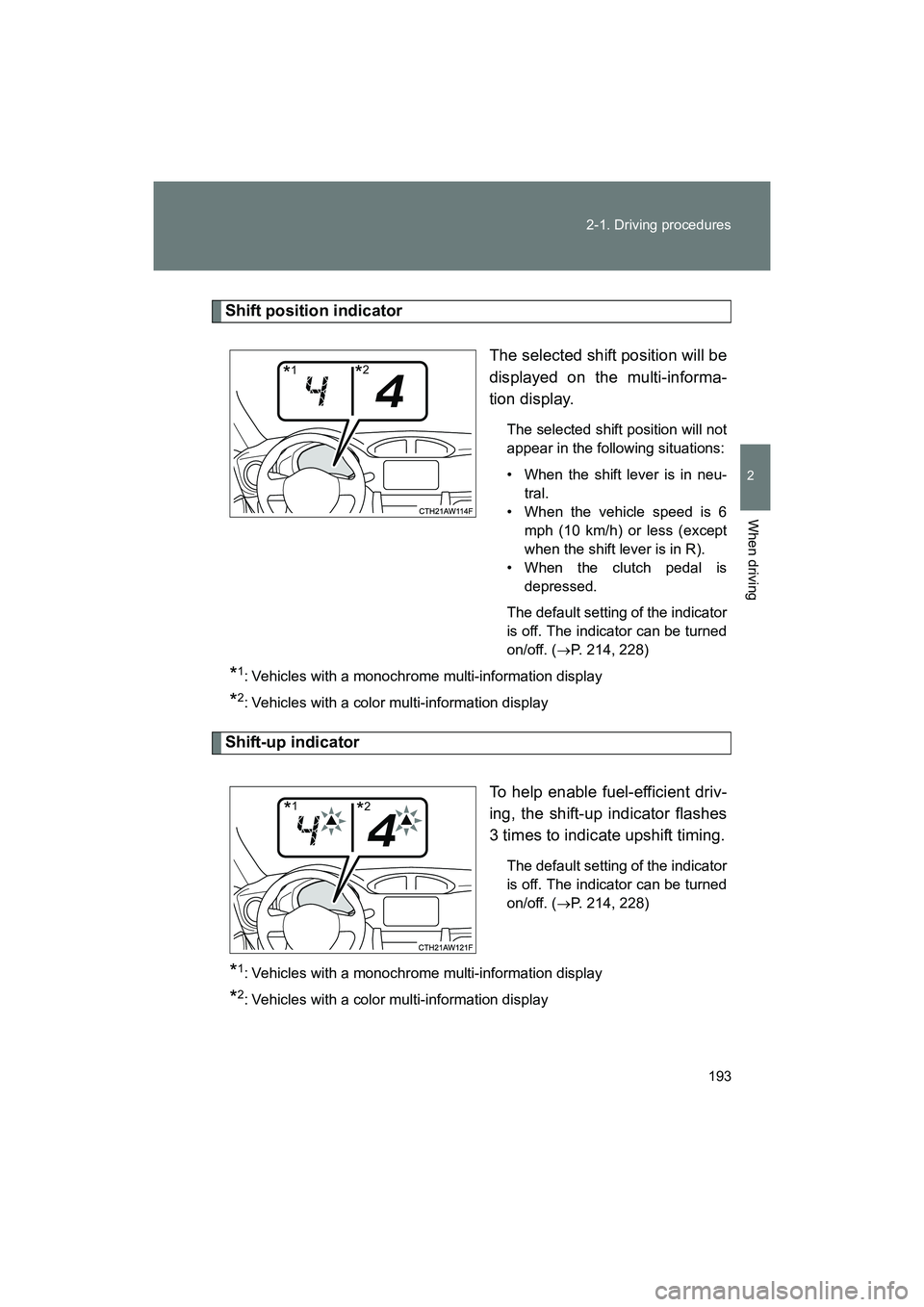

Shift position indicator
The selected shift position will be
displayed on the multi-informa-
tion display.
The selected shift position will not
appear in the following situations:
• When the shift lever is in neu-tral.
• When the vehicle speed is 6 mph (10 km/h) or less (except
when the shift lever is in R).
• When the clutch pedal is depressed.
The default setting of the indicator
is off. The indicator can be turned
on/off. (
→P. 214, 228)
*1: Vehicles with a monochrome multi-information display
*2: Vehicles with a color multi-information display
Shift-up indicator
To help enable fuel-efficient driv-
ing, the shift-up indicator flashes
3 times to indicate upshift timing.
The default setting of the indicator
is off. The indicator can be turned
on/off. (
→P. 214, 228)
*1: Vehicles with a monochrome multi-information display
*2: Vehicles with a color multi-information display
*1*2
*1*2

194 2-1. Driving procedures
BRZ_U (A4450BE-A)

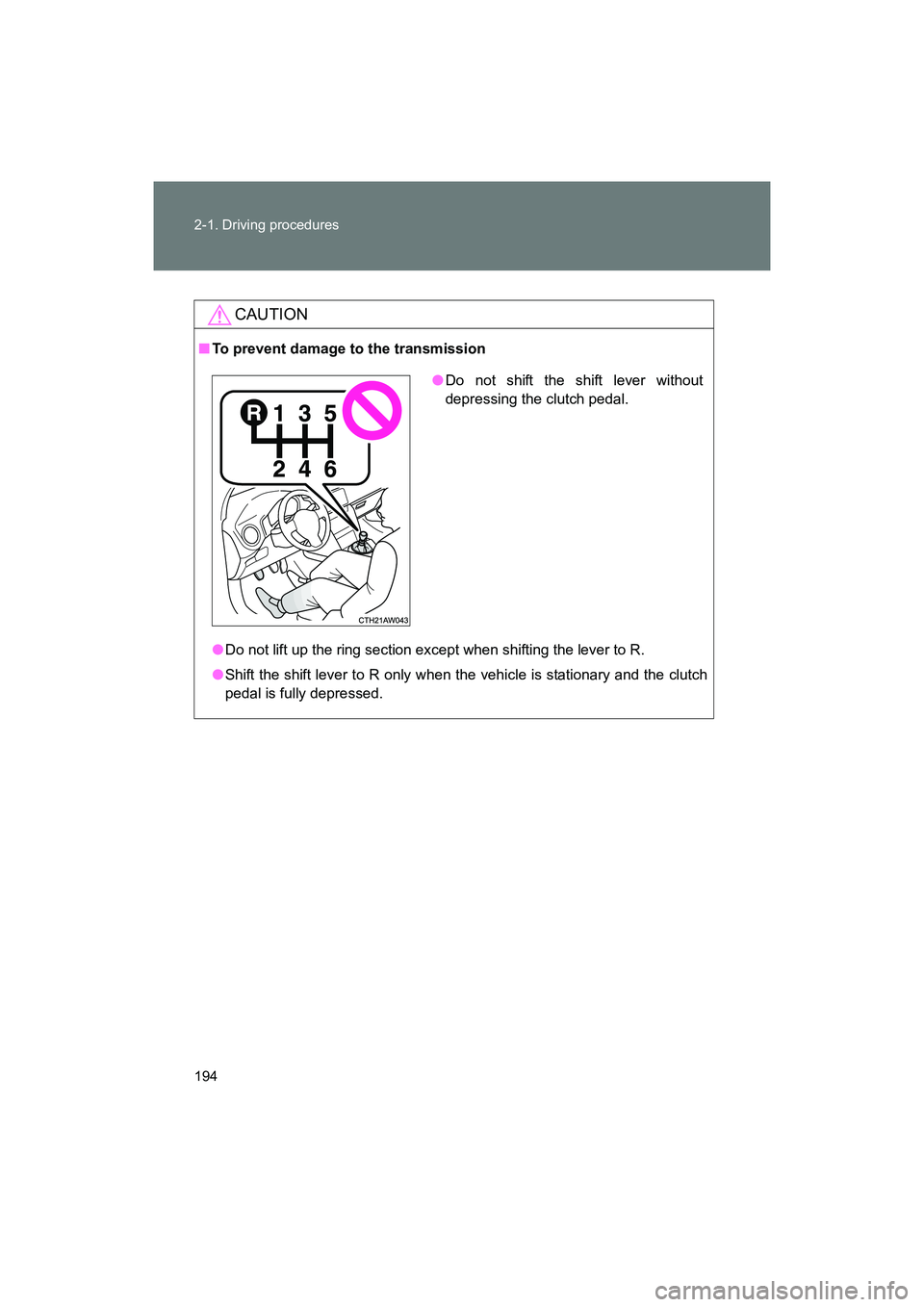

CAUTION
■To prevent damage to the transmission
●Do not lift up the ring section except when shifting the lever to R.
● Shift the shift lever to R only when the vehicle is stationary and the clutch
pedal is fully depressed.
●Do not shift the shift lever without
depressing the clutch pedal.

195
2-1. Driving procedures
2
When driving
BRZ_U (A4450BE-A)

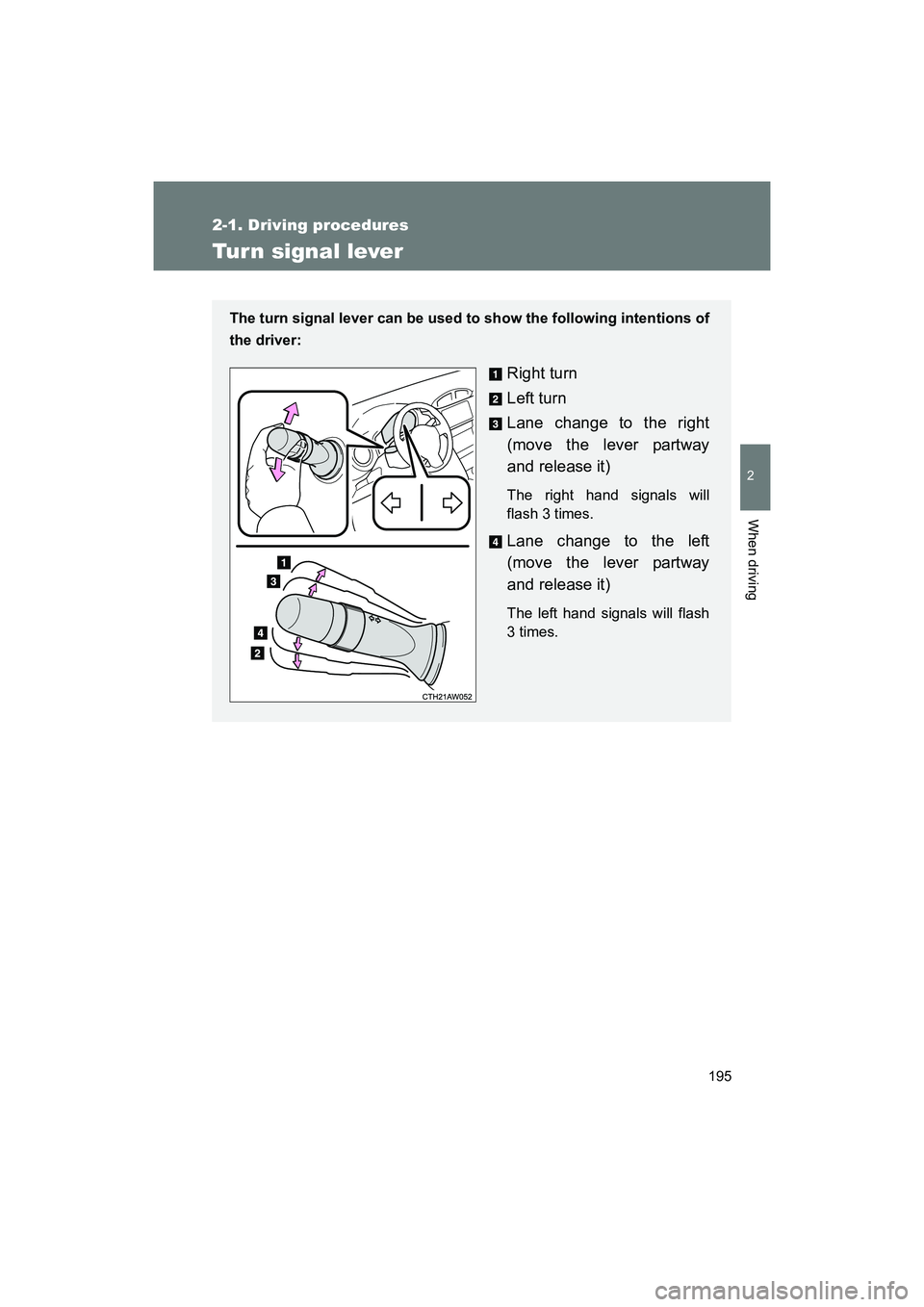

Tur n signal lever
The turn signal lever can be used to show the following intentions of
the driver:
Right turn
Left turn
Lane change to the right
(move the lever partway
and release it)
The right hand signals will
flash 3 times.
Lane change to the left
(move the lever partway
and release it)
The left hand signals will flash
3 times.

196 2-1. Driving procedures
BRZ_U (A4450BE-A)

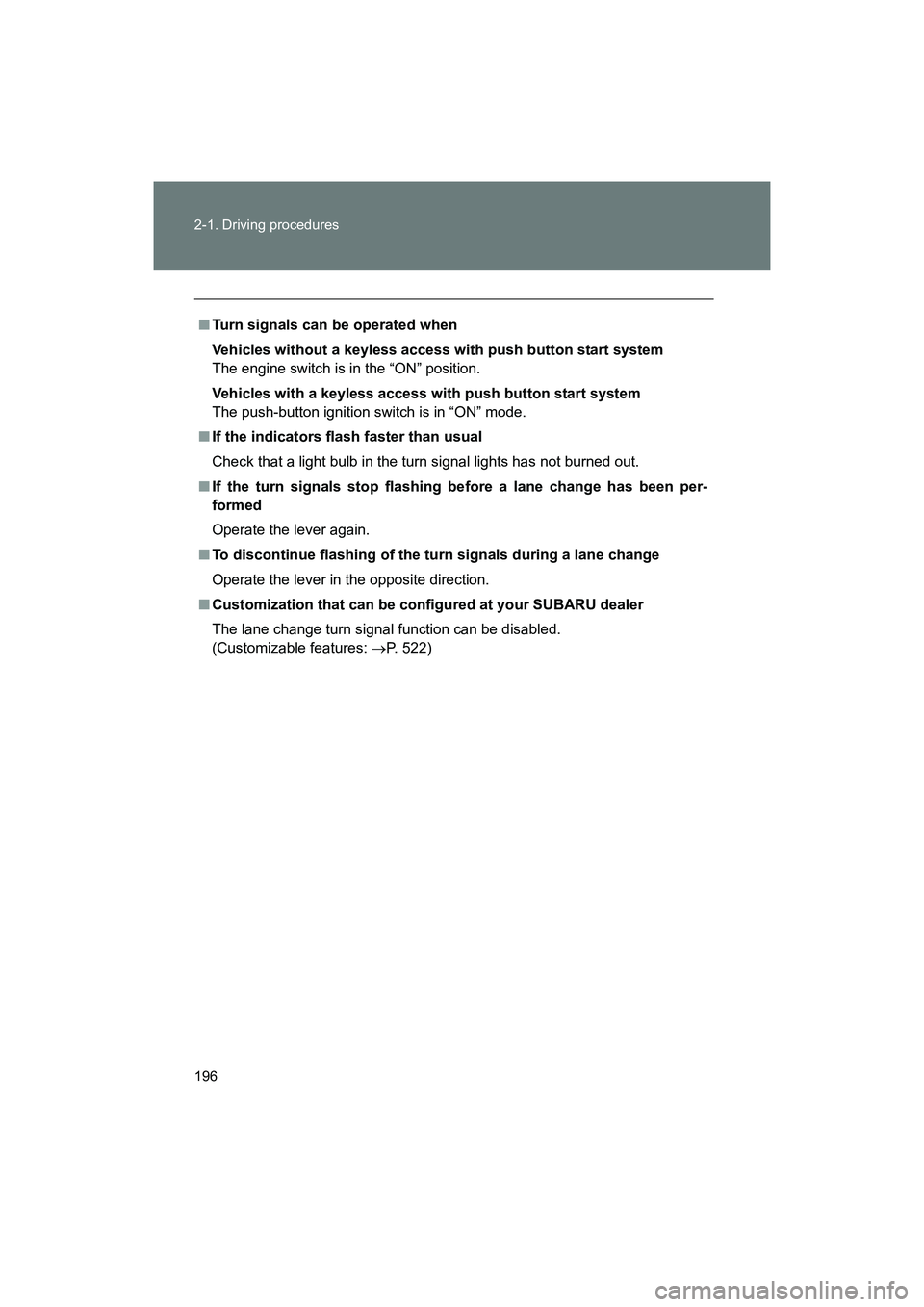

■Turn signals can be operated when
Vehicles without a keyless access with push button start system
The engine switch is in the “ON” position.
Vehicles with a keyless access with push button start system
The push-button ignition switch is in “ON” mode.
■ If the indicators flash faster than usual
Check that a light bulb in the turn signal lights has not burned out.
■ If the turn signals stop flashing be fore a lane change has been per-
formed
Operate the lever again.
■ To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■ Customization that can be conf igured at your SUBARU dealer
The lane change turn signal function can be disabled.
(Customizable features: →P. 522)

197
2-1. Driving procedures
2
When driving
BRZ_U (A4450BE-A)

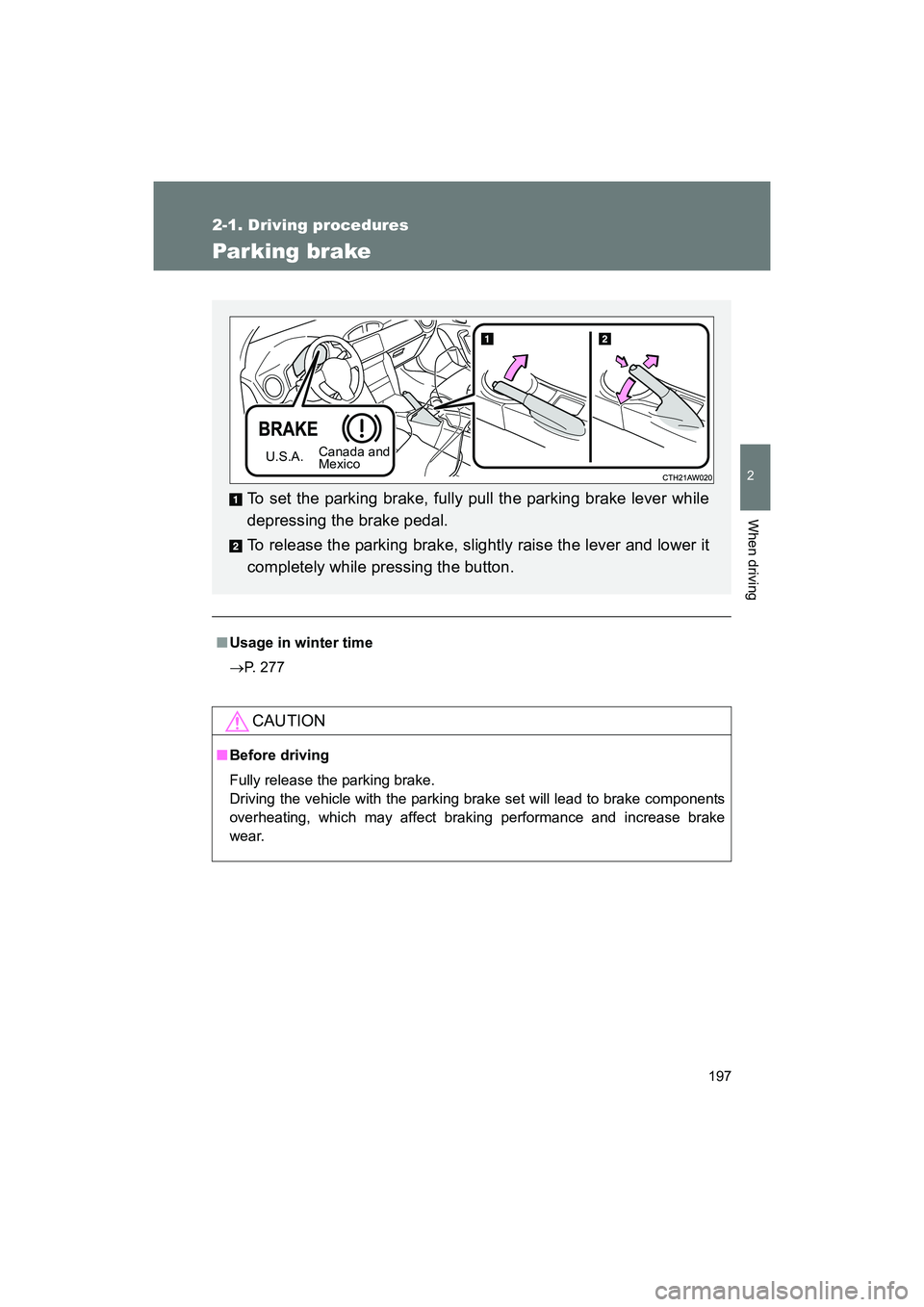

Parking brake
■Usage in winter time
→ P. 277
CAUTION
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake, fully pull the parking brake lever while
depressing the brake pedal.
To release the parking brake, slightly raise the lever and lower it
completely while pressing the button.
U.S.A. Canada and
Mexico

198
2-1. Driving procedures
BRZ_U (A4450BE-A)

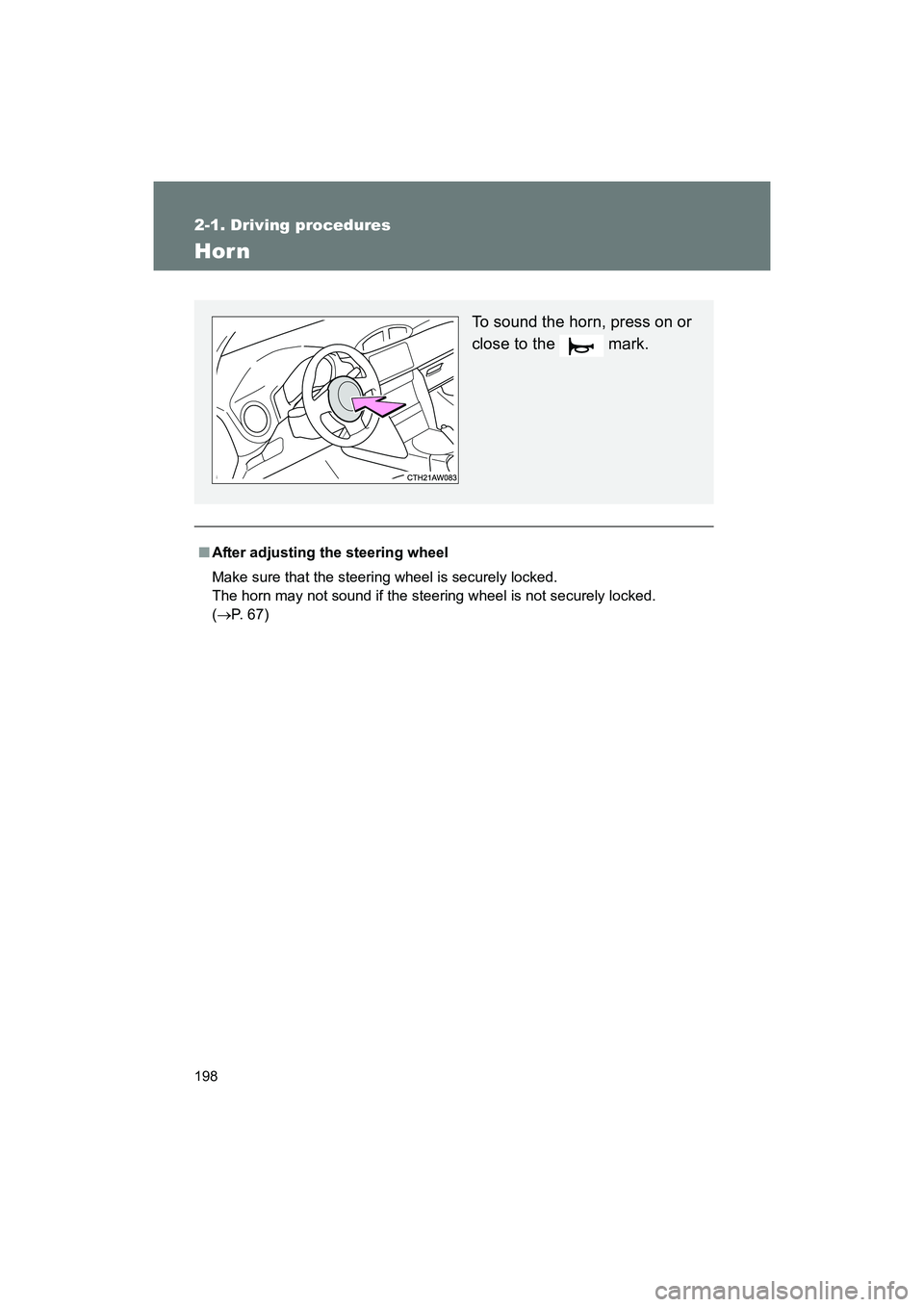

Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(→ P. 67)
To sound the horn, press on or
close to the mark.

199
2
When driving
BRZ_U (A4450BE-A)
2-2. Instrument cluster

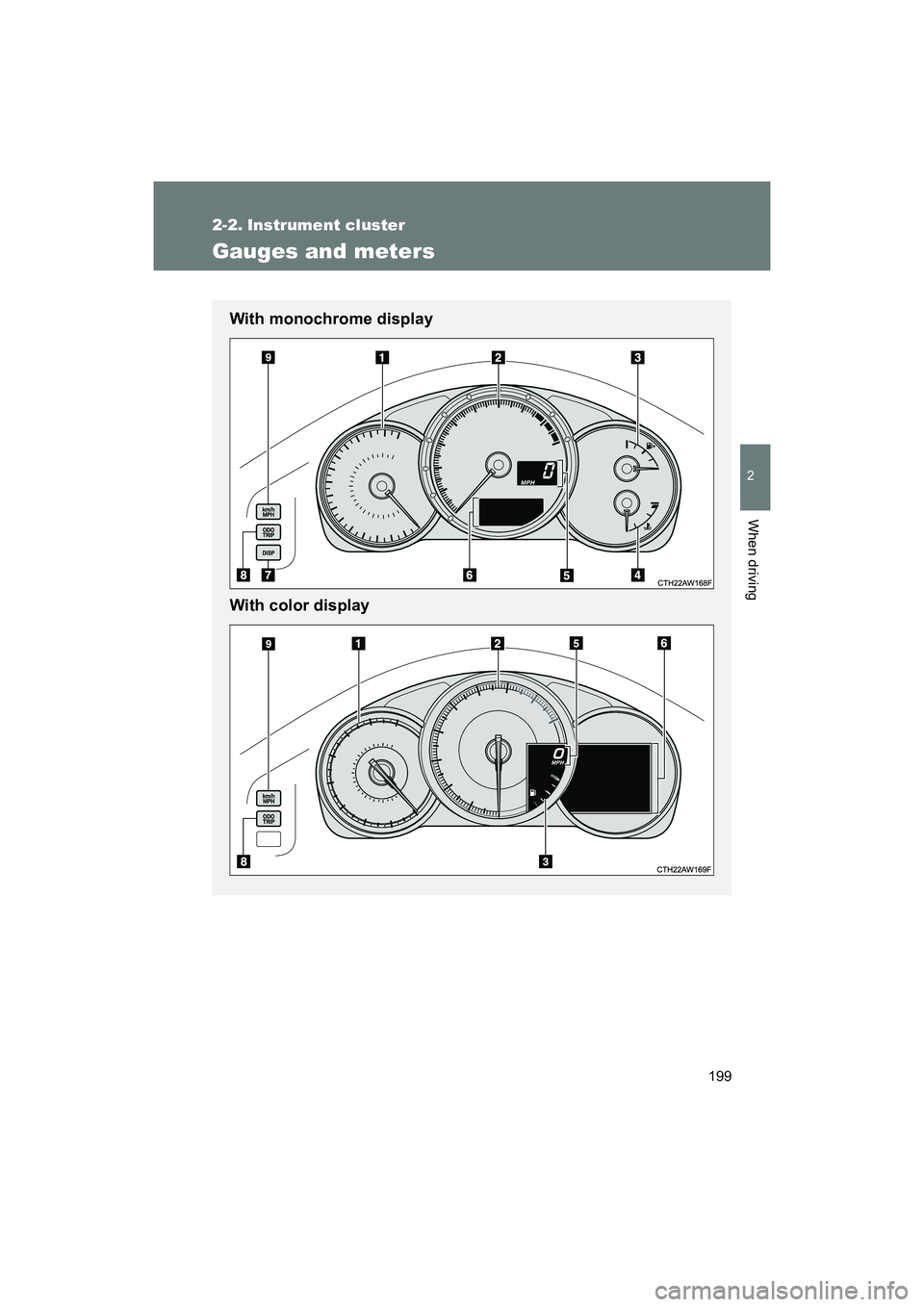

Gauges and meters
With monochrome display
With color display

200 2-2. Instrument cluster
BRZ_U (A4450BE-A)
Analog Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge (if equipped)
Displays the engine coolant temperature.
Digital Speedometer
Displays the vehicle speed.
Multi-information display, odometer and trip meter
→P. 210, 218
“DISP” switch (if equipped)
→P. 213
“ODO/TRIP” switch
→P. 212, 219
“km/h MPH” switch
Each time the switch is pressed, the display inside the meter changes
between km/h and MPH.
