SUBARU BRZ 2018 Owners Manual

301
3-1. Using the air conditioning system and defogger
3
Interior features
BRZ_U (A4450BE-A)
■

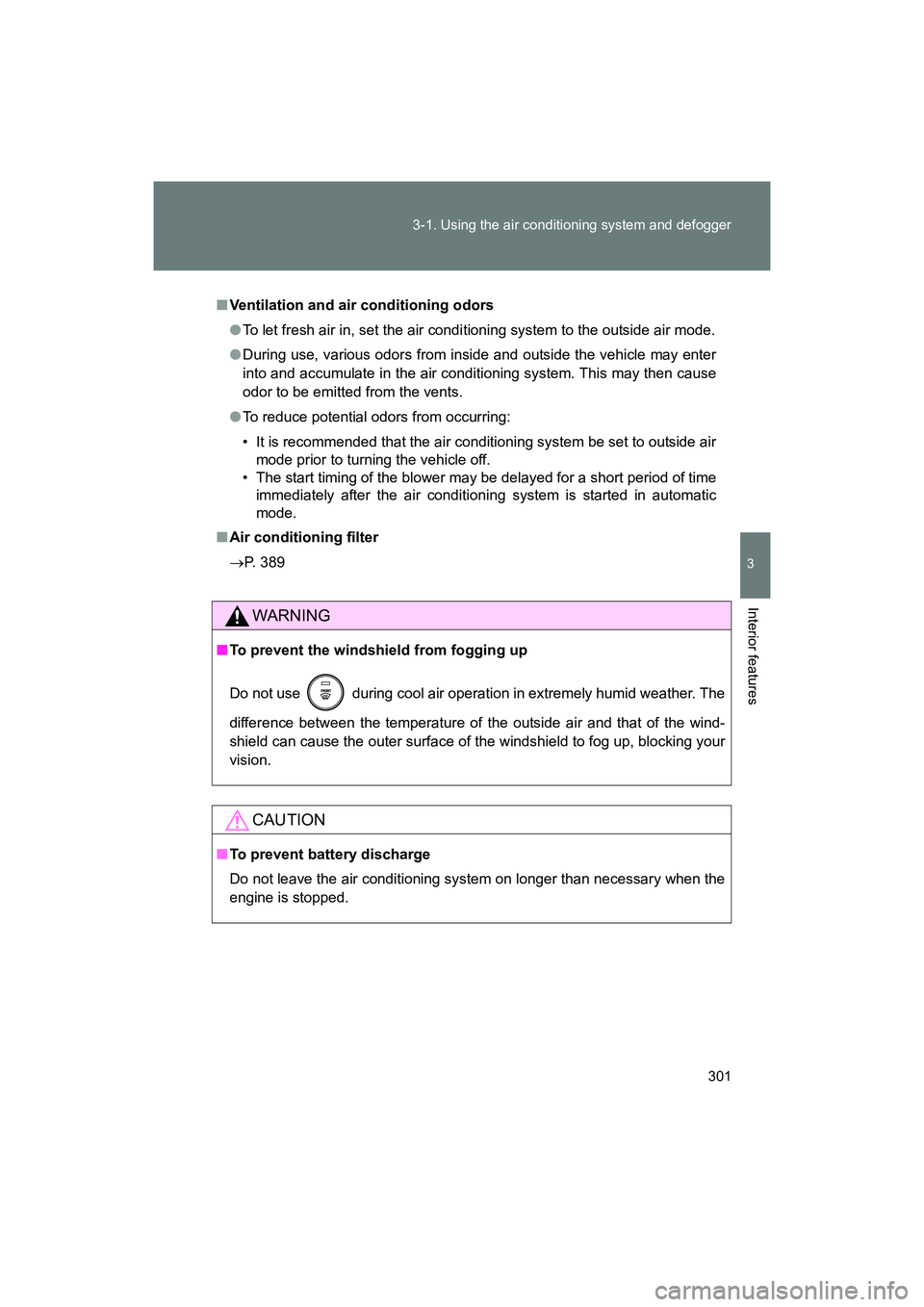

Ventilation and air conditioning odors
● To let fresh air in, set the air condi tioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately after the air conditioni ng system is started in automatic
mode.
■ Air conditioning filter
→ P. 389
WARNING
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
CAUTION
■To prevent battery discharge
Do not leave the air conditioning sy stem on longer than necessary when the
engine is stopped.

302
3-1. Using the air conditioning system and defogger
BRZ_U (A4450BE-A)

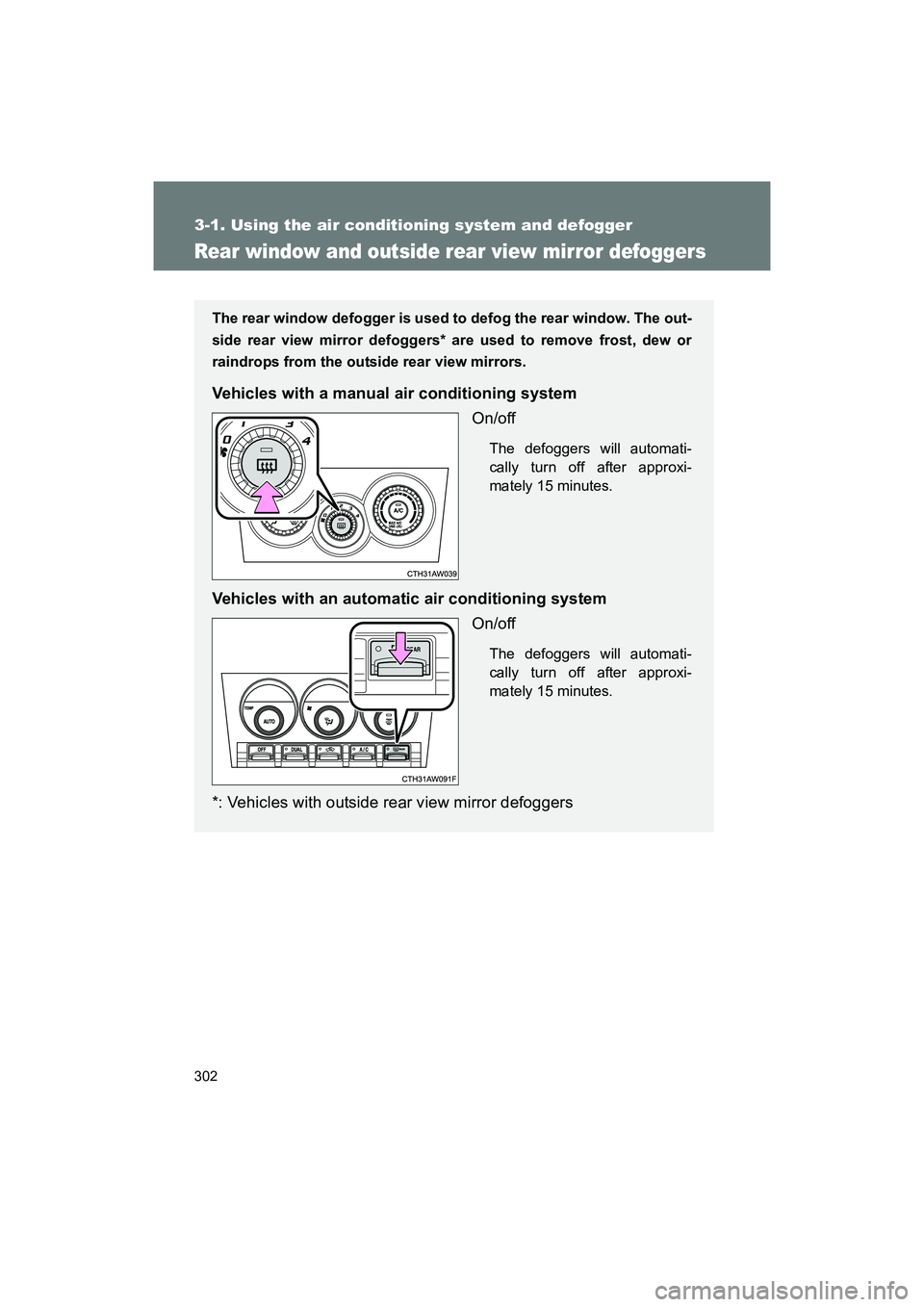

Rear window and outside rear view mirror defoggers
The rear window defogger is used to defog the rear window. The out-
side rear view mirror defoggers* are used to remove frost, dew or
raindrops from the outside rear view mirrors.
Vehicles with a manual air conditioning system On/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.
Vehicles with an automatic air conditioning systemOn/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.
*: Vehicles with outside rear view mirror defoggers

303
3-1. Using the air conditioning system and defogger
3
Interior features
BRZ_U (A4450BE-A)
■

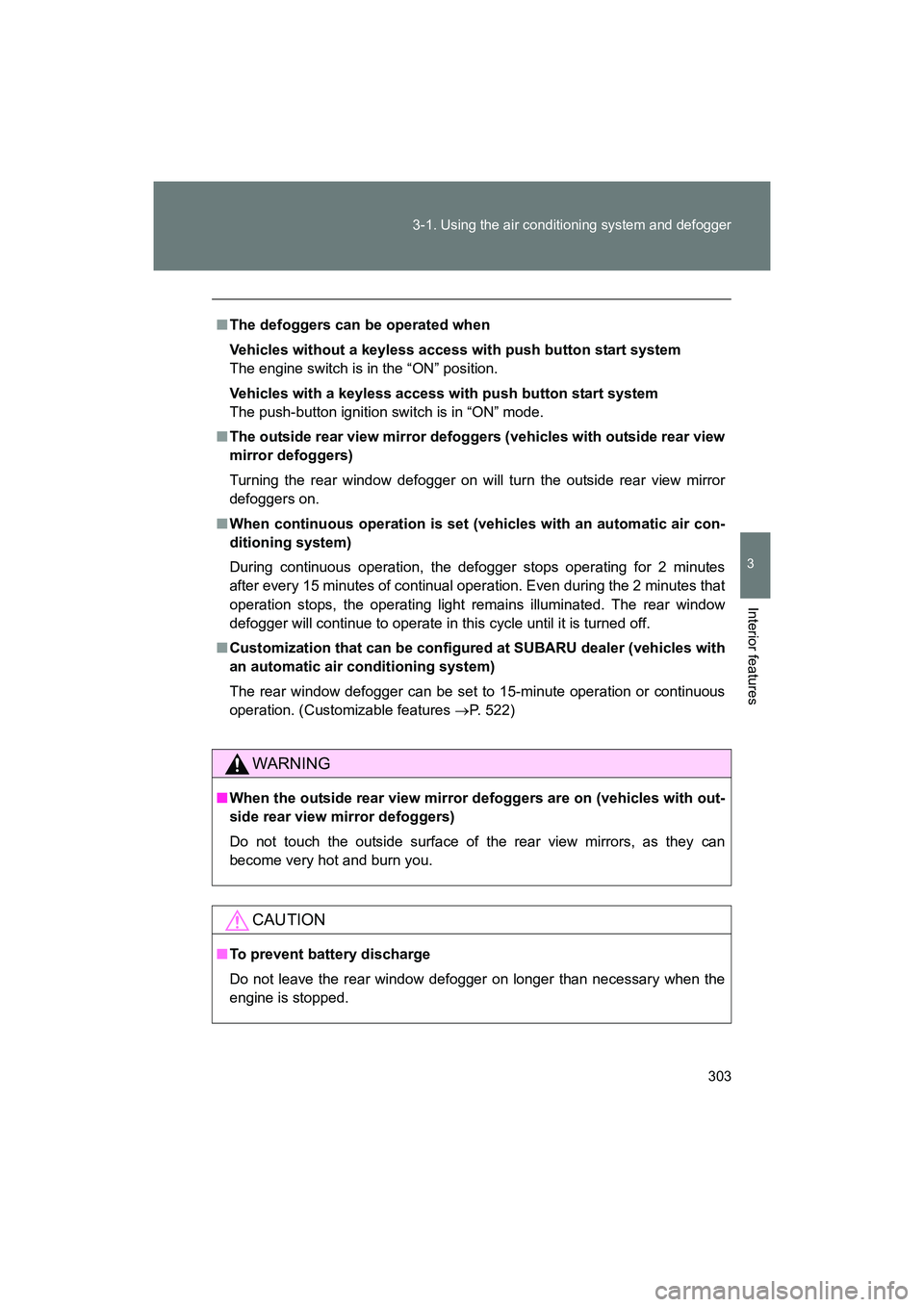

The defoggers can be operated when
Vehicles without a keyless access with push button start system
The engine switch is in the “ON” position.
Vehicles with a keyless access with push button start system
The push-button ignition switch is in “ON” mode.
■ The outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
■ When continuous operation is set (vehicles with an automatic air con-
ditioning system)
During continuous operation, the defogger stops operating for 2 minutes
after every 15 minutes of continual operation. Even during the 2 minutes that
operation stops, the operating light remains illuminated. The rear window
defogger will continue to operate in this cycle until it is turned off.
■ Customization that can be configured at SUBARU dealer (vehicles with
an automatic air conditioning system)
The rear window defogger can be set to 15-minute operation or continuous
operation. (Customizable features →P. 522)
WARNING
■When the outside rear view mirror defoggers are on (vehicles with out-
side rear view mirror defoggers)
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
CAUTION
■To prevent battery discharge
Do not leave the rear window defogger on longer than necessary when the
engine is stopped.

304
BRZ_U (A4450BE-A)
3-2. Using the audio system

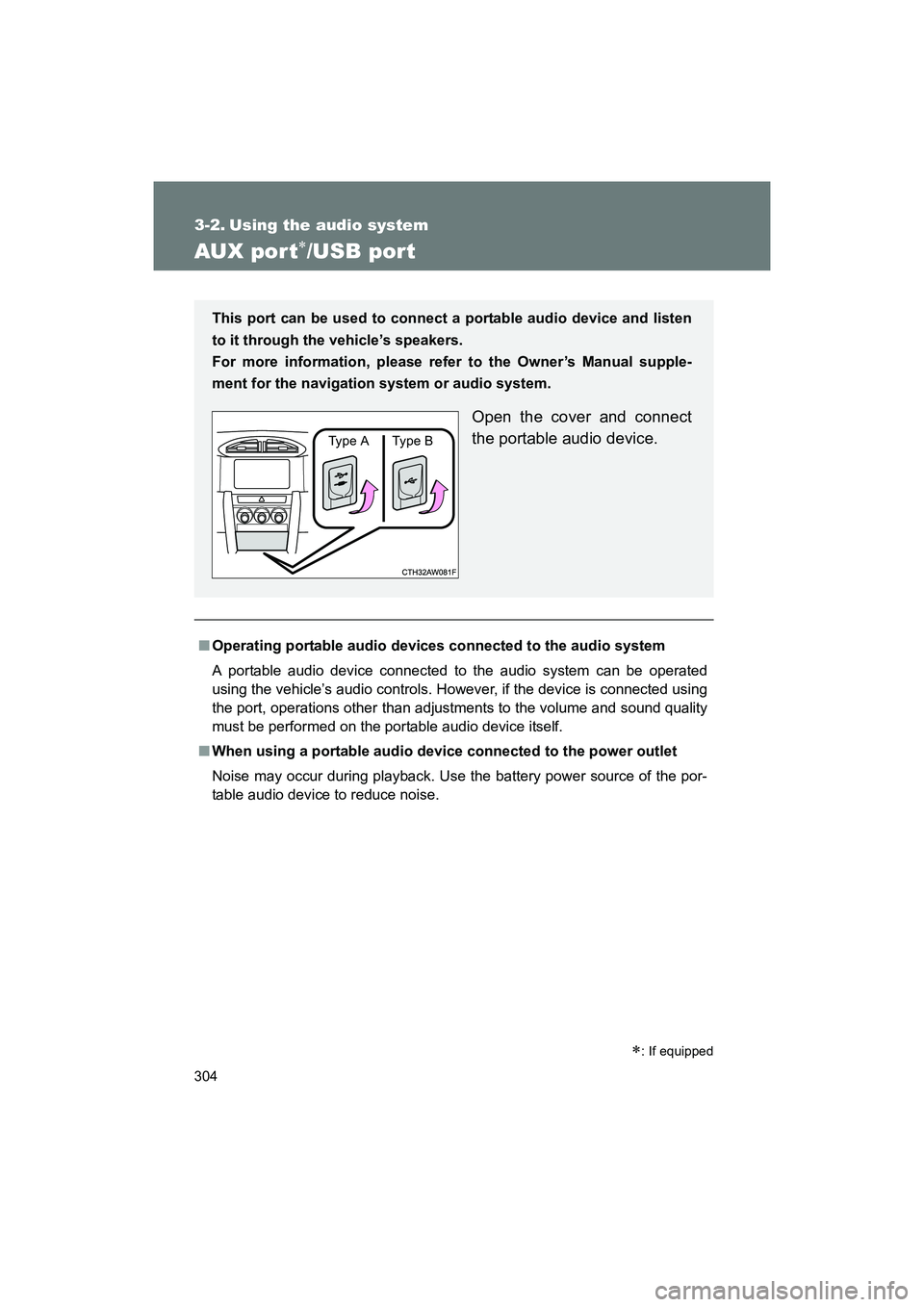

AUX por t∗/USB port
■Operating portable audio devices connected to the audio system
A portable audio device connected to the audio system can be operated
using the vehicle’s audio controls. However, if the device is connected using
the port, operations other than adjustments to the volume and sound quality
must be performed on the portable audio device itself.
■ When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the battery power source of the por-
table audio device to reduce noise.
∗: If equipped
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
For more information, please refer to the Owner’s Manual supple-
ment for the navigation system or audio system.
Open the cover and connect
the portable audio device.
Type A Type B

305
3-2. Using the audio system
3
Interior features
BRZ_U (A4450BE-A)

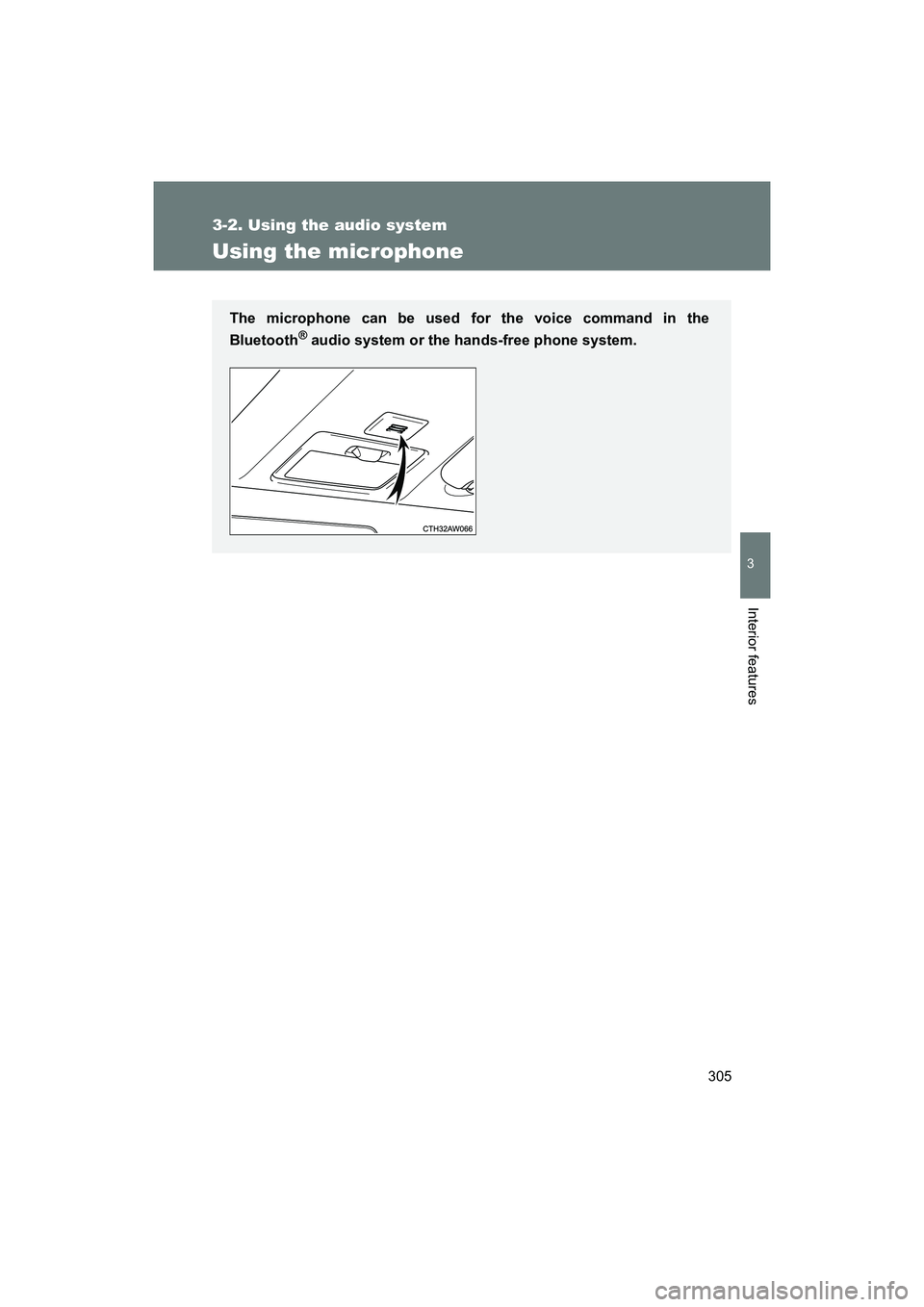

Using the microphone
The microphone can be used for the voice command in the
Bluetooth
® audio system or the hands-free phone system.

306
BRZ_U (A4450BE-A)
3-3. Using the interior lights

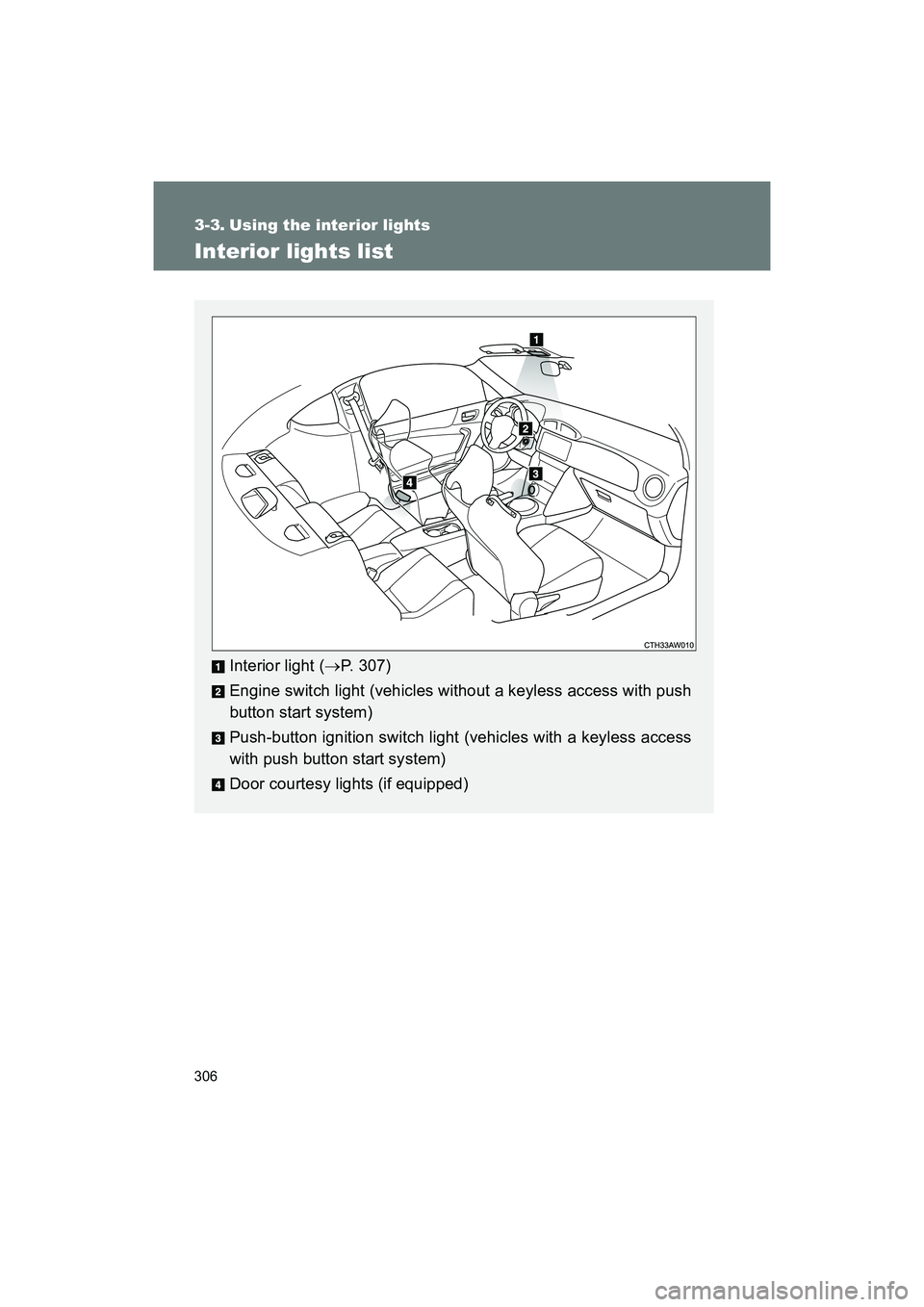

Interior lights list
Interior light (→P. 307)
Engine switch light (vehicles without a keyless access with push
button start system)
Push-button ignition switch light (vehicles with a keyless access
with push button start system)
Door courtesy lights (if equipped)

307
3-3. Using the interior lights
3
Interior features
BRZ_U (A4450BE-A)

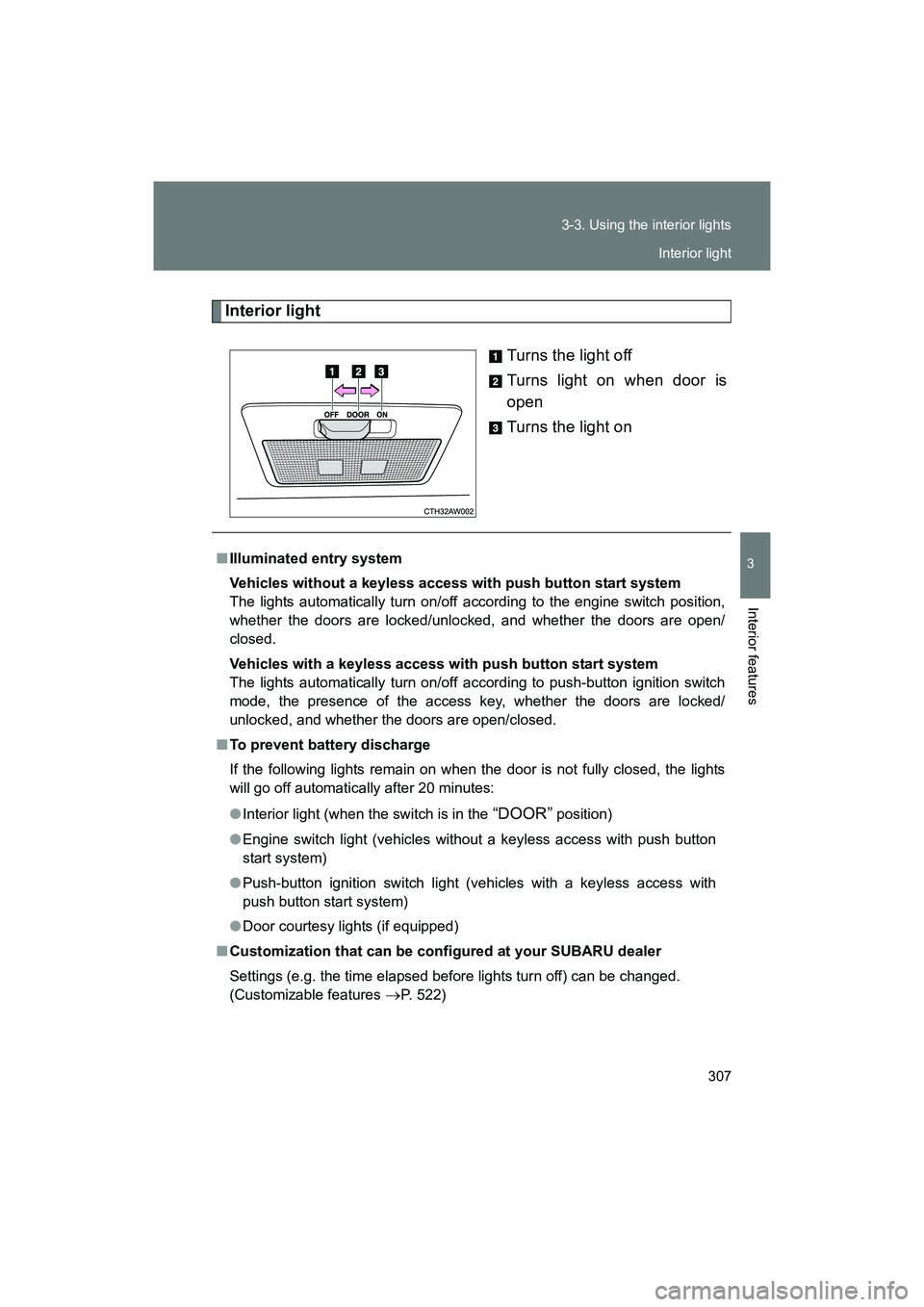

Interior light
Turns the light off
Turns light on when door is
open
Turns the light on
■Illuminated entry system
Vehicles without a keyless access with push button start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
Vehicles with a keyless access with push button start system
The lights automatically turn on/off according to push-button ignition switch
mode, the presence of the access key, whether the doors are locked/
unlocked, and whether the doors are open/closed.
■ To prevent battery discharge
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
● Interior light (when the switch is in the
“DOOR” position)
● Engine switch light (vehicles without a keyless access with push button
start system)
● Push-button ignition switch light (vehicles with a keyless access with
push button start system)
● Door courtesy lights (if equipped)
■ Customization that can be configured at your SUBARU dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features
→P. 522)
Interior light

308
BRZ_U (A4450BE-A)
3-4. Using the storage features

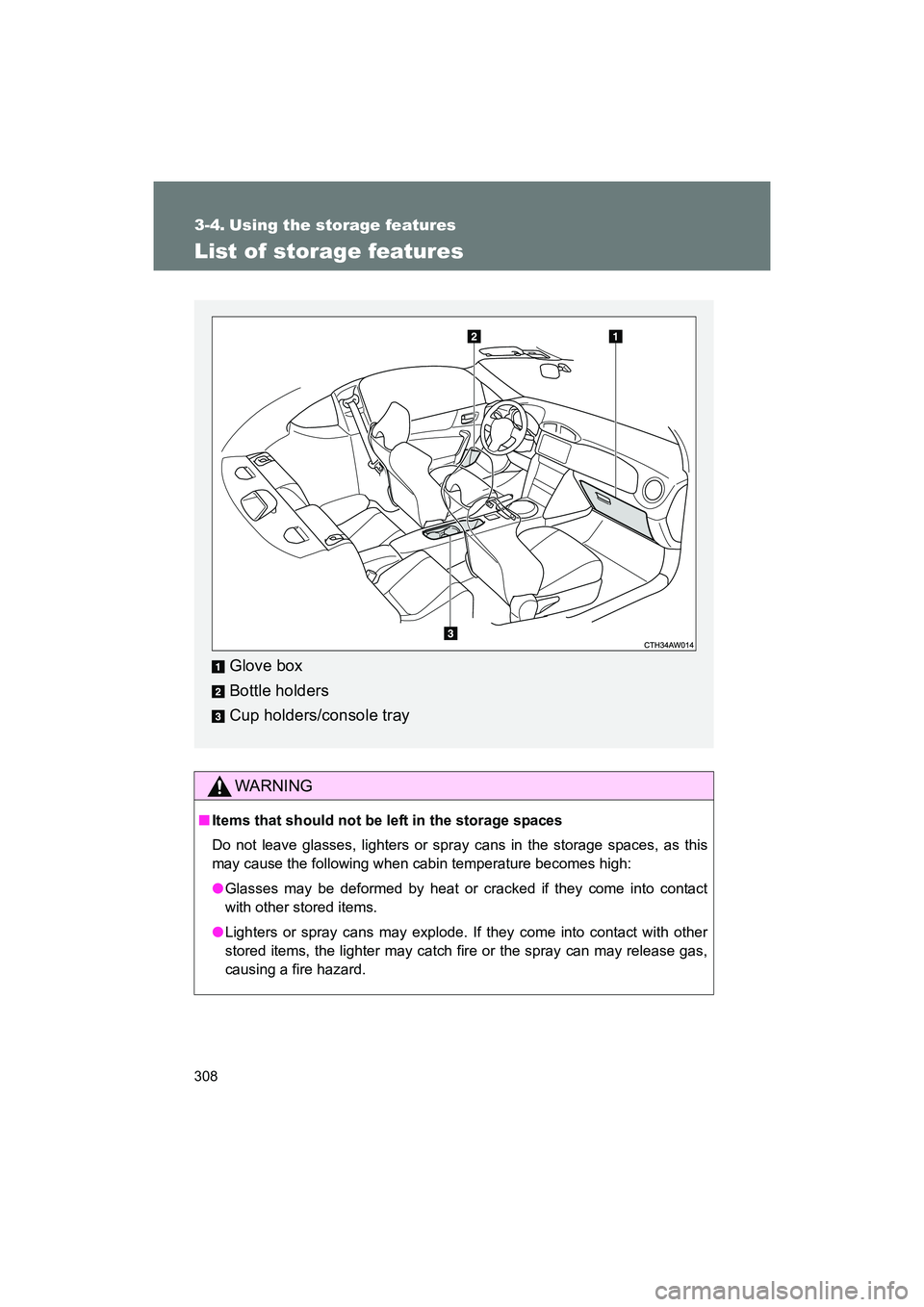

List of storage features
WARNING
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
●Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove box
Bottle holders
Cup holders/console tray

309
3-4. Using the storage features
3
Interior features
BRZ_U (A4450BE-A)

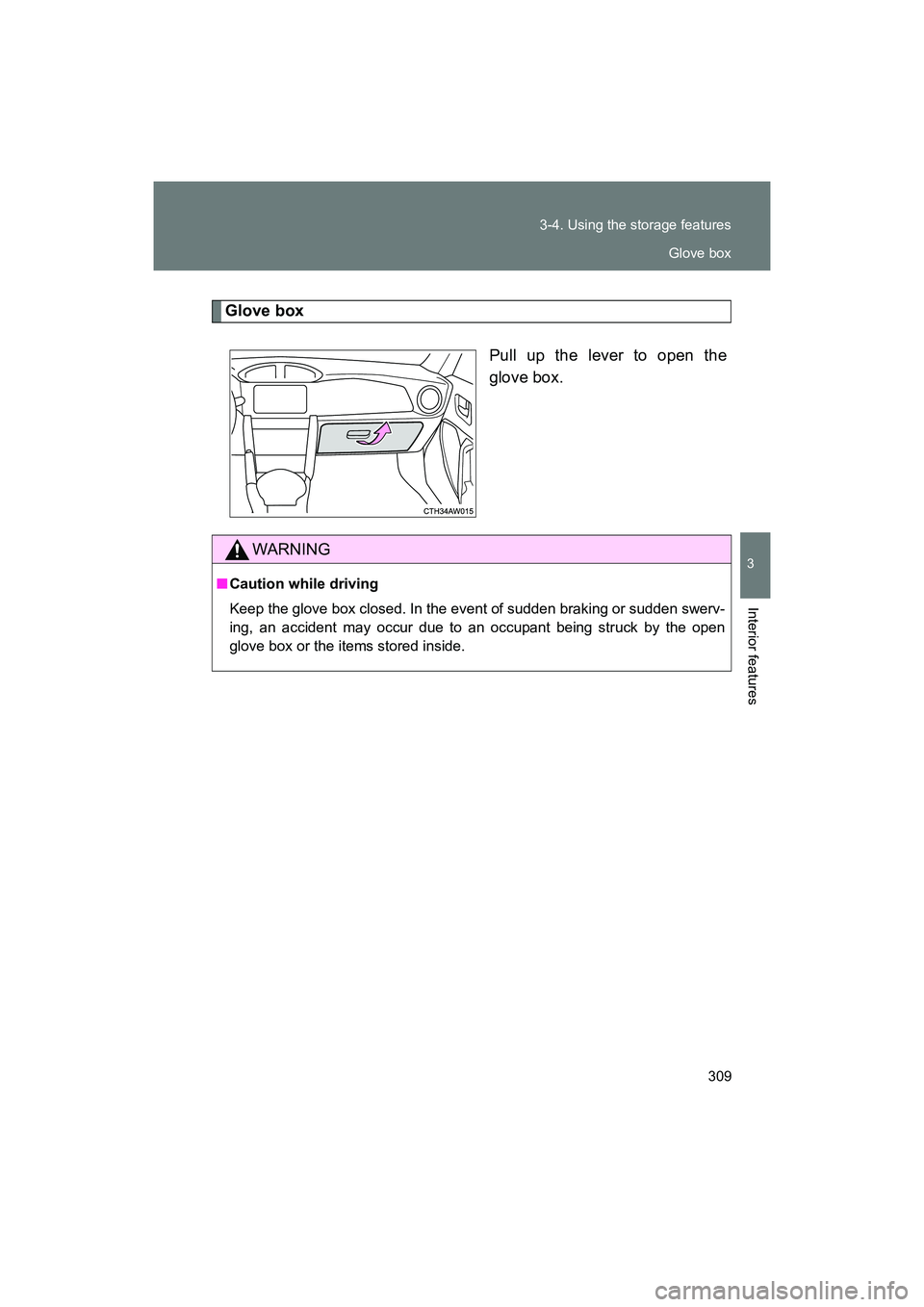

Glove box
Pull up the lever to open the
glove box.
WARNING
■Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Glove box

310 3-4. Using the storage features
BRZ_U (A4450BE-A)

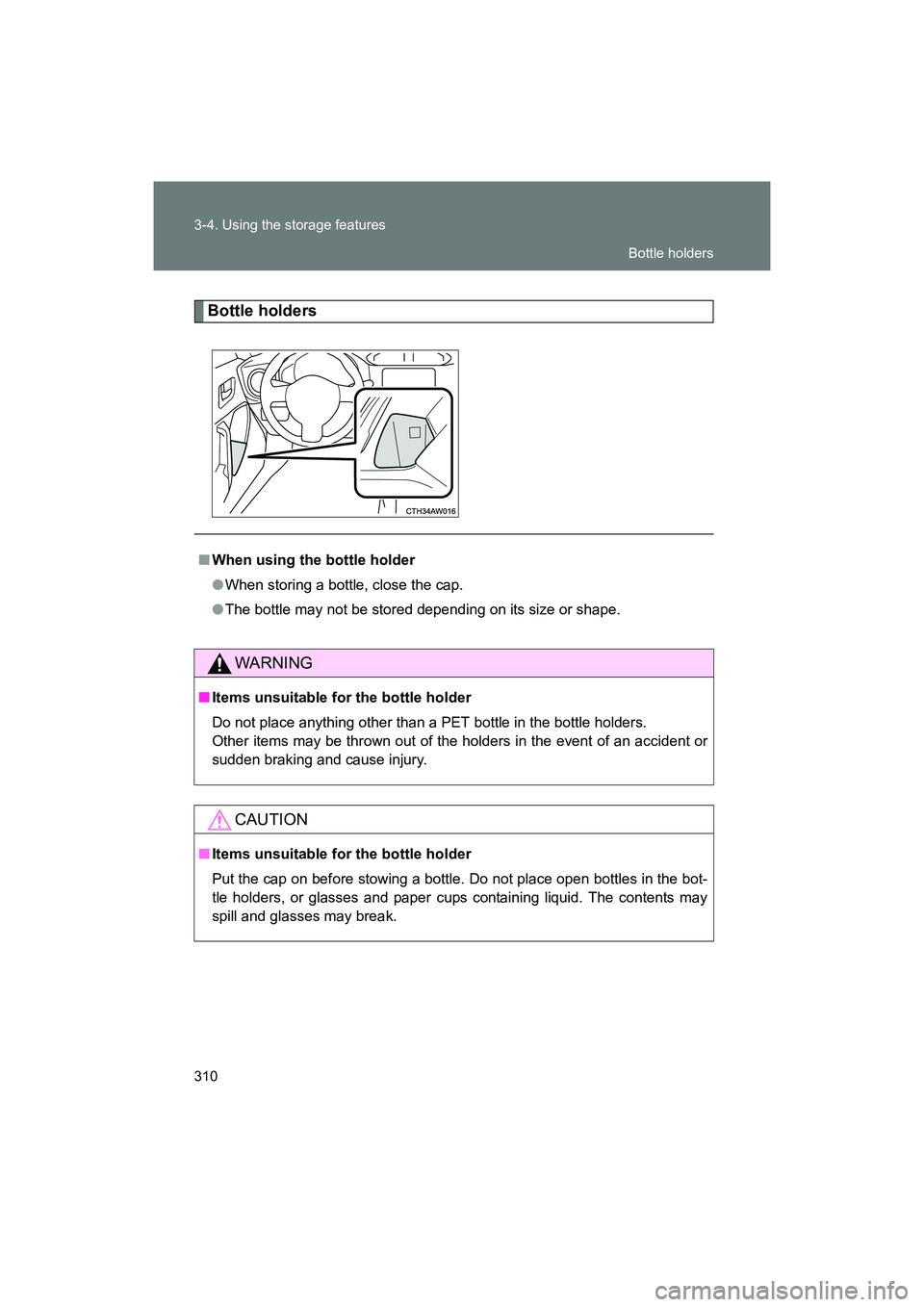

Bottle holders
■When using the bottle holder
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
WARNING
■Items unsuitable for the bottle holder
Do not place anything other than a PET bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
CAUTION
■Items unsuitable for the bottle holder
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders
