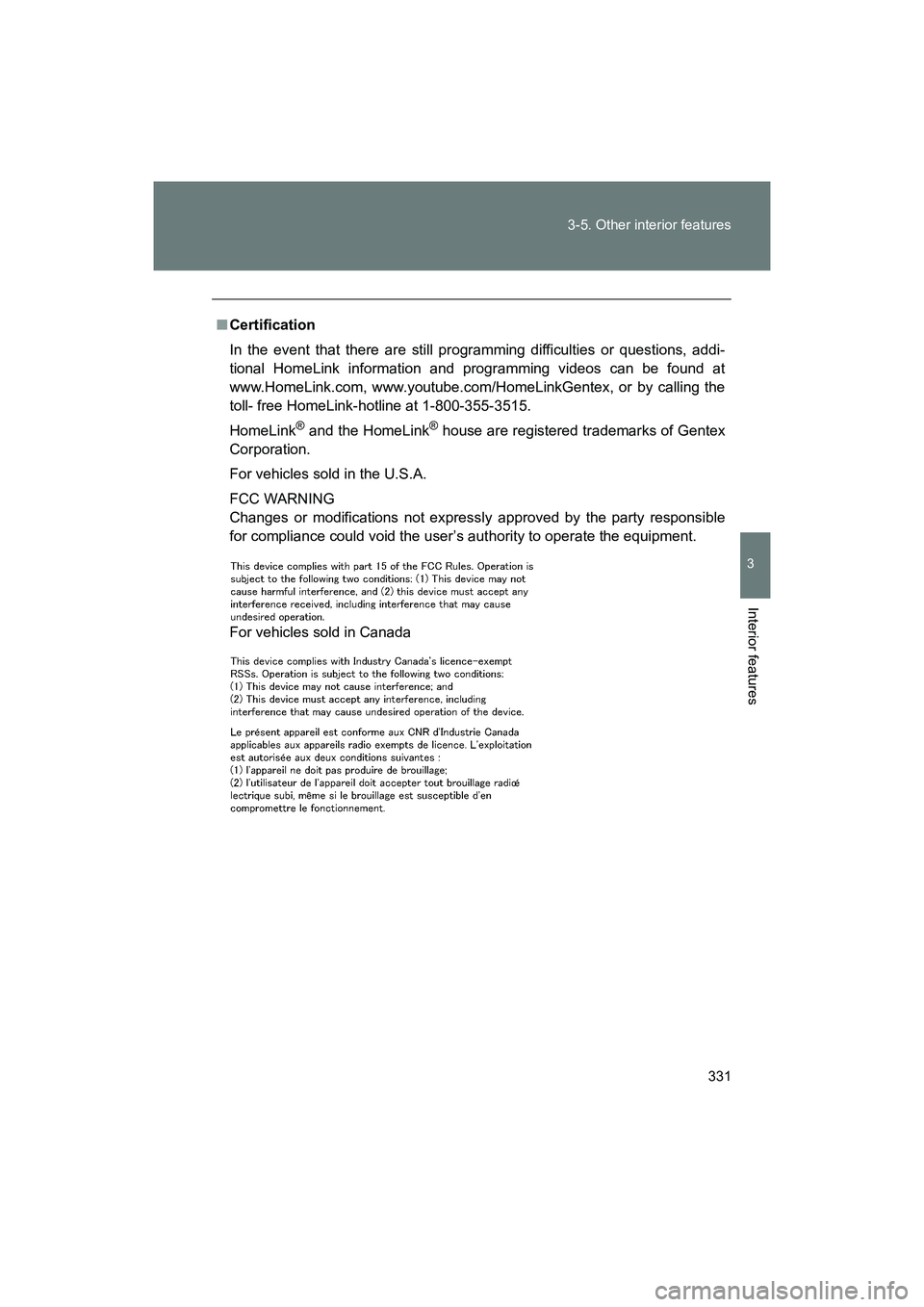

Page 331 of 568

331
3-5. Other interior features
3
Interior features
BRZ_U (A4450BE-A)
■
Certification
In the event that there are still programming difficulties or questions, addi-
tional HomeLink information and programming videos can be found at
www.HomeLink.com, www.youtube.com/HomeLinkGentex, or by calling the
toll- free HomeLink-hotline at 1-800-355-3515.
HomeLink
® and the HomeLink® house are registered trademarks of Gentex
Corporation.
For vehicles sold in the U.S.A.
FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada

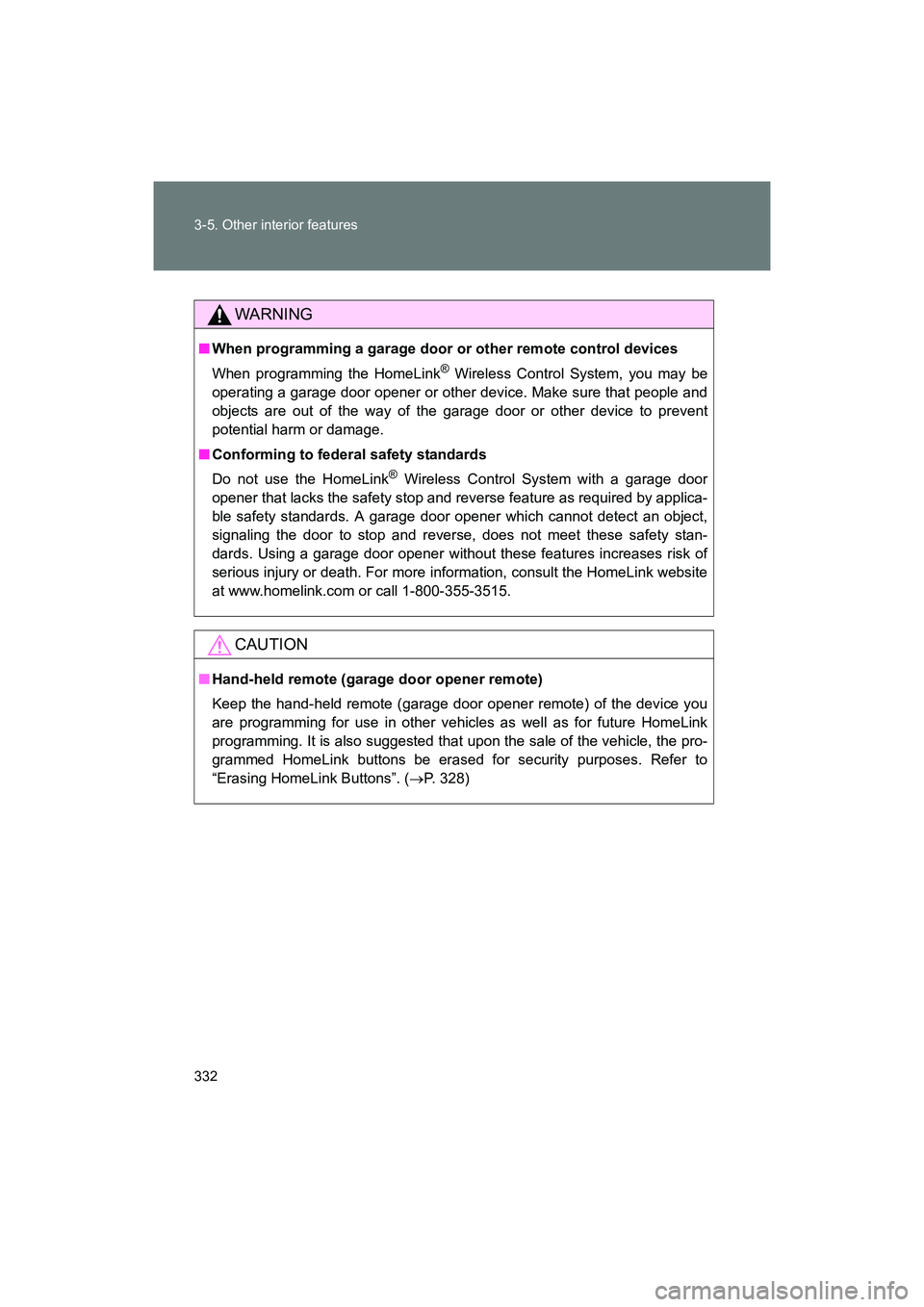

Page 332 of 568

332 3-5. Other interior features
BRZ_U (A4450BE-A)
WARNING
■When programming a garage door or other remote control devices
When programming the HomeLink
® Wireless Control System, you may be
operating a garage door opener or other device. Make sure that people and
objects are out of the way of the garage door or other device to prevent
potential harm or damage.
■ Conforming to federal safety standards
Do not use the HomeLink
® Wireless Control System with a garage door
opener that lacks the safety stop and reverse feature as required by applica-
ble safety standards. A garage door opener which cannot detect an object,
signaling the door to stop and reverse, does not meet these safety stan-
dards. Using a garage door opener without these features increases risk of
serious injury or death. For more information, consult the HomeLink website
at www.homelink.co m or call 1-800-355-3515.
CAUTION
■Hand-held remote (garage door opener remote)
Keep the hand-held remote (garage door opener remote) of the device you
are programming for use in other vehicles as well as for future HomeLink
programming. It is also suggested that upon the sale of the vehicle, the pro-
grammed HomeLink buttons be erased for security purposes. Refer to
“Erasing HomeLink Buttons”. ( →P. 328)

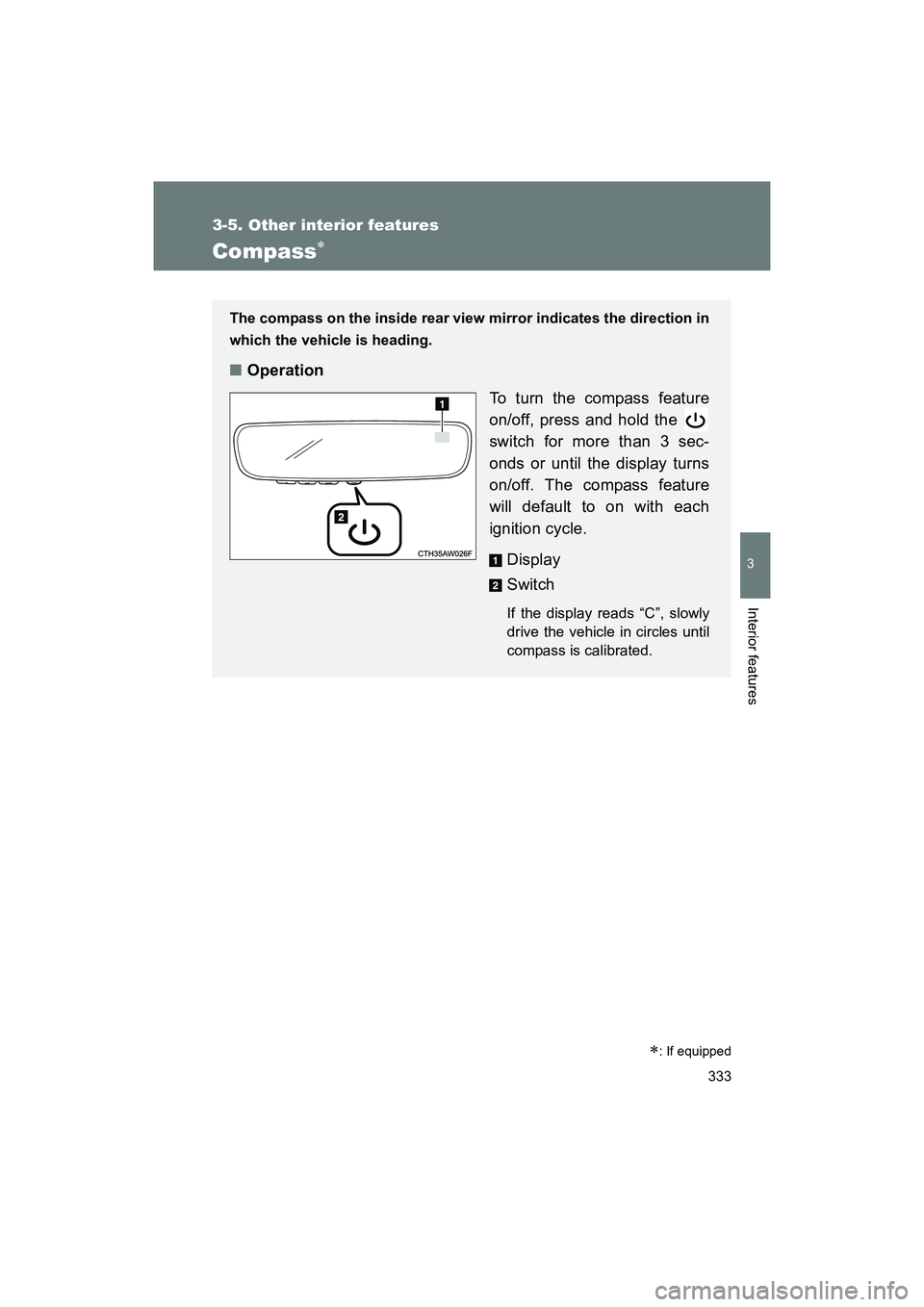

Page 333 of 568

333
3-5. Other interior features
3
Interior features
BRZ_U (A4450BE-A)
Compass∗
∗: If equipped
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■Operation
To turn the compass feature
on/off, press and hold the
switch for more than 3 sec-
onds or until the display turns
on/off. The compass feature
will default to on with each
ignition cycle.
Display
Switch
If the display reads “C”, slowly
drive the vehicle in circles until
compass is calibrated.

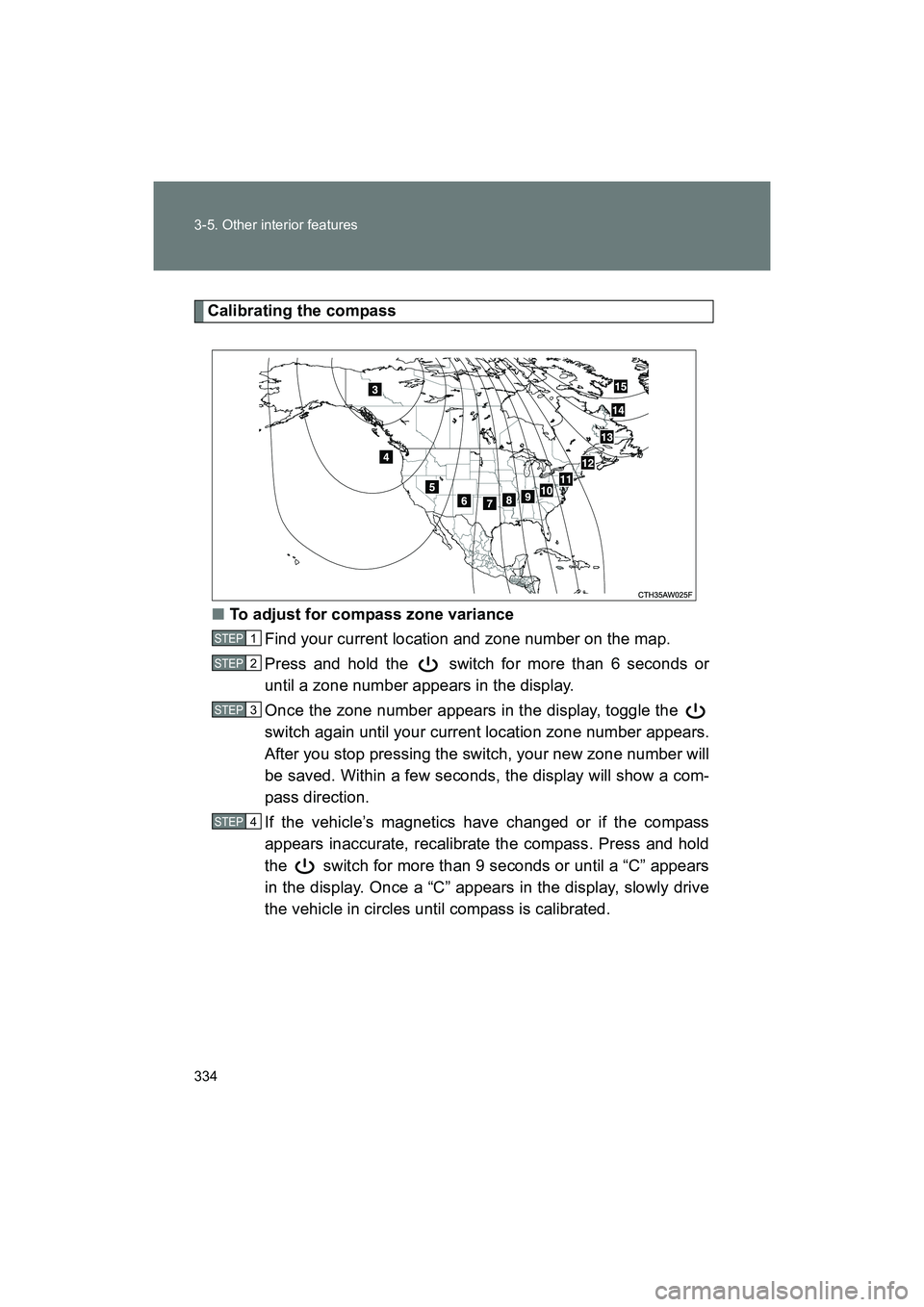

Page 334 of 568

334 3-5. Other interior features
BRZ_U (A4450BE-A)
Calibrating the compass■ To adjust for compass zone variance
Find your current location and zone number on the map.
Press and hold the switch for more than 6 seconds or
until a zone number appears in the display.
Once the zone number appears in the display, toggle the
switch again until your current location zone number appears.
After you stop pressing the switch, your new zone number will
be saved. Within a few seconds, the display will show a com-
pass direction.
If the vehicle’s magnetics have changed or if the compass
appears inaccurate, recalibrate the compass. Press and hold
the switch for more than 9 seconds or until a “C” appears
in the display. Once a “C” appears in the display, slowly drive
the vehicle in circles until compass is calibrated.
STEP 1
STEP 2
STEP 3
STEP 4
Page 335 of 568

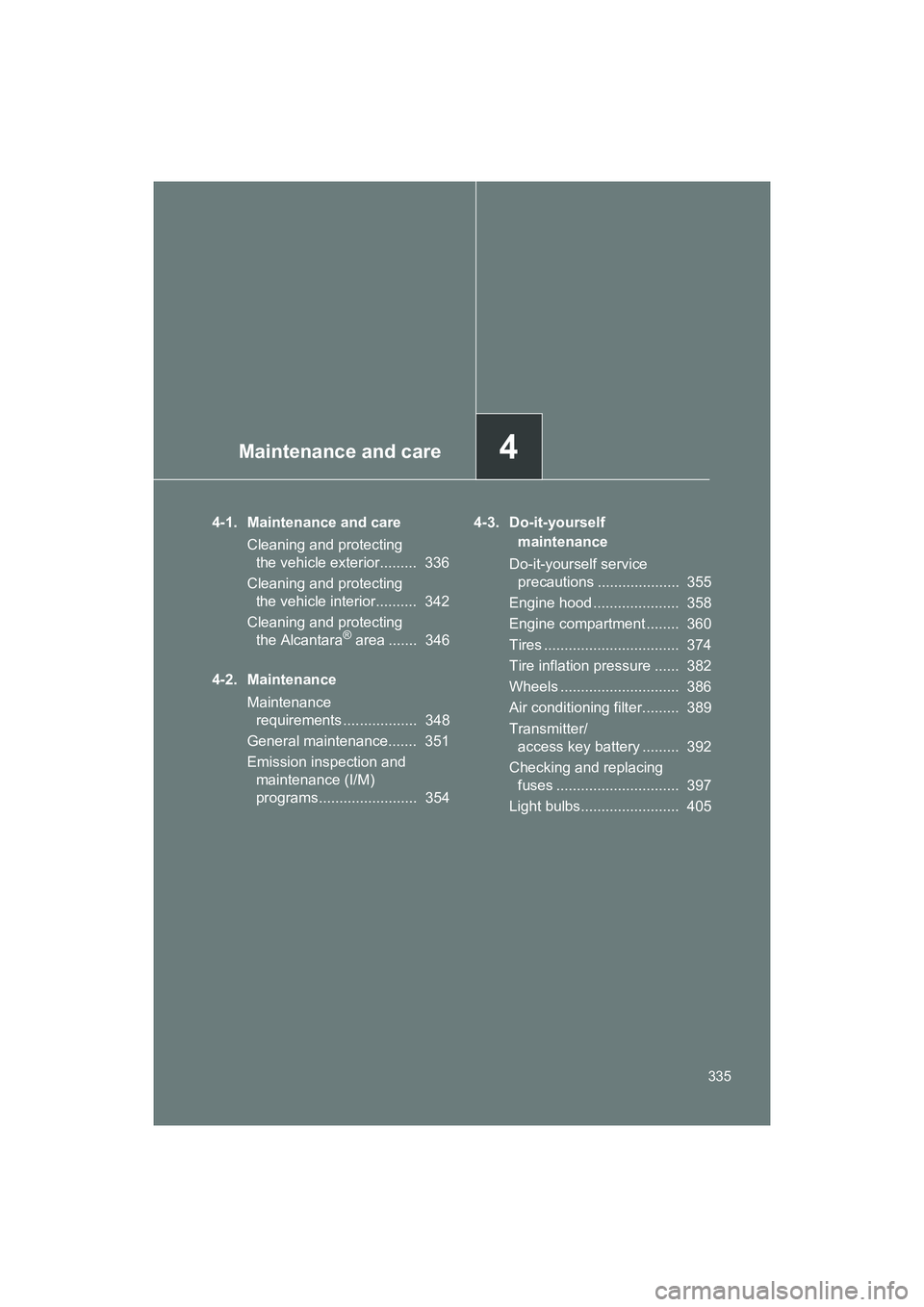

Maintenance and care4
335
BRZ_U (A4450BE-A)
4-1. Maintenance and careCleaning and protecting the vehicle exterior......... 336
Cleaning and protecting the vehicle interior.......... 342
Cleaning and protecting the Alcantara
® area ....... 346
4-2. Maintenance Maintenance requirements .................. 348
General maintenance....... 351
Emission inspection and maintenance (I/M)
programs........................ 354 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions .................... 355
Engine hood ..................... 358
Engine compartment ........ 360
Tires ................................. 374
Tire inflation pressure ...... 382
Wheels ............................. 386
Air conditioning filter......... 389
Transmitter/ access key battery ......... 392
Checking and replacing fuses .............................. 397
Light bulbs........................ 405

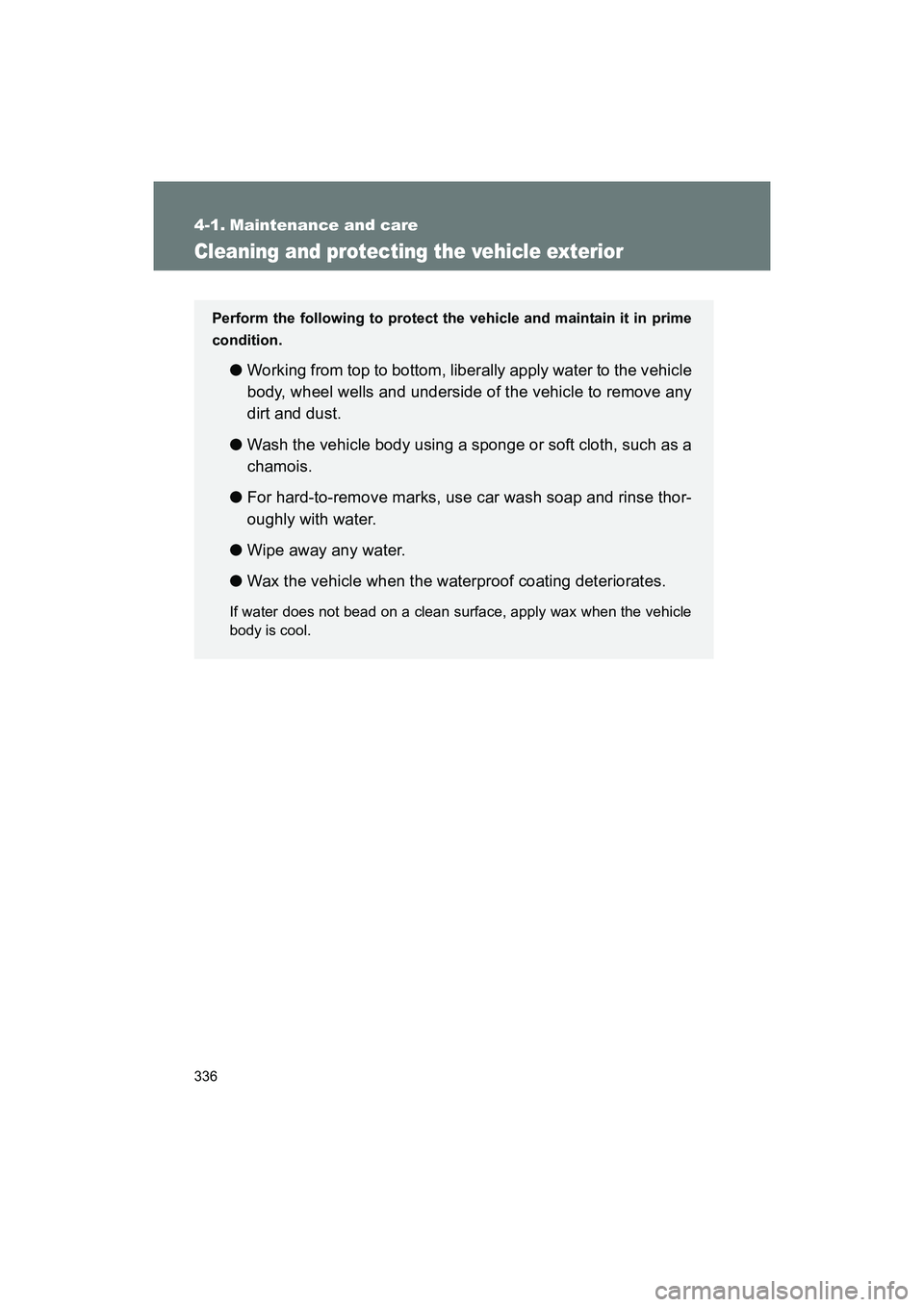

Page 336 of 568

336
BRZ_U (A4450BE-A)
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in prime
condition.
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

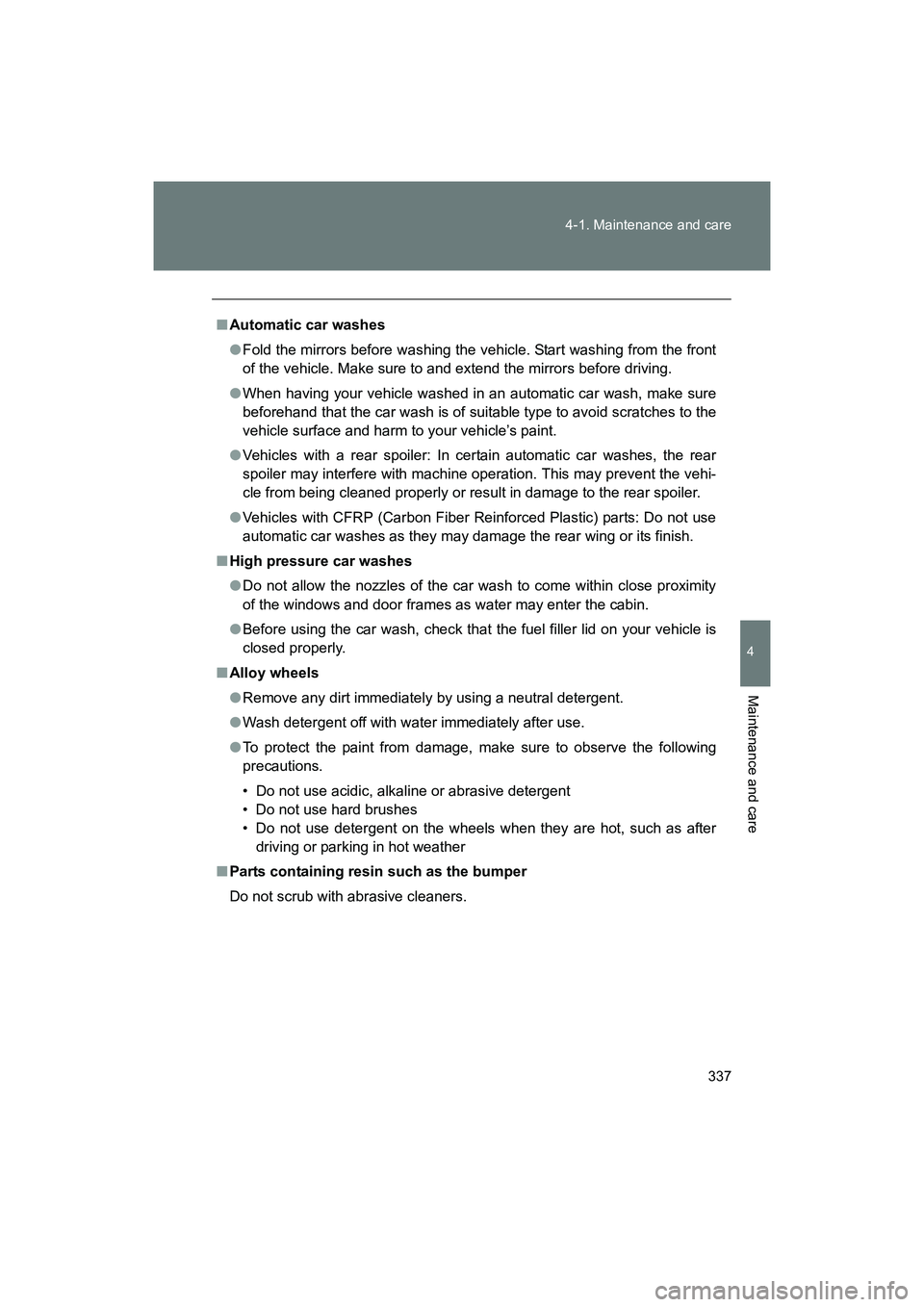

Page 337 of 568

337
4-1. Maintenance and care
4
Maintenance and care
BRZ_U (A4450BE-A)
■
Automatic car washes
● Fold the mirrors before washing the vehicle. Start washing from the front
of the vehicle. Make sure to and extend the mirrors before driving.
● When having your vehicle washed in an automatic car wash, make sure
beforehand that the car wash is of suitable type to avoid scratches to the
vehicle surface and harm to your vehicle’s paint.
● Vehicles with a rear spoiler: In certain automatic car washes, the rear
spoiler may interfere with machine operation. This may prevent the vehi-
cle from being cleaned properly or result in damage to the rear spoiler.
● Vehicles with CFRP (Carbon Fiber Reinforced Plastic) parts: Do not use
automatic car washes as they may damage the rear wing or its finish.
■ High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity
of the windows and door frames as water may enter the cabin.
● Before using the car wash, check that the fuel filler lid on your vehicle is
closed properly.
■ Alloy wheels
● Remove any dirt immediately by using a neutral detergent.
● Wash detergent off with water immediately after use.
● To protect the paint from damage, make sure to observe the following
precautions.
• Do not use acidic, alkaline or abrasive detergent
• Do not use hard brushes
• Do not use detergent on the wheels when they are hot, such as after
driving or parking in hot weather
■ Parts containing resin such as the bumper
Do not scrub with abrasive cleaners.

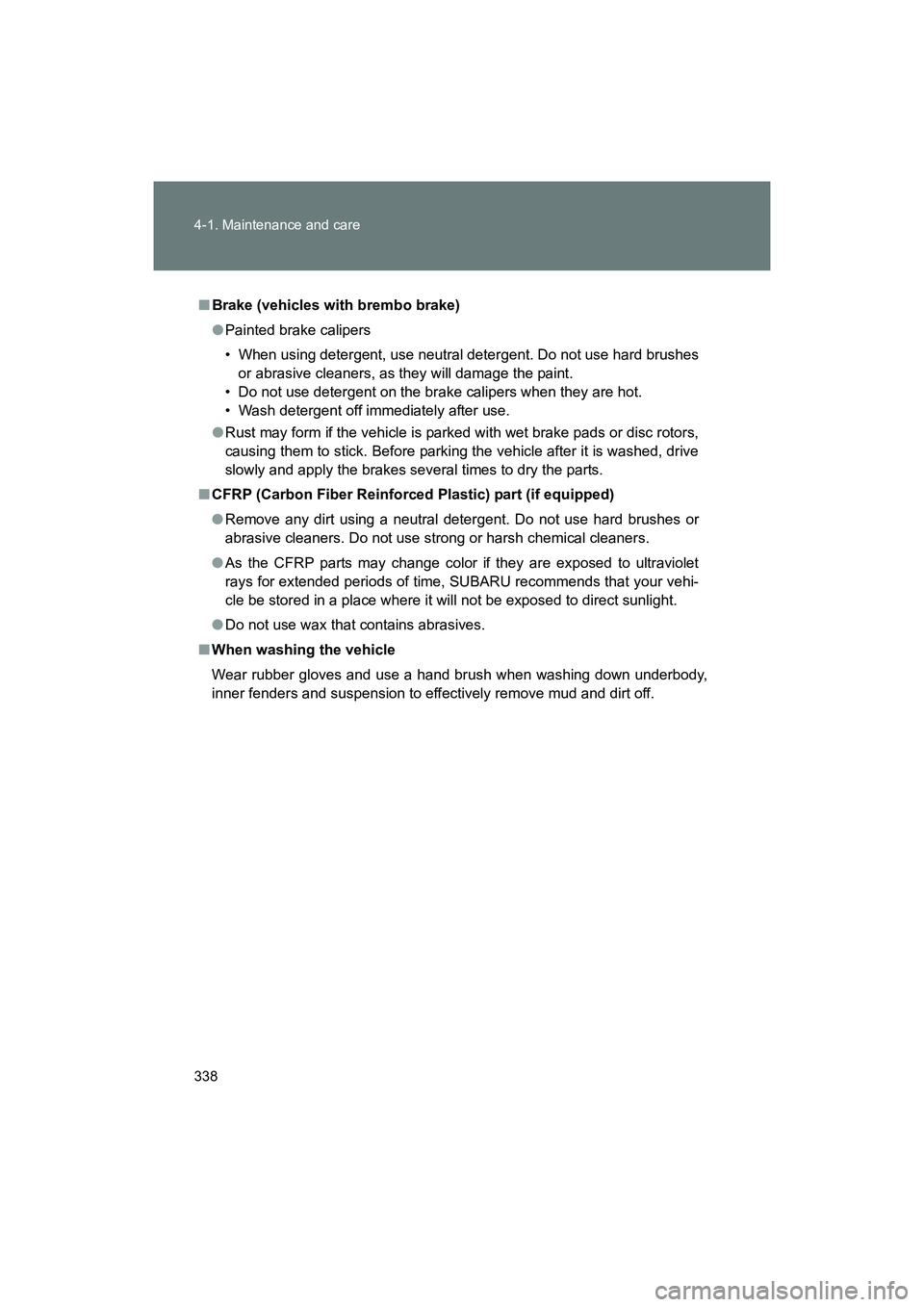

Page 338 of 568

338 4-1. Maintenance and care
BRZ_U (A4450BE-A)
■Brake (vehicles with brembo brake)
●Painted brake calipers
• When using detergent, use neutral detergent. Do not use hard brushes
or abrasive cleaners, as they will damage the paint.
• Do not use detergent on the brake calipers when they are hot.
• Wash detergent off immediately after use.
● Rust may form if the vehicle is parked with wet brake pads or disc rotors,
causing them to stick. Before parking the vehicle after it is washed, drive
slowly and apply the brakes several times to dry the parts.
■ CFRP (Carbon Fiber Reinforced Plastic) part (if equipped)
●Remove any dirt using a neutral detergent. Do not use hard brushes or
abrasive cleaners. Do not use st rong or harsh chemical cleaners.
● As the CFRP parts may change color if they are exposed to ultraviolet
rays for extended periods of time, SUBARU recommends that your vehi-
cle be stored in a place where it will not be exposed to direct sunlight.
● Do not use wax that contains abrasives.
■ When washing the vehicle
Wear rubber gloves and use a hand brush when washing down underbody,
inner fenders and suspension to effectively remove mud and dirt off.

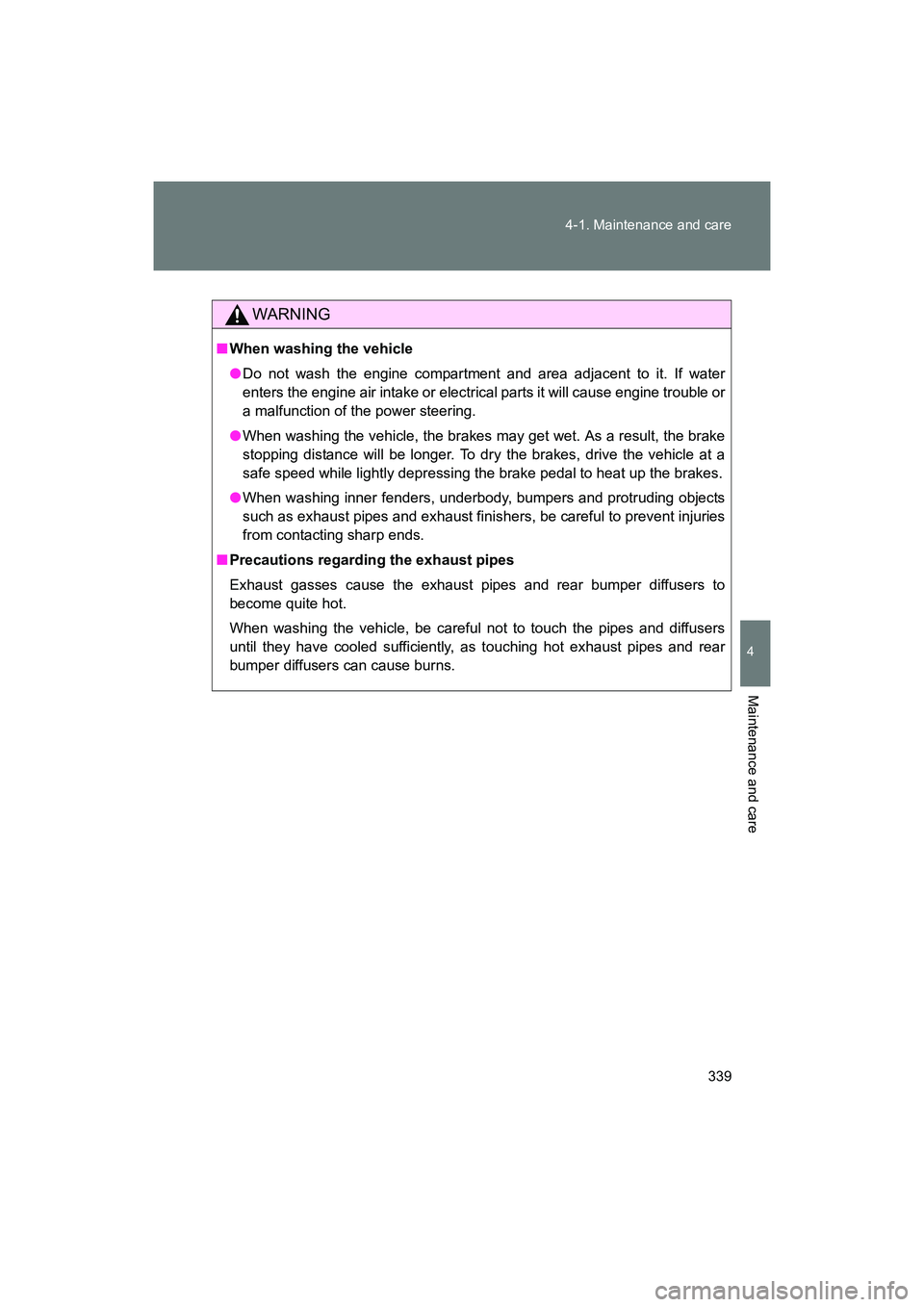

Page 339 of 568

339
4-1. Maintenance and care
4
Maintenance and care
BRZ_U (A4450BE-A)
WARNING
■
When washing the vehicle
● Do not wash the engine compartment and area adjacent to it. If water
enters the engine air intake or electrical parts it will cause engine trouble or
a malfunction of the power steering.
● When washing the vehicle, the brakes may get wet. As a result, the brake
stopping distance will be longer. To dry the brakes, drive the vehicle at a
safe speed while lightly depressing the brake pedal to heat up the brakes.
● When washing inner fenders, underbody, bumpers and protruding objects
such as exhaust pipes and exhaust finishers, be careful to prevent injuries
from contacting sharp ends.
■ Precautions regarding the exhaust pipes
Exhaust gasses cause the exhaust pipes and rear bumper diffusers to
become quite hot.
When washing the vehicle, be careful not to touch the pipes and diffusers
until they have cooled sufficiently, as touching hot exhaust pipes and rear
bumper diffusers can cause burns.
Page 340 of 568

340 4-1. Maintenance and care
BRZ_U (A4450BE-A)
CAUTION
■To prevent paint deterioration and corrosion on the body and compo-
nents (alloy wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects, insect droppings or bird droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
■ Protective film for side sill plates
Make sure to remove the protective film. Failure to do so may cause rust,
depending on conditions.
■ Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
■ To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side
wiper arm upward first, and repeat for the passenger side. When returning
the wipers to their original position, do so from the passenger side first.
