1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
BRZ_U (A4450BE-A)

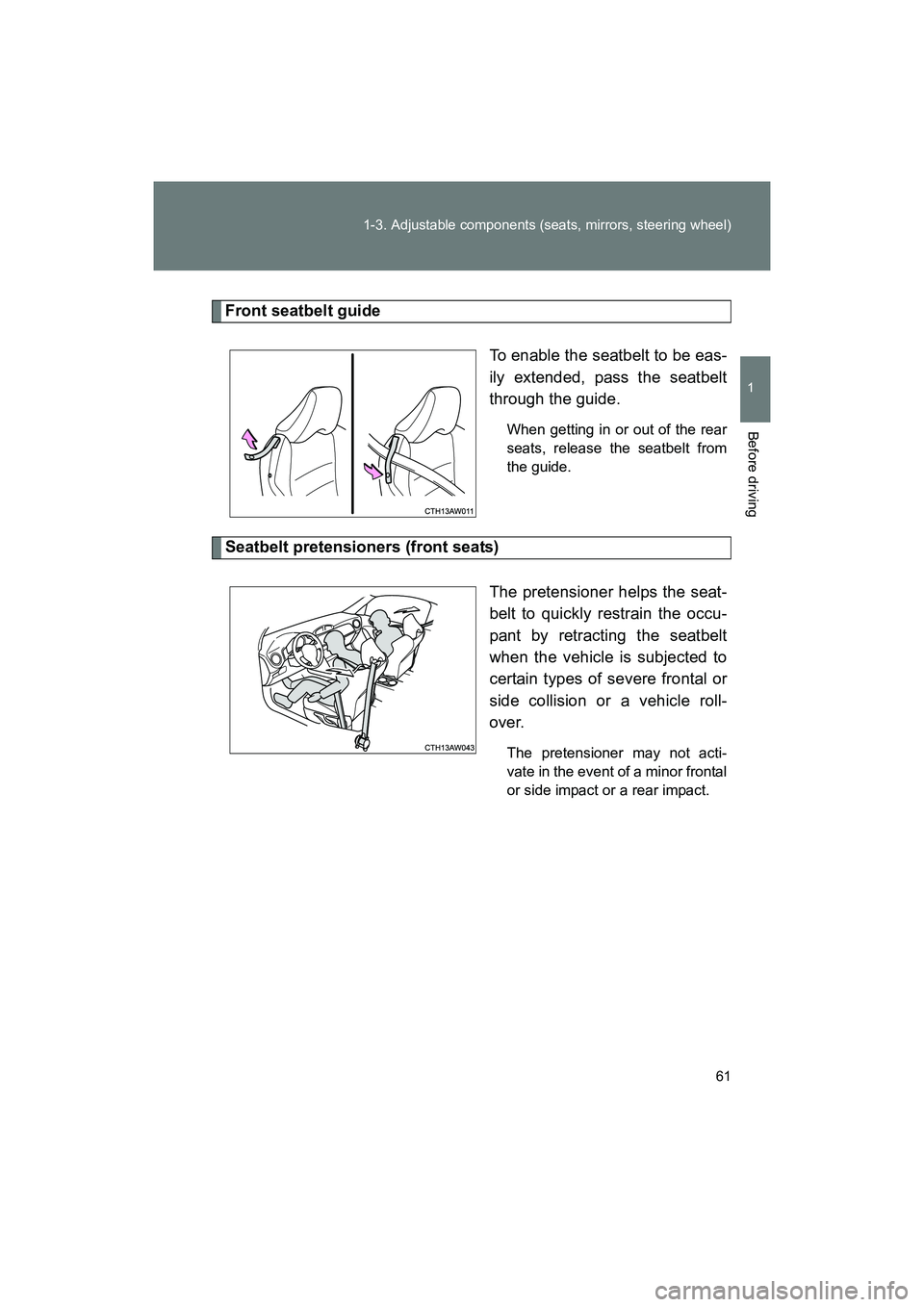

Front seatbelt guide
To enable the seatbelt to be eas-
ily extended, pass the seatbelt
through the guide.
When getting in or out of the rear
seats, release the seatbelt from
the guide.
Seatbelt pretensioners (front seats)
The pretensioner helps the seat-
belt to quickly restrain the occu-
pant by retracting the seatbelt
when the vehicle is subjected to
certain types of severe frontal or
side collision or a vehicle roll-
over.
The pretensioner may not acti-
vate in the event of a minor frontal
or side impact or a rear impact.

62 1-3. Adjustable components (seats, mirrors, steering wheel)
BRZ_U (A4450BE-A)

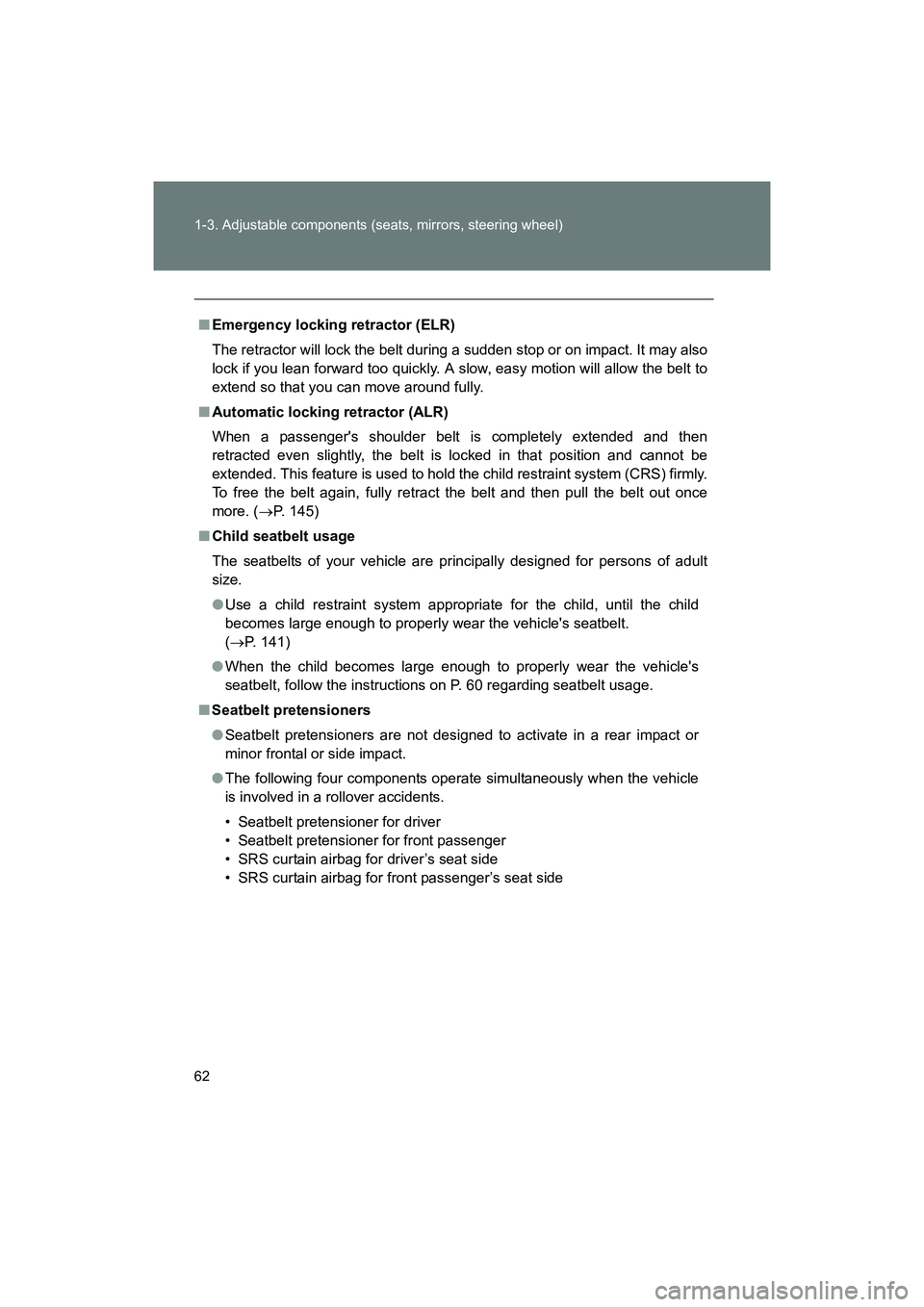

■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. ( →P. 145)
■ Child seatbelt usage
The seatbelts of your vehicle are principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle's seatbelt.
(→ P. 141)
● When the child becomes large enough to properly wear the vehicle's
seatbelt, follow the instructions on P. 60 regarding seatbelt usage.
■ Seatbelt pretensioners
●Seatbelt pretensioners are not designed to activate in a rear impact or
minor frontal or side impact.
● The following four components operate simultaneously when the vehicle
is involved in a rollover accidents.
• Seatbelt pretensioner for driver
• Seatbelt pretensioner for front passenger
• SRS curtain airbag for driver’s seat side
• SRS curtain airbag for front passenger’s seat side

63
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
BRZ_U (A4450BE-A)
●
The following four components operate simultaneously when the vehicle
is subjected to a severe frontal collision.
• Seatbelt pretensioner for driver
• Seatbelt pretensioner for front passenger
• SRS front airbag for driver
• SRS front airbag for front passenger*
*: This does not operate while the occupant detection system determines to deactivate the airbag operation. For details, refer to “Front passenger’s
SRS frontal airbag” ( →P. 101)

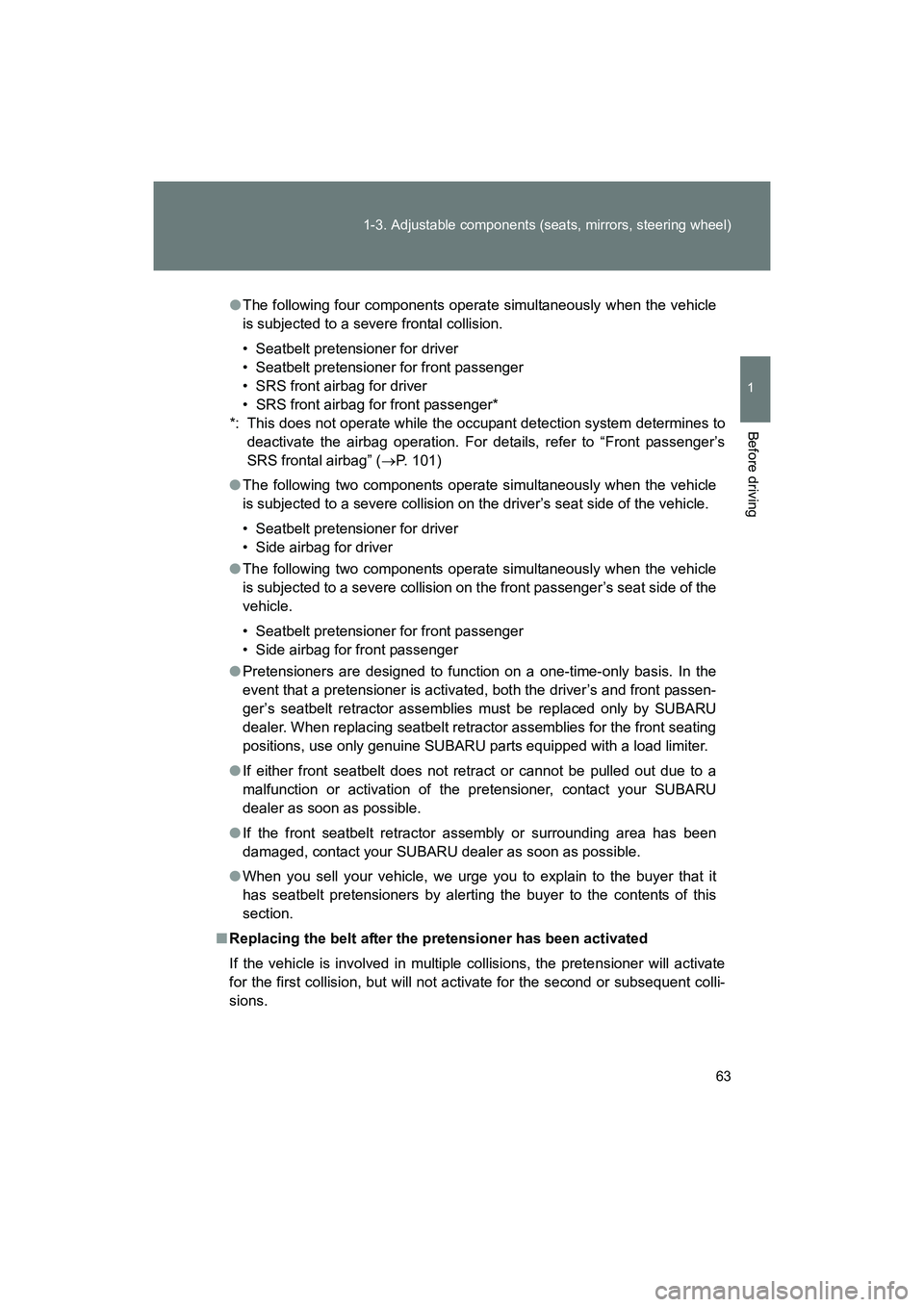

● The following two components operate simultaneously when the vehicle
is subjected to a severe collision on the driver’s seat side of the vehicle.
• Seatbelt pretensioner for driver
• Side airbag for driver
● The following two components operate simultaneously when the vehicle
is subjected to a severe collision on the front passenger’s seat side of the
vehicle.
• Seatbelt pretensioner for front passenger
• Side airbag for front passenger
● Pretensioners are designed to function on a one-time-only basis. In the
event that a pretensioner is activated, both the driver’s and front passen-
ger’s seatbelt retractor assemblies must be replaced only by SUBARU
dealer. When replacing seatbelt retractor assemblies for the front seating
positions, use only genuine SUBARU parts equipped with a load limiter.
● If either front seatbelt does not retract or cannot be pulled out due to a
malfunction or activation of the pretensioner, contact your SUBARU
dealer as soon as possible.
● If the front seatbelt retractor assembly or surrounding area has been
damaged, contact your SUBARU dealer as soon as possible.
● When you sell your vehicle, we urge you to explain to the buyer that it
has seatbelt pretensioners by alerting the buyer to the contents of this
section.
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.

64 1-3. Adjustable components (seats, mirrors, steering wheel)
BRZ_U (A4450BE-A)

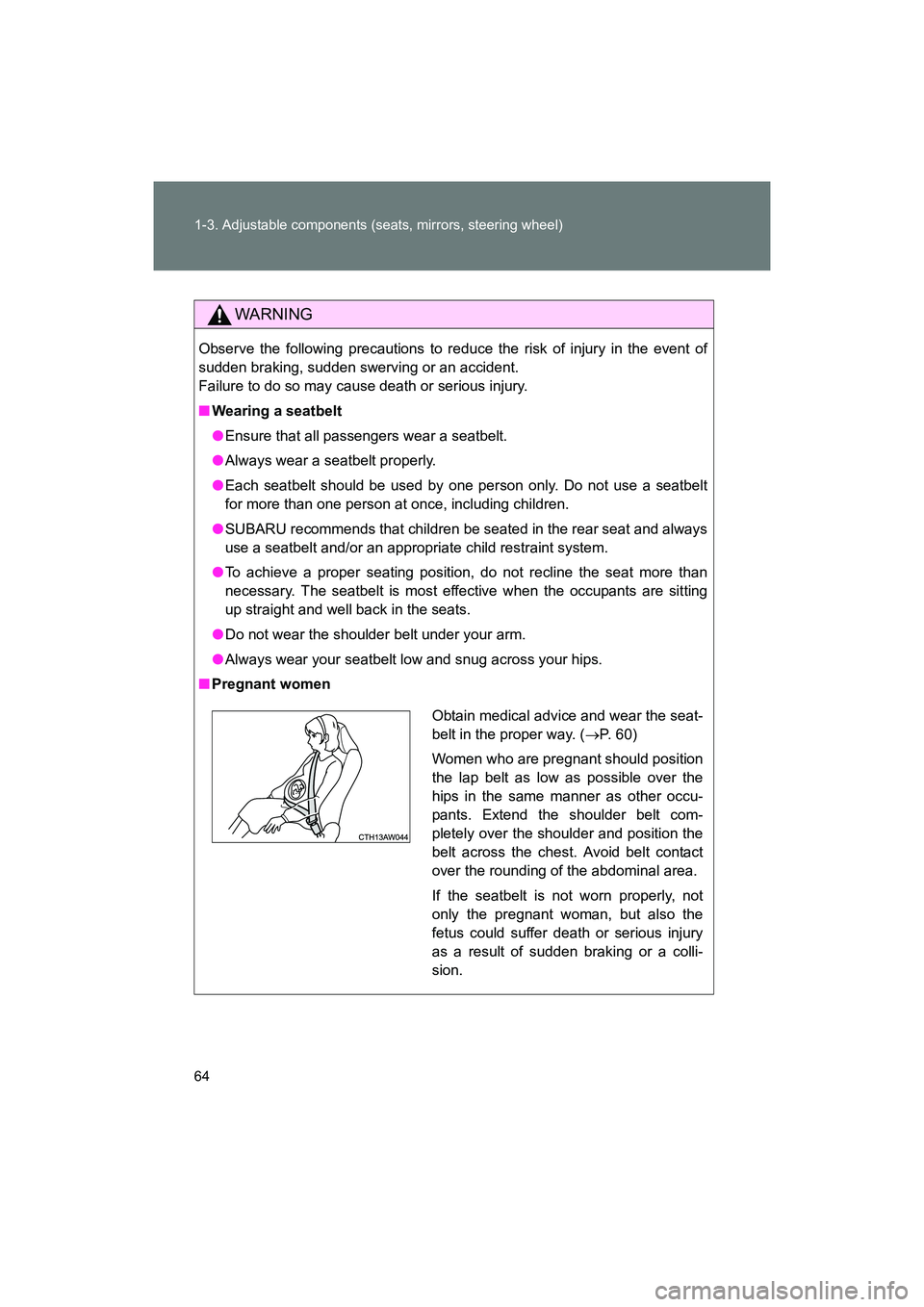

WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seatbelt
●Ensure that all passengers wear a seatbelt.
● Always wear a seatbelt properly.
● Each seatbelt should be used by one person only. Do not use a seatbelt
for more than one person at once, including children.
● SUBARU recommends that children be seated in the rear seat and always
use a seatbelt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seatbelt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoul der belt under your arm.
● Always wear your seatbelt low and snug across your hips.
■ Pregnant women
Obtain medical advice and wear the seat-
belt in the proper way. ( →P. 60)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seatbelt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

65
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
BRZ_U (A4450BE-A)

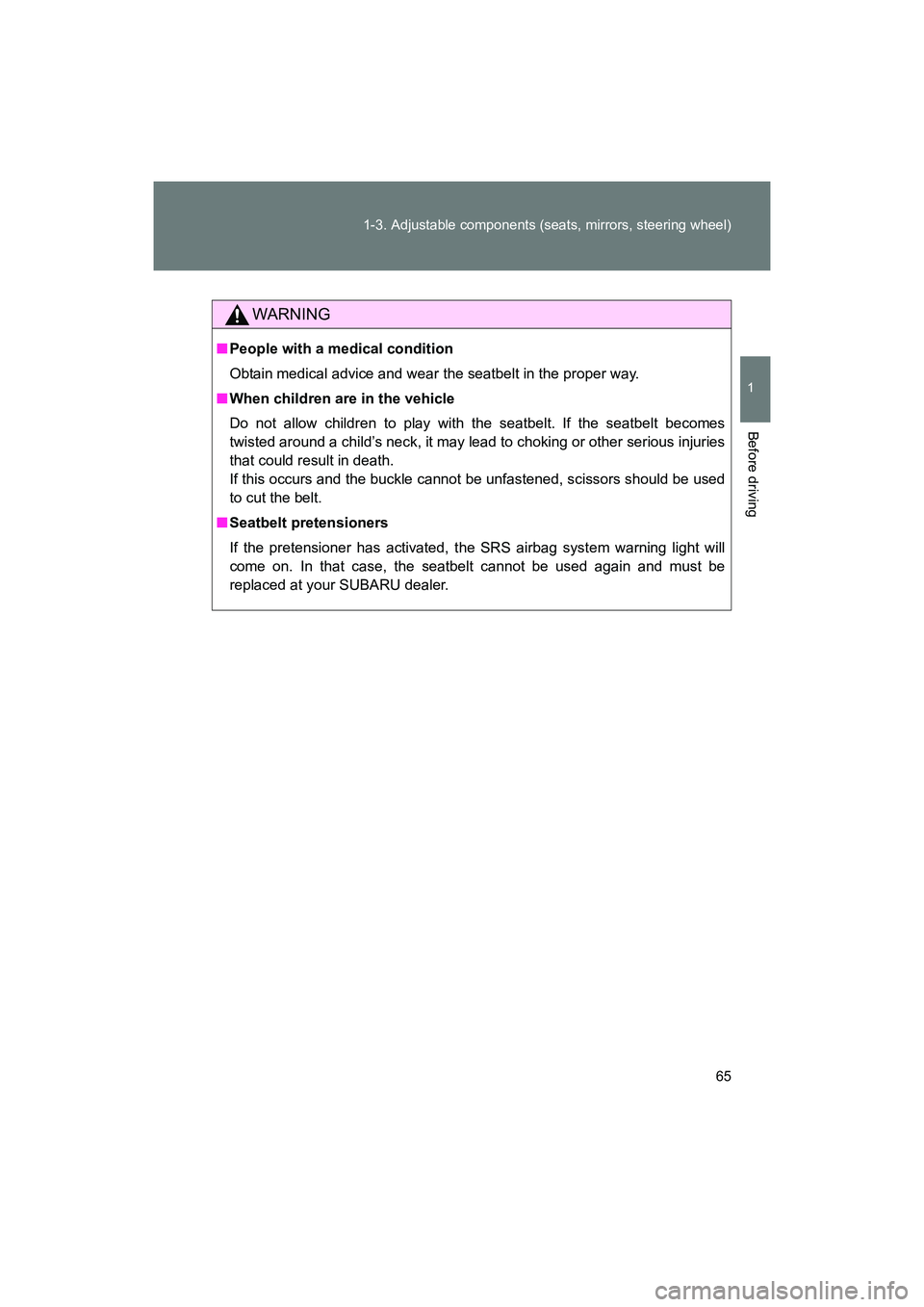

WARNING
■
People with a medical condition
Obtain medical advice and wear the seatbelt in the proper way.
■ When children are in the vehicle
Do not allow children to play with the seatbelt. If the seatbelt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seatbelt pretensioners
If the pretensioner has activated, the SRS airbag system warning light will
come on. In that case, the seatbelt cannot be used again and must be
replaced at your SUBARU dealer.

66 1-3. Adjustable components (seats, mirrors, steering wheel)
BRZ_U (A4450BE-A)

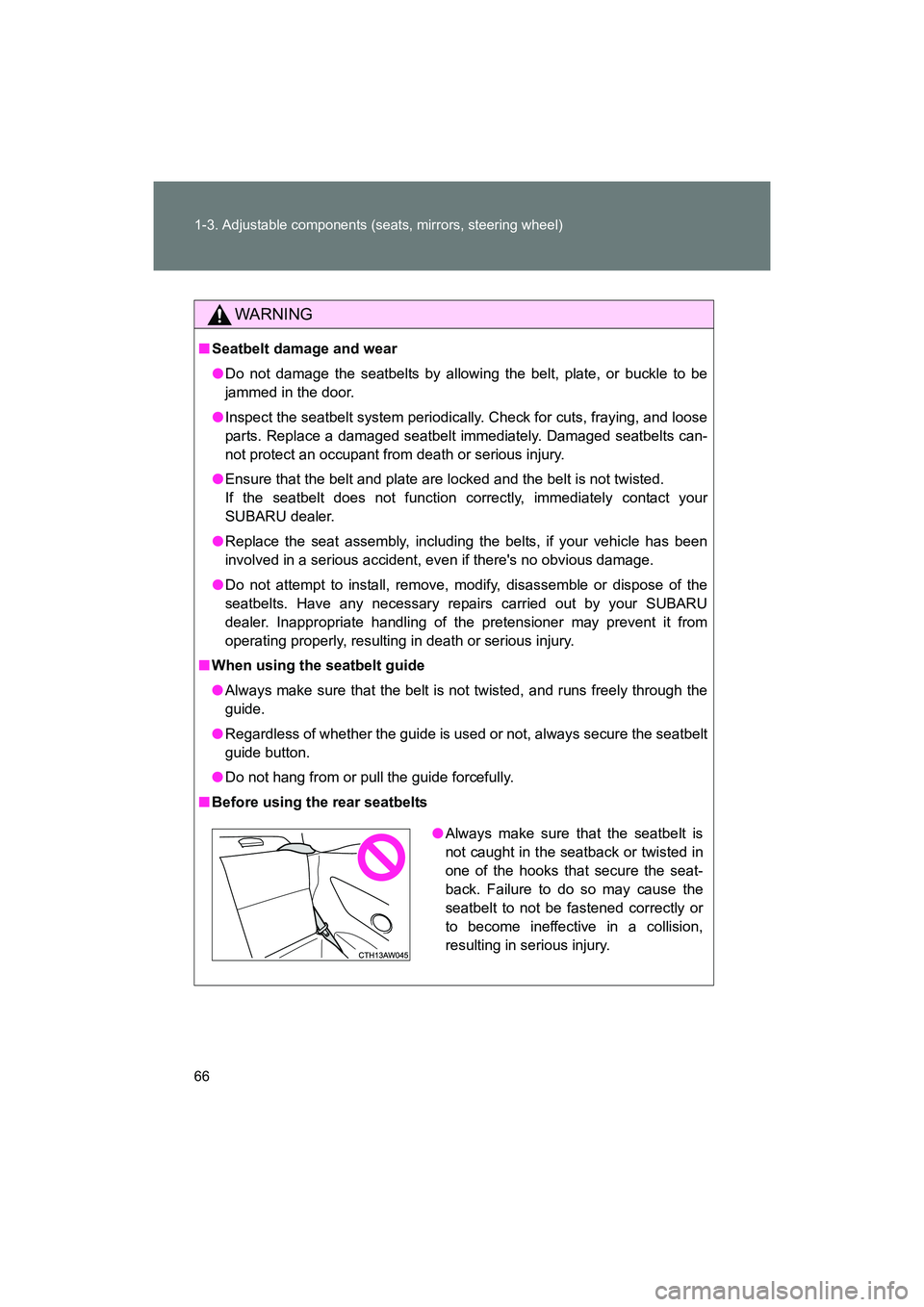

WARNING
■Seatbelt damage and wear
●Do not damage the seatbelts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seatbelt system periodically. Check for cuts, fraying, and loose
parts. Replace a damaged seatbelt immediately. Damaged seatbelts can-
not protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seatbelt does not function corr ectly, immediately contact your
SUBARU dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there's no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seatbelts. Have any necessary repairs carried out by your SUBARU
dealer. Inappropriate handling of the pretensioner may prevent it from
operating properly, resulting in death or serious injury.
■ When using the seatbelt guide
●Always make sure that the belt is not twisted, and runs freely through the
guide.
● Regardless of whether the guide is used or not, always secure the seatbelt
guide button.
● Do not hang from or pull the guide forcefully.
■ Before using the rear seatbelts
●Always make sure that the seatbelt is
not caught in the seatback or twisted in
one of the hooks that secure the seat-
back. Failure to do so may cause the
seatbelt to not be fastened correctly or
to become ineffective in a collision,
resulting in serious injury.

67
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
BRZ_U (A4450BE-A)

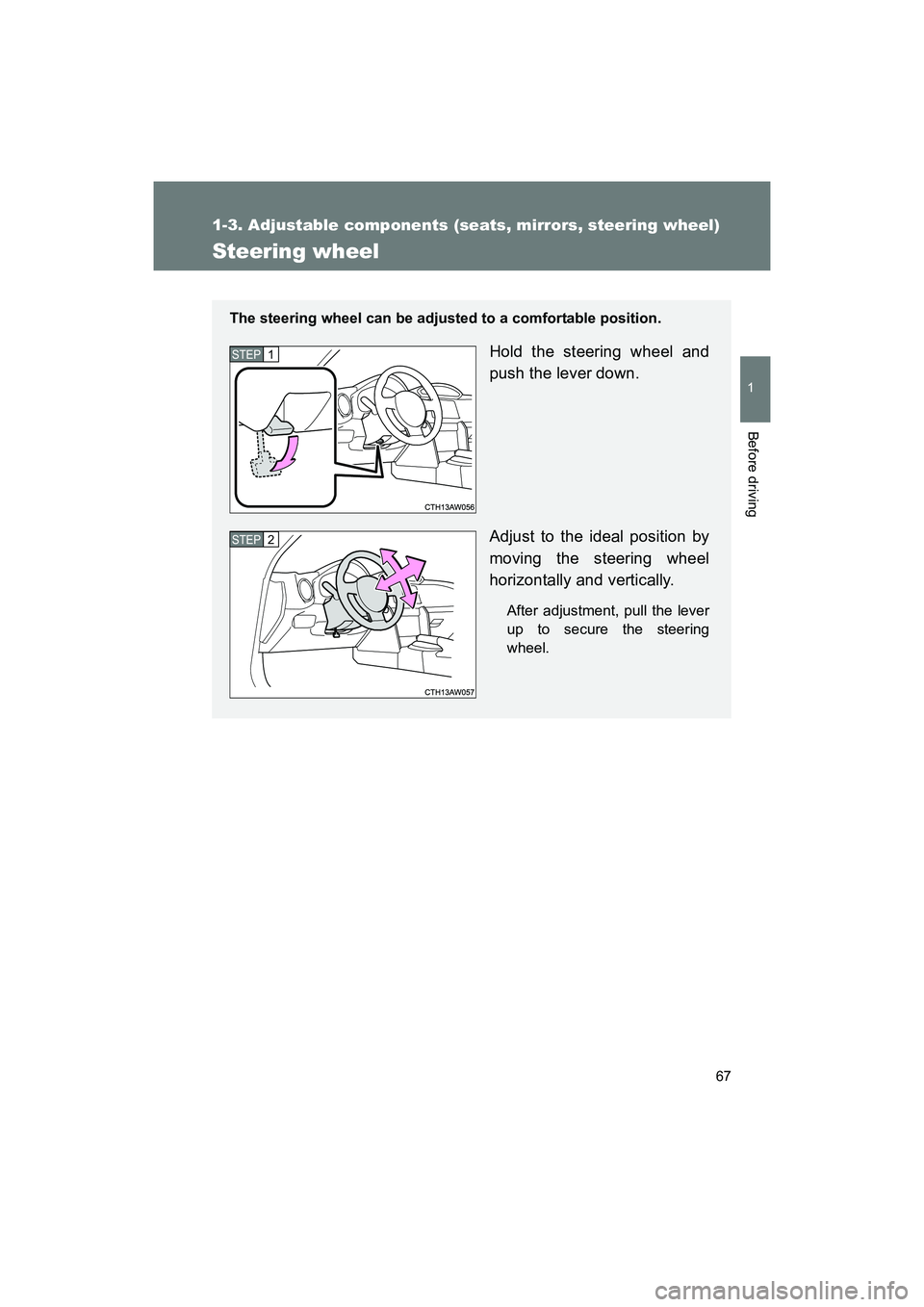

Steering wheel
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.
STEP 1
STEP 2

68 1-3. Adjustable components (seats, mirrors, steering wheel)
BRZ_U (A4450BE-A)

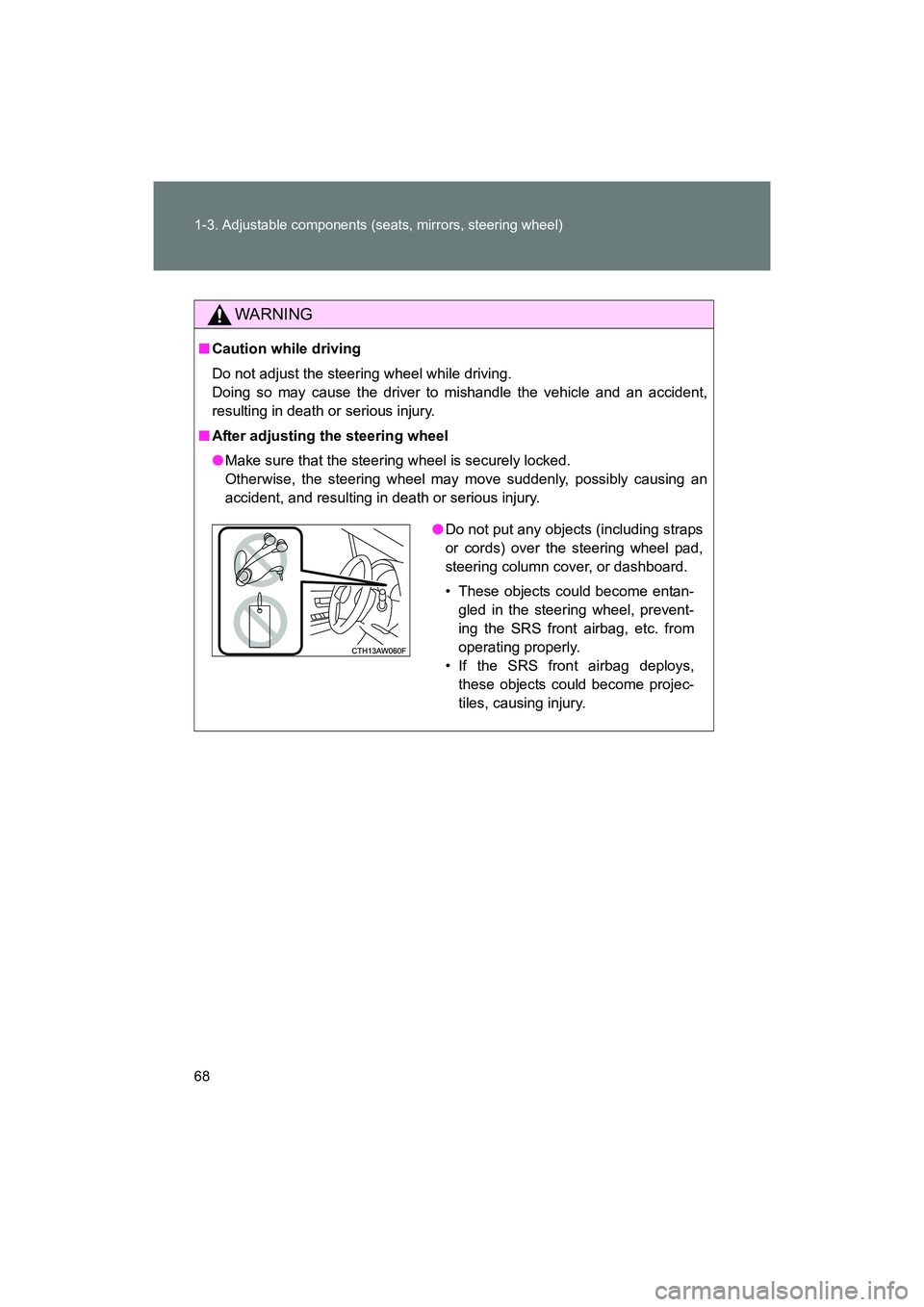

WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident,
resulting in death or serious injury.
■ After adjusting the steering wheel
●Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.
●Do not put any objects (including straps
or cords) over the steering wheel pad,
steering column cover, or dashboard.
• These objects could become entan-
gled in the steering wheel, prevent-
ing the SRS front airbag, etc. from
operating properly.
• If the SRS front airbag deploys, these objects could become projec-
tiles, causing injury.

69
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
BRZ_U (A4450BE-A)

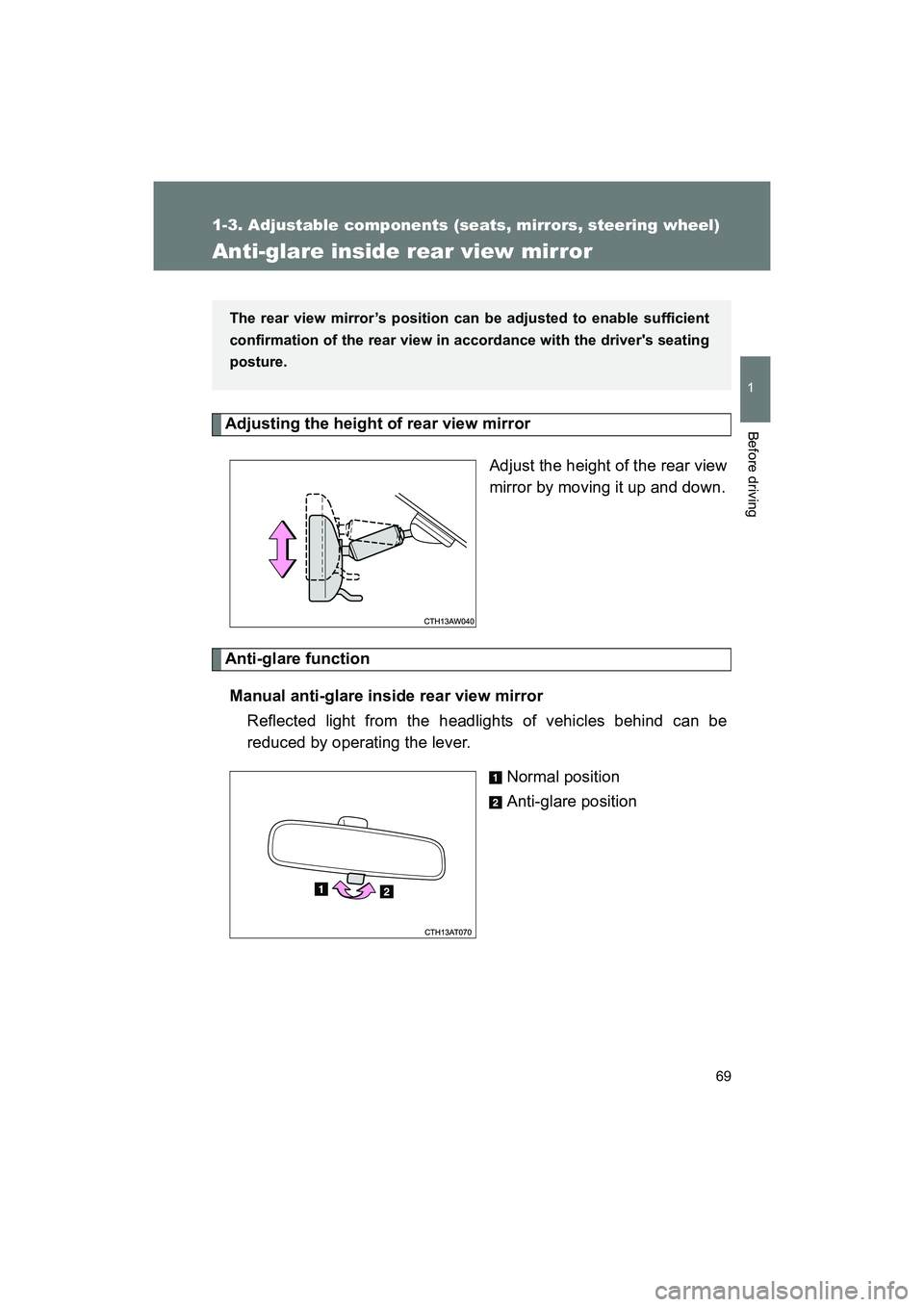

Anti-glare inside rear view mirror
Adjusting the height of rear view mirror Adjust the height of the rear view
mirror by moving it up and down.
Anti-glare functionManual anti-glare inside rear view mirror Reflected light from the headlights of vehicles behind can be
reduced by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view in accordance with the driver's seating
posture.

70 1-3. Adjustable components (seats, mirrors, steering wheel)

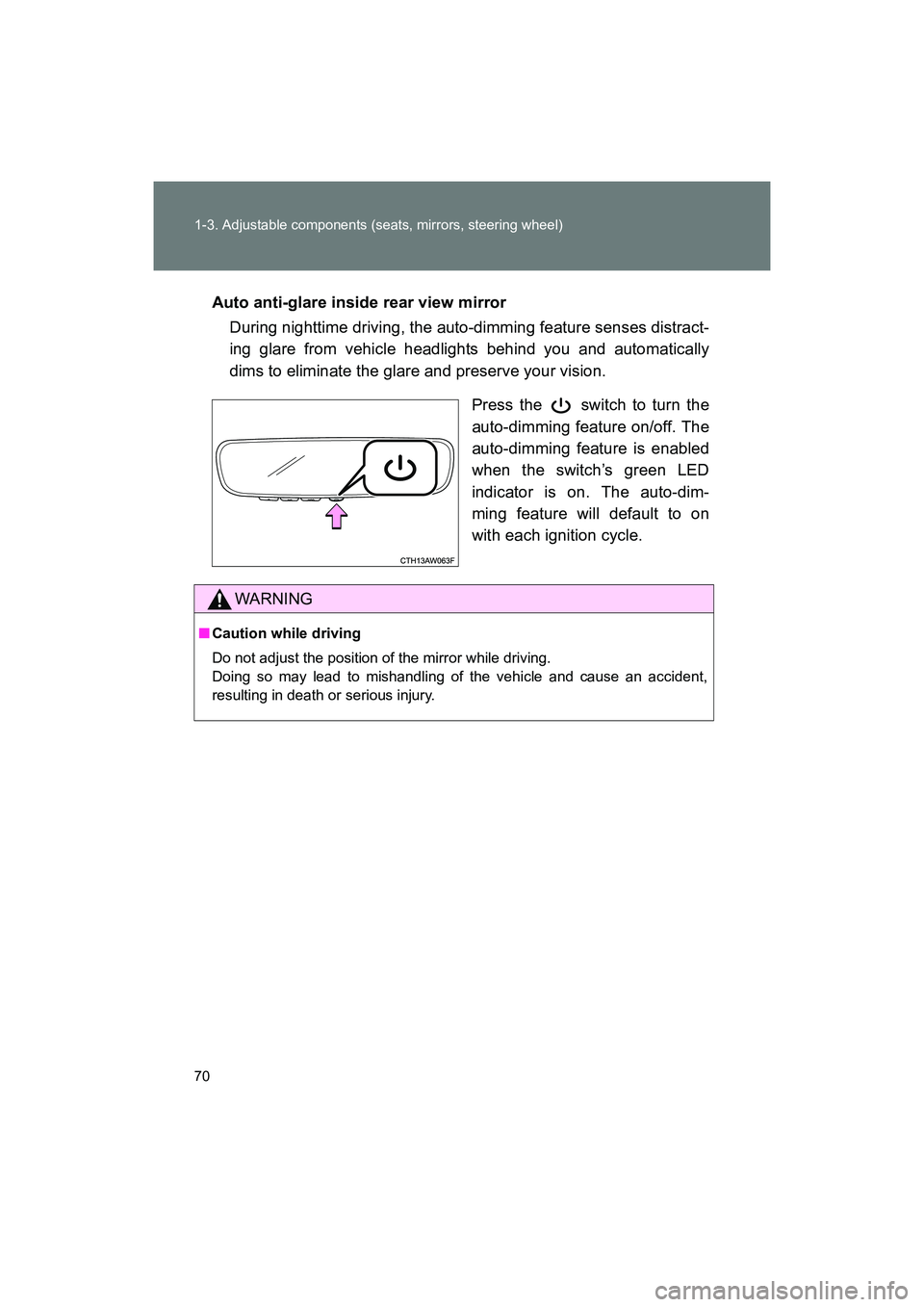

BRZ_U (A4450BE-A)Auto anti-glare inside rear view mirror
During nighttime driving, the auto-dimming feature senses distract-
ing glare from vehicle headlights behind you and automatically
dims to eliminate the glare and preserve your vision.
Press the switch to turn the
auto-dimming feature on/off. The
auto-dimming feature is enabled
when the switch’s green LED
indicator is on. The auto-dim-
ming feature will default to on
with each ignition cycle.
WARNING
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
