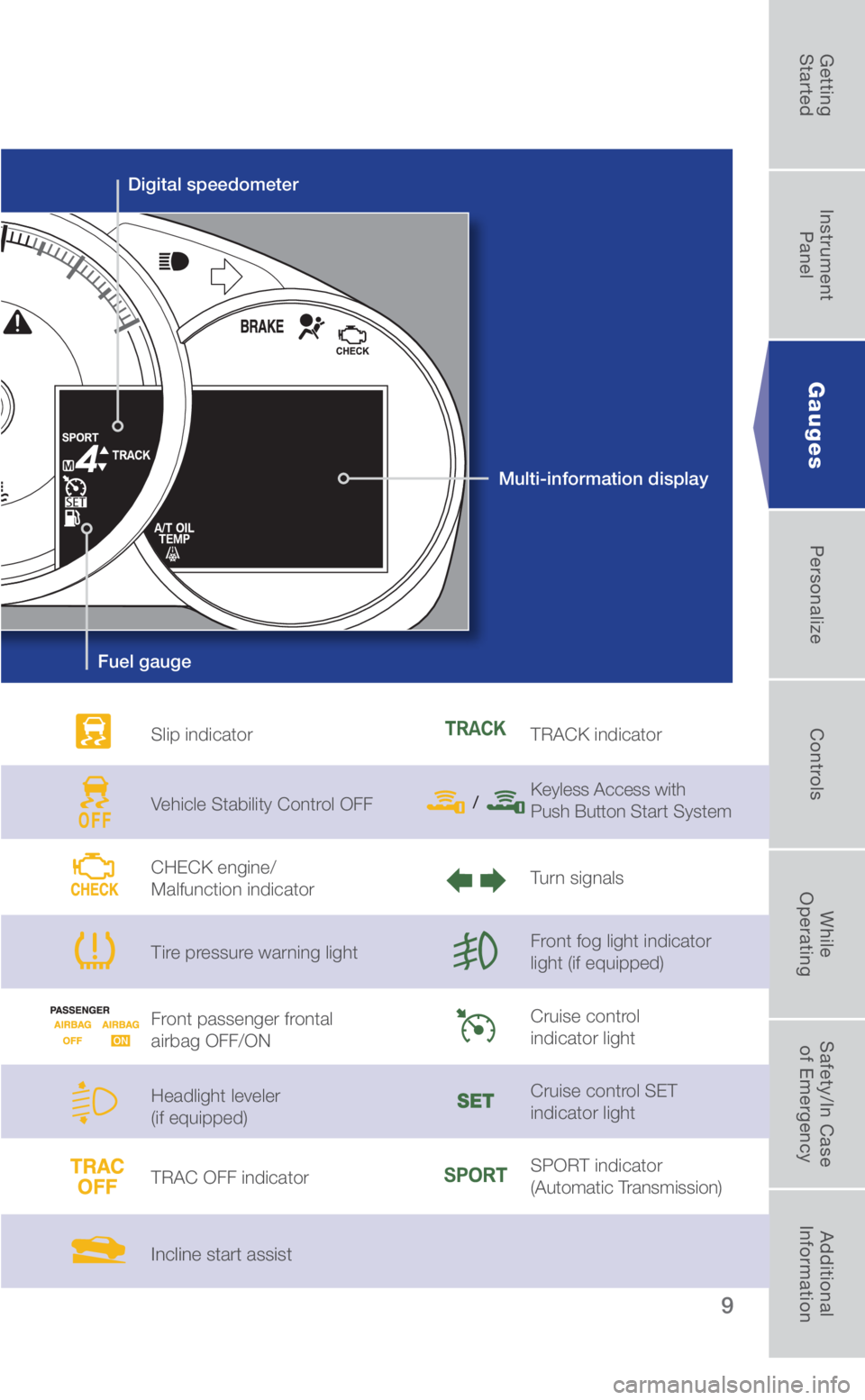

SUBARU BRZ 2018 Quick Guide

9
Slip indicator
Vehicle Stability Control OFF
CHECK engine/
Malfunction indicator
Tire pressure warning light
Front passenger frontal
airbag OFF/ON
Headlight leveler
(if equipped)
TRAC OFF indicator
Incline start assist
TRACK indicator
Keyless Access with
Push Button Start System
Turn signals
Front fog light indicator
light (if equipped)
Cruise control
indicator light
Cruise control SET
indicator light
SPORT indicator
(Automatic Transmission)
Gauges
Digital speedometer
Multi-information display
Fuel gauge
3156598_18a_BRZ_QRG_100217.indd 910/3/17 8:56 AM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

10

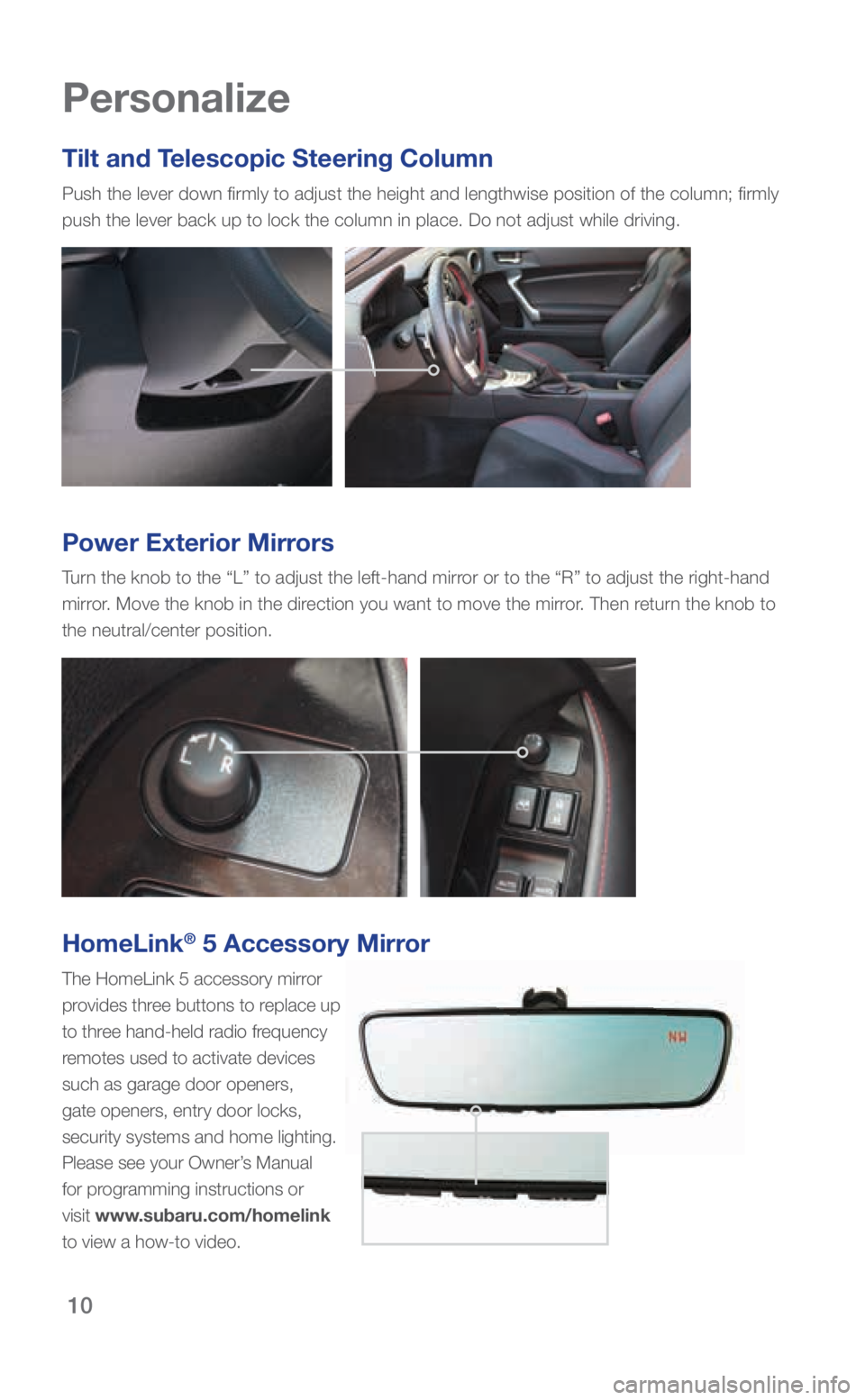

Personalize
Tilt and Telescopic Steering Column
Push the lever down firmly to adjust the height and lengthwise positio\
n of the column; firmly
push the lever back up to lock the column in place. Do not adjust while \
driving.
Power Exterior Mirrors
Turn the knob to the “L” to adjust the left-hand mirror or to the “R” to adjust the right-hand
mirror. Move the knob in the direction you want to move the mirror. Then return the knob to
the neutral/center position.
HomeLink® 5 Accessory Mirror
The HomeLink 5 accessory mirror
provides three buttons to replace up
to three hand-held radio frequency
remotes used to activate devices
such as garage door openers,
gate openers, entry door locks,
security systems and home lighting.
Please see your Owner’s Manual
for programming instructions or
visit www.subaru.com/homelink
to view a how-to video.
3156598_18a_BRZ_QRG_100217.indd 1010/3/17 8:56 AM

11

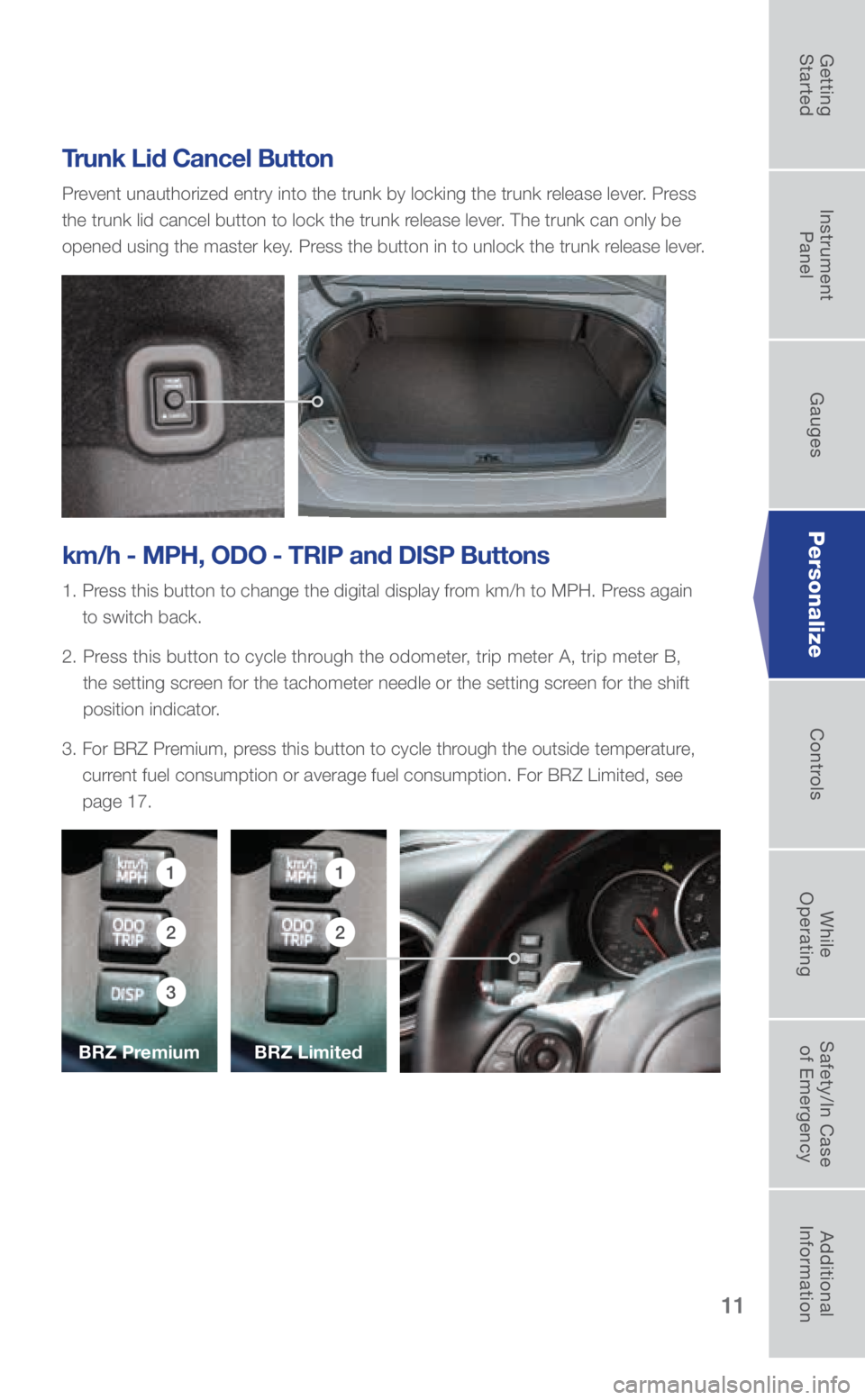

Trunk Lid Cancel Button
Prevent unauthorized entry into the trunk by locking the trunk release lever. Press
the trunk lid cancel button to lock the trunk release lever. The trunk can only be
opened using the master key. Press the button in to unlock the trunk release lever.
km/h - MPH, ODO - TRIP and DISP Buttons
1. Press this button to change the digital display from km/h to MPH. Press again
to switch back.
2. Press this button to cycle through the odometer, trip meter A, trip meter B,
the setting screen for the tachometer needle or the setting screen for the shift
position indicator.
3. For BRZ Premium, press this button to cycle through the outside temperature,
current fuel consumption or average fuel consumption. For BRZ Limited, see
page 17.
11
22
3
Personalize
BRZ Limited
BRZ Premium
3156598_18a_BRZ_QRG_100217.indd 1110/3/17 8:57 AM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

12
Controls

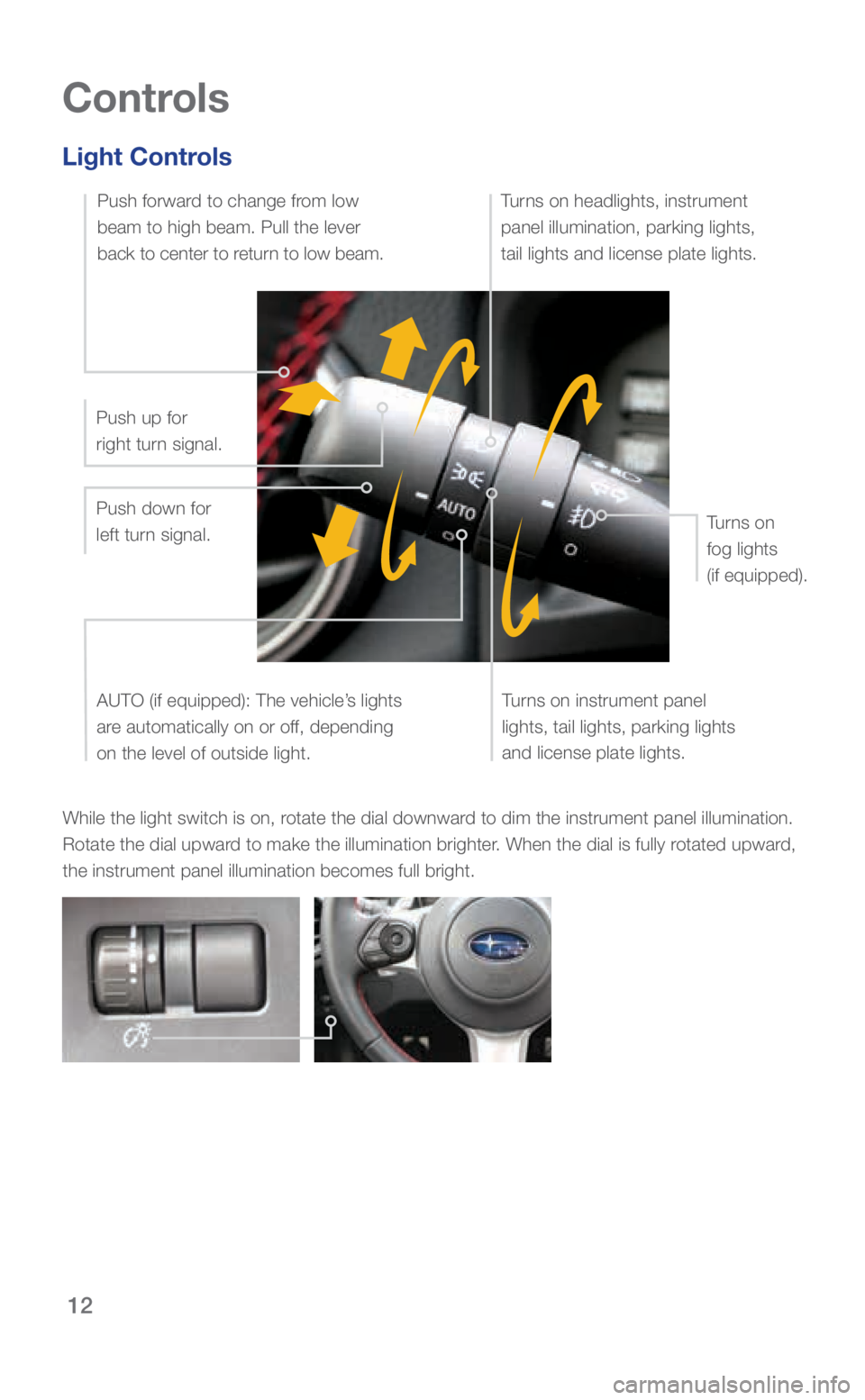

Light Controls
While the light switch is on, rotate the dial downward to dim the instrument panel illumination.
Rotate the dial upward to make the illumination brighter. When the dial is fully rotated upward,
the instrument panel illumination becomes full bright.
Turns on instrument panel
lights, tail lights, parking lights
and license plate lights.
Turns on headlights, instrument
panel illumination, parking lights,
tail lights and license plate lights.
Turns on
fog lights
(if equipped).
Push up for
right turn signal.
Push down for
left turn signal.AUTO (if equipped): The vehicle’s lights
are automatically on or off, depending
on the level of outside light.
Push forward to change from low
beam to high beam. Pull the lever
back to center to return to low beam.
3156598_18a_BRZ_QRG_100217.indd 1210/3/17 8:57 AM

13

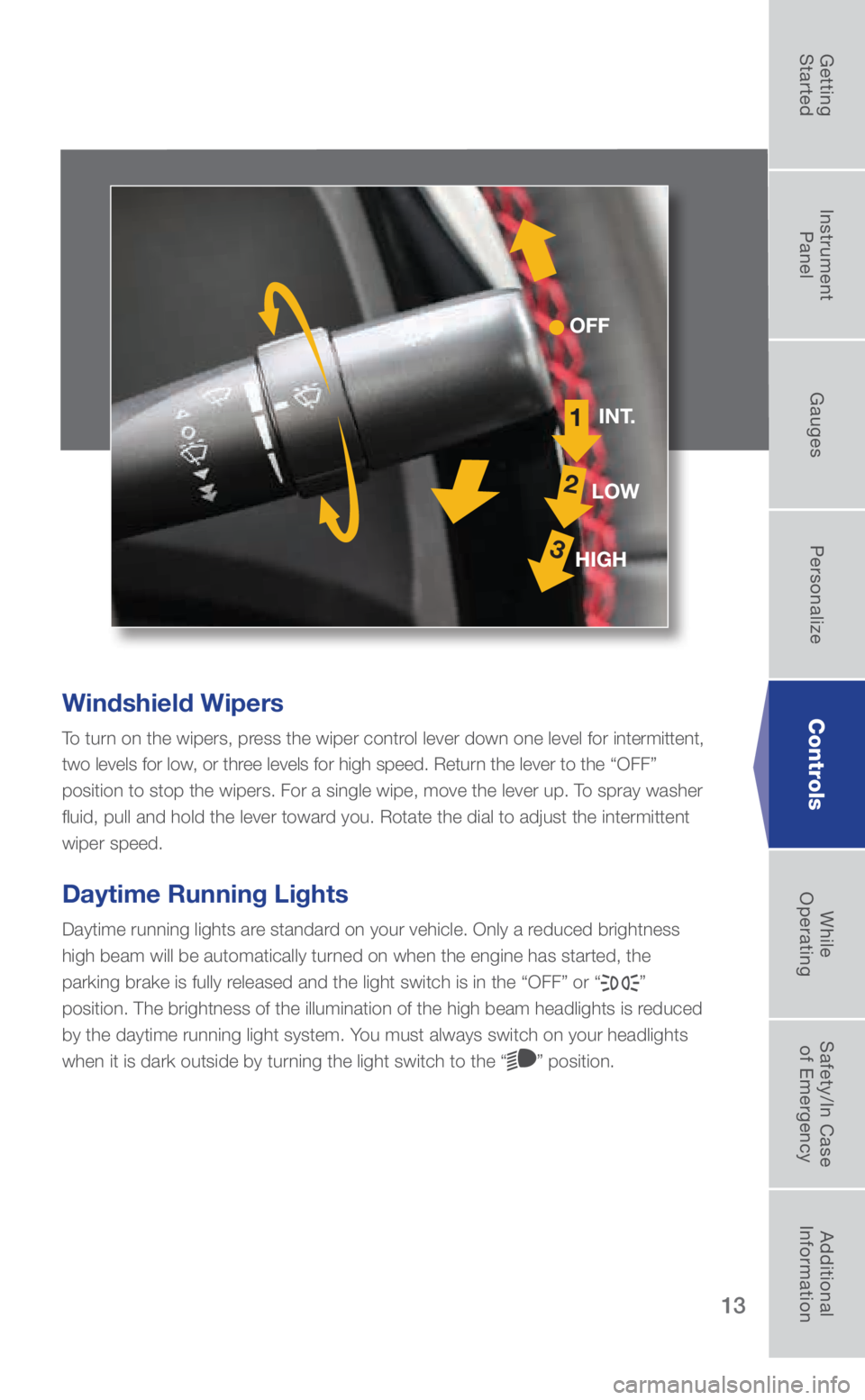

Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
fluid, pull and hold the lever toward you. Rotate the dial to adjust the intermittent
wiper speed.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only a reduced brightness
high beam will be automatically turned on when the engine has started, the
parking brake is fully released and the light switch is in the “OFF” or “
”
position. The brightness of the illumination of the high beam headlights\
is reduced
by the daytime running light system. You must always switch on your headlights
when it is dark outside by turning the light switch to the “
” position.
OFF
1
2
3
INT.
LOW
HIGH
Controls
3156598_18a_BRZ_QRG_100217.indd 1310/3/17 8:57 AM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

14
Controls
1
3
2
6
54

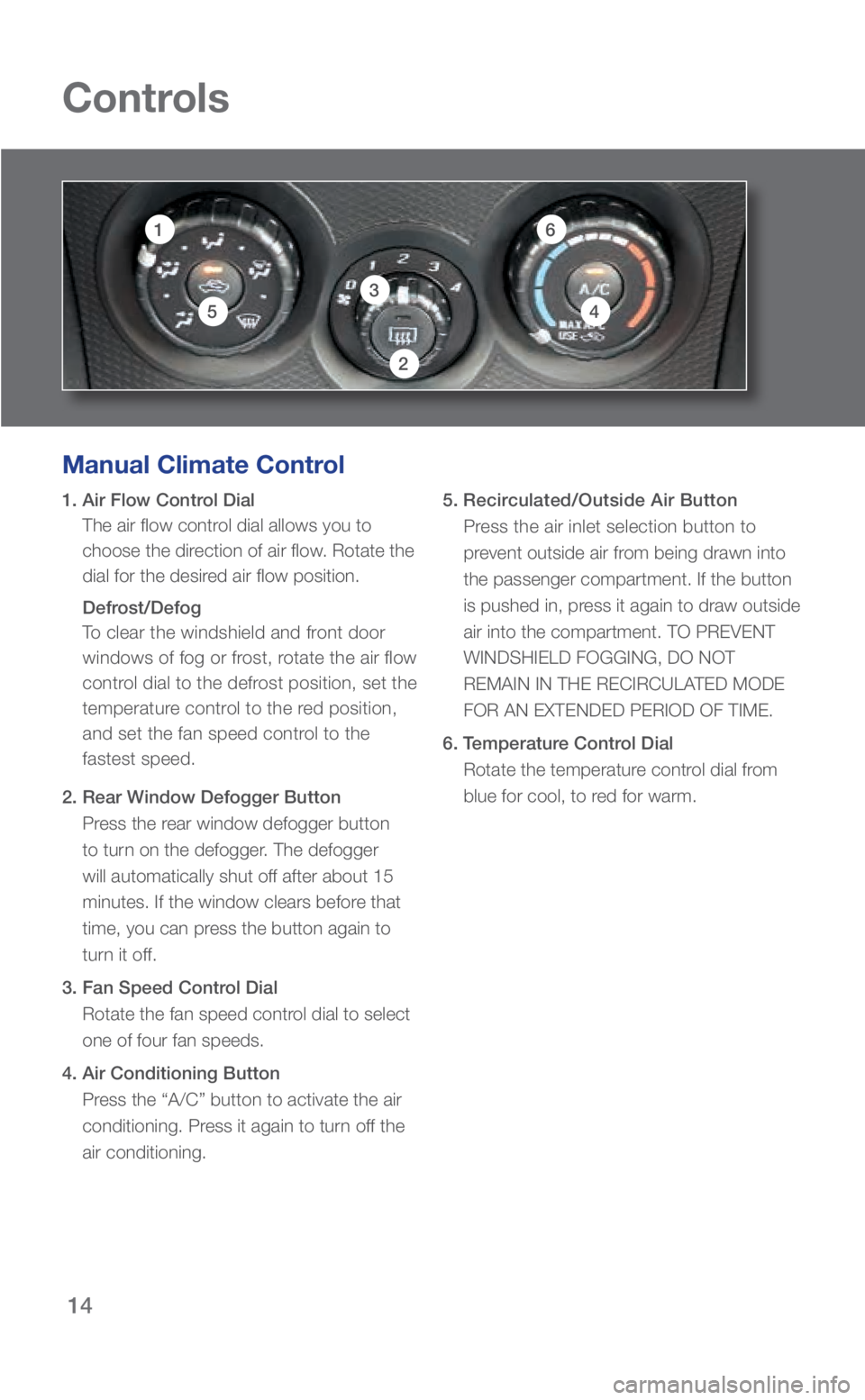

Manual Climate Control
1. Air Flow Control Dial The air flow control dial allows you to
choose the direction of air flow. Rotate the
dial for the desired air flow position.
Defrost/Defog
To clear the windshield and front door
windows of fog or frost, rotate the air flow
control dial to the defrost position, set the
temperature control to the red position,
and set the fan speed control to the
fastest speed.
2. Rear Window Defogger Button Press the rear window defogger button
to turn on the defogger. The defogger
will automatically shut off after about 15
minutes. If the window clears before that
time, you can press the button again to
turn it off.
3. Fan Speed Control Dial Rotate the fan speed control dial to select
one of four fan speeds.
4. Air Conditioning Button Press the “A/C” button to activate the air
conditioning. Press it again to turn off the
air conditioning. 5. Recirculated/Outside Air Button

Press the air inlet selection button to
prevent outside air from being drawn into
the passenger compartment. If the button
is pushed in, press it again to draw outside
air into the compartment. TO PREVENT
WINDSHIELD FOGGING, DO NOT
REMAIN IN THE RECIRCULATED MODE
FOR AN EXTENDED PERIOD OF TIME.
6. Temperature Control Dial Rotate the temperature control dial from
blue for cool, to red for warm.
3156598_18a_BRZ_QRG_100217.indd 1410/3/17 8:58 AM

15

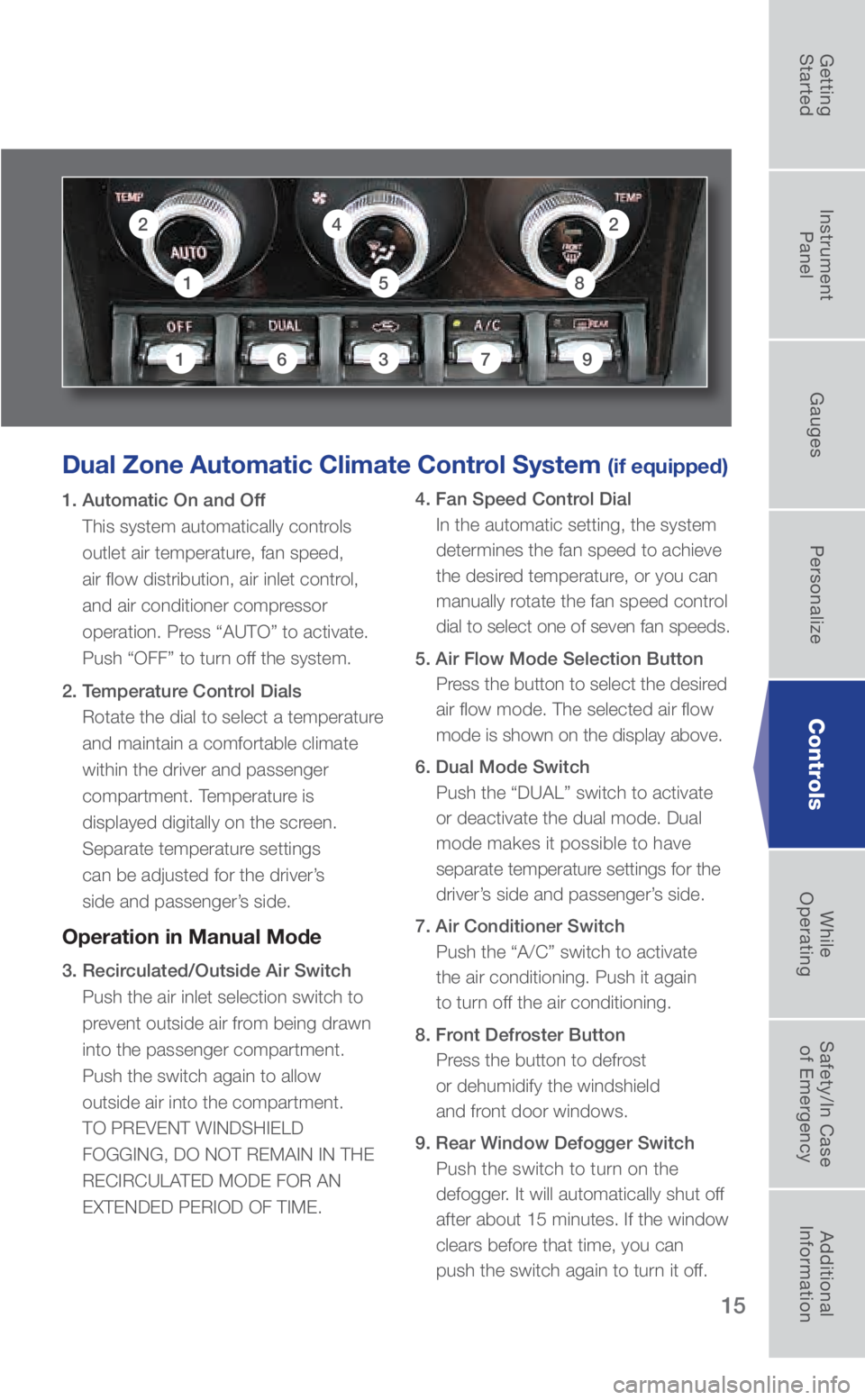

Dual Zone Automatic Climate Control System (if equipped)
1. Automatic On and Off This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Push “OFF” to turn off the system.
2. Temperature Control Dials
Rotate the dial to select a temperature
and maintain a comfortable climate
within the driver and passenger
compartment. Temperature is
displayed digitally on the screen.
Separate temperature settings
can be adjusted for the driver’s
side and passenger’s side.
Operation in Manual Mode
3. Recirculated/Outside Air Switch Push the air inlet selection switch to
prevent outside air from being drawn
into the passenger compartment.
Push the switch again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN THE
RECIRCULATED MODE FOR AN
EXTENDED PERIOD OF TIME.
4. Fan Speed Control Dial
In the automatic setting, the system
determines the fan speed to achieve
the desired temperature, or you can
manually rotate the fan speed control
dial to select one of seven fan speeds.
5. Air Flow Mode Selection Button Press the button to select the desired
air flow mode. The selected air flow
mode is shown on the display above.
6. Dual Mode Switch Push the “DUAL” switch to activate
or deactivate the dual mode. Dual
mode makes it possible to have
separate temperature settings for the
driver’s side and passenger’s side.
7. Air Conditioner Switch Push the “A/C” switch to activate
the air conditioning. Push it again
to turn off the air conditioning.
8. Front Defroster Button Press the button to defrost
or dehumidify the windshield
and front door windows.
9. Rear Window Defogger Switch Push the switch to turn on the
defogger. It will automatically shut off
after about 15 minutes. If the window
clears before that time, you can
push the switch again to turn it off.
2
36917
4
158
2
Controls
3156598_18a_BRZ_QRG_100217.indd 1510/3/17 8:58 AM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

16
Controls

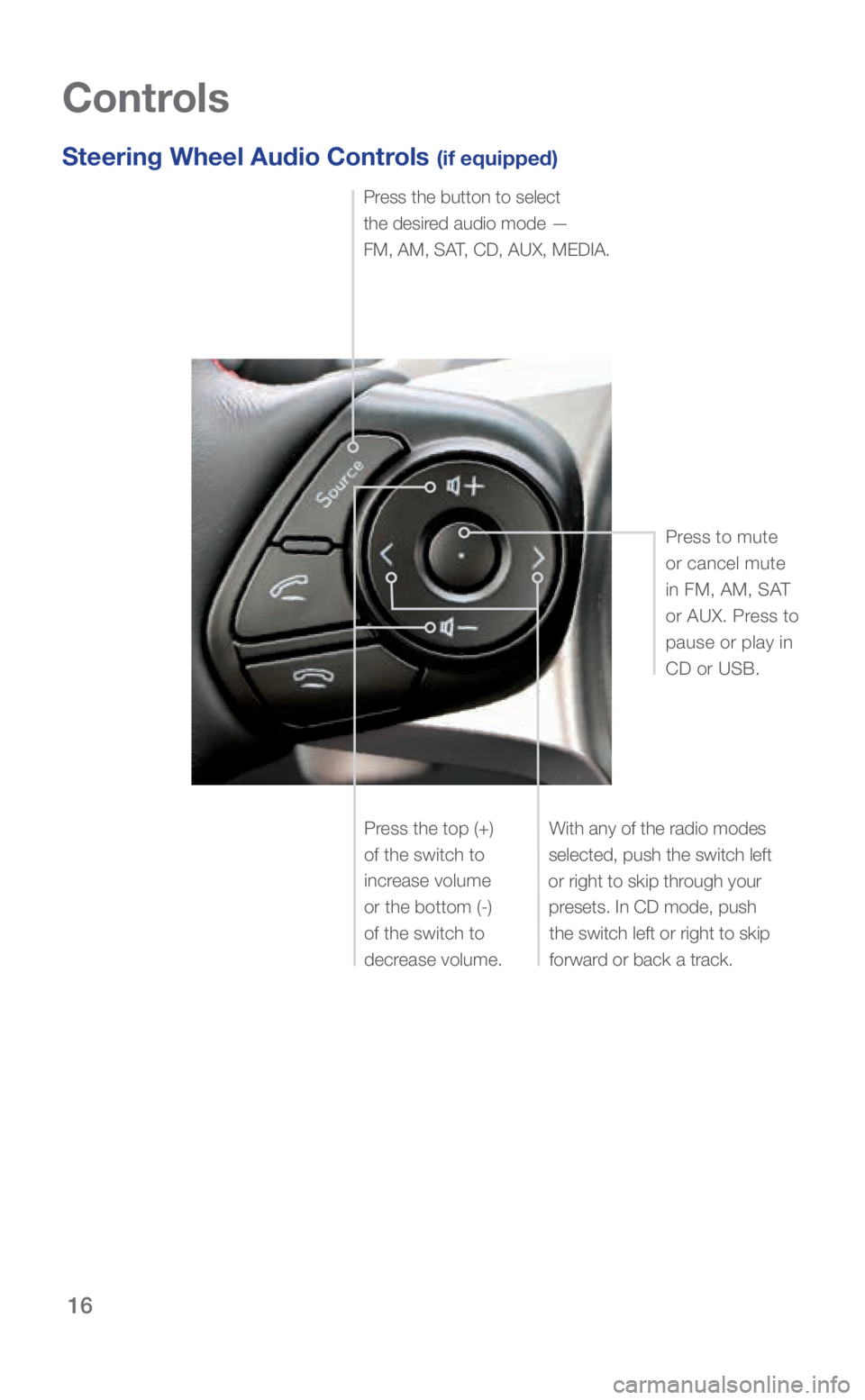

Steering Wheel Audio Controls (if equipped)
With any of the radio modes
selected, push the switch left
or right to skip through your presets. In CD mode, push the switch left or right to skip forward or back a track. Press to mute
or cancel mute
in FM, AM, SAT
or AUX. Press to
pause or play in
CD or USB.
Press the top (+)
of the switch to
increase volume
or the bottom (-)
of the switch to
decrease volume.
Press the button to select

the desired audio mode —
FM, AM, SAT, CD, AUX, MEDIA.
3156598_18a_BRZ_QRG_100217.indd 1610/3/17 8:58 AM

17
Controls

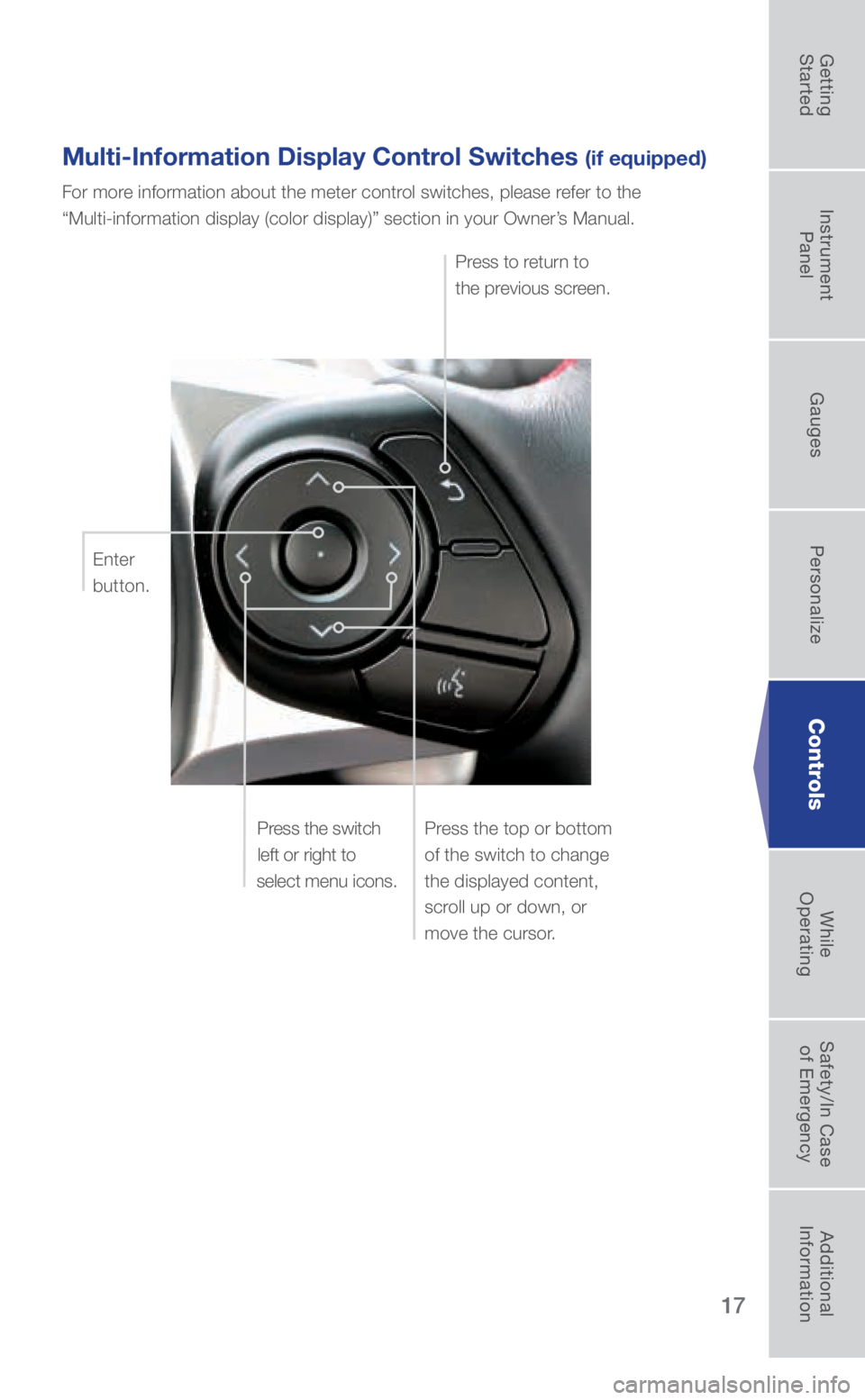

Multi-Information Display Control Switches (if equipped)
For more information about the meter control switches, please refer to the
“Multi-information display (color display)” section in your Owne\
r’s Manual.Press the switch left or right to
select menu icons.
Enter
button.
Press the top or bottom
of the switch to change
the displayed content,
scroll up or down, or
move the cursor.Press to return to
the previous screen.
3156598_18a_BRZ_QRG_100217.indd 1710/3/17 8:58 AM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

18

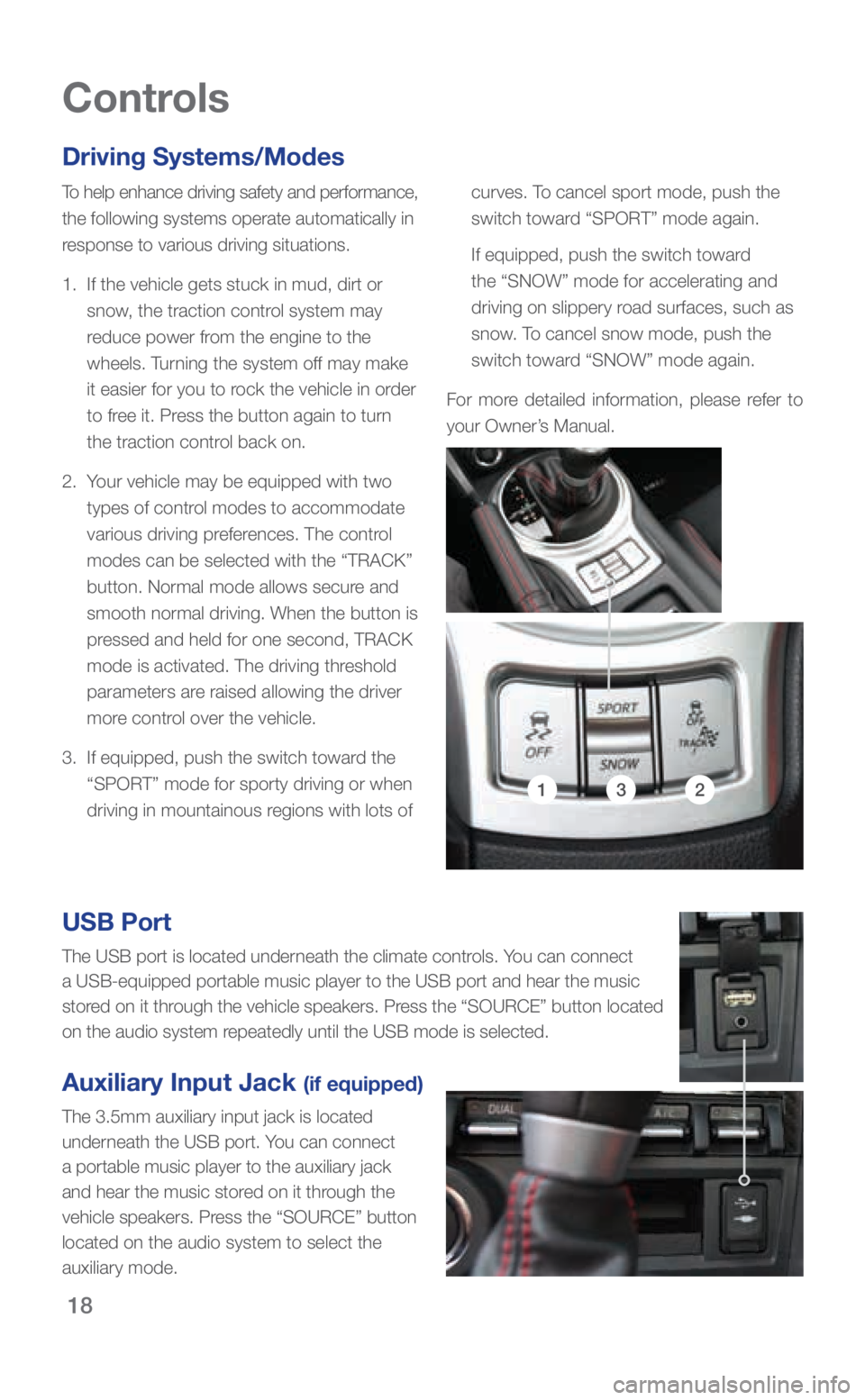

Driving Systems/Modes
To help enhance driving safety and performance,
the following systems operate automatically in
response to various driving situations.
1. If the vehicle gets stuck in mud, dirt or
snow, the traction control system may
reduce power from the engine to the
wheels. Turning the system off may make
it easier for you to rock the vehicle in order
to free it. Press the button again to turn
the traction control back on.
2. Your vehicle may be equipped with two
types of control modes to accommodate
various driving preferences. The control
modes can be selected with the “TRACK”
button. Normal mode allows secure and
smooth normal driving. When the button is
pressed and held for one second, TRACK
mode is activated. The driving threshold
parameters are raised allowing the driver
more control over the vehicle.
3. If equipped, push the switch toward the
“SPORT” mode for sporty driving or when
driving in mountainous regions with lots of curves. To cancel sport mode, push the
switch toward “SPORT” mode again.
If equipped, push the switch toward
the “SNOW” mode for accelerating and
driving on slippery road surfaces, such as
snow. To cancel snow mode, push the
switch toward “SNOW” mode again.
For more detailed information, please refer to
your Owner’s Manual.
Controls
132
USB Port
The USB port is located underneath the climate controls. You can connect
a USB-equipped portable music player to the USB port and hear the music
stored on it through the vehicle speakers. Press the “SOURCE” button located
on the audio system repeatedly until the USB mode is selected.
Auxiliary Input Jack (if equipped)
The 3.5mm auxiliary input jack is located
underneath the USB port. You can connect
a portable music player to the auxiliary jack
and hear the music stored on it through the
vehicle speakers. Press the “SOURCE” button
located on the audio system to select the
auxiliary mode.
