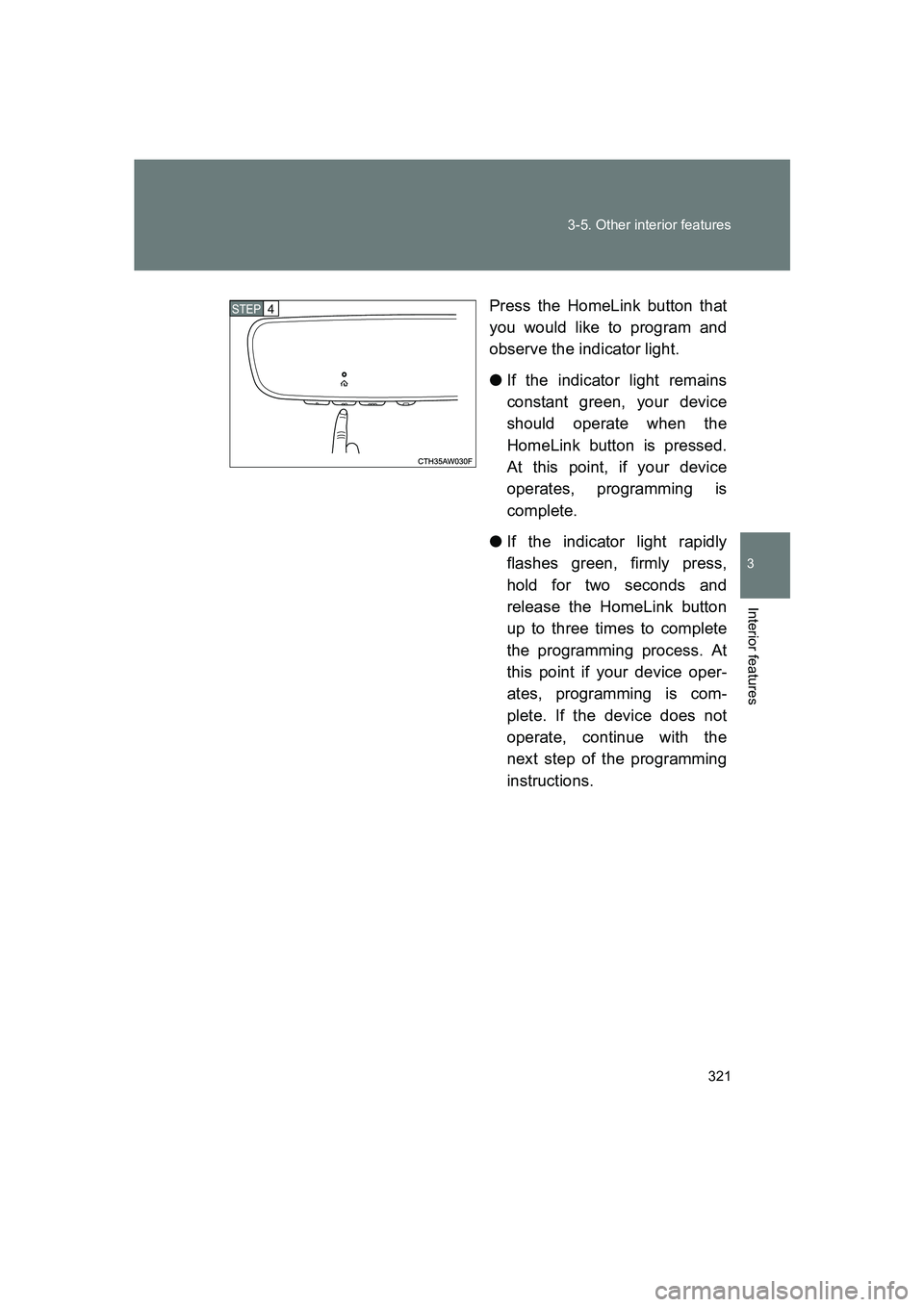

Page 321 of 560

321
3-5. Other interior features
3
Interior features
BRZ_U
Press the HomeLink button that
you would like to program and
observe the indicator light.
●
If the indicator light remains
constant green, your device
should operate when the
HomeLink button is pressed.
At this point, if your device
operates, programming is
complete.
● If the indicator light rapidly
flashes green, firmly press,
hold for two seconds and
release the HomeLink button
up to three times to complete
the programming process. At
this point if your device oper-
ates, programming is com-
plete. If the device does not
operate, continue with the
next step of the programming
instructions.
STEP 4

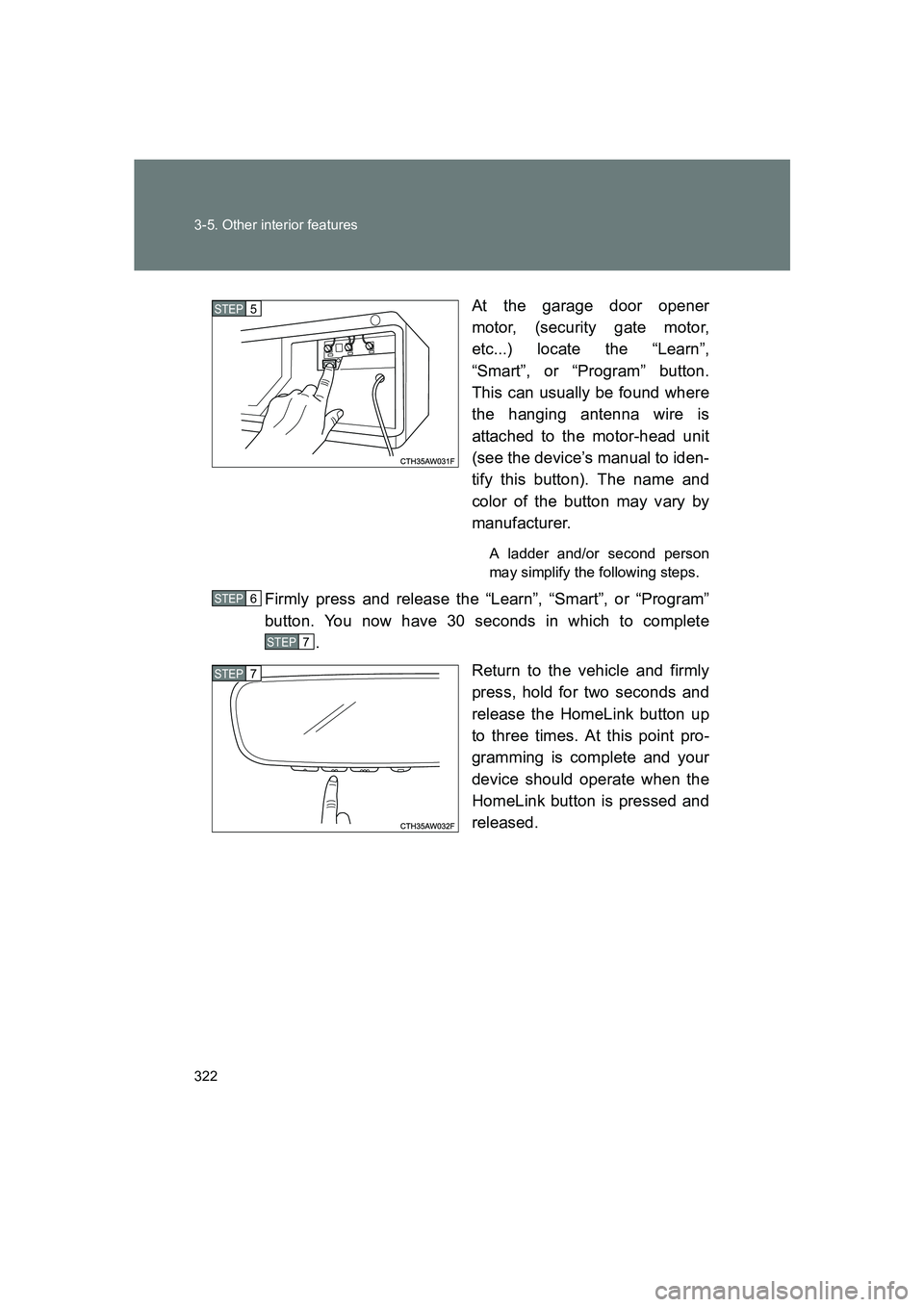

Page 322 of 560

322 3-5. Other interior features
BRZ_UAt the garage door opener
motor, (security gate motor,
etc...) locate the “Learn”,
“Smart”, or “Program” button.
This can usually be found where
the hanging antenna wire is
attached to the motor-head unit
(see the device’s manual to iden-
tify this button). The name and
color of the button may vary by
manufacturer.
A ladder and/or second person
may simplify the following steps.
Firmly press and release the “Learn”, “Smart”, or “Program”
button. You now have 30 seconds in which to complete
.
Return to the vehicle and firmly
press, hold for two seconds and
release the HomeLink button up
to three times. At this point pro-
gramming is complete and your
device should operate when the
HomeLink button is pressed and
released.
STEP 5
STEP 6
STEP 7
STEP 7

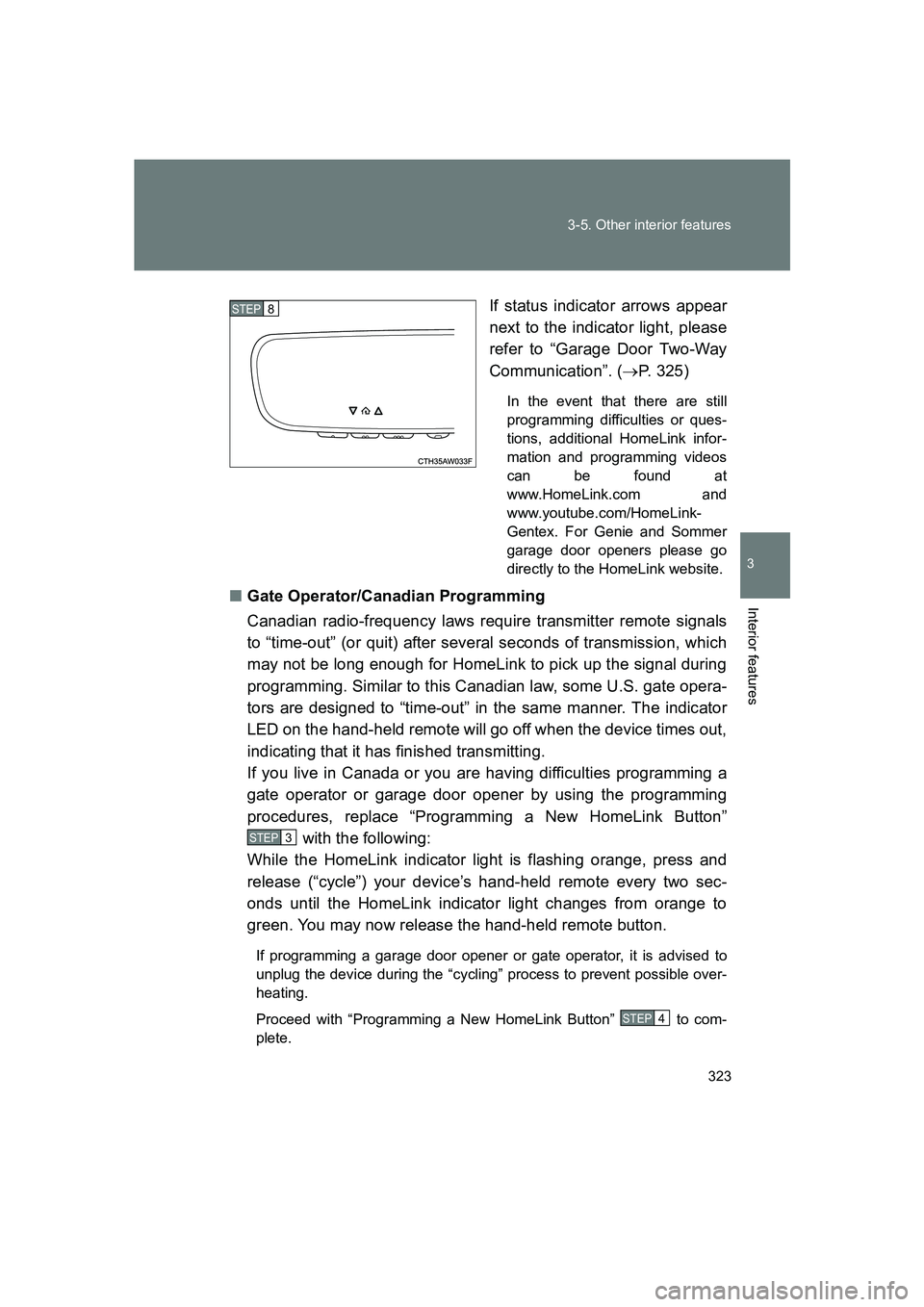

Page 323 of 560

323
3-5. Other interior features
3
Interior features
BRZ_U
If status indicator arrows appear
next to the indicator light, please
refer to “Garage Door Two-Way
Communication”. (
→P. 325)
In the event that there are still
programming difficulties or ques-
tions, additional HomeLink infor-
mation and programming videos
can be found at
www.HomeLink.com and
www.youtube.com/HomeLink-
Gentex. For Genie and Sommer
garage door openers please go
directly to the HomeLink website.
■ Gate Operator/Canadian Programming
Canadian radio-frequency laws require transmitter remote signals
to “time-out” (or quit) after several seconds of transmission, which
may not be long enough for HomeLink to pick up the signal during
programming. Similar to this Canadian law, some U.S. gate opera-
tors are designed to “time-out” in the same manner. The indicator
LED on the hand-held remote will go off when the device times out,
indicating that it has finished transmitting.
If you live in Canada or you are having difficulties programming a
gate operator or garage door opener by using the programming
procedures, replace “Programming a New HomeLink Button”
with the following:
While the HomeLink indicator light is flashing orange, press and
release (“cycle”) your device’s hand-held remote every two sec-
onds until the HomeLink indicator light changes from orange to
green. You may now release the hand-held remote button.
If programming a garage door opener or gate operator, it is advised to
unplug the device during the “cycling” process to prevent possible over-
heating.
Proceed with “Programming a New HomeLink Button” to com-
plete.
STEP 8
STEP 3
STEP 4
Page 324 of 560

324 3-5. Other interior features
BRZ_U

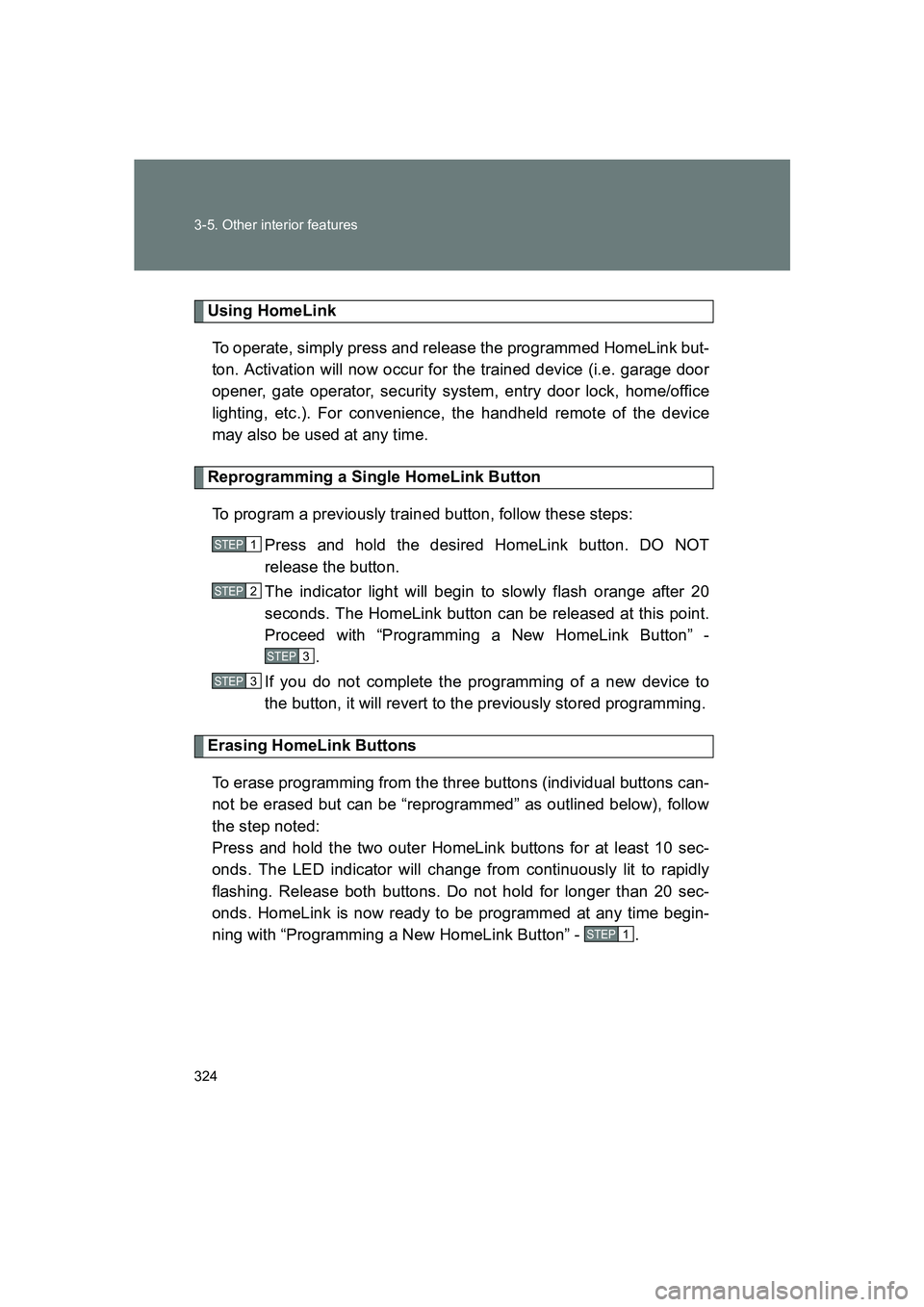

Using HomeLinkTo operate, simply press and release the programmed HomeLink but-
ton. Activation will now occur for the trained device (i.e. garage door
opener, gate operator, security system, entry door lock, home/office
lighting, etc.). For convenience, the handheld remote of the device
may also be used at any time.
Reprogramming a Single HomeLink ButtonTo program a previously trained button, follow these steps: Press and hold the desired HomeLink button. DO NOT
release the button.
The indicator light will begin to slowly flash orange after 20
seconds. The HomeLink button can be released at this point.
Proceed with “Programming a New HomeLink Button” -.
If you do not complete the programming of a new device to
the button, it will revert to the previously stored programming.
Erasing HomeLink Buttons
To erase programming from the three buttons (individual buttons can-
not be erased but can be “reprogrammed” as outlined below), follow
the step noted:
Press and hold the two outer HomeLink buttons for at least 10 sec-
onds. The LED indicator will change from continuously lit to rapidly
flashing. Release both buttons. Do not hold for longer than 20 sec-
onds. HomeLink is now ready to be programmed at any time begin-
ning with “Programming a New HomeLink Button” - .
STEP 1
STEP 2
STEP 3
STEP 3
STEP 1

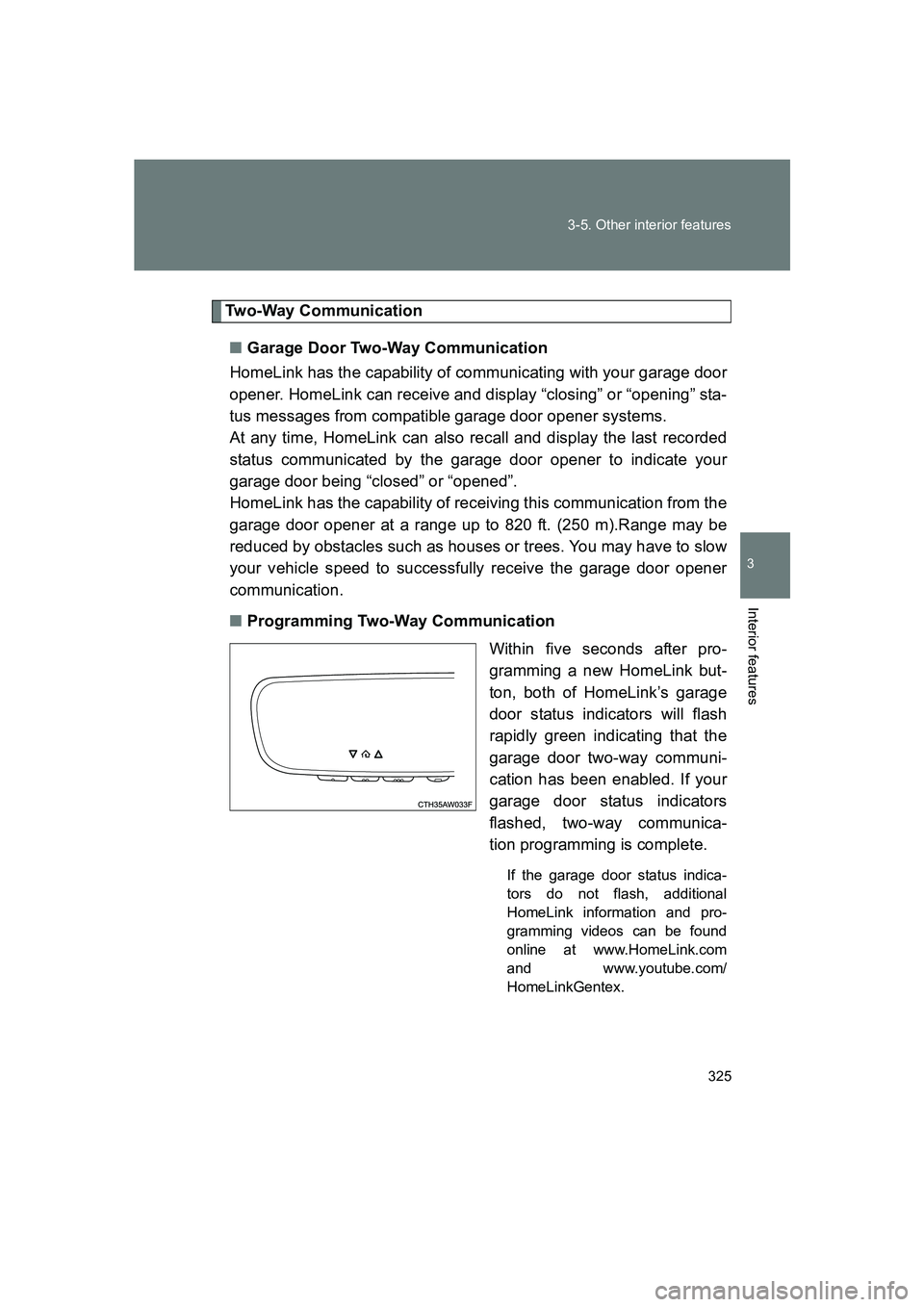

Page 325 of 560

325
3-5. Other interior features
3
Interior features
BRZ_U
Two-Way Communication
■ Garage Door Two-Way Communication
HomeLink has the capability of communicating with your garage door
opener. HomeLink can receive and display “closing” or “opening” sta-
tus messages from compatible garage door opener systems.
At any time, HomeLink can also recall and display the last recorded
status communicated by the garage door opener to indicate your
garage door being “closed” or “opened”.
HomeLink has the capability of receiving this communication from the
garage door opener at a range up to 820 ft. (250 m).Range may be
reduced by obstacles such as houses or trees. You may have to slow
your vehicle speed to successfully receive the garage door opener
communication.
■ Programming Two-Way Communication
Within five seconds after pro-
gramming a new HomeLink but-
ton, both of HomeLink’s garage
door status indicators will flash
rapidly green indicating that the
garage door two-way communi-
cation has been enabled. If your
garage door status indicators
flashed, two-way communica-
tion programming is complete.
If the garage door status indica-
tors do not flash, additional
HomeLink information and pro-
gramming videos can be found
online at www.HomeLink.com
and www.youtube.com/
HomeLinkGentex.

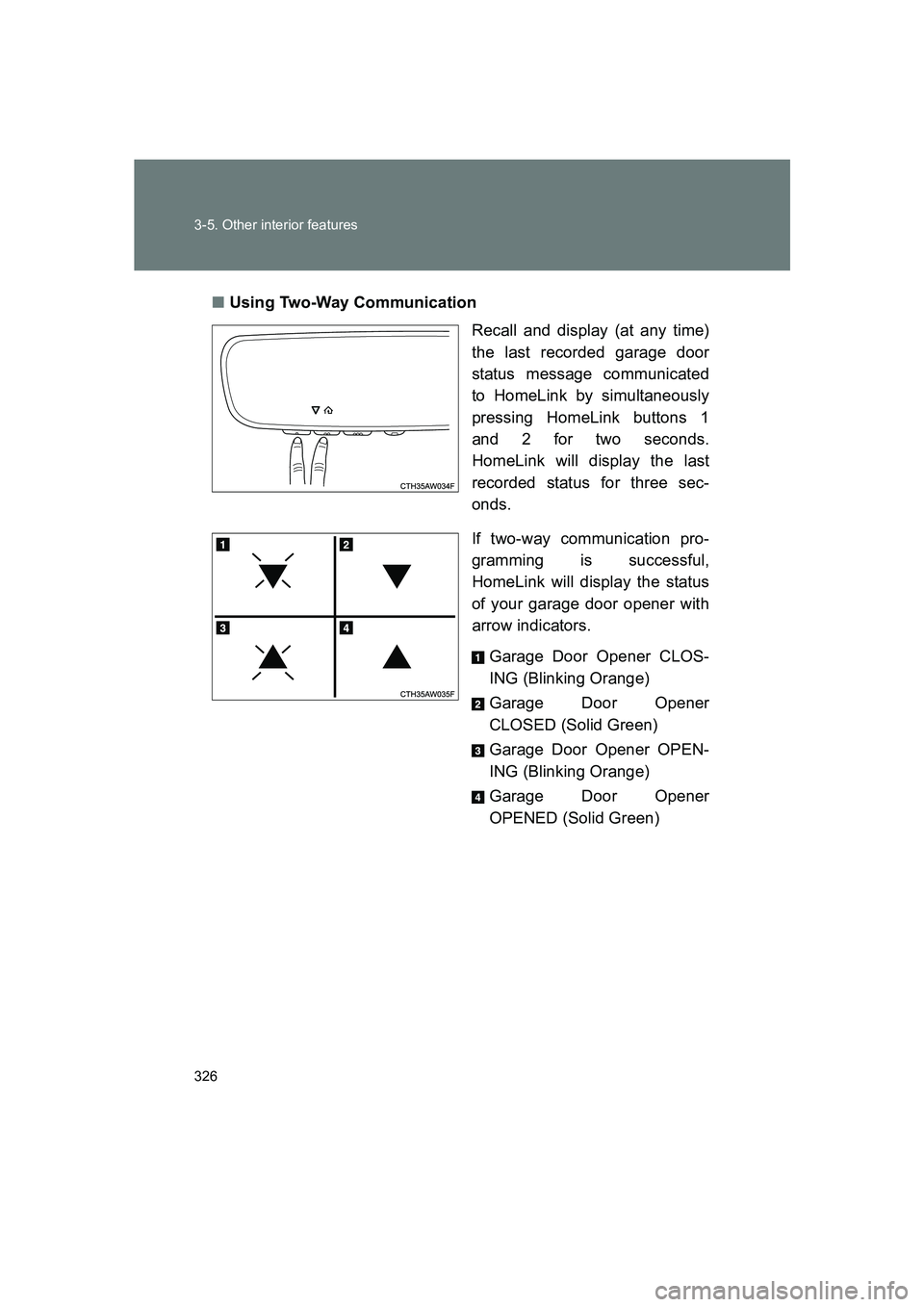

Page 326 of 560

326 3-5. Other interior features
BRZ_U■
Using Two-Way Communication
Recall and display (at any time)
the last recorded garage door
status message communicated
to HomeLink by simultaneously
pressing HomeLink buttons 1
and 2 for two seconds.
HomeLink will display the last
recorded status for three sec-
onds.
If two-way communication pro-
gramming is successful,
HomeLink will display the status
of your garage door opener with
arrow indicators.
Garage Door Opener CLOS-
ING (Blinking Orange)
Garage Door Opener
CLOSED (Solid Green)
Garage Door Opener OPEN-
ING (Blinking Orange)
Garage Door Opener
OPENED (Solid Green)

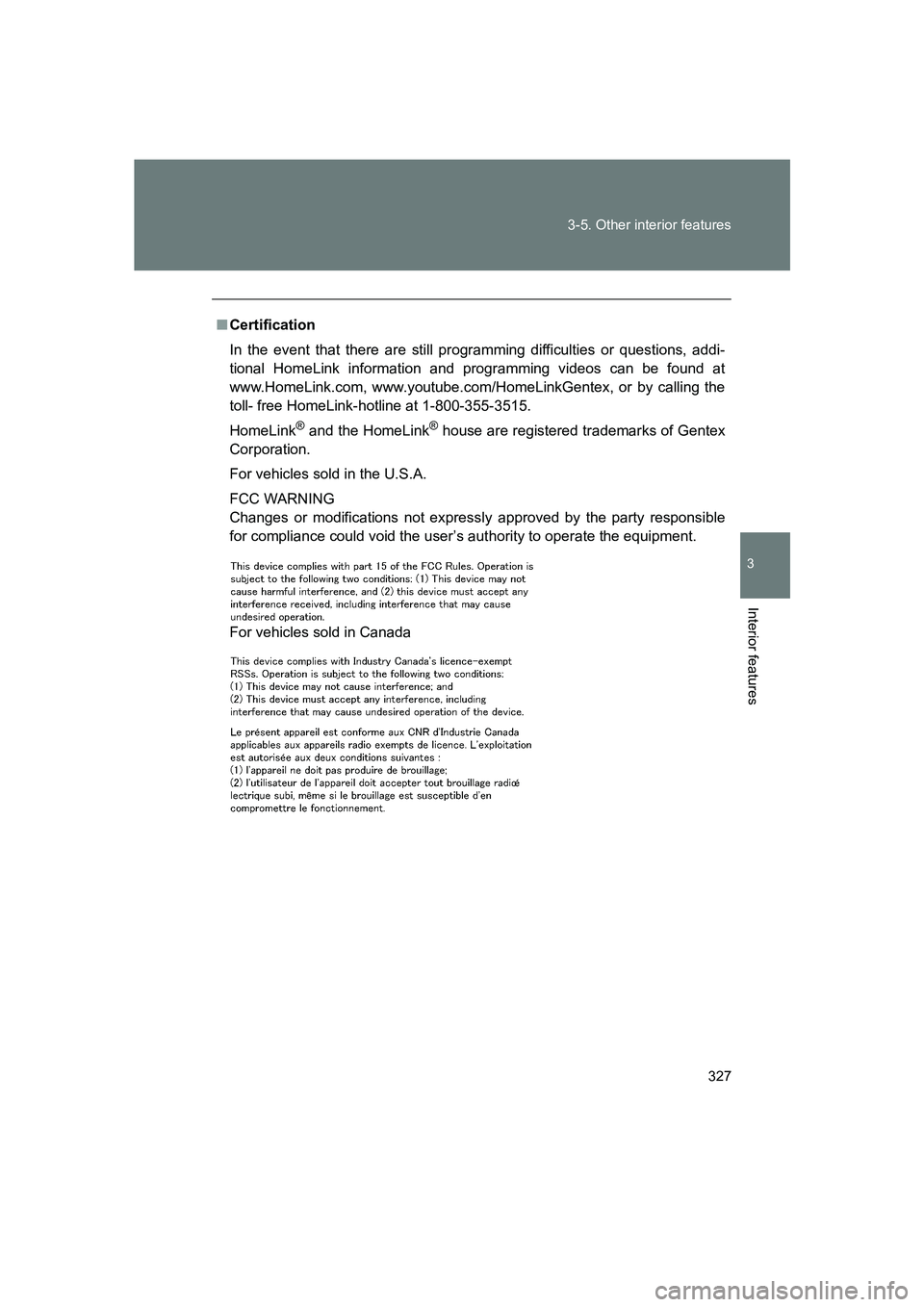

Page 327 of 560

327
3-5. Other interior features
3
Interior features
BRZ_U
■
Certification
In the event that there are still programming difficulties or questions, addi-
tional HomeLink information and programming videos can be found at
www.HomeLink.com, www.youtube.com/HomeLinkGentex, or by calling the
toll- free HomeLink-hotline at 1-800-355-3515.
HomeLink
® and the HomeLink® house are registered trademarks of Gentex
Corporation.
For vehicles sold in the U.S.A.
FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada

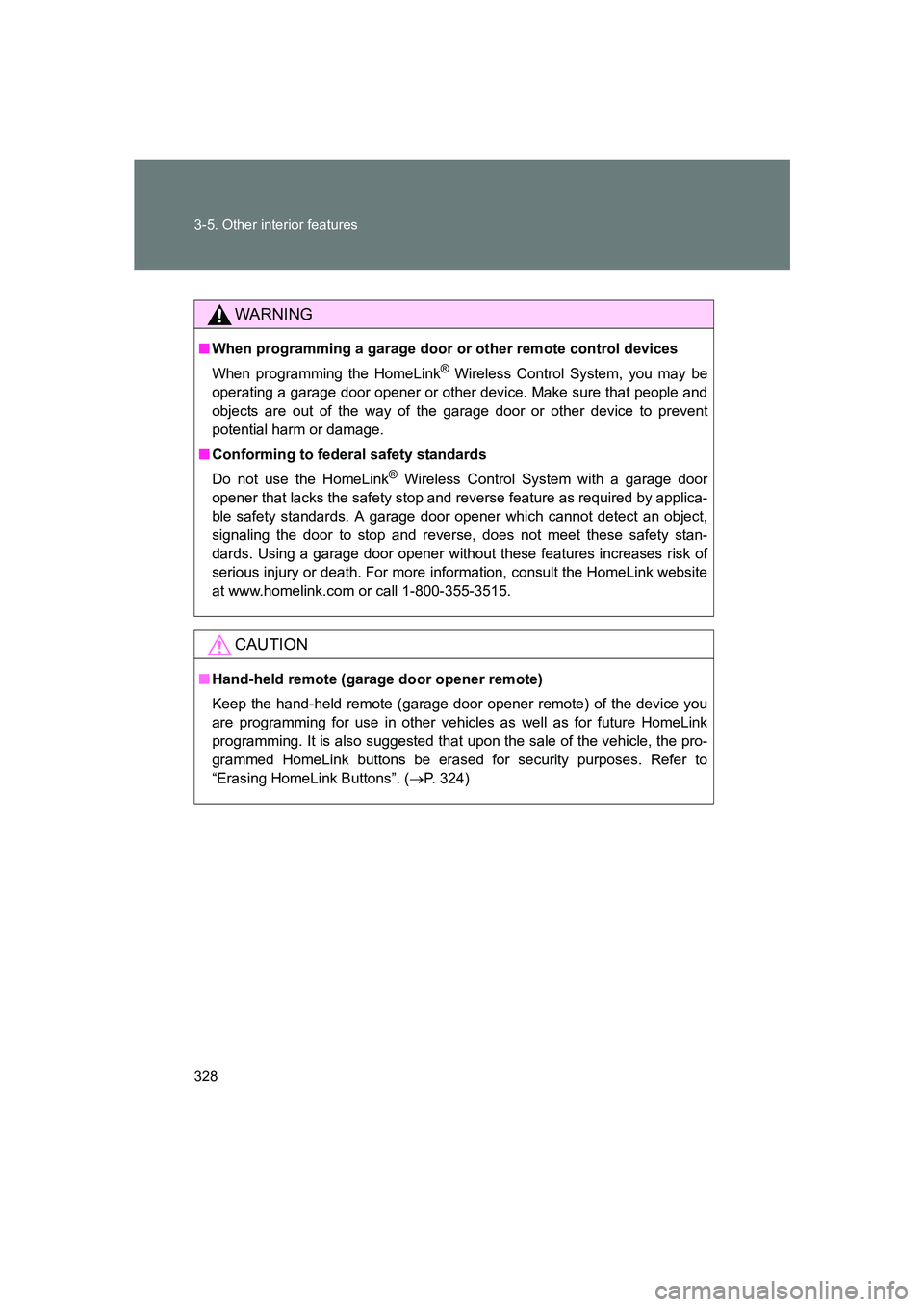

Page 328 of 560

328 3-5. Other interior features
BRZ_U
WARNING
■When programming a garage door or other remote control devices
When programming the HomeLink
® Wireless Control System, you may be
operating a garage door opener or other device. Make sure that people and
objects are out of the way of the garage door or other device to prevent
potential harm or damage.
■ Conforming to federal safety standards
Do not use the HomeLink
® Wireless Control System with a garage door
opener that lacks the safety stop and reverse feature as required by applica-
ble safety standards. A garage door opener which cannot detect an object,
signaling the door to stop and reverse, does not meet these safety stan-
dards. Using a garage door opener without these features increases risk of
serious injury or death. For more information, consult the HomeLink website
at www.homelink.co m or call 1-800-355-3515.
CAUTION
■Hand-held remote (garage door opener remote)
Keep the hand-held remote (garage door opener remote) of the device you
are programming for use in other vehicles as well as for future HomeLink
programming. It is also suggested that upon the sale of the vehicle, the pro-
grammed HomeLink buttons be erased for security purposes. Refer to
“Erasing HomeLink Buttons”. ( →P. 324)
Page 329 of 560

329
3-5. Other interior features
3
Interior features
BRZ_U

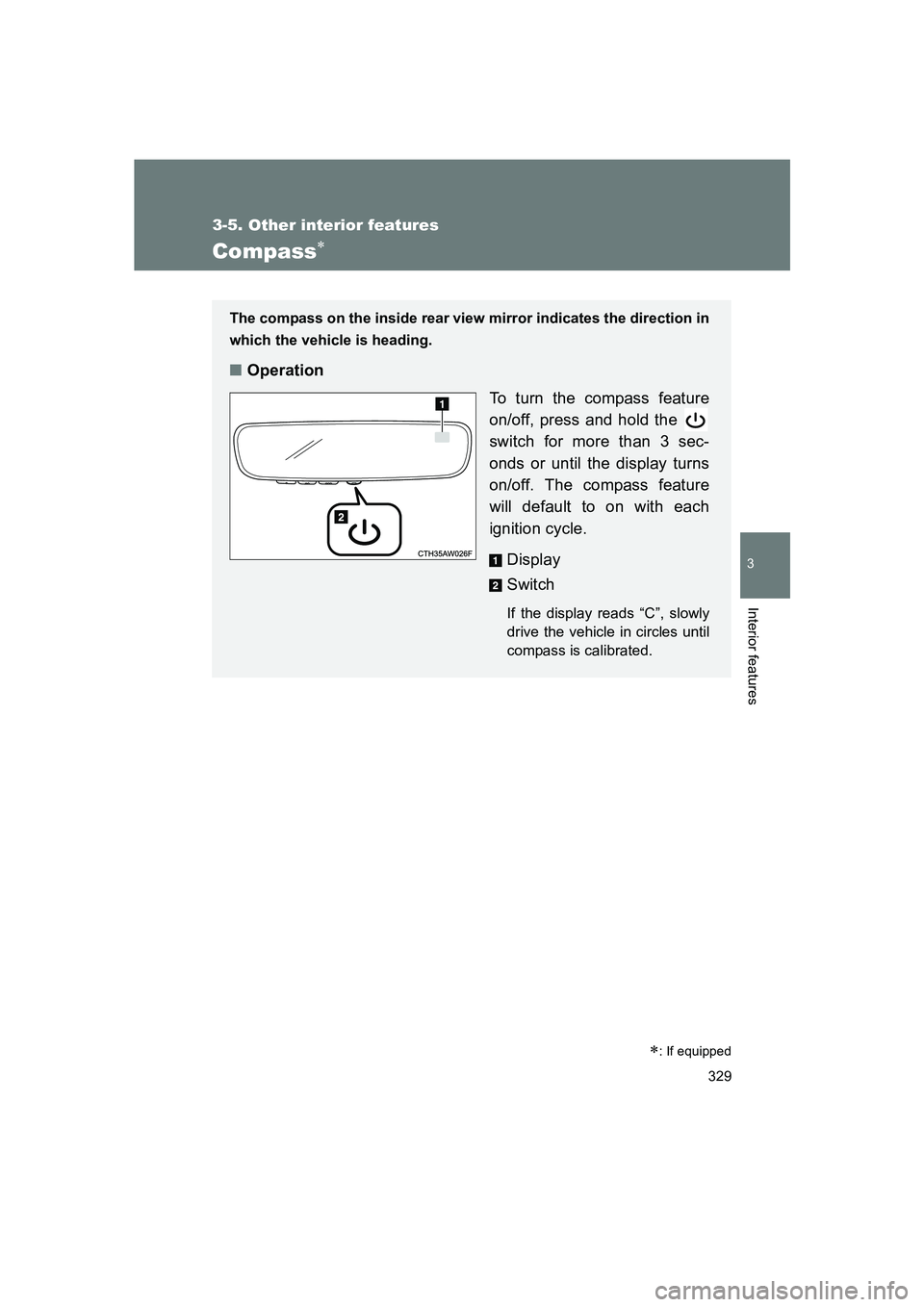

Compass∗
∗: If equipped
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■Operation
To turn the compass feature
on/off, press and hold the
switch for more than 3 sec-
onds or until the display turns
on/off. The compass feature
will default to on with each
ignition cycle.
Display
Switch
If the display reads “C”, slowly
drive the vehicle in circles until
compass is calibrated.

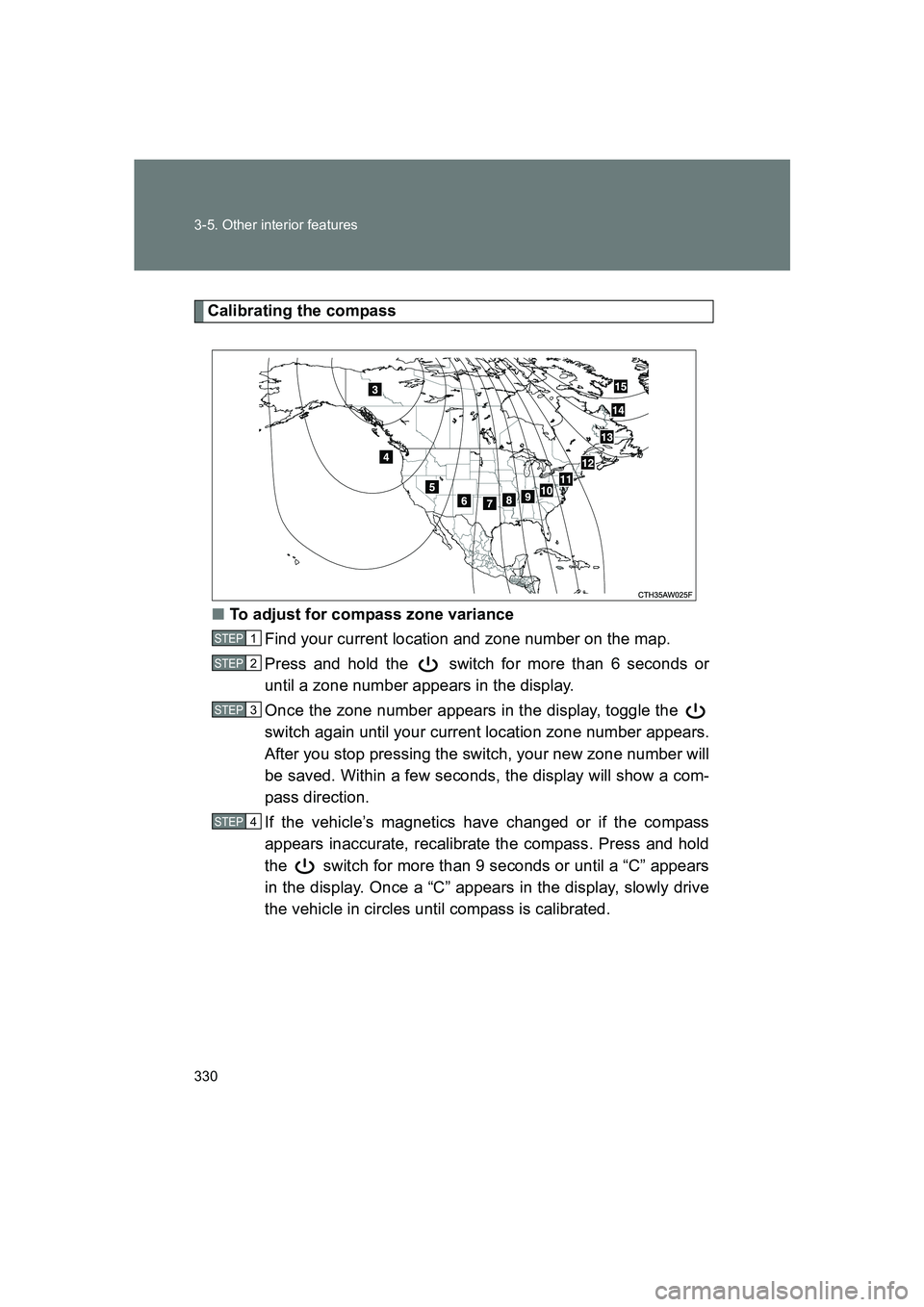

Page 330 of 560

330 3-5. Other interior features
BRZ_U
Calibrating the compass■ To adjust for compass zone variance
Find your current location and zone number on the map.
Press and hold the switch for more than 6 seconds or
until a zone number appears in the display.
Once the zone number appears in the display, toggle the
switch again until your current location zone number appears.
After you stop pressing the switch, your new zone number will
be saved. Within a few seconds, the display will show a com-
pass direction.
If the vehicle’s magnetics have changed or if the compass
appears inaccurate, recalibrate the compass. Press and hold
the switch for more than 9 seconds or until a “C” appears
in the display. Once a “C” appears in the display, slowly drive
the vehicle in circles until compass is calibrated.
STEP 1
STEP 2
STEP 3
STEP 4
