SUBARU BRZ 2019 Owners Manual

341
4-1. Maintenance and care
4
Maintenance and care
BRZ_U

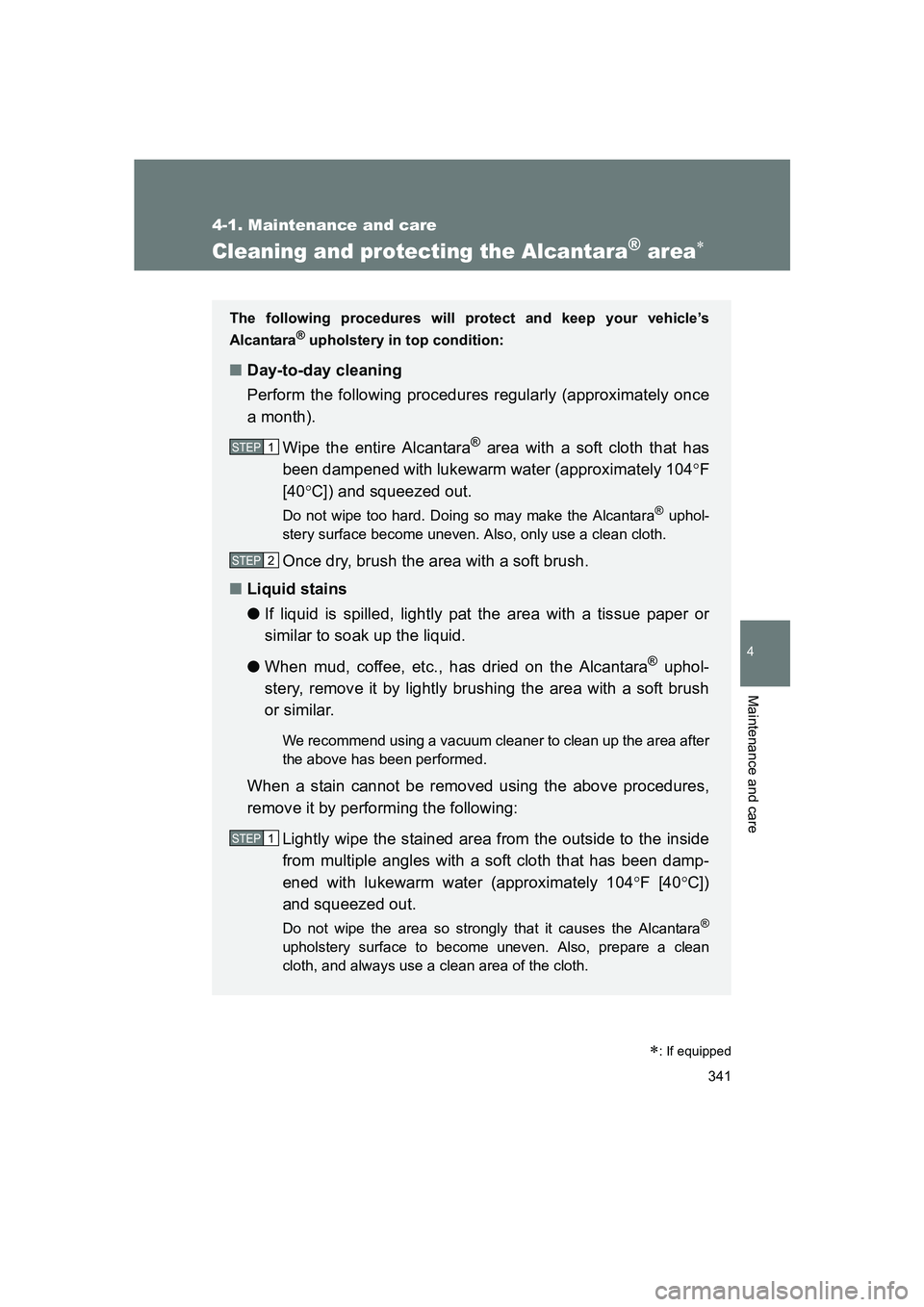

Cleaning and protecting the Alcantara® area∗
∗: If equipped
The following procedures will protect and keep your vehicle’s
Alcantara
® upholstery in top condition:
■ Day-to-day cleaning
Perform the following procedures regularly (approximately once
a month).
Wipe the entire Alcantara
® area with a soft cloth that has
been dampened with lukewarm water (approximately 104 °F
[40 °C]) and squeezed out.
Do not wipe too hard. Doing so may make the Alcantara® uphol-
stery surface become uneven. Also, only use a clean cloth.
Once dry, brush the area with a soft brush.
■ Liquid stains
●If liquid is spilled, lightly pat the area with a tissue paper or
similar to soak up the liquid.
● When mud, coffee, etc., has dried on the Alcantara
® uphol-
stery, remove it by lightly brushing the area with a soft brush
or similar.
We recommend using a vacuum cleaner to clean up the area after
the above has been performed.
When a stain cannot be removed using the above procedures,
remove it by performing the following:
Lightly wipe the stained area from the outside to the inside
from multiple angles with a soft cloth that has been damp-
ened with lukewarm water (approximately 104 °F [40 °C])
and squeezed out.
Do not wipe the area so strongly that it causes the Alcantara®
upholstery surface to become uneven. Also, prepare a clean
cloth, and always use a clean area of the cloth.
STEP 1
STEP 2
STEP 1

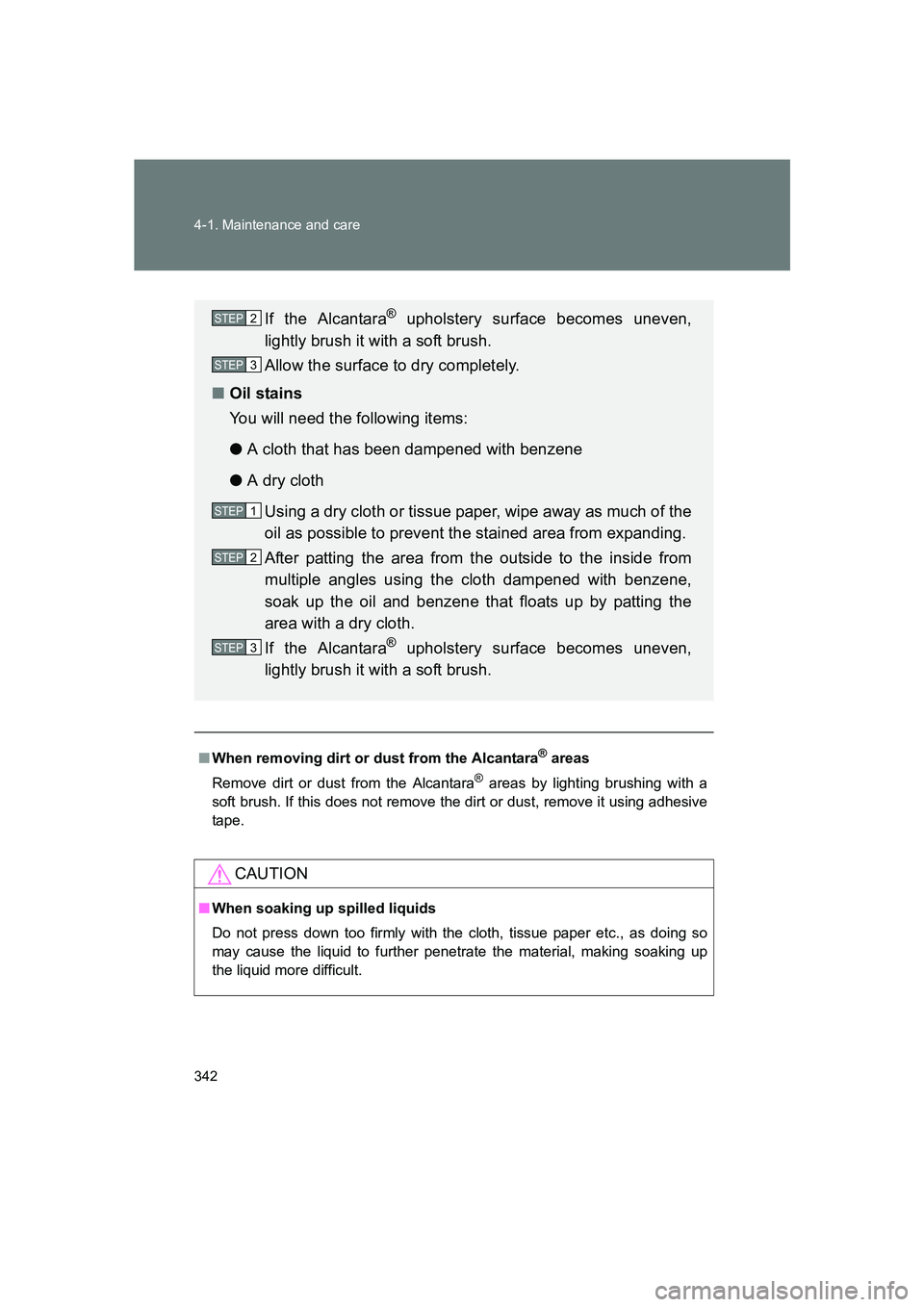

342 4-1. Maintenance and care
BRZ_U
■When removing dirt or dust from the Alcantara® areas
Remove dirt or dust from the Alcantara
® areas by lighting brushing with a
soft brush. If this does not remove the dirt or dust, remove it using adhesive
tape.
CAUTION
■ When soaking up spilled liquids
Do not press down too firmly with the cloth, tissue paper etc., as doing so
may cause the liquid to further penetrate the material, making soaking up
the liquid more difficult.
If the Alcantara® upholstery surface becomes uneven,
lightly brush it with a soft brush.
Allow the surface to dry completely.
■ Oil stains
You will need the following items:
● A cloth that has been dampened with benzene
● A dry cloth
Using a dry cloth or tissue paper, wipe away as much of the
oil as possible to prevent the stained area from expanding.
After patting the area from the outside to the inside from
multiple angles using the cloth dampened with benzene,
soak up the oil and benzene that floats up by patting the
area with a dry cloth.
If the Alcantara
® upholstery surface becomes uneven,
lightly brush it with a soft brush.
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3

343
4
Maintenance and care
BRZ_U

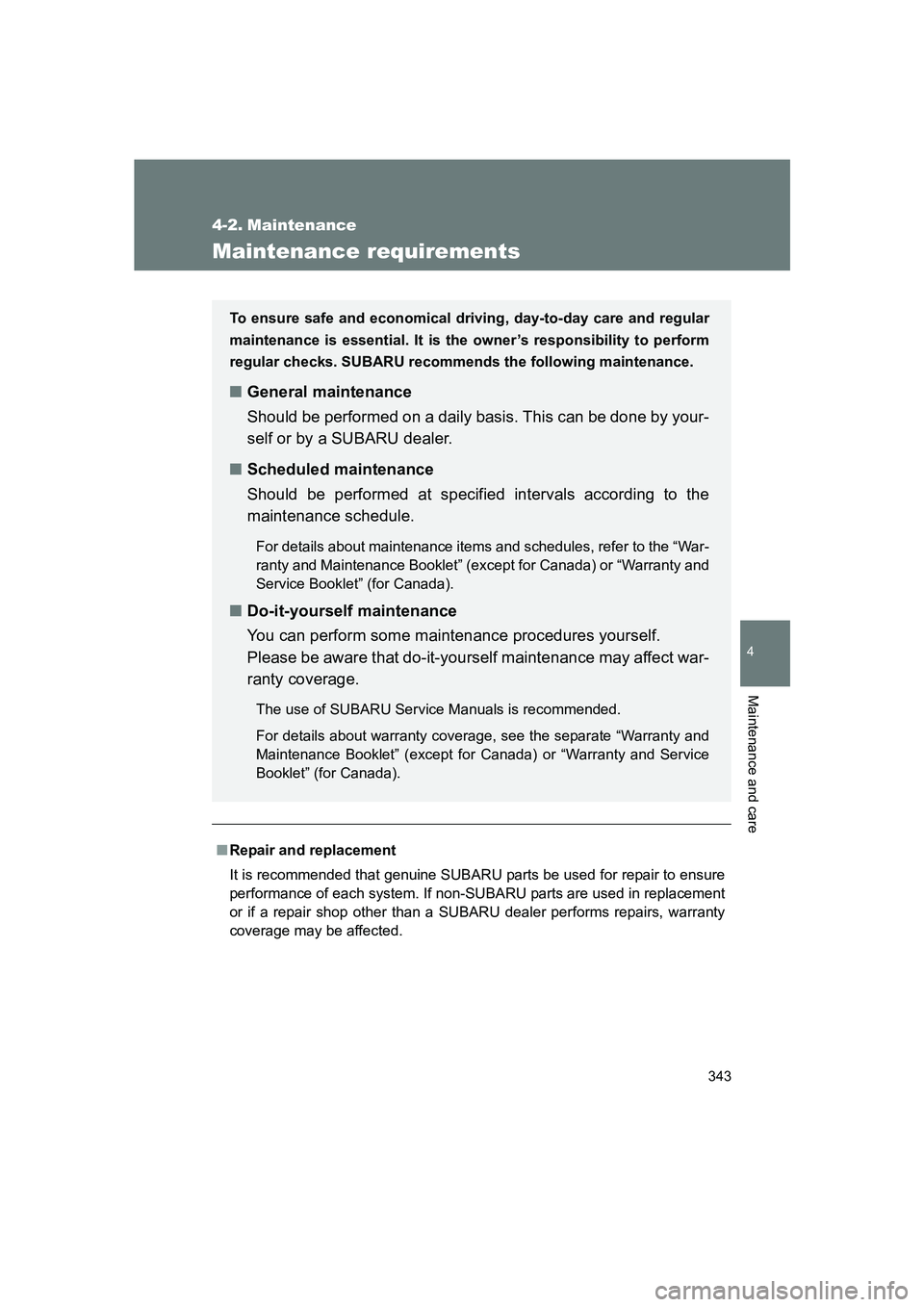

4-2. Maintenance
Maintenance requirements
■Repair and replacement
It is recommended that genuine SUBARU parts be used for repair to ensure
performance of each system. If non-SUBARU parts are used in replacement
or if a repair shop other than a SUBARU dealer performs repairs, warranty
coverage may be affected. To ensure safe and economical driving, day-to-day care and regular
maintenance is essential. It is the owner’s responsibility to perform
regular checks. SUBARU recommends the following maintenance.
■ General maintenance
Should be performed on a daily basis. This can be done by your-
self or by a SUBARU dealer.
■ Scheduled maintenance
Should be performed at specified intervals according to the
maintenance schedule.
For details about maintenance items and schedules, refer to the “War-
ranty and Maintenance Booklet” (except for Canada) or “Warranty and
Service Booklet” (for Canada).
■Do-it-yourself maintenance
You can perform some maintenance procedures yourself.
Please be aware that do-it-yourself maintenance may affect war-
ranty coverage.
The use of SUBARU Service Manuals is recommended.
For details about warranty coverage, see the separate “Warranty and
Maintenance Booklet” (except for Canada) or “Warranty and Service
Booklet” (for Canada).

344 4-2. Maintenance
BRZ_U

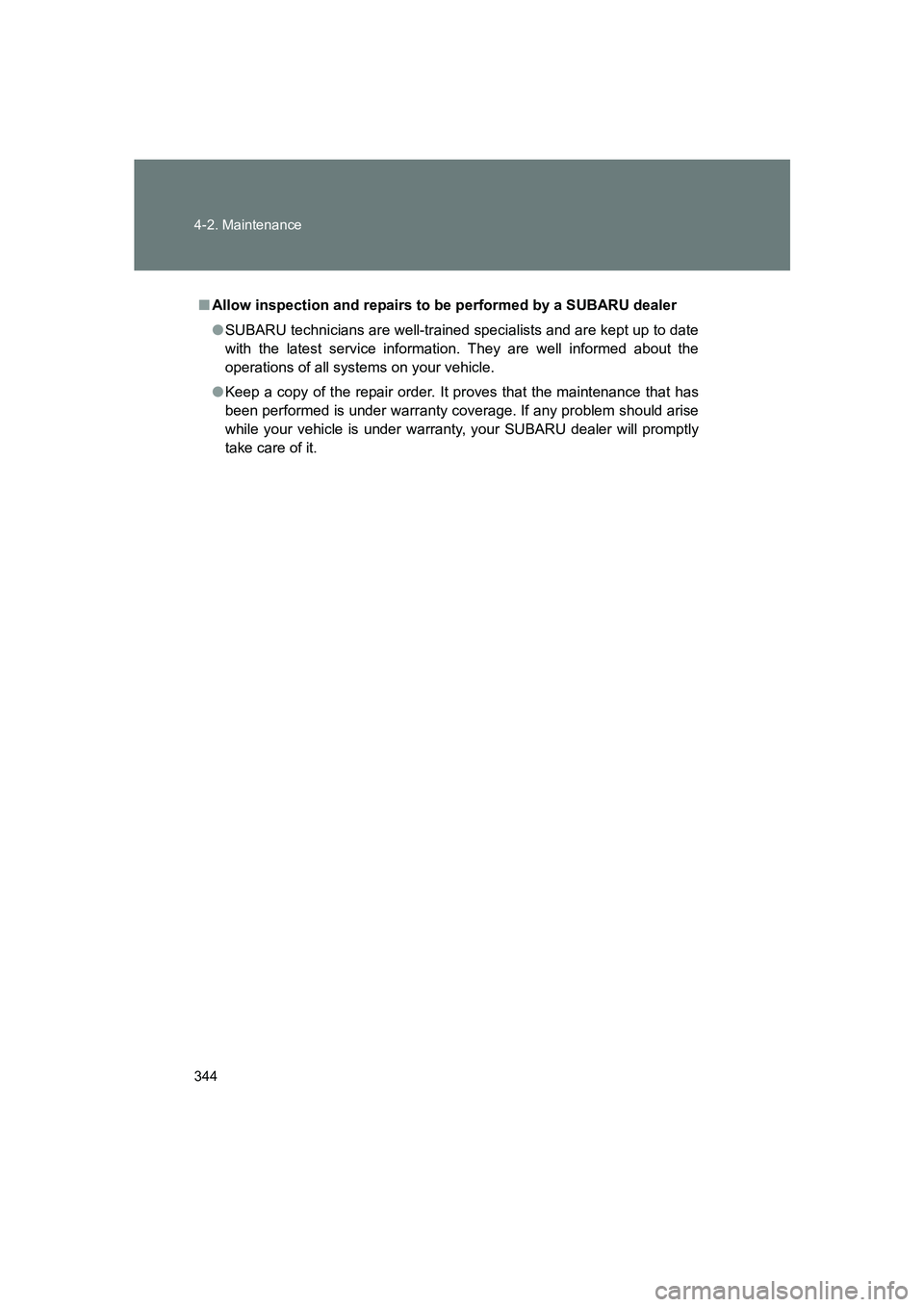

■Allow inspection and repairs to be performed by a SUBARU dealer
●SUBARU technicians are well-trained specialists and are kept up to date
with the latest service information. They are well informed about the
operations of all systems on your vehicle.
● Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your SUBARU dealer will promptly
take care of it.

345
4-2. Maintenance
4
Maintenance and care
BRZ_U

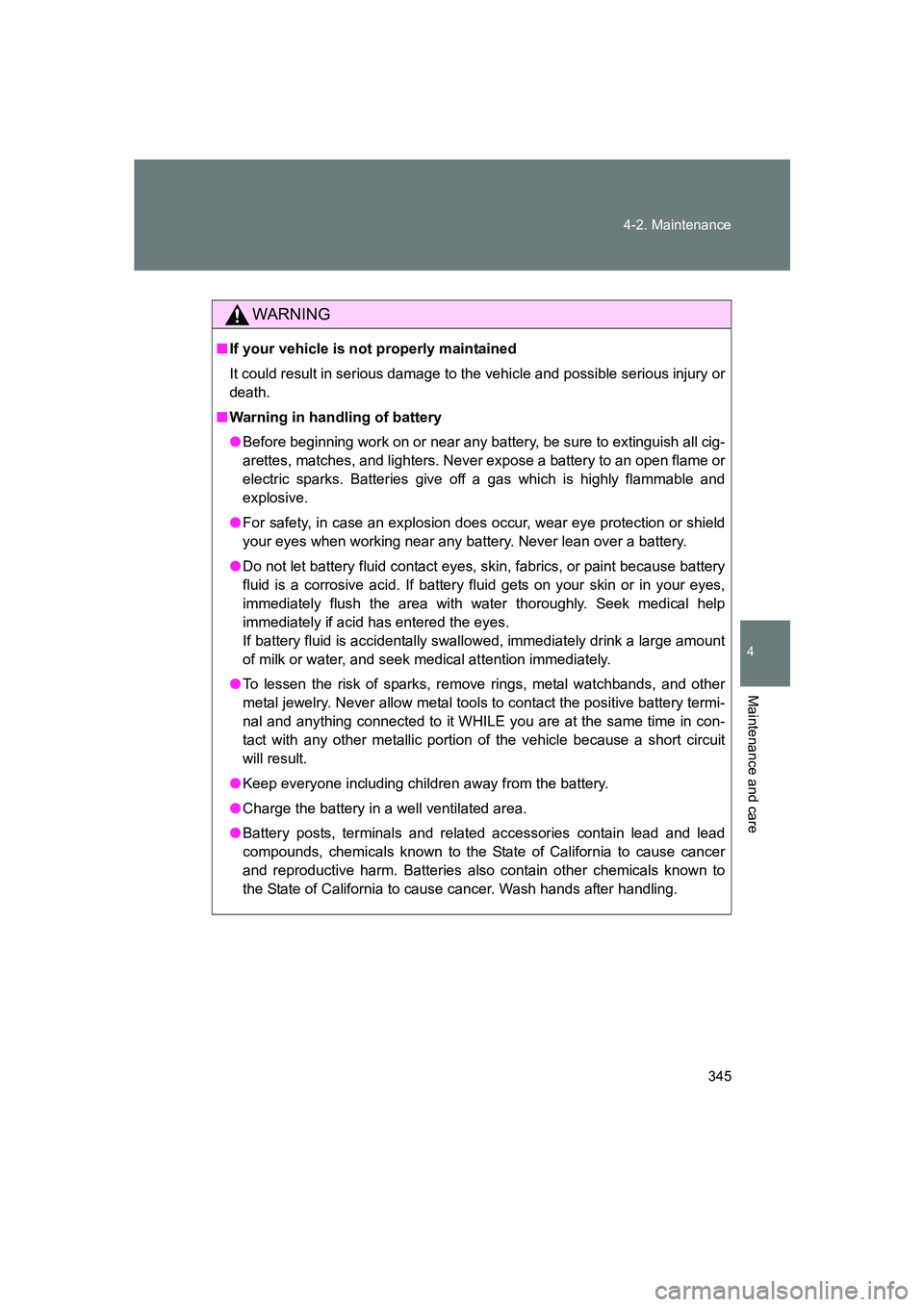

WARNING
■
If your vehicle is not properly maintained
It could result in serious damage to the vehicle and possible serious injury or
death.
■ Warning in handling of battery
● Before beginning work on or near any battery, be sure to extinguish all cig-
arettes, matches, and lighters. Never expose a battery to an open flame or
electric sparks. Batteries give off a gas which is highly flammable and
explosive.
● For safety, in case an explosion does occur, wear eye protection or shield
your eyes when working near any battery. Never lean over a battery.
● Do not let battery fluid contact eyes, skin, fabrics, or paint because battery
fluid is a corrosive acid. If battery fluid gets on your skin or in your eyes,
immediately flush the area with water thoroughly. Seek medical help
immediately if acid has entered the eyes.
If battery fluid is accidentally swallowed, immediately drink a large amount
of milk or water, and seek medical attention immediately.
● To lessen the risk of sparks, remove rings, metal watchbands, and other
metal jewelry. Never allow metal tools to contact the positive battery termi-
nal and anything connected to it WHILE you are at the same time in con-
tact with any other metallic portion of the vehicle because a short circuit
will result.
● Keep everyone including children away from the battery.
● Charge the battery in a well ventilated area.
● Battery posts, terminals and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer
and reproductive harm. Batteries also contain other chemicals known to
the State of California to cause cancer. Wash hands after handling.

346
4-2. Maintenance
BRZ_U

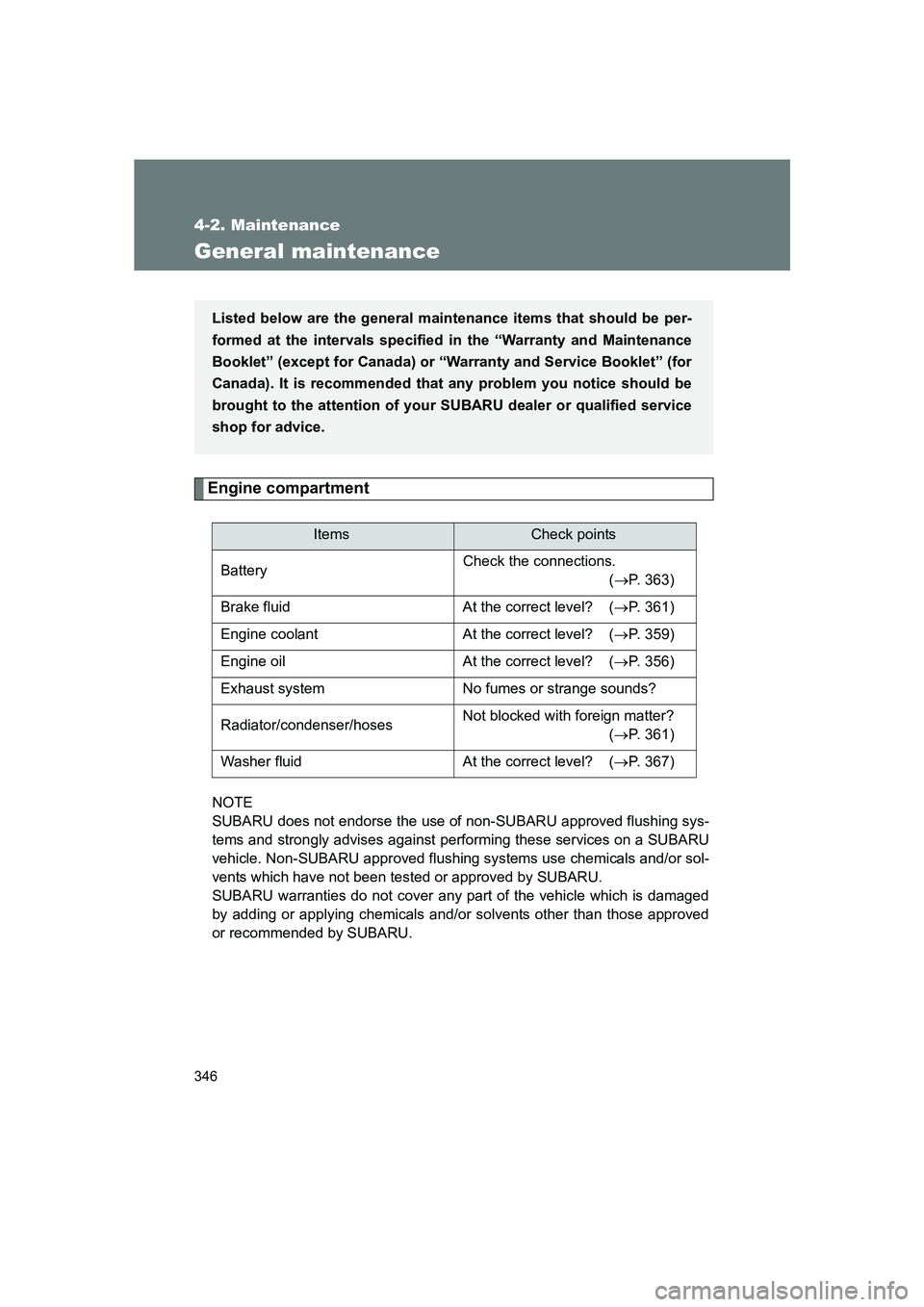

General maintenance
Engine compartment
NOTE
SUBARU does not endorse the use of non-SUBARU approved flushing sys-
tems and strongly advises against performing these services on a SUBARU
vehicle. Non-SUBARU approved flushing systems use chemicals and/or sol-
vents which have not been tested or approved by SUBARU.
SUBARU warranties do not cover any part of the vehicle which is damaged
by adding or applying chemicals and/or solvents other than those approved
or recommended by SUBARU.
ItemsCheck points
Battery Check the connections.
(→ P. 363)
Brake fluid At the correct level? ( →P. 361)
Engine coolant At the correct level? ( →P. 359)
Engine oil At the correct level? ( →P. 356)
Exhaust system No fumes or strange sounds?
Radiator/condenser/hoses Not blocked with foreign matter?
(
→P. 361)
Washer fluid At the correct level? ( →P. 367)
Listed below are the general maintenance items that should be per-
formed at the intervals specified in the “Warranty and Maintenance
Booklet” (except for Canada) or “Warranty and Service Booklet” (for
Canada). It is recommended that any problem you notice should be
brought to the attention of your SUBARU dealer or qualified service
shop for advice.

347
4-2. Maintenance
4
Maintenance and care
BRZ_U

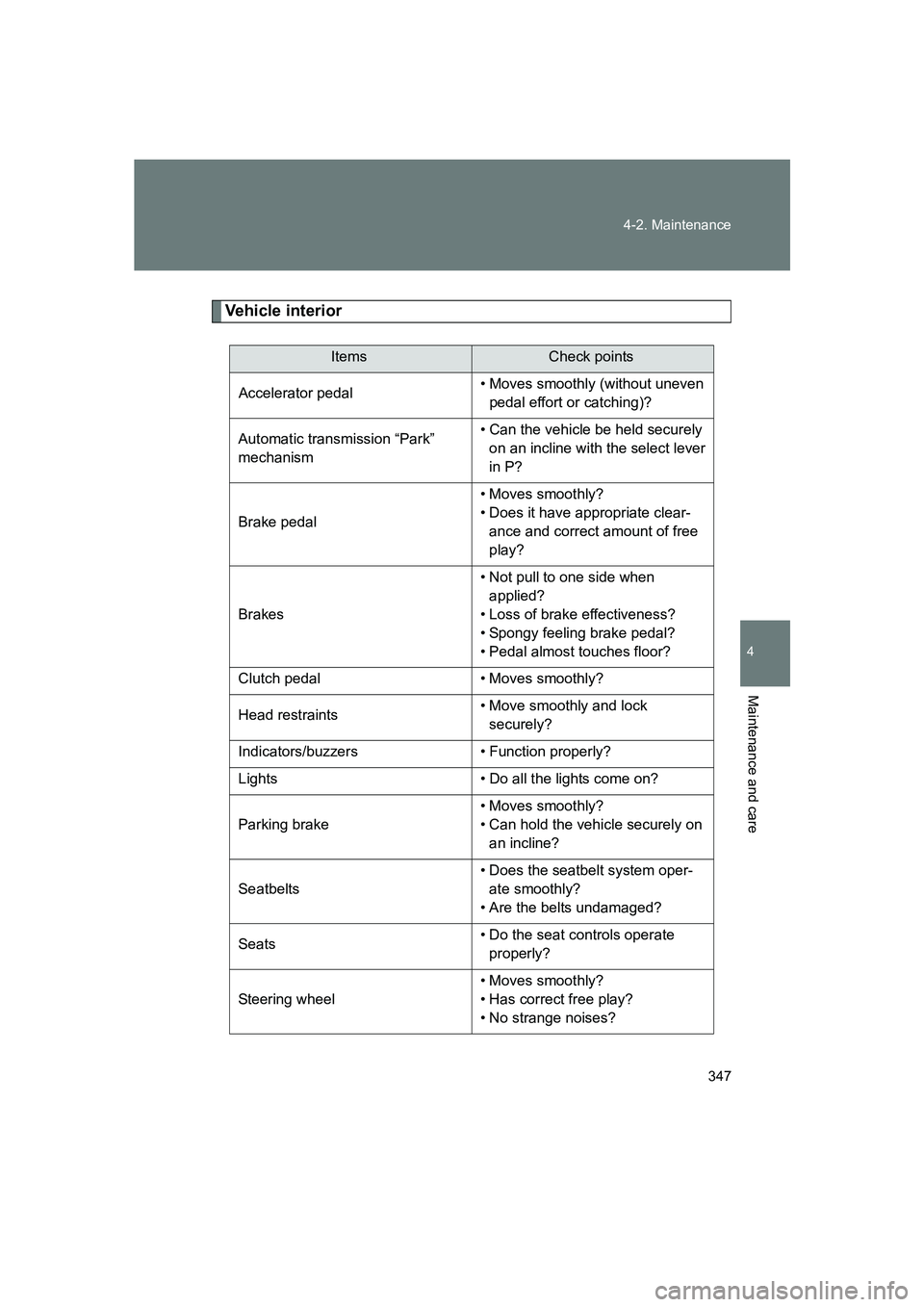

Vehicle interior
ItemsCheck points
Accelerator pedal • Moves smoothly (without uneven
pedal effort or catching)?
Automatic transmission “Park”
mechanism • Can the vehicle be held securely
on an incline with the select lever
in P?
Brake pedal • Moves smoothly?
• Does it have appropriate clear-
ance and correct amount of free
play?
Brakes • Not pull to one side when
applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Clutch pedal • Moves smoothly?
Head restraints • Move smoothly and lock
securely?
Indicators/buzzers • Function properly?
Lights • Do all the lights come on?
Parking brake • Moves smoothly?
• Can hold the vehicle securely on
an incline?
Seatbelts • Does the seatbelt system oper-
ate smoothly?
• Are the belts undamaged?
Seats • Do the seat controls operate
properly?
Steering wheel • Moves smoothly?
• Has correct free play?
• No strange noises?

348 4-2. Maintenance
BRZ_U

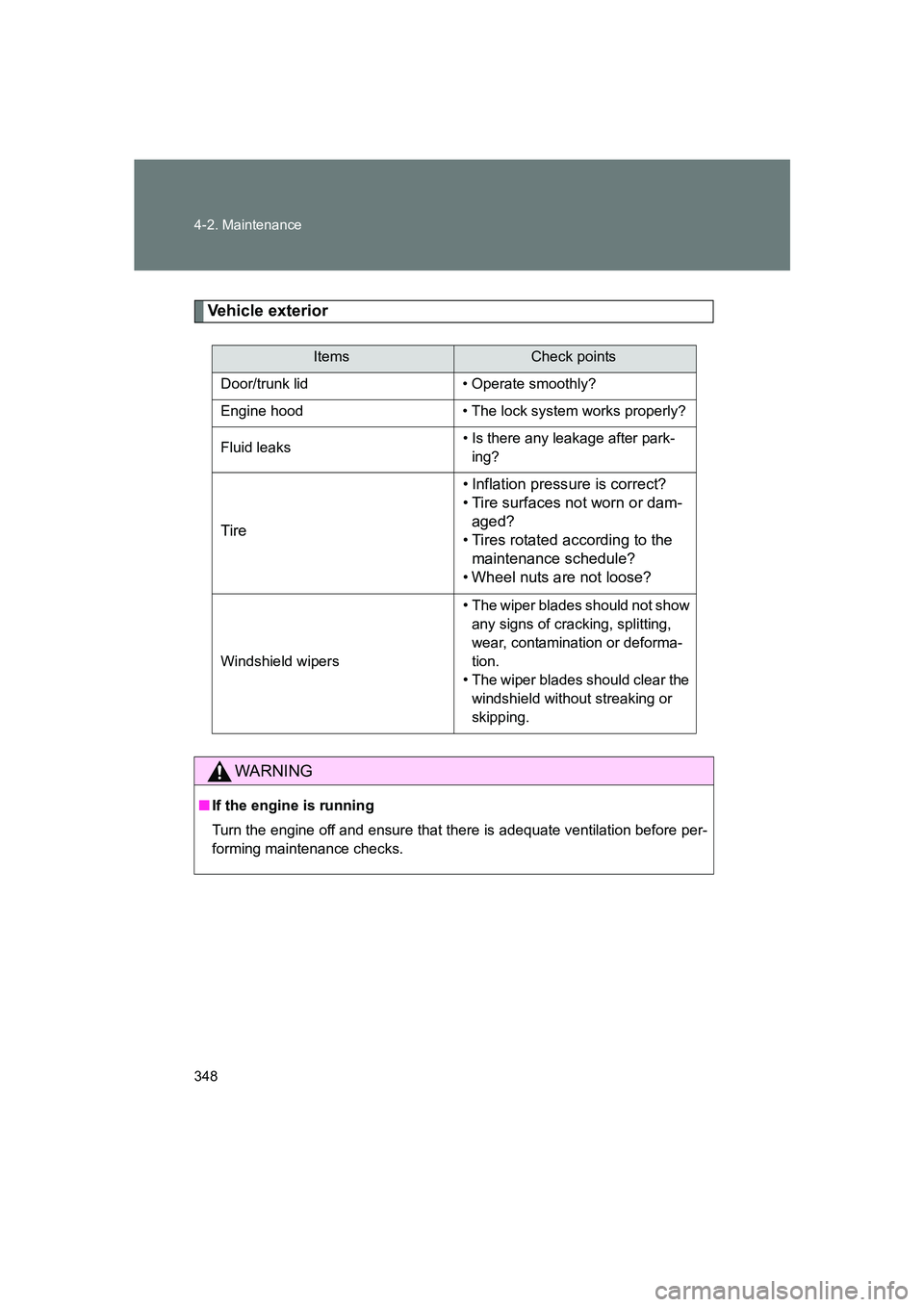

Vehicle exterior
ItemsCheck points
Door/trunk lid • Operate smoothly?
Engine hood • The lock system works properly?
Fluid leaks • Is there any leakage after park-
ing?
Tire • Inflation pressure is correct?
• Tire surfaces not worn or dam-
aged?
• Tires rotated according to the maintenance schedule?
• Wheel nuts are not loose?
Windshield wipers
•The wiper blades should not show
any signs of cracking, splitting,
wear, contamination or deforma-
tion.
•The wiper blades should clear the
windshield without streaking or
skipping.
WARNING
■ If the engine is running
Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.

349
4-2. Maintenance
4
Maintenance and care
BRZ_U

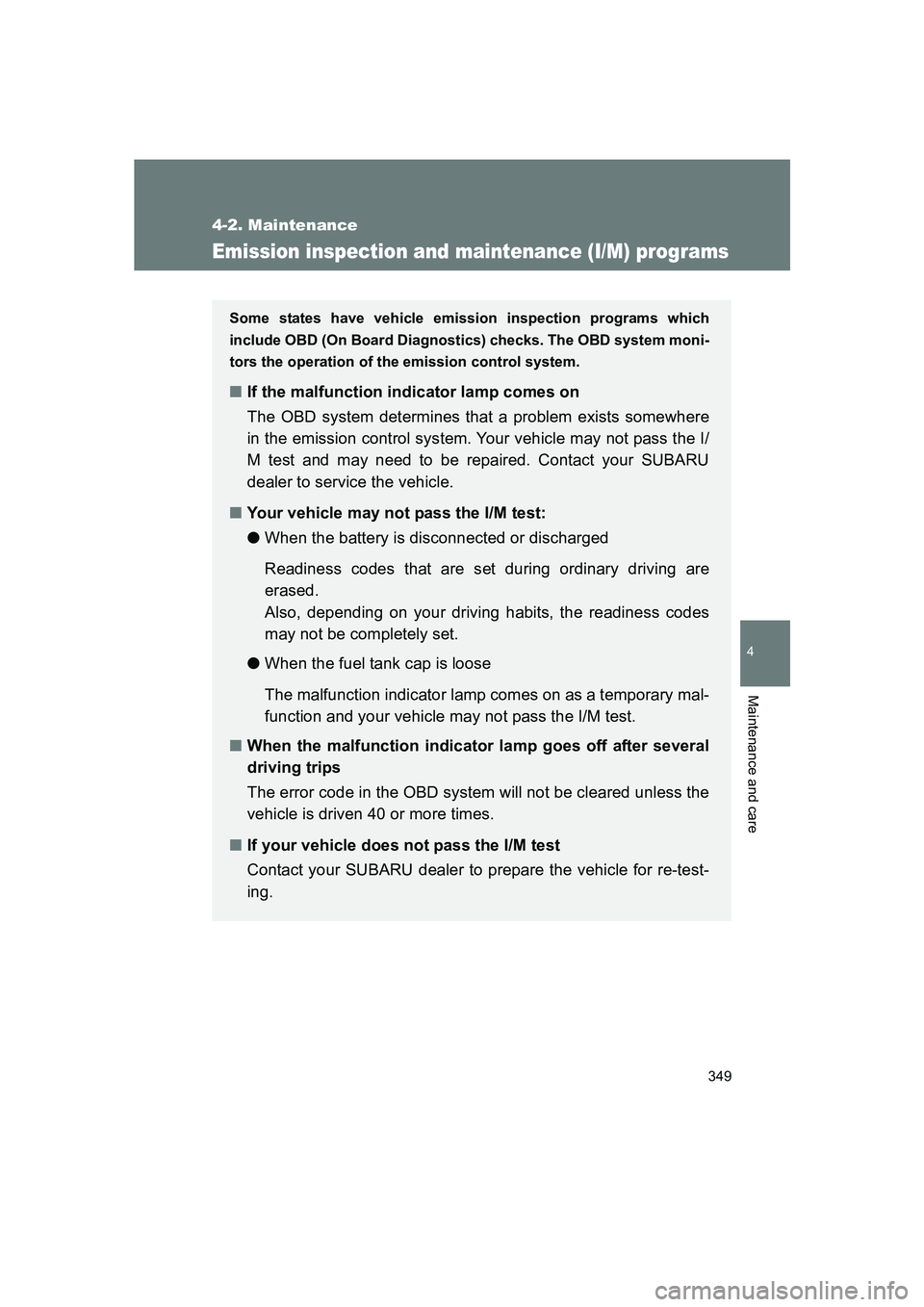

Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of th e emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your SUBARU
dealer to service the vehicle.
■ Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■ When the malfunction indicator lamp goes off after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your SUBARU dealer to prepare the vehicle for re-test-
ing.

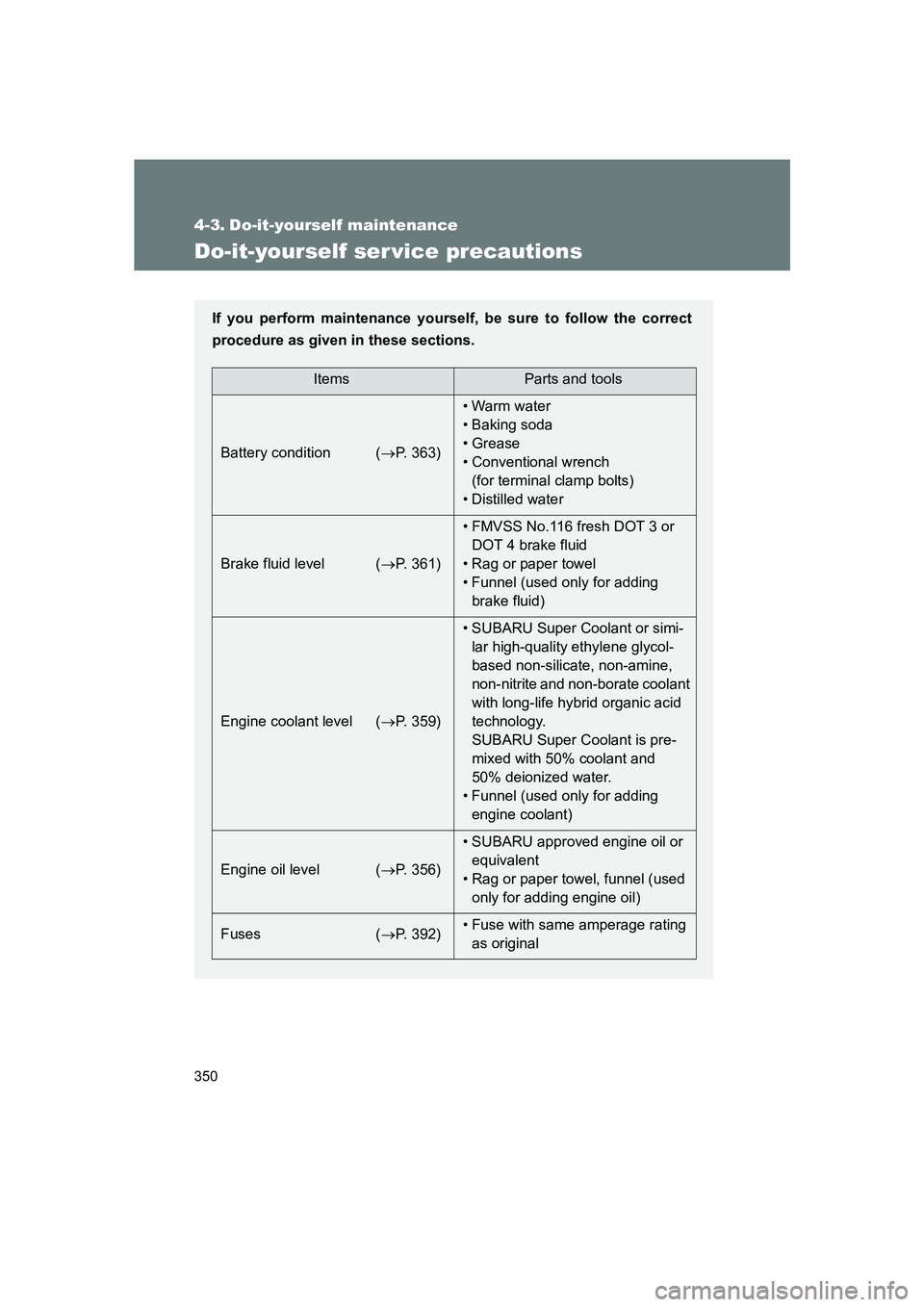

350
BRZ_U
4-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
Battery condition ( →P. 363) •Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
• Distilled water
Brake fluid level ( →P. 361) • FMVSS No.116 fresh DOT 3 or
DOT 4 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level ( →P. 359) • SUBARU Super Coolant or simi-
lar high-quality ethylene glycol-
based non-silicate, non-amine,
non-nitrite and non-borate coolant
with long-life hybrid organic acid
technology.
SUBARU Super Coolant is pre-
mixed with 50% coolant and
50% deionized water.
• Funnel (used only for adding engine coolant)
Engine oil level ( →P. 356) • SUBARU approved engine oil or
equivalent
• Rag or paper towel, funnel (used only for adding engine oil)
Fuses ( →P. 392) • Fuse with same amperage rating
as original
