Tilt/Telescopic Steering Wheel
195
Instruments and Controls3
3-17. Tilt/Telescopic Steering
Wheel
1) Tilt adjustment
2) Telescopic adjustment
3) Tilt/telescopic lock lever1. Adjust the seat position. Refer to
"Front Seats"
P30.
2. Pull the tilt/telescopic lock lever down.
3. Move the steering wheel to the desired
level.
4. Pull the lever up to lock the steering
wheel in place.
5. Make sure that the steering wheel is
securely locked by moving it up and down,
and forward and backward.
3-18. HornTo sound the horn, push the horn pad.
WARNING
Do not adjust the steering wheel
tilt/telescopic position while
driving. This may cause loss of
vehicle control and result in
personal injury.If the lever cannot be raised to the
fixed position, adjust the steering
wheel again. It is dangerous to
drive without locking the steering
wheel. This may cause loss of
vehicle control and result in
personal injury.
2
3
1
306823
306824
B 5 = B 8. E R R N 1 5 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 202 of 432
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²B 5 = B 8. E R R N 1 6 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 203 of 432

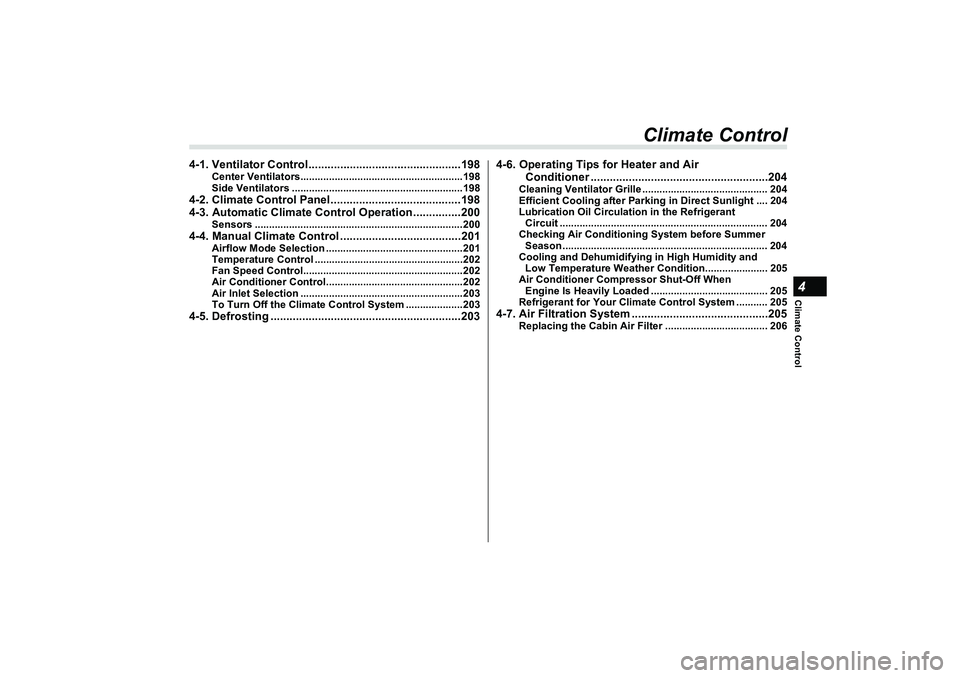

Climate Control4
Climate Control
4-1. Ventilator Control................................................198
Center Ventilators.........................................................198
Side Ventilators ............................................................198
4-2. Climate Control Panel.........................................198
4-3. Automatic Climate Control Operation...............200
Sensors .........................................................................200
4-4. Manual Climate Control ......................................201
Airflow Mode Selection ................................................201
Temperature Control ....................................................202
Fan Speed Control........................................................202
Air Conditioner Control................................................202
Air Inlet Selection .........................................................203
To Turn Off the Climate Control System ....................203
4-5. Defrosting ............................................................203 4-6. Operating Tips for Heater and Air
Conditioner ......... ...............................................204
Cleaning Ventilator Grille ............................................ 204
Efficient Cooling after Parking in Direct Sunlight .... 204
Lubrication Oil Circulation in the Refrigerant
Circuit ......................................................................... 204
Checking Air Conditioning System before Summer Season ........................................................................ 204
Cooling and Dehumidifying in High Humidity and Low Temperature Weather Condition...................... 205
Air Conditioner Compressor Shut-Off When Engine Is Heavily Loaded ......................................... 205
Refrigerant for Your Climate Control System ........... 205
4-7. Air Filtration System ...........................................205
Replacing the Cabin Air Filter .................................... 206
B 5 = B 8. E R R N 1 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 204 of 432

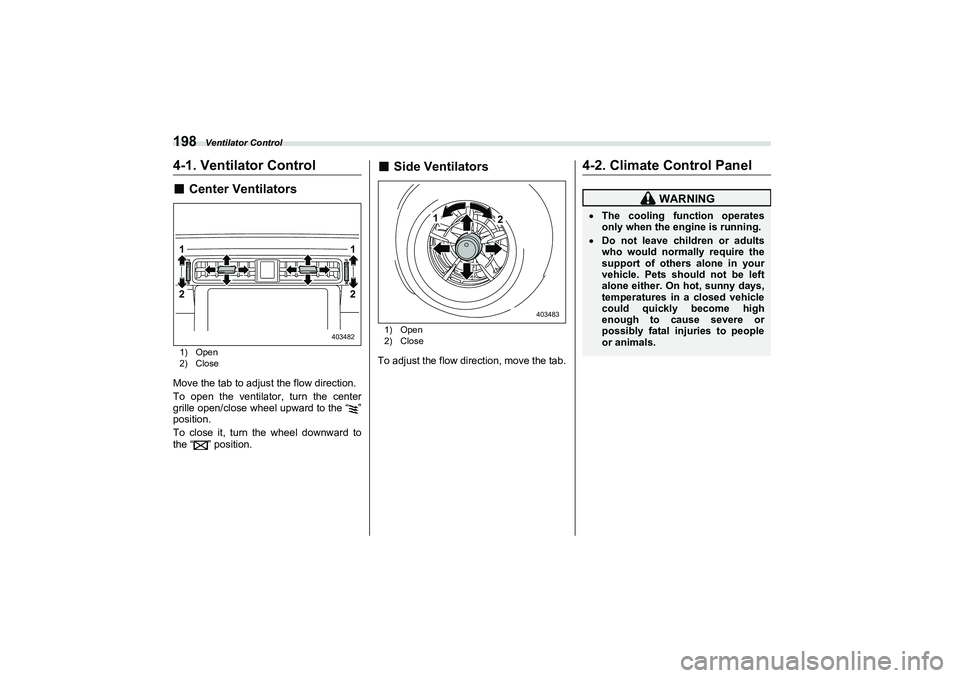

Ventilator Control
1984-1. Ventilator Control■
Center Ventilators1) Open
2) CloseMove the tab to adjust the flow direction.
To open the ventilator, turn the center
grille open/close wheel upward to the “ ”
position.
To close it, turn the wheel downward to
the “ ” position.
■
Side Ventilators1) Open
2) CloseTo adjust the flow direction, move the tab.
4-2. Climate Control Panel
21
21
403482
2
1
403483
WARNING
The cooling function operates
only when the engine is running.Do not leave children or adults
who would normally require the
support of others alone in your
vehicle. Pets should not be left
alone either. On hot, sunny days,
temperatures in a closed vehicle
could quickly become high
enough to cause severe or
possibly fatal injuries to people
or animals.
B 5 = B 8. E R R N 1 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 205 of 432

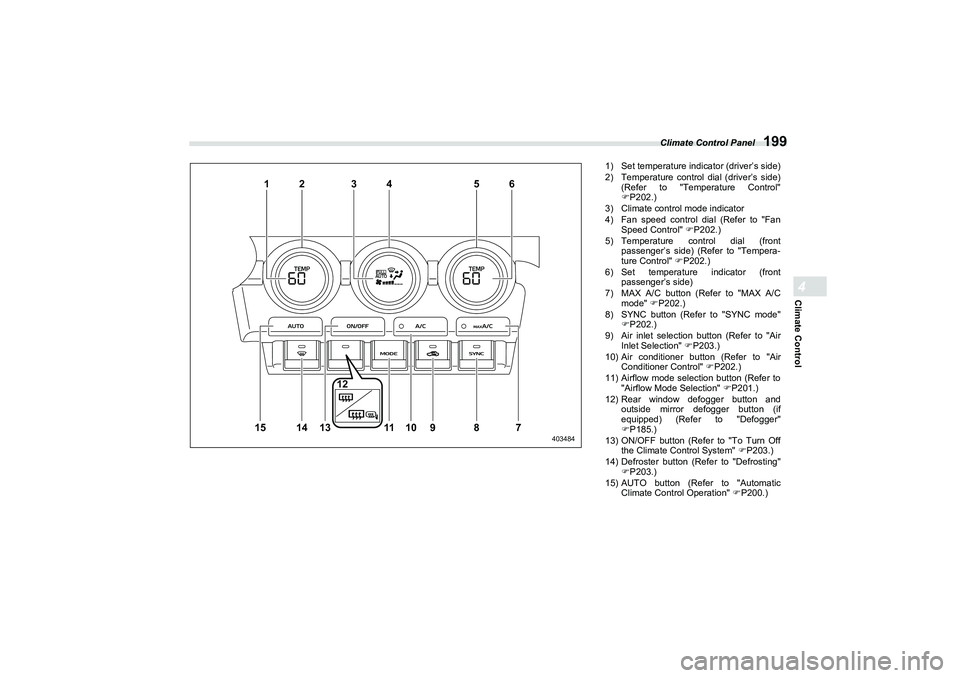

Climate Control Panel
199
Climate Control4
17
2
3
4
6
5
15
13
8
9
10
11
12
14
403484
1) Set temperature indi cator (driver’s side)
2) Temperature control dial (driver’s side)
(Refer to "Temperature Control"
P202.)
3) Climate control mode indicator
4) Fan speed control dial (Refer to "Fan Speed Control" P202.)
5) Temperature control dial (front passenger’s side) (Refer to "Tempera-
ture Control" P202.)
6) Set temperature indicator (front passenger’s side)
7) MAX A/C button (Refer to "MAX A/C mode" P202.)
8) SYNC button (Refer to "SYNC mode" P202.)
9) Air inlet selection button (Refer to "Air Inlet Selection" P203.)
10) Air conditioner button (Refer to "Air Conditioner Control" P202.)
11) Airflow mode selection button (Refer to "Airflow Mode Selection" P201.)
12) Rear window defogger button and outside mirror defogger button (if
equipped) (Refer to "Defogger"
P185.)
13) ON/OFF button (Refer to "To Turn Off the Climate Control System" P203.)
14) Defroster button (Refer to "Defrosting" P203.)
15) AUTO button (Refer to "Automatic Climate Control Operation" P200.)
B 5 = B 8. E R R N 1 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 206 of 432

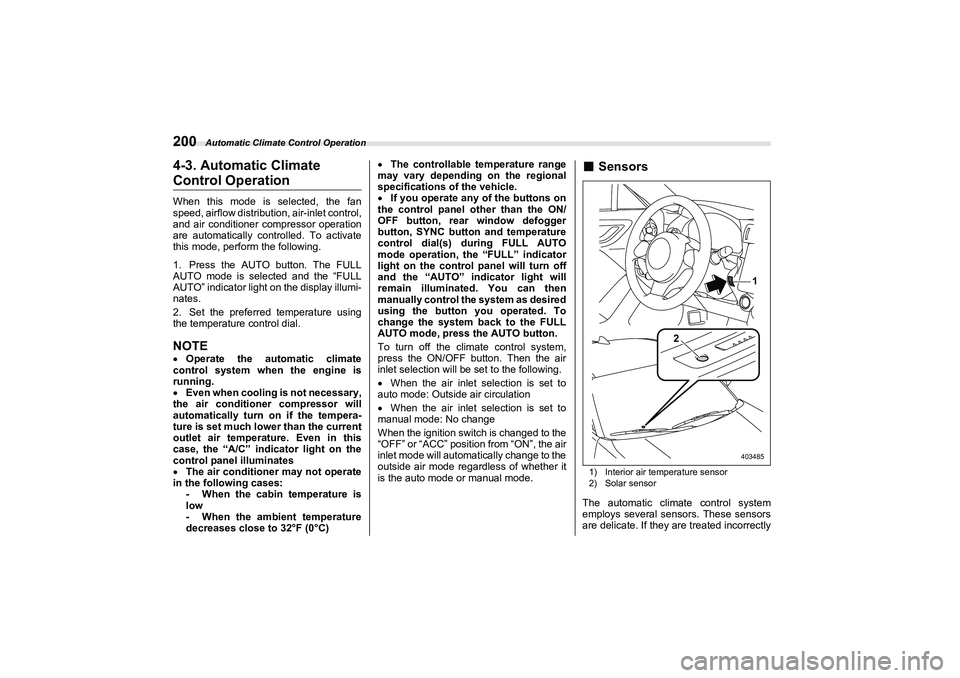

Automatic Climate Control Operation
2004-3. Automatic ClimateControl OperationWhen this mode is selected, the fan
speed, airflow distribution, air-inlet control,
and air conditioner compressor operation
are automatically controlled. To activate
this mode, perform the following.
1. Press the AUTO button. The FULL
AUTO mode is selected and the “FULL
AUTO” indicator light on the display illumi-
nates.
2. Set the preferred temperature using
the temperature control dial.NOTEOperate the automatic climate
control system when the engine is
running.
Even when cooling is not necessary,
the air conditioner compressor will
automatically turn on if the tempera-
ture is set much lo wer than the current
outlet air temperature. Even in this
case, the “A/C” indicator light on the
control panel illuminates
The air conditioner may not operate
in the following cases: - When the cabin temperature is
low
- When the ambient temperature
decreases close to 32°F (0°C)
The controllable temperature range
may vary depending on the regional
specifications of the vehicle.
If you operate any of the buttons on
the control panel other than the ON/
OFF button, rear window defogger
button, SYNC button and temperature
control dial(s) during FULL AUTO
mode operation, the “FULL” indicator
light on the control panel will turn off
and the “AUTO” indicator light will
remain illuminated. You can then
manually control the system as desired
using the button you operated. To
change the system back to the FULL
AUTO mode, press the AUTO button.
To turn off the climate control system,
press the ON/OFF button. Then the air
inlet selection will be set to the following.
When the air inlet selection is set to
auto mode: Outside air circulation
When the air inlet selection is set to
manual mode: No change
When the ignition switch is changed to the
“OFF” or “ACC” position from “ON”, the air
inlet mode will automatically change to the
outside air mode regardless of whether it
is the auto mode or manual mode.
■
Sensors1) Interior air temperature sensor
2) Solar sensorThe automatic climate control system
employs several sensors. These sensors
are delicate. If they are treated incorrectly
1
2
403485
B 5 = B 8. E R R N 200 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 207 of 432
Manual Climate Control
201
Climate Control4
– CONTINUED –
and become damaged, the system may
not be able to control the interior tempera-
ture correctly. To avoid damaging the
sensors, observe the following precau-
tions:
Do not subject the sensors to impact.
Keep water away from the sensors.
Do not cover the sensors.

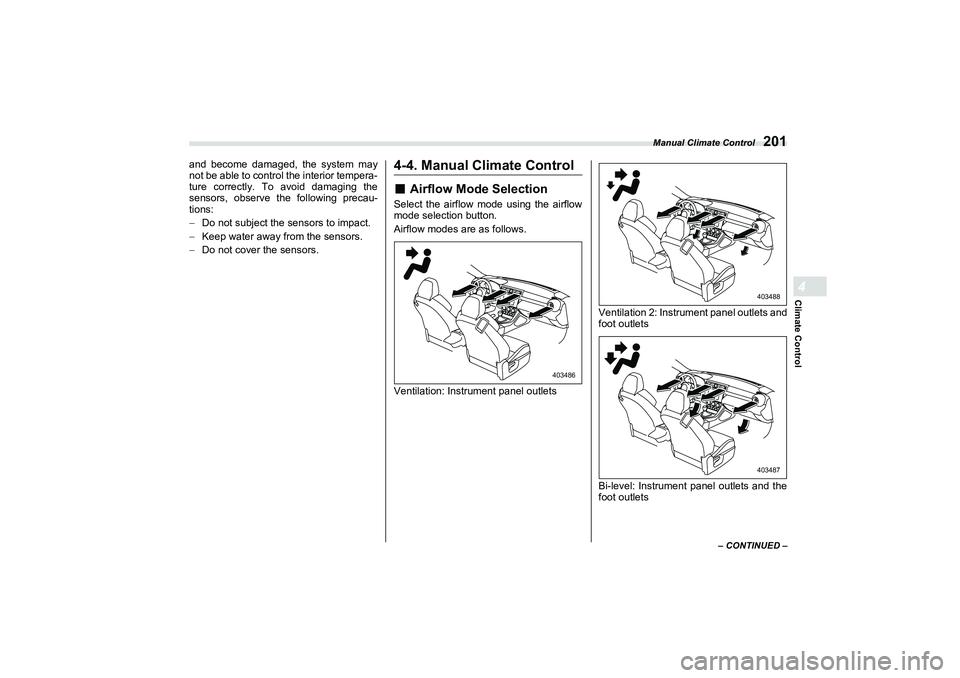

4-4. Manual Climate Control■
Airflow Mode Selection
Select the airflow mode using the airflow
mode selection button.
Airflow modes are as follows.
Ventilation: Instrument panel outlets Ventilation 2: Instrument panel outlets and
foot outlets
Bi-level: Instrument panel outlets and the
foot outlets
403486
403488403487
B 5 = B 8. E R R N 201 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 208 of 432

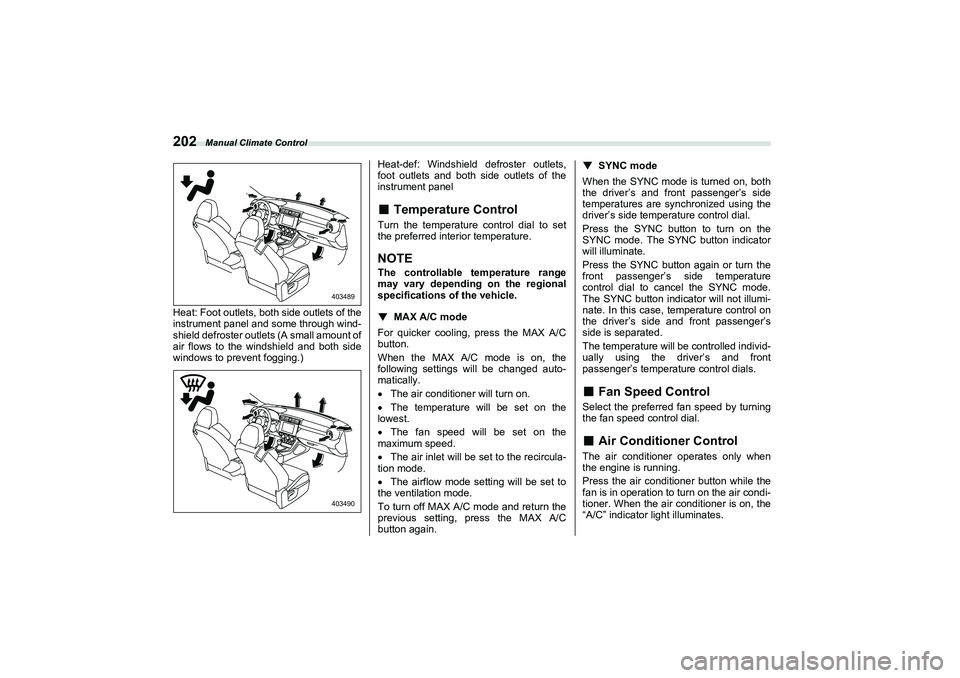

Manual Climate Control
202Heat: Foot outlets, both side outlets of the
instrument panel and some through wind-
shield defroster outlets (A small amount of
air flows to the windshield and both side
windows to prevent fogging.)Heat-def: Windshield defroster outlets,
foot outlets and both side outlets of the
instrument panel
■
Temperature Control
Turn the temperature control dial to set
the preferred interior temperature.NOTEThe controllable temperature range
may vary depending on the regional
specifications of the vehicle.
▼
MAX A/C mode
For quicker cooling, press the MAX A/C
button.
When the MAX A/C mode is on, the
following settings will be changed auto-
matically.
The air conditioner will turn on.
The temperature will be set on the
lowest.
The fan speed will be set on the
maximum speed.
The air inlet will be set to the recircula-
tion mode.
The airflow mode setting will be set to
the ventilation mode.
To turn off MAX A/C mode and return the
previous setting, press the MAX A/C
button again. ▼
SYNC mode
When the SYNC mode is turned on, both
the driver’s and front passenger’s side
temperatures are synchronized using the
driver’s side temperature control dial.
Press the SYNC button to turn on the
SYNC mode. The SYNC button indicator
will illuminate.
Press the SYNC button again or turn the
front passenger’s side temperature
control dial to cancel the SYNC mode.
The SYNC button indicator will not illumi-
nate. In this case, temperature control on
the driver’s side and front passenger’s
side is separated.
The temperature will be controlled individ-
ually using the driver’s and front
passenger’s temperature control dials.
■
Fan Speed Control
Select the preferred fan speed by turning
the fan speed control dial.■
Air Conditioner Control
The air conditioner operates only when
the engine is running.
Press the air conditioner button while the
fan is in operation to turn on the air condi-
tioner. When the air conditioner is on, the
“A/C” indicator light illuminates.
403489403490
B 5 = B 8. E R R N 202 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 209 of 432

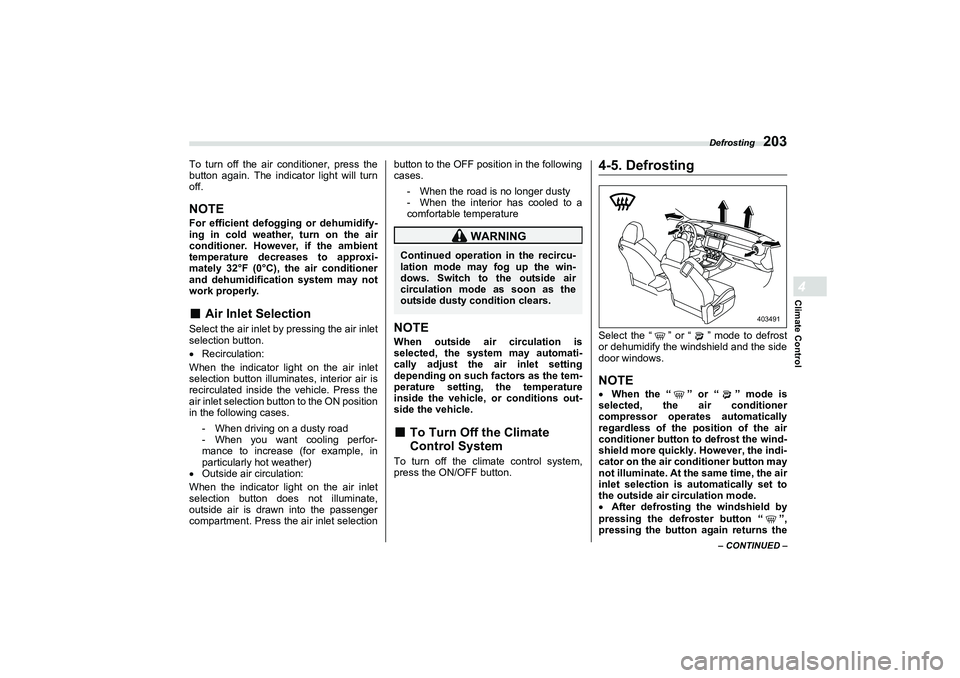

Defrosting
203
Climate Control4
– CONTINUED –
To turn off the air conditioner, press the
button again. The indicator light will turn
off.NOTEFor efficient defogging or dehumidify-
ing in cold weather, turn on the air
conditioner. However, if the ambient
temperature decreases to approxi-
mately 32°F (0°C), the air conditioner
and dehumidification system may not
work properly.■
Air Inlet Selection
Select the air inlet by pressing the air inlet
selection button.
Recirculation:
When the indicator light on the air inlet
selection button illuminates, interior air is
recirculated inside the vehicle. Press the
air inlet selection button to the ON position
in the following cases.
- When driving on a dusty road
- When you want cooling perfor-
mance to increase (for example, in
particularly hot weather)
Outside air circulation:
When the indicator light on the air inlet
selection button does not illuminate,
outside air is drawn into the passenger
compartment. Press the air inlet selection button to the OFF position in the following
cases.
- When the road is no longer dusty
- When the interior has cooled to a
comfortable temperature
NOTEWhen outside air circulation is
selected, the system may automati-
cally adjust the air inlet setting
depending on such factors as the tem-
perature setting, the temperature
inside the vehicle, or conditions out-
side the vehicle.■
To Turn Off the Climate
Control System
To turn off the climate control system,
press the ON/OFF button.
4-5. DefrostingSelect the “ ” or “ ” mode to defrost
or dehumidify the windshield and the side
door windows.NOTEWhen the “ ” or “ ” mode is
selected, the air conditioner
compressor operates automatically
regardless of the position of the air
conditioner button to defrost the wind-
shield more quickly. However, the indi-
cator on the air conditioner button may
not illuminate. At th e same time, the air
inlet selection is automatically set to
the outside air circulation mode.
After defrosting the windshield by
pressing the defroster button “ ”,
pressing the button again returns the
WARNING
Continued operation in the recircu-
lation mode may fog up the win-
dows. Switch to the outside air
circulation mode as soon as the
outside dusty condition clears.
403491
B 5 = B 8. E R R N 203 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 210 of 432

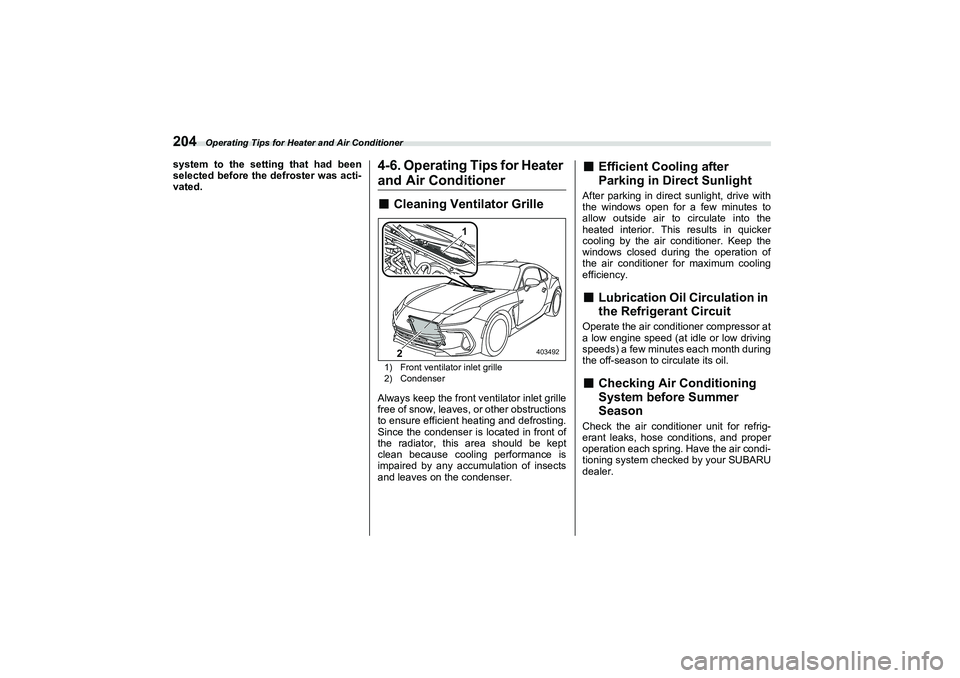

Operating Tips for Heater and Air Conditioner
204system to the setting that had been
selected before the defroster was acti-
vated.
4-6. Operating Tips for Heaterand Air Conditioner■
Cleaning Ventilator Grille1) Front ventilator inlet grille
2) CondenserAlways keep the front ventilator inlet grille
free of snow, leaves, or other obstructions
to ensure efficient heating and defrosting.
Since the condenser is located in front of
the radiator, this area should be kept
clean because cooling performance is
impaired by any accumulation of insects and leaves on the condenser.
■
Efficient Cooling after
Parking in Direct Sunlight
After parking in direct sunlight, drive with
the windows open for a few minutes to
allow outside air to circulate into the
heated interior. This results in quicker
cooling by the air conditioner. Keep the
windows closed during the operation of
the air conditioner for maximum cooling
efficiency.■
Lubrication Oil Circulation in
the Refrigerant Circuit
Operate the air conditioner compressor at
a low engine speed (at idle or low driving
speeds) a few minutes each month during
the off-season to circulate its oil.■
Checking Air Conditioning
System before Summer
Seaso n
Check the air conditioner unit for refrig-
erant leaks, hose conditions, and proper
operation each spring. Have the air condi-
tioning system checked by your SUBARU
dealer.
2
1
403492
B 5 = B 8. E R R N 204 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
