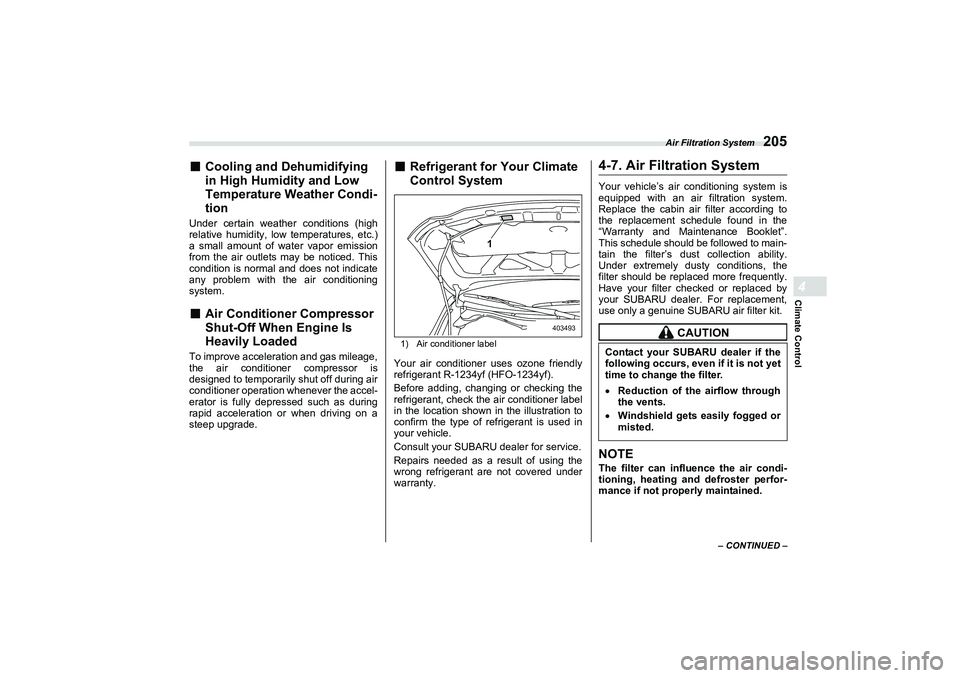

Air Filtration System
205
Climate Control4
– CONTINUED –
■
Cooling and Dehumidifying
in High Humidity and Low
Temperature Weather Condi-
tion
Under certain weather conditions (high
relative humidity, low temperatures, etc.)
a small amount of water vapor emission
from the air outlets may be noticed. This
condition is normal and does not indicate
any problem with the air conditioning
system.■
Air Conditioner Compressor
Shut-Off When Engine Is
Heavily Loaded
To improve acceleration and gas mileage,
the air conditioner compressor is
designed to temporarily shut off during air
conditioner operation whenever the accel-
erator is fully depressed such as during
rapid acceleration or when driving on a
steep upgrade.
■
Refrigerant for Your Climate
Control System1) Air conditioner labelYour air conditioner uses ozone friendly
refrigerant R-1234yf (HFO-1234yf).
Before adding, changing or checking the
refrigerant, check the air conditioner label
in the location shown in the illustration to
confirm the type of refrigerant is used in
your vehicle.
Consult your SUBARU dealer for service.
Repairs needed as a result of using the
wrong refrigerant are not covered under
warranty.
4-7. Air Filtration SystemYour vehicle’s air conditioning system is
equipped with an air filtration system.
Replace the cabin air filter according to
the replacement schedule found in the
“Warranty and Maintenance Booklet”.
This schedule should be followed to main-
tain the filter’s dust collection ability.
Under extremely dusty conditions, the
filter should be replaced more frequently.
Have your filter checked or replaced by
your SUBARU dealer. For replacement,
use only a genuine SUBARU air filter kit.NOTEThe filter can influence the air condi-
tioning, heating and defroster perfor-
mance if not properly maintained.
1
403493
CAUTION
Contact your SUBARU dealer if the
following occurs, even if it is not yet
time to change the filter. Reduction of the airflow through
the vents.Windshield gets easily fogged or
misted.
B 5 = B 8. E R R N 205 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 212 of 432
Air Filtration System
206■

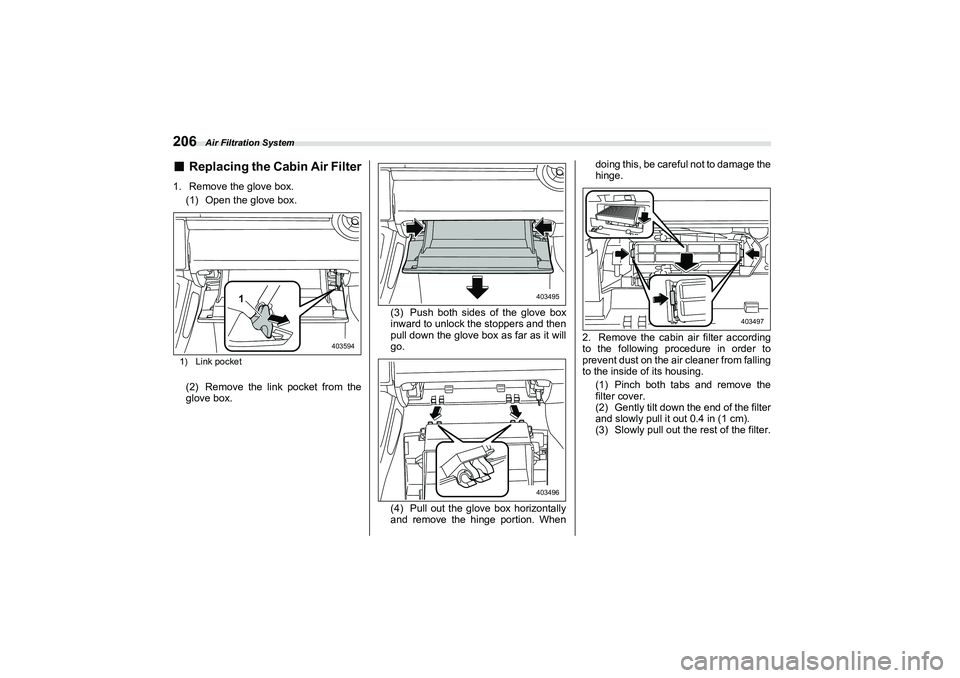

Replacing the Cabin Air Filter
1. Remove the glove box.(1) Open the glove box.1) Link pocket(2) Remove the link pocket from the
glove box. (3) Push both sides of the glove box
inward to unlock the stoppers and then
pull down the glove box as far as it will
go.
(4) Pull out the glove box horizontally
and remove the hinge portion. When doing this, be careful not to damage the
hinge.
2. Remove the cabin air filter according
to the following procedure in order to
prevent dust on the air cleaner from falling
to the inside of its housing. (1) Pinch both tabs and remove the
filter cover.
(2) Gently tilt down the end of the filter
and slowly pull it out 0.4 in (1 cm).
(3) Slowly pull out the rest of the filter.
1
403594
403495403496
403497
B 5 = B 8. E R R N 206 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 213 of 432
Air Filtration System
207
Climate Control4

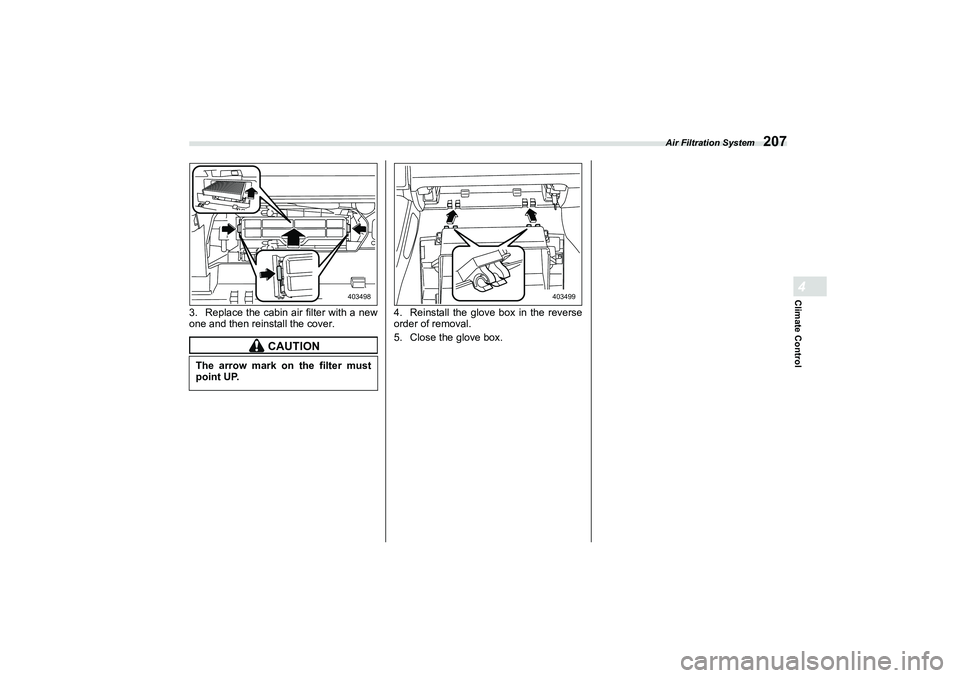

3. Replace the cabin air filter with a new
one and then reinstall the cover.4. Reinstall the glove box in the reverse
order of removal.
5. Close the glove box.
CAUTION
The arrow mark on the filter must
point UP.
403498
403499
B 5 = B 8. E R R N 20 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 214 of 432
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²
² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ² ²B 5 = B 8. E R R N 20 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 215 of 432
Audio5
Audio
5-1. Antenna................................................................210
Roof Antenna ................................................................210
5-2. Audio Set .............................................................210
B 5 = B 8. E R R N 20 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 216 of 432

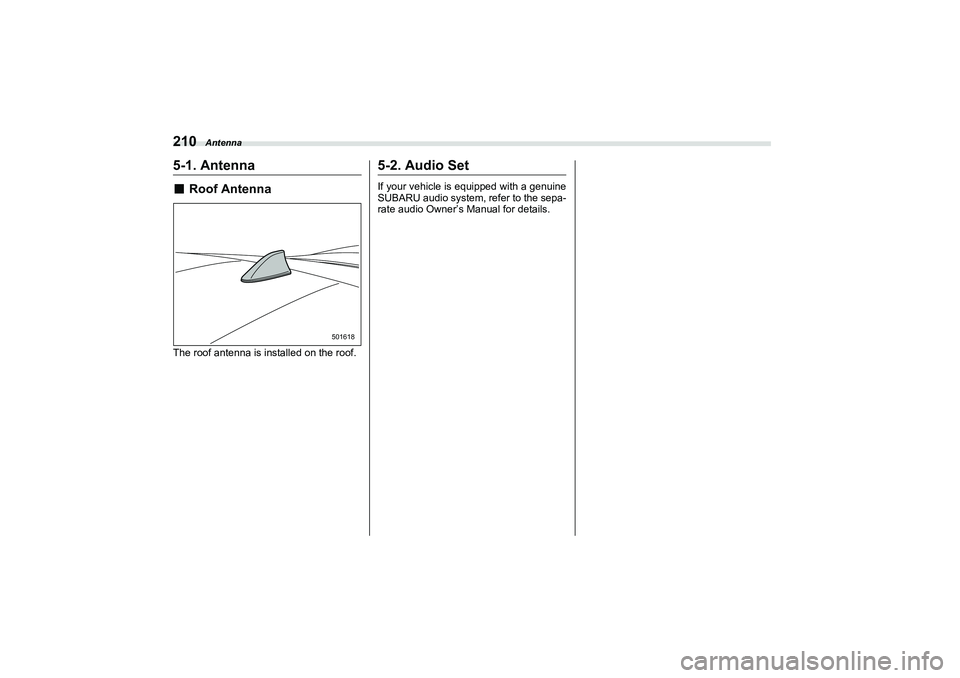

Antenna
2105-1. Antenna■
Roof Antenna
The roof antenna is installed on the roof.
5-2. Audio SetIf your vehicle is equipped with a genuine
SUBARU audio system, refer to the sepa-
rate audio Owner’s Manual for details.
501618
B 5 = B 8. E R R N 210 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 217 of 432
Interior Equipment6
Interior Equipment
6-1. Interior Light ........................................................212
Map Lights.....................................................................212
OFF Delay Timer ...........................................................212
6-2. Sun Visors ...........................................................213
Vanity Mirror with Light (If Equipped) ........................213
6-3. Storage Compartment ........................................213
Glove Box ......................................................................214
Center Console .............................................................214
6-4. Bottle Holders .....................................................215
6-5. Accessory Power Outlets ...................................215
6-6. USB Power Supply ..............................................216
How to Use the USB Power Supply ........................... 217
6-7. Ashtray (Dealer Option) ......................................217
6-8. Floor Mat ..............................................................218
6-9. Under-Floor Storage Compartment
(models with the flat tire repair kit) .................219
B 5 = B 8. E R R N 211 ページ ２０２１年７月５日 月曜日 午後>1時>1>1分
Page 218 of 432

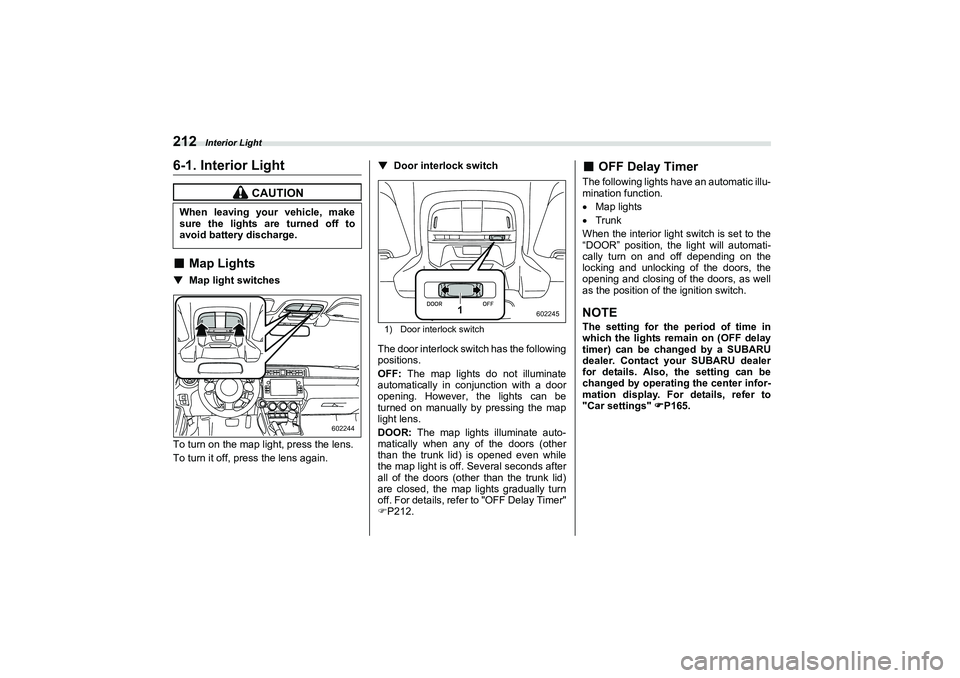

Interior Light
