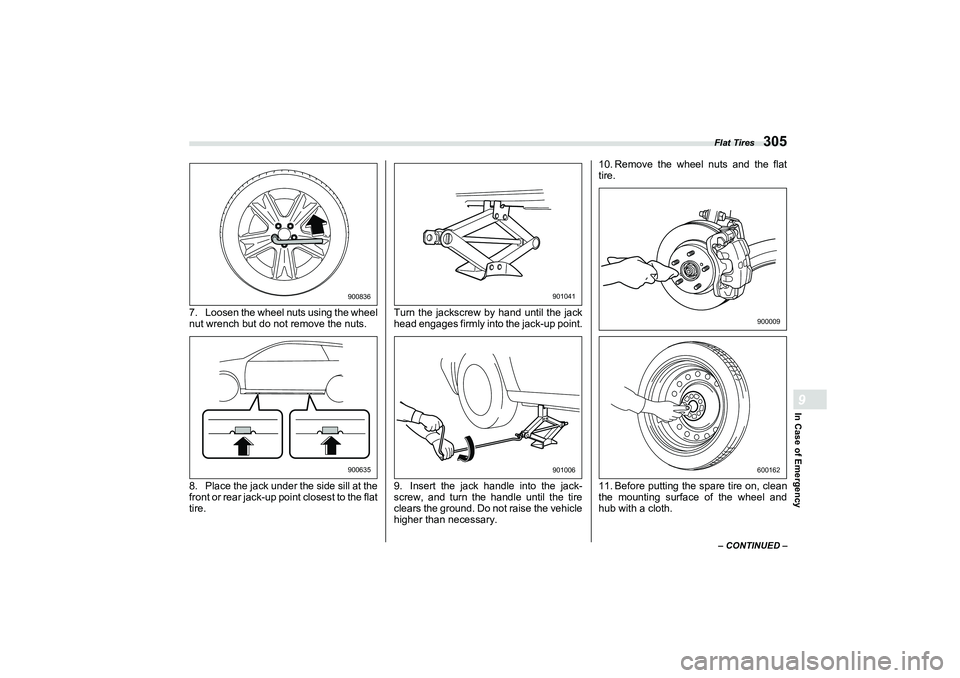

Page 311 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
305
In Case of Emergency9
– CONTINUED –
7. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.
8. Place the jack under the side sill at the
front or rear jack-

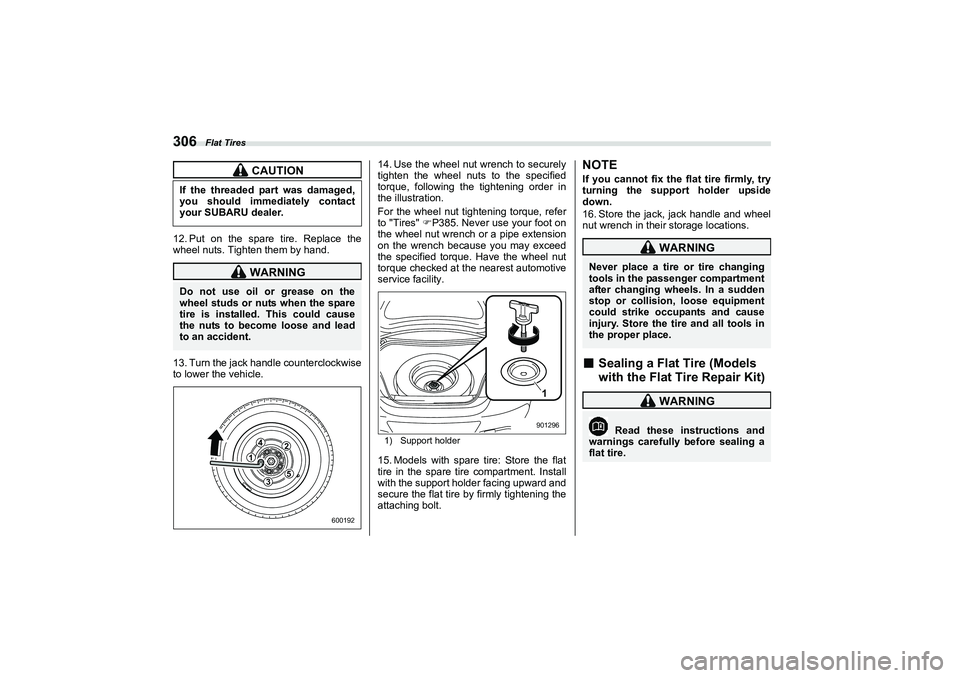

Page 312 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
30612. Put on the spare tire. Replace the
wheel nuts. Tighten them by hand.
13. Turn the jack handle counterclockwise
to lower the vehicle.14. Use the wheel nut wrench to securely
tighten t

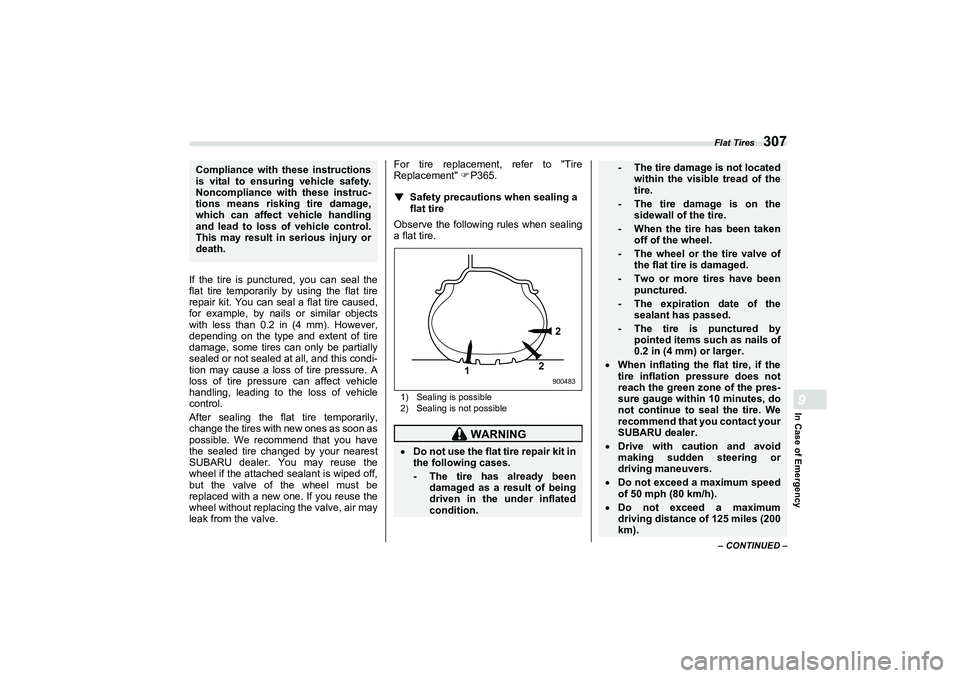

Page 313 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
307
In Case of Emergency9
– CONTINUED –
If the tire is punctured, you can seal the
flat tire temporarily by using the flat tire
repair kit. You can seal a flat tire caused,
for example,

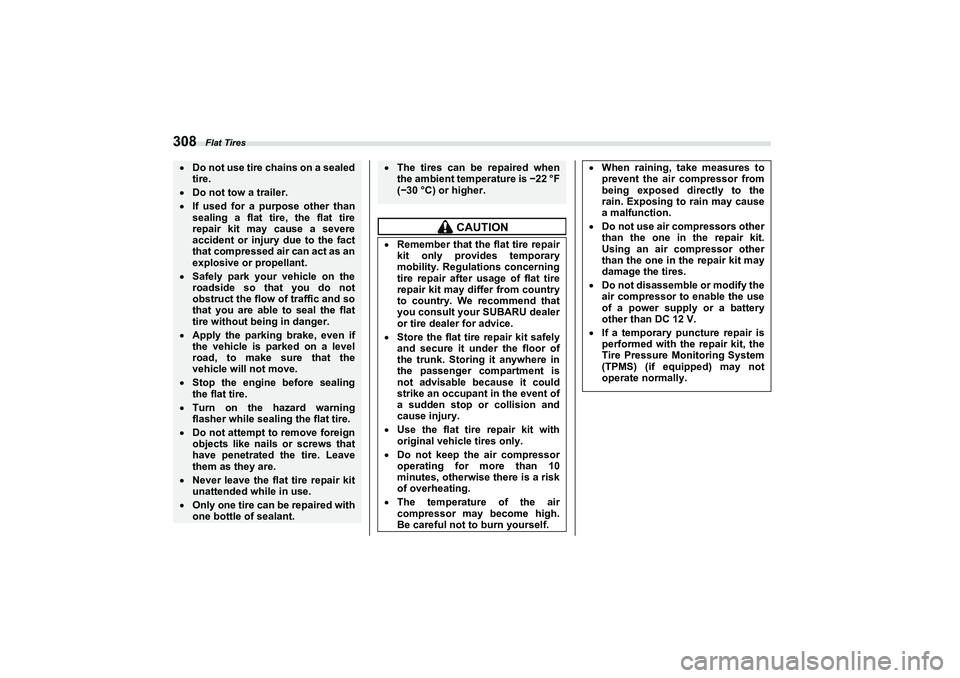

Page 314 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
308Do not use tire chains on a sealed
tire.Do not tow a trailer.If used for a purpose other than
sealing a flat tire, the flat tire
repair kit may cause a severe
accident or injury

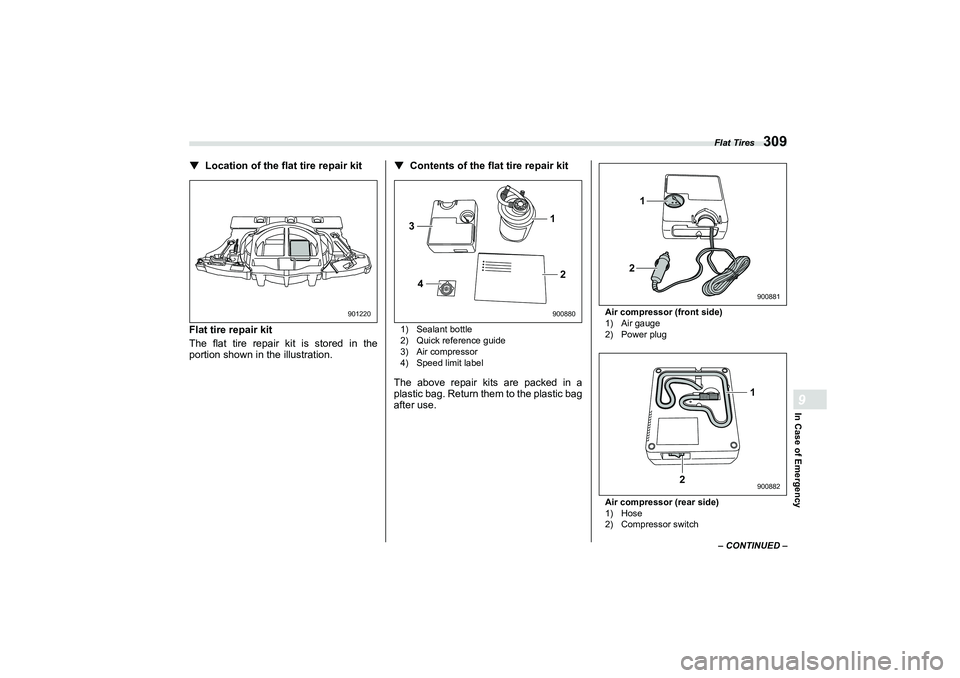

Page 315 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
309
In Case of Emergency9
– CONTINUED –
▼
Location of the flat tire repair kit
Flat tire repair kit
The flat tire repair kit is stored in the
portion shown in the illustration. ▼
Co

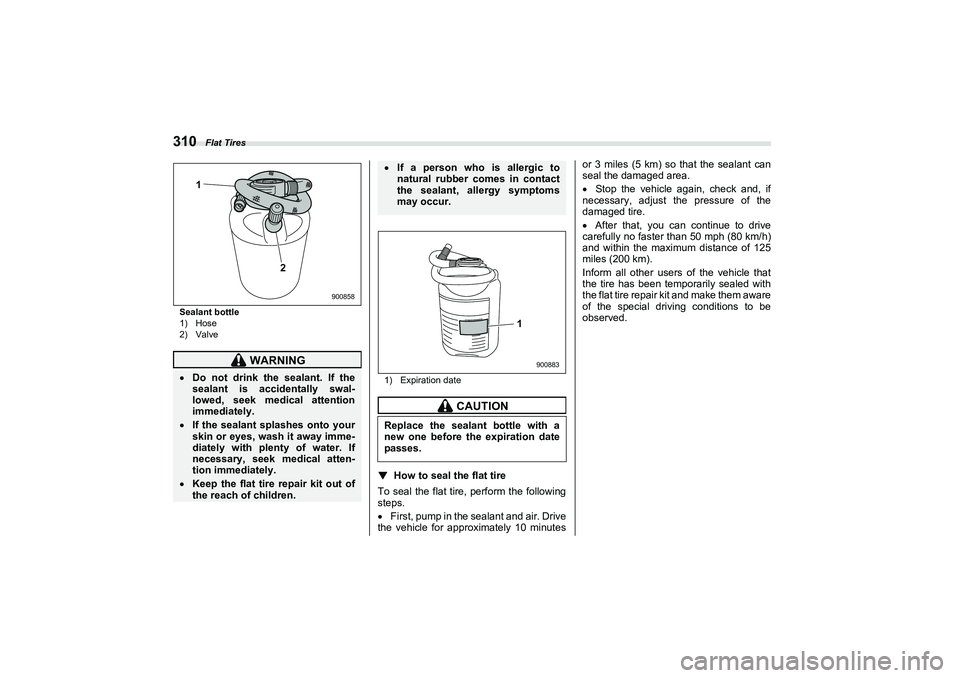

Page 316 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
310Sealant bottle
1) Hose
2) Valve1) Expiration date
▼
How to seal the flat tire
To seal the flat tire, perform the following
steps.
 First, pump in the sealant and air. Drive
the vehi

Page 317 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
311
In Case of Emergency9
– CONTINUED –
1. Shake the sealant bottle well. Loosen
the hose.1) Valve2. Connect the air compressor hose to
the valve on the bottle.
Connect the hose from th

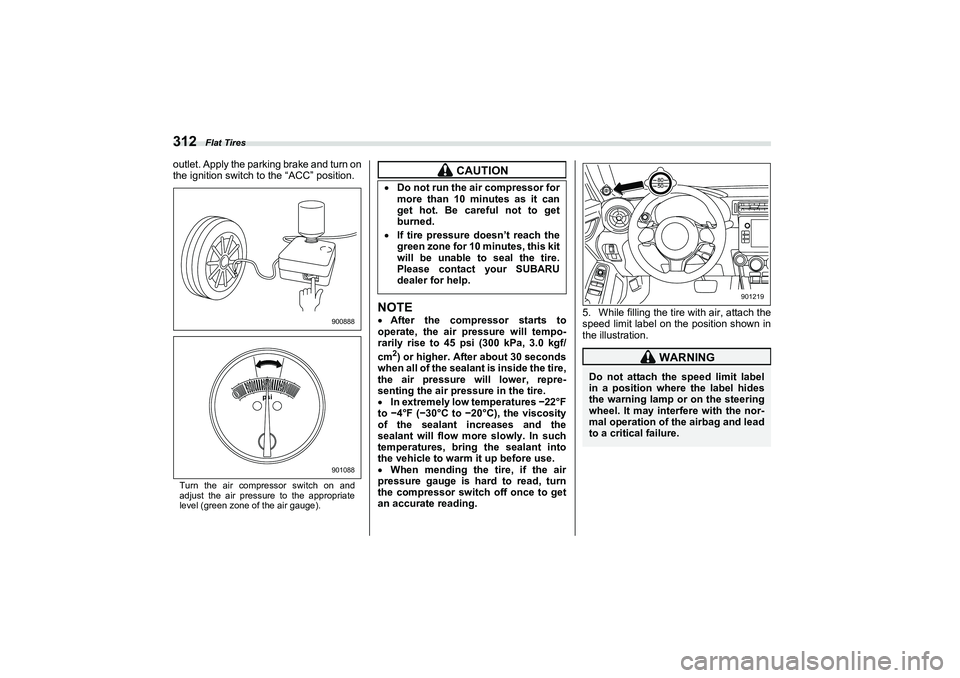

Page 318 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
312outlet. Apply the parking brake and turn on
the ignition switch to the “ACC” position.Turn the air compressor switch on and
adjust the air pressure to the appropriate
level (green zo

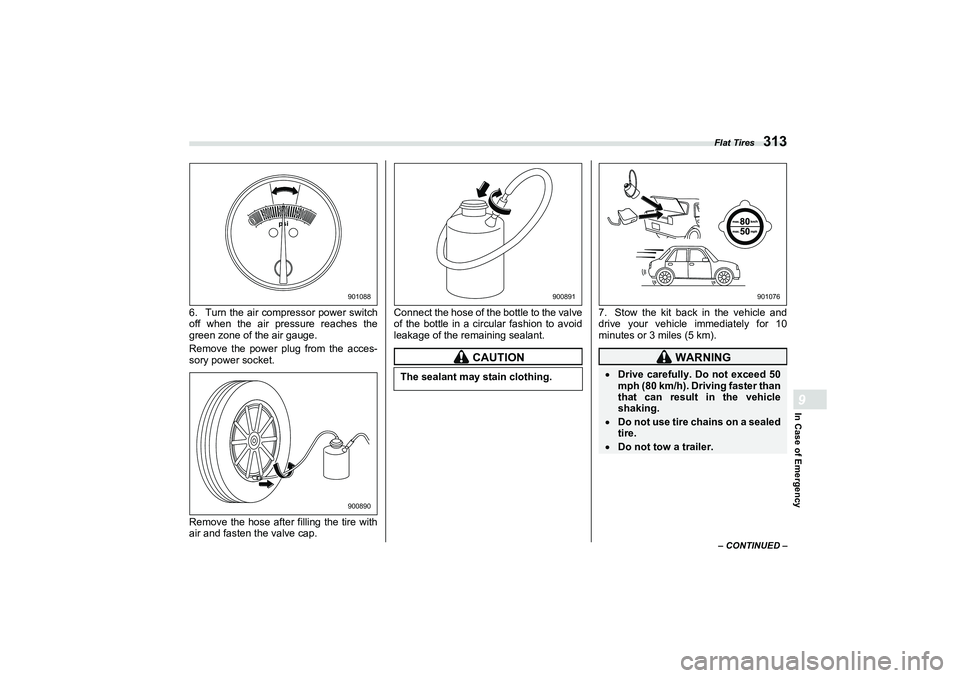

Page 319 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
313
In Case of Emergency9
– CONTINUED –
6. Turn the air compressor power switch
off when the air pressure reaches the
green zone of the air gauge.
Remove the power plug from the acces-

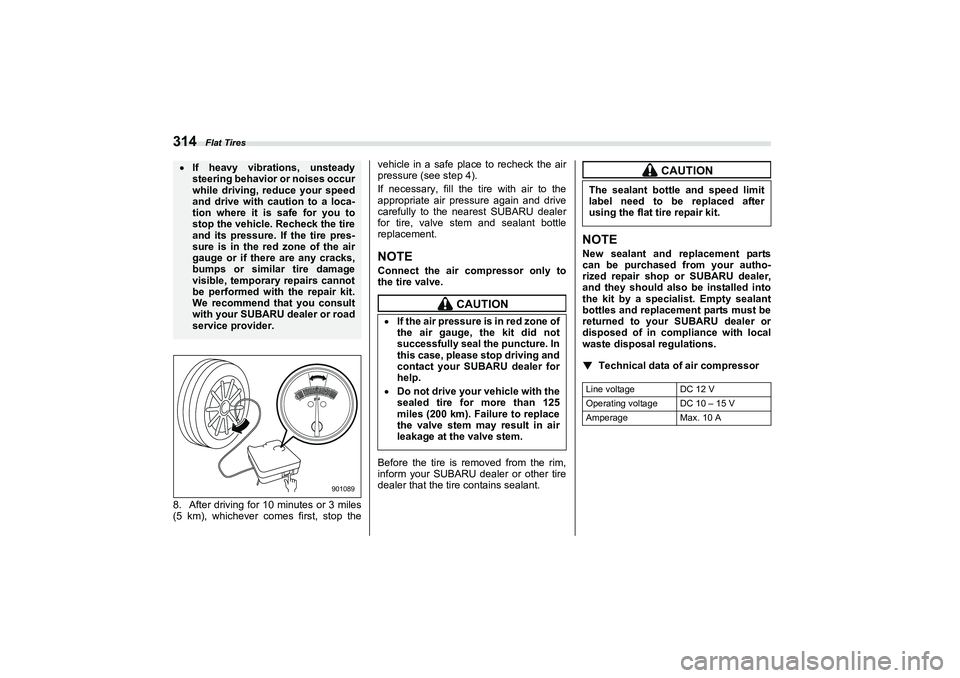

Page 320 of 432

SUBARU BRZ 2022  Owners Manual Flat Tires
3148. After driving for 10 minutes or 3 miles
(5 km), whichever comes first, stop thevehicle in a safe place to recheck the air
pressure (see step 4).
If necessary, fill the tire with air t
