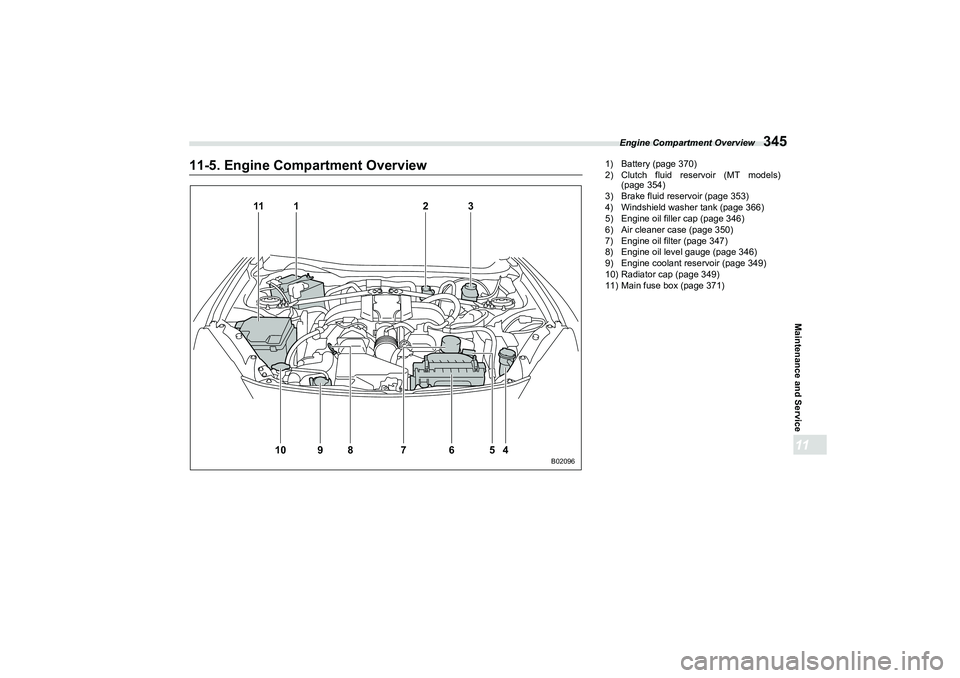

Engine Compartment Overview
345
Maintenance and Service11
11-5. Engine Compartment Overview
19
3
2
11
8
10
4
6
7
5
B02096
1) Battery (page 370)
2) Clutch fluid reservoir (MT models)(page 354)
3) Brake fluid reservoir (page 353)
4) Windshield washer tank (page 366)
5) Engine oil filler cap (page 346)
6) Air cleaner case (page 350)
7) Engine oil filter (page 347)
8) Engine oil level gauge (page 346)
9) Engine coolant reservoir (page 349)
10) Radiator cap (page 349)
11) Main fuse box (page 371)
B 5 = B 8. E R R N 345 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 352 of 432

Engine Oil
34611-6. Engine Oil■
Engine Oil Consumption
Some engine oil will be consumed while
driving. The rate of consumption can be
affected by such factors as transmission
type, driving style, terrain and tempera-
ture. Under the following conditions, oil
consumption can be increased and thus
require refilling between maintenance
intervals:
When the engine is new and within the
break-in period
When the engine oil is of lower quality
When the incorrect oil viscosity is used
When engine braking is employed
(repeatedly)
When the engine is operated at high
engine speeds (for extended periods of
time)
When the engine is operated under
heavy loads (for extended periods of time)
When the engine idles for extended
periods of time
When the vehicle is operated in stop
and go and/or heavy traffic situations
When the vehicle is used under severe
thermal conditions
When the vehicle accelerates and
decelerates frequently
Under these or similar conditions, you
should check your oil at least every 2nd
fuel fill-up and change your engine oil
more frequently. Different drivers in the
same car may experience different
results. If your oil consumption rate is
greater than expected, contact your
authorized SUBARU retailer who may
perform a test under controlled conditions.
■

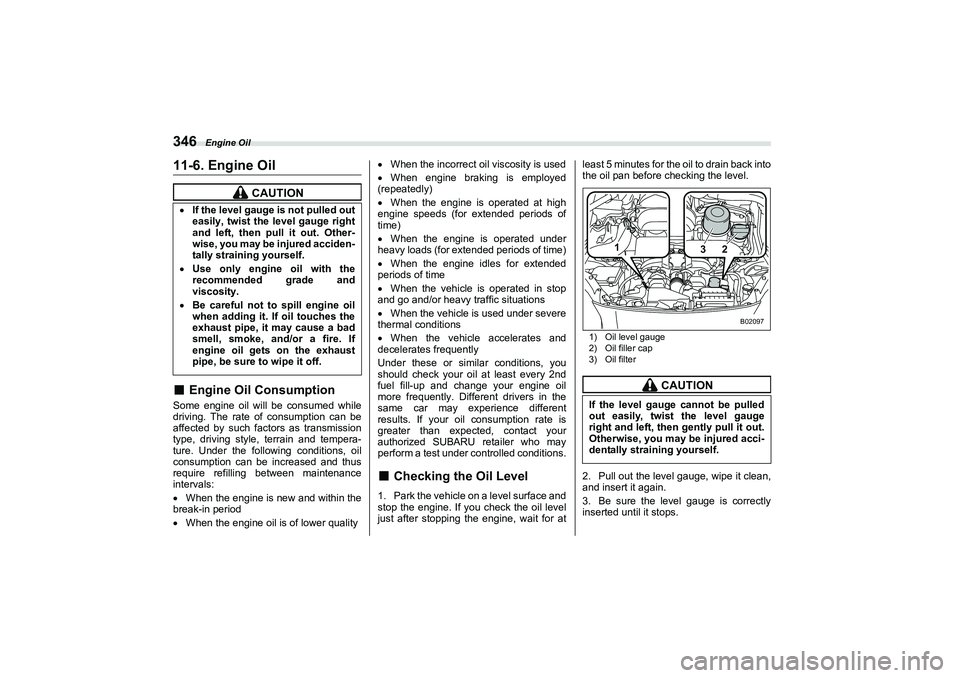

Checking the Oil Level
1. Park the vehicle on a level surface and
stop the engine. If you check the oil level
just after stopping the engine, wait for at least 5 minutes for the oil to drain back into
the oil pan before checking the level.
1) Oil level gauge
2) Oil filler cap
3) Oil filter2. Pull out the level gauge, wipe it clean,
and insert it again.
3. Be sure the level gauge is correctly
inserted until it stops.
CAUTION
If the level gauge is not pulled out
easily, twist the level gauge right
and left, then pull it out. Other-
wise, you may be injured acciden-
tally straining yourself.Use only engine oil with the
recommended grade and
viscosity.Be careful not to spill engine oil
when adding it. If oil touches the
exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If
engine oil gets on the exhaust
pipe, be sure to wipe it off.
CAUTION
If the level gauge cannot be pulled
out easily, twist the level gauge
right and left, then gently pull it out.
Otherwise, you may be injured acci-
dentally straining yourself.
1
3
2
B02097
B 5 = B 8. E R R N 346 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 353 of 432

Engine Oil
347
Maintenance and Service11
– CONTINUED –

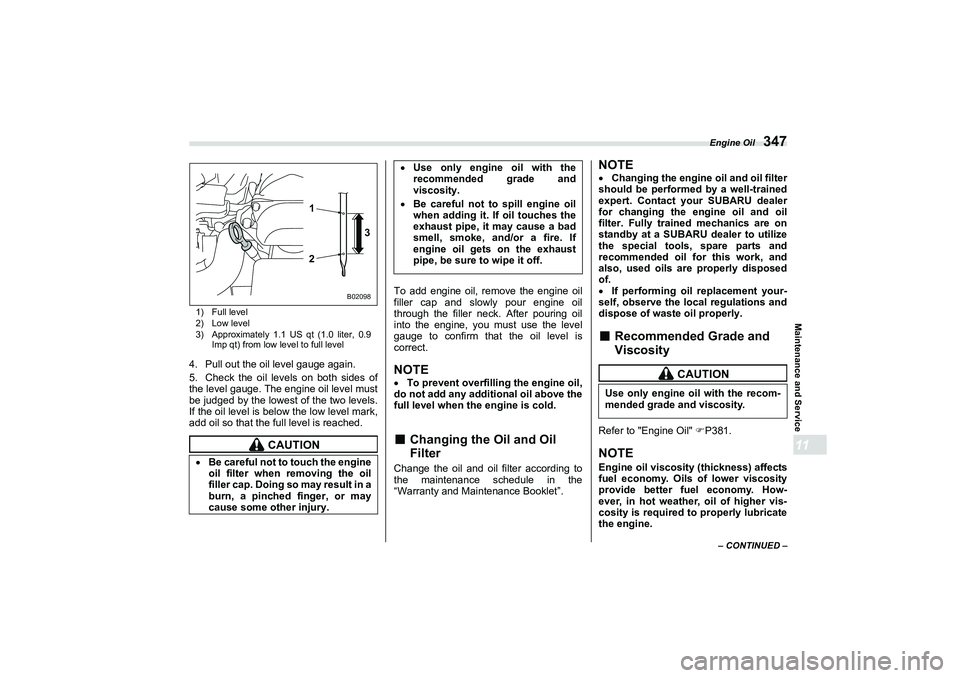

1) Full level
2) Low level
3) Approximately 1.1 US qt (1.0 liter, 0.9
Imp qt) from low level to full level
4. Pull out the oil level gauge again.
5. Check the oil levels on both sides of
the level gauge. The engine oil level must
be judged by the lowest of the two levels.
If the oil level is below the low level mark,
add oil so that the full level is reached. To add engine oil, remove the engine oil
filler cap and slowly pour engine oil
through the filler neck. After pouring oil
into the engine, you must use the level
gauge to confirm that the oil level is
correct.
NOTE
To prevent overfilling the engine oil,
do not add any additional oil above the
full level when the engine is cold.
■
Changing the Oil and Oil
Filter
Change the oil and oil filter according to
the maintenance schedule in the
“Warranty and Maintenance Booklet”.
NOTE Changing the engine oil and oil filter
should be performed by a well-trained
expert. Contact your SUBARU dealer
for changing the engine oil and oil
filter. Fully trained mechanics are on
standby at a SUBARU dealer to utilize
the special tools, spare parts and
recommended oil for this work, and
also, used oils are properly disposed
of.
If performing oil replacement your-
self, observe the local regulations and
dispose of waste oil properly.■
Recommended Grade and
Viscosity
Refer to "Engine Oil" P381.NOTEEngine oil viscosity (thickness) affects
fuel economy. Oils of lower viscosity
provide better fuel economy. How-
ever, in hot weather, oil of higher vis-
cosity is required to properly lubricate
the engine.
CAUTION
Be careful not to touch the engine
oil filter when removing the oil
filler cap. Doing so may result in a
burn, a pinched finger, or may
cause some other injury.
1
2 3
B02098
Use only engine oil with the
recommended grade and
viscosity.Be careful not to spill engine oil
when adding it. If oil touches the
exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If
engine oil gets on the exhaust
pipe, be sure to wipe it off.
CAUTION
Use only engine oil with the recom-
mended grade and viscosity.
B 5 = B 8. E R R N 34 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 354 of 432

Cooling System
348■
Synthetic Oil
You should use synthetic engine oil that
meets the same requirements given for
conventional engine oil. When using
synthetic oil, you must use oil of the same
classification, viscosity and grade shown
in this Owner’s Manual. Refer to "Engine
Oil" P381. Also, you must follow the oil
and filter changing intervals shown in the
Warranty and Maintenance booklet.NOTESynthetic oil of the grade and viscosity
noted in chapter 12 is the recom-
mended engine oil for optimum engine
performance. Conventional oil may be
used if synthetic oil is unavailable.

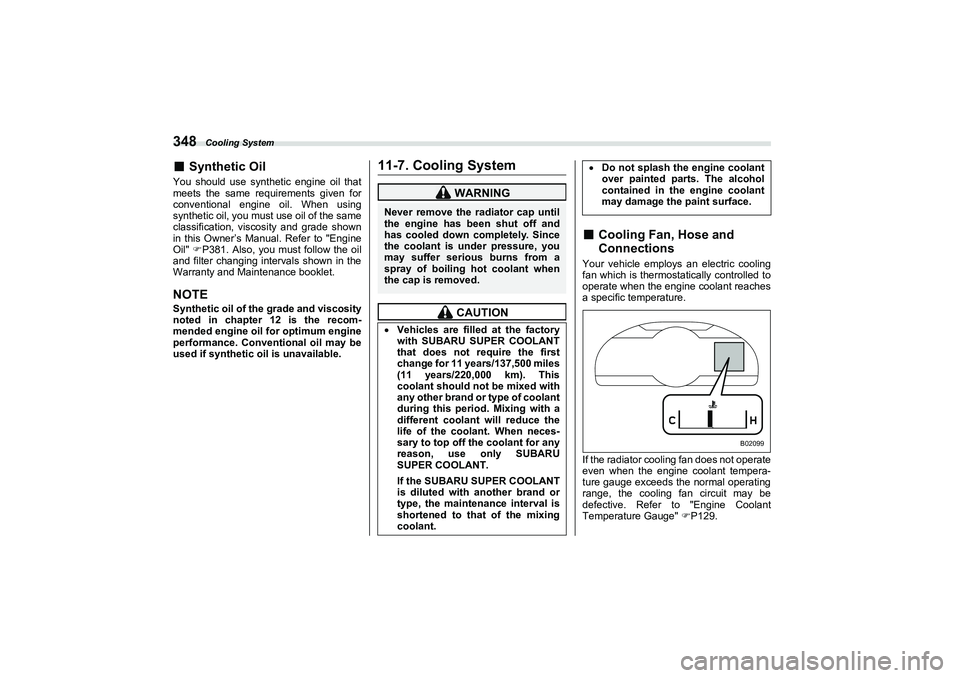

11-7. Cooling System
■
Cooling Fan, Hose and
Connections
Your vehicle employs an electric cooling
fan which is thermostatically controlled to operate when the engine coolant reaches
a specific temperature.
If the radiator cooling fan does not operate
even when the engine coolant tempera-
ture gauge exceeds the normal operating
range, the cooling fan circuit may be
defective. Refer to "Engine Coolant
Temperature Gauge" P129.
WARNING
Never remove the radiator cap until
the engine has been shut off and
has cooled down completely. Since
the coolant is under pressure, you
may suffer serious burns from a
spray of boiling hot coolant when
the cap is removed.
CAUTION
Vehicles are filled at the factory
with SUBARU SUPER COOLANT
that does not require the first
change for 11 years/137,500 miles
(11 years/220,000 km). This
coolant should not be mixed with
any other brand or type of coolant
during this period. Mixing with a
different coolant will reduce the
life of the coolant. When neces-
sary to top off the coolant for any
reason, use only SUBARU
SUPER COOLANT.
If the SUBARU SUPER COOLANT
is diluted with another brand or
type, the maintenance interval is
shortened to that of the mixing
coolant.
Do not splash the engine coolant
over painted parts. The alcohol
contained in the engine coolant
may damage the paint surface.
B02099
B 5 = B 8. E R R N 34 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 355 of 432

Cooling System
349
Maintenance and Service11
– CONTINUED –
Check the fuse and replace it if necessary.
Refer to "Fuses" P371. If the fuse is not
blown, have the cooling system checked
by your SUBARU dealer.
If the frequent addition of coolant is neces-
sary between vehicle service visits, it is
recommended that you have your vehicle
inspected by an authorized SUBARU
dealer to check for leaks, damage, or
looseness.■
Engine Coolant
▼

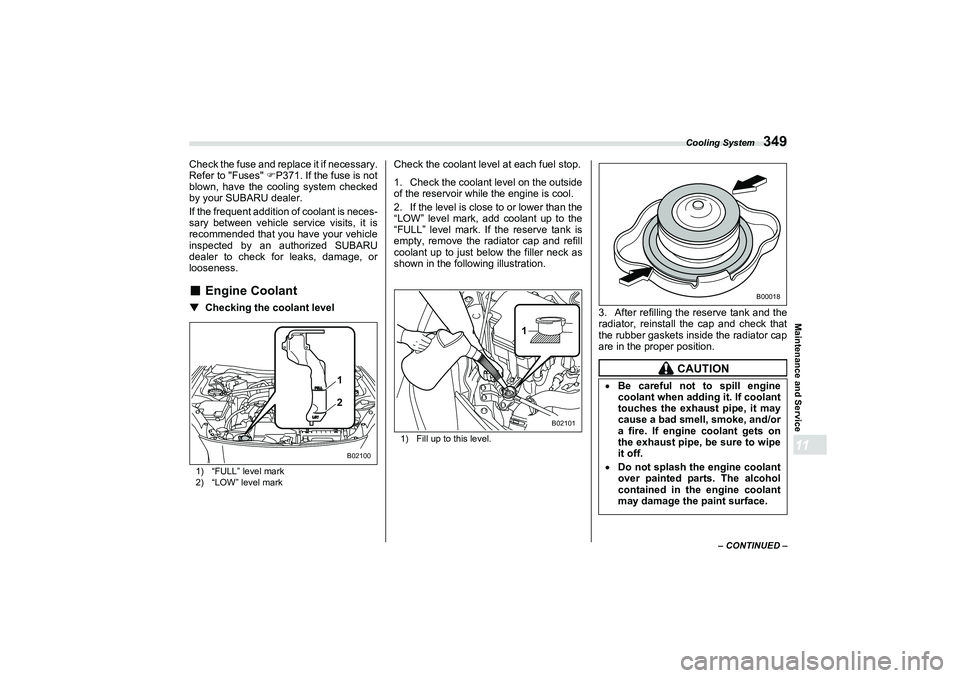

Checking the coolant level1) “FULL” level mark
2) “LOW” level mark
Check the coolant level at each fuel stop.
1. Check the coolant level on the outside
of the reservoir while the engine is cool.
2. If the level is close to or lower than the
“LOW” level mark, add coolant up to the
“FULL” level mark. If the reserve tank is
empty, remove the radiator cap and refill
coolant up to just below the filler neck as
shown in the following illustration.
1) Fill up to this level.
3. After refilling the reserve tank and the
radiator, reinstall t he cap and check that
the rubber gaskets in side the radiator cap
are in the proper position.
12B02100
1
B02101
CAUTION
Be careful not to spill engine
coolant when adding it. If coolant
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or
a fire. If engine coolant gets on
the exhaust pipe, be sure to wipe
it off.Do not splash the engine coolant
over painted parts. The alcohol
contained in the engine coolant
may damage the paint surface.
B00018
B 5 = B 8. E R R N 34 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 356 of 432

Air Cleaner Element

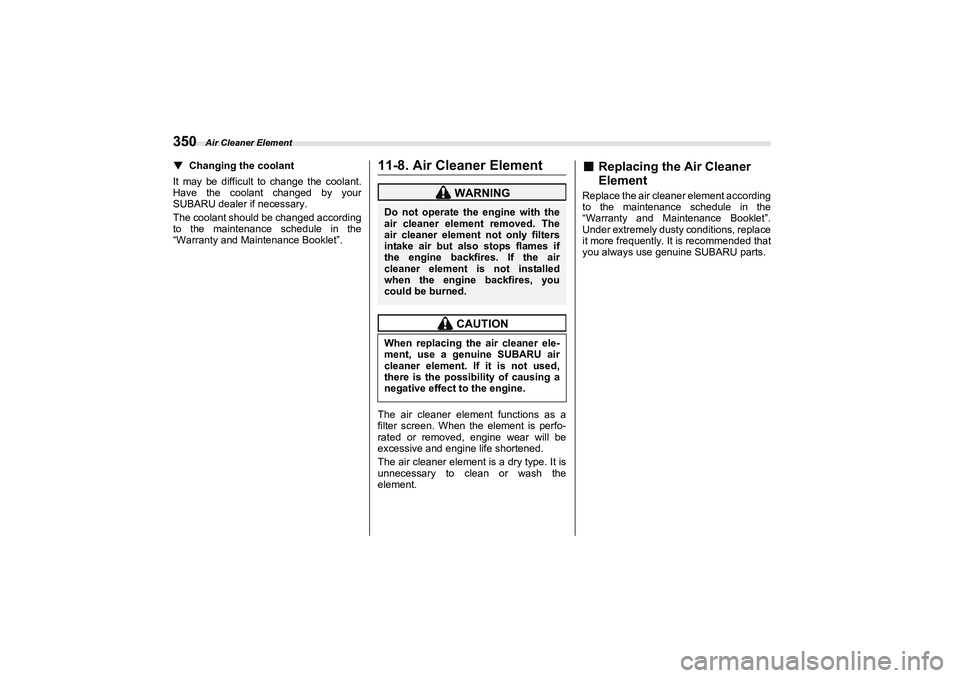

350▼
Changing the coolant
It may be difficult to change the coolant.
Have the coolant changed by your
SUBARU dealer if necessary.
The coolant should be changed according
to the maintenance schedule in the
“Warranty and Maintenance Booklet”.
11-8. Air Cleaner ElementThe air cleaner element functions as a
filter screen. When the element is perfo-
rated or removed, engine wear will be
excessive and engine life shortened.
The air cleaner element is a dry type. It is
unnecessary to clean or wash the
element.
■
Replacing the Air Cleaner
Element
Replace the air cleaner element according
to the maintenance schedule in the
“Warranty and Maintenance Booklet”.
Under extremely dusty conditions, replace
it more frequently. It is recommended that
you always use genuine SUBARU parts.
WARNING
Do not operate the engine with the
air cleaner element removed. The
air cleaner element not only filters
intake air but also stops flames if
the engine backfires. If the air
cleaner element is not installed
when the engine backfires, you
could be burned.
CAUTION
When replacing the air cleaner ele-
ment, use a genuine SUBARU air
cleaner element. If it is not used,
there is the possibility of causing a
negative effect to the engine.
B 5 = B 8. E R R N 350 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 357 of 432

Air Cleaner Element
351
Maintenance and Service11

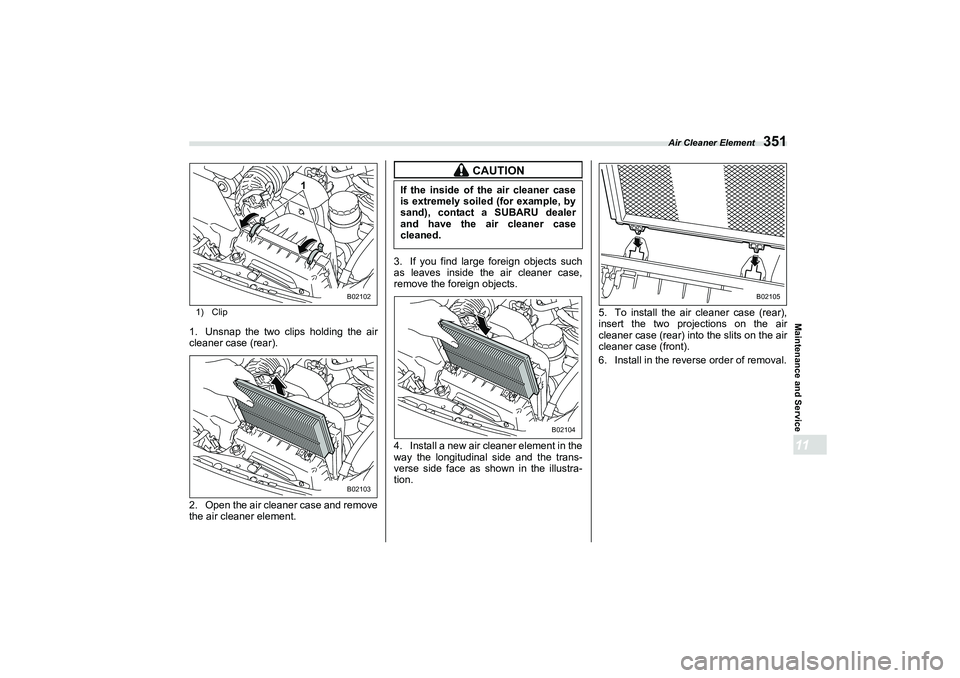

1) Clip1. Unsnap the two clips holding the air
cleaner case (rear).
2. Open the air cleaner case and remove
the air cleaner element.3. If you find large foreign objects such
as leaves inside the air cleaner case,
remove the foreign objects.
4. Install a new air cleaner element in the
way the longitudinal side and the trans-
verse side face as shown in the illustra-
tion.
5. To install the air cleaner case (rear),
insert the two projections on the air
cleaner case (rear) into the slits on the air
cleaner case (front).
6. Install in the reverse order of removal.
1
B02102B02103
CAUTION
If the inside of the air cleaner case
is extremely soiled (for example, by
sand), contact a SUBARU dealer
and have the air cleaner case
cleaned.
B02104
B02105
B 5 = B 8. E R R N 351 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 358 of 432

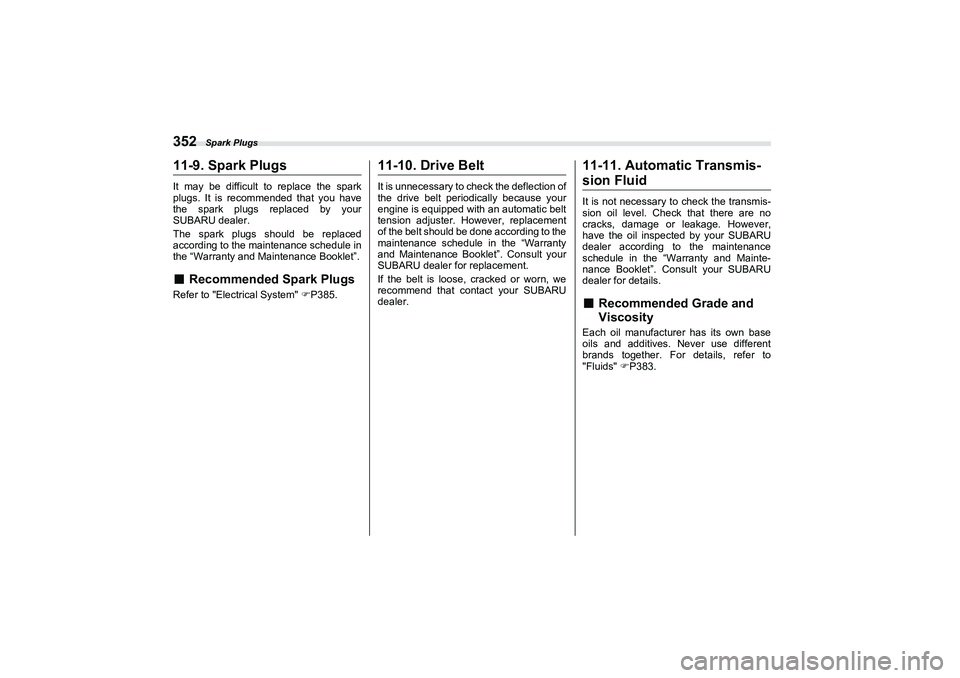

Spark Plugs
35211-9. Spark PlugsIt may be difficult to replace the spark
plugs. It is recommended that you have
the spark plugs replaced by your
SUBARU dealer.
The spark plugs should be replaced
according to the maintenance schedule in
the “Warranty and Maintenance Booklet”.■
Recommended Spark Plugs
Refer to "Electrical System" P385.
11-10. Drive BeltIt is unnecessary to check the deflection of
the drive belt periodically because your
engine is equipped with an automatic belt
tension adjuster. However, replacement
of the belt should be done according to the
maintenance schedule in the “Warranty
and Maintenance Booklet”. Consult your
SUBARU dealer for replacement.
If the belt is loose, cracked or worn, we
recommend that contact your SUBARU
dealer.
11-11. Automatic Transmis -sion FluidIt is not necessary to check the transmis-
sion oil level. Check that there are no
cracks, damage or leakage. However,
have the oil inspected by your SUBARU
dealer according to the maintenance
schedule in the “Warranty and Mainte-
nance Booklet”. Consult your SUBARU
dealer for details.■
Recommended Grade and
Viscosity
Each oil manufacturer has its own base
oils and additives. Never use different
brands together. For details, refer to
"Fluids" P383.
B 5 = B 8. E R R N 352 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 359 of 432

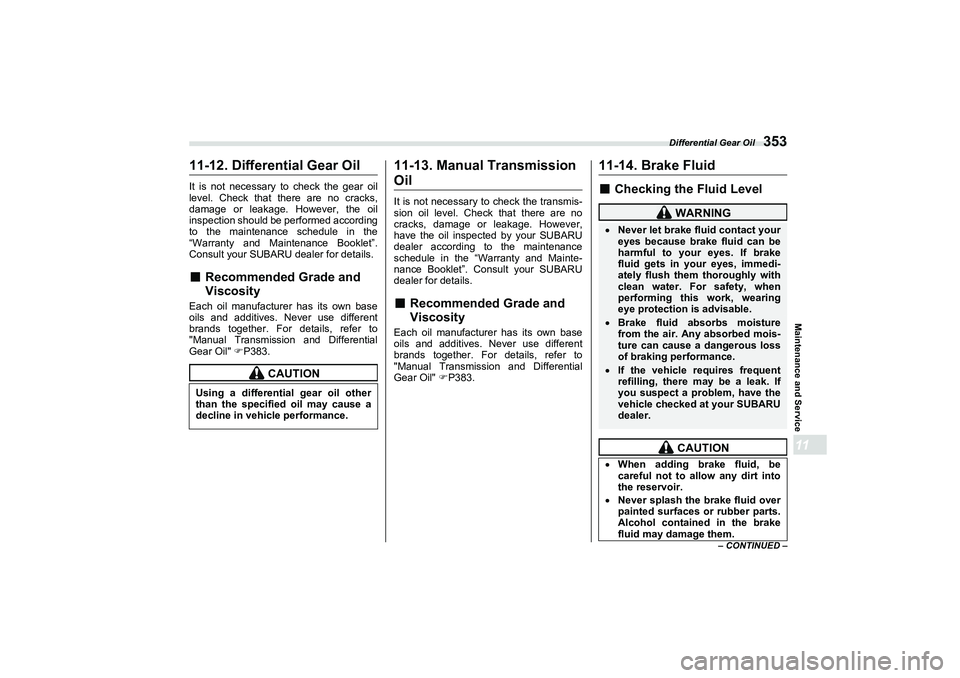

Differential Gear Oil
353
Maintenance and Service11
– CONTINUED –
11-12. Differential Gear OilIt is not necessary to check the gear oil
level. Check that there are no cracks,
damage or leakage. However, the oil
inspection should be performed according
to the maintenance schedule in the
“Warranty and Maintenance Booklet”.
Consult your SUBARU dealer for details.■
Recommended Grade and
Viscosity
Each oil manufacturer has its own base
oils and additives. Never use different
brands together. For details, refer to
"Manual Transmission and Differential
Gear Oil" P383.
11-13. Manual Transmission OilIt is not necessary to check the transmis-
sion oil level. Check that there are no
cracks, damage or leakage. However,
have the oil inspected by your SUBARU
dealer according to the maintenance
schedule in the “Warranty and Mainte-
nance Booklet”. Consult your SUBARU
dealer for details.■
Recommended Grade and
Viscosity
Each oil manufacturer has its own base
oils and additives. Never use different
brands together. For details, refer to
"Manual Transmission and Differential
Gear Oil" P383.
11-14. Brake Fluid■
Checking the Fluid Level
CAUTION
Using a differential gear oil other
than the specified oil may cause a
decline in vehicle performance.
WARNING
Never let brake fluid contact your
eyes because brake fluid can be
harmful to your eyes. If brake
fluid gets in your eyes, immedi-
ately flush them thoroughly with
clean water. Fo r safety, when
performing this work, wearing
eye protection is advisable. Brake fluid absorbs moisture
from the air. Any absorbed mois-
ture can cause a dangerous loss
of braking performance.If the vehicle requires frequent
refilling, there may be a leak. If
you suspect a problem, have the
vehicle checked at your SUBARU
dealer.
CAUTION
When adding brake fluid, be
careful not to allow any dirt into
the reservoir.Never splash the brake fluid over
painted surfaces or rubber parts.
Alcohol contained in the brake
fluid may damage them.
B 5 = B 8. E R R N 353 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 360 of 432

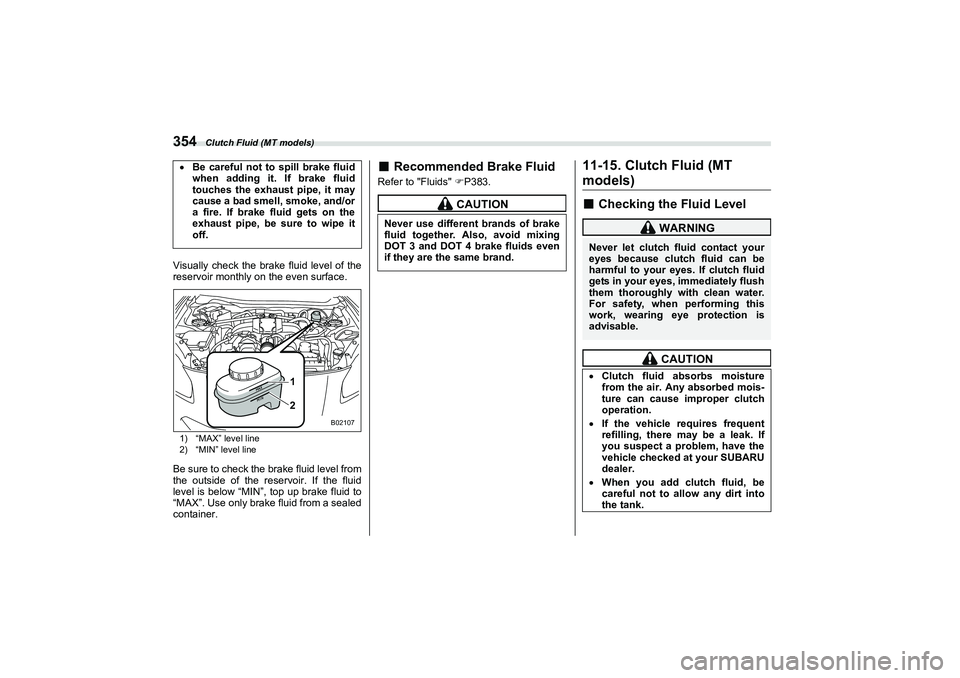

Clutch Fluid (MT models)
354Visually check the brake fluid level of the
reservoir monthly on the even surface.1) “MAX” level line
2) “MIN” level lineBe sure to check the brake fluid level from
the outside of the reservoir. If the fluid
level is below “MIN”, top up brake fluid to
“MAX”. Use only brake fluid from a sealed
container.
■
Recommended Brake Fluid
Refer to "Fluids" P383.
11-15. Clutch Fluid (MTmodels)■
Checking the Fluid Level
Be careful not to spill brake fluid
when adding it. If brake fluid
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or
a fire. If brake fluid gets on the
exhaust pipe, be sure to wipe it
off.
12
B02107
CAUTION
Never use different brands of brake
fluid together. Also, avoid mixing
DOT 3 and DOT 4 brake fluids even
if they are the same brand.
WARNING
Never let clutch fluid contact your
eyes because clutch fluid can be
harmful to your eyes. If clutch fluid
gets in your eyes, immediately flush
them thoroughly with clean water.
For safety, when performing this
work, wearing eye protection is
advisable.
CAUTION
Clutch fluid absorbs moisture
from the air. Any absorbed mois-
ture can cause improper clutch
operation.If the vehicle requires frequent
refilling, there may be a leak. If
you suspect a problem, have the
vehicle checked at your SUBARU
dealer. When you add clutch fluid, be
careful not to allow any dirt into
the tank.
B 5 = B 8. E R R N 354 ページ 2021年7月5日 月曜日 午後>1時>1>1分
