Page 191 of 308

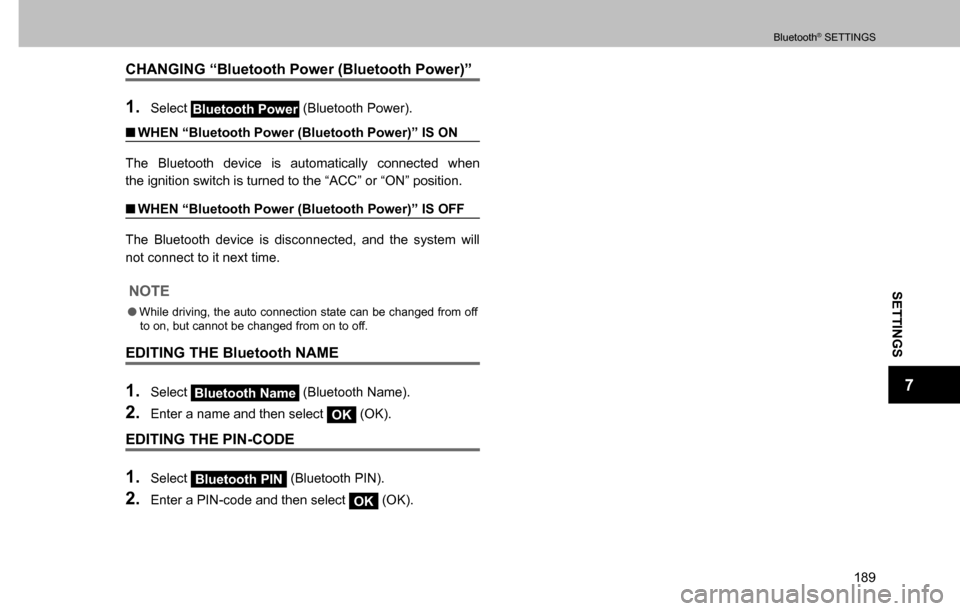

Bluetooth® SETTINGS
189
SETTINGS
7
CHANGING “Bluetooth Power (Bluetooth Power)”
1. Select Bluetooth Power (Bluetooth Power).
QWHEN “Bluetooth Power (Bluetooth Power)” IS ON
The Bluetooth device is automatically connected when
the ignition switch is turned to the “ACC” or “ON” position.
QWHEN “Bluetooth Power (Bluetooth Power)” IS OFF
The Bluetooth device is disconnected, and the system will
not connect to it next time.
NOTE
OWhile driving, the auto connection state can be changed from off
to on, but cannot be changed from on to off.
EDITING THE Bluetooth NAME
1. Select Bluetooth Name (Bluetooth Name).
2. Enter a name and then select OK (OK).
EDITING THE PIN-CODE
1. Select Bluetooth PIN (Bluetooth PIN).
2. Enter a PIN-code and then select OK (OK).
Page 192 of 308

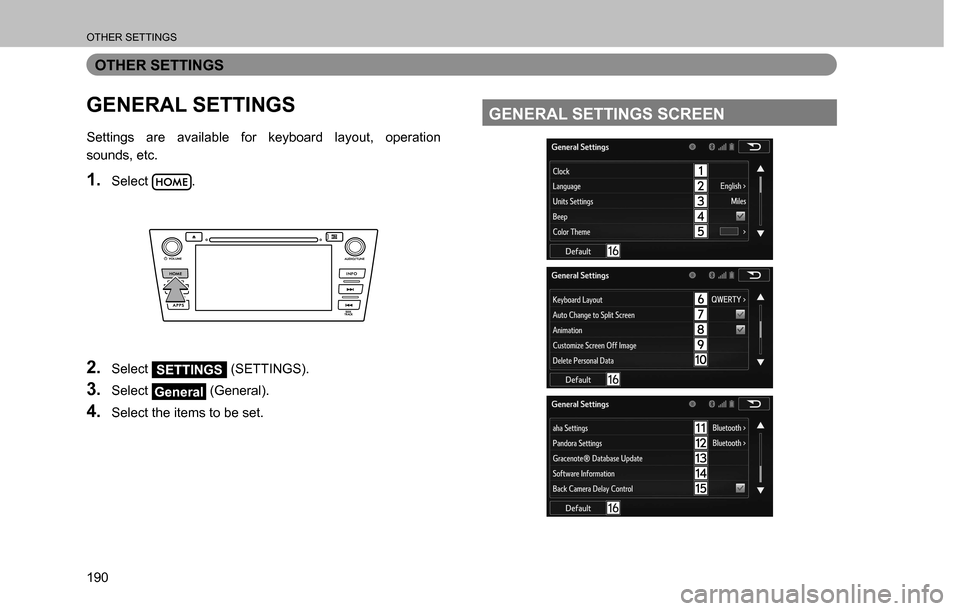

OTHER SETTINGS
190
OTHER SETTINGS
GENERAL SETTINGS
Settings are available for keyboard layout, operation
sounds, etc.
1. Select .
2. Select SETTINGS (SETTINGS).
3. Select General (General).
4. Select the items to be set.
GENERAL SETTINGS SCREEN
Page 193 of 308
OTHER SETTINGS
191
SETTINGS
7
No. Function
*1 6 H O H F W W R F K D Q J H W K H Y H K L F O H F O R F N V H W W L Q J V : 3
Select to change the language.
Select to change the unit for measuring distance.
Select to turn the beep sound on/off.
Select to change the button and screen color.
Select to change the keyboard layout.
Select to turn on/off the setting that returns the display
to the split screen automatically after 20 seconds when
a screen other than the split screen is displayed.
Select to turn the animation function on/off.
6 H O H F W W R F X V W R P L ] H W K H V F U H H Q R I I L P D J H : 3
6 H O H F W W R G H O H W H S H U V R Q D O G D W D : 3
Select to set the connected device when using aha.
Select
USB (USB) when using an iPhone, and then
select
Bluetooth (Bluetooth) when using Android
devices.
No. Function
Select to set the connected device when using
Pandora*2. Select USB (USB) when using an iPhone,
and then select
Bluetooth (Bluetooth) when using
Android devices.
Select to update the Gracenote® database. For details,
contact your SUBARU dealer.
Select to display the software information. Notices
related to third party software used in this product are
enlisted. (This includes instructions for obtaining such
software, where applicable.)
Select to set the back camera delay control on/off.
When set to on, the back camera image displays for
approximately 6 seconds after moving the shift lever/
select lever “R” to any position other than “R”.
The display disappears when the shift lever/select lever
is moved to “P”, or when the vehicle speed reaches
approximately 5 mph (8 km/h) or faster.
Select to reset all setup items.
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
Page 194 of 308
OTHER SETTINGS
192
CLOCK SETTINGS (WITH NAVIGATION
FUNCTION)
Used to set the auto update setting for time zones, daylight
saving time and automatic time adjustment on/off.
1. Display the “General Settings (General Settings)”
V F U H H Q : 3
2. Select Clock (Clock).
3. Select the items to be set.
No. Function
6 H O H F W W R F K D Q J H W K H W L P H ] R Q H : 3
Select to set daylight saving time on/off or to auto.
When set to auto, the daylight saving time setting
automatically turns on or off based on the current
location information.
4. Select OK (OK).
QSETTING THE TIME ZONE
1. Select Time Zone (Time Zone).
2. Select the desired time zone.
CUSTOMIZING THE SCREEN OFF IMAGES
When the screen is turned off, the desired set image
can be displayed as the screen off image. Images
can be copied from a USB memory or SD card*.
A USB memory or SD card* must be connected when
H G L W L Q J V F U H H Q R I I L P D J H V : 3
*: With navigation function
Page 195 of 308
OTHER SETTINGS
193
SETTINGS
7
NOTE
OWhen saving the images to a USB or SD card* name the folder
that the screen off image is saved to “Image”. If this folder name
is not used, the system cannot download the images. (The folder
name is case sensitive.)
*: With navigation function O<002c00500044004a0048000300bf004f0048005600030056004400590048004700030057005200030057004b0048000300500044005300030036002700030046004400550047000300460044005100510052005700030045004800030053004f0044005c00
48004700110003>
QTRANSFERRING IMAGES
1. Select .
2. Select SETTINGS (SETTINGS).
3. Select General (General).
4. Select Customize Screen Off Image (Customize
Screen Off Image).
5. Select the device that the image is stored on.
6. Select Copy from [device] (Copy from [device]).
7. Select the desired images from the list and then select
Copy (Copy).
”The selected image is displayed on the right side
R I W K H V F U H H Q , I W K H V H O H F W H G L P D J H
Page 196 of 308
OTHER SETTINGS
194
QSETTINGS THE SCREEN OFF IMAGES
1. Display the “General Settings (General Settings)”
V F U H H Q : 3
2. Select Customize Screen Off Image (Customize
Screen Off Image).
3. Select the device that the image is stored on.
4. Select Select Images (Select Images).
5. Select the desired image.
6. Select OK (OK).
QDELETING TRANSFERRED IMAGES
1. Display the “General Settings (General Settings)”
V F U H H Q : 3
2. Select Customize Screen Off Image (Customize
Screen Off Image).
3. Select the device that the image is stored on.
4. Select Delete Images (Delete Images).
5. Select the images to be deleted and then select Delete
(Delete).
6. Select Yes < H V Z K H Q W K H F R Q
Page 197 of 308
OTHER SETTINGS
195
SETTINGS
7
DELETING PERSONAL DATA
1. Display the “General Settings (General Settings)”
V F U H H Q : 3
2. Select Delete Personal Data (Delete Personal Data).
3. Select Delete (Delete).
4. Select Yes < H V Z K H Q W K H F R Q
Page 198 of 308
OTHER SETTINGS
196
VOICE SETTINGS
Voice volume, etc. can be set.
1. Select .
2. Select SETTINGS (SETTINGS).
3. Select Voice (Voice).
4. Select the items to be set.
NOTE
O“Voice Settings (Voice Settings)” screen can also be displayed
I U R P W K H Y R L F H U H F R J Q L W L R Q W R S V F U H H Q : 3
VOICE SETTINGS SCREEN
No. Function
Select to adjust the volume of voice guidance.
Select to mute/unmute the navigation voice guidance.
Select to set the voice recognition prompts.
Select to reset all setup items.
NOTE
OThe volume can even be adjusted by turning the “POWER/
VOLUME” knob or by pressing the “+/-” steering switches
: 3 G X U L Q J Y R L F H J X L G D Q F H
Page 199 of 308
197
NAVIGATION SYSTEM
(WITH NAVIGATION
FUNCTION)
8
8
Page 200 of 308
BASIC OPERATION
198
BASIC OPERATION
QUICK REFERENCE
MAP SCREEN
To display this screen, select , or select and
then select
MAP (MAP).
No. Name Information/Function Page
2D North-up, 2D
heading-up or
3D symbolSelect to change the map
display mode between 2D
north-up, 2D heading-up
or 3D. In 3D map, only
a heading-up view is
available.205
*
7 U D I
