SUBARU CROSSTREK 2017 1.G Multimedia System Manual
Manufacturer: SUBARU, Model Year: 2017, Model line: CROSSTREK, Model: SUBARU CROSSTREK 2017 1.GPages: 308, PDF Size: 19.33 MB
Page 211 of 308
DESTINATION SEARCH
209
NAVIGATION SYSTEM
8
SETTING HOME AS DESTINATION
To use this function, it is necessary to register a home
D G G U H V V : 3
1. Display the “Destination (Destination)” screen.
: 3
2. Select Go Home (Go Home).
3. Select Next (Next) (when a route has been set) or
Go! (Go!) (when no route has been set).
”The navigation system performs a search for
the route and the entire route map is displayed.
: 3
SEARCHING BY FIND ADDRESS
There are 4 methods to search for a destination by address.
1. Display the “Destination (Destination)” screen.
: 3
2. Select Find Address (Find Address).
3. Select Country or State/Province (Country or State/
Province).
”By default, the country and district for your current
position are displayed.
4. Select the desired country or state (province).
5. Select the desired search method.
No. Function Page
Select to search by city. 210
Select to search by street. 210
Select to search by intersection. 211
Select to search by city/town center. 210
Page 212 of 308
DESTINATION SEARCH
210
SEARCHING BY CITY
1. Select City (City).
2. Enter a city name or ZIP Code.
”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
3. Select the desired city name or ZIP Code.
4. Select Street (Street).
5. Enter a street name.
”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
6. Select the desired street name.
7. Select House Number (House Number).
8. Enter a house number.
”If the house number is not found, the center of the
street is selected as the destination.
9. Select Next (Next) (When a route has been set) or
Go! (Go!) (when no route has been set).
NOTE
OIf the destination is to be used frequently, it can be saved to the
destination list before selecting
Next (Next) (when a route
has been set) or
Go! (Go!) (when no route has been set).
: 3
QSEARCHING BY CITY/TOWN CENTER
1. Select Select City (Select City) without entering the
street name.
”Set the city/town center displayed as the route’s
destination.
SEARCHING BY STREET
1. Select Street (Street).
2. Enter a street name.
”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
3. Select the desired street name.
4. Select Select Street (Select Street) without entering
an address.
”The center of the street is selected as the destination.
Page 213 of 308
DESTINATION SEARCH
211
NAVIGATION SYSTEM
8
SEARCHING BY INTERSECTION
1. Select Intersecting Street (Intersecting Street).
2. Select from the list.
”If there are only a few roads at the intersection, the
list is displayed immediately.
”If the road is a long way off, the keyboard screen is
displayed. Use the keyboard to enter the start of the
intersection name. A list is automatically displayed
when the entered road name matches and can be
displayed on one screen.
”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
HINTS FOR QUICK ADDRESS ENTRY
”When entering a city/town name or a street name:
‡ Only characters that can be displayed in the
search results are shown on the keyboard. Other
characters are grayed out.
‡ While entering text, the most likely search result is
D O Z D \ V G L V S O D \ H G L Q W K H W H [ W H Q W U \

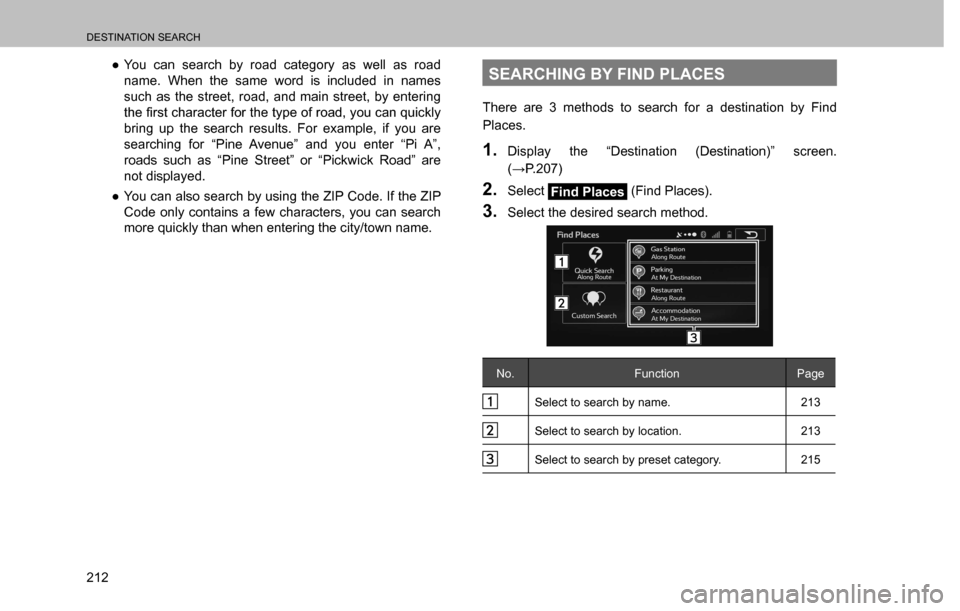

Page 214 of 308
DESTINATION SEARCH
212 ”You can search by road category as well as road
name. When the same word is included in names
such as the street, road, and main street, by entering
W K H
Page 215 of 308
DESTINATION SEARCH
213
NAVIGATION SYSTEM
8
SEARCHING BY NAME
1. Select Quick Search Along Route (Quick Search
Along Route).
”When no route has been set, select
Quick Search Around Last Known Position (Quick Search
Around Last Known Position) (no GPS signal) or
Quick Search Around Here (Quick Search Around Here)
(on GPS signal).
2. Enter a spot name.
”Select
Results 5 H V X O W V D I W H U H Q W H U L Q J W K H
Page 216 of 308
DESTINATION SEARCH
214
QSELECTING FROM THE CATEGORIES
1. Select a main category (such as accommodation) or
List All Places (List All Places).
2. Select a sub-category (such as hotel or motel) or
List All Places (List All Places).
”Brand names of services may also be displayed
depending on the sub-category of the selected spot.
Select a brand name or
List All Places (List All
Places).
3. Select the desired spot.
”
More (More): Select to change the sort order of the
list or to display all listed spots on the map.
QSEARCHING BY NAME
1. Select a main category (such as accommodations) or
Find by Name (Find by Name).
2. Select a sub-category (such as hotels or motels) or
Find by Name (Find by Name).
3. Select Find by Name (Find by Name) to search a
sub-category of the select spot.
4. Enter a spot name.
”Select
Results 5 H V X O W V D I W H U H Q W H U L Q J W K H
Page 217 of 308
DESTINATION SEARCH
215
NAVIGATION SYSTEM
8
SEARCHING BY PRESET CATEGORY
1. Select the desired search category.
No. Function
Select to search for gas stations along the set route.
Select to search for parking lots at the destination.
Select to search for restaurant along the set route.
Select to search for accommodation at the destination.
”Searches around the current position if navigation is
not being performed (if no destination is set).
Page 218 of 308
DESTINATION SEARCH
216
SEARCHING BY FIND ON MAP
1. Display the “Destination (Destination)” screen.
: 3
2. Select Find on Map (Find on Map).
3. Scroll the map to the desired point and touch.
”The cursor () is displayed.
”
: Select to return to the previous location when the
map has been moved.
4. Select Next (Next).
SEARCHING BY FAVORITES
1. Display the “Destination (Destination)” screen.
: 3
2. Select Favorites (Favorites).
3. Select the desired destination.
”Refer to “SAVING DESTINATIONS” for information on
K R Z W R V D Y H W K H G H V W L Q D W L R Q : 3
”
Filter (Filter): Select to narrow down the list.
”
: Select to delete the favorites.
”
More (More): Select to change the sort order of the
list, to display all listed spots on the map or to delete
all favorites on the list.
Page 219 of 308
DESTINATION SEARCH
217
NAVIGATION SYSTEM
8
SEARCHING FROM A FREQUENTLY USED
DESTINATION (SMART HISTORY)
1. Display the “Destination (Destination)” screen.
: 3
2. Select the destination or .
SEARCHING FROM HISTORY
1. Display the “Destination (Destination)” screen.
: 3
2. Select History (History).
3. Select the desired destination.
”Filter (Filter): Select to narrow down the list.
”
: Select to delete the previous destination.
”
More (More): Select to delete all destinations on the
list.
SEARCHING BY COORDINATES
1. Display the “Destination (Destination)” screen.
: 3
2. Select More (More).
3. Select Coordinate (Coordinate).
4. Select .
”Select to enable the numeric keypad input. Since
the second time to erase one character at the cursor
position.
”Select
More (More) to set the UTM coordinates.
5. Enter the latitude and longitude and then select Next
(Next).
Page 220 of 308
DESTINATION SEARCH
218
OTHER SEARCH OPERATION
SEARCHING BY WHERE AM I?
You can search for the closest assistance service by using
the “Where Am I? (Where Am I?)” screen.
1. Display the “Where Am I? (Where Am I?)” screen.
: 3
2. Select Help Nearby (Help Nearby).
3. Select the desired search category.
No. Function
Select to search for vehicle repairs / road-side
assistance services.
Select to search for hospitals / emergency services.
Select to search for police stations.
Select to search for gas stations.
”This button searches for everything around your
F X U U H Q W S R V L W L R Q R U W K H O D W H V W F R Q
