BASIC INFORMATION BEFORE OPERATION
47
BASIC FUNCTION
2
SPLIT SCREEN OPERATION
The split screen can display multiple information screens,
such as the audio system screen and hands-free screen,
simultaneously.
The following describes screen operation for the system
with navigation function.
1. Press and hold the “AUDIO/TUNE” knob.
2. Split screen is displayed.

”When a screen is selected, the selected screen will
change to a full-screen display.
CUSTOMIZING THE SPLIT SCREEN
The display items/area on the split screen can be changed.
XFrom the split screen
1. Select .
XFrom the “SETTINGS (SETTINGS)” screen
1. Select Split Screen (Split Screen) on the “SETTINGS
6(77,1*6

BASIC INFORMATION BEFORE OPERATION
49
BASIC FUNCTION
2
Icon Function
Select to skip to the next or previous page.
Select and hold or to scroll through the
displayed list.
If appears to the right of an item name, the
complete name is too long to display.
Select
to scroll to the end of the name.
Select
to move to the beginning of the name.
SELECTING ALL ITEMS
Some lists contain Select All (Select All). If Select All
(Select All) is selected, it is possible to select all items.
1. Select Select All (Select All).

”Unselect All (Unselect All): Unselect all items in the
list.
CHARACTER JUMP BUTTONS IN LISTS
Some lists contain character screen buttons, ABC (ABC),
DEF (DEF) etc., which allow a direct jump to list entries
that begin with the same letter as the character screen
button.
1. Select the desired character jump buttons.
NOTE
OEvery time the same character screen button is selected, the list
starting with the subsequent character is displayed.

BASIC INFORMATION BEFORE OPERATION
50
SORTING (WITH NAVIGATION FUNCTION)
The order of a list displayed on the screen can be sorted in
the order of name, distance, detour, etc.
1. Select More (More).
2. Select the desired sorting criteria.
SCREEN ADJUSTMENT
The brightness, contrast, tone and color of the screen can
be adjusted.
1. Select .
2. Select SETTINGS (SETTINGS).
3. Select Display (Display).
4. Select the items to be set.

BASIC INFORMATION BEFORE OPERATION
51
BASIC FUNCTION
2
No. Function
Select to adjust the general screen display.
Select to adjust the camera display.
Select to adjust the video display.
5. Select the desired item to be adjusted.
XGeneral
XCamera
XVideo (USB video/SD video*)
*: With navigation function
Screen button Function
“Brightness
(Brightness)”
Select to darken the screen.
Select to brighten the screen.
“Contrast
(Contrast)”
Select to weaken the contrast of
the screen.
Select to strengthen the contrast of
the screen.
“Tone (Tone)”
Select to weaken the tone of the
screen.
Select to strengthen the tone of the
screen.
“Color (Color)”
R (R)Select to strengthen the red color
of the screen.
G (G)Select to strengthen the green
color of the screen.
6. Select OK (OK).

BASIC OPERATION
54
BASIC OPERATION
SOME BASICS
This section describes some of the basic features of the
audio/visual system. Some information may not pertain to
your system.
Your audio/visual system works when the ignition switch is
turned to the “ACC” or “ON” position.
CAUTION
OTo prevent the battery from being discharged, do not leave
the audio/visual system on longer than necessary when the
engine is not running.
TURNING THE SYSTEM ON AND OFF
“POWER/VOLUME” knob: Press to turn the audio/visual
system on and off. The system turns on in the last mode
used. Turn this knob to adjust the volume. Note that the
voice guidance volume can be adjusted during guidance.
“AUDIO/TUNE” knob: Press to display screen buttons for
the audio/visual system.

”A function that enables automatic return to the split
screen from the audio/visual screen can be selected.

:3

BASIC OPERATION
55
AUDIO
3
SELECTING AN AUDIO SOURCE
1. Press the “AUDIO/TUNE” knob.

”The screen can also be displayed by selecting
followed by
AUDIO (AUDIO).

”If the audio control screen appears, select
Source
(Source) on the audio screen or press the “AUDIO/
TUNE” knob again.
2. Select the desired source.
NOTE
OWhen there are two pages, select or to change the page.
REORDERING THE AUDIO SOURCE
1. Display the “Select Audio Source (Select Audio Source)”
VFUHHQ
:3
2. Select Reorder (Reorder).
3. Select the desired audio source then or to
reorder.
4. Select OK (OK).

BASIC OPERATION
58
AUDIO SCREEN ADJUSTMENT
The screen size can be selected for each type of media.
XUSB video/SD video*
*: With navigation function
1. Select on the audio control screen.
2. Select Screen Format (Screen Format).
3. Select the desired item to be adjusted.
No. Function
Select to display a screen with either side in black.
Select to enlarge the image horizontally to full screen.
Select to enlarge the image by the same ratio
horizontally and vertically.
XMirrorLinkTM
1. Select Screen Format (Screen Format) on the
application list screen.
2. Select the desired item to be adjusted.
No. Function
Select to display a screen surrounded by black on all
four sides.
Select to enlarge the image horizontally and vertically to
full screen.
Select to enlarge the image horizontally or vertically.
NOTE
OThe brightness, contrast, tone and color of the audio screen can
EHFKDQJHG
:3

RADIO OPERATION
61
AUDIO
3
No. Function
Select to display the audio source selection screen.
Select to display the cache radio operation buttons.

:3
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVFUHHQ
:3
Select to display a list of receivable stations/channels.
Select to scan for receivable stations/channels.
HD Radio only: Select to store information of the audio
FXUUHQWO\EHLQJEURDGFDVWRQWKHUDGLR
:3
Select to tune to a preset station/channel.
Select to turn HD Radio mode on/off. When the HD
Radio indicator is off, the station list shows only analog
broadcasts.
Select to display the additional text information.
Analog FM only: Select to display RBDS text messages.
NOTE
OThe radio automatically changes to stereo reception when a
stereo broadcast is received.
OThe radio automatically blends to an HD Radio signal in AM or
FM where available.
PRESETTING A STATION
Radio mode has a mix preset function, which can store up
to 36 stations from any of the AM, FM or SiriusXM Satellite
Radio bands.
1. Tune in the desired station.
2. Select (add new) ((add new)).

”To change the preset station to a different one, select
and hold the preset station.
3. Select Yes<HVRQWKHFRQ

RADIO OPERATION
62

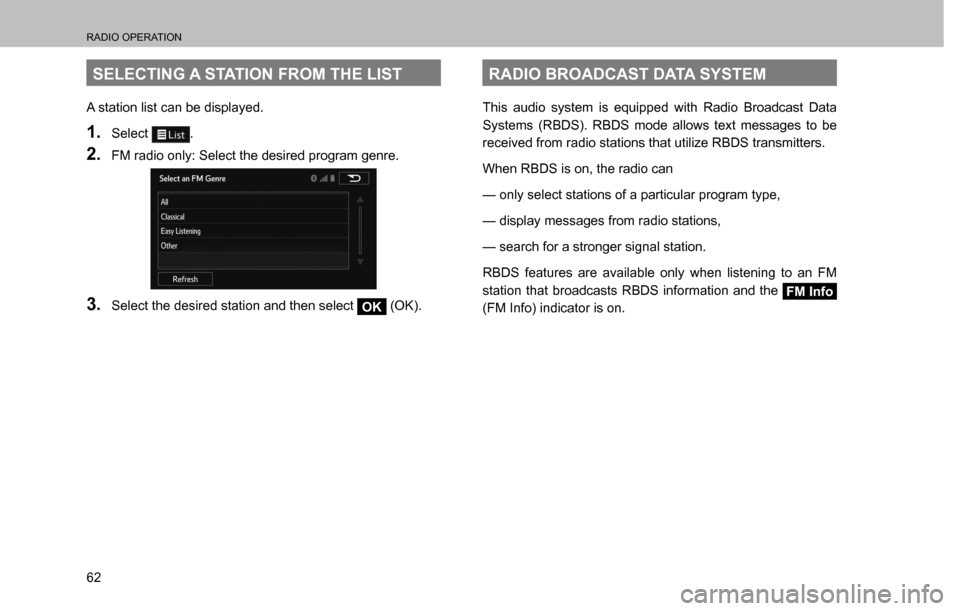

SELECTING A STATION FROM THE LIST
A station list can be displayed.
1. Select .
2. FM radio only: Select the desired program genre.
3. Select the desired station and then select OK (OK).
RADIO BROADCAST DATA SYSTEM
This audio system is equipped with Radio Broadcast Data
Systems (RBDS). RBDS mode allows text messages to be
received from radio stations that utilize RBDS transmitters.
When RBDS is on, the radio can
— only select stations of a particular program type,
— display messages from radio stations,
— search for a stronger signal station.
RBDS features are available only when listening to an FM
station that broadcasts RBDS information and the
FM Info
(FM Info) indicator is on.

RADIO OPERATION
66

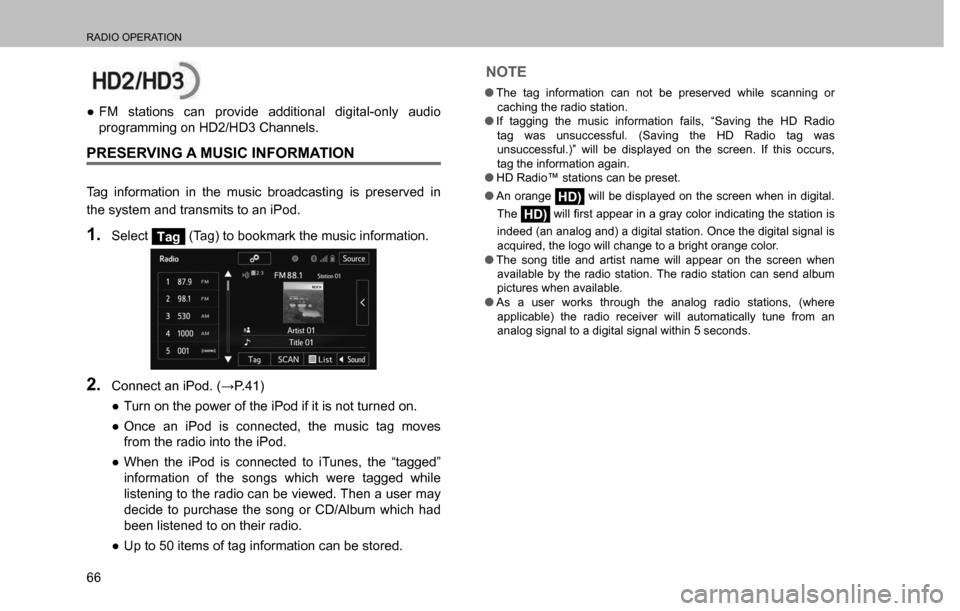

”FM stations can provide additional digital-only audio
programming on HD2/HD3 Channels.
PRESERVING A MUSIC INFORMATION
Tag information in the music broadcasting is preserved in
the system and transmits to an iPod.
1. Select Tag (Tag) to bookmark the music information.
2. &RQQHFWDQL3RG
:3

”Turn on the power of the iPod if it is not turned on.

”Once an iPod is connected, the music tag moves
from the radio into the iPod.

”When the iPod is connected to iTunes, the “tagged”
information of the songs which were tagged while
listening to the radio can be viewed. Then a user may
decide to purchase the song or CD/Album which had
been listened to on their radio.

”Up to 50 items of tag information can be stored.
NOTE
OThe tag information can not be preserved while scanning or
caching the radio station.
OIf tagging the music information fails, “Saving the HD Radio
tag was unsuccessful. (Saving the HD Radio tag was
unsuccessful.)” will be displayed on the screen. If this occurs,
tag the information again.
OHD Radio™ stations can be preset.
OAn orange
HD) will be displayed on the screen when in digital.
The
HD)ZLOO
