WARNING
.When programming the
HomeLink
®Wireless Control Sys-
tem, you may be operating a
garage door opener or other
device. Make sure that people
and objects are out of the way of
the garage door or other device
to prevent potential harm or da-
mage.
.Do not use the HomeLink
®Wire-
less Control System with a gar-
age door opener that lacks the
safety stop and reverse feature
as required by applicable safety
standards. A garage door opener
which cannot detect an object,
signaling the door to stop and
reverse, does not meet these
safety standards. Using a garage
door opener without these fea-
tures increases risk of serious
injury or death. For more infor-
mation, consult the HomeLink
®
website at www.homelink.com or
call 1-800-355-3515.
&Outside mirrors!Convex mirror (passenger side)
WARNING
Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use the
convex mirror to judge the distance
of vehicles behind you when chan-
ging lanes. Use the inside mirror (or
glance backwards) to determine the
actual size and distance of objects
that you view in convex mirror.!Remote control mirror switch
: Select side to adjust: Direction control
The remote control mirrors operate only
when the ignition switch is in the“ON”or
“ACC”position.
1. Turn the control switch to the side that
you want to adjust.“L”is for the left mirror,
“R”is for the right mirror.
2. Move the control switch in the direction
you want to move the mirror.
3. Return the control switch to the neutral
position to prevent unintentional opera-
tion.
The mirrors can also be adjusted manu-
ally.
Instruments and controls/Mirrors
3-88

(227,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Defogger and deicer (if
equipped)1) Rear window defogger
2) Outside mirror defogger (if equipped)
3) Windshield wiper deicer (if equipped)
The vehicle is equipped with the defogger
and the deicer (if equipped) system. The
defogger and deicer system is activated
only when the ignition switch is in the“ON”
position.Climate control system type A
1) Models without outside mirror defogger
2) Models with outside mirror defogger
Climate control system type B and C
1) Models without outside mirror defogger
2) Models with outside mirror defoggerTo activate simultaneously the rear win-
dow defogger, outside mirror defogger (if
equipped) and windshield wiper deicer (if
equipped), press the control switch that is
located on the climate control panel. The
indicator light on the control switch illumi-
nates while the defogger and deicer
system is activated.
To turn them off, press the control switch
again. They also turn off when the ignition
switch is turned to the“ACC”or“LOCK”/
“OFF”position.
The defogger and deicer system will
automatically shut off after approximately
15 minutes. If the rear window and the
–CONTINUED–
Instruments and controls/Defogger and deicer
3-89
3

(228,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
outside mirrors have been cleared and the
windshield blade rubbers have been
deiced completely before that time, press
the control switch to turn them off.
For climate control system (type B and
C),it is possible for the defogger and
deicer system to be set to continuous
operation mode by a SUBARU dealer.
Consult your SUBARU dealer for details.
Also, for models with a combination meter
display (color LCD), it is possible to set the
defogger and deicer system for the con-
tinuous operation mode. For details, refer
to“Vehicle Setting”F3-41.
CAUTION
.To prevent the battery from being
discharged, do not operate the
defogger and deicer system con-
tinuously for any longer than
necessary.
.Do not use sharp instruments or
window cleaner containing abra-
sives to clean the inner surface of
the rear window. They may da-
mage the conductors printed on
the window.
NOTE.Turn on the defogger and deicer
system if the wipers are frozen to the
windshield.
.If the windshield is covered with
snow, remove the snow so that the
windshield wiper deicer works effec-
tively.
.While the defogger and deicer sys-
tem is in the continuous operation
mode:
–If the vehicle speed remains at 9
mph (15 km/h) or lower for 15
minutes, the windshield wiper dei-
cer system automatically stops op-
erating. However, the rear window
defogger system and outside mirror
defogger system maintain continu-
ous operation in this condition.
–If the vehicle battery voltage
drops below the permissible level,
continuous operation of the defog-
ger system and deicer system is
canceled and the system stops
operating.
Tilt/telescopic steering wheel
WARNING
.Do not adjust the steering wheel
tilt/telescopic position while driv-
ing. This may cause loss of
vehicle control and result in per-
sonal injury.
.If the lever cannot be raised to the
fixed position, adjust the steering
wheel again. It is dangerous to
drive without locking the steering
wheel. This may cause loss of
vehicle control and result in per-
sonal injury.
Instruments and controls/Tilt/telescopic steering wheel
3-90

(229,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
1) Tilt adjustment
2) Telescopic adjustment
3) Tilt/telescopic lock lever1. Adjust the seat position. Refer to“Front
seats”F1-5.
2. Pull the tilt/telescopic lock lever down.
3. Move the steering wheel to the desired
level.
4. Pull the lever up to lock the steering
wheel in place.
5. Make sure that the steering wheel is
securely locked by moving it up and down,
and forward and backward.
&Heated Steering Wheel sys-
tem (if equipped)The Heated Steering Wheel system
warms the steering wheel at a constant
temperature.1) Heated Steering Wheel switch
2) Indicator light
3) Heated areaTo turn on the Heated Steering Wheel
system, pull the Heated Steering Wheel
switch when the ignition switch is in the
“ON”or“ACC”position. Then the steering
wheel will be warmed and the indicator
light on the switch will illuminate. To turn off
the Heated Steering Wheel system, pull
the switch again. Then the indicator light
will turn off.
CAUTION
.Use the Heated Steering Wheel
system with the engine running.
Otherwise, the battery voltage
may drop below the permissible
level and it may not be possible to
start the engine.
.There is a possibility that people
with delicate skin may suffer
slight burns even at low tempera-
tures if they use the Heated
Steering Wheel for a long period
of time. When using the Heated
Steering Wheel, always be sure to
warn the persons concerned.
.Do not cover the Heated Steering
Wheel with an object such as a
steering wheel cover. Doing so
may cause the Heated Steering
Wheel to overheat.NOTE.If the surface temperature of the
steering wheel is approximately above
1048F (408C) when the switch is turned
on, the system will not heat the steering
wheel. Then, the indicator light will
continue to illuminate.
.The Heated Steering Wheel system
will automatically turn off approxi-
–CONTINUED–
Instruments and controls/Tilt/telescopic steering wheel
3-91
3

(230,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
mately 30 minutes after the system has
been turned on.
HornTo sound the horn, push the horn pad.
Instruments and controls/Horn
3-92

(233,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
Ventilator control....................................................4-2
Center ventilators.................................................. 4-2
Side ventilators...................................................... 4-2
Climate control panel.............................................4-2
Type A ................................................................... 4-3
Type B ................................................................... 4-4
Type C ................................................................... 4-5
Automatic climate control operation
(type B andC) ......................................................4-6
Sensors................................................................. 4-6
Manual climate controloperation..........................4-7
Airflow mode selection........................................... 4-7
MAX A/C mode (for type B and C).......................... 4-8
Temperature control............................................... 4-8
Fan speed control.................................................. 4-9
Air conditioner control........................................... 4-9Air inlet selection...................................................4-9
To turn off the climate control system.....................4-9
Defrosting..............................................................4-10
Operating tips for heater andair conditioner.... 4-10
Cleaning ventilation grille.....................................4-10
Efficient cooling after parking in direct sunlight .... 4-10
Lubrication oil circulation in the refrigerant
circuit................................................................ 4-11
Checking air conditioning system before summer
season.............................................................. 4-11
Cooling and dehumidifying in high humidity
and low temperature weather conditions ............ 4-11
Air conditioner compressor shut-off when
engine is heavily loaded.................................... 4-11
Refrigerant for your climate control system.......... 4-11
Air filtration system...............................................4-11
Replacing a cabin air filter....................................4-12
Climate control
4

(234,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10

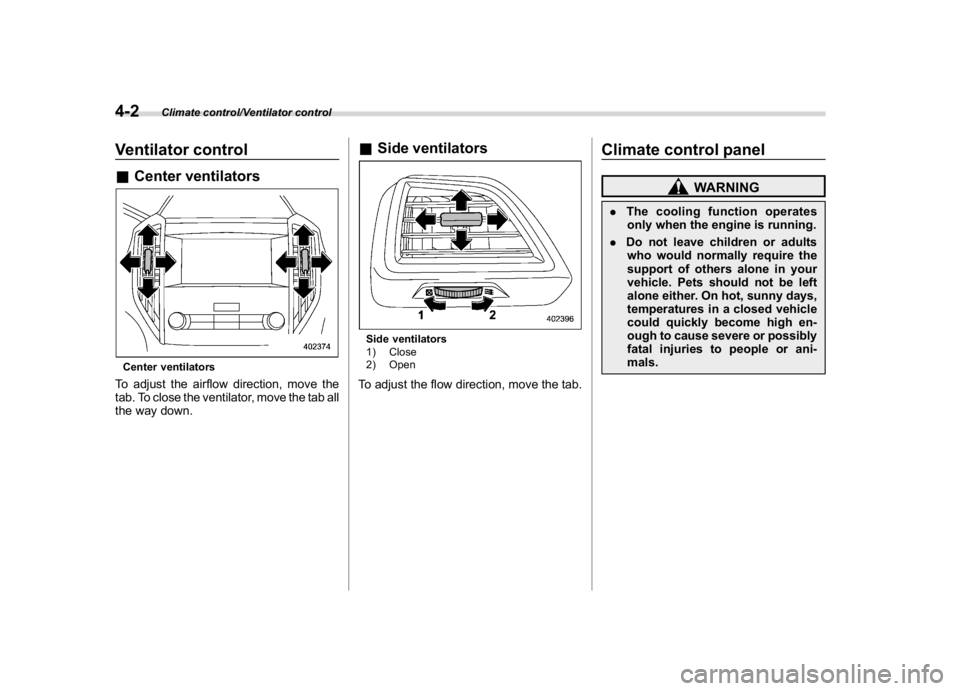

Ventilator control&Center ventilatorsCenter ventilatorsTo adjust the airflow direction, move the
tab. To close the ventilator, move the tab all
the way down.
&Side ventilatorsSide ventilators
1) Close
2) OpenTo adjust the flow direction, move the tab.
Climate control panel
WARNING
.The cooling function operates
only when the engine is running.
.Do not leave children or adults
who would normally require the
support of others alone in your
vehicle. Pets should not be left
alone either. On hot, sunny days,
temperatures in a closed vehicle
could quickly become high en-
ough to cause severe or possibly
fatal injuries to people or ani-
mals.
Climate control/Ventilator control
4-2

(235,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Type A
1) Airflow mode selection dial (Refer to
“Airflow mode selection”F4-7.)
2) Fan speed control dial (Refer to“Fan
speed control”F4-9.)
3) Temperature control dial (Refer to“Tem-
perature control”F4-8.)
4) Air conditioner button (Refer to“Air
conditioner control”F4-9.)
5) Air inlet selection button (Refer to“Air
inlet selection”F4-9.)
6) Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to“Defogger and deicer”F3-89.)
–CONTINUED–
Climate control/Climate control panel
4-3
4

(236,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Type B
1) Temperature control dial (Refer to“Auto-
matic climate control operation (type B
and C)”F4-6 and/or“Temperature con-
trol”F4-8.)
2) AUTO button (Refer to“Automatic cli-
mate control operation (type B and C)”
F4-6.)
3) Air conditioner button (Refer to“Air
conditioner control”F4-9.)
4) Air inlet selection button (Refer to“Air
inlet selection”F4-9.)
5) MAX A/C button (Refer to“MAX A/C
mode (for type B and C)”F4-8.)
6) Defroster button (Refer to“Defrosting”
F4-10.)
7) Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to“Defogger and deicer”F3-89.)
8) Airflow mode selection dial (Refer to
“Airflow mode selection”F4-7.)
9) Fan speed control dial (Refer to“Fan
speed control”F4-9.)
10) ON/OFF button (Refer to“Automatic
climate control operation (type B and
C)”F4-6.)NOTEThe climate control screen is displayed
on the multi-function display (color
LCD). Refer to“Climate control screen”
F3-50.
Climate control/Climate control panel
4-4

(237,1)
北米Model "A1320BE-C" EDITED: 2017/ 10/ 10
&Type C1) Driver’s side temperature control dial
(Refer to“Automatic climate control
operation (type B and C)”F4-6 and/or
“Temperature control”F4-8.)
2) AUTO button (Refer to“Automatic cli-
mate control operation (type B and C)”F4-6.)
3) Air conditioner button (Refer to“Air
conditioner control”F4-9.)
4) Air inlet selection button (Refer to“Air
inlet selection”F4-9.)
5) MAX A/C button (Refer to“MAX A/Cmode (for type B and C)”F4-8.)
6) Defroster button (Refer to“Defrosting”
F4-10.)
7) Rear window defogger button and out-
side mirror defogger button (if equipped)
(Refer to“Defogger and deicer”F3-89.)
8) Passenger’s side temperature control
dial (Refer to“Temperature control”F4-
8.)
9) SYNC button (Refer to“SYNC mode
(type C)”F4-8.)
10) Fan speed control dial (Refer to“Fan
speed control”F4-9.)
11) Airflow mode selection button (Refer to
“Airflow mode selection”F4-7.)
12) ON/OFF button (Refer to“Automatic
climate control operation (type B and
C)”F4-6.)
NOTEThe climate control screen is displayed
on the multi-function display (color
LCD). Refer to“Climate control screen”
F3-50.Climate control/Climate control panel
4-5
4
