clock SUBARU CROSSTREK 2019 Quick Guide

7
Instrument Panel
Instrument
Panel
16-17
19
Clock
Press the “+” button to advance the time or the
“–” button to reverse the time. Vehicles with a
navigation system, please refer to the separate
“Operating Instructions for Navigation System.”
3640014_19b_Crosstrek_QG_072318.indd 77/23/18 3:33 PM
Getting
Started Instrument

Panel Gauges
Personalize ControlsWhile

Operating Safety/In Case

of Emergency Additional

Information

17

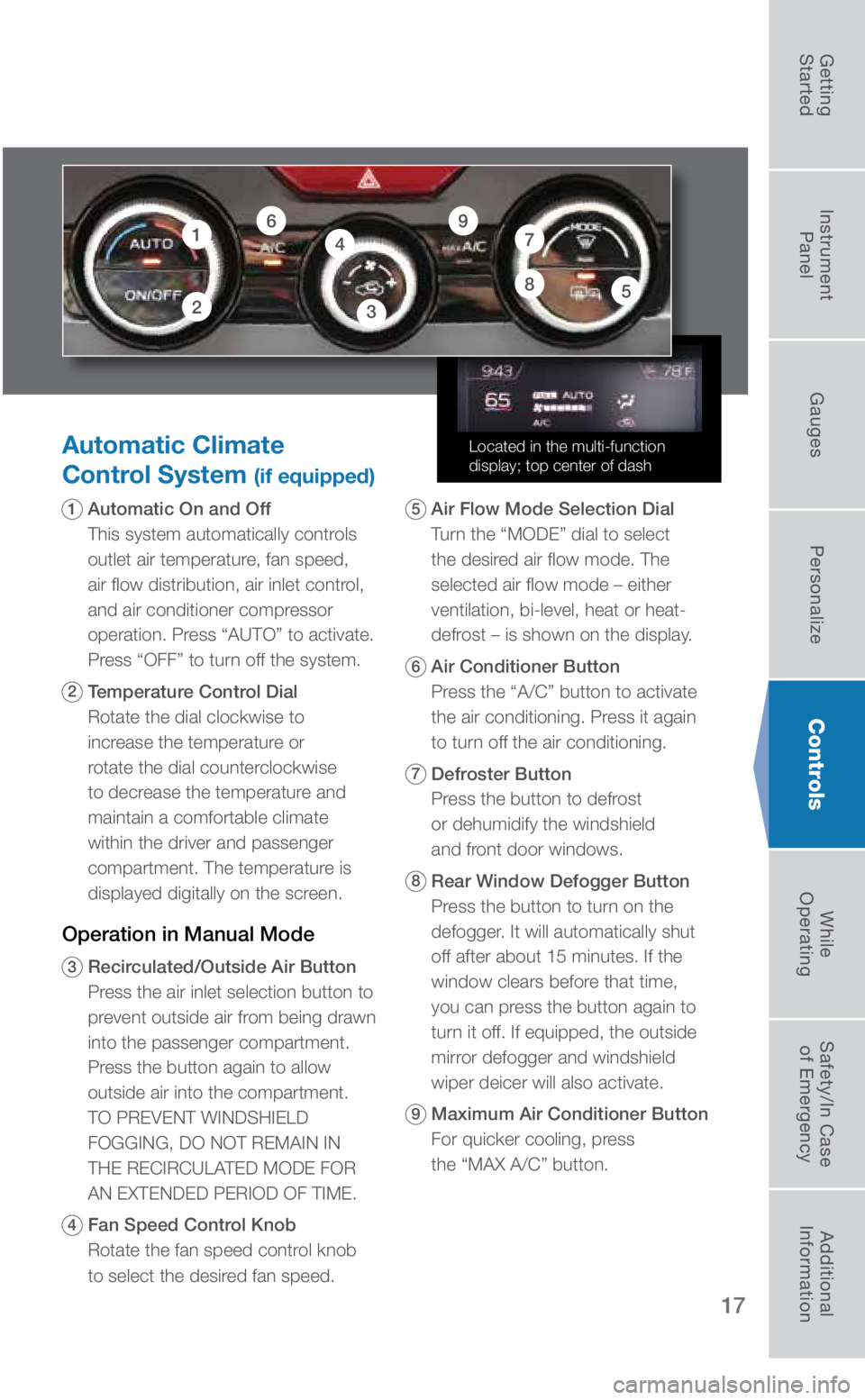

Controls
Automatic Climate
Control System
(if equipped)
1 Automatic On and Off
This system automatically controls
outlet air temperature, fan speed,
air flow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2 Temperature Control Dial
Rotate the dial clockwise to
increase the temperature or
rotate the dial counterclockwise
to decrease the temperature and
maintain a comfortable climate
within the driver and passenger
compartment. The temperature is
displayed digitally on the screen.
Operation in Manual Mode
3 Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment.
Press the button again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN
THE RECIRCULATED MODE FOR
AN EXTENDED PERIOD OF TIME.
4 Fan Speed Control Knob
Rotate the fan speed control knob
to select the desired fan speed.
5 Air Flow Mode Selection Dial
Turn the “MODE” dial to select
the desired air flow mode. The
selected air flow mode – either
ventilation, bi-level, heat or heat-
defrost – is shown on the display.
6 Air Conditioner Button
Press the “A/C” button to activate
the air conditioning. Press it again
to turn off the air conditioning.
7 Defroster Button
Press the button to defrost
or dehumidify the windshield
and front door windows.
8 Rear Window Defogger Button
Press the button to turn on the
defogger. It will automatically shut
off after about 15 minutes. If the
window clears before that time,
you can press the button again to
turn it off. If equipped, the outside
mirror defogger and windshield
wiper deicer will also activate.
9 Maximum Air Conditioner Button
For quicker cooling, press
the “MAX A/C” button.
Located in the multi-function
display; top center of dash
1
3
4
582
796
