Illustrated index „Exterior
6
7
8
9
10
11
1
2
3 4
5000194

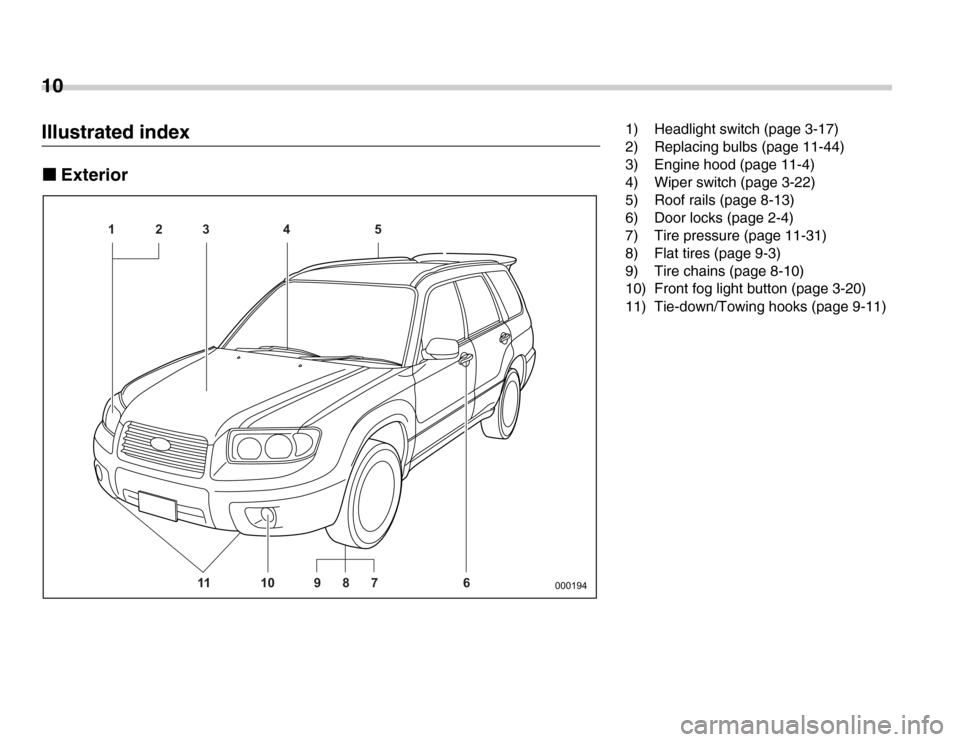

1) Headlight switch (page 3-17)
2) Replacing bulbs (page 11-44)
3) Engine hood (page 11-4)
4) Wiper switch (page 3-22)
5) Roof rails (page 8-13)
6) Door locks (page 2-4)
7) Tire pressure (page 11-31)
8) Flat tires (page 9-3)
9) Tire chains (page 8-10)
10) Front fog light button (page 3-20)
11) Tie-down/Towing hooks (page 9-11)

11
–
CONTINUED –
12 3 4
5

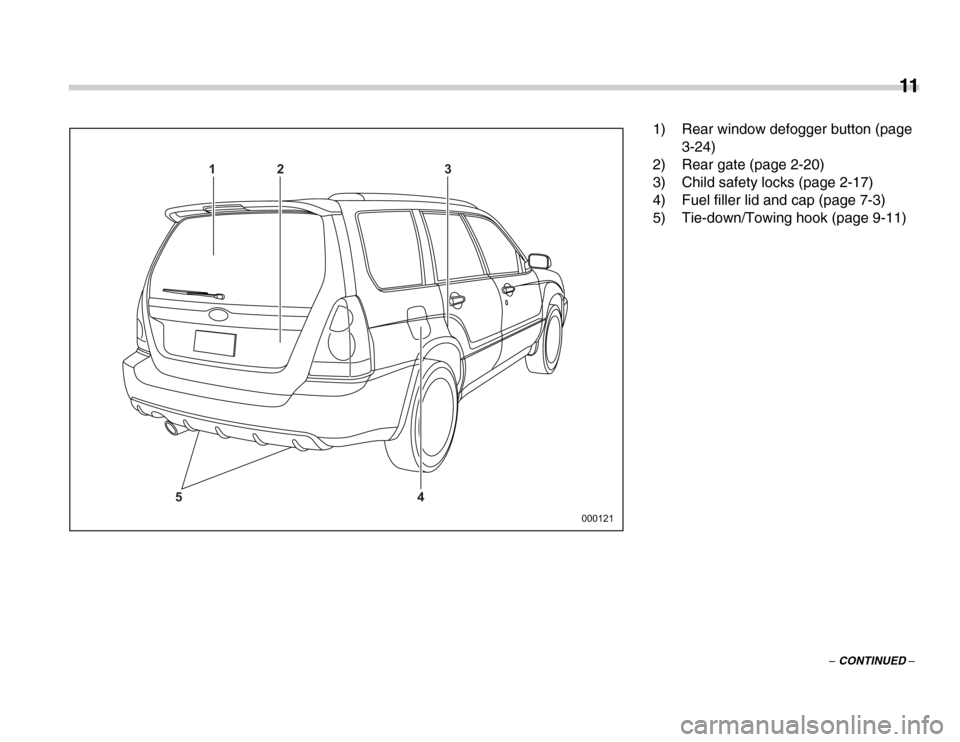

000121 1) Rear window defogger button (page
3-24)
2) Rear gate (page 2-20)
3) Child safety locks (page 2-17)
4) Fuel filler lid and cap (page 7-3)
5) Tie-down/Towing hook (page 9-11)

12 „Interior
T Passenger compartment area
12 3
4
5
6

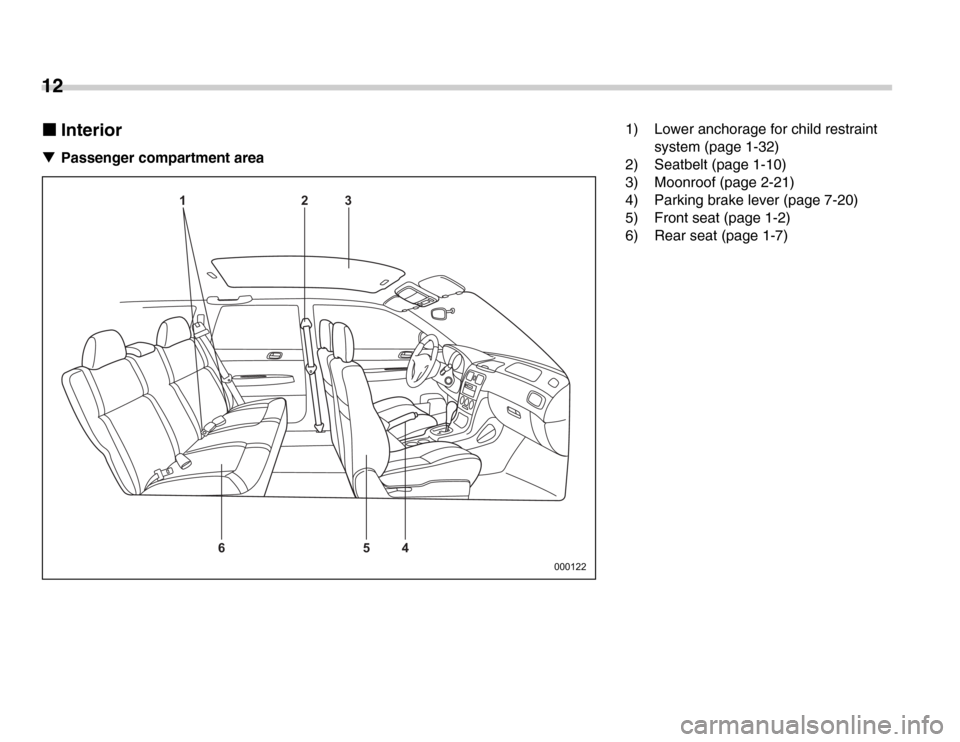

000122 1) Lower anchorage for child restraint
system (page 1-32)
2) Seatbelt (page 1-10)
3) Moonroof (page 2-21)
4) Parking brake lever (page 7-20)
5) Front seat (page 1-2)
6) Rear seat (page 1-7)

13
–
CONTINUED –
1
2 3
45

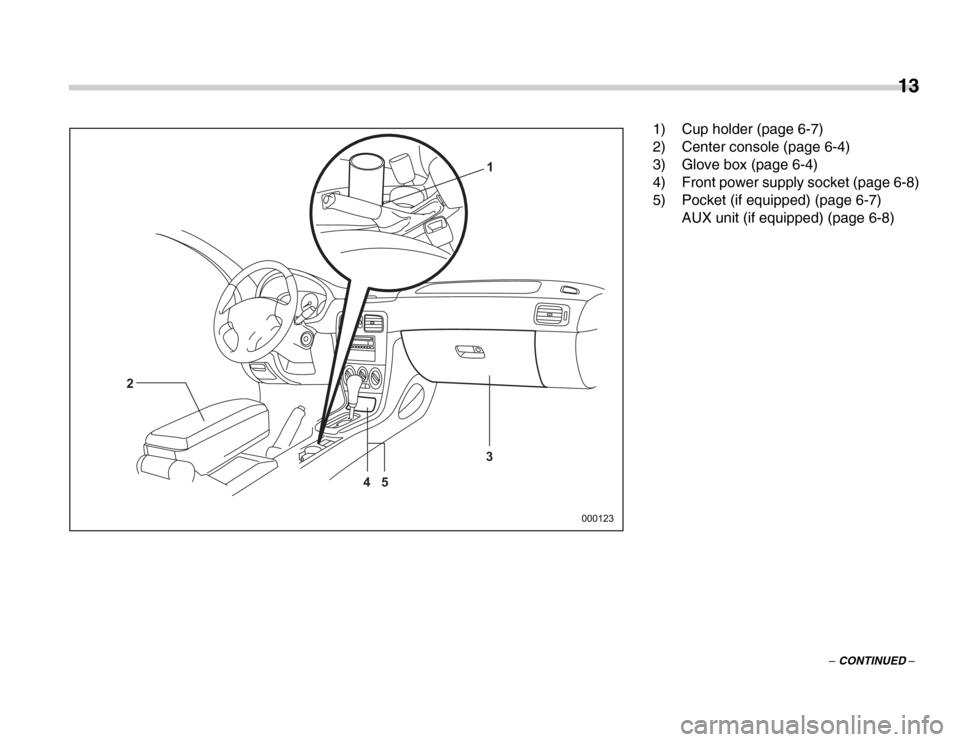

000123 1) Cup holder (page 6-7)
2) Center console (page 6-4)
3) Glove box (page 6-4)
4) Front power supply socket (page 6-8)
5) Pocket (if equipped) (page 6-7)
AUX unit (if equipped) (page 6-8)

14 „Instrument panel
000223
12 3 4 5 67
8
9
10
11
12
14
15
16 13

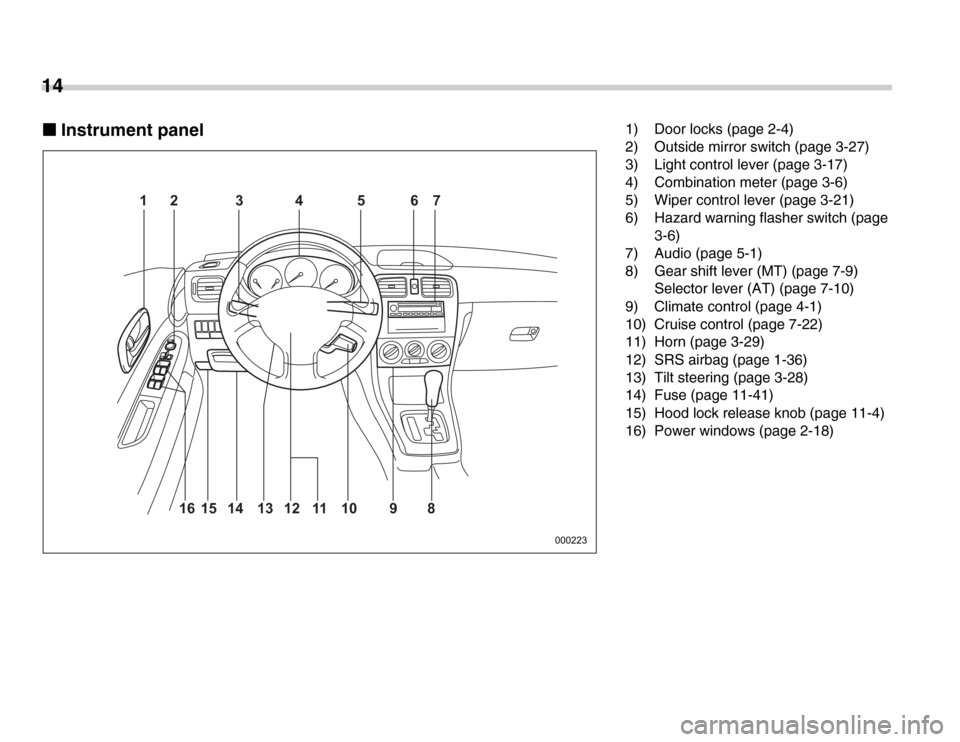

1) Door locks (page 2-4)
2) Outside mirror switch (page 3-27)
3) Light control lever (page 3-17)
4) Combination meter (page 3-6)
5) Wiper control lever (page 3-21)
6) Hazard warning flasher switch (page
3-6)
7) Audio (page 5-1)
8) Gear shift lever (MT) (page 7-9) Selector lever (AT) (page 7-10)
9) Climate control (page 4-1)
10) Cruise control (page 7-22)
11) Horn (page 3-29)
12) SRS airbag (page 1-36)
13) Tilt steering (page 3-28)
14) Fuse (page 11-41)
15) Hood lock release knob (page 11-4)
16) Power windows (page 2-18)

15
–
CONTINUED –
„
Light control and wiper control levers/switches
000020
12
3
4
5
1
10 9 7
11
2
6
8
1) Parking light switch (page 3-20)
2) Windshield wiper (page 3-22)
3) Mist (page 3-23)
4) Windshield washer (page 3-23)
5) Rear window wiper and washer
switch (page 3-23)
6) Wiper control lever (page 3-22)
7) Illumination brightness control (page
3-19)
8) Light control lever (page 3-17)
9) Headlight ON/OFF (page 3-17)
10) Headlight flasher High/Low beam change (page 3-17)
11) Turn signal (for lane change) (page 3- 19)
12) Turn signal (page 3-19)

16 „Combination meter
T U.S.-spec. models
V AT vehicles
XT
000248
123 4 5
86 7

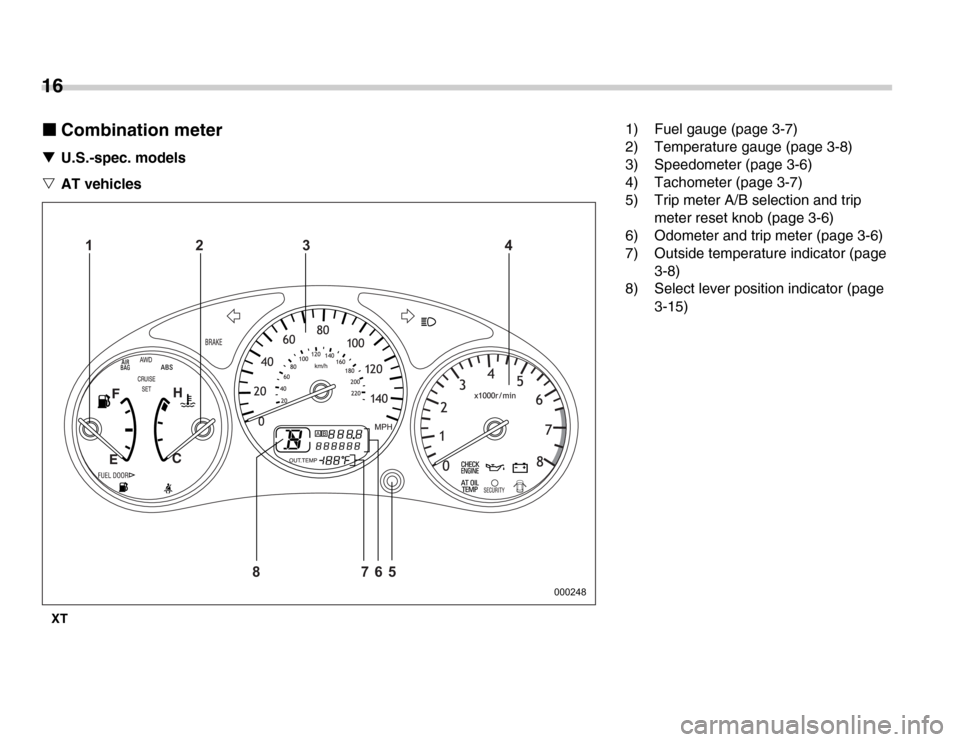

1) Fuel gauge (page 3-7)
2) Temperature gauge (page 3-8)
3) Speedometer (page 3-6)
4) Tachometer (page 3-7)
5) Trip meter A/B selection and trip
meter reset knob (page 3-6)
6) Odometer and trip meter (page 3-6)
7) Outside temperature indicator (page
3-8)
8) Select lever position indicator (page
3-15)

17
–
CONTINUED –
X, XS, L.L.Bean
123 4
5
7
86
000227

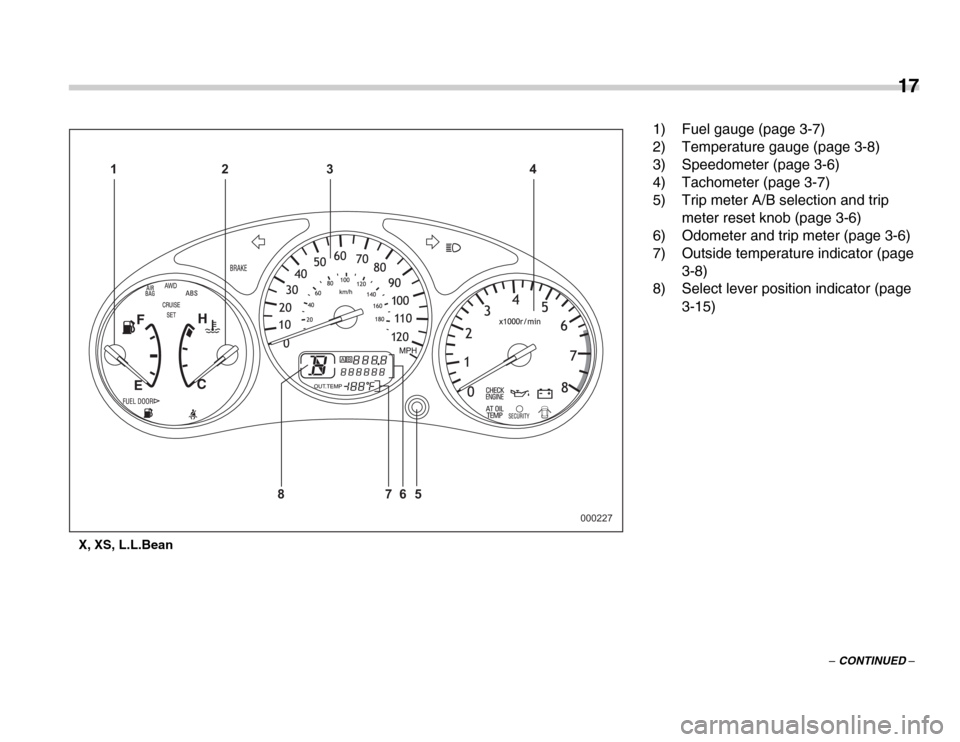

1) Fuel gauge (page 3-7)
2) Temperature gauge (page 3-8)
3) Speedometer (page 3-6)
4) Tachometer (page 3-7)
5) Trip meter A/B selection and trip
meter reset knob (page 3-6)
6) Odometer and trip meter (page 3-6)
7) Outside temperature indicator (page
3-8)
8) Select lever position indicator (page
3-15)

18 VMT vehicles
XT
123 4 5
76
000126 1) Fuel gauge (page 3-7)
2) Temperature gauge (page 3-8)
3) Speedometer (page 3-6)
4) Tachometer (page 3-7)
5) Trip meter A/B selection and trip
meter reset knob (page 3-6)
6) Odometer and trip meter (page 3-6)
7) Outside temperature indicator (page
3-8)
