SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual

SETUP
99
AUDIO
3

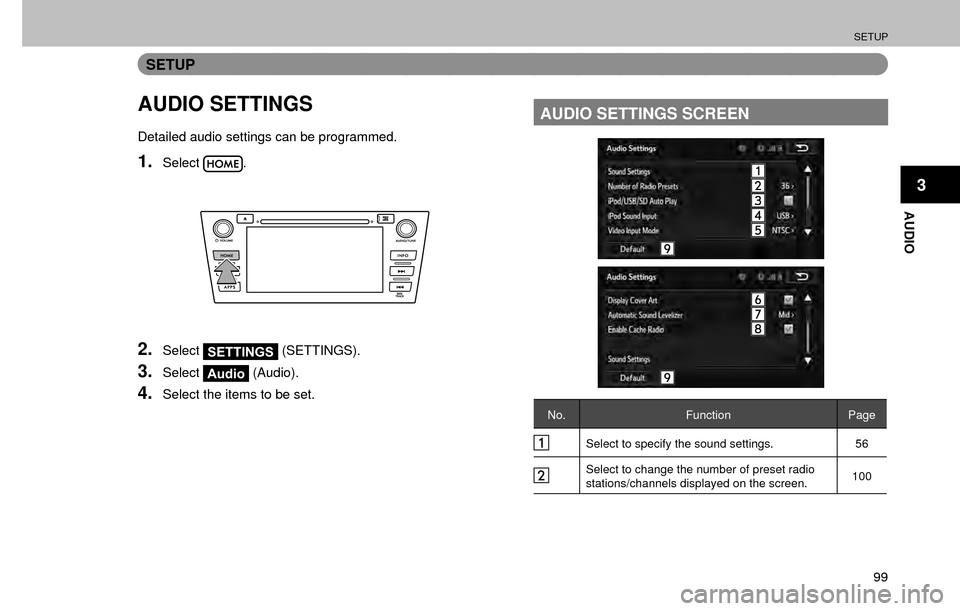

SETUP
AUDIO SETTINGS
Detailed audio settings can be programmed.
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectAudio (Audio).
4.Select the items to be set.
AUDIO SETTINGS SCREEN
No.
Function Page
Select to specify the sound settings. 56
Select to change the number of preset radio
stations/channels displayed on the screen.100

SETUP
100

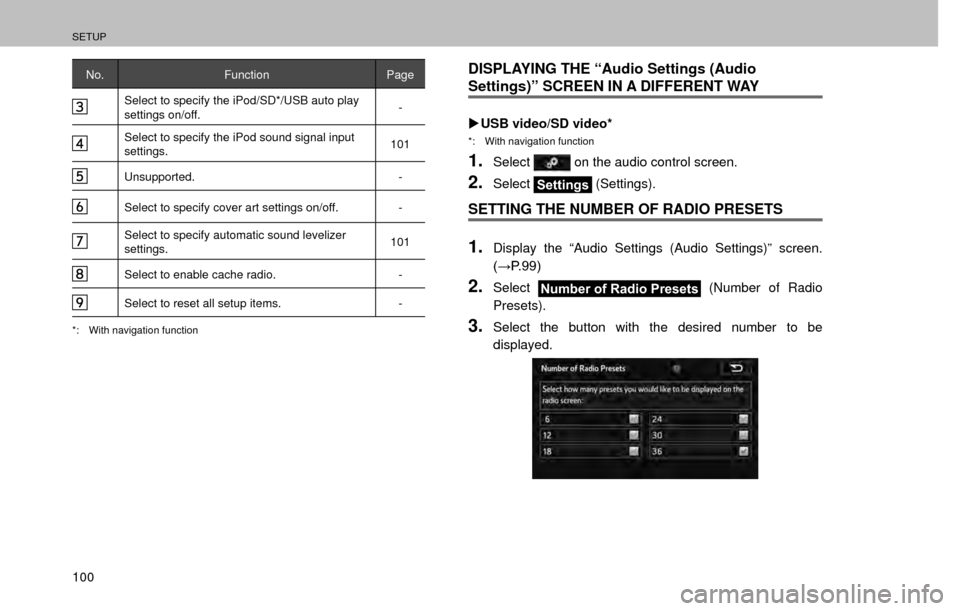

No.Function Page
Select to specify the iPod/SD*/USB auto play
settings on/off. -
Select to specify the iPod sound signal input
settings.101
Unsupported.
-
Select to specify cover art settings on/off. -
Select to specify automatic sound levelizer
settings.101
Select to enable cache radio.
-
Select to reset all setup items. -
*: With navigation function
DISPLAYING THE “Audio Settings (Audio
Settings)” SCREEN IN A DIFFERENT WAY
XUSB video/SD video*
*: With navigation function
1.Select on the audio control screen.
2.SelectSettings (Settings).
SETTING THE NUMBER OF RADIO PRESETS
1.Display the “Audio Settings (Audio Settings)” screen.

:3
2.SelectNumber of Radio Presets (Number of Radio
Presets).
3.Select the button with the desired number to be
displayed.

SETUP
101
AUDIO
3

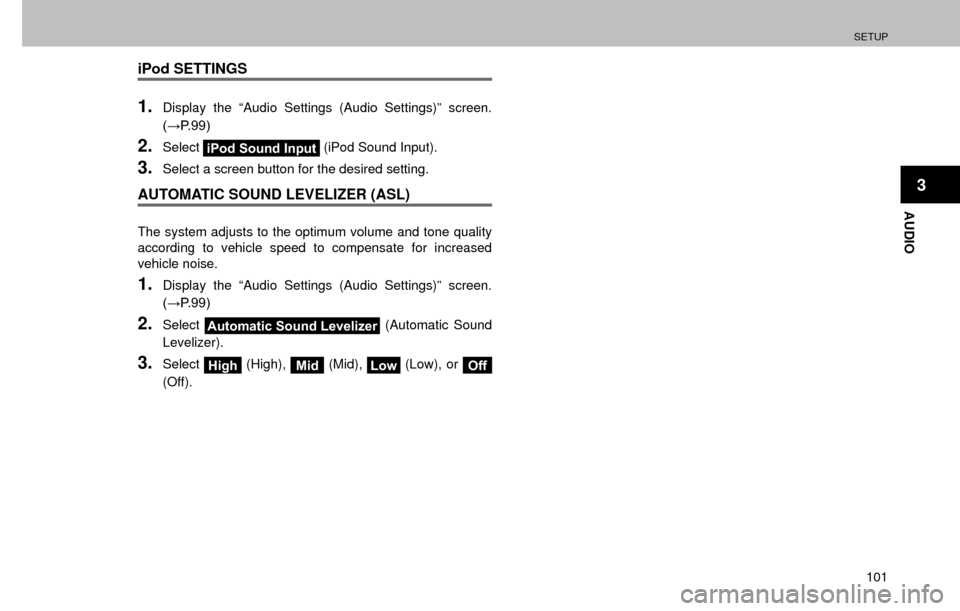

iPod SETTINGS
1.Display the “Audio Settings (Audio Settings)” screen.

:3
2.SelectiPod Sound Input (iPod Sound Input).
3.Select a screen button for the desired setting.
AUTOMATIC SOUND LEVELIZER (ASL)
The system adjusts to the optimum volume and tone quality
according to vehicle speed to compensate for increased
vehicle noise.
1.Display the “Audio Settings (Audio Settings)” screen.

:3
2.SelectAutomatic Sound Levelizer (Automatic Sound
Levelizer).
3.SelectHigh (High), Mid (Mid), Low (Low), or Off
(Off).

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
102

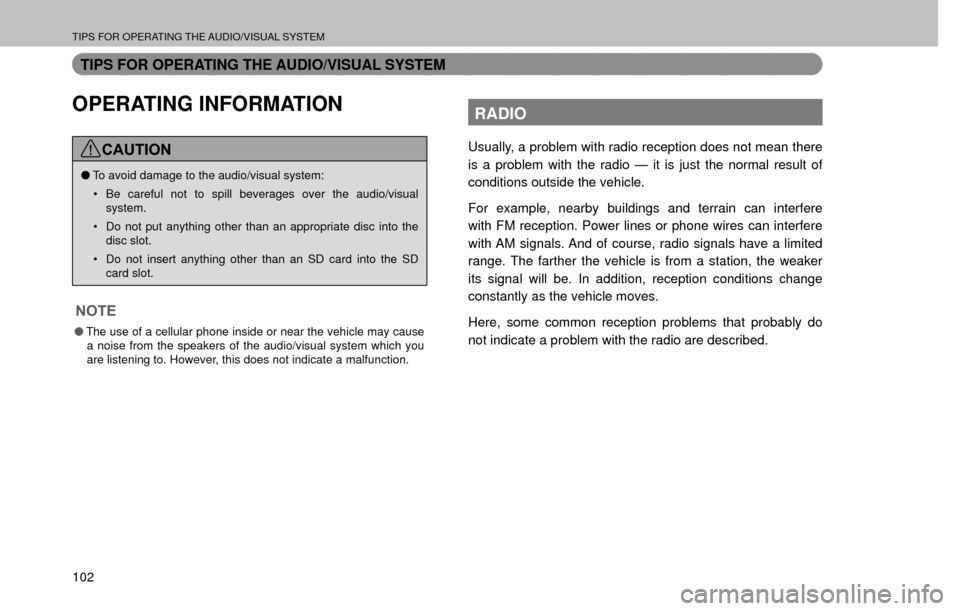

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
OPERATING INFORMATION
CAUTION
OTo avoid damage to the audio/visual system:
‡ Be careful not to spill beverages over the audio/visual
system.
‡ Do not put anything other than an appropriate disc into the
disc slot.
‡ Do not insert anything other than an SD card into the SD
card slot.
NOTE
OThe use of a cellular phone inside or near the vehicle may cause
a noise from the speakers of the audio/visual system which you
are listening to. However, this does not indicate a malfunction.
RADIO
Usually, a problem with radio reception does not mean there
is a problem with the radio — it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain can interfere
with FM reception. Power lines or phone wires can interfere
with AM signals. And of course, radio signals have a limited
range. The farther the vehicle is from a station, the weaker
its signal will be. In addition, reception conditions change
constantly as the vehicle moves.
Here, some common reception problems that probably do
not indicate a problem with the radio are described.

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
103
AUDIO
3

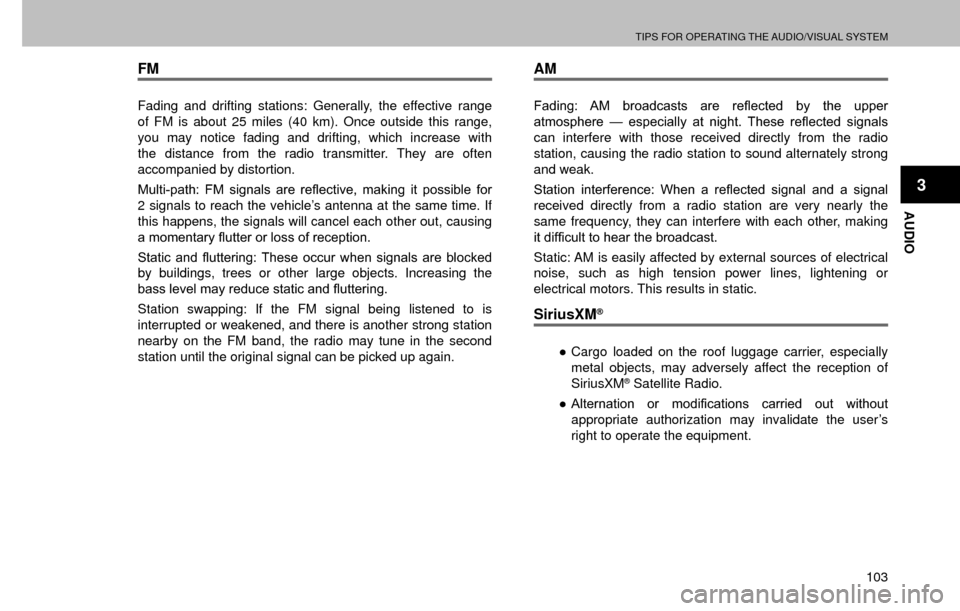

FM
Fading and drifting stations: Generally, the effective range
of FM is about 25 miles (40 km). Once outside this range,
you may notice fading and drifting, which increase with
the distance from the radio transmitter. They are often
accompanied by distortion.
0XOWLSDWK )0 VLJQDOV DUH UH

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
104

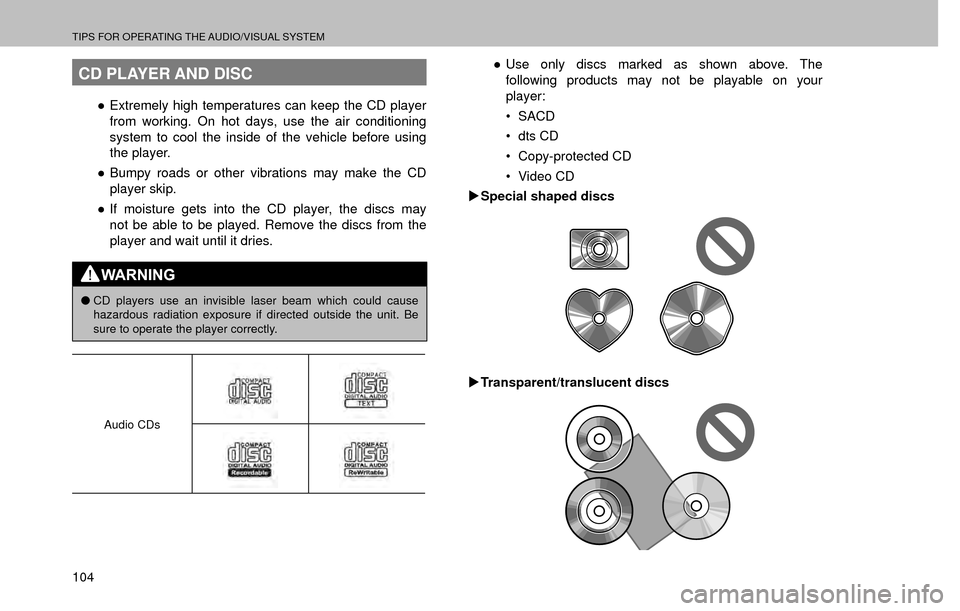

CD PLAYER AND DISC

”Extremely high temperatures can keep the CD player
from working. On hot days, use the air conditioning
system to cool the inside of the vehicle before using
the player.

” Bumpy roads or other vibrations may make the CD
player skip.

” If moisture gets into the CD player, the discs may
not be able to be played. Remove the discs from the
player and wait until it dries.
WARNING
O CD players use an invisible laser beam which could cause
hazardous radiation exposure if directed outside the unit. Be
sure to operate the player correctly.
Audio CDs

”Use only discs marked as shown above. The
following products may not be playable on your
player:
‡SACD
‡ dts CD
‡ Copy-protected CD
‡ Video CD
X Special shaped discs
XTransparent/translucent discs

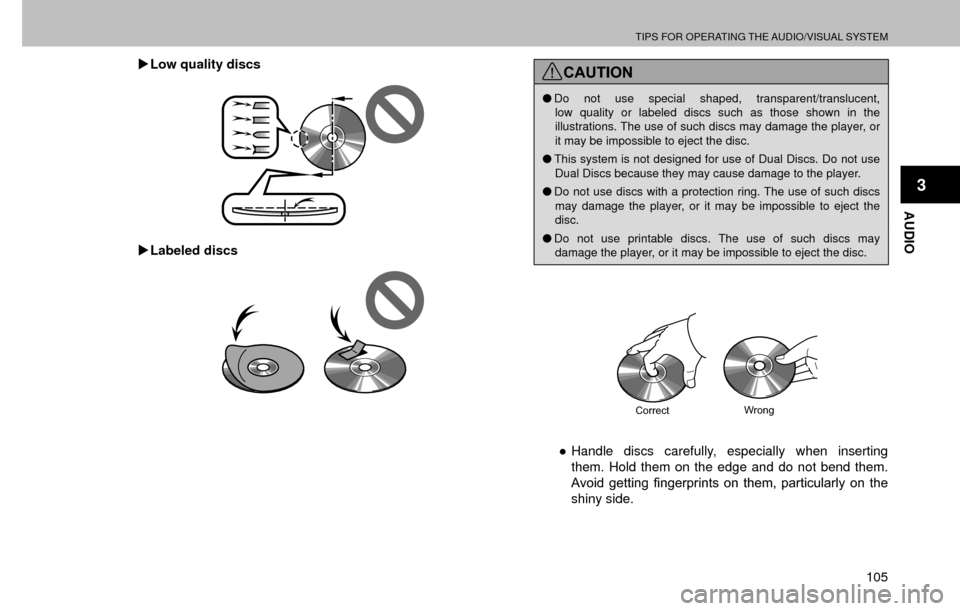

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
105
AUDIO
3
XLow quality discs
XLabeled discs
CAUTION
O Do not use special shaped, transparent/translucent,
low quality or labeled discs such as those shown in the
illustrations. The use of such discs may damage the player, or
it may be impossible to eject the disc.
O This system is not designed for use of Dual Discs. Do not use
Dual Discs because they may cause damage to the player.
O Do not use discs with a protection ring. The use of such discs
may damage the player, or it may be impossible to eject the
disc.
O Do not use printable discs. The use of such discs may
damage the player, or it may be impossible to eject the disc.
Correct Wrong

”
Handle discs carefully, especially when inserting
them. Hold them on the edge and do not bend them.
$YRLG JHWWLQJ

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
106
”

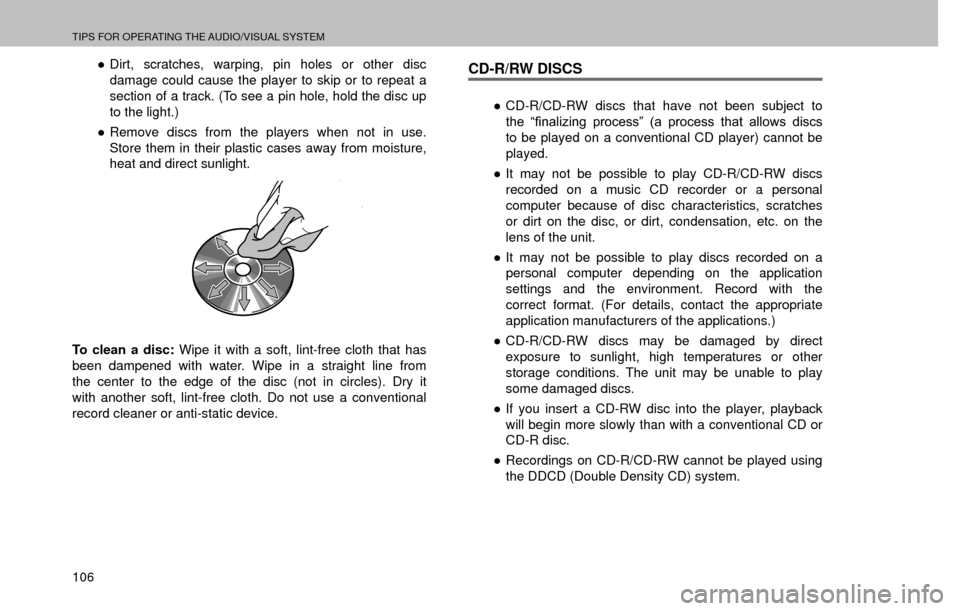

Dirt, scratches, warping, pin holes or other disc
damage could cause the player to skip or to repeat a
section of a track. (To see a pin hole, hold the disc up
to the light.)

” Remove discs from the players when not in use.
Store them in their plastic cases away from moisture,
heat and direct sunlight.
To clean a disc: Wipe it with a soft, lint-free cloth that has
been dampened with water. Wipe in a straight line from
the center to the edge of the disc (not in circles). Dry it
with another soft, lint-free cloth. Do not use a conventional
record cleaner or anti-static device.
CD-R/RW DISCS

”CD-R/CD-RW discs that have not been subject to
WKH

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
107
AUDIO
3
USB MEMORY

”USB communication formats: USB 2.0 HS (480
Mbps) and FS (12 Mbps)

” File formats: FAT 16/32

” Correspondence class: Mass storage class
iPod
The following iPod®, iPod nano®, iPod classic®, iPod
touch® and iPhone® devices can be used with this system.
Made for

”iPod touch (5th generation)

” iPod touch (4th generation)

” iPod touch (3rd generation)*

” iPod touch (2nd generation)*

” iPod touch (1st generation)*

” iPod classic

” iPod with video*
”
iPod nano (7th generation)

” iPod nano (6th generation)

” iPod nano (5th generation)

” iPod nano (4th generation)

” iPod nano (3rd generation)

” iPod nano (2nd generation)*

” iPod nano (1st generation)*

” iPhone 5

” iPhone 4S

” iPhone 4*

” iPhone 3GS*

” iPhone 3G*

” iPhone*
*: The voice recognition system not supported

”Depending on differences between models or
software versions etc., some models might be
incompatible with this system.

” iPod video is not supported.

” For USA customers, please visit www.subaru.com for
details. Outside of the USA customers, contact your
local dealer to arrange a demonstration in order to
FRQ

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
108

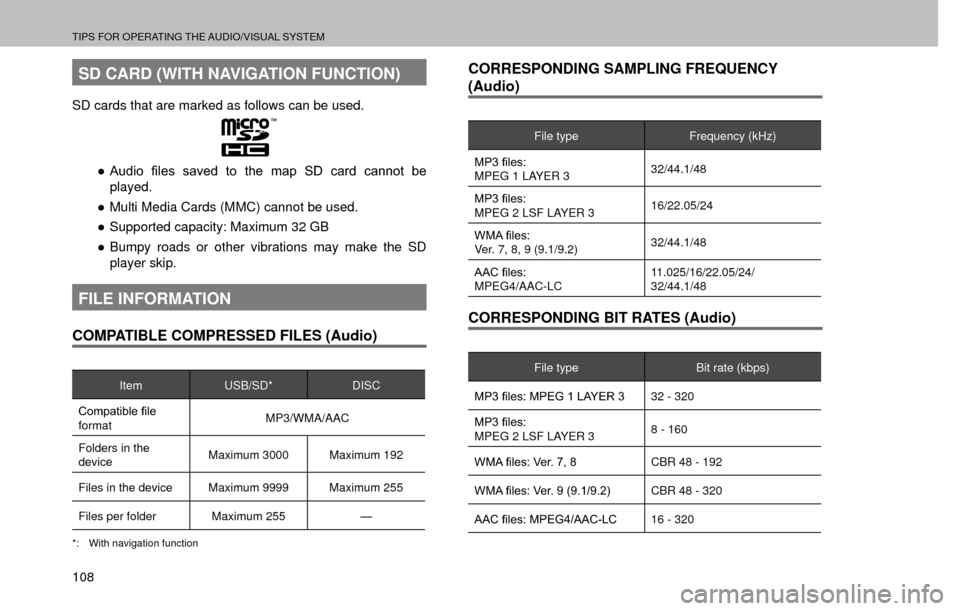

SD CARD (WITH NAVIGATION FUNCTION)
SD cards that are marked as follows can be used.
