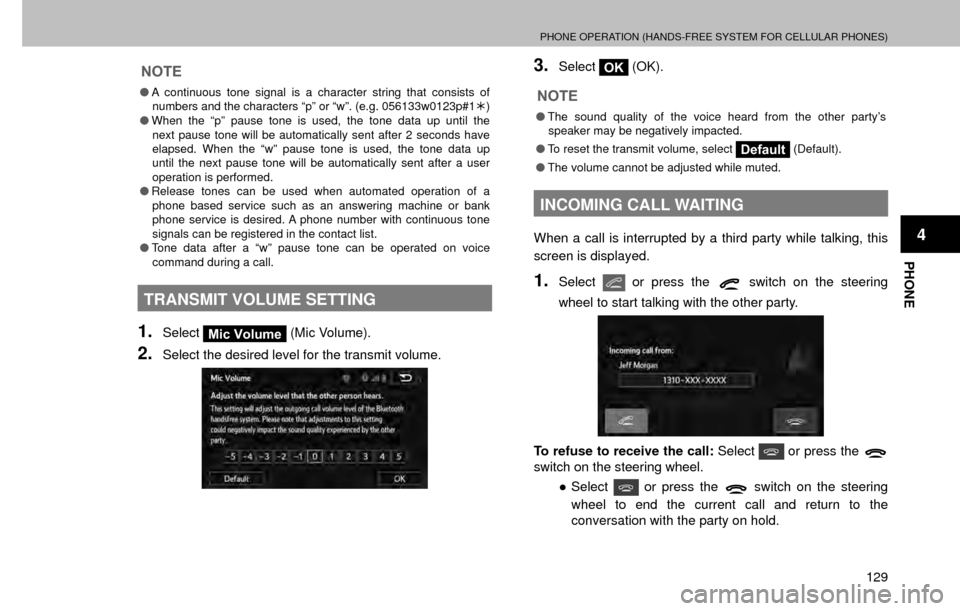

SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
129
PHONE
4
NOTE
OA continuous tone signal is a character string that consists of
numbers and the characters “p” or “w”. (e.g. 056133w0123p#1\
½)
O When the “p” pause tone is used, the tone data up until the
next pause tone will be automatically sent after 2 seconds have
elapsed. When the “w” pause tone is used, the tone data up
until the next pause tone will be automatically sent after a user
operation is performed.
O Release tones can be used when automated operation of a
phone based service such as an answering machine or bank
phone service is desired. A phone number with continuous tone
signals can be registered in the contact list.
O Tone data after a “w” pause tone can be operated on voice
command during a call.
TRANSMIT VOLUME SETTING
1.SelectMic Volume (Mic Volume).
2.Select the desired level for the transmit volume.
3.SelectOK (OK).
NOTE
O
The sound quality of the voice heard from the other party’s
speaker may be negatively impacted.
O To reset the transmit volume, select
Default (Default).
O The volume cannot be adjusted while muted.
INCOMING CALL WAITING
When a call is interrupted by a third party while talking, this
screen is displayed.
1.Select or press the switch on the steering
wheel to start talking with the other party.
To refuse to receive the call: Select or press the switch on the steering wheel.
”Select
or press the switch on the steering
wheel to end the current call and return to the
conversation with the party on hold.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
130
Bluetooth PHONE MESSAGE
FUNCTION
Received messages can be forwarded from the connected
Bluetooth phone, enabling checking and replying using the
system.
Depending on the type of Bluetooth phone connected,
received messages may not be transferred to the message
inbox.
If the phone does not support the message function, this
function cannot be used.
XWithout navigation function
1.Select.
2.Select.

” The phone top screen can be displayed by pressing
the
switch on the steering wheel.
3.Check that the message inbox screen is displayed.
X With navigation function
1.Select.
2.SelectPHONE (PHONE).
3.Select.

” The phone top screen can be displayed by pressing
the
switch on the steering wheel.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
131
PHONE
4
4.Check that the message inbox screen is displayed.

” : Select to change to phone mode.
FunctionPage
Receiving a message 131
Checking messages 132
Replying to a message (quick reply) 133
Calling the message sender 134
Message settings 145
RECEIVING A MESSAGE
When an e-mail/SMS/MMS is received, the incoming
message screen pops up with sound and is ready to be
operated on the screen.
No.Function
Select to check the message.
Select to not open the message.
Select to call the message sender.
NOTE
ODepending on the cellular phone used for receiving messages,
or its registration status with the system, some information may
not be displayed.

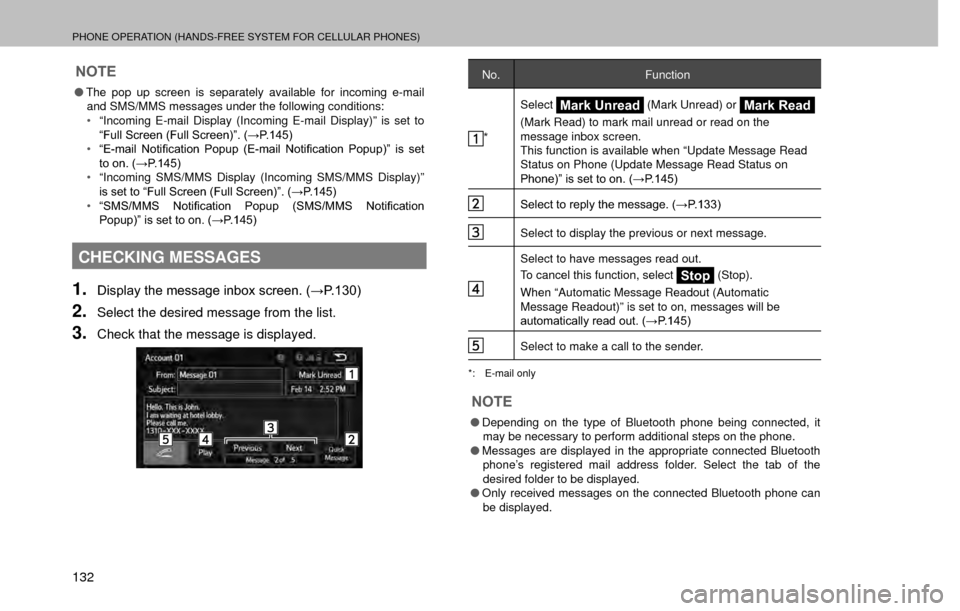

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
132
NOTE
OThe pop up screen is separately available for incoming e-mail
and SMS/MMS messages under the following conditions:
‡ “Incoming E-mail Display (Incoming E-mail Display)” is set to

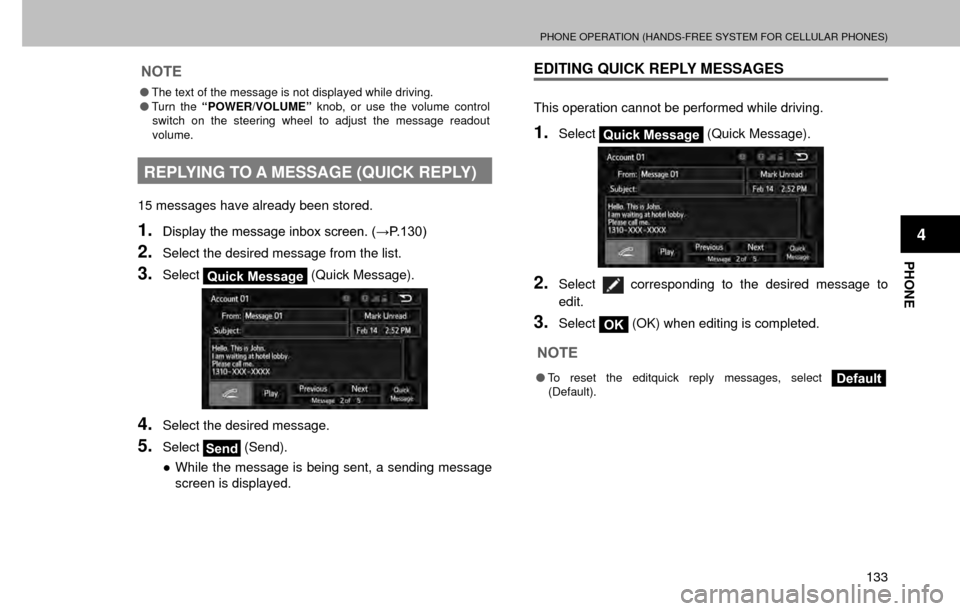

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
133
PHONE
4
NOTE
OThe text of the message is not displayed while driving.
O Turn the “POWER/VOLUME” knob, or use the volume control
switch on the steering wheel to adjust the message readout
volume.
REPLYING TO A MESSAGE (QUICK REPLY)
15 messages have already been stored.
1.'LVSOD\WKHPHVVDJHLQER[VFUHHQ
:3
2.Select the desired message from the list.
3.SelectQuick Message (Quick Message).
4.Select the desired message.
5.SelectSend (Send).

” While the message is being sent, a sending message
screen is displayed.
EDITING QUICK REPLY MESSAGES
This operation cannot be performed while driving.
1.SelectQuick Message (Quick Message).
2.Select corresponding to the desired message to
edit.
3.SelectOK (OK) when editing is completed.
NOTE
O
To reset the editquick reply messages, select Default(Default).

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
134
NOTE
O“Quick Message 1” (I'm driving right now. I will call you back later.
(I'm driving right now. I will call you back later.)*1 or
I am driving and will arrive in approximately [ETA] minutes. (I am
driving and will arrive in approximately [ETA] minutes.)*2)
cannot be edited. [ETA] will automatically be replaced with the
HVWLPDWHGWLPHRIDUULYDORQWKHFRQ¿UPPHVVDJHVFUHHQ
If there are waypoints set, [ETA] to the next waypoint will be
shown.
If there is no route currently set in the navigation system, “Quick
Message 1” cannot be selected.
*1: Without navigation function
*2: With navigation function
CALLING THE MESSAGE SENDER
Calls can be made to an e-mail/SMS/MMS message
sender’s phone number.
This operation can be performed while driving.
CALLING FROM E-MAIL/SMS/MMS MESSAGE
DISPLAY
1.'LVSOD\WKHPHVVDJHLQER[VFUHHQ
:3
2.Select the desired message.
3.Select.

” If there are 2 or more phone numbers, select the
desired number.
4.Check that the “Call (Call)” screen is displayed.
CALLING FROM A NUMBER WITHIN A MESSAGE
&DOOV FDQ EH PDGH WR D QXPEHU LGHQWL

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
135
PHONE
4
3.Select the text area.
4.Select corresponding to the desired number to call.

SETUP
136
SETUP
PHONE/MESSAGE SETTINGS
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectPhone (Phone).
4.Select the item to be set.
PHONE/MESSAGE SETTINGS SCREEN
No.
Information Page
Connect phone 181
Sound settings137
Contact/call history settings138
Messaging settings 145
Phone display settings146

SETUP
137
PHONE
4
DISPLAYING THE PHONE/MESSAGE SETTINGS
SCREEN IN A DIFFERENT WAY
1.'LVSOD\WKHSKRQHWRSVFUHHQ
:3
2.Select.
“Sound Settings (Sound Settings)” SCREEN
The call and ringtone volume can be adjusted. A ringtone
can be selected.
1.Display the “Phone/Message Settings (Phone/Message
6HWWLQJV

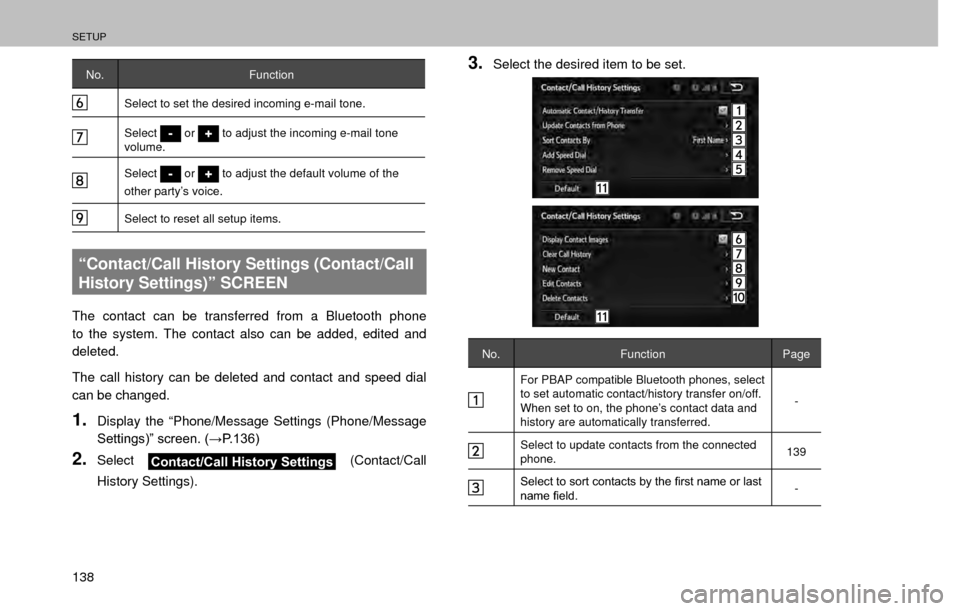

SETUP
138
No.Function
Select to set the desired incoming e-mail tone.
Select or to adjust the incoming e-mail tone
volume.
Select or to adjust the default volume of the
other party’s voice.
Select to reset all setup items.
“Contact/Call History Settings (Contact/Call
History Settings)” SCREEN
The contact can be transferred from a Bluetooth phone
to the system. The contact also can be added, edited and
deleted.
The call history can be deleted and contact and speed dial
can be changed.
1.Display the “Phone/Message Settings (Phone/Message
6HWWLQJV
