SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual

MEDIA OPERATION
89
AUDIO
3

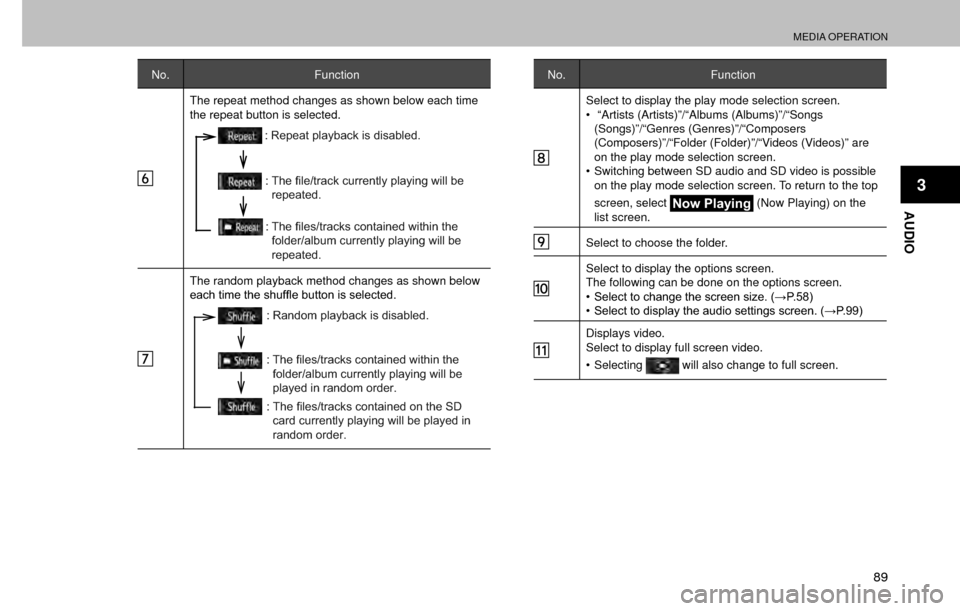

No.Function
The repeat method changes as shown below each time
the repeat button is selected.
: Repeat playback is disabled.
: The file/track currently playing will be
repeated.
: The files/tracks contained within the folder/album currently playing will be
repeated.
The random playback method changes as shown below
HDFKWLPHWKHVKXIÀHEXWWRQLVVHOHFWHG
: Random playback is disabled.
: The files/tracks contained on the SD card currently playing will be played in
random order.
: The files/tracks contained within the folder/album currently playing will be
played in random order.
No. Function
Select to display the play mode selection screen.
‡ “Artists (Artists)”/“Albums (Albums)”/“Songs
(Songs)”/“Genres (Genres)”/“Composers
(Composers)”/“Folder (Folder)”/“Videos (Videos)” are
on the play mode selection screen.
‡ Switching between SD audio and SD video is possible
on the play mode selection screen. To return to the top
screen, select
Now Playing (Now Playing) on the
list screen.
Select to choose the folder.
Select to display the options screen.
The following can be done on the options screen.

MEDIA OPERATION

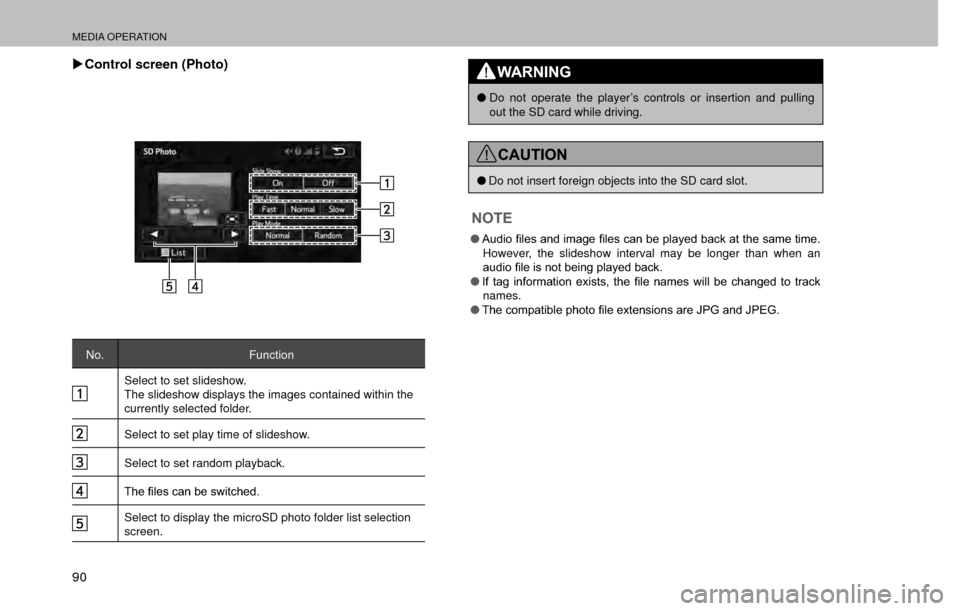

90 XControl screen (Photo)
No. Function
Select to set slideshow.
The slideshow displays the images contained within the
currently selected folder.
Select to set play time of slideshow.
Select to set random playback.
7KH¿OHVFDQEHVZLWFKHG
Select to display the microSD photo folder list selection
screen.
WARNING
ODo not operate the player’s controls or insertion and pulling
out the SD card while driving.
CAUTION
ODo not insert foreign objects into the SD card slot.
NOTE
O$XGLR

MEDIA OPERATION
91
AUDIO
3

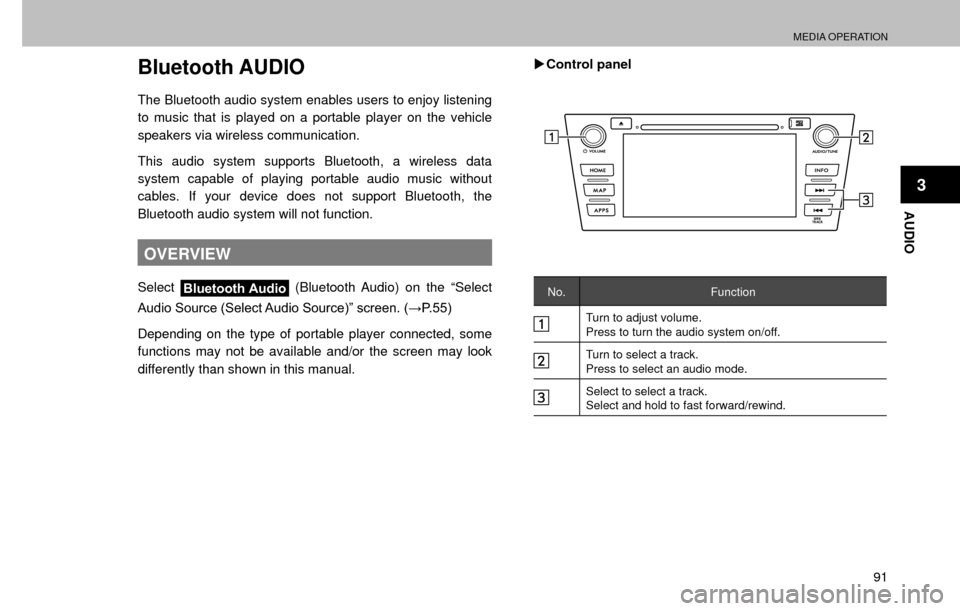

Bluetooth AUDIO
The Bluetooth audio system enables users to enjoy listening
to music that is played on a portable player on the vehicle
speakers via wireless communication.
This audio system supports Bluetooth, a wireless data
system capable of playing portable audio music without
cables. If your device does not support Bluetooth, the
Bluetooth audio system will not function.
OVERVIEW
SelectBluetooth Audio (Bluetooth Audio) on the “Select
$XGLR6RXUFH6HOHFW$XGLR6RXUFH

MEDIA OPERATION

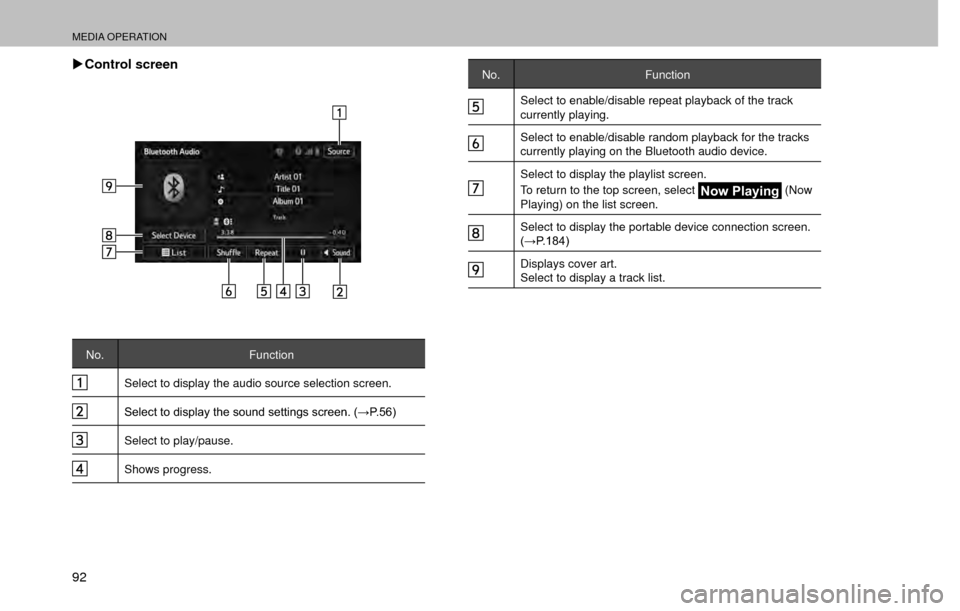

92 XControl screen
No. Function
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVVFUHHQ
:3
Select to play/pause.
Shows progress.
No.Function
Select to enable/disable repeat playback of the track
currently playing.
Select to enable/disable random playback for the tracks
currently playing on the Bluetooth audio device.
Select to display the playlist screen.
To return to the top screen, select
Now Playing (Now
Playing) on the list screen.
Select to display the portable device connection screen.

:3
Displays cover art.
Select to display a track list.

MEDIA OPERATION
93
AUDIO
3

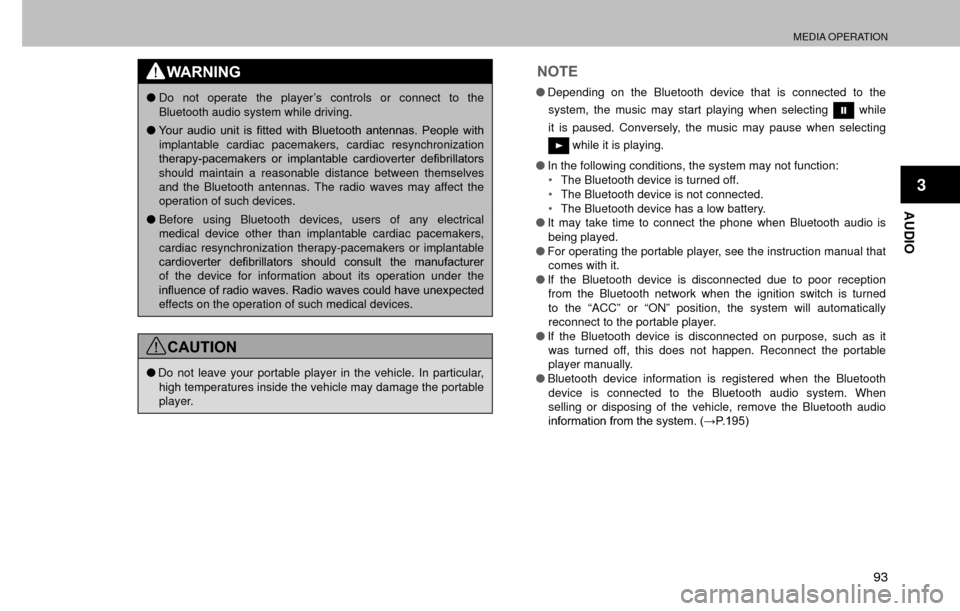

WARNING
ODo not operate the player’s controls or connect to the
Bluetooth audio system while driving.
O <RXU DXGLR XQLW LV

MEDIA OPERATION
94

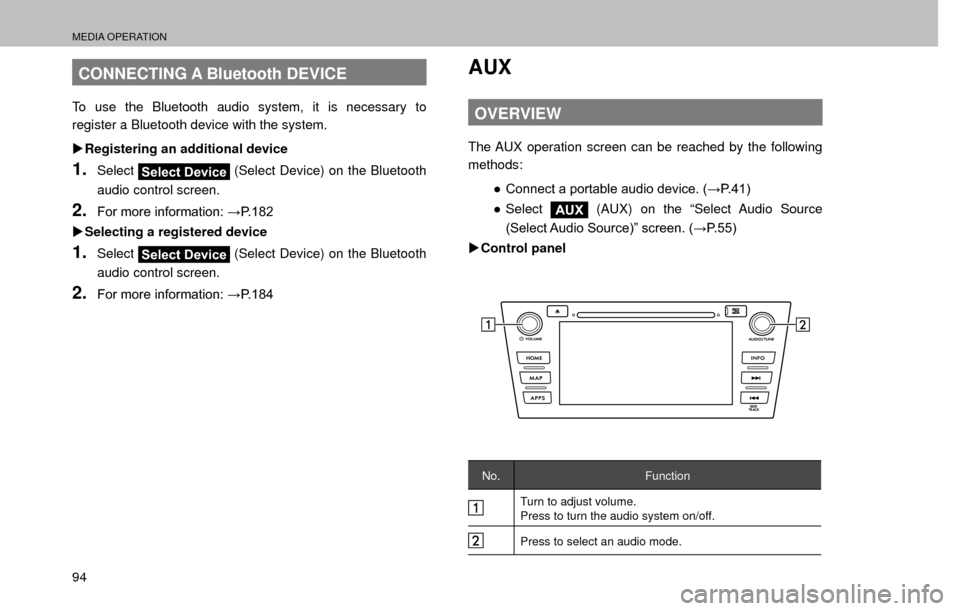

CONNECTING A Bluetooth DEVICE
To use the Bluetooth audio system, it is necessary to
register a Bluetooth device with the system.
XRegistering an additional device
1.SelectSelect Device (Select Device) on the Bluetooth
audio control screen.
2.)RUPRUHLQIRUPDWLRQ
:3
X Selecting a registered device
1.SelectSelect Device (Select Device) on the Bluetooth
audio control screen.
2.)RUPRUHLQIRUPDWLRQ
:3
AUX
OVERVIEW
The AUX operation screen can be reached by the following
methods:

MEDIA OPERATION
95
AUDIO
3
XControl screen
No. Function
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVFUHHQ
:3
WARNING
ODo not operate the player’s controls or connect the portable
audio device while driving.
CAUTION
ODo not leave portable audio device in the vehicle. The
temperature inside the vehicle may become high, resulting in
damage to the player.
O Do not push down on or apply unnecessary pressure to
the portable audio device while it is connected as this may
damage the portable audio device or its terminal.
O Do not insert foreign objects into the port as this may damage
the portable audio device or its terminal.

AUDIO/VISUAL REMOTE CONTROLS
96
AUDIO/VISUAL REMOTE CONTROLS

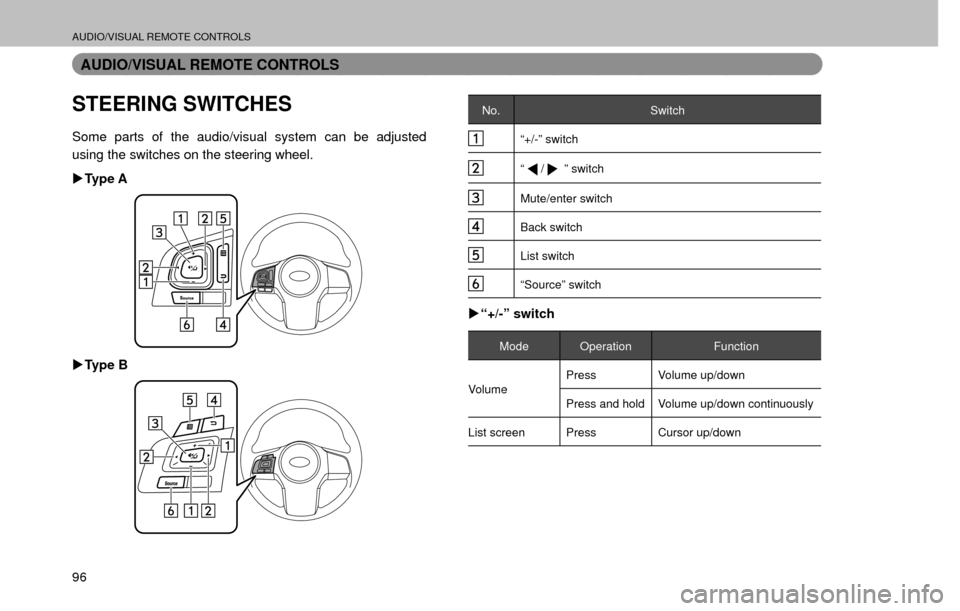

STEERING SWITCHES
Some parts of the audio/visual system can be adjusted
using the switches on the steering wheel.
XTy p e A
XTy p e B
No. Switch
“+/-” switch
“/ ” switch
Mute/enter switch
Back switch
List switch
“Source” switch
X“+/-” switch
Mode Operation Function
Volume Press
Volume up/down
Press and hold Volume up/down continuously
List screen Press Cursor up/down

AUDIO/VISUAL REMOTE CONTROLS
97
AUDIO
3
X“/ ” switch
Mode Operation Function
AM/FM Radio,
SiriusXM
®
Press Preset channel up/down
Press and hold Seek up/down continuously
aha Press
Content up/down
Press and hold Rewind the current content
item for 15 seconds/ Fast
forward the current content
item for 30 seconds
Audio CD, MP3/
WMA/AAC disc,
SD*
1,USB, iPod,
Bluetooth audio Press
6HOHFWDWUDFN¿OH
Press and hold Fast forward/rewind
Pandora*
2Press Track up (“”only)
Press and hold Thumbs up/down
List screen Press Cursor left/right
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
X Mute/enter switch
Mode Operation Function
Except list
screen Press
Mute/unmute
List screen Press Select cursor entry
XBack switch
Mode Operation Function
All Press
Return to the previous screen
when
is displayed on
the screen.
Press and hold Return to the “HOME
(HOME)” screen
X
List switch
Mode Operation Function
Audio screen,
Navigation*
screen Press
Show list screen
*: With navigation function

AUDIO/VISUAL REMOTE CONTROLS

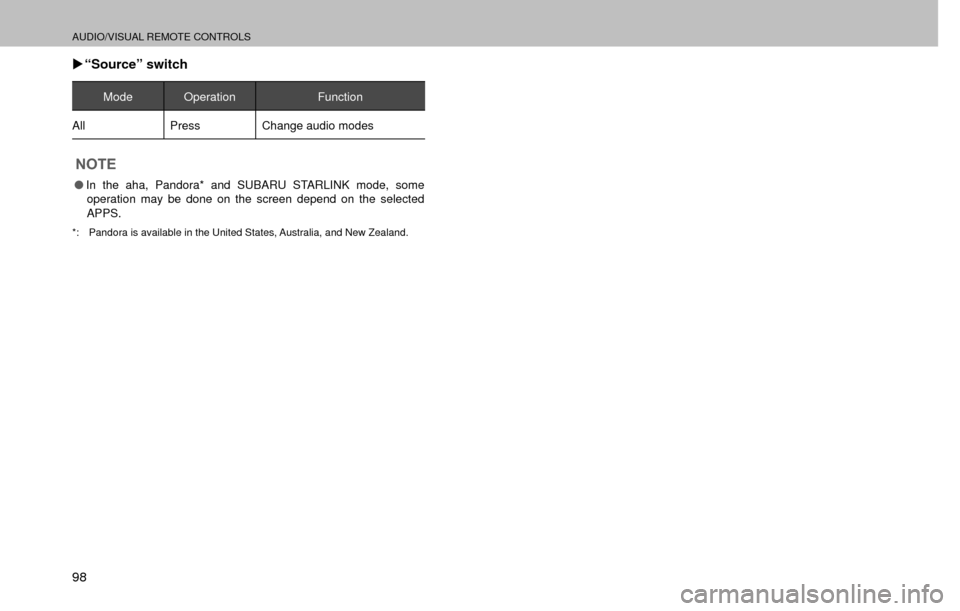

98 X“Source” switch
Mode Operation Function
All PressChange audio modes
NOTE
OIn the aha, Pandora* and SUBARU STARLINK mode, some
operation may be done on the screen depend on the selected
APPS.
*: Pandora is available in the United States, Australia, and New Zealand.
