Page 37 of 308
FUNCTION INDEX
35
1
QUICK GUIDE
XRoute guidance*
*: With navigation function
Before starting or during route guidance Page
Starting route guide 219
Editing the route 227
Viewing the entire route map 223
Adjusting route guidance volume 196
Deleting the destination 228
XUseful functions
Hands-free system (for cellular phone) Page
Registering/connecting Bluetooth phone 176
Making a call on a Bluetooth phone 121
Receiving a call on the Bluetooth phone 126
Voice recognition systemPage
Operating the system with your voice 251
Page 40 of 308
BASIC INFORMATION BEFORE OPERATION
38
BASIC INFORMATION BEFORE OPERATION
INITIAL SCREEN
INITIAL SCREEN
WARNING
OWhen the vehicle is stopped with the engine running, always
apply the parking brake for safety.
1.When the ignition switch is in the “ACC” or “ON”
position, the initial screen will be displayed and the
system will begin operating.
”After a few seconds, the “CAUTION (CAUTION)”
screen will be displayed.
2.SelectI Agree (I Agree).
”
After about 5 seconds, the “CAUTION (CAUTION)”
screen automatically switches to the next screen.
” With navigation function: Select
Language
(Language) to select a language.
X With navigation function
3.SelectAccept (Accept).
” & R Q ¿ U P W K H H Q G X V H U O L F H Q V H D J U H H P H Q W
Page 49 of 308
BASIC INFORMATION BEFORE OPERATION
47
BASIC FUNCTION
2

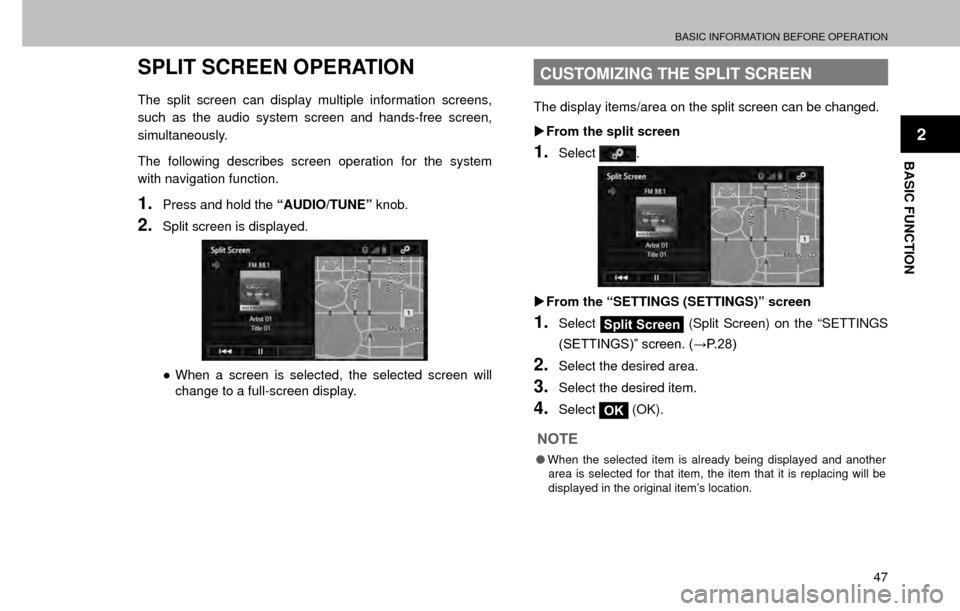

SPLIT SCREEN OPERATION
The split screen can display multiple information screens,
such as the audio system screen and hands-free screen,
simultaneously.
The following describes screen operation for the system
with navigation function.
1.Press and hold the “AUDIO/TUNE” knob.
2.Split screen is displayed.
”When a screen is selected, the selected screen will
change to a full-screen display.
CUSTOMIZING THE SPLIT SCREEN
The display items/area on the split screen can be changed.
XFrom the split screen
1.Select.
XFrom the “SETTINGS (SETTINGS)” screen
1.SelectSplit Screen (Split Screen) on the “SETTINGS
6 ( 7 7 , 1 * 6
Page 110 of 308
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
108
SD CARD (WITH NAVIGATION FUNCTION)
SD cards that are marked as follows can be used.
Page 118 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 6
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)

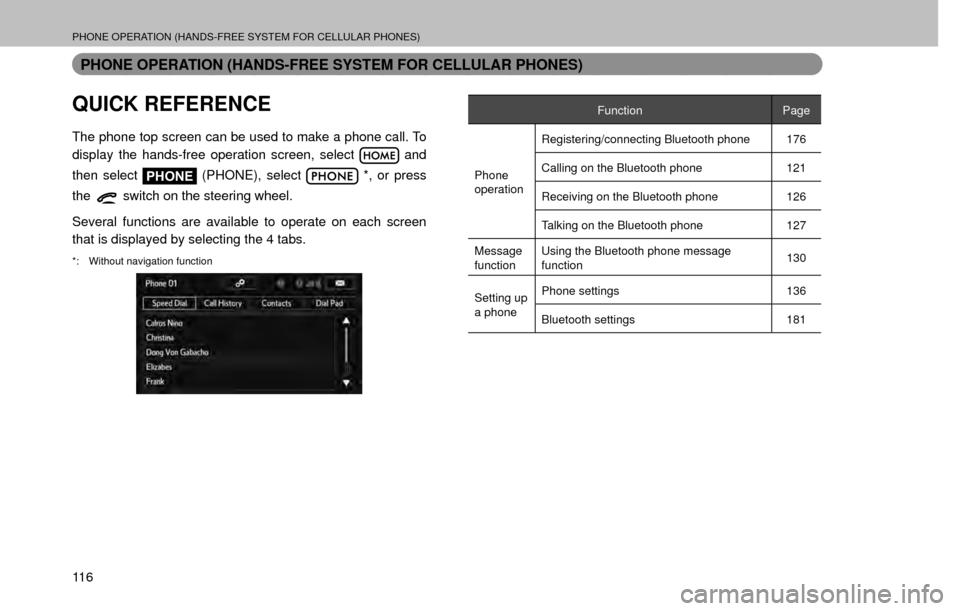

QUICK REFERENCE
The phone top screen can be used to make a phone call. To
display the hands-free operation screen, select
and
then select
PHONE (PHONE), select *, or press
the
switch on the steering wheel.
Several functions are available to operate on each screen
that is displayed by selecting the 4 tabs.
*: Without navigation function
Function Page
Phone
operation Registering/connecting Bluetooth phone 176
Calling on the Bluetooth phone
121
Receiving on the Bluetooth phone 126
Talking on the Bluetooth phone 127
Message
function Using the Bluetooth phone message
function
130
Setting up
a phone Phone settings
136
Bluetooth settings 181
Page 123 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
121
PHONE
4
CALLING ON THE Bluetooth
PHONE
After a Bluetooth phone has been registered, a call can
be made using the hands-free system. There are several
methods by which a call can be made, as described below.
XWithout navigation function
1.Select.
2.Select the desired tab to call from. X
With navigation function
1.Select.
2.SelectPHONE (PHONE).
3.Select the desired tab to call from.
”
The phone top screen can be displayed by pressing
the switch on the steering wheel.
Page 124 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
122
How to make a call listPage
By speed dial list 122
By call history 123
By contacts list 124
By dial pad*
1125
By e-mail/SMS/MMS 134
By POI call*
2199
By off hook switch 125
By voice recognition system 254
By split screen 126
*1: The operation cannot be performed while driving.
*2: With navigation function
BY SPEED DIAL LIST
Calls can be made using registered contacts which can be
V H O H F W H G I U R P D F R Q W D F W O L V W : 3
1. ' L V S O D \ W K H S K R Q H W R S V F U H H Q : 3
2.Select the Speed Dial (Speed Dial) tab and then
select the desired contact.
3.Select the desired number.
4.Check that the “Call (Call)” screen is displayed.
Page 132 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
130

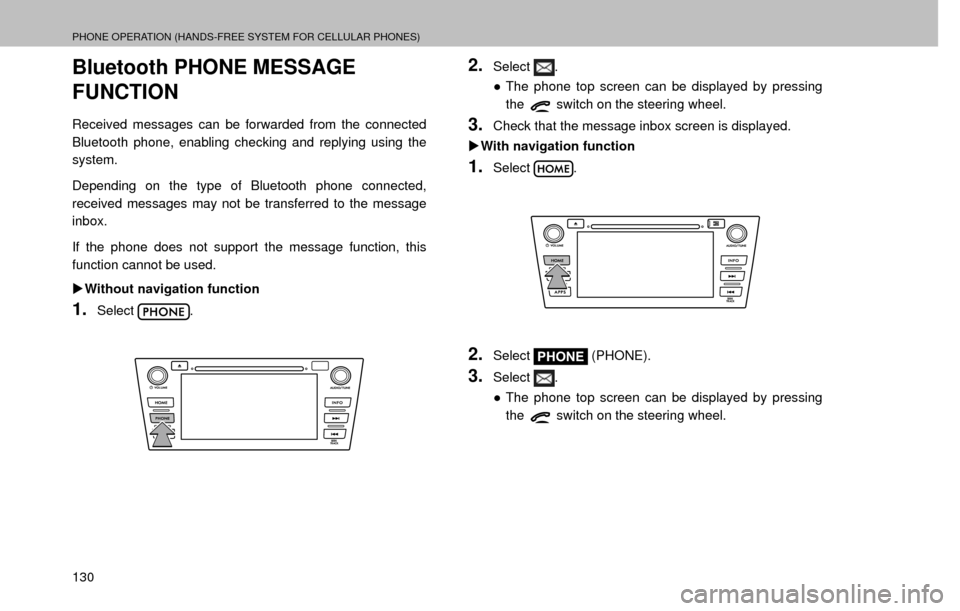

Bluetooth PHONE MESSAGE
FUNCTION
Received messages can be forwarded from the connected
Bluetooth phone, enabling checking and replying using the
system.
Depending on the type of Bluetooth phone connected,
received messages may not be transferred to the message
inbox.
If the phone does not support the message function, this
function cannot be used.
XWithout navigation function
1.Select.
2.Select.
” The phone top screen can be displayed by pressing
the
switch on the steering wheel.
3.Check that the message inbox screen is displayed.
X With navigation function
1.Select.
2.SelectPHONE (PHONE).
3.Select.
” The phone top screen can be displayed by pressing
the
switch on the steering wheel.
Page 136 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
134

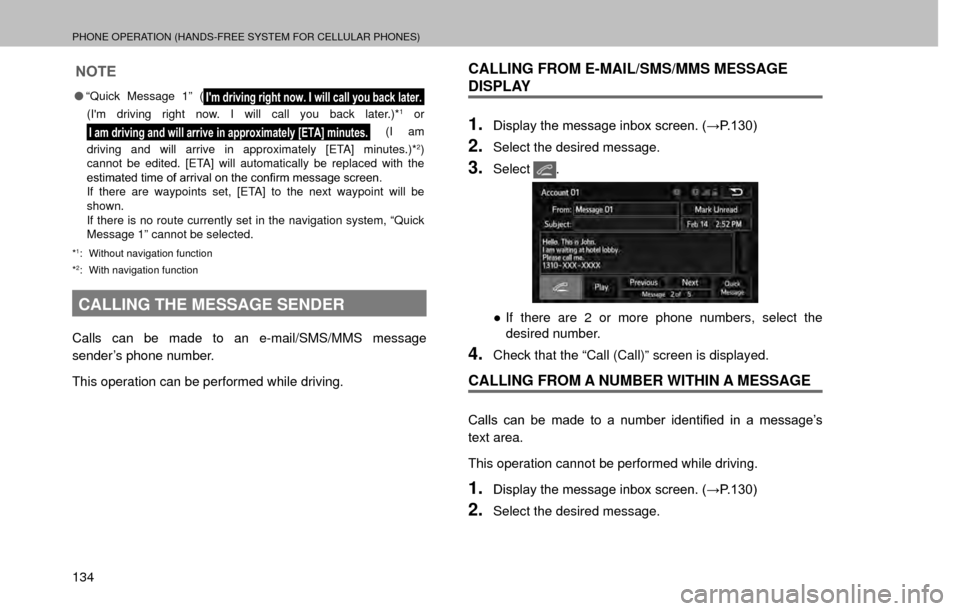

NOTE
O“Quick Message 1” (I'm driving right now. I will call you back later.
(I'm driving right now. I will call you back later.)*1 or
I am driving and will arrive in approximately [ETA] minutes. (I am
driving and will arrive in approximately [ETA] minutes.)*2)
cannot be edited. [ETA] will automatically be replaced with the
H V W L P D W H G W L P H R I D U U L Y D O R Q W K H F R Q ¿ U P P H V V D J H V F U H H Q
If there are waypoints set, [ETA] to the next waypoint will be
shown.
If there is no route currently set in the navigation system, “Quick
Message 1” cannot be selected.
*1: Without navigation function
*2: With navigation function
CALLING THE MESSAGE SENDER
Calls can be made to an e-mail/SMS/MMS message
sender’s phone number.
This operation can be performed while driving.
CALLING FROM E-MAIL/SMS/MMS MESSAGE
DISPLAY
1. ' L V S O D \ W K H P H V V D J H L Q E R [ V F U H H Q : 3
2.Select the desired message.
3.Select.
” If there are 2 or more phone numbers, select the
desired number.
4.Check that the “Call (Call)” screen is displayed.
CALLING FROM A NUMBER WITHIN A MESSAGE
& D O O V F D Q E H P D G H W R D Q X P E H U L G H Q W L
Page 178 of 308
Bluetooth® SETTINGS
176

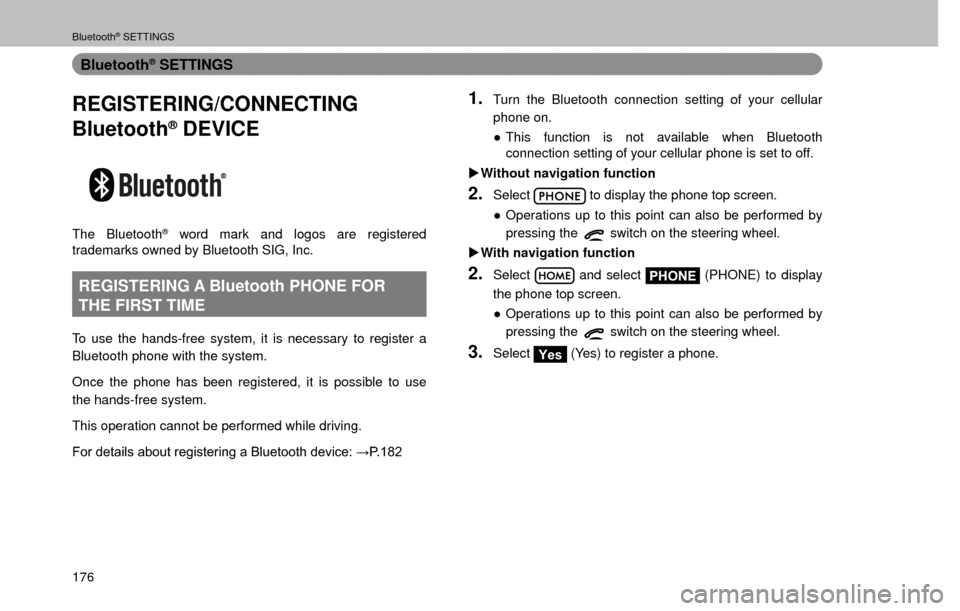

Bluetooth® SETTINGS
REGISTERING/CONNECTING
Bluetooth
® DEVICE
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc.
REGISTERING A Bluetooth PHONE FOR
THE FIRST TIME
To use the hands-free system, it is necessary to register a
Bluetooth phone with the system.
Once the phone has been registered, it is possible to use
the hands-free system.
This operation cannot be performed while driving.
) R U G H W D L O V D E R X W U H J L V W H U L Q J D % O X H W R R W K G H Y L F H : 3
1.Turn the Bluetooth connection setting of your cellular
phone on.
” This function is not available when Bluetooth
connection setting of your cellular phone is set to off.
X Without navigation function
2.Select to display the phone top screen.
” Operations up to this point can also be performed by
pressing the
switch on the steering wheel.
X With navigation function
2.Select and select PHONE (PHONE) to display
the phone top screen.
” Operations up to this point can also be performed by
pressing the
switch on the steering wheel.
3.SelectYes (Yes) to register a phone.
