DESTINATION SEARCH
215
NAVIGATION SYSTEM
8

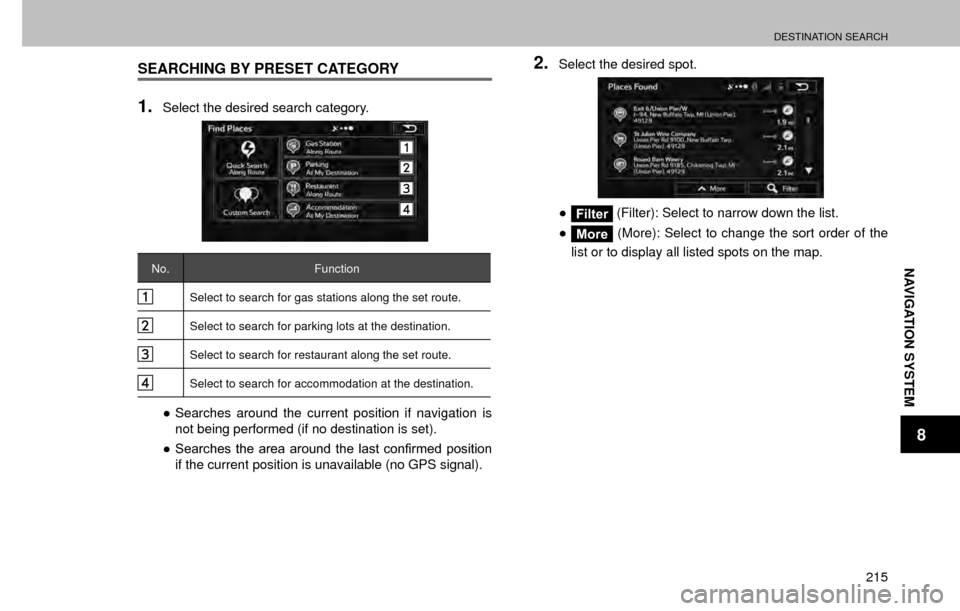

SEARCHING BY PRESET CATEGORY
1.Select the desired search category.
No.Function
Select to search for gas stations along the set route.
Select to search for parking lots at the destination.
Select to search for restaurant along the set route.
Select to search for accommodation at the destination.

”Searches around the current position if navigation is
not being performed (if no destination is set).

DESTINATION SEARCH
217
NAVIGATION SYSTEM
8
SEARCHING FROM A FREQUENTLY USED
DESTINATION (SMART HISTORY)
1.Display the “Destination (Destination)” screen.

:3
2.Select the destination or .
SEARCHING FROM HISTORY
1.Display the “Destination (Destination)” screen.

:3
2.SelectHistory (History).
3.Select the desired destination.

”Filter (Filter): Select to narrow down the list.

”
: Select to delete the previous destination.

”
More (More): Select to delete all destinations on the
list.
SEARCHING BY COORDINATES
1.Display the “Destination (Destination)” screen.

:3
2.SelectMore (More).
3.SelectCoordinate (Coordinate).
4.Select.

”
Select to enable the numeric keypad input. Since
the second time to erase one character at the cursor
position.

” Select
More (More) to set the UTM coordinates.
5.Enter the latitude and longitude and then select Next
(Next).

DESTINATION SEARCH
219
NAVIGATION SYSTEM
8
STARTING ROUTE GUIDANCE
When the destination is set, the entire route map from the
current position to the destination is displayed.
STARTING ROUTE GUIDANCE
1.SelectGo! (Go!) to start guidance.
No.
Information/Function
Current position
Destination point
Select to display the map around the current position.
Select to display the route options list.

”When the countdown is displayed in the Go! (Go!),
guidance begins automatically after 10 seconds even
if you do not select the button.
WARNING
O %H VXUH WR REH\ WUDI

ROUTE GUIDANCE
221
NAVIGATION SYSTEM
8
ROUTE GUIDANCE
ROUTE GUIDANCE SCREEN
During the route guidance, various types of guidance
screens can be displayed depending on conditions.
SCREEN FOR ROUTE GUIDANCE
No.Information/Function
Distance to the next turn and an arrow indicating the
turning direction
Arrow indicating the direction of the turn after the next
turn
Guidance route
Current position
'DWD¿HOGV
No.Information/Function
Current street name
Select to display the “Where Am I? (Where Am I?)”
VFUHHQ
:3
Next street name
NOTE
OIf the vehicle goes off the guidance route, the route is searched
again.
O For some areas, the roads have not been completely digitized in
our database. For this reason, the route guidance may select a
road that should not be traveled on.
STANDARD MAP ICON
The following table shows the most frequently displayed
route events.
Icon Explanation
Turn left
Turn right
U-turn left

ROUTE GUIDANCE
223
NAVIGATION SYSTEM
8
2.Select to display the desired item.
NOTE
OWhen the vehicle is on the guidance route, the distance
measured along the route is displayed. Travel time and arrival
WLPHDUHFDOFXODWHGEDVHGRQWKHDYHUDJHVSHHGIRUWKHVSHFL¿HG
speed limit.
ROUTE OVERVIEW
The entire route from the current position to the destination
can be displayed during the route guidance.
1.SelectMenu (Menu) on the map screen.
2.SelectChange Route (Change Route).
3.SelectOverview (Overview).
4.Check that the entire route map is displayed.
LANE INFORMATION AND SIGNS
LANE INFORMATION
When lane information is available on the map, the lane and
direction are indicated below the map with small arrows. The
lane that you should drive in is highlighted.

ROUTE GUIDANCE
224
SIGNS
When detailed information is available, the arrows are
removed and signs are displayed. Signs are displayed
at the top of the map. The color and design of the signs is
the same as signs actually found at the side of the road or
overhead signs. These signs show the district and the route
number for the lane direction.

”All signs are displayed in the same manner even
when driving without using the navigation system.
During navigation, only the sign that shows the lane in
which you should drive is highlighted, the other signs
are toned down.
HIGHWAY SERVICES
When driving on the expressway, this displays information
on up to the next three highway service areas. By default,
“Gas Station (Gas Station)”, “Restaurant (Restaurant)”, \
“Rest Area (Rest Area)”, and “Car Service (Car Service)” are
displayed. You can change the items displayed by setting
WKH

ROUTE GUIDANCE
225
NAVIGATION SYSTEM
8
4.Select one from the list to display more details.

”You can check it on the map and set it as a waypoint
or as a destination.
JUNCTION DISPLAY
When approaching an expressway exit or a complicated
intersection, the map switches to a 3D display if the
necessary information can be displayed. An arrow indicates
the lane in which you should drive. Signs are also displayed
if the information is available.
TYPICAL VOICE GUIDANCE
PROMPTS
As the vehicle approaches an intersection, or point, where
maneuvering the vehicle is necessary, the system’s voice
guidance will provide various messages.
WARNING
O %H VXUH WR REH\ WKH WUDI

ROUTE GUIDANCE
227
NAVIGATION SYSTEM
8
EDITING ROUTE
You can change the destination list and edit the route. You
can add or delete destinations, change the start point, or
change the order of the list.
1.Display the “Change Route (Change Route)” screen.

:3
2.SelectEdit Route (Edit Route).
3.Select the desired item.
No.
Function Page
Select to add a destination. 227
Select to change the start point of the route. 231
Select to delete a destination.228
Select to change the display order of the list.
You can also manually select the optimum
route in the application. 227
ADDING DESTINATIONS
1.'LVSOD\WKH

ROUTE GUIDANCE
229
NAVIGATION SYSTEM
8
No.Function
Select whether or not to use the expressway when
creating the route.
Select whether or not to use toll roads (Period Charge)
in the route.
Select whether or not to use toll roads (Per-use Toll) in
the route.
Select whether or not to use ferries when creating the
route. (However, ferries might not always be selected for
the route.) However, information on temporary service
ferries may not be displayed on the map. There may be
a fee for using the ferry.
Select whether or not to use Carpool/HOV lanes when
creating the route.
Select whether or not to use unpaved roads when
creating the route.
Select to search for the best green alternative route. If
this alternative route is much better than the selected
method, you can quickly switch to Green mode.

”The route is searched again, and the new
recommended route is indicated by a blue line.
SELECTING ROUTE TYPE
1.Display the “Route Settings (Route Settings)” screen.

:3
2.SelectRoute Planning Method (Route Planning
Method).
3.Select the desired route type.
No. Function
Select to search all roads for the quickest route following
the speed limits of the roads.
Select to search for the route that conserves the most
energy.
Select to search for a route that is easiest to drive, with
few right and left turns. Using this option, the program
allows you to avoid combinations of smaller roads and
to take the expressway.

ROUTE GUIDANCE
231
NAVIGATION SYSTEM
8
No.Function
Select to create a new route at the position you
selected. Previous destinations and waypoints are
deleted.
Select to add the position you selected as a new
waypoint for the current route. Other destinations for
the route are already enabled. Note: Waypoints are
set so that the optimum route is maintained between
destinations. You can use the route editing function to
set the position for waypoints on the route.
6HOHFWWRDGGWKHGHVWLQDWLRQ\RXVHOHFWHGDVWKH¿QDO
destination for the current route. Other destinations for
the route are already enabled. Up to now, the position
PDUNHGDVWKH¿QDOGHVWLQDWLRQEHFRPHVWKH¿QDO
waypoint.
SETTING A NEW STARTING POINT
In standard navigation, all routes are created from the
current position. You can turn off the GPS so that you
can study a route that is not currently being driven, run a
simulation, and check the time or distance for the route. This
way, you can set a start point for the route without using the
current GPS position.
1.Display the “Change Route (Change Route)” screen.

:3
2.SelectEdit Route (Edit Route) / Create Route
(Create Route).

”
Edit Route (Edit Route) is displayed only when
a route is set.
Create Route (Create Route) is
displayed when a route is not set.
3.Select, if a warning message is displayed, select
which operation to perform.
