Page 195 of 308
OTHER SETTINGS
193
SETTINGS
7
NOTE
OWhen saving the images to a USB or SD card* name the folder
that the screen off image is saved to “Image”. If this folder name
is not used, the system cannot download the images. (The folder
name is case sensitive.)
*: With navigation function O , P D J H ¿ O H V V D Y H G W R W K H P D S 6 ' F D U G F D Q Q R W E H S O D \ H G
QTRANSFERRING IMAGES
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectGeneral (General).
4.SelectCustomize Screen Off Image (Customize
Screen Off Image).
5.Select the device that the image is stored on.
6.SelectCopy from [device] (Copy from [device]).
7.Select the desired images from the list and then select
Copy (Copy).
”
The selected image is displayed on the right side
R I W K H V F U H H Q , I W K H V H O H F W H G L P D J H
Page 199 of 308
197
NAVIGATION SYSTEM
(WITH NAVIGATION FUNCTION)
8
8
Page 201 of 308
BASIC OPERATION
199
NAVIGATION SYSTEM
8
No. NameInformation/Function Page
*Highway
information Select to display the
highway information.
224
Speed Limit
indicatorDisplays the speed limit for
the road being driven on.
-
*: The default setting is not displayed, and can be displayed from “Disp\
lay
R Q 0 D S ' L V S O D \ R Q 0 D S
Page 203 of 308
BASIC OPERATION
201
NAVIGATION SYSTEM
8
NAVIGATION MENU
When you select Menu (Menu) on the navigation screen,
the navigation menu (main menu) appears. You can access
all of the software’s functions from this menu.
No. Function
Select to start navigation on the map. The button itself
shows the current position, recommended route, and
reduces the surrounding area to display on the map
being used. Select to enlarge the map to full-screen
size.
No.Function
Select to search for a destination. You can select which
method to use to reach your destination by entering the
address, selecting a favorite spot, selecting a position
on the map, or selecting from the destination list. You
can also select recent destinations from Smart History,
or enter coordinates into the system.
Select to perform various route related functions such
as editing or canceling the route, setting the route
departure point, selecting a different route, avoiding a
part of the route, performing a navigation simulation, or
adding an entry to the destination list.
Select to set the navigation software operating method,
start the tutorial, show a demo route simulation, or start
various other auxiliary applications.
Select or to adjust the guidance volume.
Select to clear the route and cancel navigation.
6 H O H F W W R R S H Q W K H ³ 7 U D I ¿ F 6 X P P D U \ 7 U D I ¿ F 6 X P P D U \ ´
screen.
NOTE
OGuidance volume can be adjusted during guidance by turning
the “POWER/VOLUME” knob, or by using the volume control
switch on the steering wheel.
Page 205 of 308
BASIC OPERATION
203
NAVIGATION SYSTEM
8
MAP SCREEN OPERATION
CURRENT POSITION DISPLAY
1.Select, or select and then select MAP
(MAP).
2.Check that the current position map is displayed.
NOTE
O : K L O H G U L Y L Q J W K H F X U U H Q W S R V L W L R Q P D U N L V
Page 207 of 308
BASIC OPERATION
205
NAVIGATION SYSTEM
8
ORIENTATION OF THE MAP
The orientation of the map can be changed between 2D
north-up, 2D heading-up and 3D.
1.Select or .
X North-up screen
XHeading-up screen
X3D screen
”: 2D north-up symbol
Regardless of the direction of vehicle travel, north is
always up.
”
: 2D heading-up and 3D symbol
The direction of vehicle travel is always up.
” The letter(s) indicate the vehicle’s heading direction
(e.g. N for north).
Page 209 of 308
DESTINATION SEARCH
207
NAVIGATION SYSTEM
8
DESTINATION SEARCH
DESTINATION SEARCH SCREEN
The “Destination (Destination)” screen enables to search
for a destination. To display the “Destination (Destination)”
screen, select
, or select and then select
MAP (MAP), and select Menu (Menu) on the “MAP
(MAP)” screen. Then select
Destination (Destination) on
the navigation menu screen.
No. Function Page
Select to search for a destination by address. 209
Select to search for a destination by point of
interest. 212
Select to search for a destination by the map. 216
Select to search for a destination from
destination list.216
Select to search for a destination from
frequently used destination.217
Select to search for a destination from
previously set destinations.217
Select to search for a destination by
coordinates.217
Select to set a destination by home.
209
Page 211 of 308
DESTINATION SEARCH
209
NAVIGATION SYSTEM
8

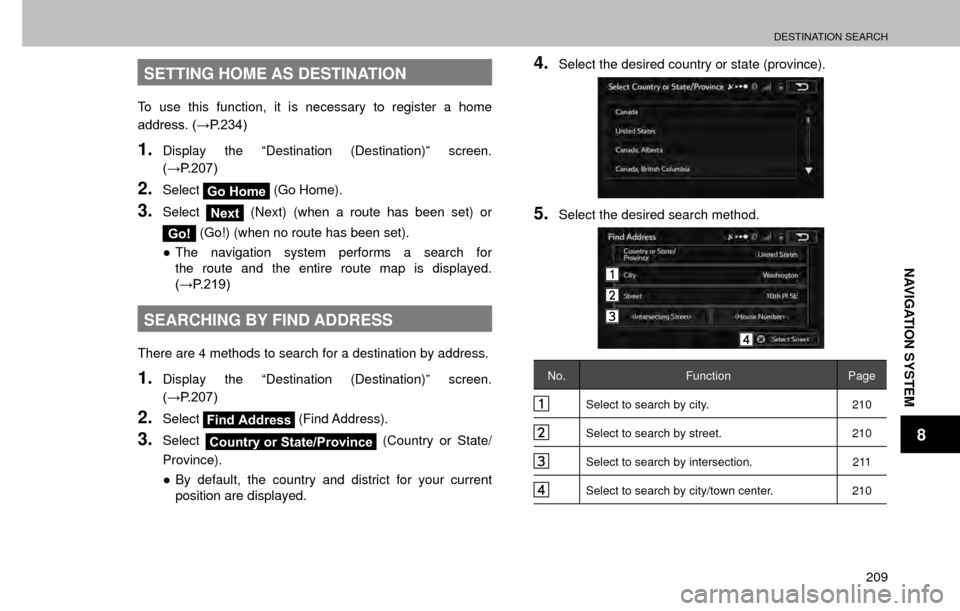

SETTING HOME AS DESTINATION
To use this function, it is necessary to register a home
D G G U H V V : 3
1.Display the “Destination (Destination)” screen.
: 3
2.SelectGo Home (Go Home).
3.SelectNext (Next) (when a route has been set) or
Go! (Go!) (when no route has been set).
” The navigation system performs a search for
the route and the entire route map is displayed.
: 3
SEARCHING BY FIND ADDRESS
There are 4 methods to search for a destination by address.
1.Display the “Destination (Destination)” screen.
: 3
2.SelectFind Address (Find Address).
3.SelectCountry or State/Province (Country or State/
Province).
” By default, the country and district for your current
position are displayed.
4.Select the desired country or state (province).
5.Select the desired search method.
No. Function Page
Select to search by city. 210
Select to search by street.210
Select to search by intersection. 211
Select to search by city/town center.210
Page 213 of 308
DESTINATION SEARCH
211
NAVIGATION SYSTEM
8
SEARCHING BY INTERSECTION
1.SelectIntersecting Street (Intersecting Street).
2.Select from the list.
”
If there are only a few roads at the intersection, the
list is displayed immediately.
” If the road is a long way off, the keyboard screen is
displayed. Use the keyboard to enter the start of the
intersection name. A list is automatically displayed
when the entered road name matches and can be
displayed on one screen.
” Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
HINTS FOR QUICK ADDRESS ENTRY
”When entering a city/town name or a street name:
‡ Only characters that can be displayed in the
search results are shown on the keyboard. Other
characters are grayed out.
‡ While entering text, the most likely search result is
D O Z D \ V G L V S O D \ H G L Q W K H W H [ W H Q W U \
Page 215 of 308
DESTINATION SEARCH
213
NAVIGATION SYSTEM
8

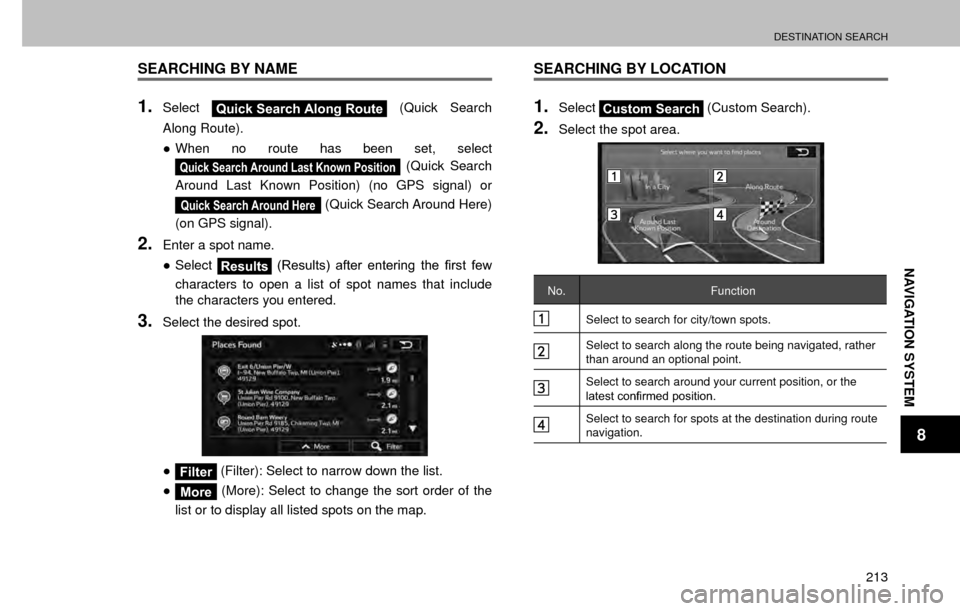

SEARCHING BY NAME
1.SelectQuick Search Along Route (Quick Search
Along Route).
” When no route has been set, select
Quick Search Around Last Known Position (Quick Search
Around Last Known Position) (no GPS signal) or
Quick Search Around Here (Quick Search Around Here)
(on GPS signal).
2.Enter a spot name.
” Select
Results 5 H V X O W V D I W H U H Q W H U L Q J W K H
