SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual

BASIC OPERATION

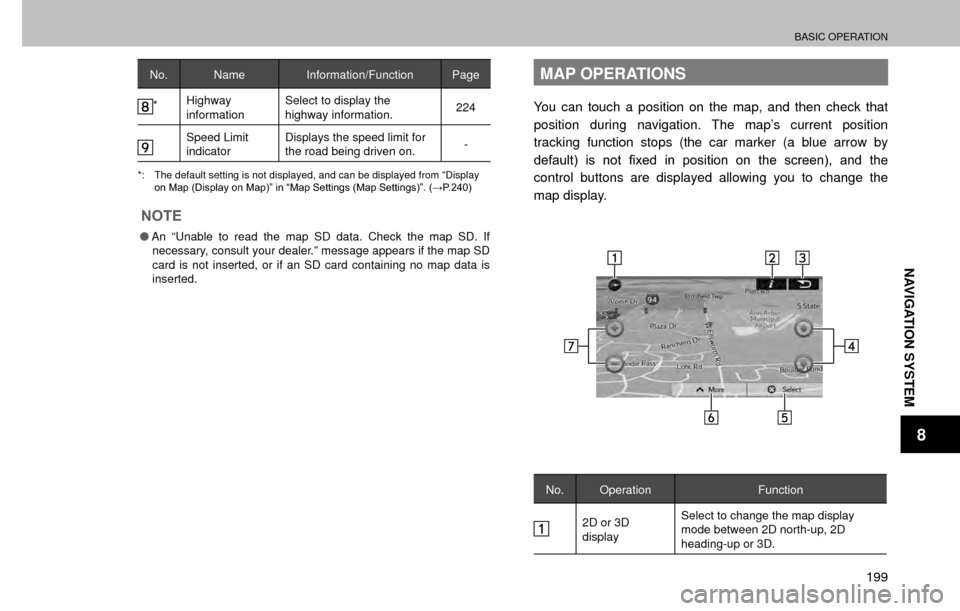

199
NAVIGATION SYSTEM
8
No. NameInformation/Function Page
*Highway
information Select to display the
highway information.
224
Speed Limit
indicatorDisplays the speed limit for
the road being driven on.
-
*: The default setting is not displayed, and can be displayed from “Disp\
lay
RQ0DS'LVSOD\RQ0DS

BASIC OPERATION

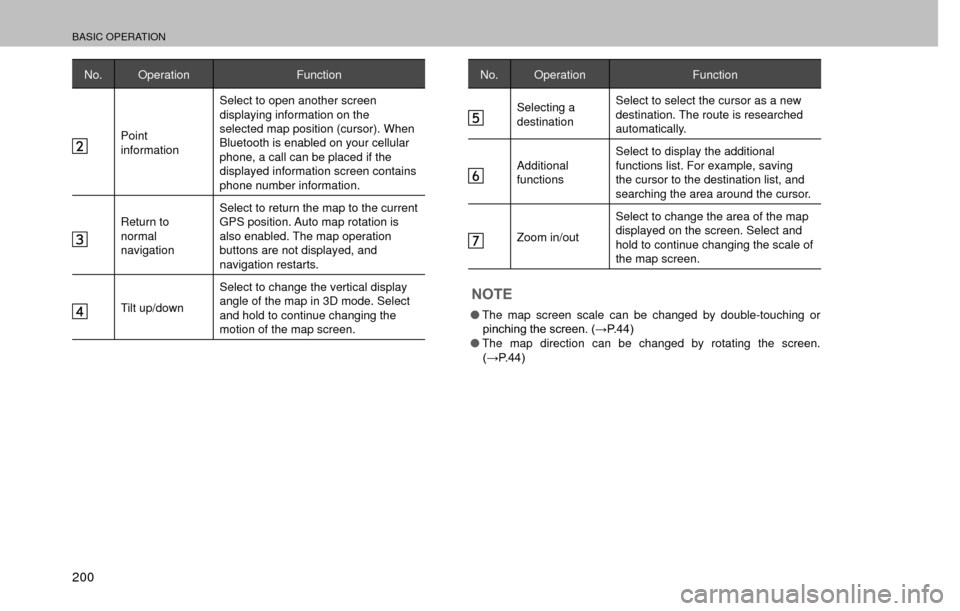

200
No. OperationFunction
Point
informationSelect to open another screen
displaying information on the
selected map position (cursor). When
Bluetooth is enabled on your cellular
phone, a call can be placed if the
displayed information screen contains
phone number information.
Return to
normal
navigation
Select to return the map to the current
GPS position. Auto map rotation is
also enabled. The map operation
buttons are not displayed, and
navigation restarts.
Tilt up/down
Select to change the vertical display
angle of the map in 3D mode. Select
and hold to continue changing the
motion of the map screen.
No. Operation
Function
Selecting a
destinationSelect to select the cursor as a new
destination. The route is researched
automatically.
Additional
functionsSelect to display the additional
functions list. For example, saving
the cursor to the destination list, and
searching the area around the cursor.
Zoom in/out
Select to change the area of the map
displayed on the screen. Select and
hold to continue changing the scale of
the map screen.
NOTE
O
The map screen scale can be changed by double-touching or
SLQFKLQJWKHVFUHHQ
:3
O The map direction can be changed by rotating the screen.

:3

BASIC OPERATION
201
NAVIGATION SYSTEM
8

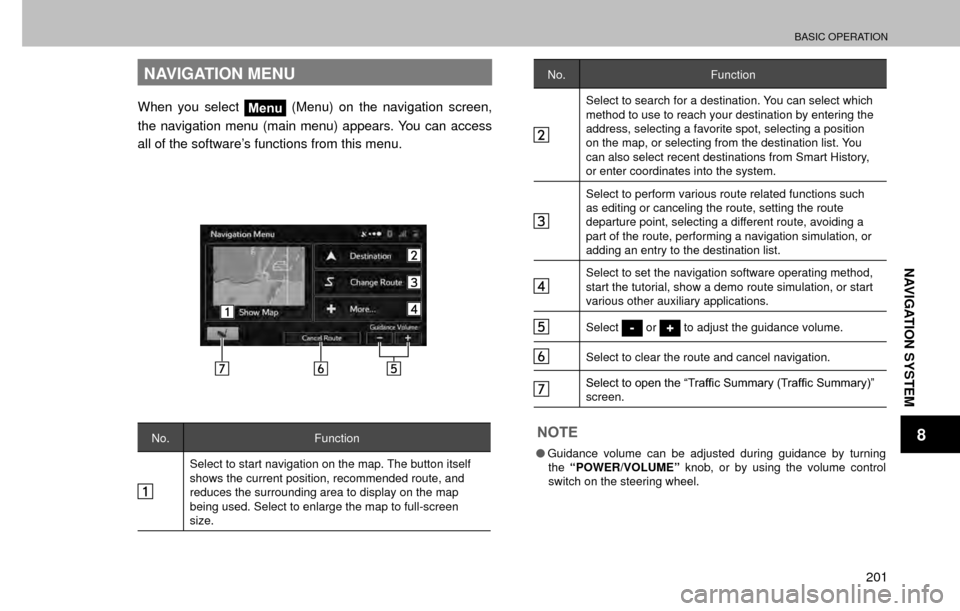

NAVIGATION MENU
When you select Menu (Menu) on the navigation screen,
the navigation menu (main menu) appears. You can access
all of the software’s functions from this menu.
No. Function
Select to start navigation on the map. The button itself
shows the current position, recommended route, and
reduces the surrounding area to display on the map
being used. Select to enlarge the map to full-screen
size.
No.Function
Select to search for a destination. You can select which
method to use to reach your destination by entering the
address, selecting a favorite spot, selecting a position
on the map, or selecting from the destination list. You
can also select recent destinations from Smart History,
or enter coordinates into the system.
Select to perform various route related functions such
as editing or canceling the route, setting the route
departure point, selecting a different route, avoiding a
part of the route, performing a navigation simulation, or
adding an entry to the destination list.
Select to set the navigation software operating method,
start the tutorial, show a demo route simulation, or start
various other auxiliary applications.
Select or to adjust the guidance volume.
Select to clear the route and cancel navigation.
6HOHFWWRRSHQWKH³7UDI¿F6XPPDU\7UDI¿F6XPPDU\´
screen.
NOTE
OGuidance volume can be adjusted during guidance by turning
the “POWER/VOLUME” knob, or by using the volume control
switch on the steering wheel.

BASIC OPERATION
202

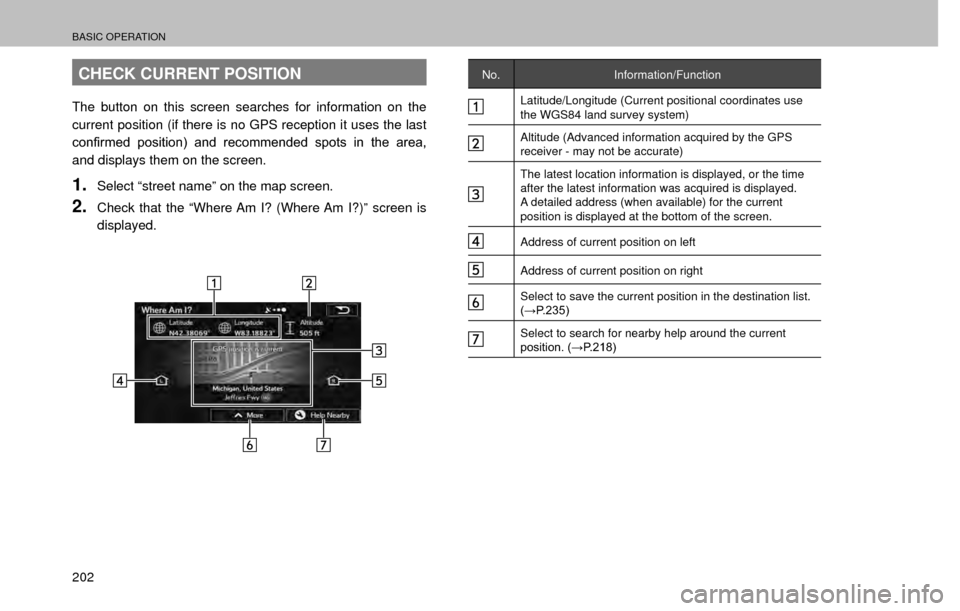

CHECK CURRENT POSITION
The button on this screen searches for information on the
current position (if there is no GPS reception it uses the last
FRQ

BASIC OPERATION
203
NAVIGATION SYSTEM
8

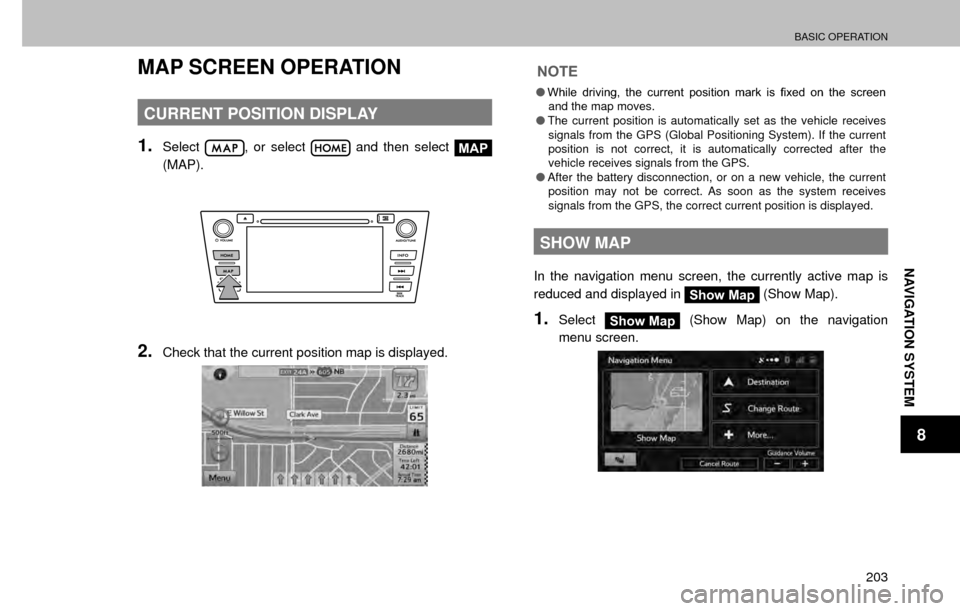

MAP SCREEN OPERATION
CURRENT POSITION DISPLAY
1.Select, or select and then select MAP
(MAP).
2.Check that the current position map is displayed.
NOTE
O :KLOH GULYLQJ WKH FXUUHQW SRVLWLRQ PDUN LV

BASIC OPERATION
204

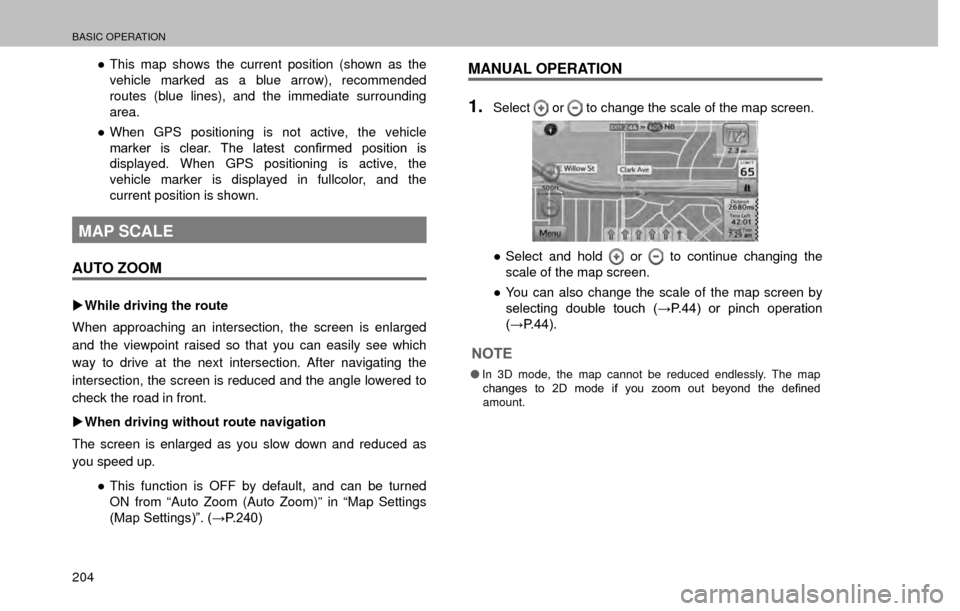

”This map shows the current position (shown as the
vehicle marked as a blue arrow), recommended
routes (blue lines), and the immediate surrounding
area.

” When GPS positioning is not active, the vehicle
PDUNHU LV FOHDU 7KH ODWHVW FRQ

BASIC OPERATION
205
NAVIGATION SYSTEM
8

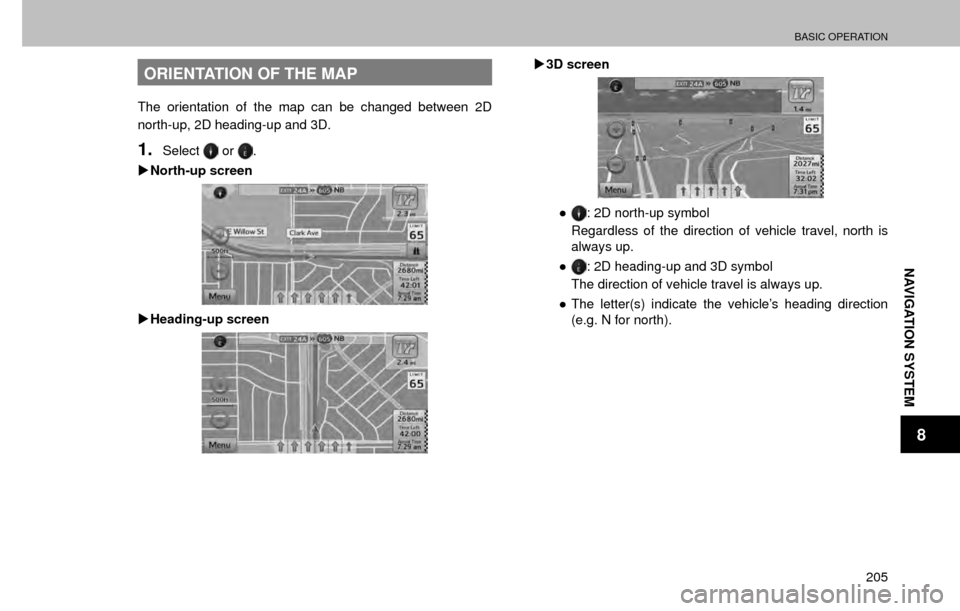

ORIENTATION OF THE MAP
The orientation of the map can be changed between 2D
north-up, 2D heading-up and 3D.
1.Select or .
X North-up screen
XHeading-up screen
X3D screen

”: 2D north-up symbol
Regardless of the direction of vehicle travel, north is
always up.

”
: 2D heading-up and 3D symbol
The direction of vehicle travel is always up.

” The letter(s) indicate the vehicle’s heading direction
(e.g. N for north).

BASIC OPERATION
206

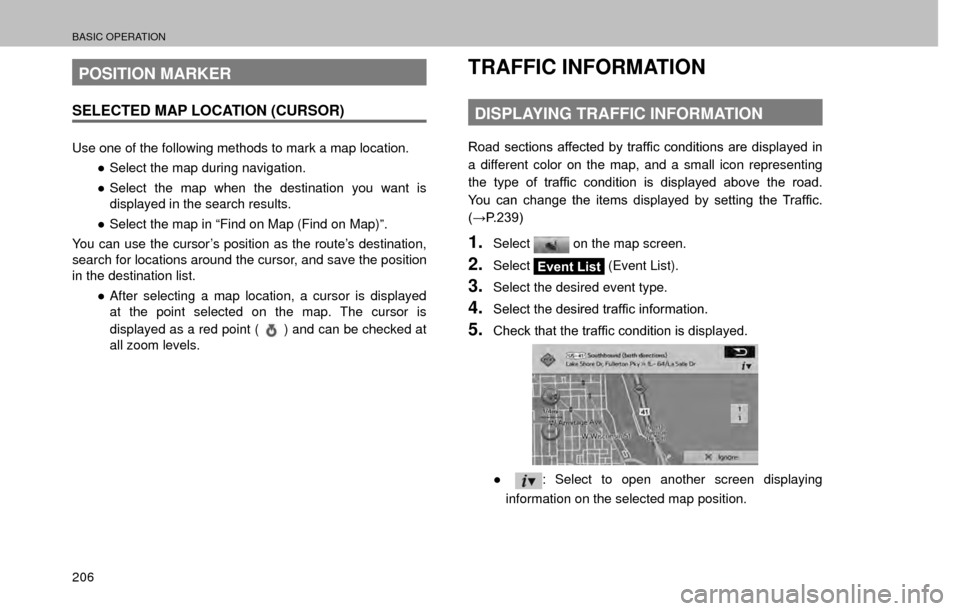

POSITION MARKER
SELECTED MAP LOCATION (CURSOR)
Use one of the following methods to mark a map location.
”Select the map during navigation.

” Select the map when the destination you want is
displayed in the search results.

” Select the map in “Find on Map (Find on Map)”.
You can use the cursor’s position as the route’s destination,
search for locations around the cursor, and save the position
in the destination list.
”After selecting a map location, a cursor is displayed
at the point selected on the map. The cursor is
displayed as a red point (
) and can be checked at
all zoom levels.
TRAFFIC INFORMATION
DISPLAYING TRAFFIC INFORMATION
5RDG VHFWLRQV DIIHFWHG E\ WUDI

DESTINATION SEARCH
207
NAVIGATION SYSTEM
8

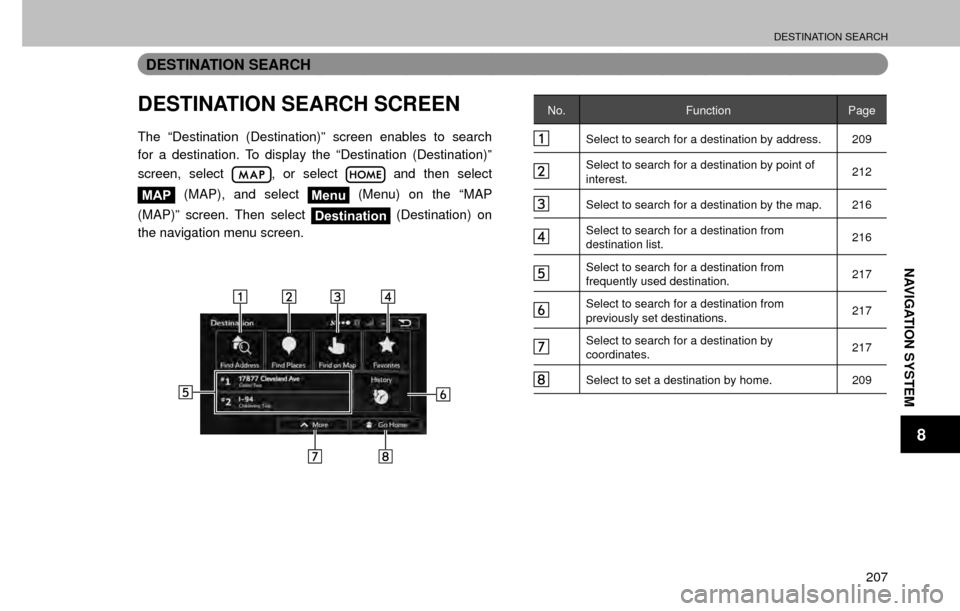

DESTINATION SEARCH
DESTINATION SEARCH SCREEN
The “Destination (Destination)” screen enables to search
for a destination. To display the “Destination (Destination)”
screen, select
, or select and then select
MAP (MAP), and select Menu (Menu) on the “MAP
(MAP)” screen. Then select
Destination (Destination) on
the navigation menu screen.
No. Function Page
Select to search for a destination by address. 209
Select to search for a destination by point of
interest. 212
Select to search for a destination by the map. 216
Select to search for a destination from
destination list.216
Select to search for a destination from
frequently used destination.217
Select to search for a destination from
previously set destinations.217
Select to search for a destination by
coordinates.217
Select to set a destination by home.
209

DESTINATION SEARCH
208

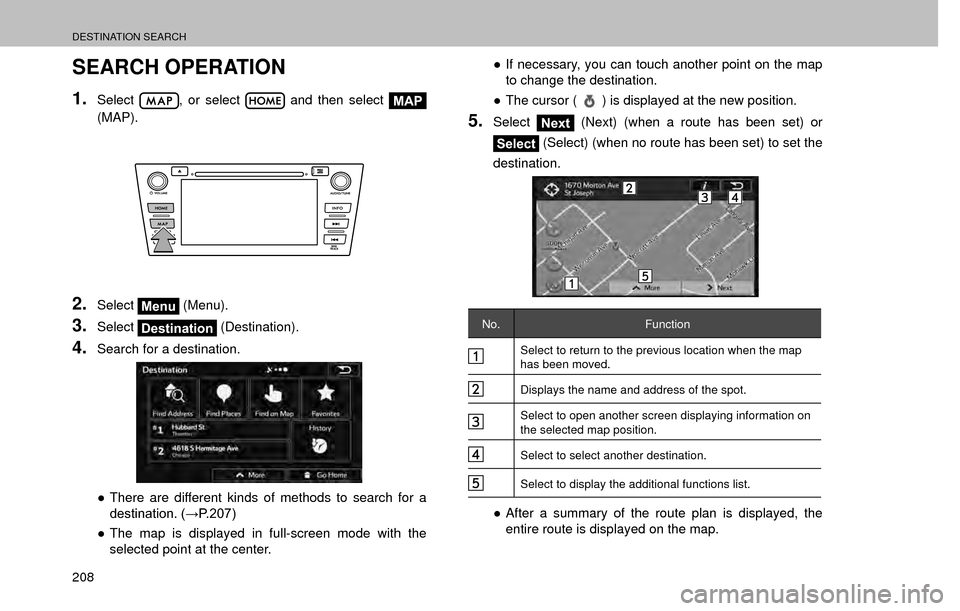

SEARCH OPERATION
1.Select, or select and then select MAP
(MAP).
2.SelectMenu (Menu).
3.SelectDestination (Destination).
4.Search for a destination.

”
There are different kinds of methods to search for a
GHVWLQDWLRQ
:3

” The map is displayed in full-screen mode with the
selected point at the center.
”
If necessary, you can touch another point on the map
to change the destination.

” The cursor (
) is displayed at the new position.
5.SelectNext (Next) (when a route has been set) or
Select (Select) (when no route has been set) to set the
destination.
No. Function
Select to return to the previous location when the map
has been moved.
Displays the name and address of the spot.
Select to open another screen displaying information on
the selected map position.
Select to select another destination.
Select to display the additional functions list.

”After a summary of the route plan is displayed, the
entire route is displayed on the map.
