SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual

Bluetooth® SETTINGS
189
SETTINGS
7

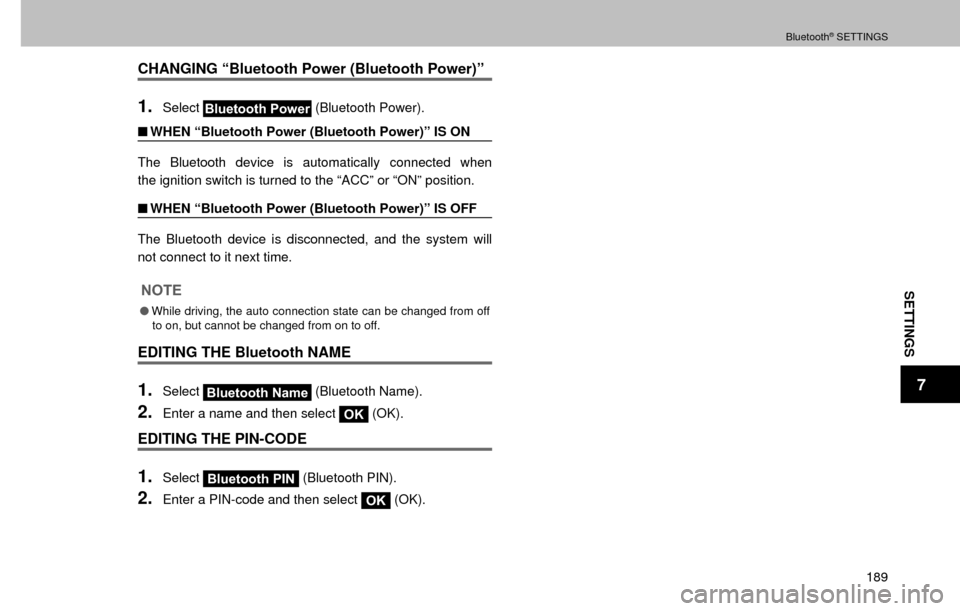

CHANGING “Bluetooth Power (Bluetooth Power)”
1.SelectBluetooth Power (Bluetooth Power).
Q WHEN “Bluetooth Power (Bluetooth Power)” IS ON
The Bluetooth device is automatically connected when
the ignition switch is turned to the “ACC” or “ON” position.\
Q WHEN “Bluetooth Power (Bluetooth Power)” IS OFF
The Bluetooth device is disconnected, and the system will
not connect to it next time.
NOTE
O While driving, the auto connection state can be changed from off
to on, but cannot be changed from on to off.
EDITING THE Bluetooth NAME
1.SelectBluetooth Name (Bluetooth Name).
2.Enter a name and then select OK (OK).
EDITING THE PIN-CODE
1.SelectBluetooth PIN (Bluetooth PIN).
2.Enter a PIN-code and then select OK (OK).

OTHER SETTINGS
190
OTHER SETTINGS
GENERAL SETTINGS
Settings are available for keyboard layout, operation
sounds, etc.
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectGeneral (General).
4.Select the items to be set.
GENERAL SETTINGS SCREEN

OTHER SETTINGS
191
SETTINGS
7
No.Function
*16HOHFWWRFKDQJHWKHYHKLFOHFORFNVHWWLQJV
:3
Select to change the language.
Select to change the unit for measuring distance.
Select to turn the beep sound on/off.
Select to change the button and screen color.
Select to change the keyboard layout.
Select to turn on/off the setting that returns the display
to the split screen automatically after 20 seconds when
a screen other than the split screen is displayed.
Select to turn the animation function on/off.
6HOHFWWRFXVWRPL]HWKHVFUHHQRIILPDJH
:3
6HOHFWWRGHOHWHSHUVRQDOGDWD
:3
Select to set the connected device when using aha.
Select
USB (USB) when using an iPhone, and then
select
Bluetooth (Bluetooth) when using Android
devices.
No. Function
Select to set the connected device when using
Pandora*2. Select USB (USB) when using an iPhone,
and then select
Bluetooth (Bluetooth) when using
Android devices.
Select to update the Gracenote® database. For details,
contact your SUBARU dealer.
Select to display the software information. Notices
related to third party software used in this product are
enlisted. (This includes instructions for obtaining such
software, where applicable.)
Select to set the back camera delay control on/off.
When set to on, the back camera image displays for
approximately 6 seconds after moving the shift lever/
select lever “R” to any position other than “R”.
The display disappears when the shift lever/select lever
is moved to “P”, or when the vehicle speed reaches
approximately 5 mph (8 km/h) or faster.
Select to reset all setup items.
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.

OTHER SETTINGS
192
CLOCK SETTINGS (WITH NAVIGATION
FUNCTION)
Used to set the auto update setting for time zones, daylight
saving time and automatic time adjustment on/off.
1.Display the “General Settings (General Settings)”
VFUHHQ
:3
2.SelectClock (Clock).
3.Select the items to be set.
No.
Function
6HOHFWWRFKDQJHWKHWLPH]RQH
:3
Select to set daylight saving time on/off or to auto.
When set to auto, the daylight saving time setting
automatically turns on or off based on the current
location information.
4.SelectOK (OK).
Q
SETTING THE TIME ZONE
1.SelectTime Zone (Time Zone).
2.Select the desired time zone.
CUSTOMIZING THE SCREEN OFF IMAGES
When the screen is turned off, the desired set image
can be displayed as the screen off image. Images
can be copied from a USB memory or SD card*.
A USB memory or SD card* must be connected when
HGLWLQJVFUHHQRIILPDJHV
:3
*: With navigation function

OTHER SETTINGS
193
SETTINGS
7
NOTE
OWhen saving the images to a USB or SD card* name the folder
that the screen off image is saved to “Image”. If this folder name
is not used, the system cannot download the images. (The folder
name is case sensitive.)
*: With navigation functionO ,PDJH¿OHVVDYHGWRWKHPDS6'FDUGFDQQRWEHSOD\HG
QTRANSFERRING IMAGES
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectGeneral (General).
4.SelectCustomize Screen Off Image (Customize
Screen Off Image).
5.Select the device that the image is stored on.
6.SelectCopy from [device] (Copy from [device]).
7.Select the desired images from the list and then select
Copy (Copy).

”
The selected image is displayed on the right side
RI WKH VFUHHQ ,I WKH VHOHFWHG LPDJH

OTHER SETTINGS
194
QSETTINGS THE SCREEN OFF IMAGES
1.Display the “General Settings (General Settings)”
VFUHHQ
:3
2.SelectCustomize Screen Off Image (Customize
Screen Off Image).
3.Select the device that the image is stored on.
4.SelectSelect Images (Select Images).
5.Select the desired image.
6.SelectOK (OK).
Q
DELETING TRANSFERRED IMAGES
1.Display the “General Settings (General Settings)”
VFUHHQ
:3
2.SelectCustomize Screen Off Image (Customize
Screen Off Image).
3.Select the device that the image is stored on.
4.SelectDelete Images (Delete Images).
5.Select the images to be deleted and then select Delete
(Delete).
6.SelectYes  <HV ZKHQ WKH FRQ

OTHER SETTINGS
195
SETTINGS
7

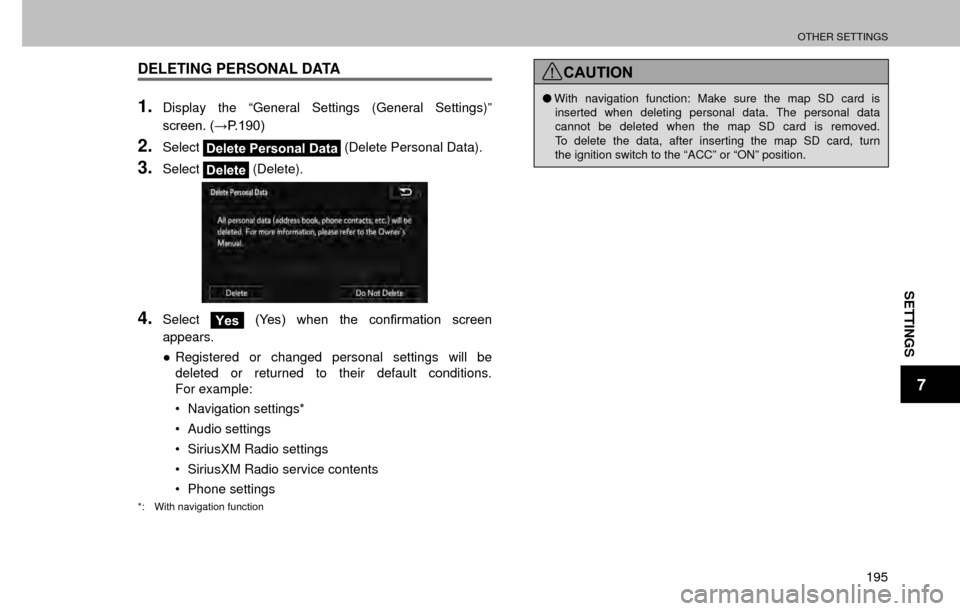

DELETING PERSONAL DATA
1.Display the “General Settings (General Settings)”
VFUHHQ
:3
2.SelectDelete Personal Data (Delete Personal Data).
3.SelectDelete (Delete).
4.SelectYes <HV ZKHQ WKH FRQ

OTHER SETTINGS
196

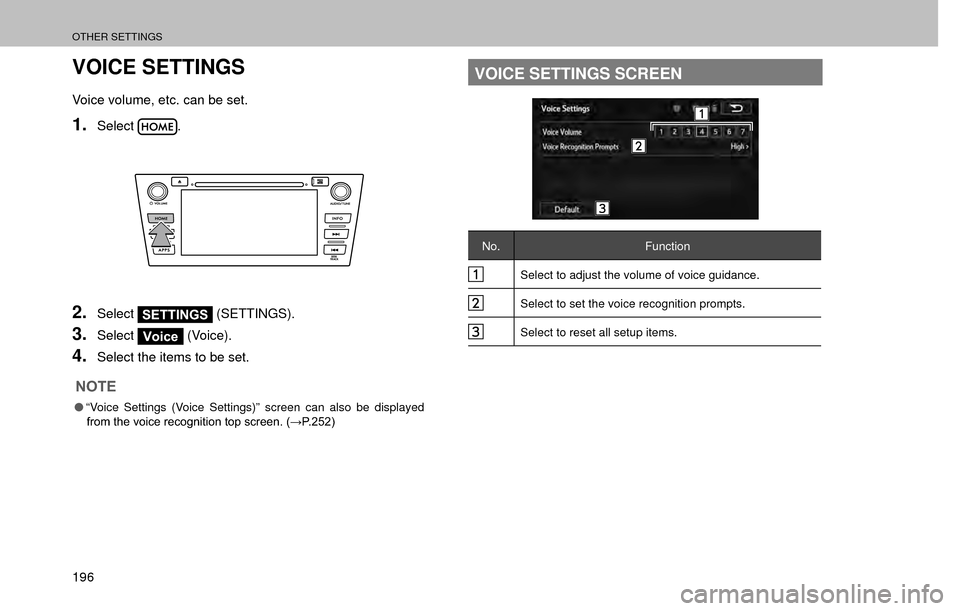

VOICE SETTINGS
Voice volume, etc. can be set.
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectVoice (Voice).
4.Select the items to be set.
NOTE
O
“Voice Settings (Voice Settings)” screen can also be displayed
IURPWKHYRLFHUHFRJQLWLRQWRSVFUHHQ
:3
VOICE SETTINGS SCREEN
No. Function
Select to adjust the volume of voice guidance.
Select to set the voice recognition prompts.
Select to reset all setup items.

197

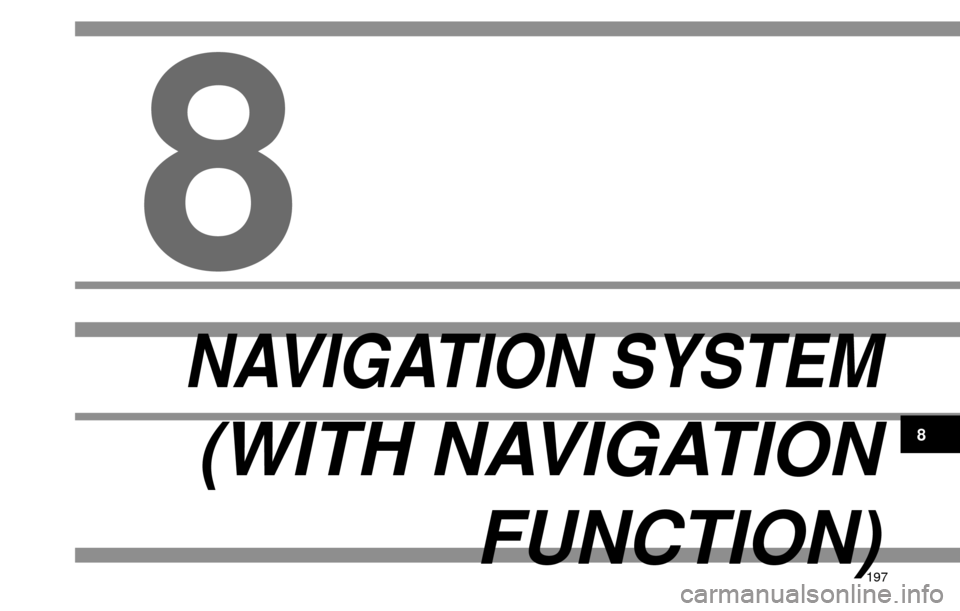

NAVIGATION SYSTEM
(WITH NAVIGATION FUNCTION)
8
8

BASIC OPERATION
198
BASIC OPERATION

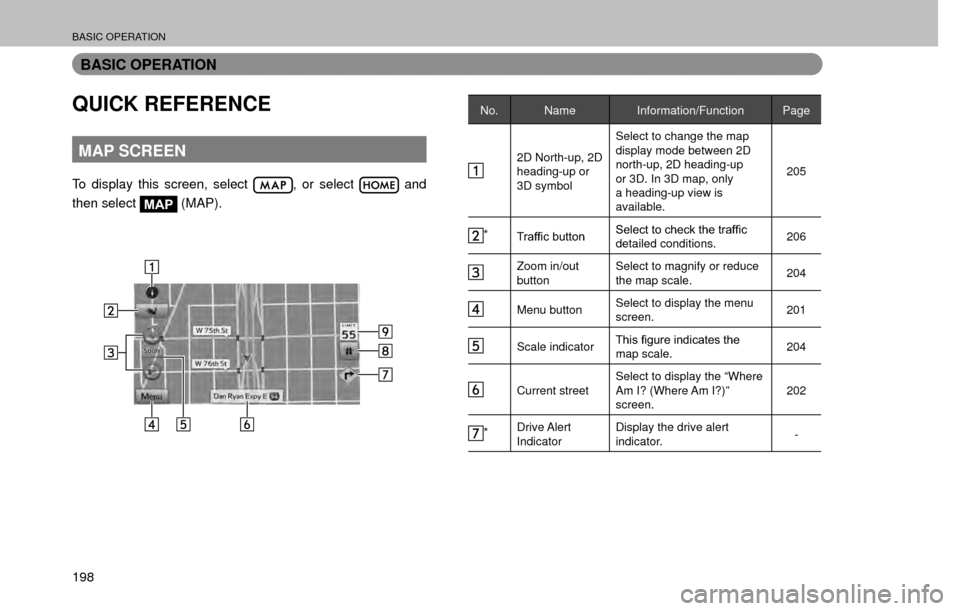

QUICK REFERENCE
MAP SCREEN
To display this screen, select , or select and
then select
MAP (MAP).
No. Name
Information/Function Page
2D North-up, 2D
heading-up or
3D symbolSelect to change the map
display mode between 2D
north-up, 2D heading-up
or 3D. In 3D map, only
a heading-up view is
available.
205
*
7UDI
