SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual

BASIC INFORMATION BEFORE OPERATION
49
BASIC FUNCTION
2
IconFunction
Select to skip to the next or previous page.
Select and hold or to scroll through the
displayed list.
If appears to the right of an item name, the
complete name is too long to display.
Select
to scroll to the end of the name.
Select
to move to the beginning of the name.
SELECTING ALL ITEMS
Some lists contain Select All (Select All). If Select All
(Select All) is selected, it is possible to select all items.
1.SelectSelect All (Select All).

”Unselect All (Unselect All): Unselect all items in the
list.
CHARACTER JUMP BUTTONS IN LISTS
Some lists contain character screen buttons, ABC (ABC),
DEF (DEF) etc., which allow a direct jump to list entries
that begin with the same letter as the character screen
button.
1.Select the desired character jump buttons.
NOTE
O Every time the same character screen button is selected, the list
starting with the subsequent character is displayed.

BASIC INFORMATION BEFORE OPERATION
50

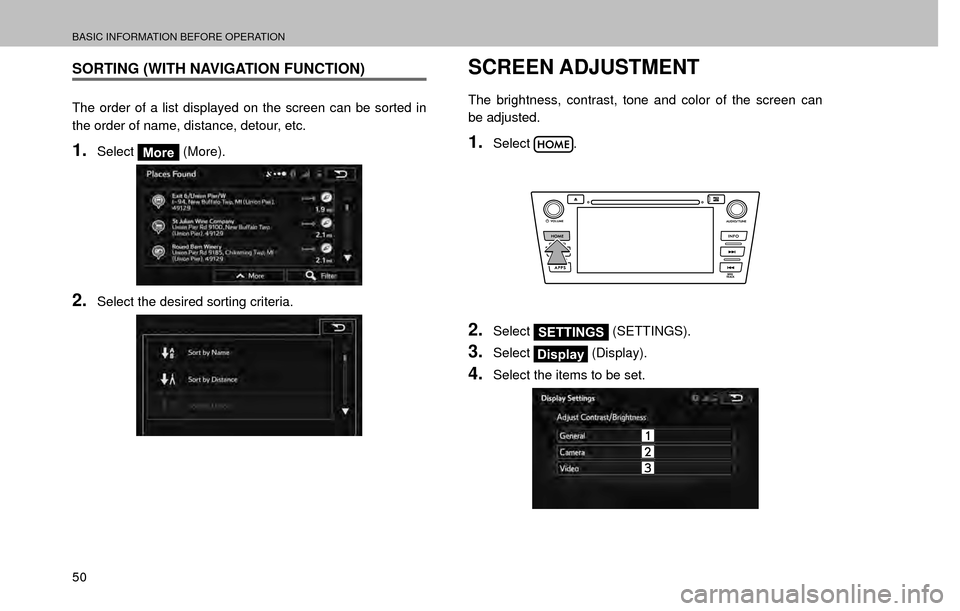

SORTING (WITH NAVIGATION FUNCTION)
The order of a list displayed on the screen can be sorted in
the order of name, distance, detour, etc.
1.SelectMore (More).
2.Select the desired sorting criteria.
SCREEN ADJUSTMENT
The brightness, contrast, tone and color of the screen can
be adjusted.
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectDisplay (Display).
4.Select the items to be set.

BASIC INFORMATION BEFORE OPERATION

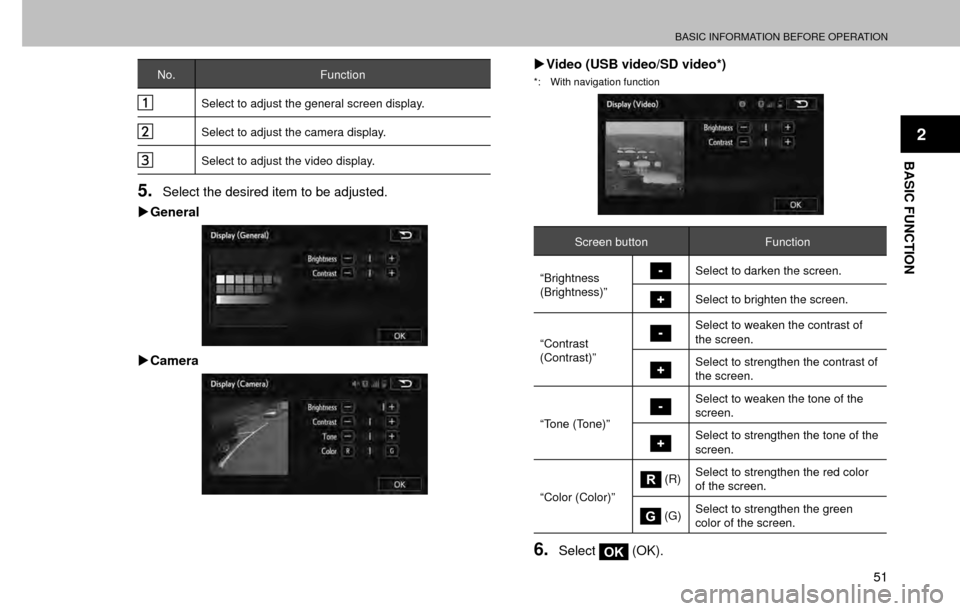

51
BASIC FUNCTION
2
No.Function
Select to adjust the general screen display.
Select to adjust the camera display.
Select to adjust the video display.
5.Select the desired item to be adjusted.
X General
XCamera
XVideo (USB video/SD video*)
*: With navigation function
Screen button Function
“Brightness
(Brightness)”
Select to darken the screen.
Select to brighten the screen.
“Contrast
(Contrast)”
Select to weaken the contrast of
the screen.
Select to strengthen the contrast of
the screen.
“Tone (Tone)”
Select to weaken the tone of the
screen.
Select to strengthen the tone of the
screen.
“Color (Color)”
R (R) Select to strengthen the red color
of the screen.
G (G) Select to strengthen the green
color of the screen.
6.SelectOK
(OK).

BASIC INFORMATION BEFORE OPERATION
52

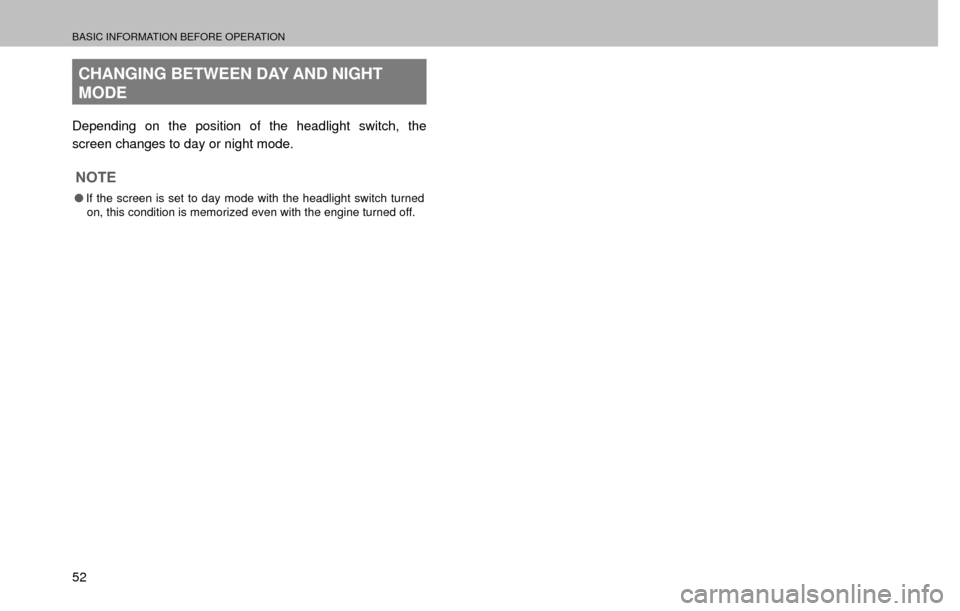

CHANGING BETWEEN DAY AND NIGHT
MODE
Depending on the position of the headlight switch, the
screen changes to day or night mode.
NOTE
OIf the screen is set to day mode with the headlight switch turned
on, this condition is memorized even with the engine turned off.

53

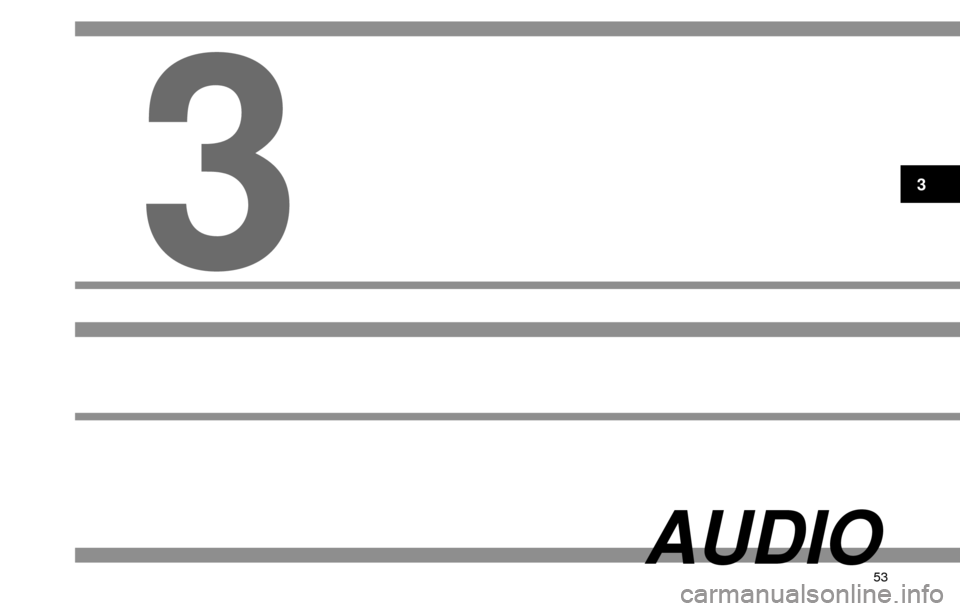

AUDIO
3
3

BASIC OPERATION
54
BASIC OPERATION
SOME BASICS
This section describes some of the basic features of the
audio/visual system. Some information may not pertain to
your system.
Your audio/visual system works when the ignition switch is
turned to the “ACC” or “ON” position.
CAUTION
OTo prevent the battery from being discharged, do not leave
the audio/visual system on longer than necessary when the
engine is not running.
TURNING THE SYSTEM ON AND OFF
“POWER/VOLUME” knob: Press to turn the audio/visual
system on and off. The system turns on in the last mode
used. Turn this knob to adjust the volume.
“AUDIO/TUNE” knob: Press to display screen buttons for
the audio/visual system.

”A function that enables automatic return to the split
screen from the audio/visual screen can be selected.

:3

BASIC OPERATION
55
AUDIO
3

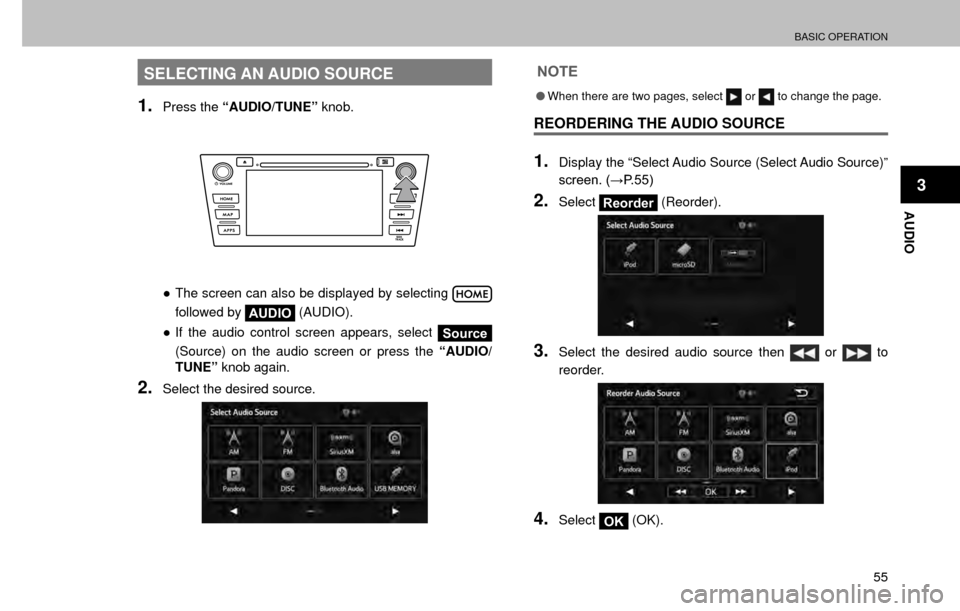

SELECTING AN AUDIO SOURCE
1.Press the “AUDIO/TUNE” knob.

”The screen can also be displayed by selecting
followed by AUDIO (AUDIO).

” If the audio control screen appears, select
Source
(Source) on the audio screen or press the “AUDIO/
TUNE” knob again.
2.Select the desired source.
NOTE
OWhen there are two pages, select or to change the page.
REORDERING THE AUDIO SOURCE
1.Display the “Select Audio Source (Select Audio Source)”
VFUHHQ
:3
2.SelectReorder (Reorder).
3.Select the desired audio source then or to
reorder.
4.SelectOK (OK).

BASIC OPERATION
56

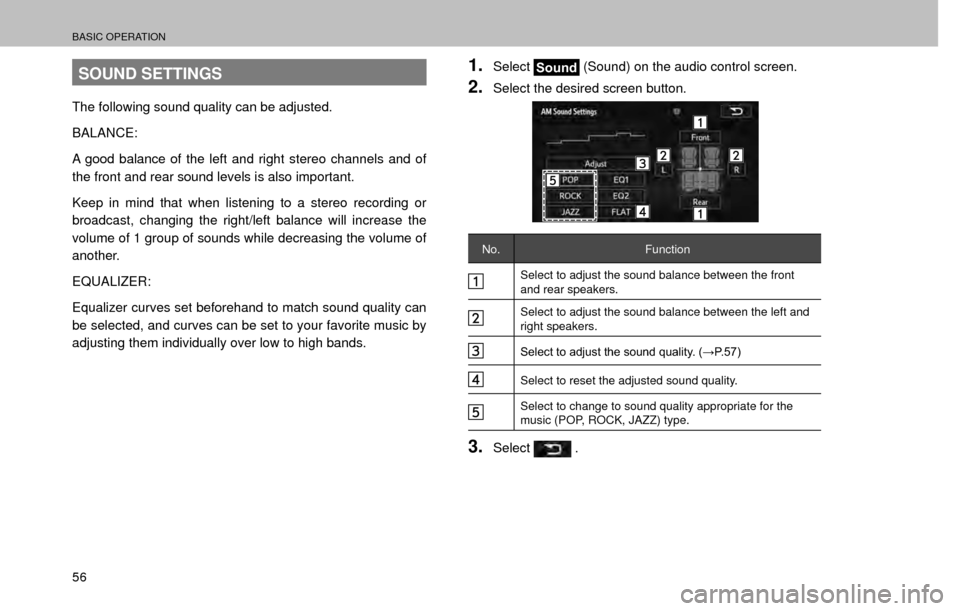

SOUND SETTINGS
The following sound quality can be adjusted.
BALANCE:
A good balance of the left and right stereo channels and of
the front and rear sound levels is also important.
Keep in mind that when listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of 1 group of sounds while decreasing the volume of
another.
EQUALIZER:
Equalizer curves set beforehand to match sound quality can
be selected, and curves can be set to your favorite music by
adjusting them individually over low to high bands.
1.SelectSound (Sound) on the audio control screen.
2.Select the desired screen button.
No.
Function
Select to adjust the sound balance between the front
and rear speakers.
Select to adjust the sound balance between the left and
right speakers.
6HOHFWWRDGMXVWWKHVRXQGTXDOLW\
:3
Select to reset the adjusted sound quality.
Select to change to sound quality appropriate for the
music (POP, ROCK, JAZZ) type.
3.Select .

BASIC OPERATION
57
AUDIO
3

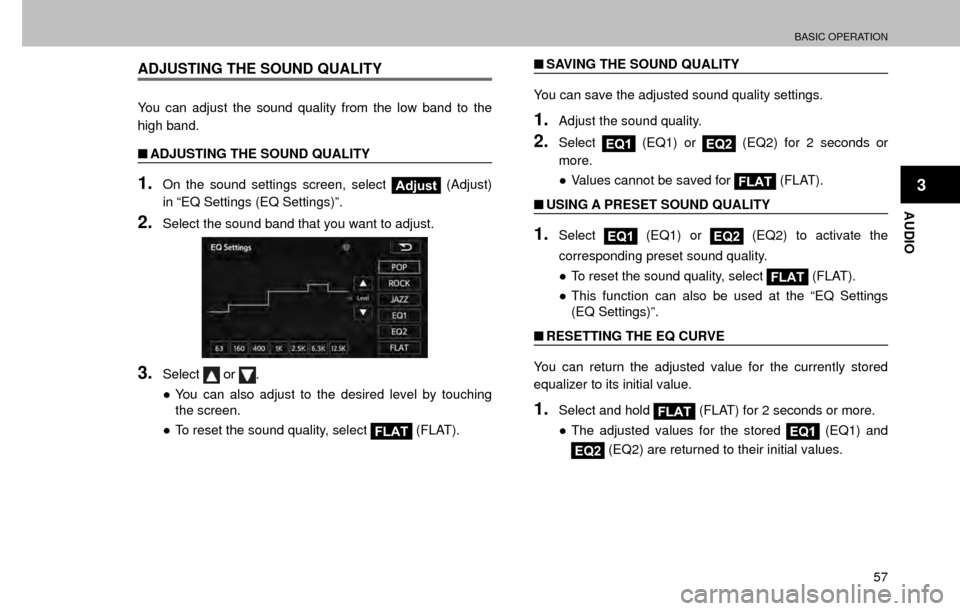

ADJUSTING THE SOUND QUALITY
You can adjust the sound quality from the low band to the
high band.
QADJUSTING THE SOUND QUALITY
1.On the sound settings screen, select Adjust (Adjust)
in “EQ Settings (EQ Settings)”.
2.Select the sound band that you want to adjust.
3.Select or .

” You can also adjust to the desired level by touching
the screen.

” To reset the sound quality, select
FLAT (FLAT).
Q
SAVING THE SOUND QUALITY
You can save the adjusted sound quality settings.
1.Adjust the sound quality.
2.SelectEQ1 (EQ1) or EQ2 (EQ2) for 2 seconds or
more.

” Values cannot be saved for
FLAT (FLAT).
Q USING A PRESET SOUND QUALITY
1.SelectEQ1 (EQ1) or EQ2 (EQ2) to activate the
corresponding preset sound quality.

” To reset the sound quality, select
FLAT (FLAT).

” This function can also be used at the “EQ Settings
(EQ Settings)”.
Q RESETTING THE EQ CURVE
You can return the adjusted value for the currently stored
equalizer to its initial value.
1.Select and hold FLAT (FLAT) for 2 seconds or more.

” The adjusted values for the stored
EQ1 (EQ1) and
EQ2 (EQ2) are returned to their initial values.

BASIC OPERATION
58

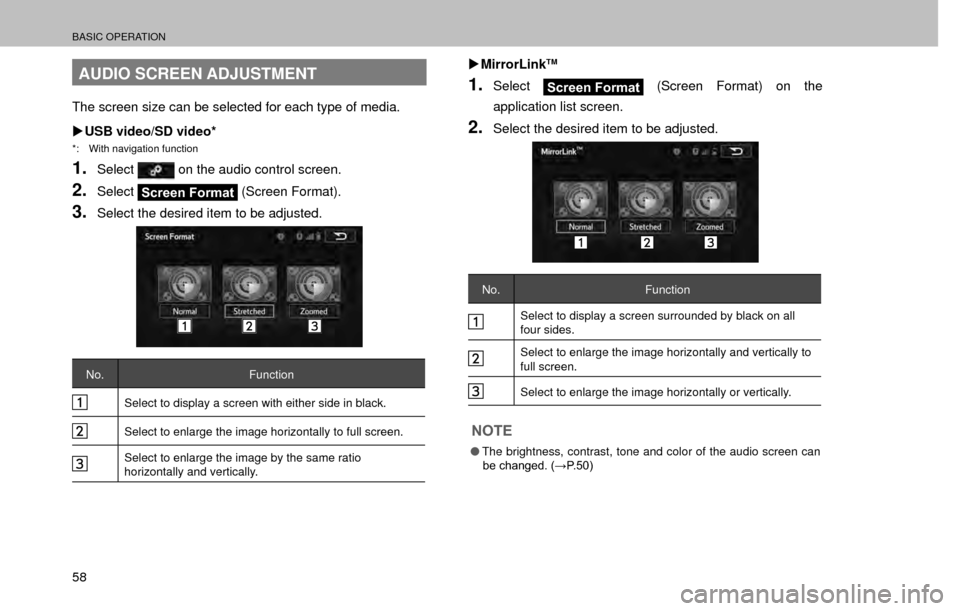

AUDIO SCREEN ADJUSTMENT
The screen size can be selected for each type of media.
XUSB video/SD video*
*: With navigation function
1.Select on the audio control screen.
2.SelectScreen Format (Screen Format).
3.Select the desired item to be adjusted.
No.
Function
Select to display a screen with either side in black.
Select to enlarge the image horizontally to full screen.
Select to enlarge the image by the same ratio
horizontally and vertically.
XMirrorLinkTM
1.SelectScreen Format (Screen Format) on the
application list screen.
2.Select the desired item to be adjusted.
No. Function
Select to display a screen surrounded by black on all
four sides.
Select to enlarge the image horizontally and vertically to
full screen.
Select to enlarge the image horizontally or vertically.
NOTE
OThe brightness, contrast, tone and color of the audio screen can
EHFKDQJHG
:3
