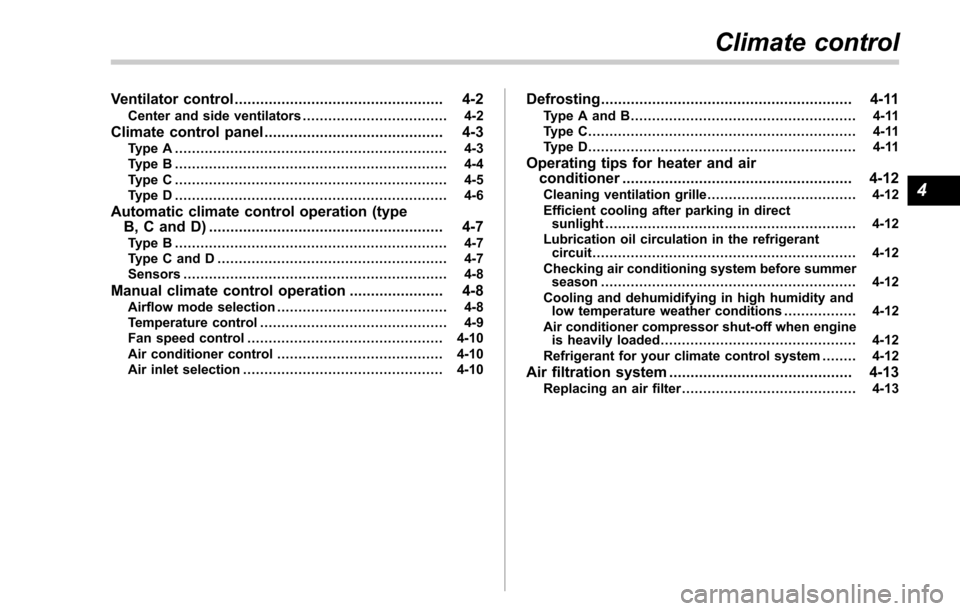

SUBARU FORESTER 2017 SJ / 4.G Owners Manual Ventilator control................................................. 4-2Center and side ventilators .................................. 4-2
Climate control panel.........................................

Page 273 of 634

SUBARU FORESTER 2017 SJ / 4.G Owners Manual Climate control/Ventilator control

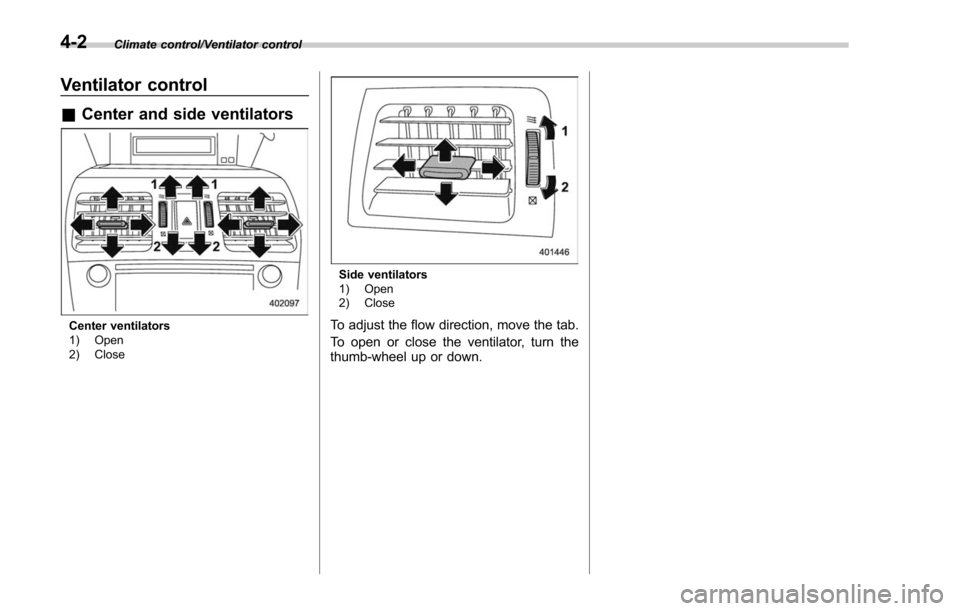

Ventilator control
&Center and side ventilators
Center ventilators
1) Open
2) Close
Side ventilators
1) Open
2) Close
To adjust the flow direction, move the tab.
To

Page 274 of 634

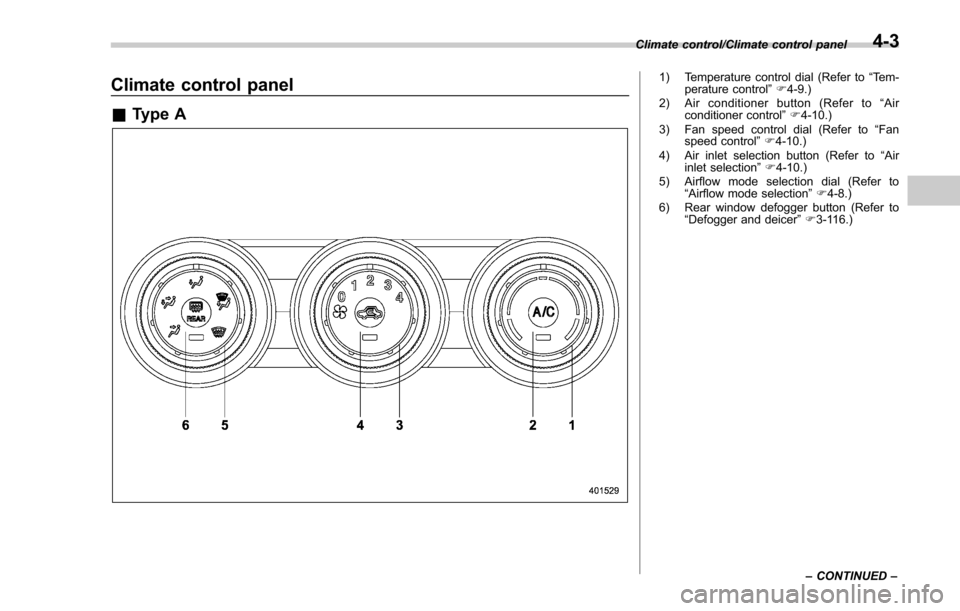

SUBARU FORESTER 2017 SJ / 4.G Owners Manual Climate control panel
&Type A
1) Temperature control dial (Refer to “Tem-
perature control ”F 4-9.)
2) Air conditioner button (Refer to “Air
conditioner control ”F 4-10.)
3) Fan speed control

Page 275 of 634

SUBARU FORESTER 2017 SJ / 4.G Owners Manual Climate control/Climate control panel

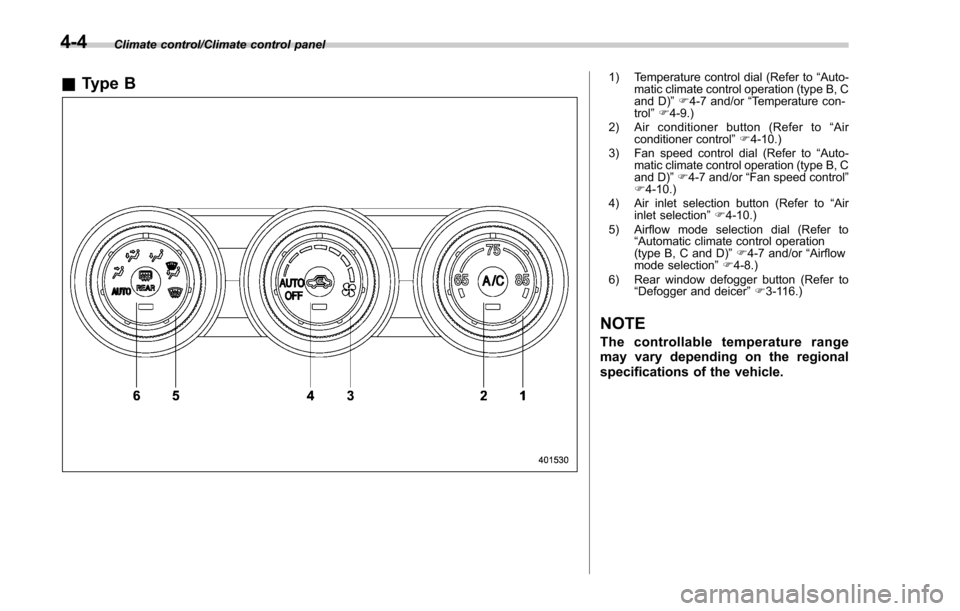

&Type B1) Temperature control dial (Refer to “Auto-
matic climate control operation (type B, C
and D) ”F 4-7 and/or “Temperature con-
trol ”F 4-9.)
2) Air

Page 276 of 634

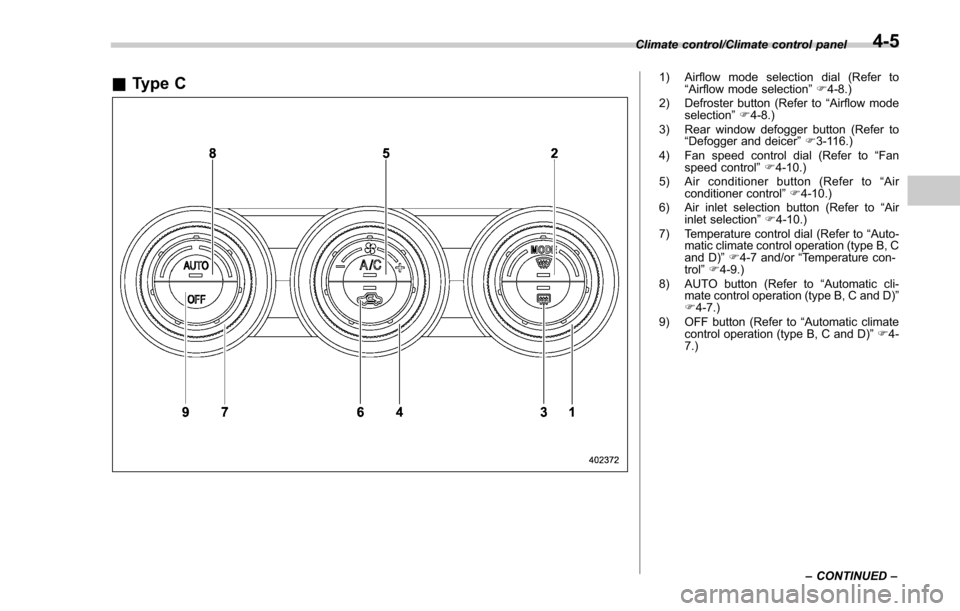

SUBARU FORESTER 2017 SJ / 4.G Owners Manual &Type C1) Airflow mode selection dial (Refer to
“Airflow mode selection ”F 4-8.)
2) Defroster button (Refer to “Airflow mode
selection ”F 4-8.)
3) Rear window defogger button (Refer to “Defo

Page 277 of 634

SUBARU FORESTER 2017 SJ / 4.G Owners Manual Climate control/Climate control panel
&Type D1) Temperature control dial (Refer to “Auto-
matic climate control operation (type B, C
and D) ”F 4-7 and/or “Temperature con-
trol ”F 4-9.)
2) Def

Page 278 of 634

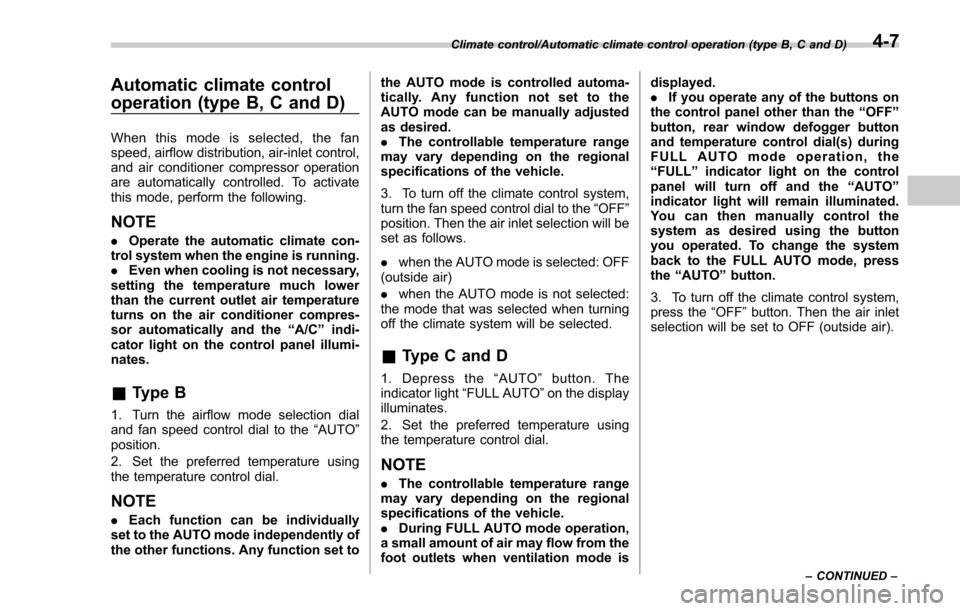

SUBARU FORESTER 2017 SJ / 4.G Owners Manual Automatic climate control
operation (type B, C and D)
When this mode is selected, the fan
speed, airflow distribution, air-inlet control,
and air conditioner compressor operation
are automatically con

Page 279 of 634

SUBARU FORESTER 2017 SJ / 4.G Owners Manual Climate control/Manual climate control operation

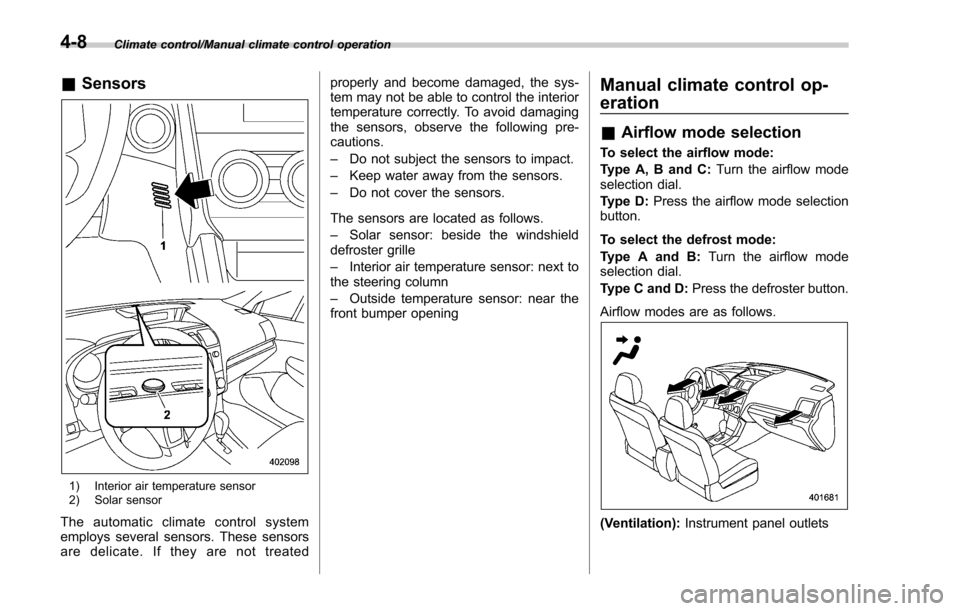

&Sensors
1) Interior air temperature sensor
2) Solar sensor
The automatic climate control system
employs several sensors. These sensors
are delicate. I

Page 280 of 634

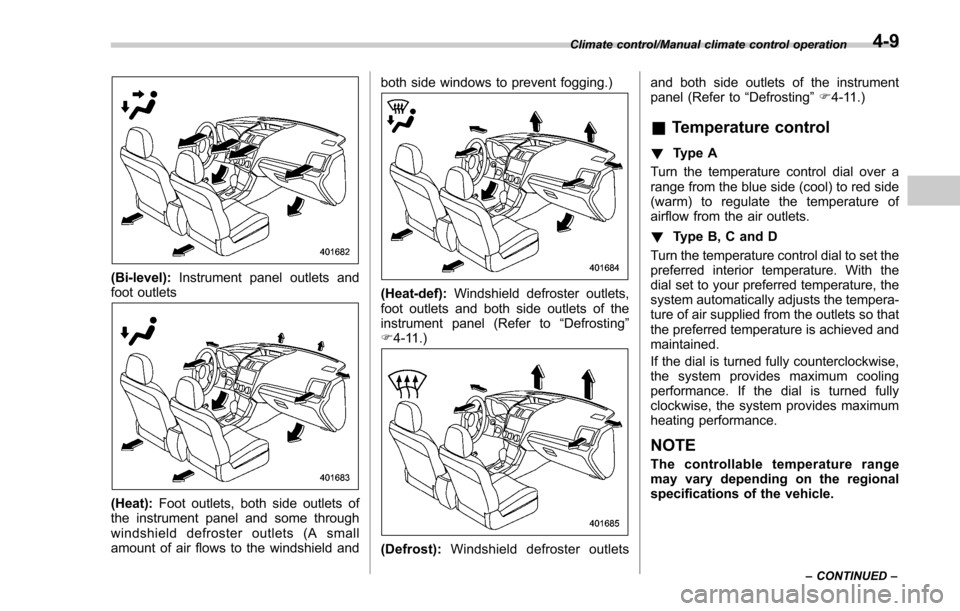

SUBARU FORESTER 2017 SJ / 4.G Owners Manual (Bi-level):Instrument panel outlets and
foot outlets
(Heat): Foot outlets, both side outlets of
the instrument panel and some through
windshield defroster outlets (A small
amount of air flows to the w
