SUBARU FORESTER 2019 Quick Guide
Manufacturer: SUBARU, Model Year: 2019, Model line: FORESTER, Model: SUBARU FORESTER 2019Pages: 31, PDF Size: 1.41 MB
Page 1 of 31
Love. It’s what makes a Subaru, a Subaru.
Quick Guide
Forester
3495150_19a_Subaru_Forester_QRG_070318.indd 27/3/18 1:05 PM
2019
Page 2 of 31
© 2018 Subaru of America, Inc. All rights reserved.
Contents may not be reproduced in whole or in part without prior written
permission of publisher. Specifications in this Guide are based on the latest
product information available at the time of publication. Some images show\
n
are for illustration purposes only. Some equipment shown in photography within
this Guide is optional at extra cost. Specific options may be availabl\
e only in
combination with other options. Specific combinations of equipment or \
features
may vary from time to time, and by geographic area. Subaru of America, Inc.
reserves the right to change or discontinue at any time, without notice: \
Prices,
colors, materials, equipment, accessories, specifications, models and \
packages,
without incurring any obligation to make the same or similar changes on \
vehicles
previously sold. Colors shown may vary due to reproduction and printing
processes. Subaru of America, Inc. is not responsible for typographical errors.
Aha
™ is a trademark of Harman International Industries, Inc. Alcantara® is a
registered trademark of Alcantara S.p.A., and Alcantara is produced by the
Toray Group. App Store
® is a registered trademark of Apple, Inc. Apple® is a
registered trademark of Apple, Inc. BBS® is a registered trademark of BBS
Kraftahrzeugtechnik, AG. Bluetooth® is a registered trademark of Bluetooth SIG,
Inc. Brembo® is a registered trademark of Freni Brembo, S.p.A. GreenEdge® is
a registered trademark of Harman International Industries, Inc. Harman Kardon®
is a registered trademark of Harman International Industries, Inc. HD Radio® is
a registered trademark of iBiquity Digital Corporation. HomeLink® is a registered
trademark of Prince Corporation, a wholly owned subsidiary of Johnson Co\
ntrols.
iHeart
® Radio is a registered trademark of iHeartMedia, Inc. iPod® is a registered
trademark of Apple, Inc. iTunes® is a registered trademark of Apple, Inc.
Metal-Matrix Diaphragm (MMD®) is a registered trademark of Harman International
Industries, Inc. MirrorLink™ is a trademark of Car Connectivity Consortium,
LLC. Pandora® is a registered trademark of Pandora Media, Inc. Siri® is a
registered trademark of Apple, Inc. Smart Way® is a registered trademark
of the U.S. Environmental Protection Agency. Stitcher™ is a trademark of
Stitcher™, Inc. TORSEN LSD® is a registered trademark of JTEKT TORSEN
North America, Inc. SiriusXM® All Access Radio is a registered trademark of
SiriusXM Radio, Inc. SiriusXM Traffic® and SiriusXM Travel Link® are registered
trademarks of SiriusXM Radio, Inc. Added Security, Crosstrek, Forester and
Outback are registered trademarks of Subaru of America, Inc. BRZ, EyeSight,
Impreza, Lineartronic, Legacy, Subaru, SUBARU BOXER, WRX, STI and
X-MODE are registered trademarks of Subaru Corporation. Confidence in
Motion and SUBARU STARLINK
™ are trademarks of Subaru Corporation.
3495150_19a_Subaru_Forester_QRG_070318.indd 37/3/18 1:05 PM
Page 3 of 31

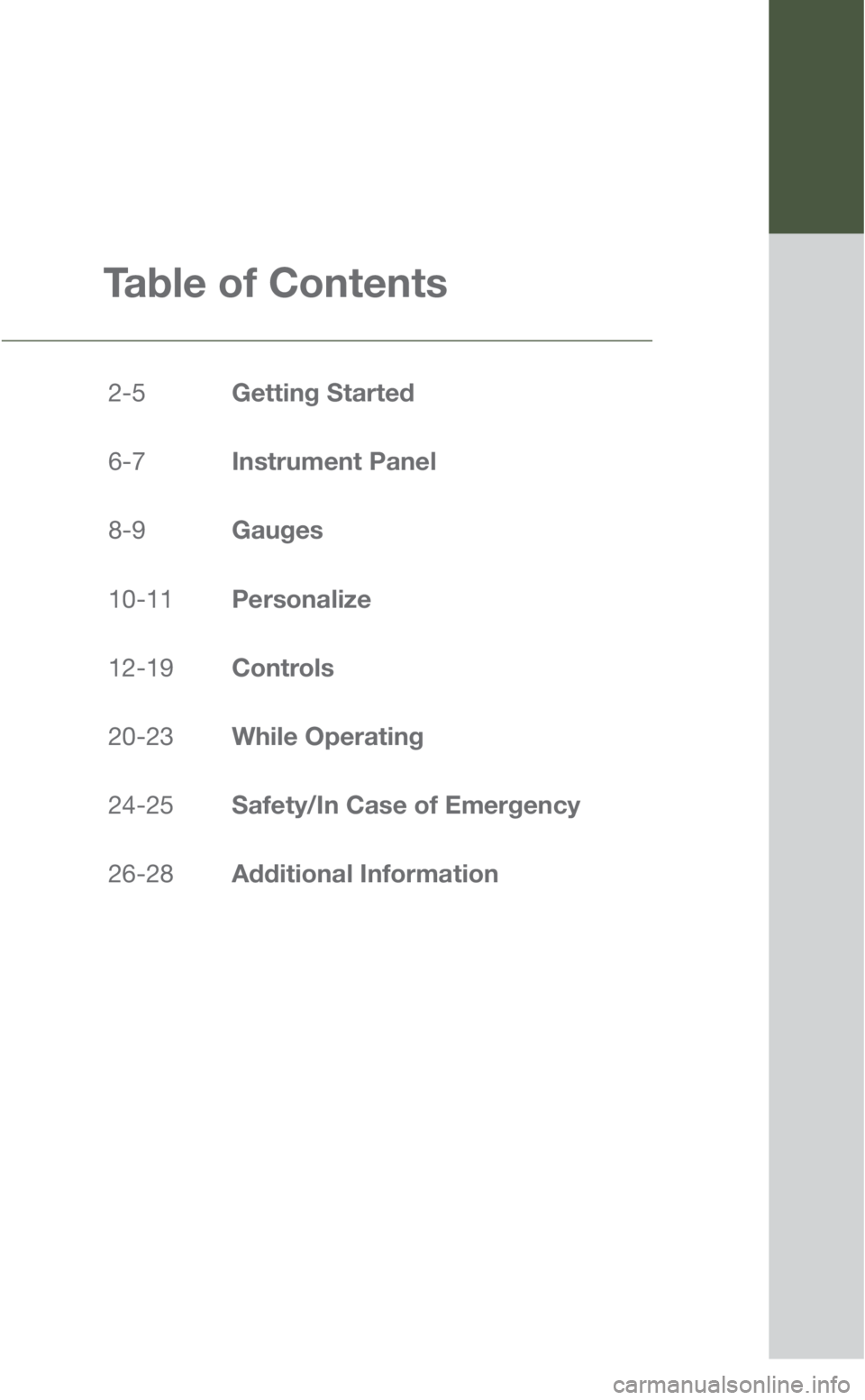

Table of Contents
2-5 Getting Started
6-7 Instrument Panel
8-9 Gauges
10-11 Personalize
12-19 Controls
20-23 While Operating
24-25 Safety/In Case of Emergency
26-28 Additional Information
3495150_19a_Subaru_Forester_QRG_070318.indd 57/3/18 1:05 PM
Page 4 of 31
2
Remote Keyless Entry
Keyless Access with
Push-Button Start System
(if equipped)
By simply carrying the access key in your pocket, you can
lock and unlock doors, open the rear gate and start your car
without ever having to take the key fob out of your pocket.
1 Lock/Arm
• Press to lock all doors and the rear gate.
• If any of the doors or the rear gate
are not fully closed, five rapid chirps
will sound and the hazard lights will
flash to alert you that the doors or the
rear gate are not properly closed.
• To activate the vehicle finder function,
press three times (within five seconds).
If you are within 30 feet of the vehicle,
the horn will sound one time and the
hazard lights will flash three times.
2 Unlock/Disarm
• Press once to unlock the driver’s door.
• Press twice (within five seconds) to
unlock all doors.
• When the “Unlock/Disarm” button is
pressed, the dome and map lights will
illuminate if the dome light switch is in
the middle position.
3 Unlocking the Rear Gate
• Press to unlock the rear gate.
4 Panic Alarm
• Press once and the horn will sound
and the hazard lights will flash.
w Press any button on the remote
to deactivate.
1
23
4
1
2
3
4
3495150_19a_Subaru_Forester_QRG_070318.indd 27/3/18 1:06 PM
Page 5 of 31
3
Power Driver’s Seat (if equipped)
Do not adjust the seat while driving.
1 Forward/Backward,
Angle and Height
Move the switch toward the front
or rear to move the seat forward
or backward. Pull up or push
down on the front of the switch
to adjust the angle of the seat
cushion. Pull up or push down on
the rear of the switch to adjust the
height of the entire seat cushion.
2 Seatback
Move the switch in the
corresponding direction to adjust
the angle of the seatback.
3 Lumbar Support
Press the front part of the switch
to increase lumbar support;
press the rear part of the switch
to decrease lumbar support.
Getting
Started
Memory Driver’s Seat (if equipped)
While pressing the “SET” button, press and hold the desired button
“1” or “2”. A beep sounds when the seat position is registered.
Press button “1” or “2” to retrieve the seat positions.
Seating
3
2
1
3495150_19a_Subaru_Forester_QRG_070318.indd 37/3/18 1:06 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 6 of 31
4

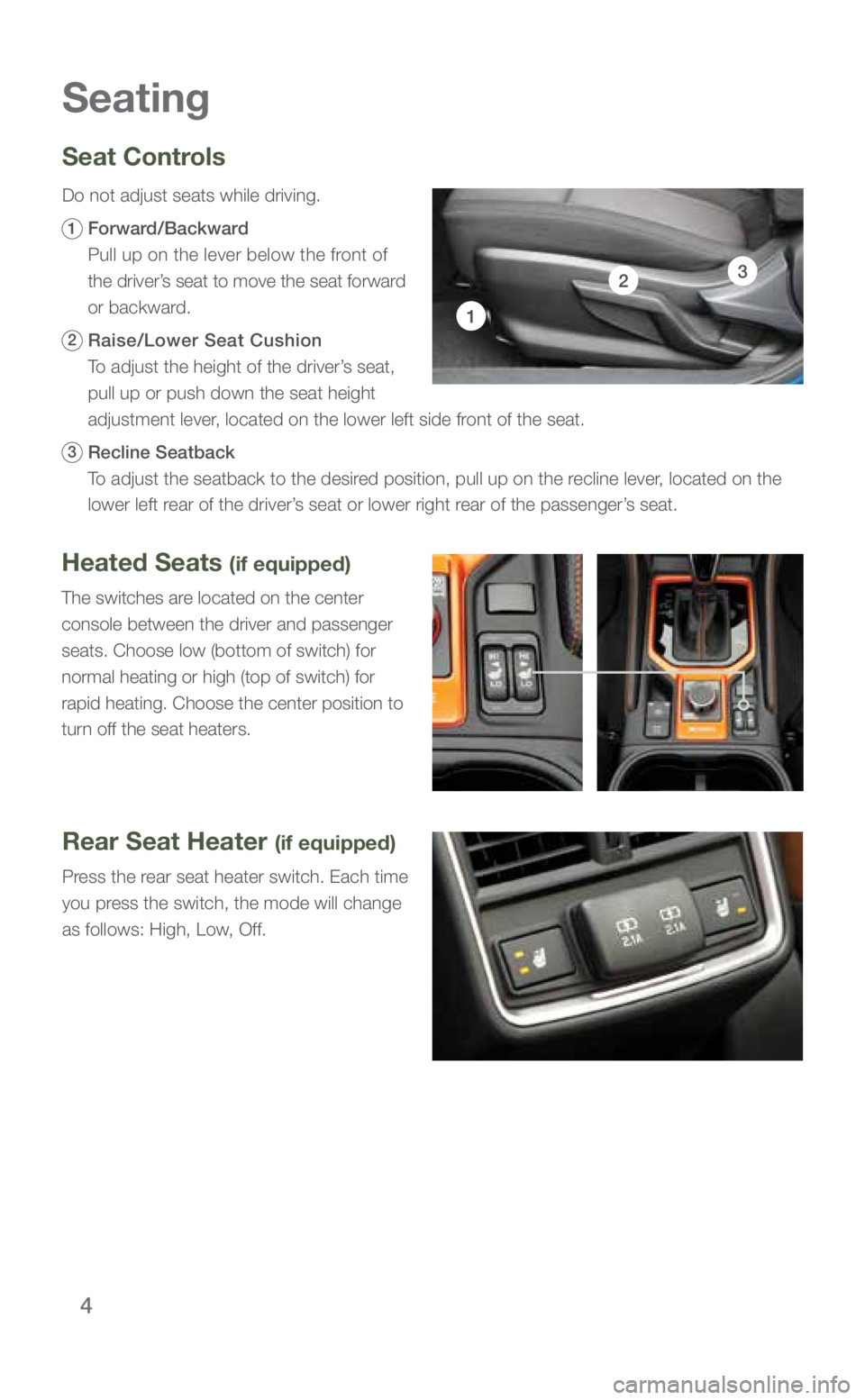

Seat Controls
Do not adjust seats while driving.
1 Forward/Backward
Pull up on the lever below the front of
the driver’s seat to move the seat forward
or backward.
2 Raise/Lower Seat Cushion
To adjust the height of the driver’s seat,
pull up or push down the seat height
adjustment lever, located on the lower left side front of the seat.
3 Recline Seatback
To adjust the seatback to the desired position, pull up on the recline lever, located on the
lower left rear of the driver’s seat or lower right rear of the passenger’s seat.
Seating
Heated Seats (if equipped)
The switches are located on the center
console between the driver and passenger
seats. Choose low (bottom of switch) for
normal heating or high (top of switch) for
rapid heating. Choose the center position to
turn off the seat heaters.
1
23
Rear Seat Heater (if equipped)
Press the rear seat heater switch. Each time
you press the switch, the mode will change
as follows: High, Low, Off.
3495150_19a_Subaru_Forester_QRG_070318.indd 47/3/18 1:06 PM
Page 7 of 31
5

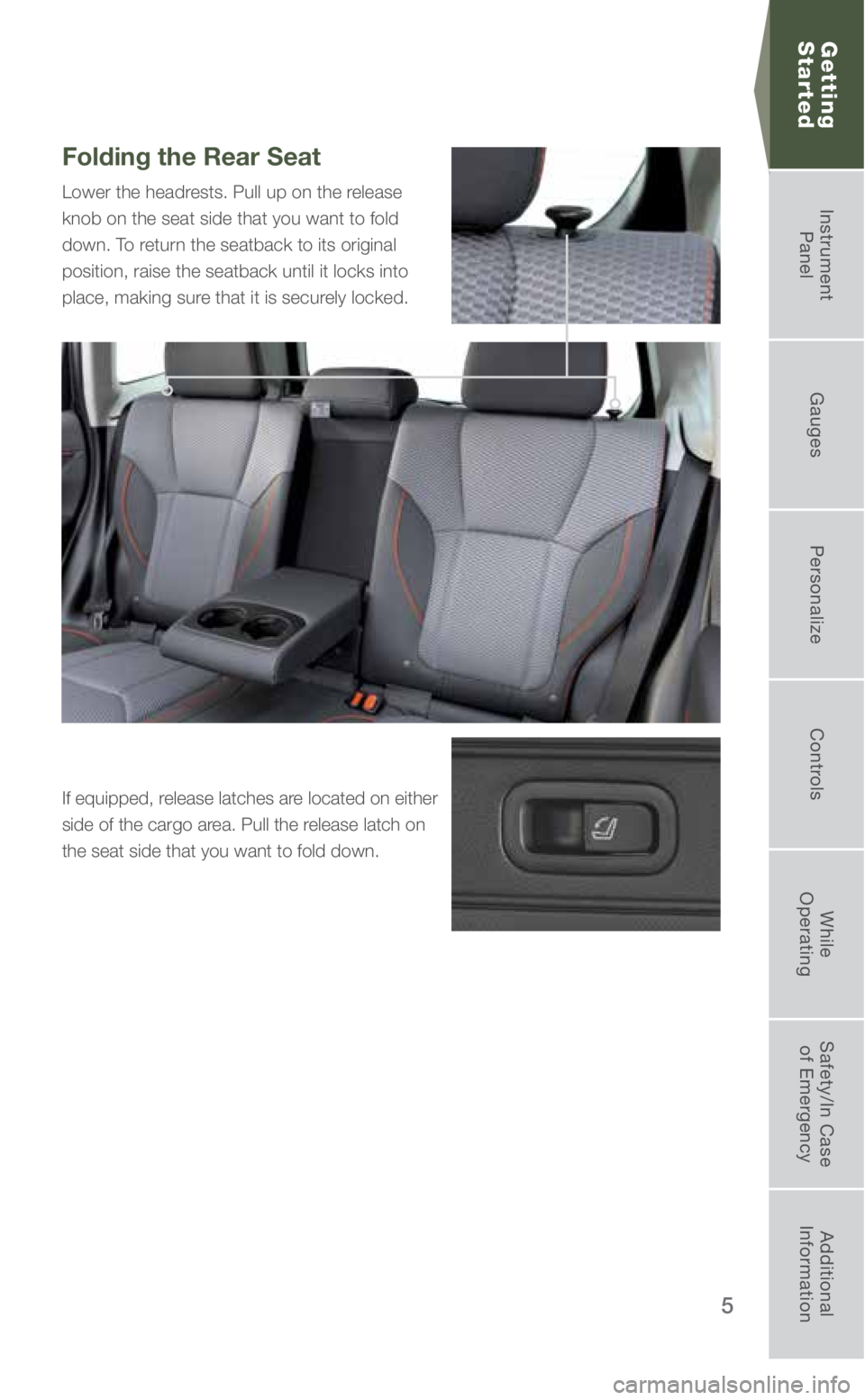

Folding the Rear Seat
Lower the headrests. Pull up on the release
knob on the seat side that you want to fold
down. To return the seatback to its original
position, raise the seatback until it locks into
place, making sure that it is securely locked.
If equipped, release latches are located on either
side of the cargo area. Pull the release latch on
the seat side that you want to fold down.
Getting
Started
3495150_19a_Subaru_Forester_QRG_070318.indd 57/3/18 1:06 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 8 of 31
6

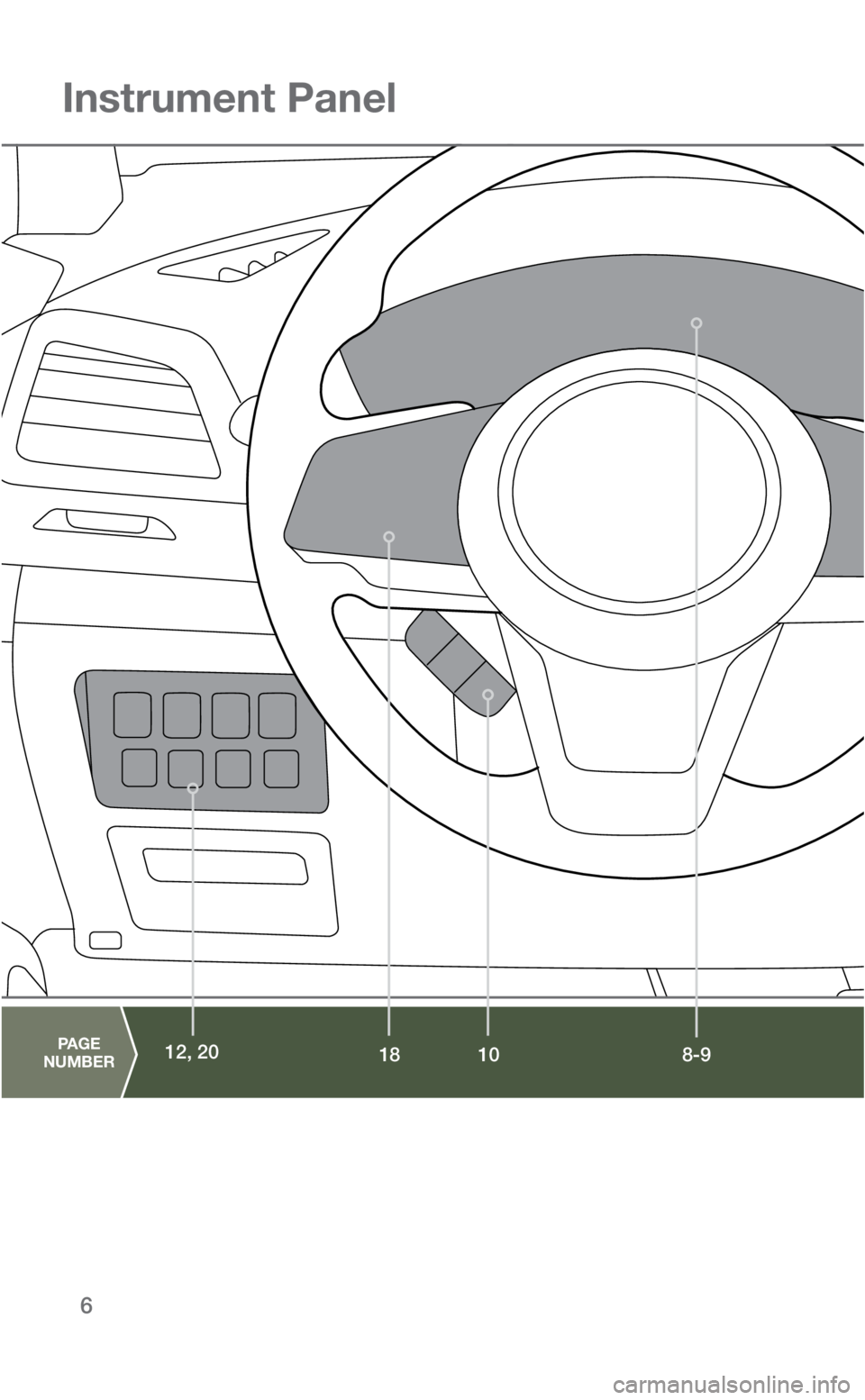

Instrument Panel
8-9PAGE
NUMBER18 1012, 20
3495150_19a_Subaru_Forester_QRG_070318.indd 67/3/18 1:06 PM
Page 9 of 31
7

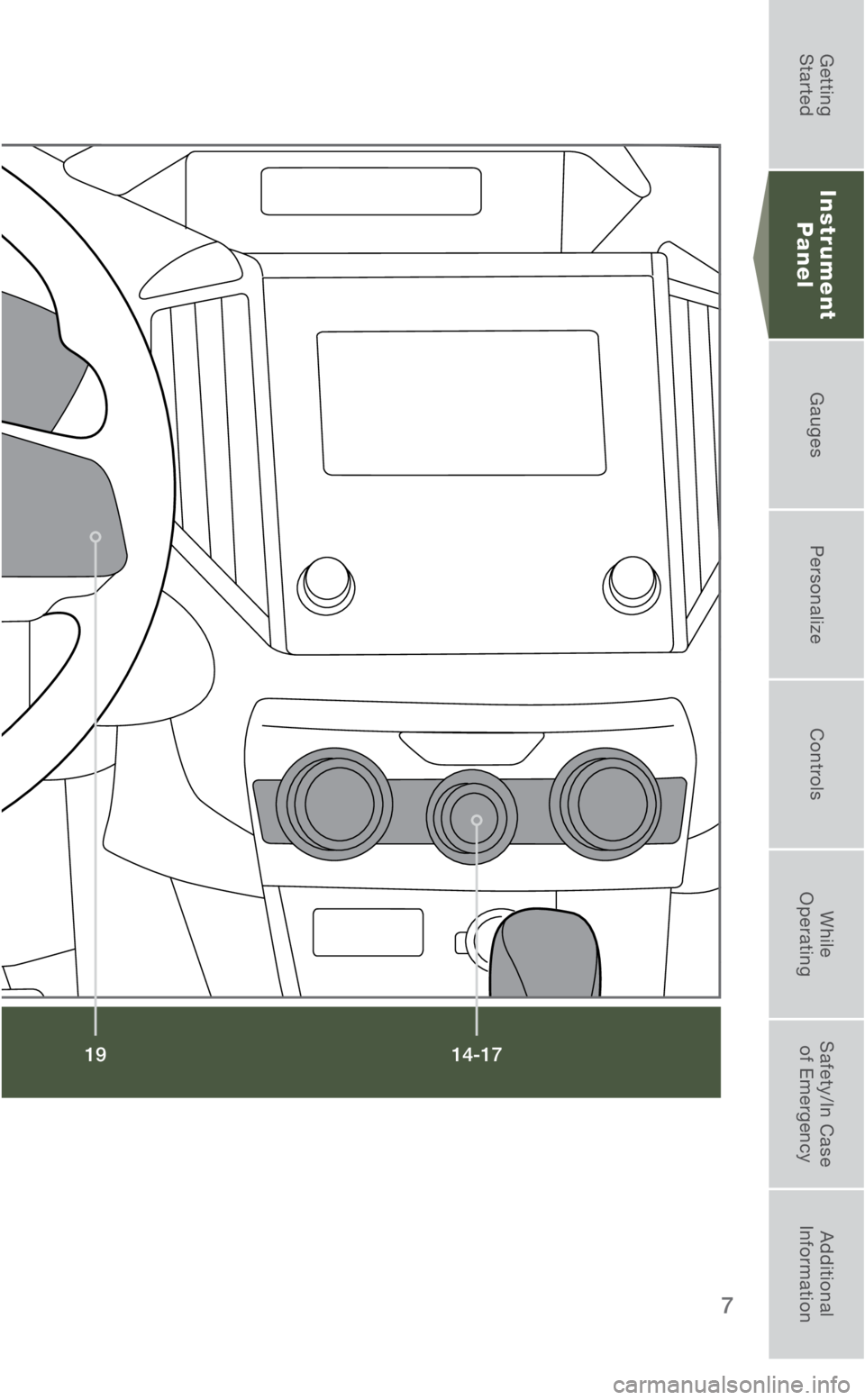

Instrument Panel
14-17
19
Instrument
Panel
3495150_19a_Subaru_Forester_QRG_070318.indd 77/3/18 1:06 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 10 of 31
8

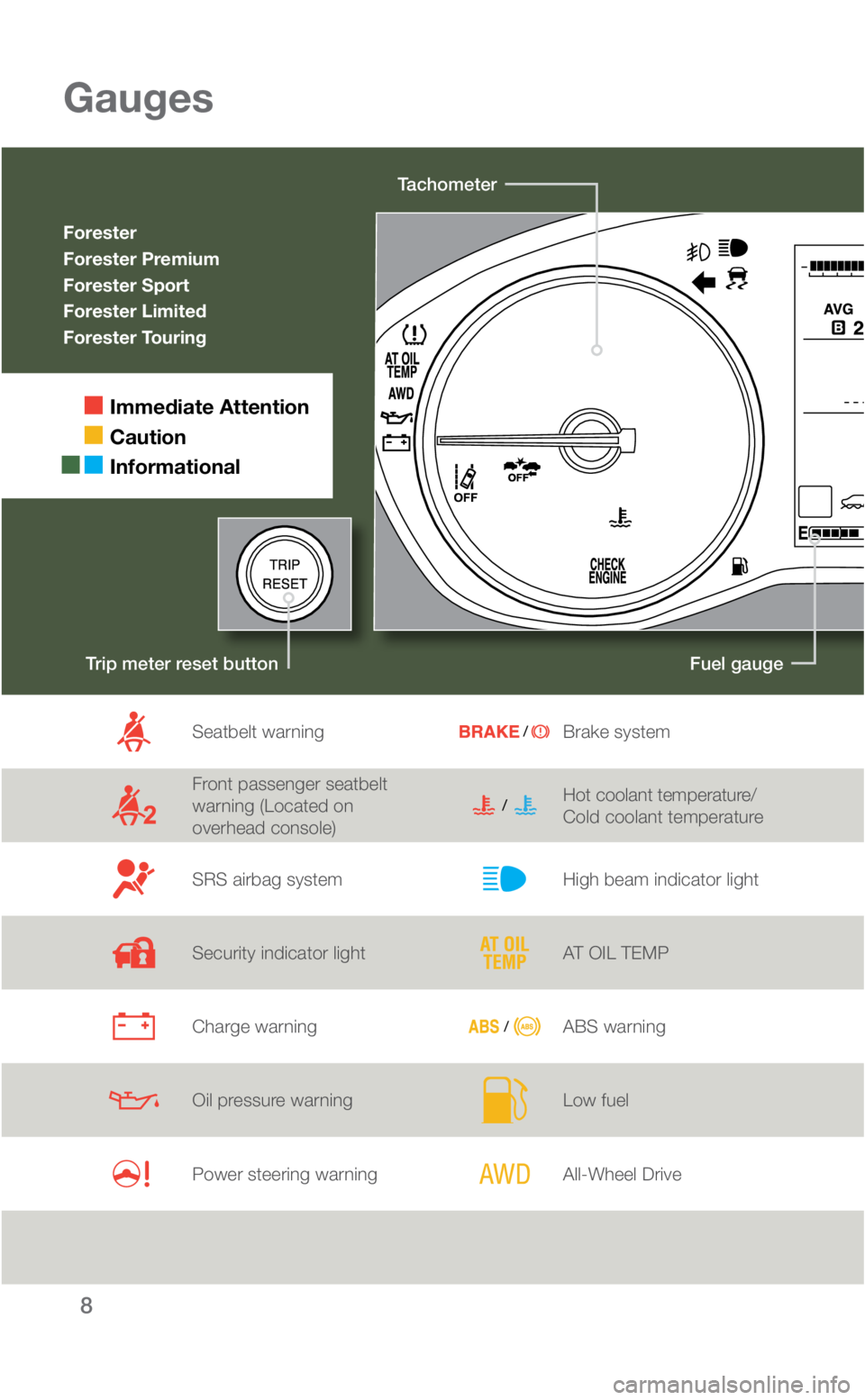

Trip meter reset button
Gauges
Forester
Forester Premium
Forester Sport
Forester Limited
Forester Touring
Immediate Attention
Caution
Informational
Tachometer
Fuel gauge
Seatbelt warning
Front passenger seatbelt
warning (Located on
overhead console)
SRS airbag system
Security indicator light
Charge warning
Oil pressure warning
Power steering warning
Brake system
Hot coolant temperature/
Cold coolant temperature
High beam indicator light
AT OIL TEMP
ABS warning
Low fuel
All-Wheel Drive
3495150_19a_Subaru_Forester_QRG_070318.indd 87/3/18 1:06 PM
