SUBARU FORESTER 2019 Quick Guide
Manufacturer: SUBARU, Model Year: 2019, Model line: FORESTER, Model: SUBARU FORESTER 2019Pages: 31, PDF Size: 1.41 MB
Page 21 of 31
19
Controls

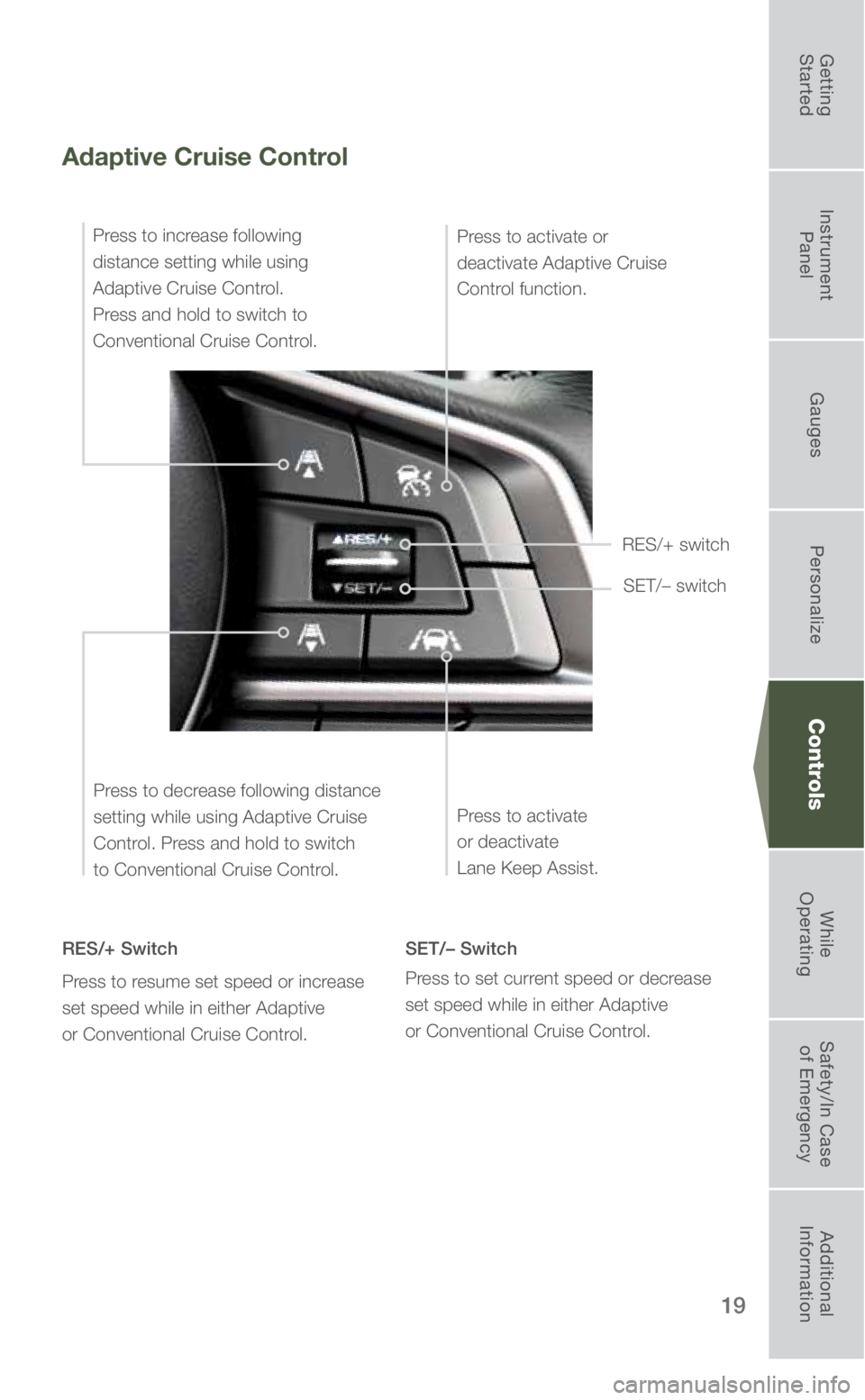

Adaptive Cruise Control
RES/+ Switch
Press to resume set speed or increase
set speed while in either Adaptive
or Conventional Cruise Control. SET/– Switch
Press to set current speed or decrease
set speed while in either Adaptive
or Conventional Cruise Control. Press to activate or
deactivate Adaptive Cruise
Control function.
Press to decrease following distance
setting while using Adaptive Cruise
Control. Press and hold to switch
to Conventional Cruise Control. Press to activate
or deactivate
Lane Keep Assist.
Press to increase following
distance setting while using
Adaptive Cruise Control.
Press and hold to switch to
Conventional Cruise Control.
RES/+ switch
SET/– switch
3495150_19a_Subaru_Forester_QRG_070318.indd 197/3/18 1:07 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 22 of 31
20
While Operating
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when the selector is in the
“D” (Drive) position, you can temporarily shift the
gear by pulling the “+” or “–” paddle shift control
switch. The transmission will automatically
switch back to Normal Mode.
• When the selector lever is in Manual Mode,
shift to the next higher gear by pulling the “+” paddle shift cont\
rol switch on the steering
wheel. Pull the “–” paddle shift control switch to shift into the next lower gear.
Manual Shifting Operation
Arrow-shaped lights in the center of the instrument panel show whether an u\
pshift is possible
and whether a downshift is possible.
Instrument Panel Switches (lower left)
Please refer to your Owner’s Manual for details on these switches.
1 Power rear gate switch (if equipped)
2 Steering Responsive Headlights OFF switch (if equipped)
3 Rear gate memory switch (if equipped)
4 Vehicle Dynamics Control OFF switch
5 Auto Start Stop OFF switch
6 Blind Spot Detection/Rear Cross Traffic Alert OFF switch (if equipped)
7 Driver Monitoring System OFF switch (if equipped)
1
45
32
76
3495150_19a_Subaru_Forester_QRG_070318.indd 207/3/18 1:07 PM
Page 23 of 31
21
1

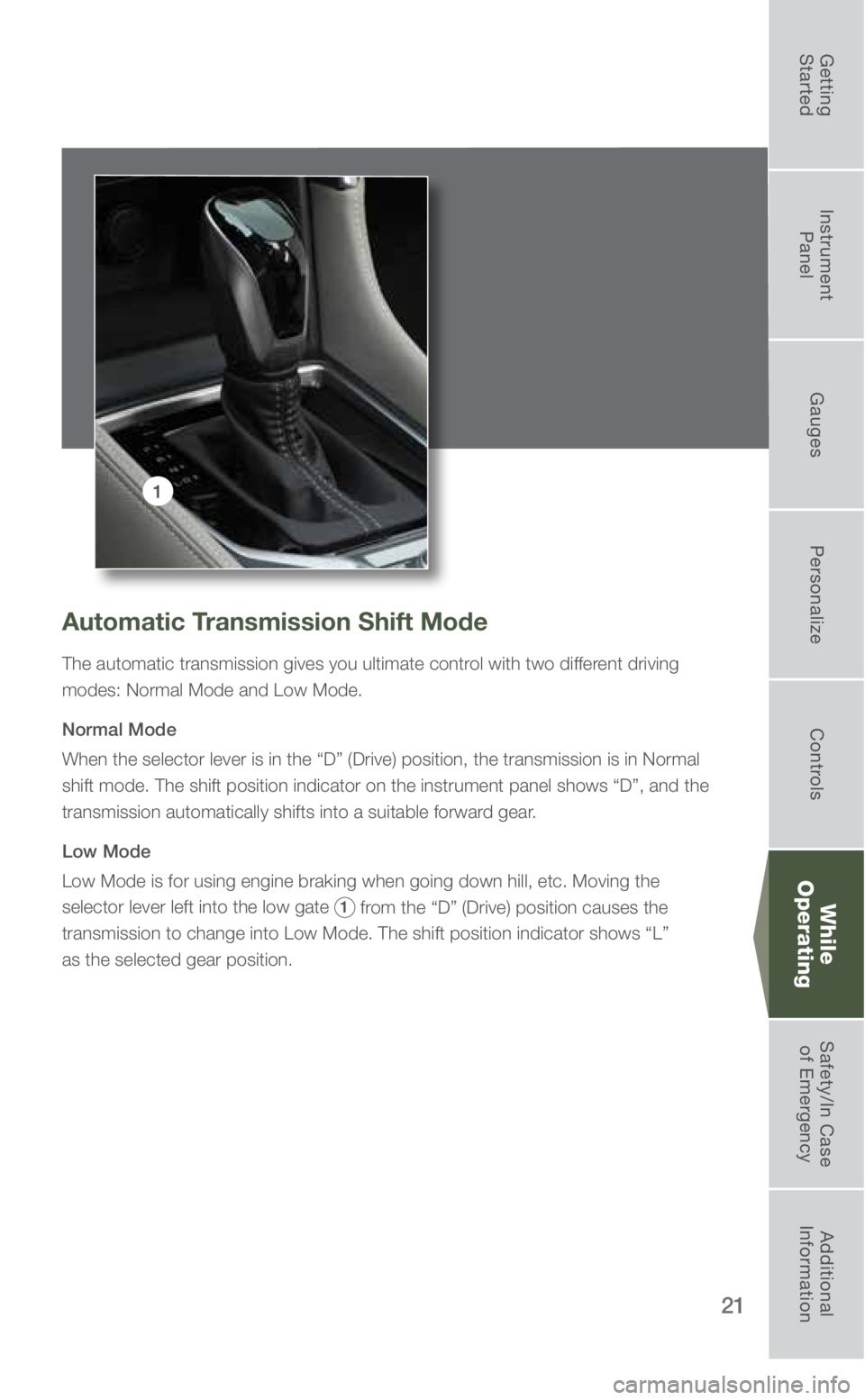

Automatic Transmission Shift Mode
The automatic transmission gives you ultimate control with two different driving
modes: Normal Mode and Low Mode.
Normal Mode
When the selector lever is in the “D” (Drive) position, the tran\
smission is in Normal
shift mode. The shift position indicator on the instrument panel shows “\
D”, and the
transmission automatically shifts into a suitable forward gear.
Low Mode
Low Mode is for using engine braking when going down hill, etc. Moving t\
he
selector lever left into the low gate
1 from the “D” (Drive) position causes the
transmission to change into Low Mode. The shift position indicator shows\
“L”
as the selected gear position.While
Operating
3495150_19a_Subaru_Forester_QRG_070318.indd 217/3/18 1:07 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 24 of 31
22

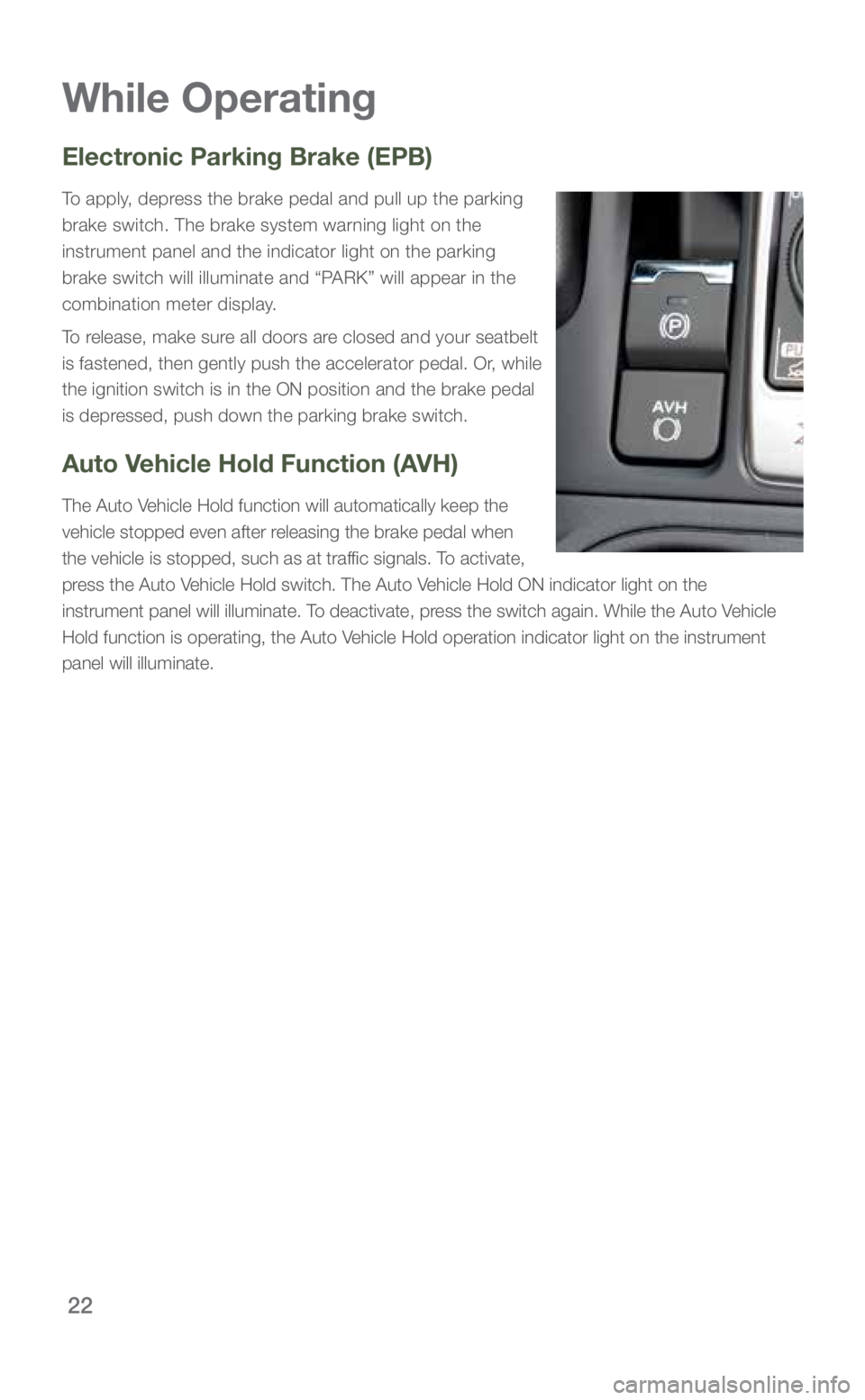

While Operating
Electronic Parking Brake (EPB)
To apply, depress the brake pedal and pull up the parking
brake switch. The brake system warning light on the
instrument panel and the indicator light on the parking
brake switch will illuminate and “PARK” will appear in the
combination meter display.
To release, make sure all doors are closed and your seatbelt
is fastened, then gently push the accelerator pedal. Or, while
the ignition switch is in the ON position and the brake pedal
is depressed, push down the parking brake switch.
Auto Vehicle Hold Function (AVH)
The Auto Vehicle Hold function will automatically keep the
vehicle stopped even after releasing the brake pedal when
the vehicle is stopped, such as at traffic signals. To activate,
press the Auto Vehicle Hold switch. The Auto Vehicle Hold ON indicator light on the
instrument panel will illuminate. To deactivate, press the switch again. While the Auto Vehicle
Hold function is operating, the Auto Vehicle Hold operation indicator light on the instrument
panel will illuminate.
3495150_19a_Subaru_Forester_QRG_070318.indd 227/3/18 1:08 PM
Page 25 of 31
23
While
Operating

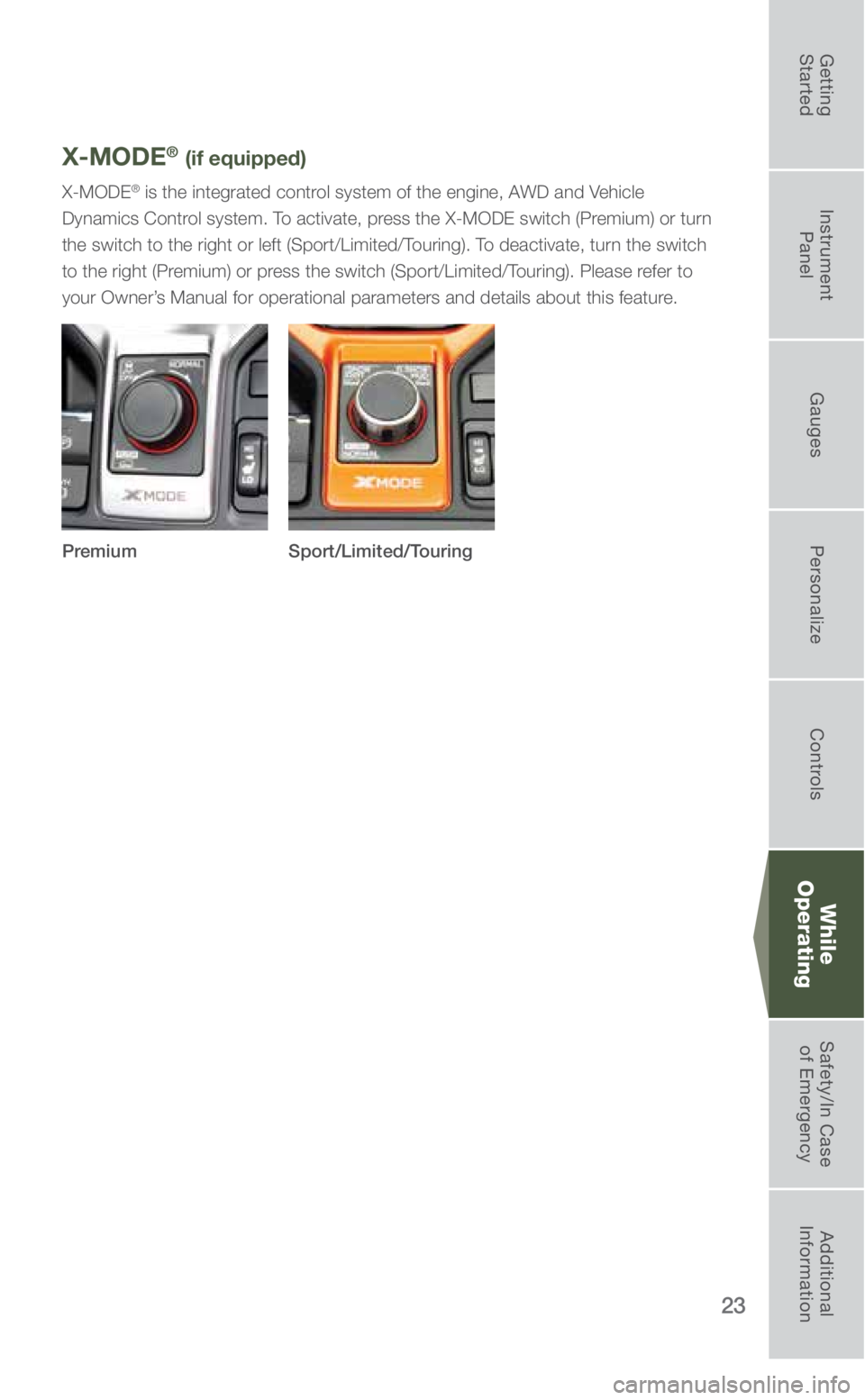

X-MODE® (if equipped)
X-MODE® is the integrated control system of the engine, AWD and Vehicle
Dynamics Control system. To activate, press the X-MODE switch (Premium) or turn
the switch to the right or left (Sport/Limited/Touring). To deactivate, turn the switch
to the right (Premium) or press the switch (Sport/Limited/Touring). Please refer to
your Owner’s Manual for operational parameters and details about this feature.
Premium Sport/Limited/Touring
3495150_19a_Subaru_Forester_QRG_070318.indd 237/3/18 1:08 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 26 of 31
24

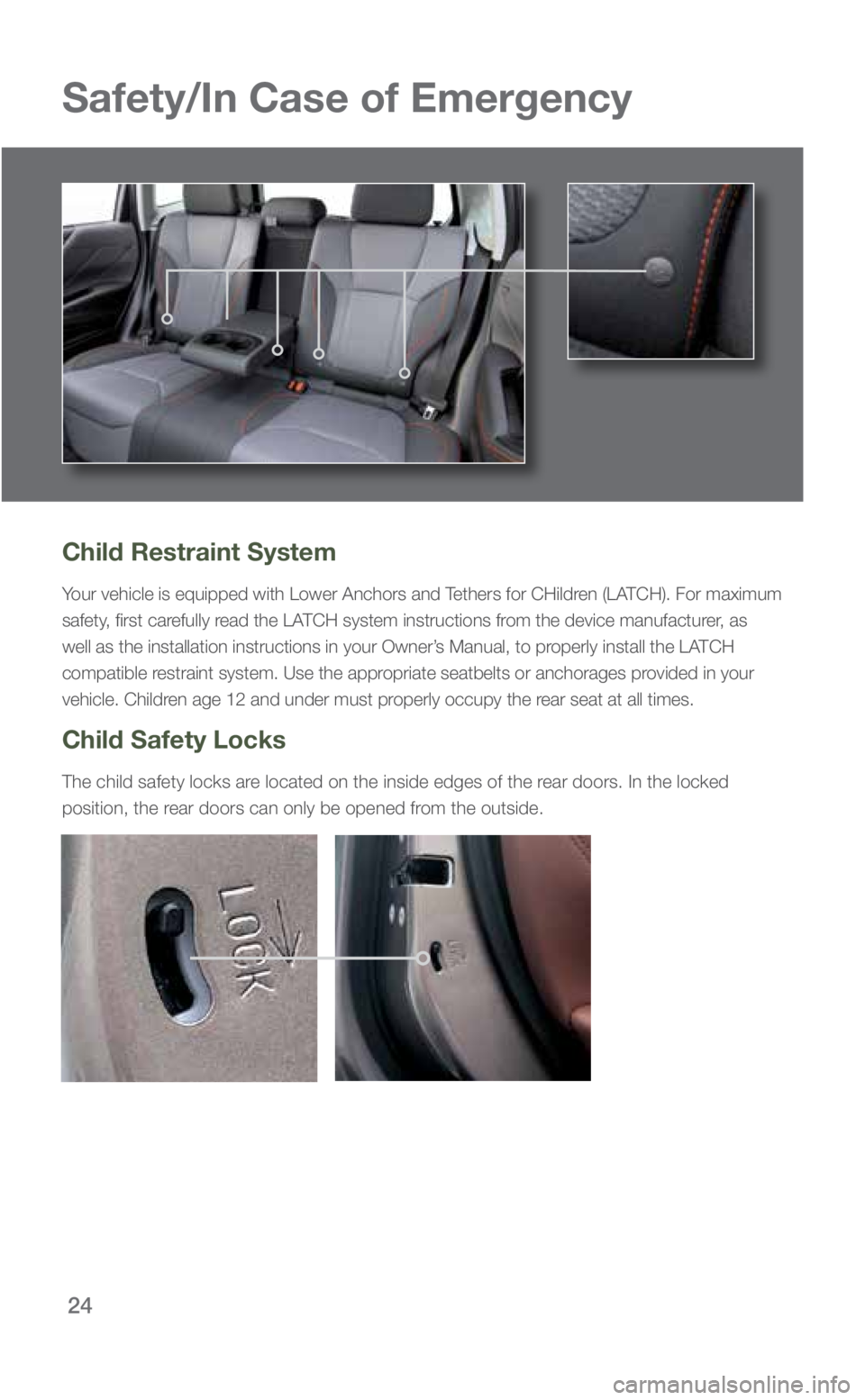

Safety/In Case of Emergency
Child Restraint System
Your vehicle is equipped with Lower Anchors and Tethers for CHildren (LATCH). For maximum
safety, first carefully read the LATCH system instructions from the device manufacturer, as
well as the installation instructions in your Owner’s Manual, to properly install the LATCH
compatible restraint system. Use the appropriate seatbelts or anchorages provided in your
vehicle. Children age 12 and under must properly occupy the rear seat at all times.
Child Safety Locks
The child safety locks are located on the inside edges of the rear doors. In the locked
position, the rear doors can only be opened from the outside.
3495150_19a_Subaru_Forester_QRG_070318.indd 247/3/18 1:08 PM
Page 27 of 31
25

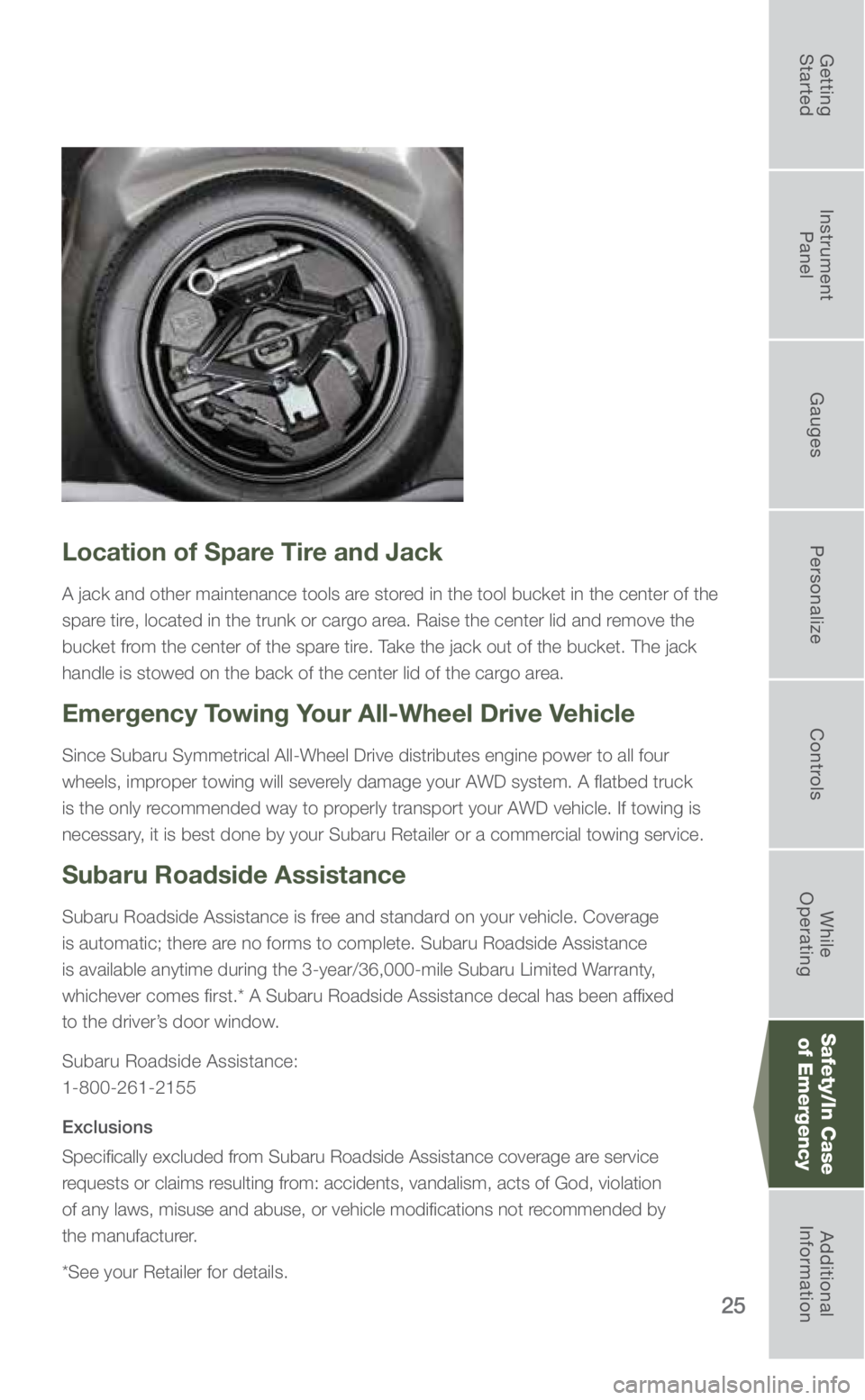

Location of Spare Tire and Jack
A jack and other maintenance tools are stored in the tool bucket in the center of the
spare tire, located in the trunk or cargo area. Raise the center lid and remove the
bucket from the center of the spare tire. Take the jack out of the bucket. The jack
handle is stowed on the back of the center lid of the cargo area.
Emergency Towing Your All-Wheel Drive Vehicle
Since Subaru Symmetrical All-Wheel Drive distributes engine power to all\
four
wheels, improper towing will severely damage your AWD system. A flatbed truck
is the only recommended way to properly transport your AWD vehicle. If towing is
necessary, it is best done by your Subaru Retailer or a commercial towing service.
Subaru Roadside Assistance
Subaru Roadside Assistance is free and standard on your vehicle. Coverage
is automatic; there are no forms to complete. Subaru Roadside Assistance
is available anytime during the 3-year/36,000-mile Subaru Limited Warranty,
whichever comes first.* A Subaru Roadside Assistance decal has been af\
fixed
to the driver’s door window.
Subaru Roadside Assistance:
1-800-261-2155
Exclusions
Specifically excluded from Subaru Roadside Assistance coverage are service
requests or claims resulting from: accidents, vandalism, acts of God, violation
of any laws, misuse and abuse, or vehicle modifications not recommended by
the manufacturer.
*See your Retailer for details.
Safety/In Case of Emergency
3495150_19a_Subaru_Forester_QRG_070318.indd 257/3/18 1:08 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 28 of 31
26
Additional Information
Fuel
Use regular unleaded gasoline with an octane rating of 87 AKI or higher. Consult the Owner’s
Manual for more detailed information.
Fuel Capacity
• 16.6 US gal (63 liters, 13.9 lmp gal)
• When the low fuel indicator light is displayed on the instrument panel, \
approximately
2.5 US gallons (9.5 liters, 2.1 Imp gal) of fuel remain.
• If you have recently fueled your vehicle, the Check Engine light on the instrument pa\
nel
may stay on due to a missing or loose fuel filler cap (the cap should\
be tightened until
a click is heard).
Fuel Filler Lid Release
To unlock the fuel filler lid, unlock your vehicle with the key fob or
power door lock switch, or turn the ignition switch to ACC or
LOCK/OFF. Push the rear side of the fuel filler lid to open it, then
open it fully by hand. To close the fuel door, press on the door until
you hear it latch.
3495150_19a_Subaru_Forester_QRG_070318.indd 267/3/18 1:08 PM
Page 29 of 31
![SUBARU FORESTER 2019 Quick Guide 27
Engine Oil
Use only the following oils:
• ILSAC GF-5, which can be identified with the ILSAC certification mar\
k
(Starburst mark).
• Or API classification SN with the words “RESOU](/img/17/40454/w960_40454-28.png "SUBARU FORESTER 2019 Quick Guide 27
Engine Oil
Use only the following oils:
• ILSAC GF-5, which can be identified with the ILSAC certification mar\
k
(Starburst mark).
• Or API classification SN with the words “RESOU")
27

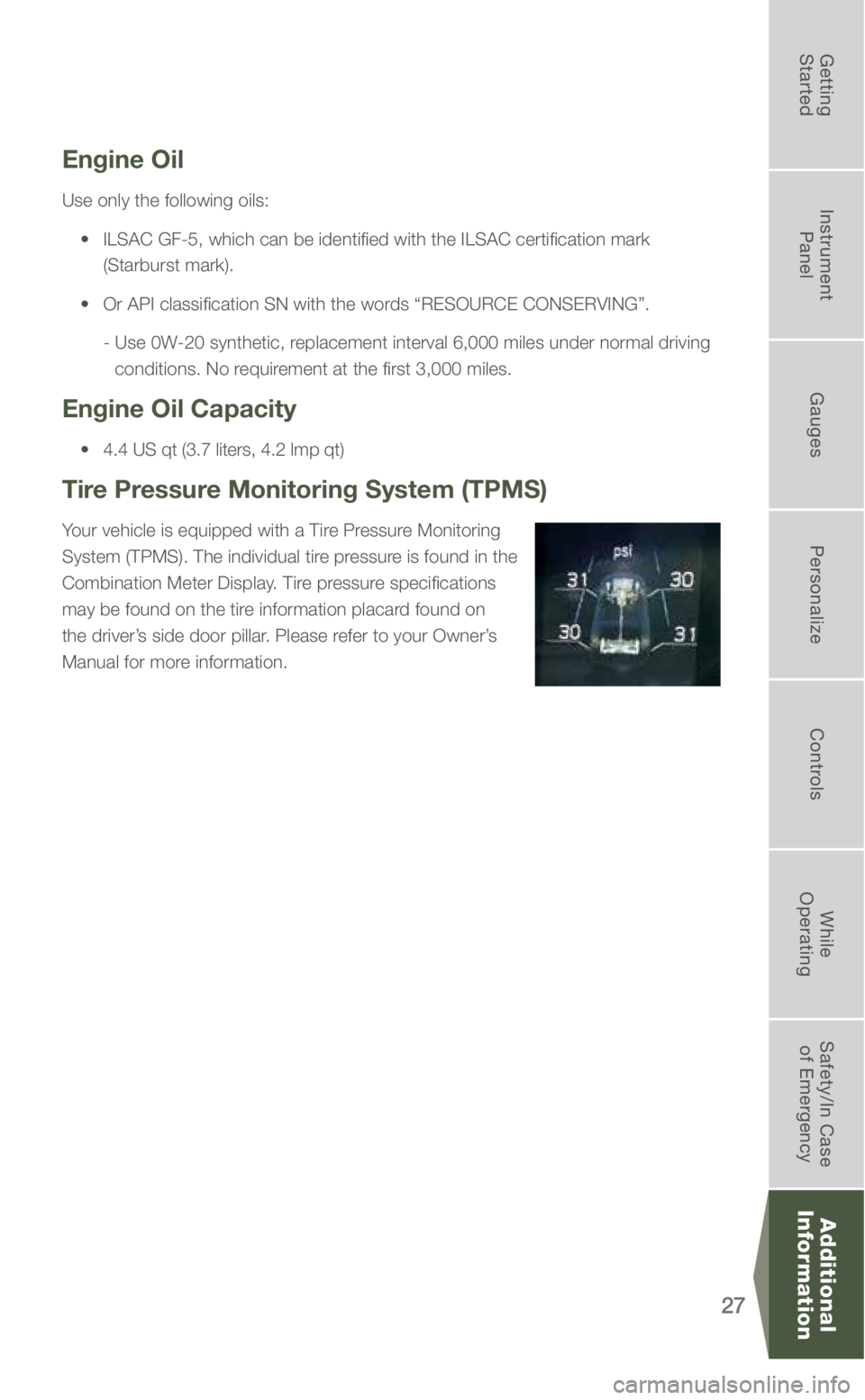

Engine Oil
Use only the following oils:
• ILSAC GF-5, which can be identified with the ILSAC certification mar\
k
(Starburst mark).
• Or API classification SN with the words “RESOURCE CONSERVING”.
- Use 0W-20 synthetic, replacement interval 6,000 miles under normal driving
conditions. No requirement at the first 3,000 miles.
Engine Oil Capacity
• 4.4 US qt (3.7 liters, 4.2 lmp qt)
Tire Pressure Monitoring System (TPMS)
Your vehicle is equipped with a Tire Pressure Monitoring
System (TPMS). The individual tire pressure is found in the
Combination Meter Display. Tire pressure specifications
may be found on the tire information placard found on
the driver’s side door pillar. Please refer to your Owner’s
Manual for more information.
Additional
Information
3495150_19a_Subaru_Forester_QRG_070318.indd 277/3/18 1:08 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 30 of 31
28
Engine Compartment
Please refer to your Owner’s Manual for more information.
2.5 L Engine
1 Air Cleaner Element
2 Engine Oil Dipstick
3 Radiator Cap
4 Engine Oil Filter
5 Engine Oil Filler Cap
6 Engine Coolant Reservoir
7 Windshield Washer Tank
8 Battery
9 Main Fuse Box
10 Brake Fluid Reservoir
1
9
3
8
6
7
10
2
54
3495150_19a_Subaru_Forester_QRG_070318.indd 287/3/18 1:08 PM
