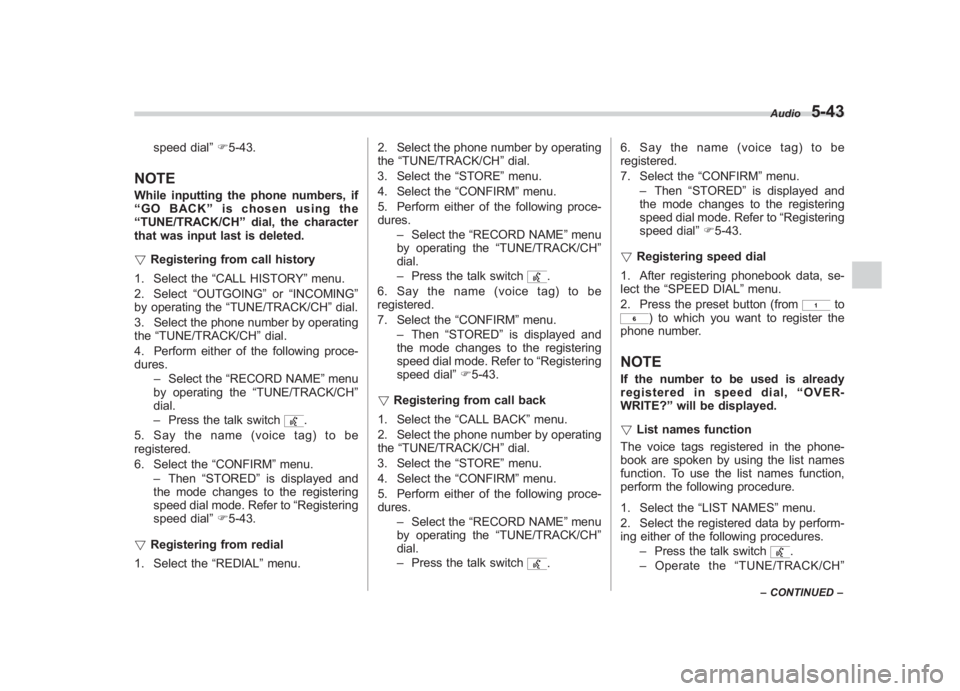

speed dial ”F 5-43.
NOTEWhile inputting the phone numbers, if
“GO BACK ”is chosen using the
“ TUNE/TRACK/CH ”dial, the character
that was input last is deleted.
! Registering from call history
1. Select the “CALL HISTORY ”menu.
2. Select “OUTGOING ”or “INCOMING ”
by operating the “TUNE/TRACK/CH ”dial.
3. Select the phone number by operating
the “TUNE/TRACK/CH ”dial.
4. Perform either of the following proce-
dures. –Select the “RECORD NAME ”menu
by operating the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
.
5. Say the name (voice tag) to be
registered.
6. Select the “CONFIRM”menu.
– Then “STORED ”is displayed and
the mode changes to the registering
speed dial mode. Refer to “Registering
speed dial ”F 5-43.
! Registering from redial
1. Select the “REDIAL”menu. 2. Select the phone number by operating
the
“TUNE/TRACK/CH ”dial.
3. Select the “STORE”menu.
4. Select the “CONFIRM”menu.
5. Perform either of the following proce-
dures. –Select the “RECORD NAME ”menu
by operating the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
.
6. Say the name (voice tag) to be
registered.
7. Select the “CONFIRM”menu.
– Then “STORED ”is displayed and
the mode changes to the registering
speed dial mode. Refer to “Registering
speed dial ”F 5-43.
! Registering from call back
1. Select the “CALL BACK”menu.
2. Select the phone number by operating
the “TUNE/TRACK/CH ”dial.
3. Select the “STORE”menu.
4. Select the “CONFIRM”menu.
5. Perform either of the following proce-
dures. –Select the “RECORD NAME ”menu
by operating the “TUNE/TRACK/CH ”
dial.
– Press the talk switch. 6. Say the name (voice tag) to be
registered.
7. Select the
“CONFIRM”menu.
– Then “STORED ”is displayed and
the mode changes to the registering
speed dial mode. Refer to “Registering
speed dial ”F 5-43.
! Registering speed dial
1. After registering phonebook data, se-
lect the “SPEED DIAL ”menu.
2. Press the preset button (from
to
) to which you want to register the
phone number.
NOTEIf the number to be used is already
registered in speed dial, “OVER-
WRITE? ”will be displayed.
! List names function
The voice tags registered in the phone-
book are spoken by using the list names
function. To use the list names function,
perform the following procedure.
1. Select the “LIST NAMES”menu.
2. Select the registered data by perform-
ing either of the following procedures. –Press the talk switch
.
– Operate the “TUNE/TRACK/CH ”
Audio
5-43
–CONTINUED –
5

Black plate (228,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
5-44
Audio

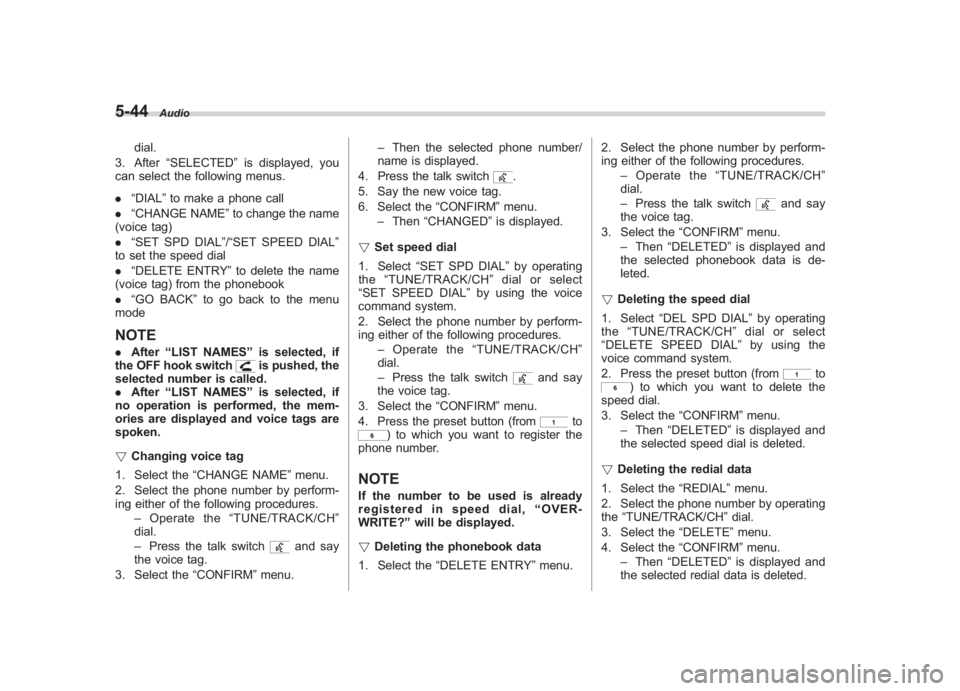

dial.
3. After “SELECTED ”is displayed, you
can select the following menus.
. “DIAL ”to make a phone call
. “CHANGE NAME ”to change the name
(voice tag)
. “SET SPD DIAL ”/“SET SPEED DIAL ”
to set the speed dial
. “DELETE ENTRY ”to delete the name
(voice tag) from the phonebook
. “GO BACK ”to go back to the menu
mode
NOTE. After “LIST NAMES ”is selected, if
the OFF hook switch
is pushed, the
selected number is called.
. After “LIST NAMES ”is selected, if
no operation is performed, the mem-
ories are displayed and voice tags are
spoken.
! Changing voice tag
1. Select the “CHANGE NAME ”menu.
2. Select the phone number by perform-
ing either of the following procedures. –Operate the “TUNE/TRACK/CH”
dial.
– Press the talk switch
and say
the voice tag.
3. Select the “CONFIRM”menu. –
Then the selected phone number/
name is displayed.
4. Press the talk switch
.
5. Say the new voice tag.
6. Select the “CONFIRM”menu.
– Then “CHANGED ”is displayed.
! Set speed dial
1. Select “SET SPD DIAL ”by operating
the “TUNE/TRACK/CH ”dial or select
“SET SPEED DIAL ”by using the voice
command system.
2. Select the phone number by perform-
ing either of the following procedures.
–Operate the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
and say
the voice tag.
3. Select the “CONFIRM”menu.
4. Press the preset button (from
to
) to which you want to register the
phone number.
NOTEIf the number to be used is already
registered in speed dial, “OVER-
WRITE? ”will be displayed.
! Deleting the phonebook data
1. Select the “DELETE ENTRY ”menu. 2. Select the phone number by perform-
ing either of the following procedures.
–Operate the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
and say
the voice tag.
3. Select the “CONFIRM”menu.
– Then “DELETED” is displayed and
the selected phonebook data is de-
leted.
! Deleting the speed dial
1. Select “DEL SPD DIAL ”by operating
the “TUNE/TRACK/CH” dial or select
“ DELETE SPEED DIAL ”by using the
voice command system.
2. Press the preset button (from
to
) to which you want to delete the
speed dial.
3. Select the “CONFIRM”menu.
– Then “DELETED” is displayed and
the selected speed dial is deleted.
! Deleting the redial data
1. Select the “REDIAL”menu.
2. Select the phone number by operating
the “TUNE/TRACK/CH ”dial.
3. Select the “DELETE”menu.
4. Select the “CONFIRM”menu.
– Then “DELETED” is displayed and
the selected redial data is deleted.

Black plate (229,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

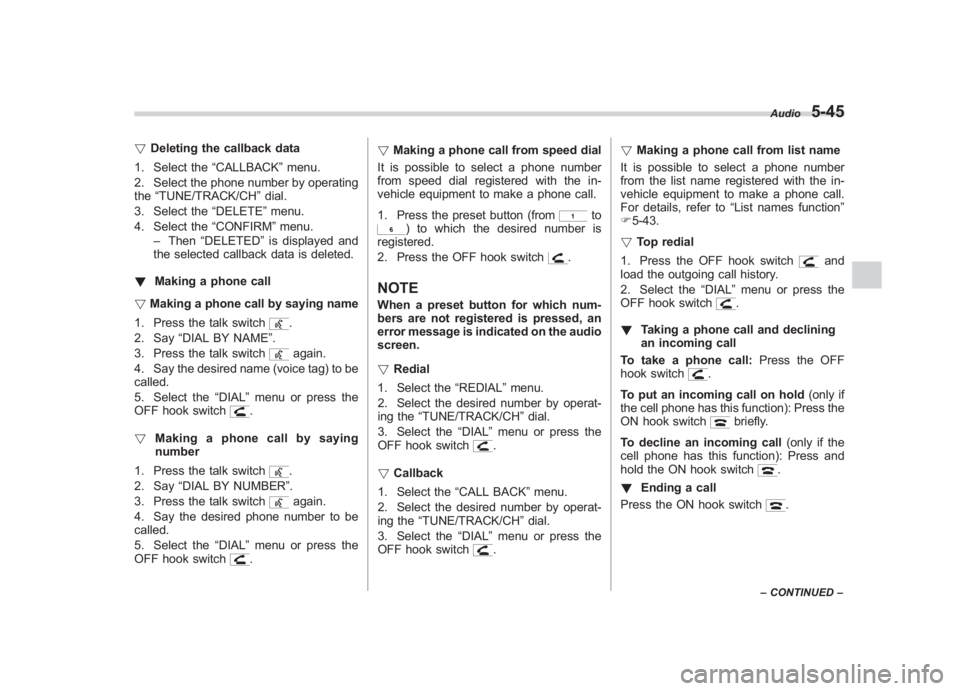

! Deleting the callback data
1. Select the “CALLBACK”menu.
2. Select the phone number by operating
the “TUNE/TRACK/CH ”dial.
3. Select the “DELETE”menu.
4. Select the “CONFIRM”menu.
– Then “DELETED ”is displayed and
the selected callback data is deleted.
! Making a phone call
! Making a phone call by saying name
1. Press the talk switch
.
2. Say “DIAL BY NAME ”.
3. Press the talk switchagain.
4. Say the desired name (voice tag) to be
called.
5. Select the “DIAL”menu or press the
OFF hook switch
.
! Making a phone call by saying
number
1. Press the talk switch
.
2. Say “DIAL BY NUMBER ”.
3. Press the talk switchagain.
4. Say the desired phone number to be
called.
5. Select the “DIAL”menu or press the
OFF hook switch
. !
Making a phone call from speed dial
It is possible to select a phone number
from speed dial registered with the in-
vehicle equipment to make a phone call.
1. Press the preset button (from
to
) to which the desired number is
registered.
2. Press the OFF hook switch
.
NOTEWhen a preset button for which num-
bers are not registered is pressed, an
error message is indicated on the audio
screen.
! Redial
1. Select the “REDIAL”menu.
2. Select the desired number by operat-
ing the “TUNE/TRACK/CH ”dial.
3. Select the “DIAL”menu or press the
OFF hook switch
.
! Callback
1. Select the “CALL BACK”menu.
2. Select the desired number by operat-
ing the “TUNE/TRACK/CH ”dial.
3. Select the “DIAL”menu or press the
OFF hook switch. !
Making a phone call from list name
It is possible to select a phone number
from the list name registered with the in-
vehicle equipment to make a phone call.
For details, refer to “List names function ”
F 5-43.
! Top redial
1. Press the OFF hook switch
and
load the outgoing call history.
2. Select the “DIAL”menu or press the
OFF hook switch
.
! Taking a phone call and declining
an incoming call
To take a phone call: Press the OFF
hook switch
.
To put an incoming call on hold (only if
the cell phone has this function): Press the
ON hook switch
briefly.
To decline an incoming call (only if the
cell phone has this function): Press and
hold the ON hook switch
.
! Ending a call
Press the ON hook switch.
Audio
5-45
– CONTINUED –
5

Black plate (230,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
5-46
Audio

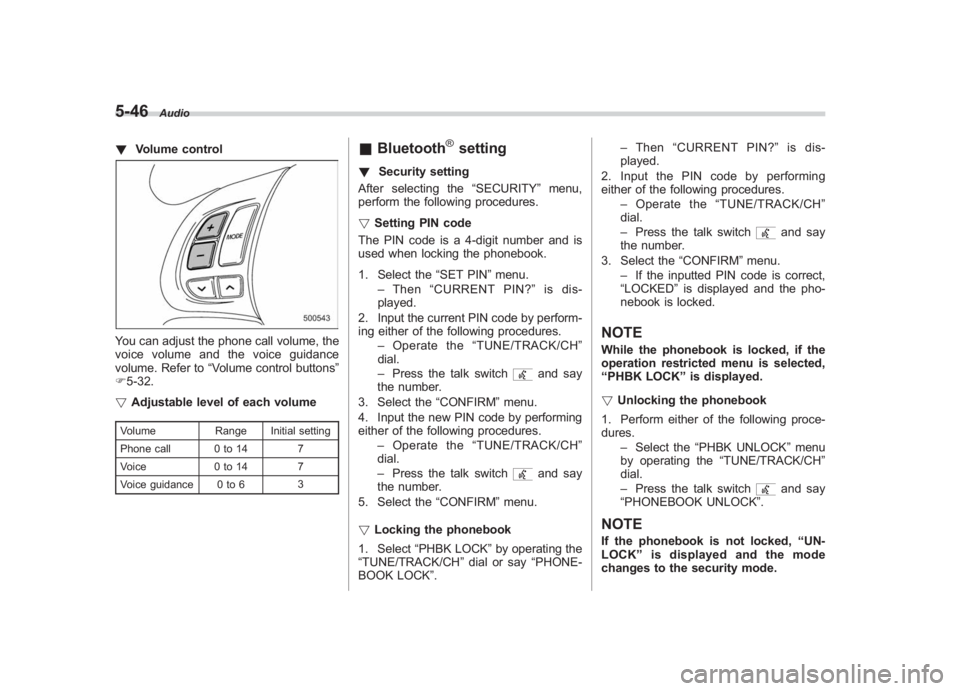

! Volume controlYou can adjust the phone call volume, the
voice volume and the voice guidance
volume. Refer to “Volume control buttons ”
F 5-32.
! Adjustable level of each volumeVolume Range Initial setting
Phone call 0 to 14 7
Voice 0 to 14 7
Voice guidance 0 to 6 3
&
Bluetooth
®setting
! Security setting
After selecting the “SECURITY”menu,
perform the following procedures.
! Setting PIN code
The PIN code is a 4-digit number and is
used when locking the phonebook.
1. Select the “SET PIN”menu.
– Then “CURRENT PIN? ”is dis-
played.
2. Input the current PIN code by perform-
ing either of the following procedures. –Operate the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
and say
the number.
3. Select the “CONFIRM”menu.
4. Input the new PIN code by performing
either of the following procedures. –Operate the “TUNE/TRACK/CH ”
dial.
– Press the talk switchand say
the number.
5. Select the “CONFIRM”menu.
! Locking the phonebook
1. Select “PHBK LOCK” by operating the
“TUNE/TRACK/CH ”dial or say “PHONE-
BOOK LOCK”. –
Then “CURRENT PIN? ”is dis-
played.
2. Input the PIN code by performing
either of the following procedures. –Operate the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
and say
the number.
3. Select the “CONFIRM”menu.
– If the inputted PIN code is correct,
“LOCKED ”is displayed and the pho-
nebook is locked.
NOTEWhile the phonebook is locked, if the
operation restricted menu is selected,
“ PHBK LOCK ”is displayed.
! Unlocking the phonebook
1. Perform either of the following proce-
dures. –Select the “PHBK UNLOCK ”menu
by operating the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
and say
“PHONEBOOK UNLOCK ”.
NOTEIf the phonebook is not locked, “UN-
LOCK ”is displayed and the mode
changes to the security mode.

Black plate (231,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

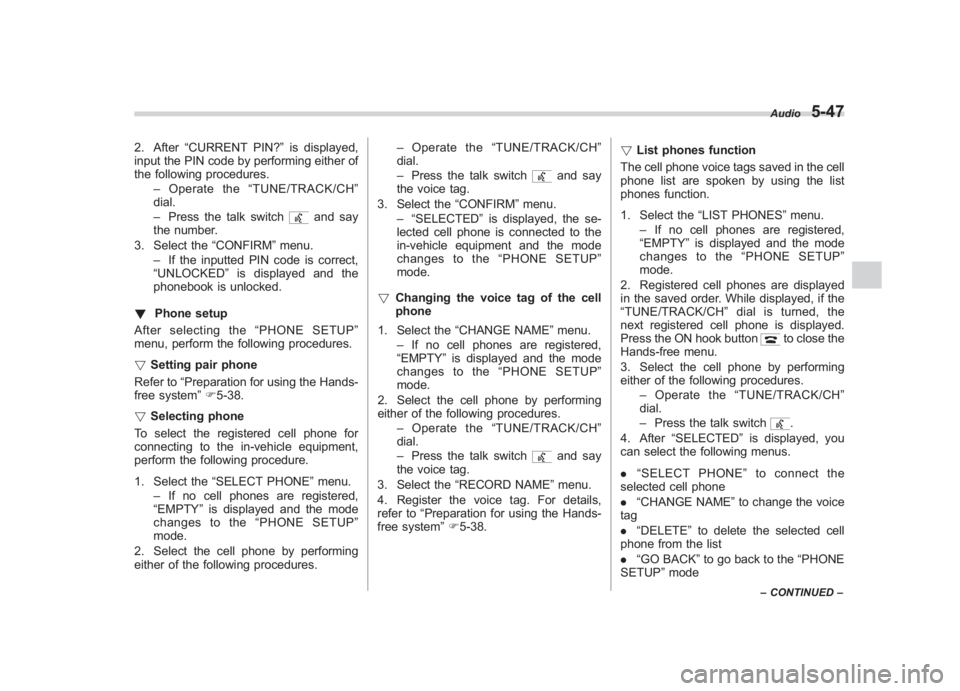

2. After “CURRENT PIN? ”is displayed,
input the PIN code by performing either of
the following procedures.
–Operate the “TUNE/TRACK/CH”
dial.
– Press the talk switch
and say
the number.
3. Select the “CONFIRM”menu.
– If the inputted PIN code is correct,
“UNLOCKED ”is displayed and the
phonebook is unlocked.
! Phone setup
After selecting the “PHONE SETUP ”
menu, perform the following procedures.
! Setting pair phone
Refer to “Preparation for using the Hands-
free system ”F 5-38.
! Selecting phone
To select the registered cell phone for
connecting to the in-vehicle equipment,
perform the following procedure.
1. Select the “SELECT PHONE ”menu.
– If no cell phones are registered,
“EMPTY ”is displayed and the mode
changes to the “PHONE SETUP ”
mode.
2. Select the cell phone by performing
either of the following procedures. –
Operate the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
and say
the voice tag.
3. Select the “CONFIRM”menu.
–“ SELECTED ”is displayed, the se-
lected cell phone is connected to the
in-vehicle equipment and the mode
changes to the “PHONE SETUP ”
mode.
! Changing the voice tag of the cell
phone
1. Select the “CHANGE NAME ”menu.
– If no cell phones are registered,
“EMPTY ”is displayed and the mode
changes to the “PHONE SETUP ”
mode.
2. Select the cell phone by performing
either of the following procedures. –Operate the “TUNE/TRACK/CH ”
dial.
– Press the talk switchand say
the voice tag.
3. Select the “RECORD NAME ”menu.
4. Register the voice tag. For details,
refer to “Preparation for using the Hands-
free system ”F 5-38. !
List phones function
The cell phone voice tags saved in the cell
phone list are spoken by using the list
phones function.
1. Select the “LIST PHONES ”menu.
– If no cell phones are registered,
“EMPTY ”is displayed and the mode
changes to the “PHONE SETUP ”
mode.
2. Registered cell phones are displayed
in the saved order. While displayed, if the
“ TUNE/TRACK/CH ”dial is turned, the
next registered cell phone is displayed.
Press the ON hook button
to close the
Hands-free menu.
3. Select the cell phone by performing
either of the following procedures.
–Operate the “TUNE/TRACK/CH ”
dial.
– Press the talk switch.
4. After “SELECTED ”is displayed, you
can select the following menus.
. “SELECT PHONE ”to connect the
selected cell phone
. “CHANGE NAME ”to change the voice
tag
. “DELETE ”to delete the selected cell
phone from the list
. “GO BACK ”to go back to the “PHONE
SETUP ”mode
Audio
5-47
– CONTINUED –
5

Black plate (232,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
5-48
Audio

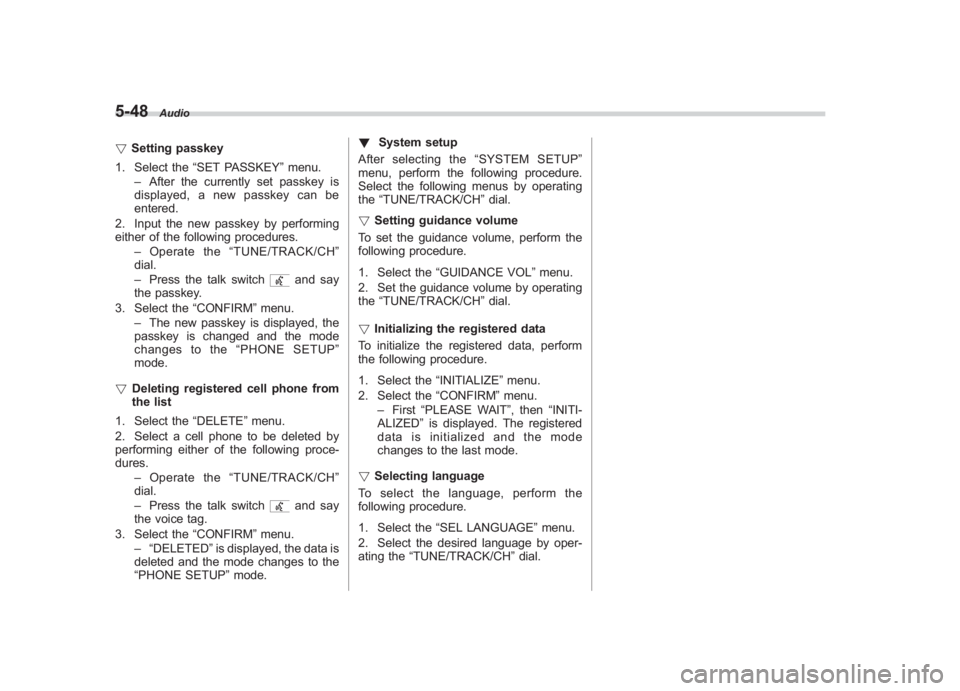

! Setting passkey
1. Select the “SET PASSKEY ”menu.
– After the currently set passkey is
displayed, a new passkey can be
entered.
2. Input the new passkey by performing
either of the following procedures. –Operate the “TUNE/TRACK/CH”
dial.
– Press the talk switch
and say
the passkey.
3. Select the “CONFIRM”menu.
– The new passkey is displayed, the
passkey is changed and the mode
changes to the “PHONE SETUP ”
mode.
! Deleting registered cell phone from
the list
1. Select the “DELETE”menu.
2. Select a cell phone to be deleted by
performing either of the following proce-
dures. –Operate the “TUNE/TRACK/CH”
dial.
– Press the talk switchand say
the voice tag.
3. Select the “CONFIRM”menu.
–“ DELETED” is displayed, the data is
deleted and the mode changes to the
“PHONE SETUP ”mode. !
System setup
After selecting the “SYSTEM SETUP ”
menu, perform the following procedure.
Select the following menus by operating
the “TUNE/TRACK/CH ”dial.
! Setting guidance volume
To set the guidance volume, perform the
following procedure.
1. Select the “GUIDANCE VOL ”menu.
2. Set the guidance volume by operating
the “TUNE/TRACK/CH ”dial.
! Initializing the registered data
To initialize the registered data, perform
the following procedure.
1. Select the “INITIALIZE”menu.
2. Select the “CONFIRM”menu.
– First “PLEASE WAIT ”, then“INITI-
ALIZED ”is displayed. The registered
data is initialized and the mode
changes to the last mode.
! Selecting language
To select the language, perform the
following procedure.
1. Select the “SEL LANGUAGE ”menu.
2. Select the desired language by oper-
ating the “TUNE/TRACK/CH ”dial.

Black plate (11,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 2

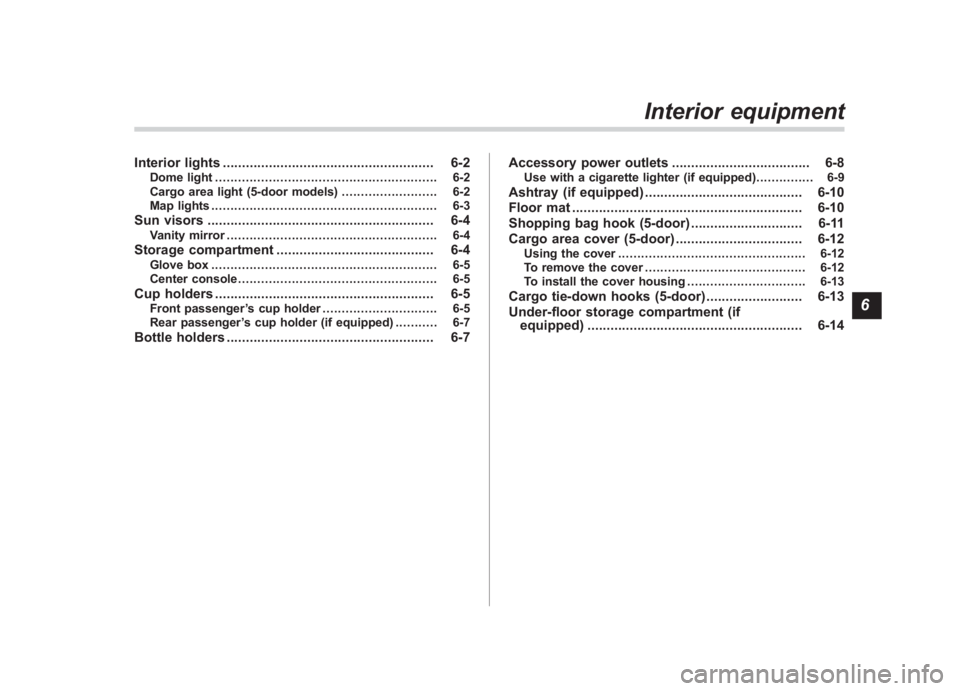

Interior lights ....................................................... 6-2
Dome light.......................................................... 6-2
Cargo area light (5-door models) ......................... 6-2
Map lights ........................................................... 6-3
Sun visors ........................................................... 6-4
Vanity mirror ....................................................... 6-4
Storage compartment ......................................... 6-4
Glove box........................................................... 6-5
Center console .................................................... 6-5
Cup holders......................................................... 6-5
Front passenger ’s cup holder .............................. 6-5
Rear passenger ’s cup holder (if equipped) ........... 6-7
Bottle holders...................................................... 6-7 Accessory power outlets
.................................... 6-8
Use with a cigarette lighter (if equipped) ............... 6-9
Ashtray (if equipped)......................................... 6-10
Floor mat ............................................................ 6-10
Shopping bag hook (5-door) ............................. 6-11
Cargo area cover (5-door) ................................. 6-12
Using the cover................................................. 6-12
To remove the cover .......................................... 6-12
To install the cover housing ............................... 6-13
Cargo tie-down hooks (5-door) ......................... 6-13
Under-floor storage compartment (if equipped) ........................................................ 6-14
Interior equipment
6

Black plate (236,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
6-2
Interior equipment

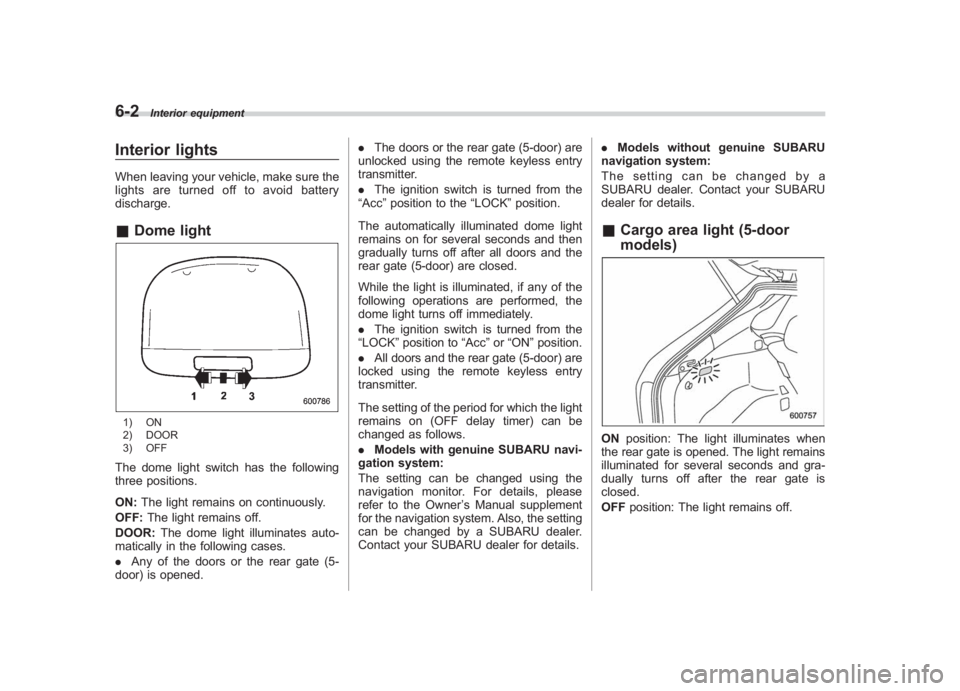

Interior lightsWhen leaving your vehicle, make sure the
lights are turned off to avoid battery
discharge.& Dome light1) ON
2) DOOR
3) OFFThe dome light switch has the following
three positions.
ON: The light remains on continuously.
OFF: The light remains off.
DOOR: The dome light illuminates auto-
matically in the following cases.
. Any of the doors or the rear gate (5-
door) is opened. .
The doors or the rear gate (5-door) are
unlocked using the remote keyless entry
transmitter.
. The ignition switch is turned from the
“Acc ”position to the “LOCK”position.
The automatically illuminated dome light
remains on for several seconds and then
gradually turns off after all doors and the
rear gate (5-door) are closed.
While the light is illuminated, if any of the
following operations are performed, the
dome light turns off immediately.
. The ignition switch is turned from the
“LOCK” position to “Acc”or “ON ”position.
. All doors and the rear gate (5-door) are
locked using the remote keyless entry
transmitter.
The setting of the period for which the light
remains on (OFF delay timer) can be
changed as follows.
. Models with genuine SUBARU navi-
gation system:
The setting can be changed using the
navigation monitor. For details, please
refer to the Owner ’s Manual supplement
for the navigation system. Also, the setting
can be changed by a SUBARU dealer.
Contact your SUBARU dealer for details. .
Models without genuine SUBARU
navigation system:
The setting can be changed by a
SUBARU dealer. Contact your SUBARU
dealer for details.
& Cargo area light (5-door
models)ON position: The light illuminates when
the rear gate is opened. The light remains
illuminated for several seconds and gra-
dually turns off after the rear gate is
closed.
OFF position: The light remains off.

Black plate (237,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

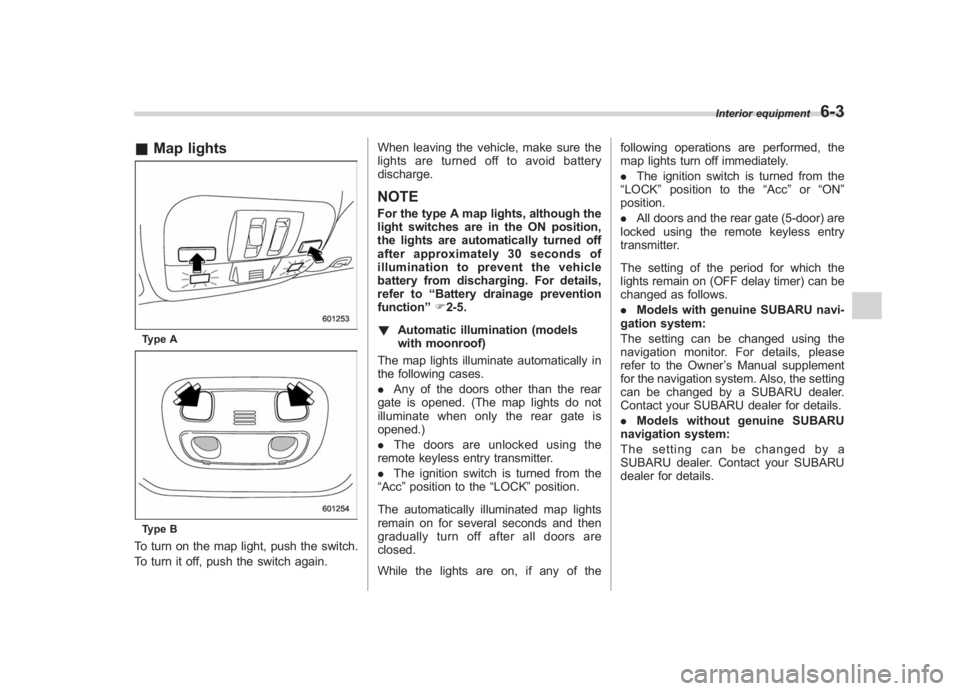

& Map lightsType AType BTo turn on the map light, push the switch.
To turn it off, push the switch again. When leaving the vehicle, make sure the
lights are turned off to avoid battery
discharge.
NOTEFor the type A map lights, although the
light switches are in the ON position,
the lights are automatically turned off
after approximately 30 seconds of
illumination to prevent the vehicle
battery from discharging. For details,
refer to
“Battery drainage prevention
function” F2-5.
! Automatic illumination (models
with moonroof)
The map lights illuminate automatically in
the following cases.
. Any of the doors other than the rear
gate is opened. (The map lights do not
illuminate when only the rear gate is
opened.)
. The doors are unlocked using the
remote keyless entry transmitter.
. The ignition switch is turned from the
“Acc ”position to the “LOCK”position.
The automatically illuminated map lights
remain on for several seconds and then
gradually turn off after all doors are
closed.
While the lights are on, if any of the following operations are performed, the
map lights turn off immediately.
.
The ignition switch is turned from the
“ LOCK ”position to the “Acc ”or “ON ”
position.
. All doors and the rear gate (5-door) are
locked using the remote keyless entry
transmitter.
The setting of the period for which the
lights remain on (OFF delay timer) can be
changed as follows.
. Models with genuine SUBARU navi-
gation system:
The setting can be changed using the
navigation monitor. For details, please
refer to the Owner ’s Manual supplement
for the navigation system. Also, the setting
can be changed by a SUBARU dealer.
Contact your SUBARU dealer for details.
. Models without genuine SUBARU
navigation system:
The setting can be changed by a
SUBARU dealer. Contact your SUBARU
dealer for details.
Interior equipment
6-3
6

Black plate (238,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
6-4
Interior equipment

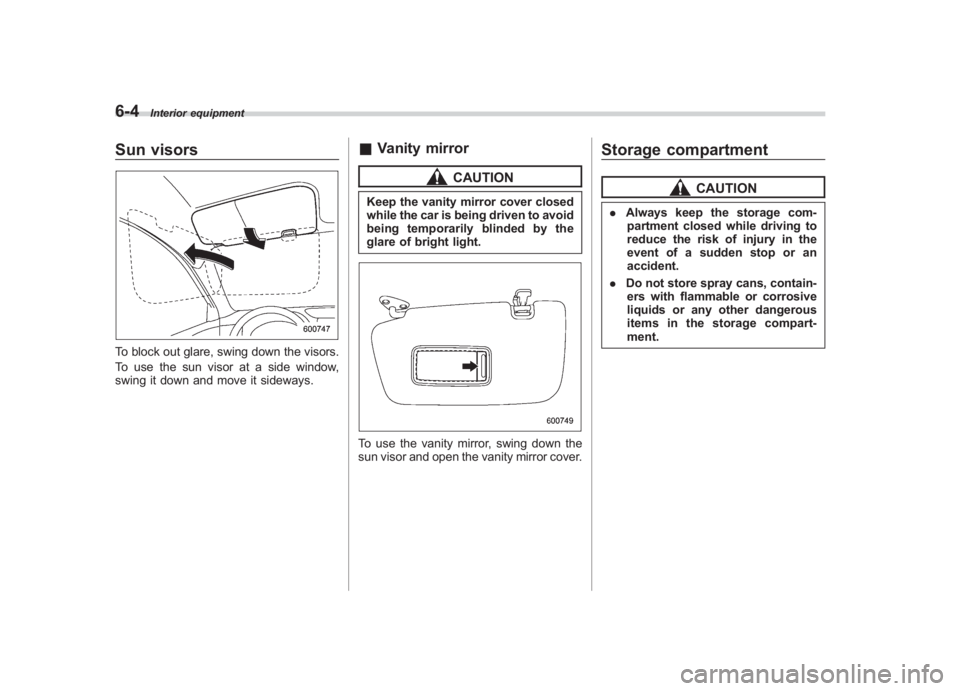

Sun visorsTo block out glare, swing down the visors.
To use the sun visor at a side window,
swing it down and move it sideways.
& Vanity mirror
CAUTION
Keep the vanity mirror cover closed
while the car is being driven to avoid
being temporarily blinded by the
glare of bright light.To use the vanity mirror, swing down the
sun visor and open the vanity mirror cover.
Storage compartment
CAUTION
. Always keep the storage com-
partment closed while driving to
reduce the risk of injury in the
event of a sudden stop or an
accident.
. Do not store spray cans, contain-
ers with flammable or corrosive
liquids or any other dangerous
items in the storage compart-
ment.
