& MUTE button (models with-
out Hands-free system)Press the “
”button if you wish to
immediately cut the volume to zero.
The audio display will show “MUTE”.
If you press the button again, the original
sound volume will return and “MUTE ”
turns off.
Bluetooth
®
audio (type B
audio)
NOTEFor models with the genuine SUBARU
navigation system, refer to the Owner ’s
Manual supplement for the navigation
system.NOTEThe Bluetooth word mark and logo are
registered tradem arks of Bluetooth
SIG, Inc.
This function enables you to play back
audio sources recorded in Bluetooth
®
audio devices. You need to register the
Bluetooth
®audio device in the system
before using it.
& Media formatBluetooth
®
audio devices cannot be
connected if they are not compatible with
the following Bluetooth
®profiles.
. A2DP (Advanced Audio Distribution
Profile)
. AVRCP (Audio/Video Remote Control
Profile)
& Setting Bluetooth
®audio
1. Select the “BT-A SETUP”menu by
pressing the “MENU”button. For details,
refer to “Other sound setting controls ”F 5-
7.
2. Perform the following procedure by
operating the “TUNE/TRACK/CH” dial
while “BT-A ”is displayed.NOTEYou cannot set a Bluetooth
®
audio
while driving.
! Registering (pairing) device
1. Select the “PAIR AUDIO”menu.
– If a device is already registered,
“MEMORY FULL ”is displayed and the
mode changes to the Bluetooth
®
audio setting mode.
2. After the passkey is shown on the
display, input the passkey into the cell
Audio
5-33
– CONTINUED –
5

Black plate (218,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
5-34
Audio

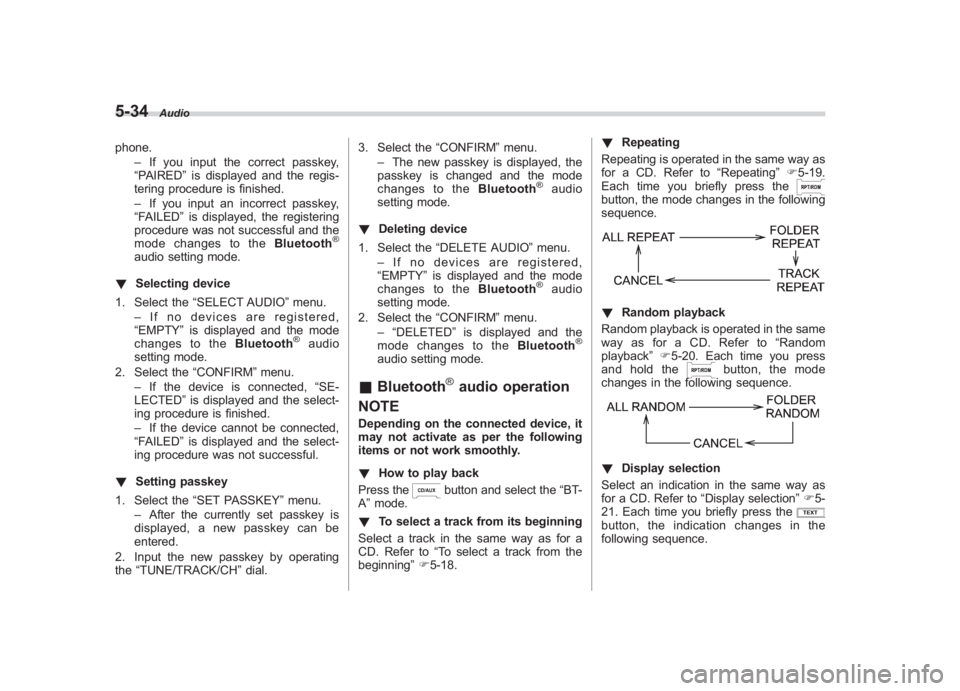

phone.
–If you input the correct passkey,
“PAIRED ”is displayed and the regis-
tering procedure is finished.
– If you input an incorrect passkey,
“FAILED ”is displayed, the registering
procedure was not successful and the
mode changes to the Bluetooth
®
audio setting mode.
! Selecting device
1. Select the “SELECT AUDIO ”menu.
– If no devices are registered,
“EMPTY ”is displayed and the mode
changes to the Bluetooth
®
audio
setting mode.
2. Select the “CONFIRM”menu.
– If the device is connected, “SE-
LECTED ”is displayed and the select-
ing procedure is finished.
– If the device cannot be connected,
“FAILED ”is displayed and the select-
ing procedure was not successful.
! Setting passkey
1. Select the “SET PASSKEY ”menu.
– After the currently set passkey is
displayed, a new passkey can be
entered.
2. Input the new passkey by operating
the “TUNE/TRACK/CH ”dial. 3. Select the
“CONFIRM”menu.
– The new passkey is displayed, the
passkey is changed and the mode
changes to the Bluetooth
®
audio
setting mode.
! Deleting device
1. Select the “DELETE AUDIO” menu.
– If no devices are registered,
“EMPTY ”is displayed and the mode
changes to the Bluetooth
®
audio
setting mode.
2. Select the “CONFIRM”menu.
–“ DELETED ”is displayed and the
mode changes to the Bluetooth
®
audio setting mode.
&Bluetooth
®audio operation
NOTE
Depending on the connected device, it
may not activate as per the following
items or not work smoothly.
! How to play back
Press the
button and select the “BT-
A ”mode.
! To select a track from its beginning
Select a track in the same way as for a
CD. Refer to “To select a track from the
beginning” F5-18. !
Repeating
Repeating is operated in the same way as
for a CD. Refer to “Repeating”F 5-19.
Each time you briefly press the
button, the mode changes in the following
sequence.! Random playback
Random playback is operated in the same
way as for a CD. Refer to “Random
playback” F5-20. Each time you press
and hold the
button, the mode
changes in the following sequence.
! Display selection
Select an indication in the same way as
for a CD. Refer to “Display selection” F5-
21. Each time you briefly press thebutton, the indication changes in the
following sequence.

Black plate (219,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

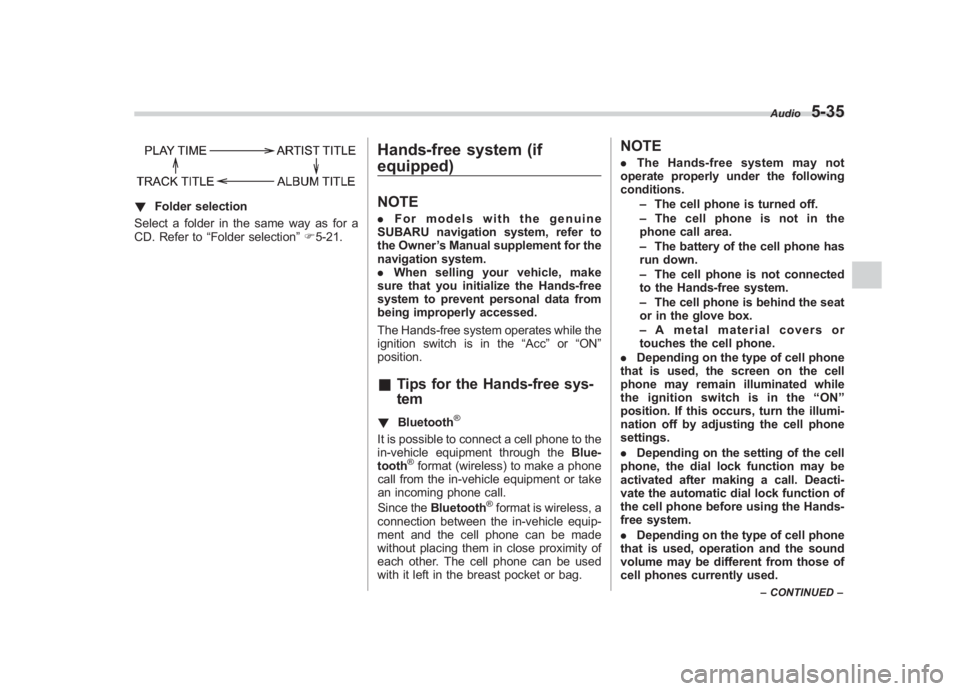

! Folder selection
Select a folder in the same way as for a
CD. Refer to “Folder selection ”F 5-21.
Hands-free system (if
equipped)NOTE. For models with the genuine
SUBARU navigation system, refer to
the Owner ’s Manual supplement for the
navigation system.
. When selling your vehicle, make
sure that you initialize the Hands-free
system to prevent personal data from
being improperly accessed.
The Hands-free system operates while the
ignition switch is in the “Acc”or “ON ”
position.& Tips for the Hands-free sys-
tem! Bluetooth
®
It is possible to connect a cell phone to the
in-vehicle equipment through the Blue-
tooth
®format (wireless) to make a phone
call from the in-vehicle equipment or take
an incoming phone call.
Since the Bluetooth
®format is wireless, a
connection between the in-vehicle equip-
ment and the cell phone can be made
without placing them in close proximity of
each other. The cell phone can be used
with it left in the breast pocket or bag.
NOTE. The Hands-free system may not
operate properly under the following
conditions.
–The cell phone is turned off.
– The cell phone is not in the
phone call area.
– The battery of the cell phone has
run down.
– The cell phone is not connected
to the Hands-free system.
– The cell phone is behind the seat
or in the glove box.
– A metal material covers or
touches the cell phone.
. Depending on the type of cell phone
that is used, the screen on the cell
phone may remain illuminated while
the ignition switch is in the “ON ”
position. If this occurs, turn the illumi-
nation off by adjusting the cell phone
settings.
. Depending on the setting of the cell
phone, the dial lock function may be
activated after making a call. Deacti-
vate the automatic dial lock function of
the cell phone before using the Hands-
free system.
. Depending on the type of cell phone
that is used, operation and the sound
volume may be different from those of
cell phones currently used.
Audio
5-35
– CONTINUED –
5

Black plate (220,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
5-36
Audio

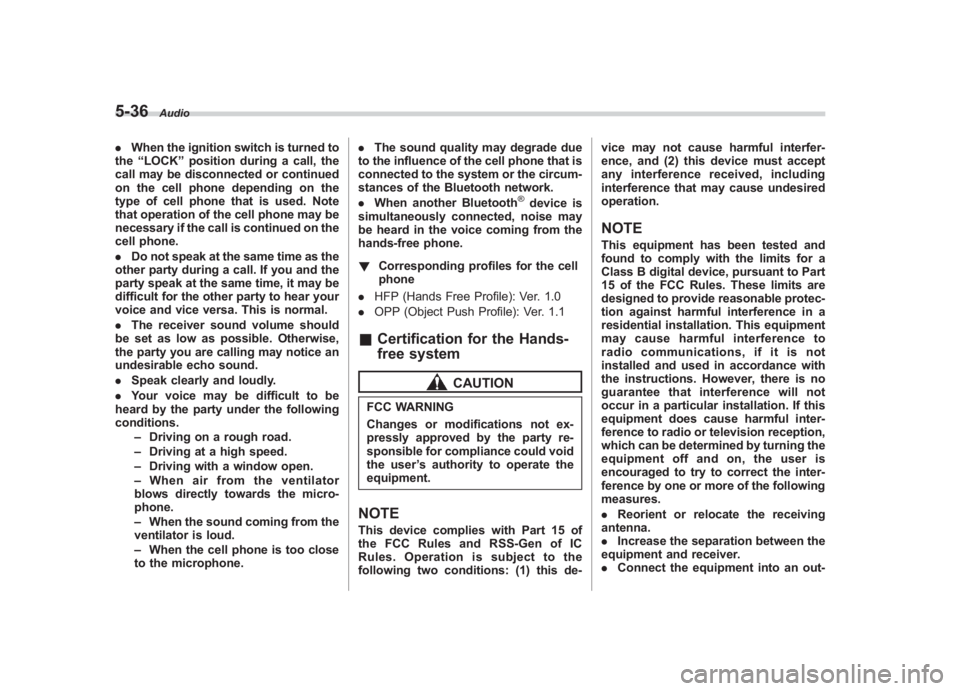

. When the ignition switch is turned to
the “LOCK ”position during a call, the
call may be disconnected or continued
on the cell phone depending on the
type of cell phone that is used. Note
that operation of the cell phone may be
necessary if the call is continued on the
cell phone.
. Do not speak at the same time as the
other party during a call. If you and the
party speak at the same time, it may be
difficult for the other party to hear your
voice and vice versa. This is normal.
. The receiver sound volume should
be set as low as possible. Otherwise,
the party you are calling may notice an
undesirable echo sound.
. Speak clearly and loudly.
. Your voice may be difficult to be
heard by the party under the following
conditions.
–Driving on a rough road.
– Driving at a high speed.
– Driving with a window open.
– When air from the ventilator
blows directly towards the micro-
phone.
– When the sound coming from the
ventilator is loud.
– When the cell phone is too close
to the microphone. .
The sound quality may degrade due
to the influence of the cell phone that is
connected to the system or the circum-
stances of the Bluetooth network.
. When another Bluetooth
®device is
simultaneously connected, noise may
be heard in the voice coming from the
hands-free phone.
! Corresponding profiles for the cell
phone
. HFP (Hands Free Profile): Ver. 1.0
. OPP (Object Push Profile): Ver. 1.1
&Certification for the Hands-
free system
CAUTION
FCC WARNING
Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user ’s authority to operate the
equipment.NOTEThis device complies with Part 15 of
the FCC Rules and RSS-Gen of IC
Rules. Operation is subject to the
following two conditions: (1) this de- vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.
NOTEThis equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
may cause harmful interference to
radio communications, if it is not
installed and used in accordance with
the instructions. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful inter-
ference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the inter-
ference by one or more of the following
measures.
.
Reorient or relocate the receiving
antenna.
. Increase the separation between the
equipment and receiver.
. Connect the equipment into an out-

Black plate (221,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

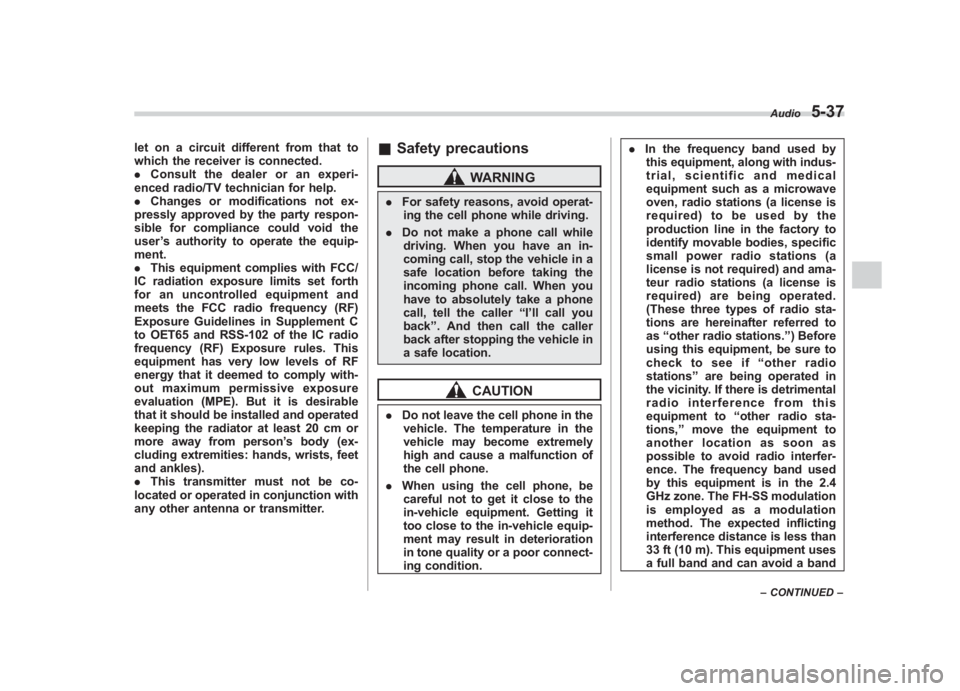

let on a circuit different from that to
which the receiver is connected.
. Consult the dealer or an experi-
enced radio/TV technician for help.
. Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user ’s authority to operate the equip-
ment.
. This equipment complies with FCC/
IC radiation exposure limits set forth
for an uncontrolled equipment and
meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C
to OET65 and RSS-102 of the IC radio
frequency (RF) Exposure rules. This
equipment has very low levels of RF
energy that it deemed to comply with-
out maximum permissive exposure
evaluation (MPE). But it is desirable
that it should be installed and operated
keeping the radiator at least 20 cm or
more away from person ’s body (ex-
cluding extremities: hands, wrists, feet
and ankles).
. This transmitter must not be co-
located or operated in conjunction with
any other antenna or transmitter.
& Safety precautions
WARNING
. For safety reasons, avoid operat-
ing the cell phone while driving.
. Do not make a phone call while
driving. When you have an in-
coming call, stop the vehicle in a
safe location before taking the
incoming phone call. When you
have to absolutely take a phone
call, tell the caller “I’ll call you
back ”. And then call the caller
back after stopping the vehicle in
a safe location.
CAUTION
. Do not leave the cell phone in the
vehicle. The temperature in the
vehicle may become extremely
high and cause a malfunction of
the cell phone.
. When using the cell phone, be
careful not to get it close to the
in-vehicle equipment. Getting it
too close to the in-vehicle equip-
ment may result in deterioration
in tone quality or a poor connect-
ing condition. .
In the frequency band used by
this equipment, along with indus-
trial, scientific and medical
equipment such as a microwave
oven, radio stations (a license is
required) to be used by the
production line in the factory to
identify movable bodies, specific
small power radio stations (a
license is not required) and ama-
teur radio stations (a license is
required) are being operated.
(These three types of radio sta-
tions are hereinafter referred to
as “other radio stations. ”) Before
using this equipment, be sure to
check to see if “other radio
stations ”are being operated in
the vicinity. If there is detrimental
radio interference from this
equipment to “other radio sta-
tions, ”move the equipment to
another location as soon as
possible to avoid radio interfer-
ence. The frequency band used
by this equipment is in the 2.4
GHz zone. The FH-SS modulation
is employed as a modulation
method. The expected inflicting
interference distance is less than
33 ft (10 m). This equipment uses
a full band and can avoid a band
Audio
5-37
– CONTINUED –
5

Black plate (222,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
5-38
Audio
used by a movable body identifi-
cation device.

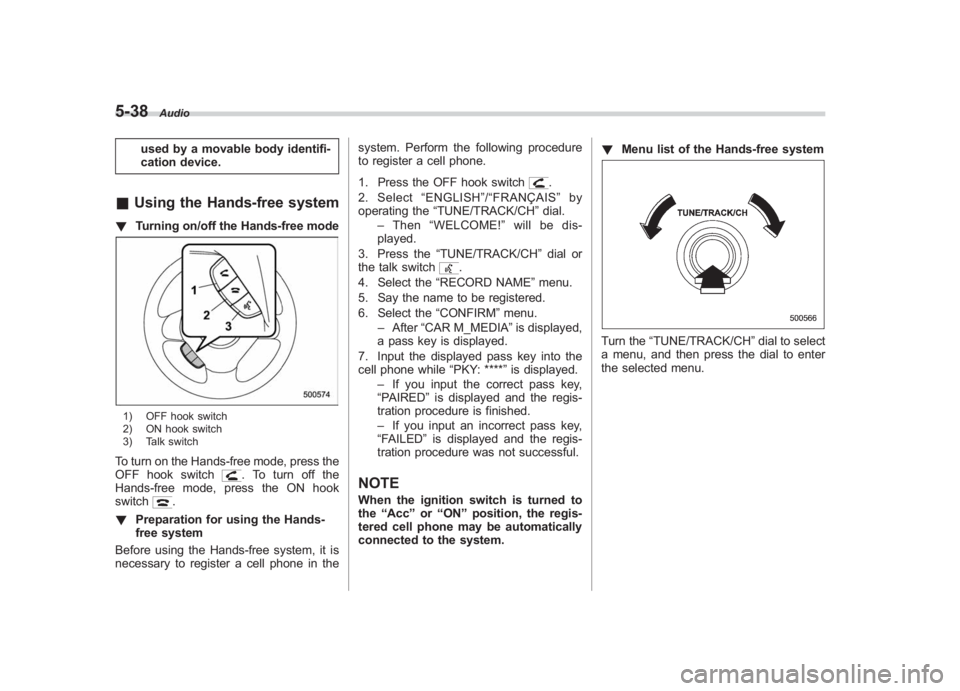

& Using the Hands-free system! Turning on/off the Hands-free mode1) OFF hook switch
2) ON hook switch
3) Talk switchTo turn on the Hands-free mode, press the
OFF hook switch
. To turn off the
Hands-free mode, press the ON hook
switch
.
! Preparation for using the Hands-
free system
Before using the Hands-free system, it is
necessary to register a cell phone in the system. Perform the following procedure
to register a cell phone.
1. Press the OFF hook switch
.
2. Select “ENGLISH ”/“ FRANÇAIS ”by
operating the “TUNE/TRACK/CH ”dial.
– Then “WELCOME! ”will be dis-
played.
3. Press the “TUNE/TRACK/CH ”dial or
the talk switch
.
4. Select the “RECORD NAME ”menu.
5. Say the name to be registered.
6. Select the “CONFIRM”menu.
– After “CAR M_MEDIA ”is displayed,
a pass key is displayed.
7. Input the displayed pass key into the
cell phone while “PKY: ****”is displayed.
– If you input the correct pass key,
“PAIRED ”is displayed and the regis-
tration procedure is finished.
– If you input an incorrect pass key,
“FAILED ”is displayed and the regis-
tration procedure was not successful.
NOTEWhen the ignition switch is turned to
the “Acc ”or “ON ”position, the regis-
tered cell phone may be automatically
connected to the system. !
Menu list of the Hands-free system
Turn the “TUNE/TRACK/CH ”dial to select
a menu, and then press the dial to enter
the selected menu.

Black plate (223,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

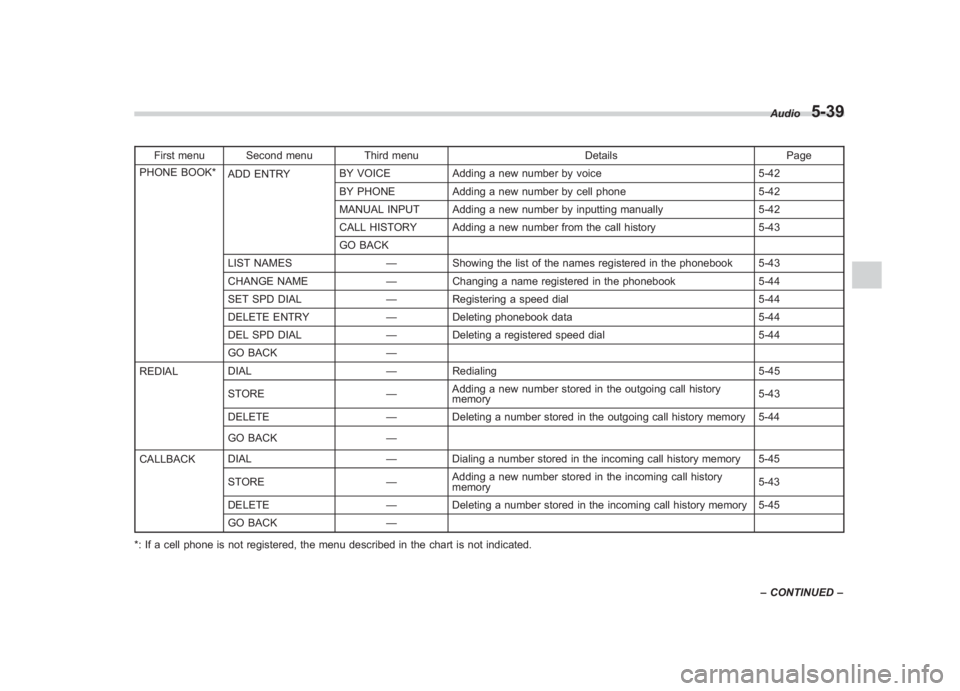

First menu Second menu Third menu DetailsPage
PHONE BOOK* ADD ENTRY BY VOICE
Adding a new number by voice 5-42
BY PHONE Adding a new number by cell phone 5-42
MANUAL INPUT Adding a new number by inputting manually 5-42
CALL HISTORY Adding a new number from the call history 5-43
GO BACK
LIST NAMES —Showing the list of the names registered in the phonebook 5-43
CHANGE NAME —Changing a name registered in the phonebook 5-44
SET SPD DIAL —Registering a speed dial 5-44
DELETE ENTRY —Deleting phonebook data 5-44
DEL SPD DIAL —Deleting a registered speed dial 5-44
GO BACK —
REDIAL DIAL
—Redialing 5-45
STORE —Adding a new number stored in the outgoing call history
memory 5-43
DELETE —Deleting a number stored in the outgoing call history memory 5-44
GO BACK —
CALLBACK DIAL
—Dialing a number stored in the incoming call history memory 5-45
STORE —Adding a new number stored in the incoming call history
memory 5-43
DELETE —Deleting a number stored in the incoming call history memory 5-45
GO BACK —
*: If a cell phone is not registered, the menu described in the chart is not indicated. Audio
5-39
–
CONTINUED –
5

Black plate (224,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
5-40
Audio

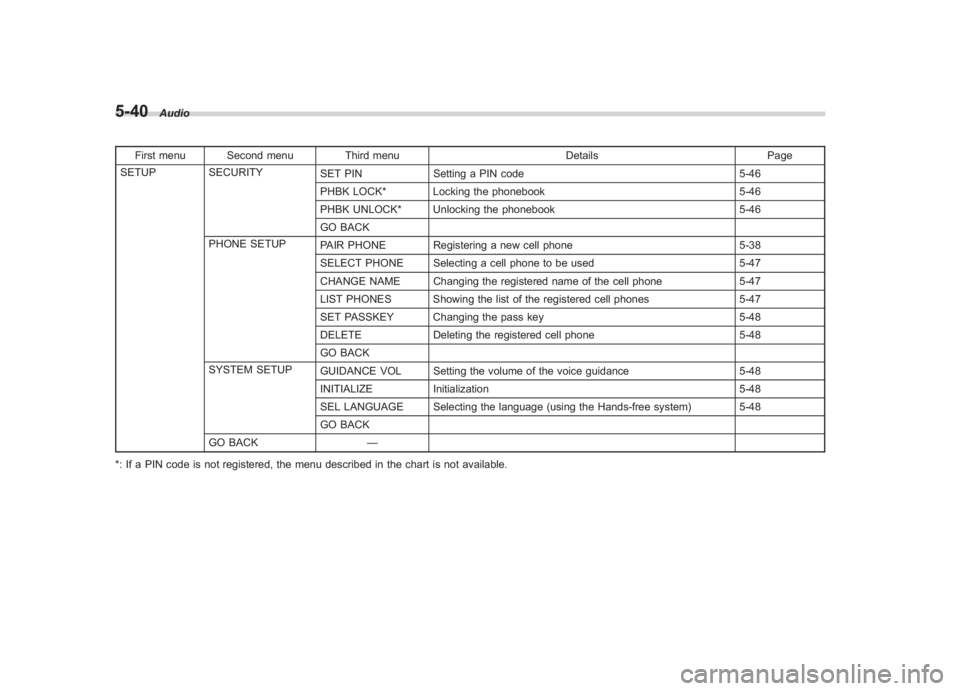

First menu Second menu Third menu DetailsPage
SETUP SECURITY SET PINSetting a PIN code 5-46
PHBK LOCK* Locking the phonebook 5-46
PHBK UNLOCK* Unlocking the phonebook 5-46
GO BACK
PHONE SETUP PAIR PHONE Registering a new cell phone 5-38
SELECT PHONE Selecting a cell phone to be used 5-47
CHANGE NAME Changing the registered name of the cell phone 5-47
LIST PHONES Showing the list of the registered cell phones 5-47
SET PASSKEY Changing the pass key 5-48
DELETE Deleting the registered cell phone 5-48
GO BACK
SYSTEM SETUP GUIDANCE VOL Setting the volume of the voice guidance 5-48
INITIALIZE Initialization 5-48
SEL LANGUAGE Selecting the language (using the Hands-free system) 5-48
GO BACK
GO BACK —
*: If a PIN code is not registered, the menu described in the chart is not available.

Black plate (225,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
! Voice command system1) OFF hook switch
2) ON hook switch
3) Talk switchTo turn on the voice command system,
press the talk switch
briefly. To turn off
the voice command system, wait for 5
seconds without using the voice command
system. The commands available for the voice
command system are listed in the follow-
ing chart.
Command
English Français
1 0 (zero, oh) 0 (zéro)
2 1 (one) 1 (un)
3 2 (two) 2 (deux)
4 3 (three) 3 (trois)
5 4 (four) 4 (quatre)
6 5 (five) 5 (cinq)
7 6 (six) 6 (six)
8 7 (seven) 7 (sept)
9 8 (eight) 8 (huit)
10 9 (nine) 9 (neuf)
11 * (star) * (étoile)
12 # (pound) # (carré, dièse)
13 + (plus) + (plus)
14 callback rappel
15 redial recomposer
16 dial by number composer par nu-
méro
17 dial by name composer par nom
18 phonebook registre
19 setup réglages20
phone book add
entry ajouter l
’entrée
dans le registre
21 phone book
change name modifier le nom
dans le registre
22 phone book delete
entry supprimer l
’entrée
du registre
23 phone book list
names lister les noms du
registre
24 phone book set
speed dial configurer compo-
sition abrégée pour
le registre
25 phone book delete
speed dial supprimer compo-
sition abrégée pour
le registre
26 phone book unlock déverrouiller le re-
gistre
27 cancel annuler
28 help aide
29 repeat répéter
30 go back retourner
31 mute sourdine
32 dial composer
33 previous précédent
34 delete supprimer
35 store enregistrer
36 confirm confirmer
37 phone setup réglages du télé-
phoneAudio
5-41
–
CONTINUED –
5

Black plate (226,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7
5-42
Audio

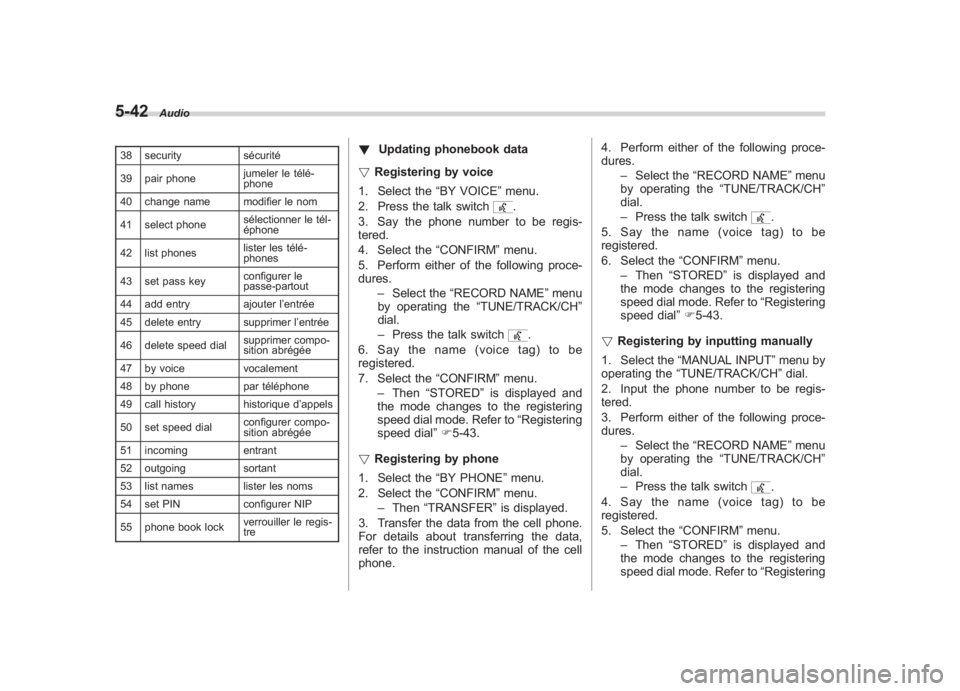

38 security sécurité
39 pair phone jumeler le télé-
phone
40 change name modifier le nom
41 select phone sélectionner le tél-
éphone
42 list phones lister les télé-
phones
43 set pass key configurer le
passe-partout
44 add entry ajouter l ’entrée
45 delete entry supprimer l ’entrée
46 delete speed dial supprimer compo-
sition abrégée
47 by voice vocalement
48 by phone par téléphone
49 call history historique d ’appels
50 set speed dial configurer compo-
sition abrégée
51 incoming entrant
52 outgoing sortant
53 list names lister les noms
54 set PIN configurer NIP
55 phone book lock verrouiller le regis-
tre
!
Updating phonebook data
! Registering by voice
1. Select the “BY VOICE”menu.
2. Press the talk switch
.
3. Say the phone number to be regis-
tered.
4. Select the “CONFIRM”menu.
5. Perform either of the following proce-
dures. –Select the “RECORD NAME ”menu
by operating the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
.
6. Say the name (voice tag) to be
registered.
7. Select the “CONFIRM”menu.
– Then “STORED ”is displayed and
the mode changes to the registering
speed dial mode. Refer to “Registering
speed dial ”F 5-43.
! Registering by phone
1. Select the “BY PHONE”menu.
2. Select the “CONFIRM”menu.
– Then “TRANSFER ”is displayed.
3. Transfer the data from the cell phone.
For details about transferring the data,
refer to the instruction manual of the cell
phone. 4. Perform either of the following proce-
dures.
–Select the “RECORD NAME ”menu
by operating the “TUNE/TRACK/CH ”
dial.
– Press the talk switch
.
5. Say the name (voice tag) to be
registered.
6. Select the “CONFIRM”menu.
– Then “STORED ”is displayed and
the mode changes to the registering
speed dial mode. Refer to “Registering
speed dial ”F 5-43.
! Registering by inputting manually
1. Select the “MANUAL INPUT ”menu by
operating the “TUNE/TRACK/CH ”dial.
2. Input the phone number to be regis-
tered.
3. Perform either of the following proce-
dures. –Select the “RECORD NAME ”menu
by operating the “TUNE/TRACK/CH ”
dial.
– Press the talk switch.
4. Say the name (voice tag) to be
registered.
5. Select the “CONFIRM”menu.
– Then “STORED ”is displayed and
the mode changes to the registering
speed dial mode. Refer to “Registering
