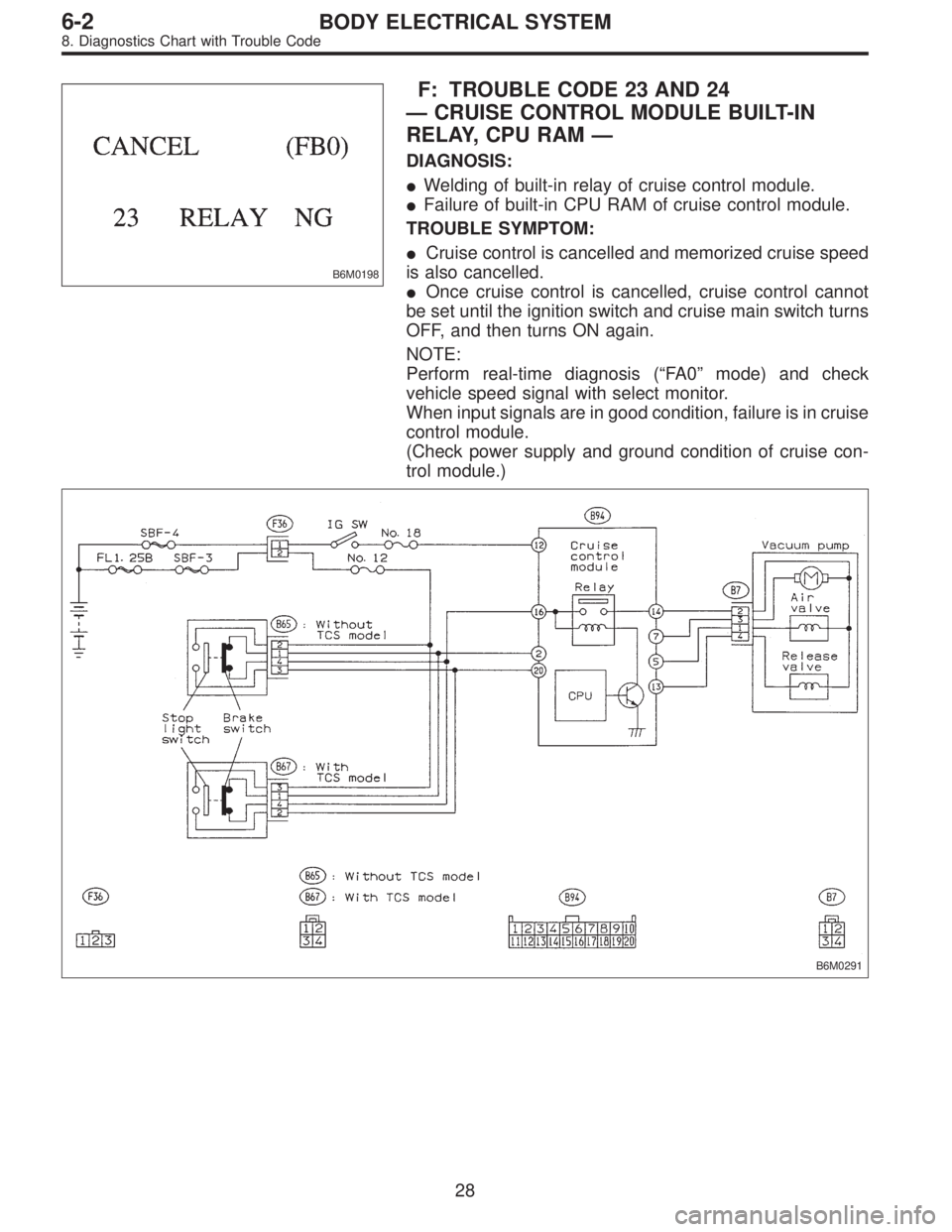

F: TROUBLE CODE 23 AND 24
—CRUISE CONTROL MODULE BUILT-IN
RELAY, CPU RAM—
DIAGNOSIS:

Welding of built-in relay of cruise control module.

Failure of built-in CPU RAM of cruise control module.
TROUBLE SYMPTOM:

Cruise control is cancelled and memorized cruise speed
is also cancelled.

Once cruise control is cancelled, cruise control cannot
be set until the ignition switch and cruise main switch turns
OFF, and then turns ON again.
NOTE:
Perform real-time diagnosis (“FA 0”mode) and check
vehicle speed signal with select monitor.
When input signals are in good condition, failure is in cruise
control module.
(Check power supply and ground condition of cruise con-
trol module.)
B6M0291
28
6-2BODY ELECTRICAL SYSTEM
8. Diagnostics Chart with Trouble Code

B6M0200

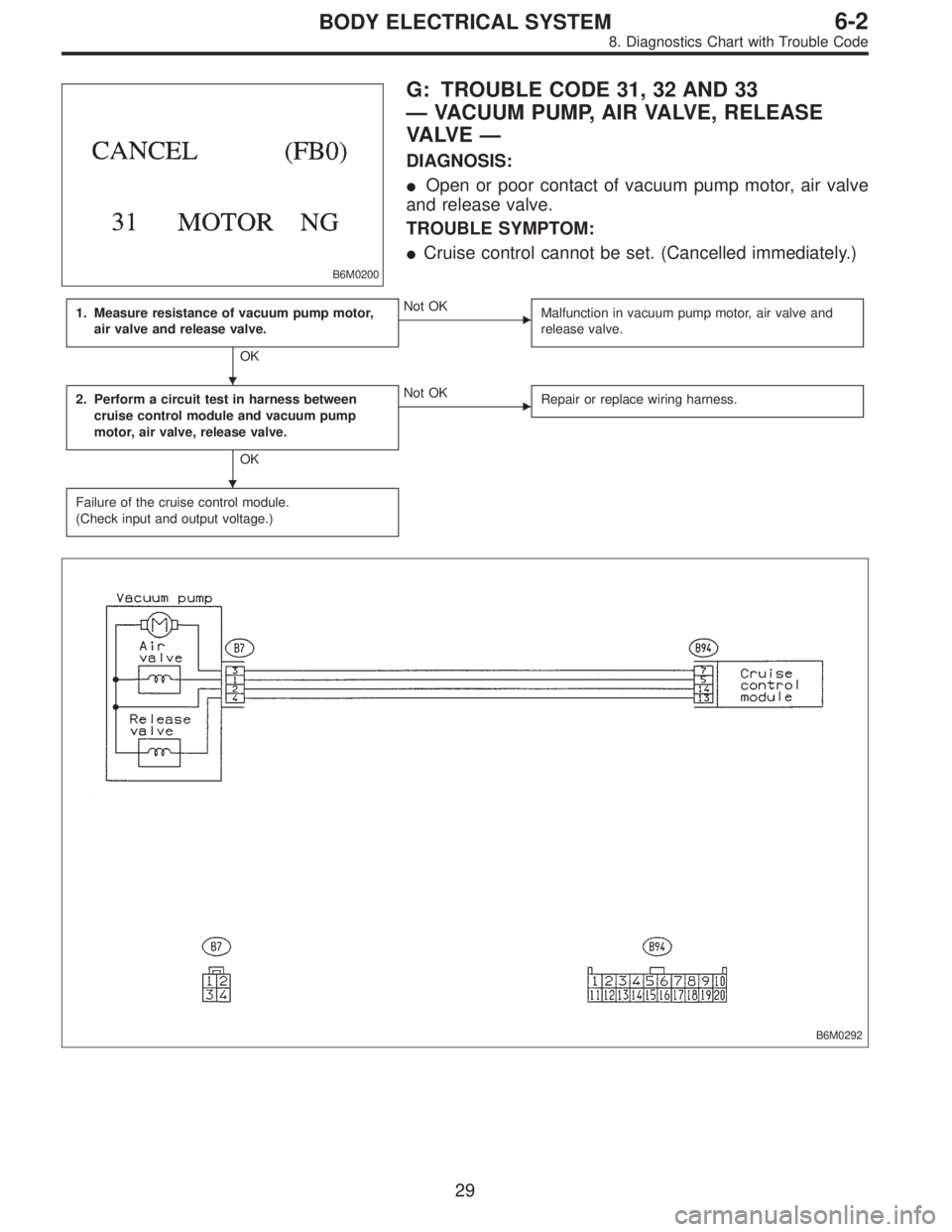

G: TROUBLE CODE 31, 32 AND 33
—VACUUM PUMP, AIR VALVE, RELEASE
VA LV E—
DIAGNOSIS:

Open or poor contact of vacuum pump motor, air valve
and release valve.
TROUBLE SYMPTOM:

Cruise control cannot be set. (Cancelled immediately.)
1. Measure resistance of vacuum pump motor,
air valve and release valve.
OK
Not OK
Malfunction in vacuum pump motor, air valve and
release valve.
2. Perform a circuit test in harness between
cruise control module and vacuum pump
motor, air valve, release valve.
OK
Not OK
Repair or replace wiring harness.
Failure of the cruise control module.
(Check input and output voltage.)
B6M0292


29
6-2BODY ELECTRICAL SYSTEM
8. Diagnostics Chart with Trouble Code

B6M0271

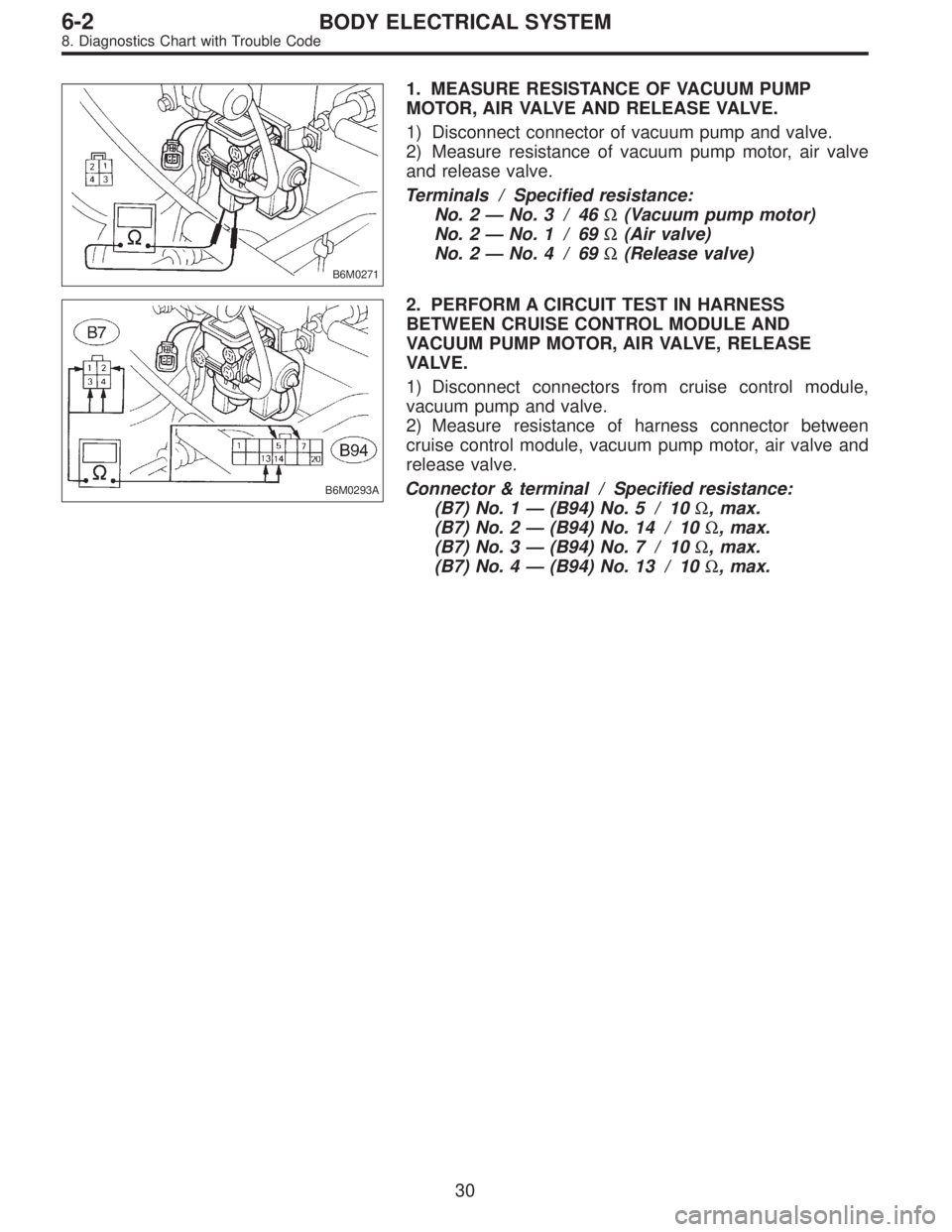

1. MEASURE RESISTANCE OF VACUUM PUMP
MOTOR, AIR VALVE AND RELEASE VALVE.
1) Disconnect connector of vacuum pump and valve.
2) Measure resistance of vacuum pump motor, air valve
and release valve.
Terminals / Specified resistance:
No. 2—No. 3 / 46Ω(Vacuum pump motor)
No. 2—No. 1 / 69Ω(Air valve)
No. 2—No. 4 / 69Ω(Release valve)
B6M0293A
2. PERFORM A CIRCUIT TEST IN HARNESS
BETWEEN CRUISE CONTROL MODULE AND
VACUUM PUMP MOTOR, AIR VALVE, RELEASE
VA LV E .
1) Disconnect connectors from cruise control module,
vacuum pump and valve.
2) Measure resistance of harness connector between
cruise control module, vacuum pump motor, air valve and
release valve.
Connector & terminal / Specified resistance:
(B7) No. 1—(B94) No. 5 / 10Ω, max.
(B7) No. 2—(B94) No. 14 / 10Ω, max.
(B7) No. 3—(B94) No. 7 / 10Ω, max.
(B7) No. 4—(B94) No. 13 / 10Ω, max.
30
6-2BODY ELECTRICAL SYSTEM
8. Diagnostics Chart with Trouble Code

9. Diagnostics Chart with Select
Monitor

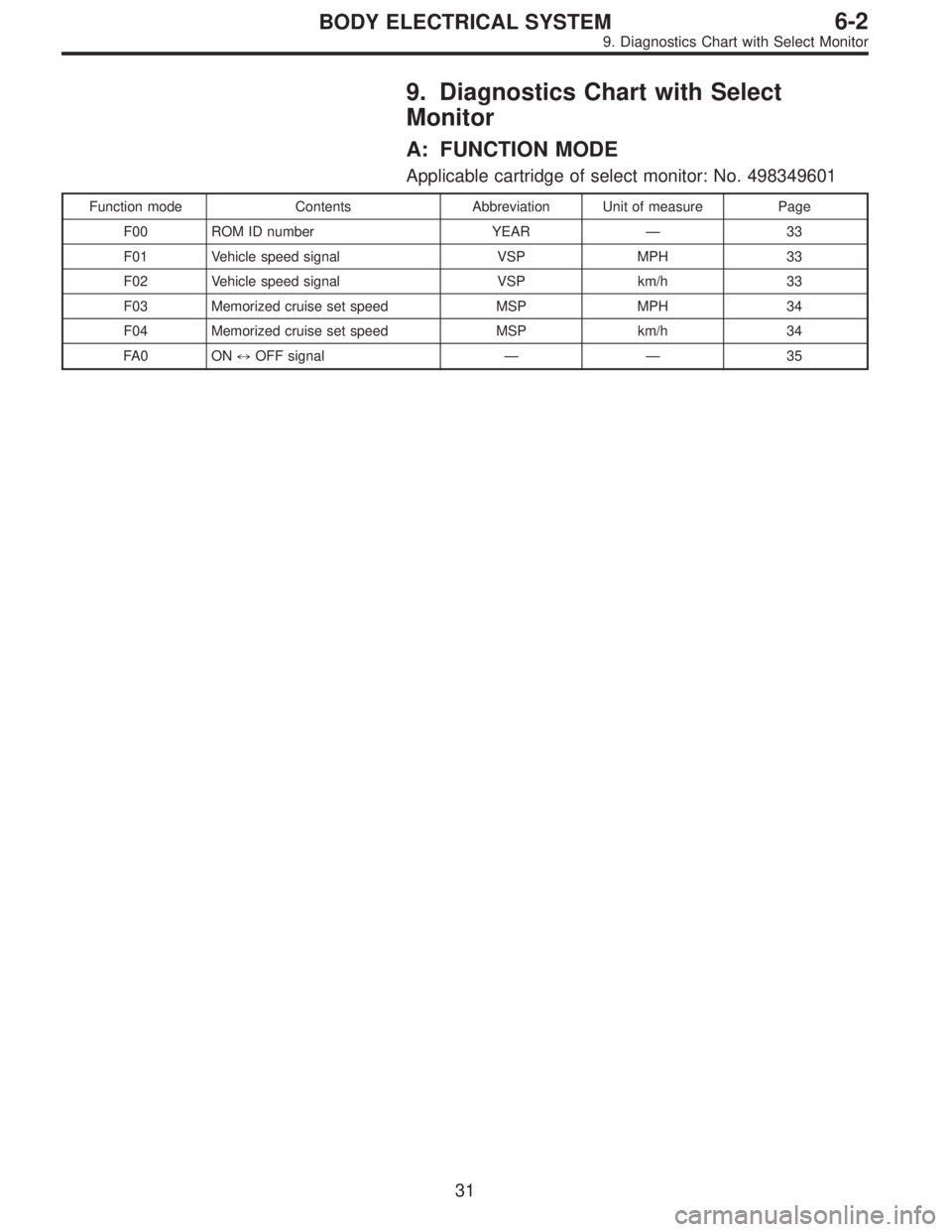

A: FUNCTION MODE
Applicable cartridge of select monitor: No. 498349601
Function mode Contents Abbreviation Unit of measure Page
F00 ROM ID number YEAR—33
F01 Vehicle speed signal VSP MPH 33
F02 Vehicle speed signal VSP km/h 33
F03 Memorized cruise set speed MSP MPH 34
F04 Memorized cruise set speed MSP km/h 34
FA 0 O N)OFF signal——35
31
6-2BODY ELECTRICAL SYSTEM
9. Diagnostics Chart with Select Monitor

B6M0243

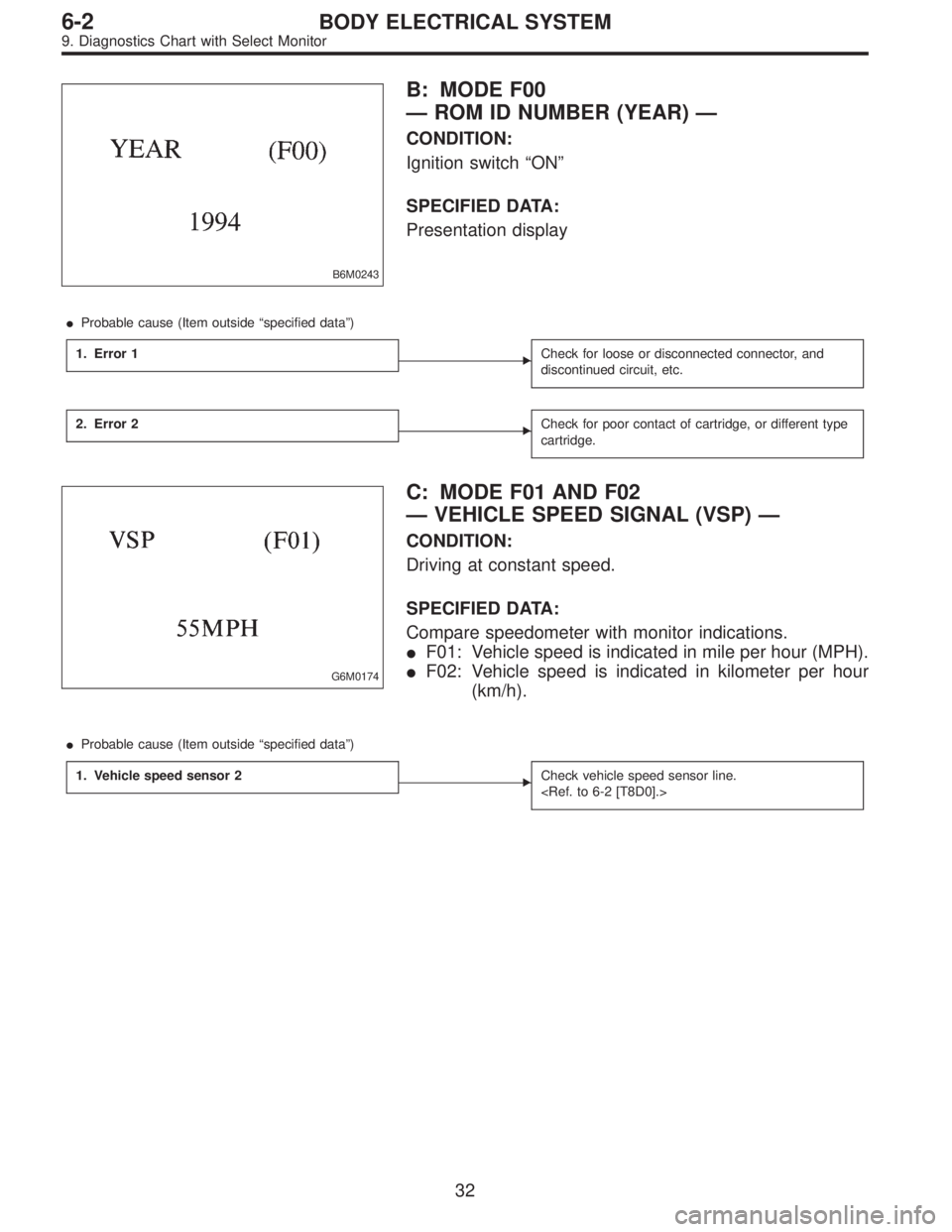

B: MODE F00
—ROM ID NUMBER (YEAR)—
CONDITION:
Ignition switch“ON”
SPECIFIED DATA:
Presentation display

Probable cause (Item outside“specified data”)
1. Error 1
Check for loose or disconnected connector, and
discontinued circuit, etc.
2. Error 2Check for poor contact of cartridge, or different type
cartridge.
G6M0174
C: MODE F01 AND F02
—VEHICLE SPEED SIGNAL (VSP)—
CONDITION:
Driving at constant speed.
SPECIFIED DATA:
Compare speedometer with monitor indications.

F01: Vehicle speed is indicated in mile per hour (MPH).

F02: Vehicle speed is indicated in kilometer per hour
(km/h).

Probable cause (Item outside“specified data”)
1. Vehicle speed sensor 2
Check vehicle speed sensor line.

32
6-2BODY ELECTRICAL SYSTEM
9. Diagnostics Chart with Select Monitor

B6M0205
D: MODE F03 AND F04
—MEMORIZED CRUISE SET SPEED (MSP)—
CONDITION:
Driving at minimum of 40 km/h (25 MPH) and set cruise
control.
SPECIFIED DATA:
Compare displayed vehicle speed on select monitor in
mode“F03”and“F04”with the speed in mode“F01”and
“F02”.

F03: Memorized cruise set speed is indicated in mile
per hour (MPH).

F04: Memorized cruise set speed is indicated in kilome-
ter per hour (km/h).
NOTE:

F01: Actual vehicle speed is indicated in mile per hour
(MPH).

F02: Actual vehicle speed is indicated in kilometer per
hour (km/h).

Probable cause (Item outside“specified data”)
1. Cruise control module
Check cruise control module input/output signals.
2. Cruise control command switchCheck cruise control command switch.
33
6-2BODY ELECTRICAL SYSTEM
9. Diagnostics Chart with Select Monitor

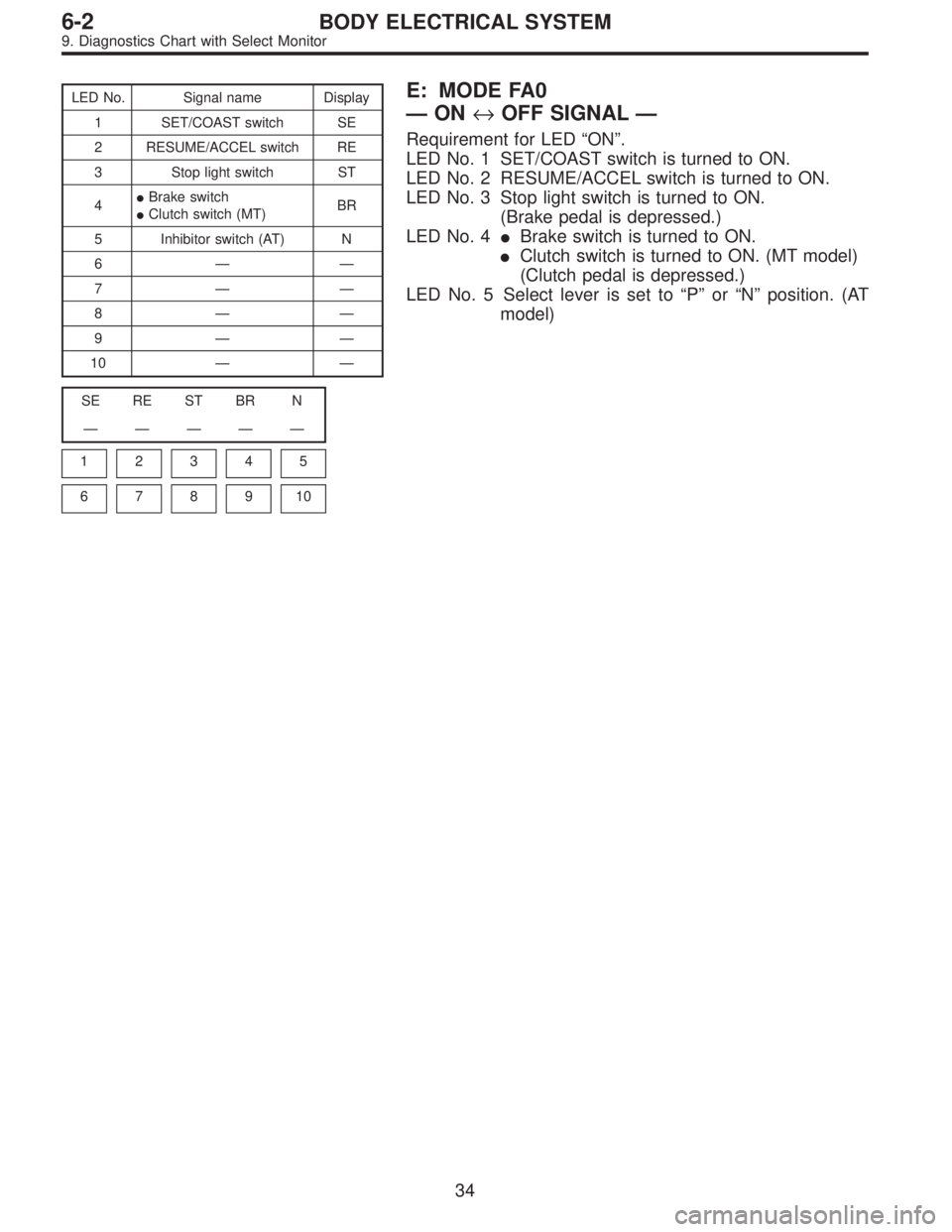

LED No. Signal name Display
1 SET/COAST switch SE
2 RESUME/ACCEL switch RE
3 Stop light switch ST
4
Brake switch

Clutch switch (MT)BR
5 Inhibitor switch (AT) N
6——
7——
8——
9——
10——
SE RE ST BR N
—————
1
2345
678910
E: MODE FA0
—ON↔OFF SIGNAL—
Requirement for LED“ON”.
LED No. 1 SET/COAST switch is turned to ON.
LED No. 2 RESUME/ACCEL switch is turned to ON.
LED No. 3 Stop light switch is turned to ON.
(Brake pedal is depressed.)
LED No. 4
Brake switch is turned to ON.

Clutch switch is turned to ON. (MT model)
(Clutch pedal is depressed.)
LED No. 5 Select lever is set to“P”or“N”position. (AT
model)
34
6-2BODY ELECTRICAL SYSTEM
9. Diagnostics Chart with Select Monitor

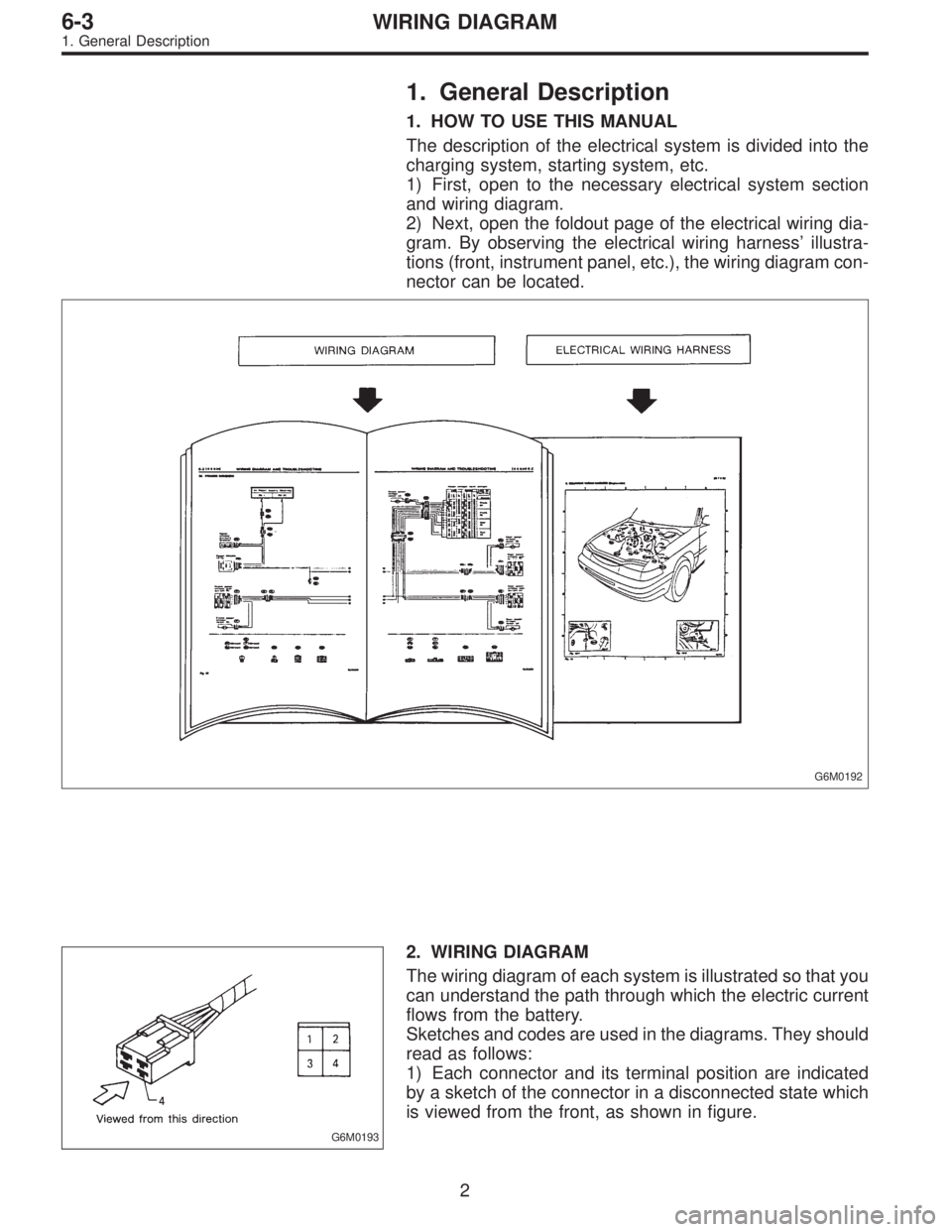

1. General Description
1. HOW TO USE THIS MANUAL
The description of the electrical system is divided into the
charging system, starting system, etc.
1) First, open to the necessary electrical system section
and wiring diagram.
2) Next, open the foldout page of the electrical wiring dia-
gram. By observing the electrical wiring harness’ illustra-
tions (front, instrument panel, etc.), the wiring diagram con-
nector can be located.
G6M0192
G6M0193
2. WIRING DIAGRAM
The wiring diagram of each system is illustrated so that you
can understand the path through which the electric current
flows from the battery.
Sketches and codes are used in the diagrams. They should
read as follows:
1) Each connector and its terminal position are indicated
by a sketch of the connector in a disconnected state which
is viewed from the front, as shown in figure.
2
6-3WIRING DIAGRAM
1. General Description

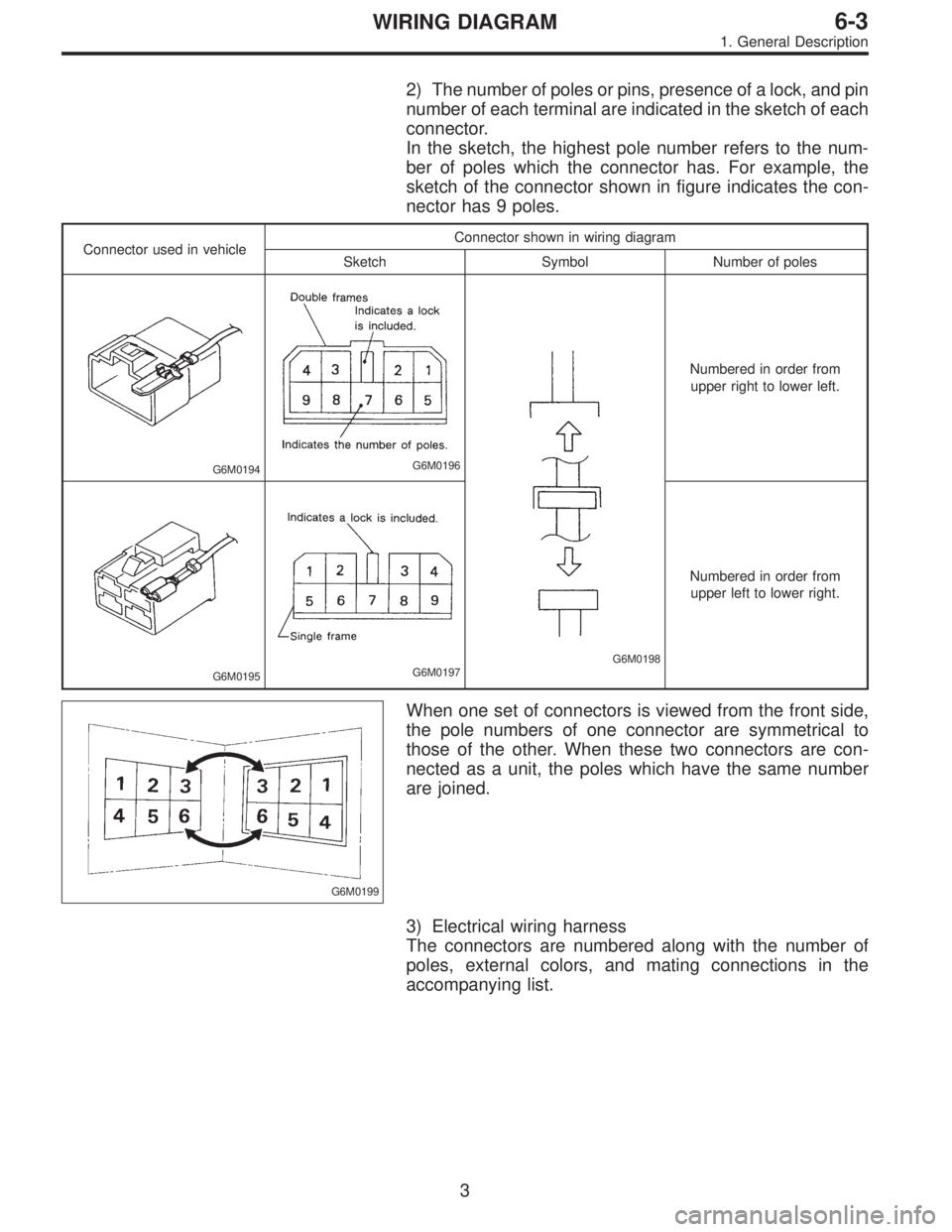

2) The number of poles or pins, presence of a lock, and pin
number of each terminal are indicated in the sketch of each
connector.
In the sketch, the highest pole number refers to the num-
ber of poles which the connector has. For example, the
sketch of the connector shown in figure indicates the con-
nector has 9 poles.
Connector used in vehicleConnector shown in wiring diagram
Sketch Symbol Number of poles
G6M0194G6M0196
G6M0198
Numbered in order from
upper right to lower left.
G6M0195G6M0197
Numbered in order from
upper left to lower right.
G6M0199
When one set of connectors is viewed from the front side,
the pole numbers of one connector are symmetrical to
those of the other. When these two connectors are con-
nected as a unit, the poles which have the same number
are joined.
3) Electrical wiring harness
The connectors are numbered along with the number of
poles, external colors, and mating connections in the
accompanying list.
3
6-3WIRING DIAGRAM
1. General Description

G6M0200

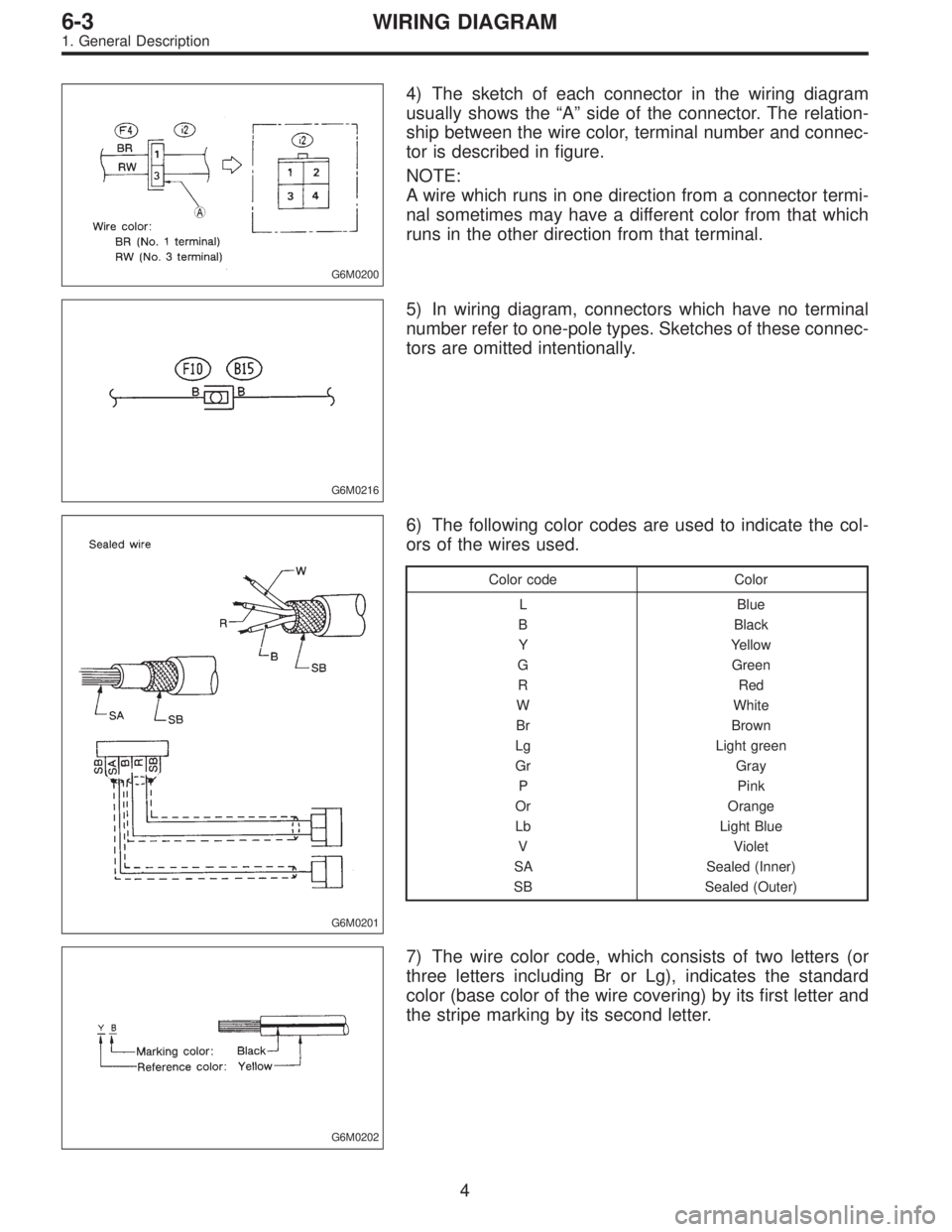

4) The sketch of each connector in the wiring diagram
usually shows the“A”side of the connector. The relation-
ship between the wire color, terminal number and connec-
tor is described in figure.
NOTE:
A wire which runs in one direction from a connector termi-
nal sometimes may have a different color from that which
runs in the other direction from that terminal.
G6M0216
5) In wiring diagram, connectors which have no terminal
number refer to one-pole types. Sketches of these connec-
tors are omitted intentionally.
G6M0201
6) The following color codes are used to indicate the col-
ors of the wires used.
Color code Color
L Blue
B Black
Y Yellow
G Green
RRed
W White
Br Brown
Lg Light green
Gr Gray
P Pink
Or Orange
Lb Light Blue
V Violet
SA Sealed (Inner)
SB Sealed (Outer)
G6M0202
7) The wire color code, which consists of two letters (or
three letters including Br or Lg), indicates the standard
color (base color of the wire covering) by its first letter and
the stripe marking by its second letter.
4
6-3WIRING DIAGRAM
1. General Description
