SUBARU LEGACY 1995 Service Repair Manual

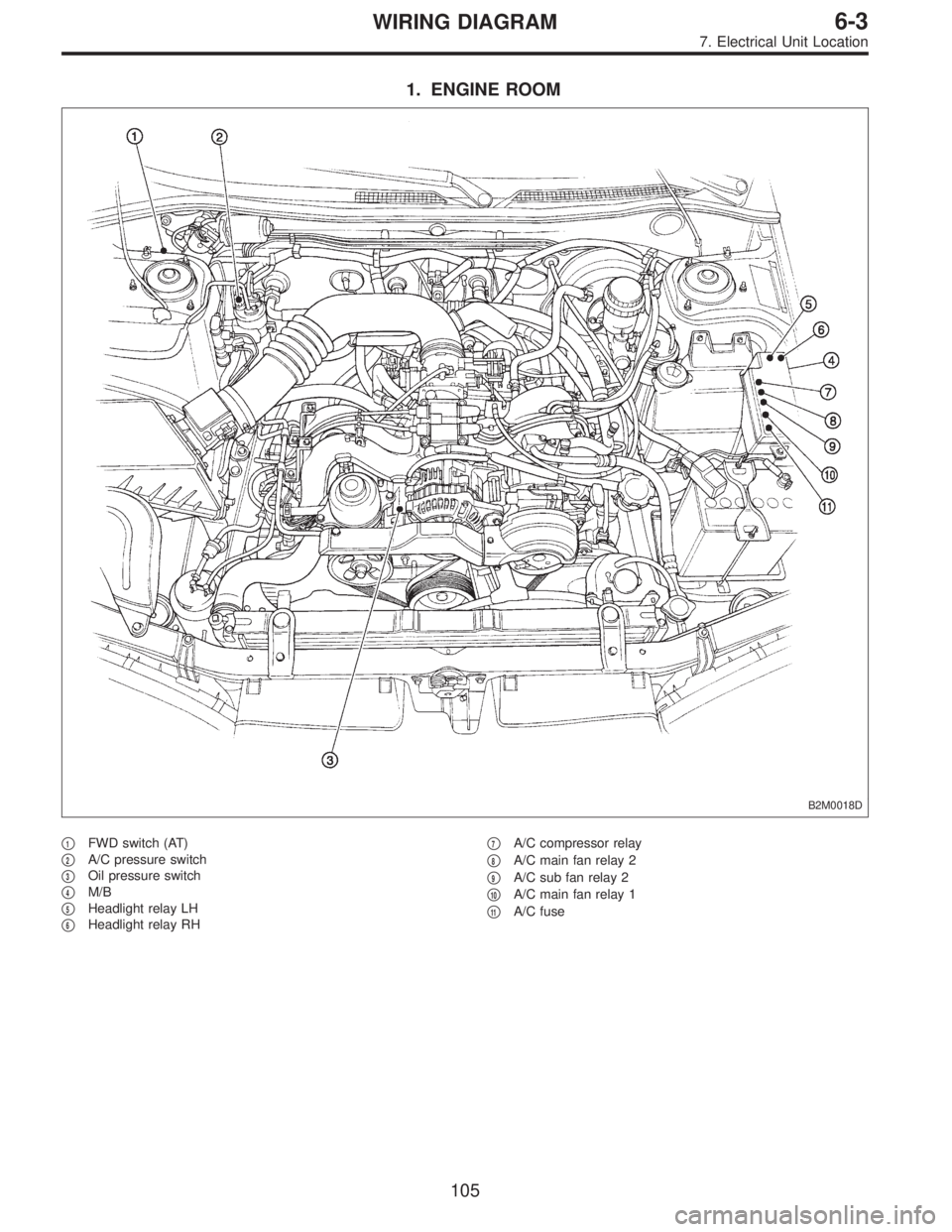

1. ENGINE ROOM
B2M0018D
1FWD switch (AT)

2A/C pressure switch

3Oil pressure switch

4M/B

5Headlight relay LH

6Headlight relay RH
7A/C compressor relay

8A/C main fan relay 2

9A/C sub fan relay 2

10A/C main fan relay 1

11A/C fuse
105
6-3WIRING DIAGRAM
7. Electrical Unit Location

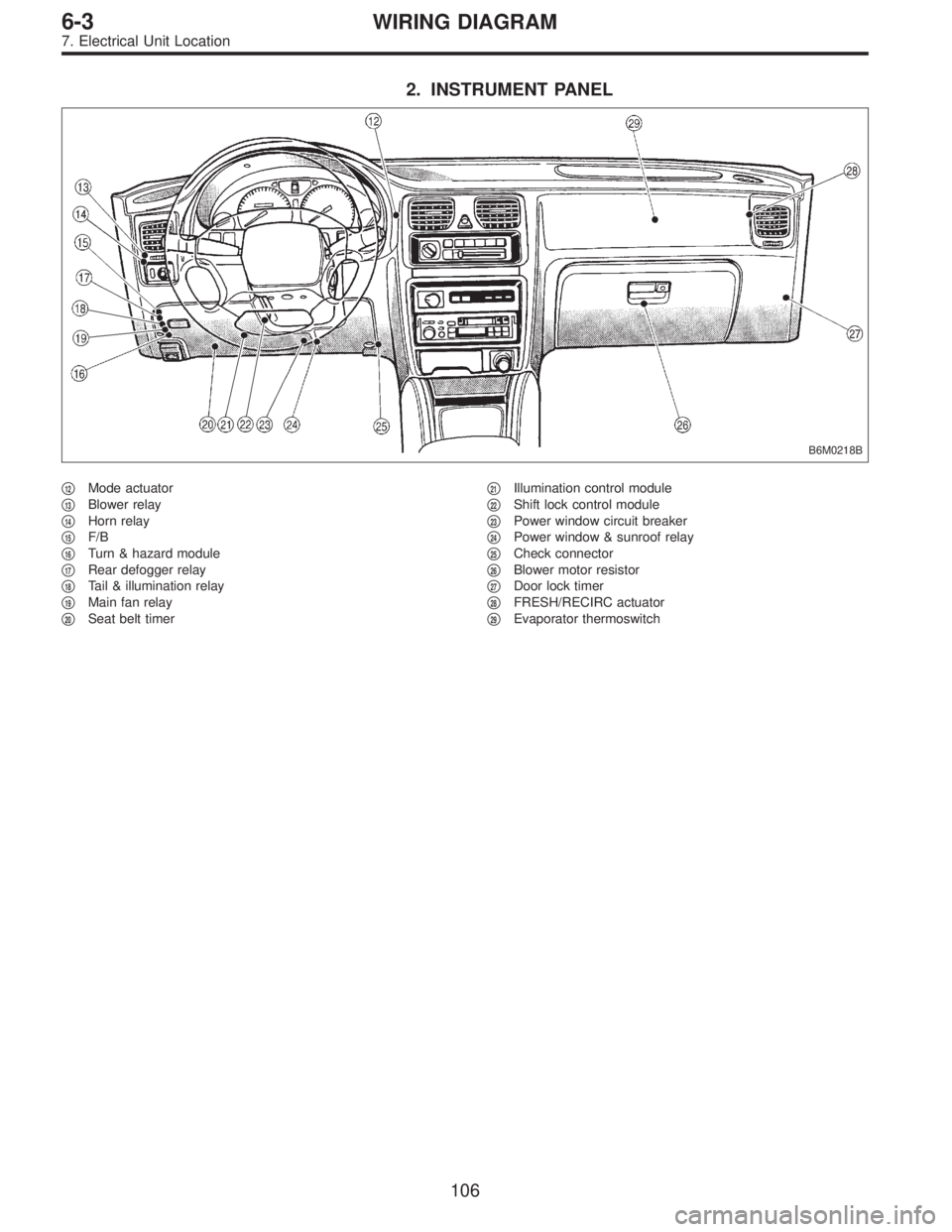

2. INSTRUMENT PANEL
B6M0218B
12Mode actuator

13Blower relay

14Horn relay

15F/B

16Turn & hazard module

17Rear defogger relay

18Tail & illumination relay

19Main fan relay

20Seat belt timer
21Illumination control module

22Shift lock control module

23Power window circuit breaker

24Power window & sunroof relay

25Check connector

26Blower motor resistor

27Door lock timer

28FRESH/RECIRC actuator

29Evaporator thermoswitch
106
6-3WIRING DIAGRAM
7. Electrical Unit Location

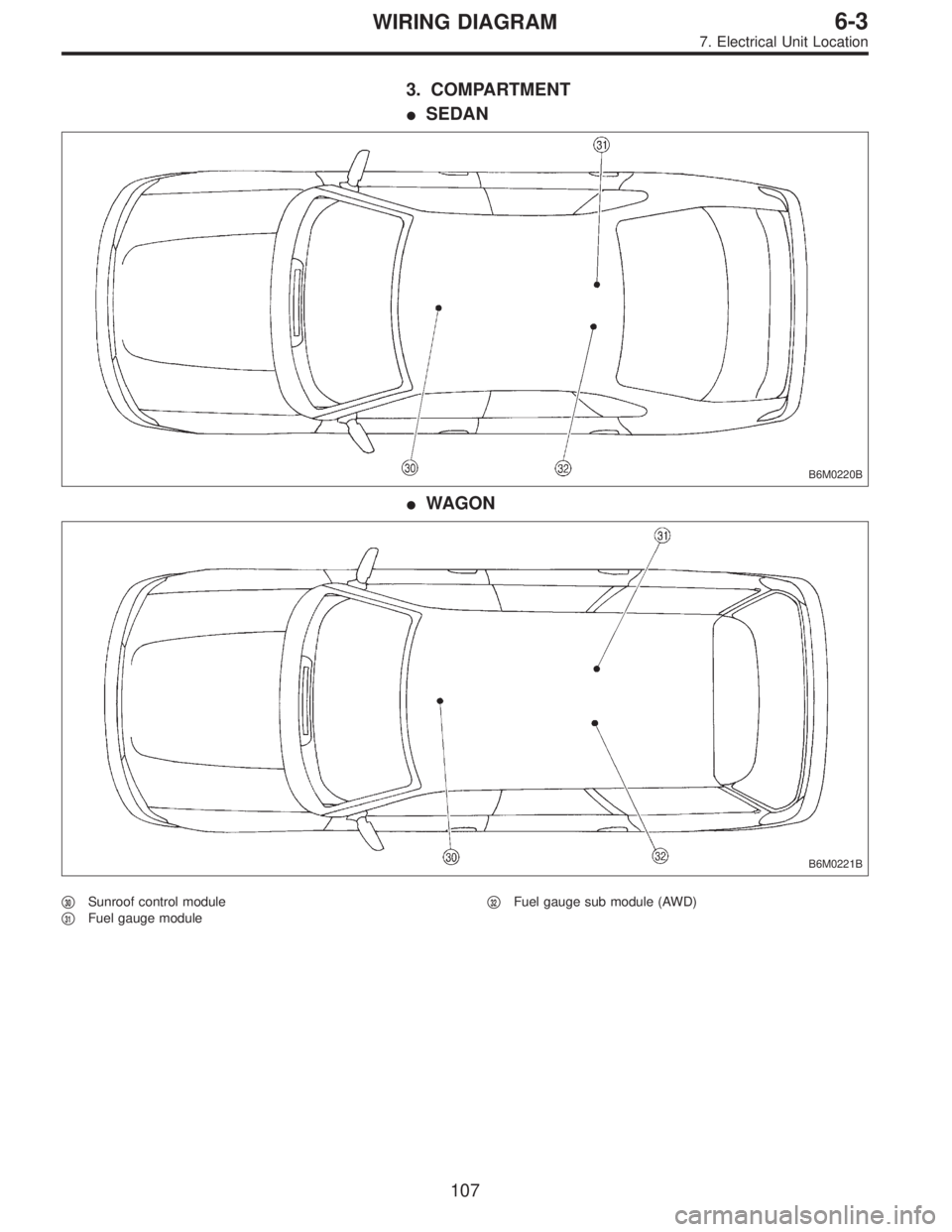

3. COMPARTMENT

SEDAN
B6M0220B

WAGON
B6M0221B
30Sunroof control module

31Fuel gauge module
32Fuel gauge sub module (AWD)
107
6-3WIRING DIAGRAM
7. Electrical Unit Location

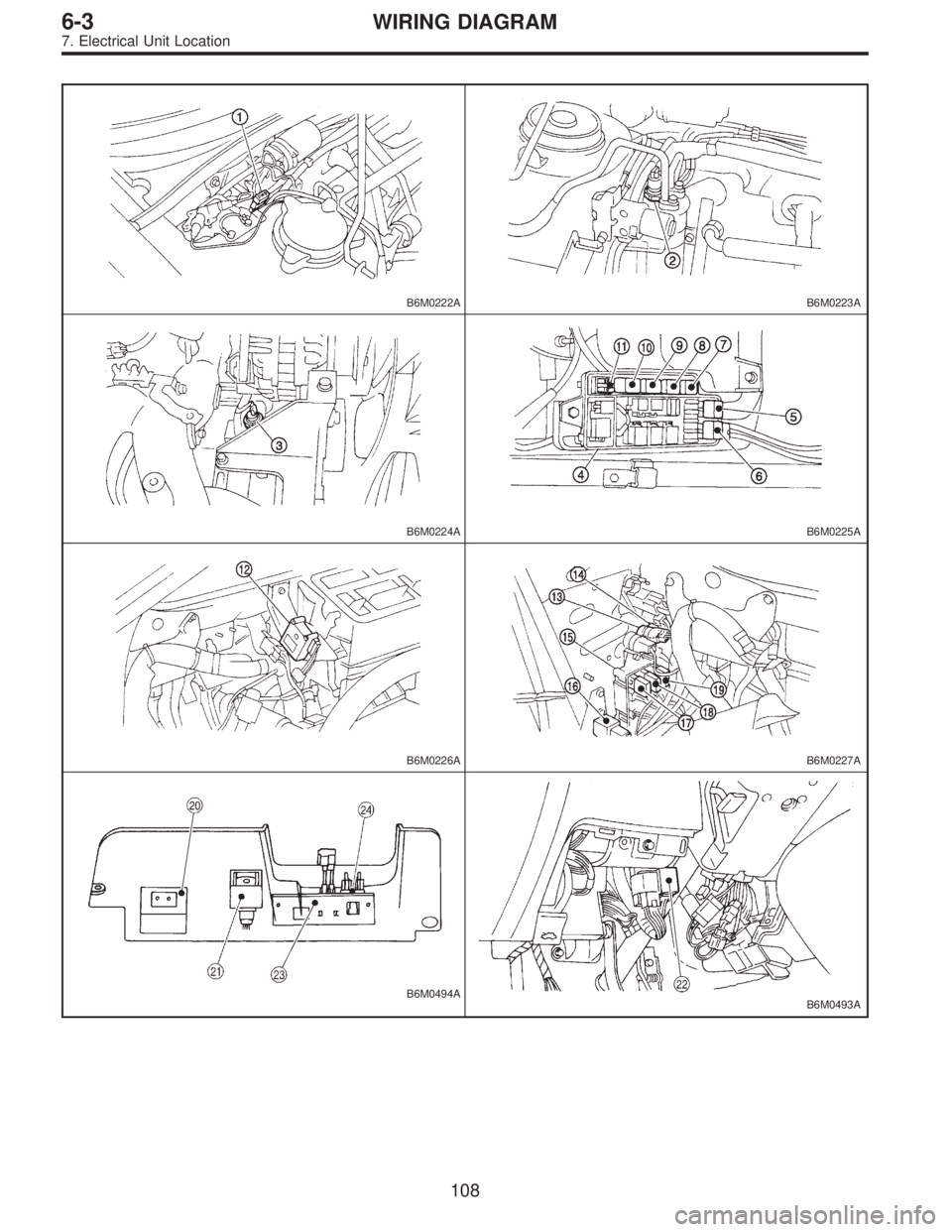

B6M0222AB6M0223A
B6M0224AB6M0225A
B6M0226AB6M0227A
B6M0494AB6M0493A
108
6-3WIRING DIAGRAM
7. Electrical Unit Location

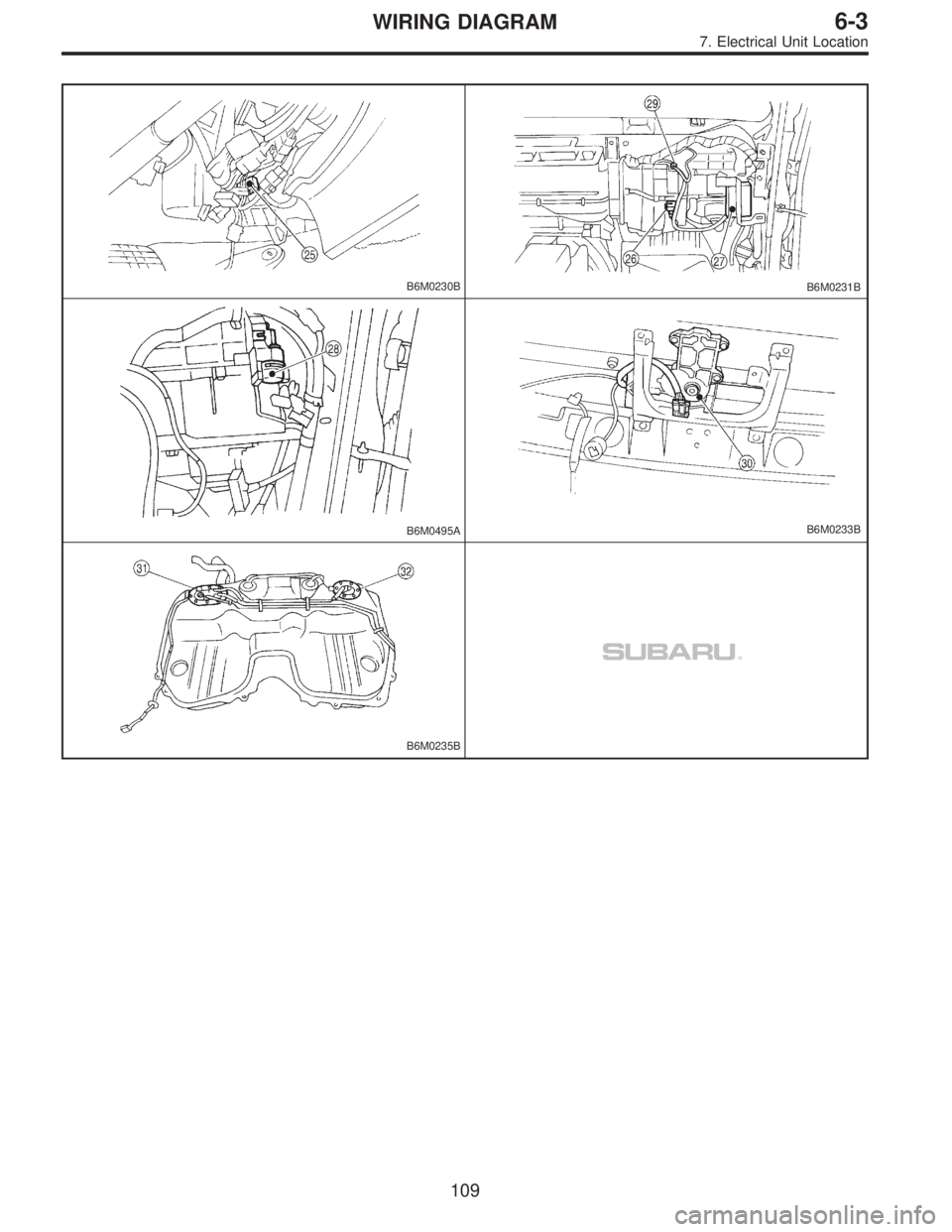

B6M0230BB6M0231B
B6M0495AB6M0233B
B6M0235B
109
6-3WIRING DIAGRAM
7. Electrical Unit Location

8. Electrical Wiring Harness and
Ground Point
B6M0267A
1Front wiring harness

2Engine wiring harness

3Room light cord

4Bulkhead wiring harness

5Instrument panel wiring harness

6Front door cord RH

7Rear door cord RH

8Rear wiring harness

9Trunk lid cord (Sedan)
10Rear defogger ground cord (Sedan)

11Fuel tank cord

12Rear door cord LH

13Front door cord LH

14Sunroof cord

15Floor wiring harness

16Transmission cord

17Rear gate cord (Wagon)

18Rear oxygen sensor cord
11 0
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

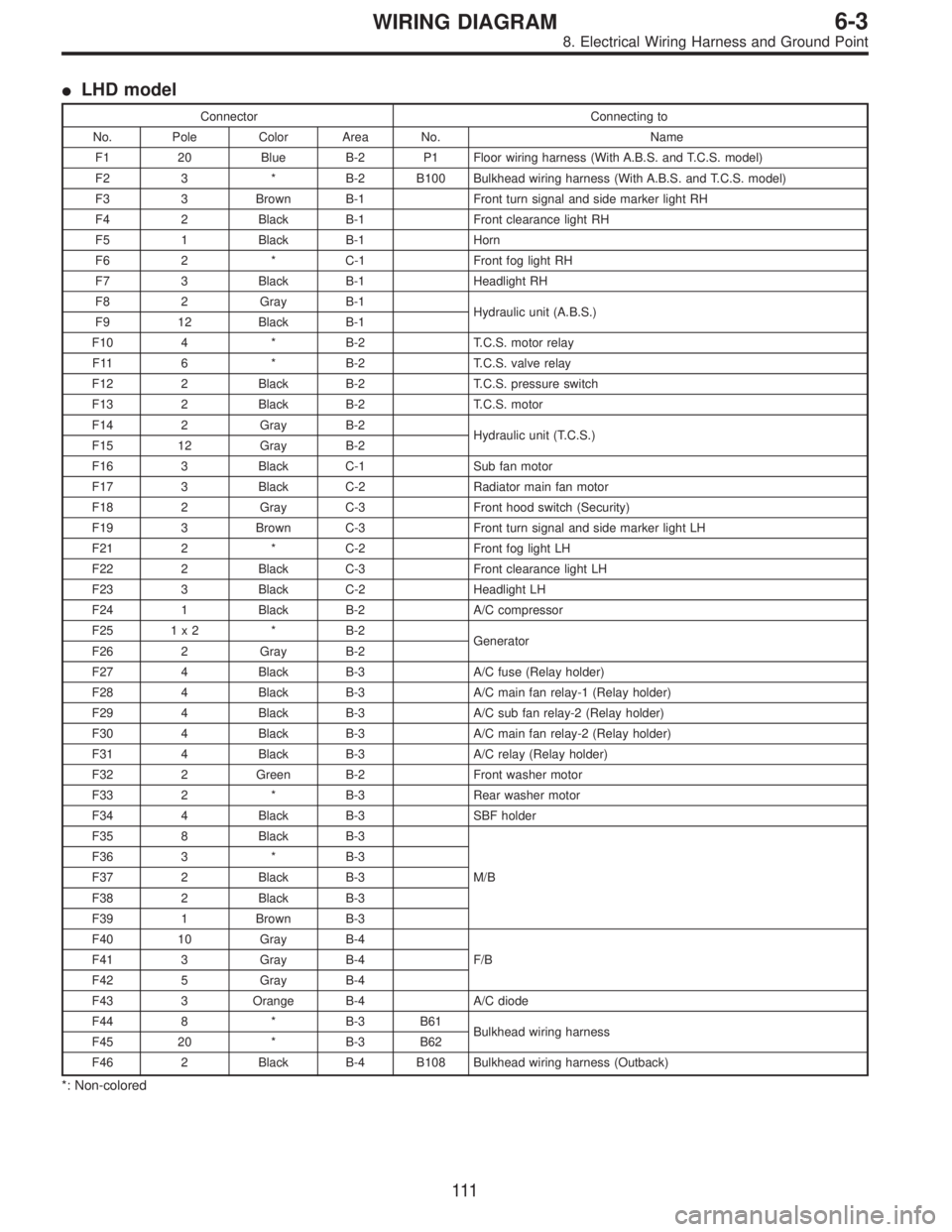

LHD model
Connector Connecting to
No. Pole Color Area No. Name
F1 20 Blue B-2 P1 Floor wiring harness (With A.B.S. and T.C.S. model)
F2 3 * B-2 B100 Bulkhead wiring harness (With A.B.S. and T.C.S. model)
F3 3 Brown B-1 Front turn signal and side marker light RH
F4 2 Black B-1 Front clearance light RH
F5 1 Black B-1 Horn
F6 2 * C-1 Front fog light RH
F7 3 Black B-1 Headlight RH
F8 2 Gray B-1
Hydraulic unit (A.B.S.)
F9 12 Black B-1
F10 4 * B-2 T.C.S. motor relay
F11 6 * B-2 T.C.S. valve relay
F12 2 Black B-2 T.C.S. pressure switch
F13 2 Black B-2 T.C.S. motor
F14 2 Gray B-2
Hydraulic unit (T.C.S.)
F15 12 Gray B-2
F16 3 Black C-1 Sub fan motor
F17 3 Black C-2 Radiator main fan motor
F18 2 Gray C-3 Front hood switch (Security)
F19 3 Brown C-3 Front turn signal and side marker light LH
F21 2 * C-2 Front fog light LH
F22 2 Black C-3 Front clearance light LH
F23 3 Black C-2 Headlight LH
F24 1 Black B-2 A/C compressor
F25 1 x 2 * B-2
Generator
F26 2 Gray B-2
F27 4 Black B-3 A/C fuse (Relay holder)
F28 4 Black B-3 A/C main fan relay-1 (Relay holder)
F29 4 Black B-3 A/C sub fan relay-2 (Relay holder)
F30 4 Black B-3 A/C main fan relay-2 (Relay holder)
F31 4 Black B-3 A/C relay (Relay holder)
F32 2 Green B-2 Front washer motor
F33 2 * B-3 Rear washer motor
F34 4 Black B-3 SBF holder
F35 8 Black B-3
M/B F36 3 * B-3
F37 2 Black B-3
F38 2 Black B-3
F39 1 Brown B-3
F40 10 Gray B-4
F/B F41 3 Gray B-4
F42 5 Gray B-4
F43 3 Orange B-4 A/C diode
F44 8 * B-3 B61
Bulkhead wiring harness
F45 20 * B-3 B62
F46 2 Black B-4 B108 Bulkhead wiring harness (Outback)
*: Non-colored
111
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

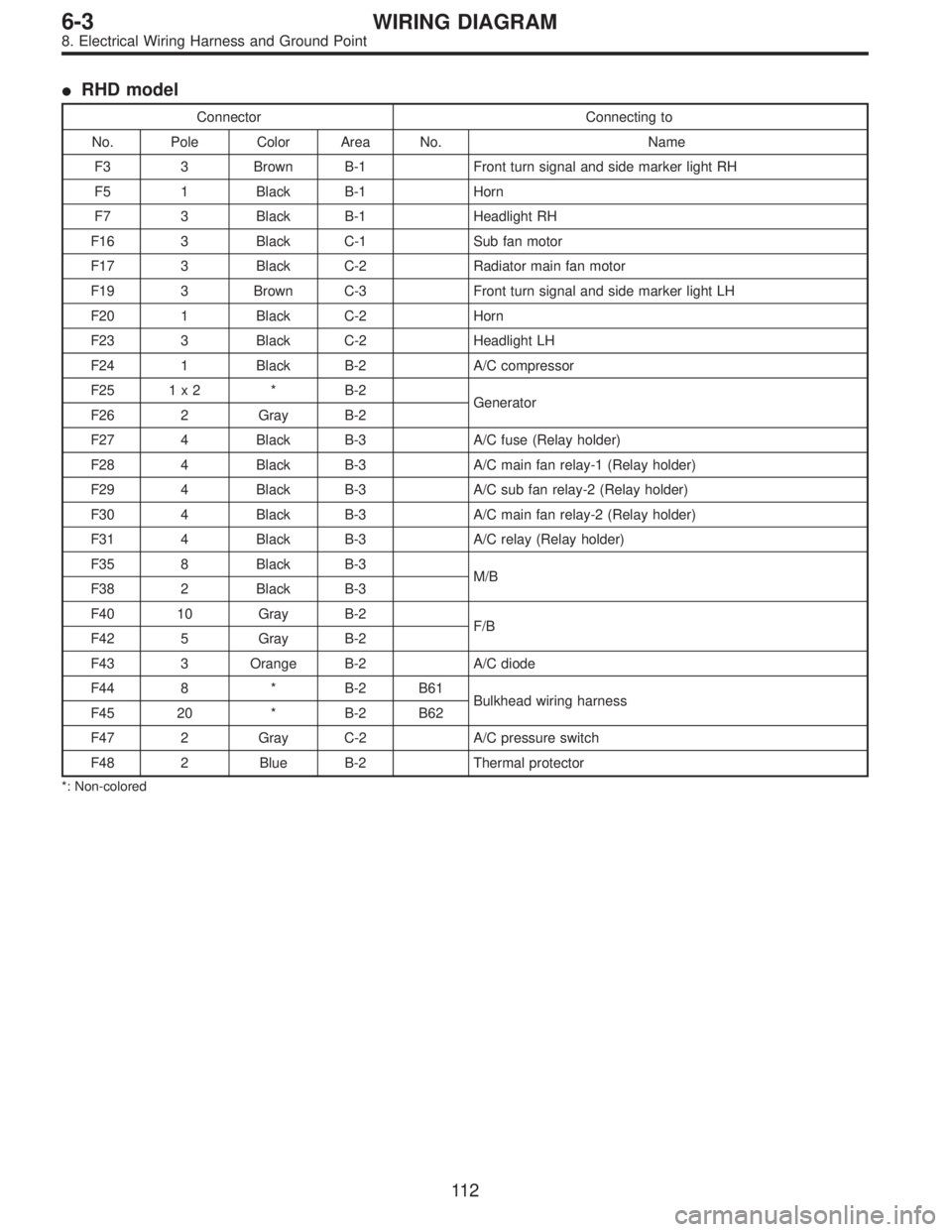

RHD model
Connector Connecting to
No. Pole Color Area No. Name
F3 3 Brown B-1 Front turn signal and side marker light RH
F5 1 Black B-1 Horn
F7 3 Black B-1 Headlight RH
F16 3 Black C-1 Sub fan motor
F17 3 Black C-2 Radiator main fan motor
F19 3 Brown C-3 Front turn signal and side marker light LH
F20 1 Black C-2 Horn
F23 3 Black C-2 Headlight LH
F24 1 Black B-2 A/C compressor
F25 1 x 2 * B-2
Generator
F26 2 Gray B-2
F27 4 Black B-3 A/C fuse (Relay holder)
F28 4 Black B-3 A/C main fan relay-1 (Relay holder)
F29 4 Black B-3 A/C sub fan relay-2 (Relay holder)
F30 4 Black B-3 A/C main fan relay-2 (Relay holder)
F31 4 Black B-3 A/C relay (Relay holder)
F35 8 Black B-3
M/B
F38 2 Black B-3
F40 10 Gray B-2
F/B
F42 5 Gray B-2
F43 3 Orange B-2 A/C diode
F44 8 * B-2 B61
Bulkhead wiring harness
F45 20 * B-2 B62
F47 2 Gray C-2 A/C pressure switch
F48 2 Blue B-2 Thermal protector
*: Non-colored
11 2
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

1. FRONT WIRING HARNESS AND GROUND POINT (LHD MODEL)
B6M0254A
11 3
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

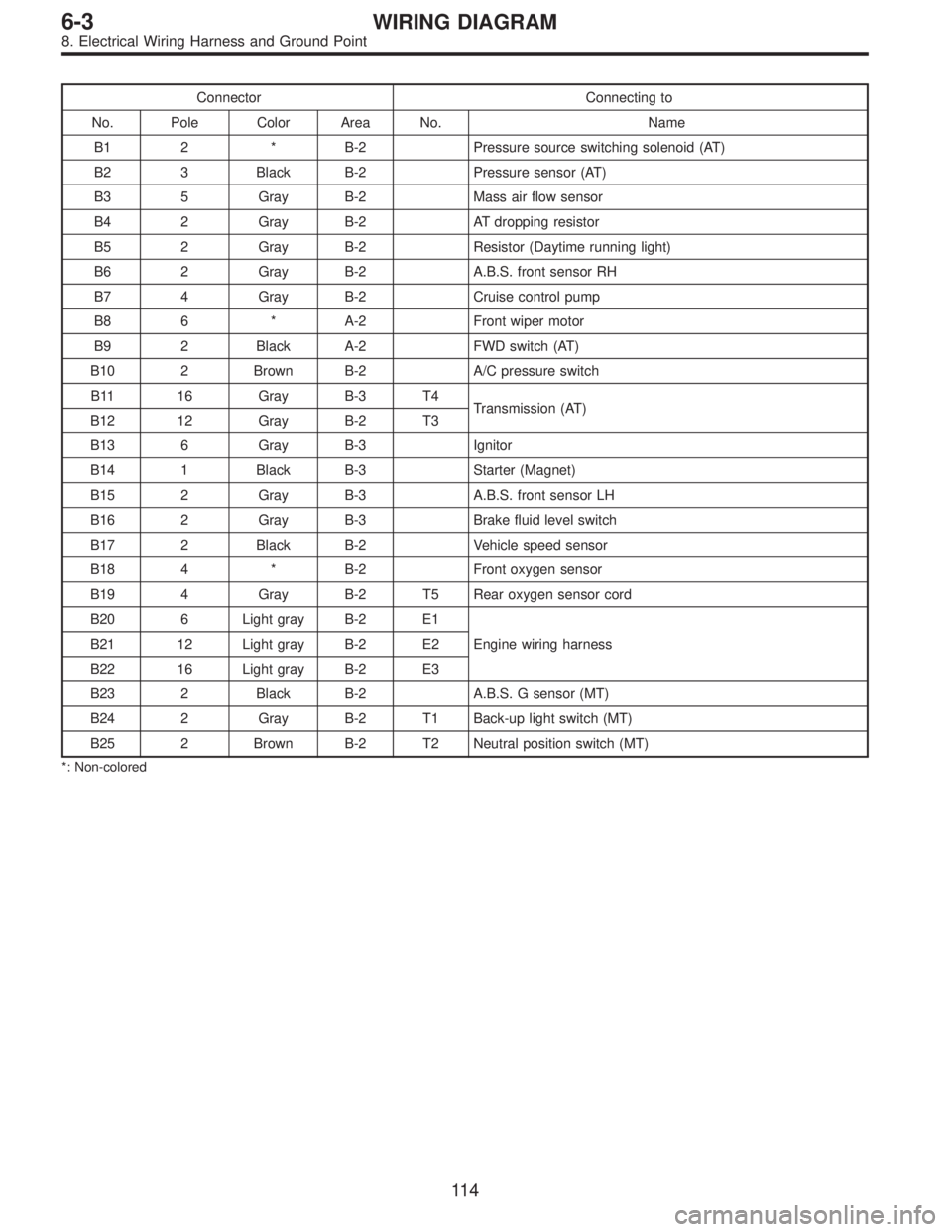

Connector Connecting to
No. Pole Color Area No. Name
B1 2 * B-2 Pressure source switching solenoid (AT)
B2 3 Black B-2 Pressure sensor (AT)
B3 5 Gray B-2 Mass air flow sensor
B4 2 Gray B-2 AT dropping resistor
B5 2 Gray B-2 Resistor (Daytime running light)
B6 2 Gray B-2 A.B.S. front sensor RH
B7 4 Gray B-2 Cruise control pump
B8 6 * A-2 Front wiper motor
B9 2 Black A-2 FWD switch (AT)
B10 2 Brown B-2 A/C pressure switch
B11 16 Gray B-3 T4
Transmission (AT)
B12 12 Gray B-2 T3
B13 6 Gray B-3 Ignitor
B14 1 Black B-3 Starter (Magnet)
B15 2 Gray B-3 A.B.S. front sensor LH
B16 2 Gray B-3 Brake fluid level switch
B17 2 Black B-2 Vehicle speed sensor
B18 4 * B-2 Front oxygen sensor
B19 4 Gray B-2 T5 Rear oxygen sensor cord
B20 6 Light gray B-2 E1
Engine wiring harness B21 12 Light gray B-2 E2
B22 16 Light gray B-2 E3
B23 2 Black B-2 A.B.S. G sensor (MT)
B24 2 Gray B-2 T1 Back-up light switch (MT)
B25 2 Brown B-2 T2 Neutral position switch (MT)
*: Non-colored
11 4
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
