Page 2131 of 2248

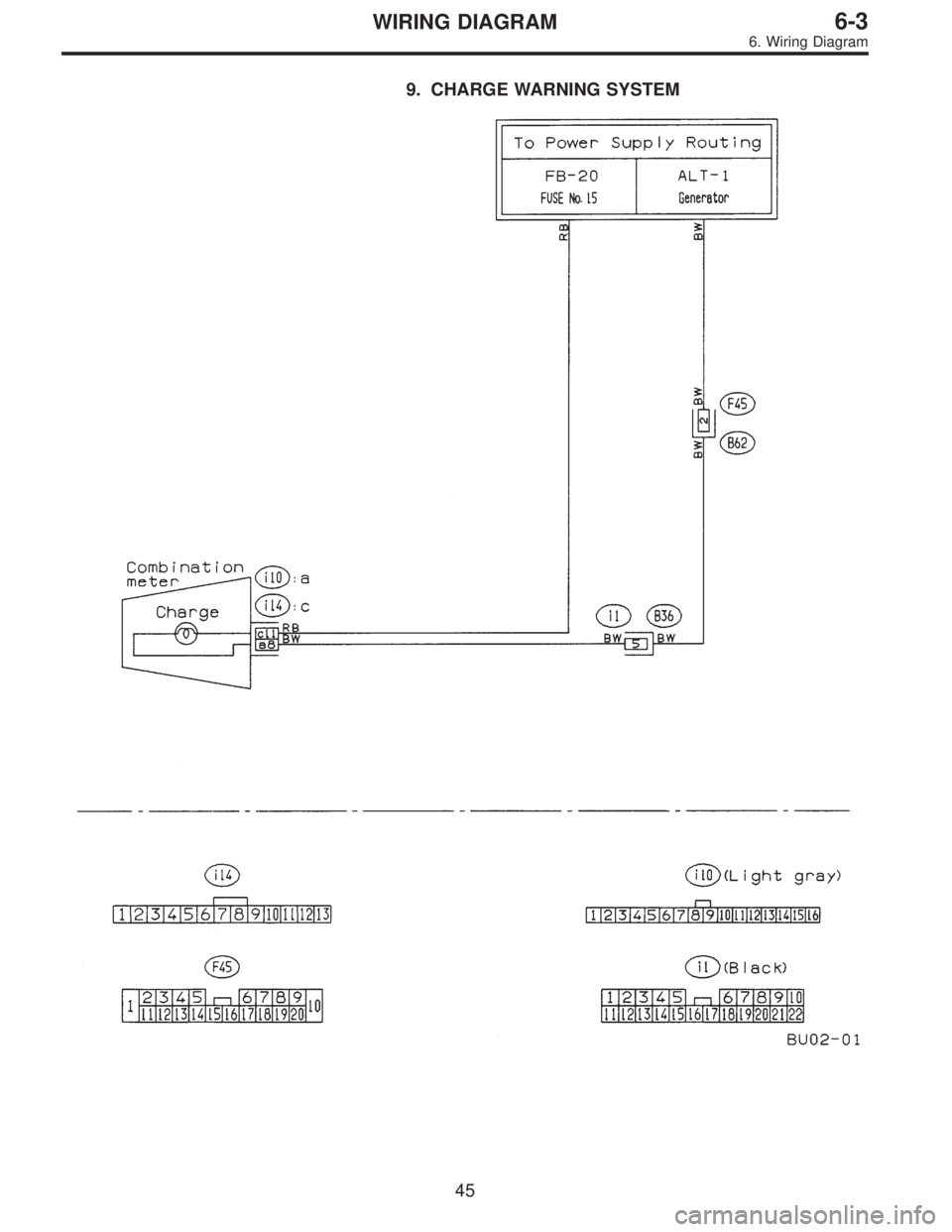

SUBARU LEGACY 1995 Service Repair Manual 9. CHARGE WARNING SYSTEM 45 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2132 of 2248

SUBARU LEGACY 1995 Service Repair Manual 10. COMBINATION METER BU65-01A 46 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2133 of 2248

SUBARU LEGACY 1995 Service Repair Manual BU65-01B 47 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2134 of 2248

SUBARU LEGACY 1995 Service Repair Manual 11. CRUISE CONTROL SYSTEM BU71-02 48 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2135 of 2248

SUBARU LEGACY 1995 Service Repair Manual 12. DOOR LOCK SYSTEM LHD model BU73-01 49 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2136 of 2248

SUBARU LEGACY 1995 Service Repair Manual 12. DOOR LOCK SYSTEM RHD model BUR73-01 50 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2137 of 2248

SUBARU LEGACY 1995 Service Repair Manual 13. ENGINE ELECTRICAL SYSTEM LHD model BU10-02A 51 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2138 of 2248

SUBARU LEGACY 1995 Service Repair Manual BU10-02B 52 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2139 of 2248

SUBARU LEGACY 1995 Service Repair Manual BU10-02C 53 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2140 of 2248

SUBARU LEGACY 1995 Service Repair Manual BU10-02D 54 6-3WIRING DIAGRAM 6. Wiring Diagram
