SUBARU LEGACY 1996 Service Repair Manual

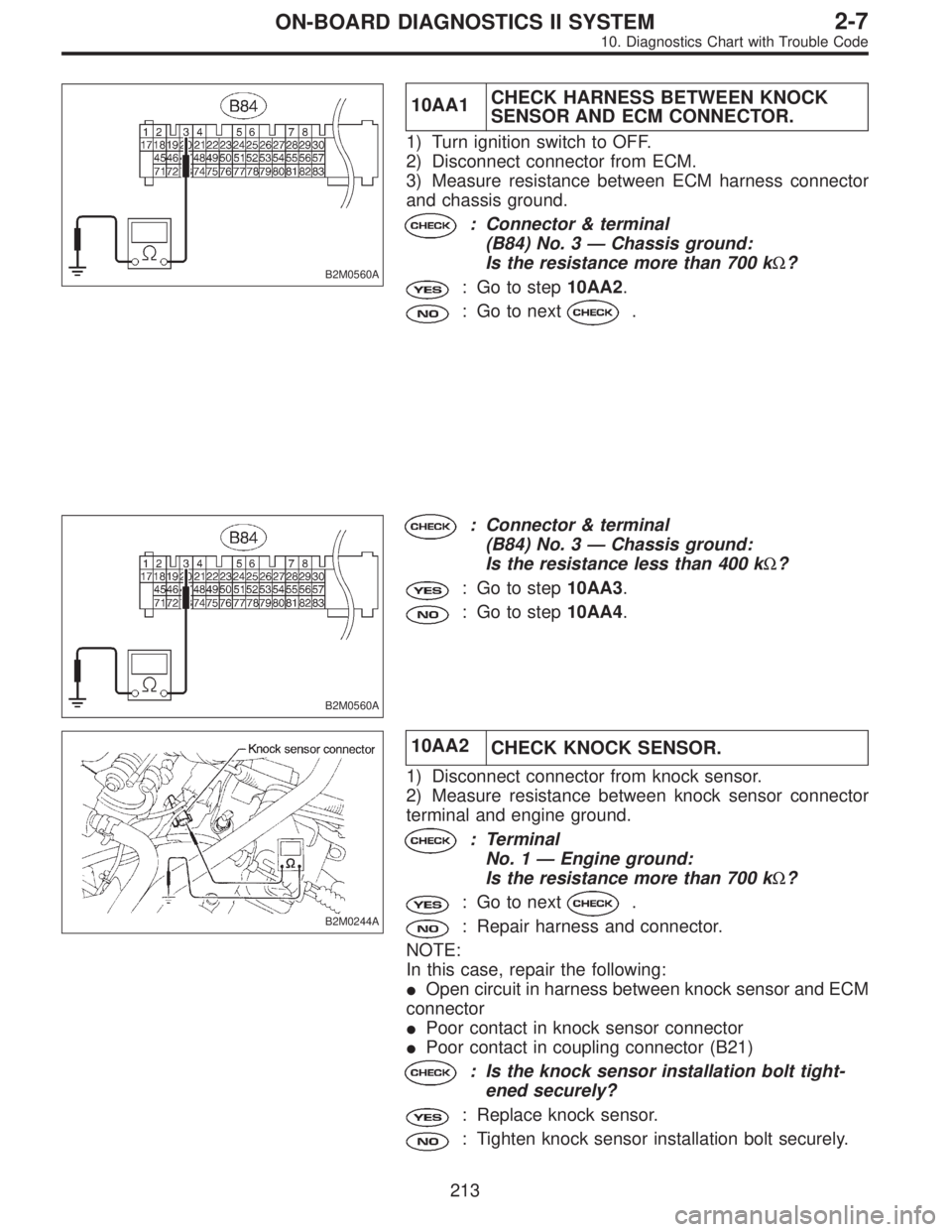

B2M0560A
10AA1CHECK HARNESS BETWEEN KNOCK
SENSOR AND ECM CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from ECM.
3) Measure resistance between ECM harness connector
and chassis ground.
: Connector & terminal
(B84) No. 3—Chassis ground:
Is the resistance more than 700 kΩ?
: Go to step10AA2.
: Go to next.
B2M0560A
: Connector & terminal
(B84) No. 3—Chassis ground:
Is the resistance less than 400 kΩ?
: Go to step10AA3.
: Go to step10AA4.
B2M0244A
10AA2
CHECK KNOCK SENSOR.
1) Disconnect connector from knock sensor.
2) Measure resistance between knock sensor connector
terminal and engine ground.
: Terminal
No. 1—Engine ground:
Is the resistance more than 700 kΩ?
: Go to next.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between knock sensor and ECM
connector

Poor contact in knock sensor connector

Poor contact in coupling connector (B21)
: Is the knock sensor installation bolt tight-
ened securely?
: Replace knock sensor.
: Tighten knock sensor installation bolt securely.
213
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0244A

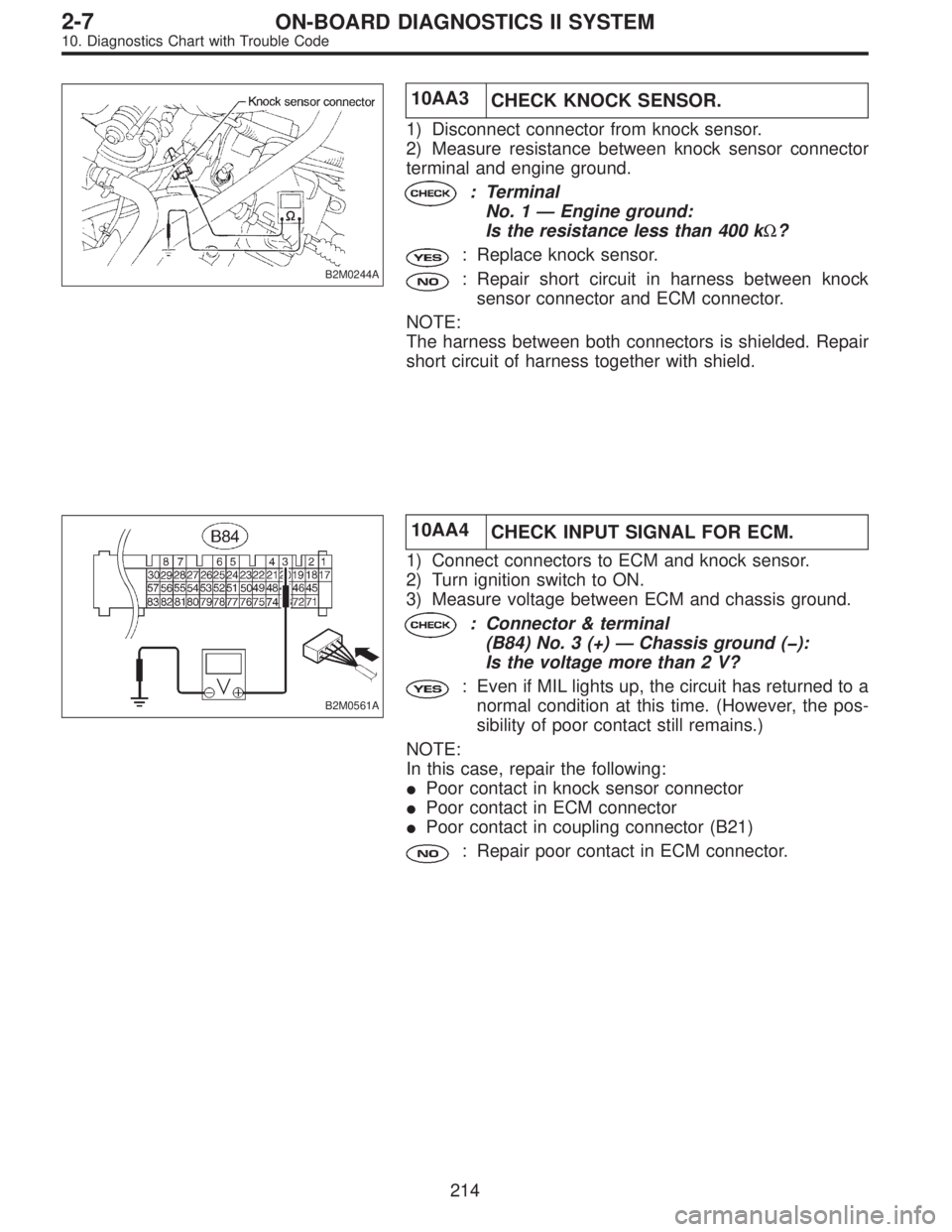

10AA3
CHECK KNOCK SENSOR.
1) Disconnect connector from knock sensor.
2) Measure resistance between knock sensor connector
terminal and engine ground.
: Terminal
No. 1—Engine ground:
Is the resistance less than 400 kΩ?
: Replace knock sensor.
: Repair short circuit in harness between knock
sensor connector and ECM connector.
NOTE:
The harness between both connectors is shielded. Repair
short circuit of harness together with shield.
B2M0561A
10AA4
CHECK INPUT SIGNAL FOR ECM.
1) Connect connectors to ECM and knock sensor.
2) Turn ignition switch to ON.
3) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 3 (+)—Chassis ground ():
Is the voltage more than 2 V?
: Even if MIL lights up, the circuit has returned to a
normal condition at this time. (However, the pos-
sibility of poor contact still remains.)
NOTE:
In this case, repair the following:

Poor contact in knock sensor connector

Poor contact in ECM connector

Poor contact in coupling connector (B21)
: Repair poor contact in ECM connector.
214
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0292

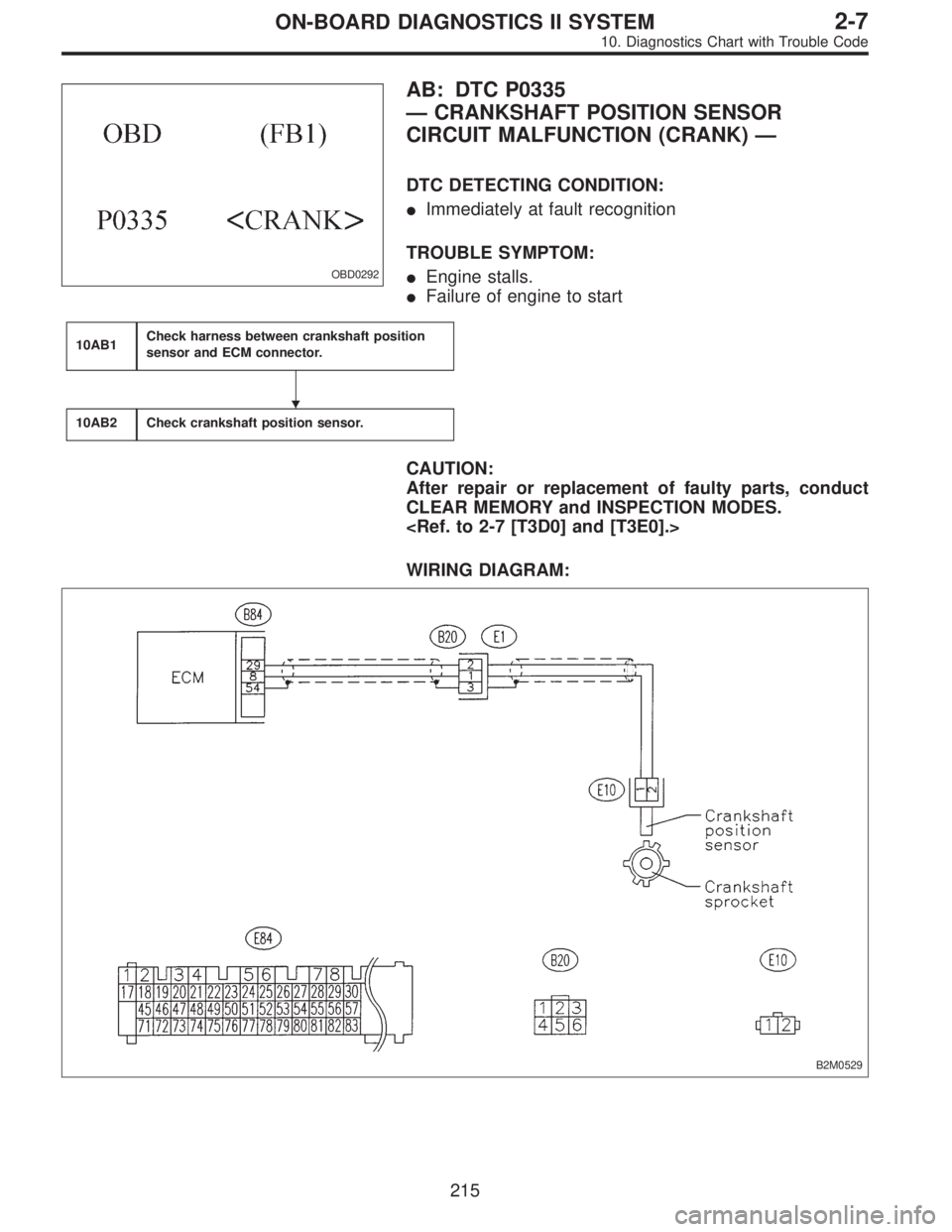

AB: DTC P0335
—CRANKSHAFT POSITION SENSOR
CIRCUIT MALFUNCTION (CRANK)—
DTC DETECTING CONDITION:

Immediately at fault recognition
TROUBLE SYMPTOM:

Engine stalls.

Failure of engine to start
10AB1Check harness between crankshaft position
sensor and ECM connector.
10AB2Check crankshaft position sensor.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
B2M0529

215
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0718A
10AB1CHECK HARNESS BETWEEN CRANK-
SHAFT POSITION SENSOR AND ECM
CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from crankshaft position sensor.
3) Measure resistance of harness between crankshaft
position sensor connector and engine ground.
: Connector & terminal
(E10) No. 1—Engine ground:
Is the resistance more than 100 kΩ?
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between crankshaft position
sensor and ECM connector

Poor contact in ECM connector

Poor contact in coupling connector (B20)
: Go to next.
OBD0718A
: Connector & terminal
(E10) No. 1—Engine ground:
Is the resistance less than 10Ω?
: Repair short circuit in harness between crankshaft
position sensor and ECM connector.
NOTE:
The harness between both connectors are shielded.
Repair short circuit in harness together with shield.
: Go to next.
OBD0719A
: Connector & terminal
(E10) No. 2—Engine ground:
Is the resistance less than 5Ω?
: Go to step10AB2.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between crankshaft position
sensor and ECM connector

Poor contact in ECM connector

Poor contact in coupling connector (B20)
216
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

10AB2CHECK CRANKSHAFT POSITION SEN-
SOR.
: Is the crankshaft position sensor installa-
tion bolt tightened securely?
: Go to next step 1).
: Tighten crankshaft position sensor installation bolt
securely.
G2M0639
1) Remove crankshaft position sensor.
2) Measure resistance between connector terminals of
crankshaft position sensor.
: Terminals
No. 1—No. 2:
Is the resistance between 1 and 4 kΩ?
: Repair poor contact in crankshaft position sensor
connector.
: Replace crankshaft position sensor.
217
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0304
AC: DTC P0340
—CAMSHAFT POSITION SENSOR CIRCUIT
MALFUNCTION (CAM)—
DTC DETECTING CONDITION:

Immediately at fault recognition
TROUBLE SYMPTOM:

Engine stalls.

Failure of engine to start
10AC1Check harness between camshaft position
sensor and ECM connector.
10AC2Check camshaft position sensor.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
B2M0530

218
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0720A
10AC1CHECK HARNESS BETWEEN CAM-
SHAFT POSITION SENSOR AND ECM
CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from camshaft position sensor.
3) Measure resistance of harness between camshaft posi-
tion sensor connector and engine ground.
: Connector & terminal
(E15) No. 1—Engine ground:
Is the resistance more than 100 kΩ?
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between camshaft position sen-
sor and ECM connector

Poor contact in ECM connector

Poor contact in coupling connector (B20)
: Go to next.
OBD0720A
: Connector & terminal
(E15) No. 1—Engine ground:
Is the resistance less than 10Ω?
: Repair short circuit in harness between camshaft
position sensor connector and ECM connector.
NOTE:
The harness between both connectors are shielded.
Repair short circuit in harness together with shield.
: Go to next.
OBD0721A
: Connector & terminal
(E15) No. 2—Engine ground:
Is the resistance less than 5Ω?
: Go to step10AC2.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between camshaft position sen-
sor and ECM connector

Poor contact in ECM connector

Poor contact in coupling connector (B20)
219
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

10AC2
CHECK CAMSHAFT POSITION SENSOR.
: Is the camshaft position sensor installation
bolt tightened securely?
: Go to next step 1).
: Tighten camshaft position sensor installation bolt
securely.
G2M0639
1) Remove camshaft position sensor.
2) Measure resistance between connector terminals of
camshaft position sensor.
: Terminals
No. 1—No. 2:
Is the resistance between 1 and 4 kΩ?
: Repair poor contact in camshaft position sensor
connector.
: Replace camshaft position sensor.
220
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0315

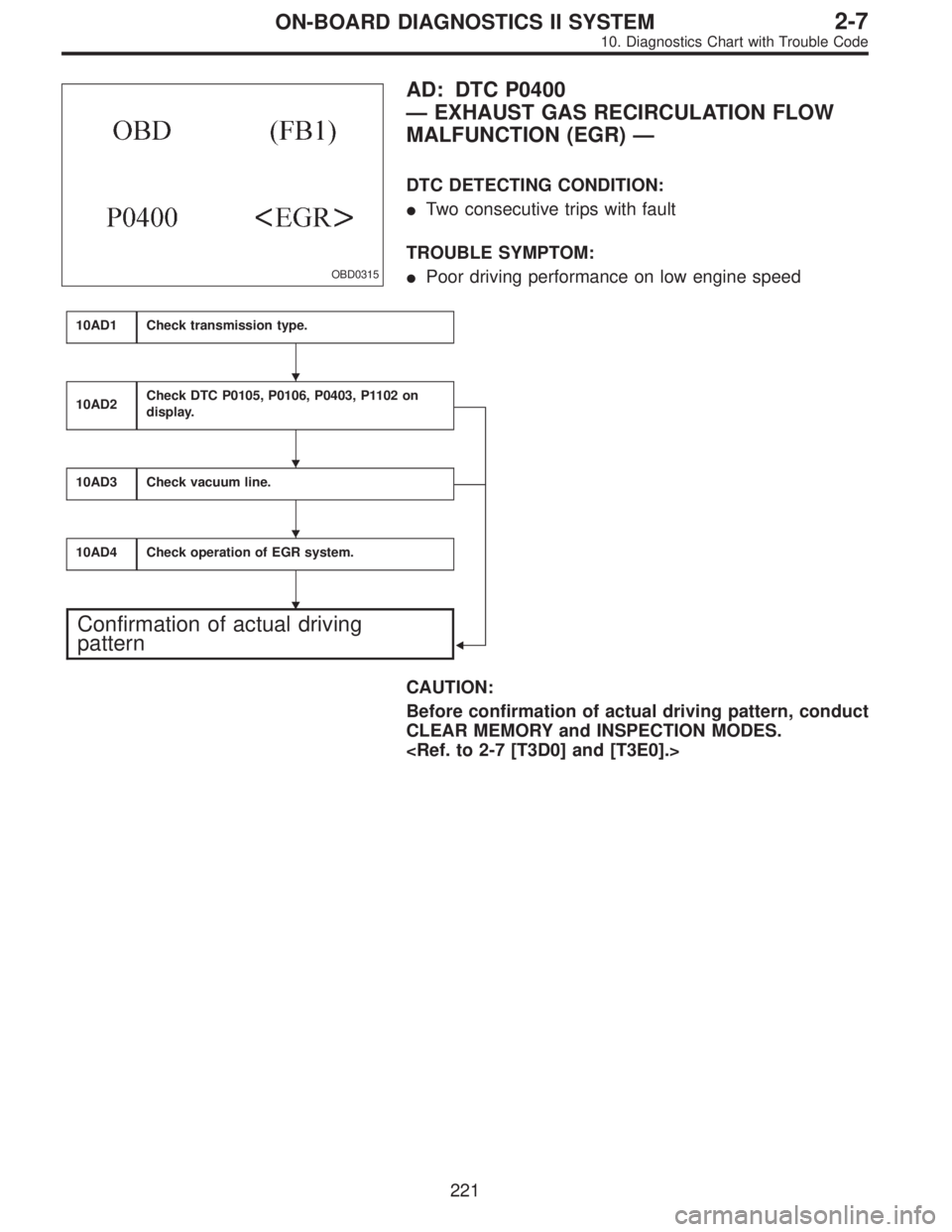

AD: DTC P0400
—EXHAUST GAS RECIRCULATION FLOW
MALFUNCTION (EGR)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

Poor driving performance on low engine speed
10AD1Check transmission type.
10AD2Check DTC P0105, P0106, P0403, P1102 on
display.

10AD3Check vacuum line.
10AD4Check operation of EGR system.
Confirmation of actual driving
pattern
CAUTION:
Before confirmation of actual driving pattern, conduct
CLEAR MEMORY and INSPECTION MODES.





221
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

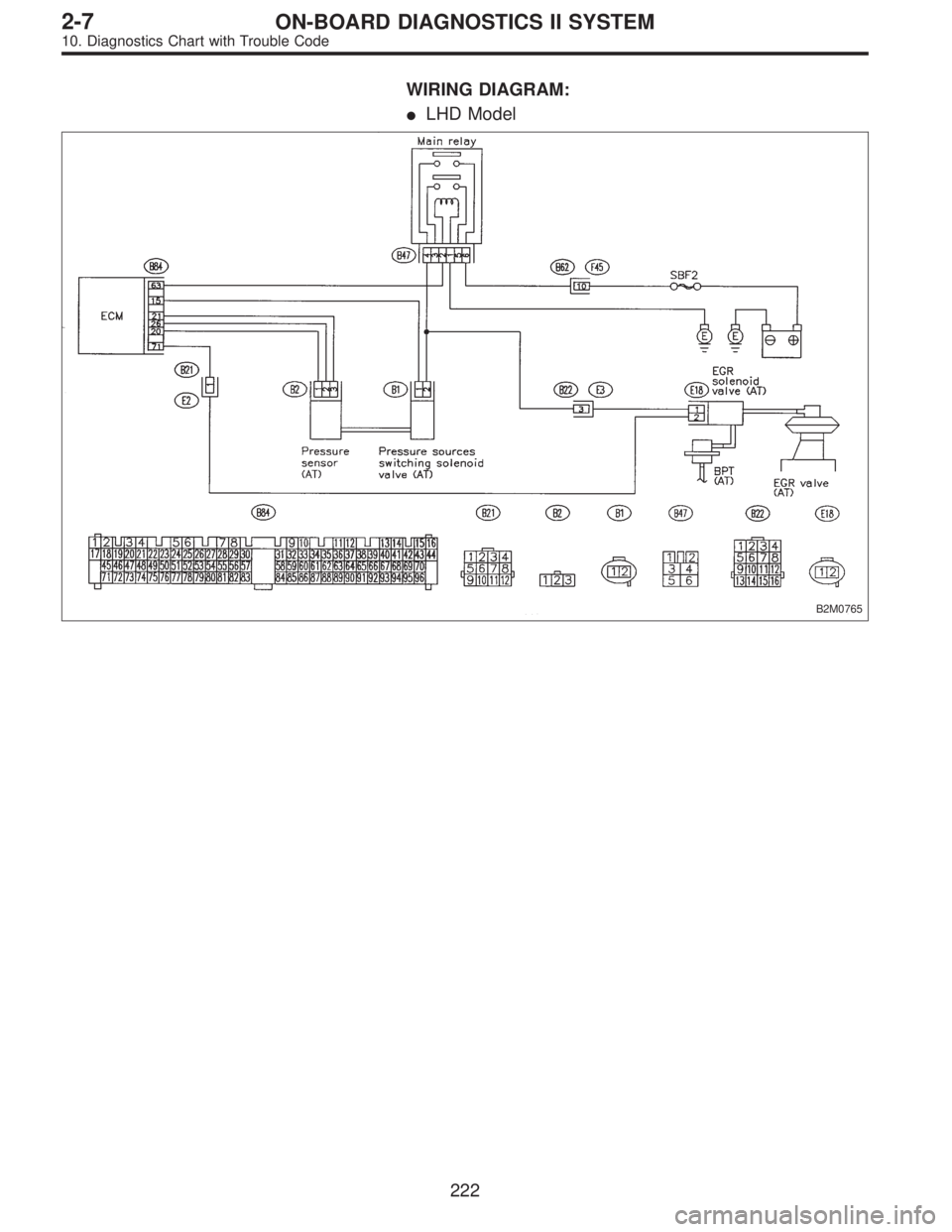

WIRING DIAGRAM:

LHD Model
B2M0765
222
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
