5) Disconnect connector from fuel tank pressure sensor.
6) Remove fuel filler cap.
7) Install fuel filler cap.
8) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
9) Read data on Subaru select monitor or the OBD-II gen-
eral scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F43
: Is the value more than 2.8 kPa in function
mode F43?
: Repair short circuit in harness between ECM and
fuel tank pressure sensor connector.
: Replace fuel tank pressure sensor.

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
263
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

H2M1377
AL: DTC P0451
—EVAPORATIVE EMISSION CONTROL
SYSTEM PRESSURE SENSOR
RANGE/PERFORMANCE PROBLEM
(TNKP
—F)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
10AL1Check pressure/vacuum line.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:

LHD Model
B2M0926
264
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

WIRING DIAGRAM:

RHD Model
B2M1019
10AL1
CHECK PRESSURE/VACUUM LINE.
: Is there a fault in pressure/vacuum line?
NOTE:
Check the following items.

Disconnection, leakage and clogging of the vacuum
hoses and pipes between fuel tank pressure sensor and
fuel tank

Disconnection, leakage and clogging of air ventilation
hoses and pipes between fuel filler pipe and fuel tank
: Repair or replace hoses and pipes.
: Replace fuel tank pressure sensor.
265
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0340
AM: DTC P0500
—VEHICLE SPEED SENSOR MALFUNCTION
(VSP)—
DTC DETECTING CONDITION:

Immediately at fault recognition
10AM1Check speedometer operation in combination
meter.
10AM2Check harness between ECM and combination
meter connector.
10AM3Check harness between ECM and combination
meter connector.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:

LHD Model
B2M0572


266
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

WIRING DIAGRAM:

RHD Model
B2M0904
10AM1CHECK SPEEDOMETER OPERATION IN
COMBINATION METER.
: Does speedometer operate normally?
: Go to step10AM2.
: Check speedometer and vehicle speed sensor
.
B2M0573A
10AM2CHECK HARNESS BETWEEN ECM AND
COMBINATION METER CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from TCM.
3) Turn ignition switch to ON.
4) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 83 (+)—Chassis ground ():
Is the voltage more than 2 V?
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM and combination
meter connector

Poor contact in ECM connector

Poor contact in combination meter connector

Poor contact in coupling connector (B37)
: Go to step10AM3.
267
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0574A
10AM3CHECK HARNESS BETWEEN ECM AND
COMBINATION METER CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from ECM.
3) Measure resistance of harness between ECM connec-
tor and chassis ground.
: Connector & terminal
(B84) No. 83—Chassis ground:
Is the resistance less than 10Ω?
: Repair short circuit in harness between ECM and
combination meter connector.
: Repair poor contact in ECM connector.
268
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0358

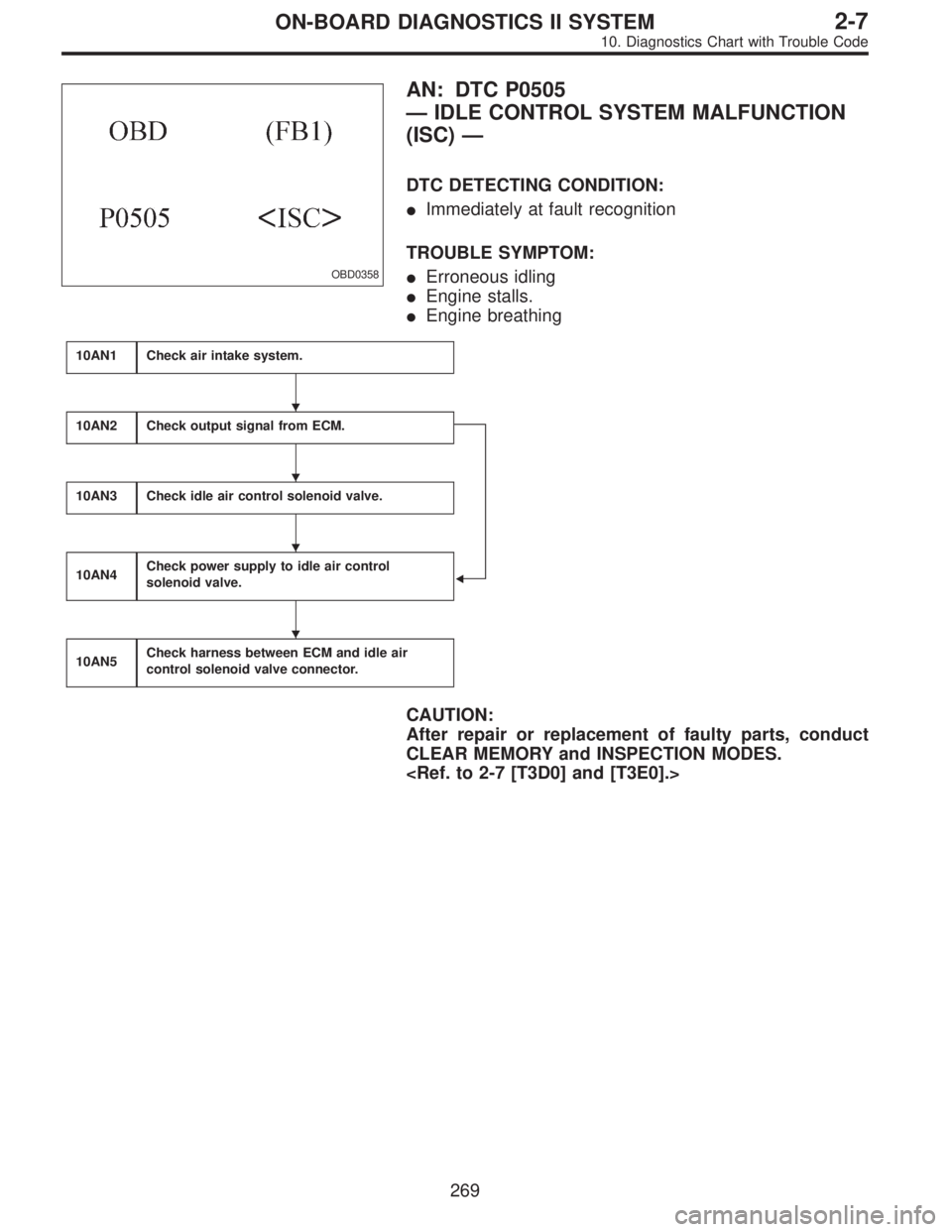

AN: DTC P0505
—IDLE CONTROL SYSTEM MALFUNCTION
(ISC)—
DTC DETECTING CONDITION:

Immediately at fault recognition
TROUBLE SYMPTOM:

Erroneous idling

Engine stalls.

Engine breathing
10AN1Check air intake system.
10AN2Check output signal from ECM.

10AN3Check idle air control solenoid valve.
10AN4Check power supply to idle air control
solenoid valve.
10AN5Check harness between ECM and idle air
control solenoid valve connector.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.





269
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

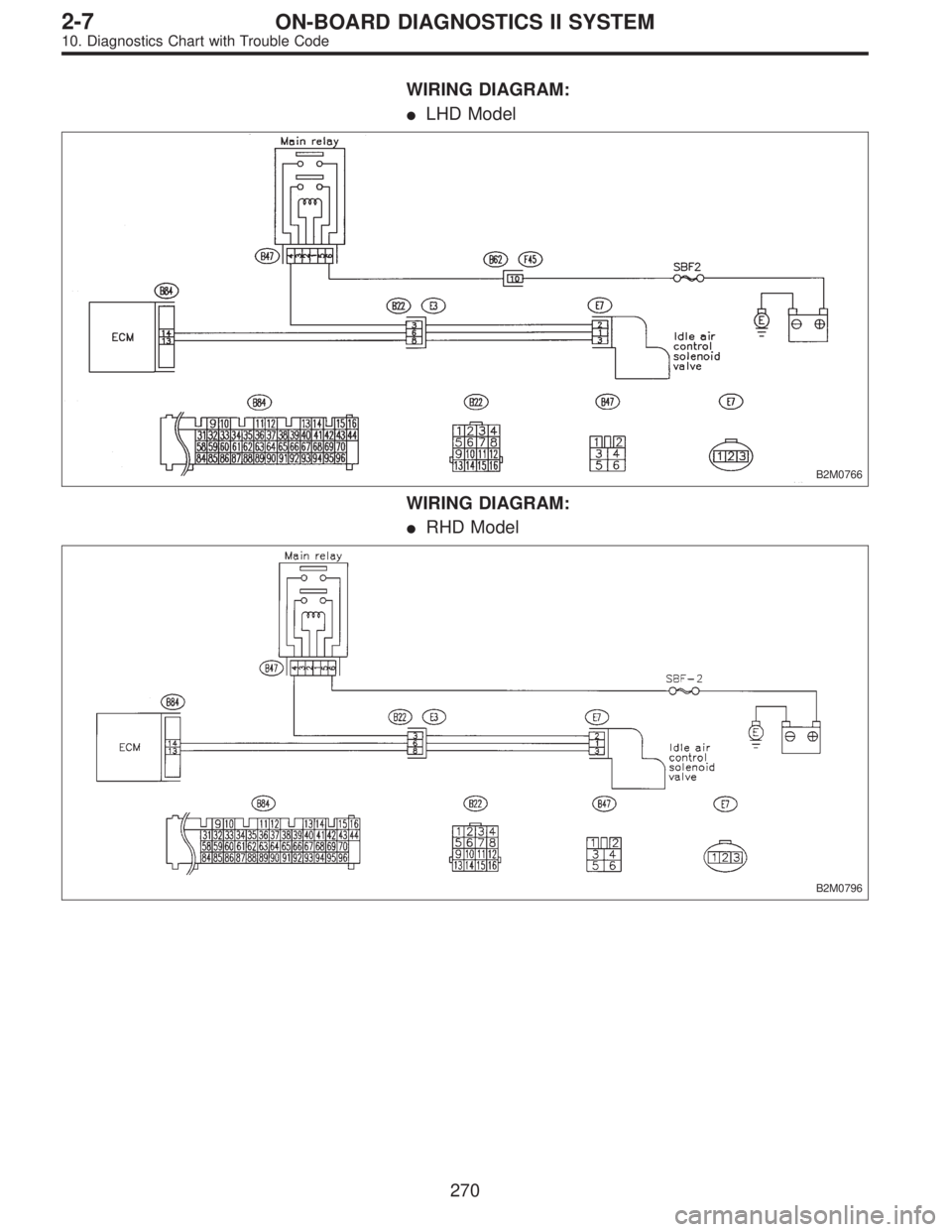

WIRING DIAGRAM:

LHD Model
B2M0766
WIRING DIAGRAM:

RHD Model
B2M0796
270
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

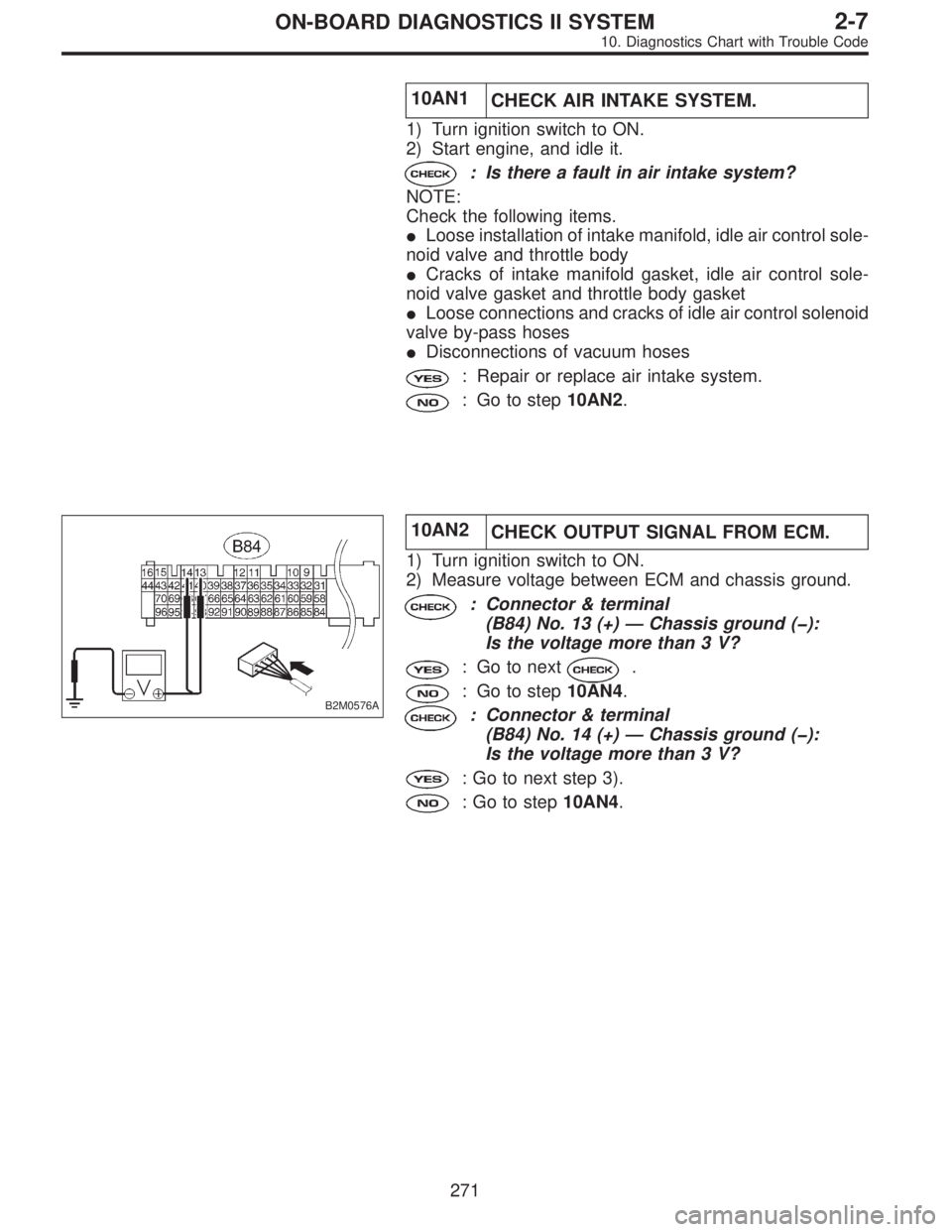

10AN1
CHECK AIR INTAKE SYSTEM.
1) Turn ignition switch to ON.
2) Start engine, and idle it.
: Is there a fault in air intake system?
NOTE:
Check the following items.

Loose installation of intake manifold, idle air control sole-
noid valve and throttle body

Cracks of intake manifold gasket, idle air control sole-
noid valve gasket and throttle body gasket

Loose connections and cracks of idle air control solenoid
valve by-pass hoses

Disconnections of vacuum hoses
: Repair or replace air intake system.
: Go to step10AN2.
B2M0576A
10AN2
CHECK OUTPUT SIGNAL FROM ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 13 (+)—Chassis ground ():
Is the voltage more than 3 V?
: Go to next.
: Go to step10AN4.
: Connector & terminal
(B84) No. 14 (+)—Chassis ground ():
Is the voltage more than 3 V?
: Go to next step 3).
: Go to step10AN4.
271
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0576A

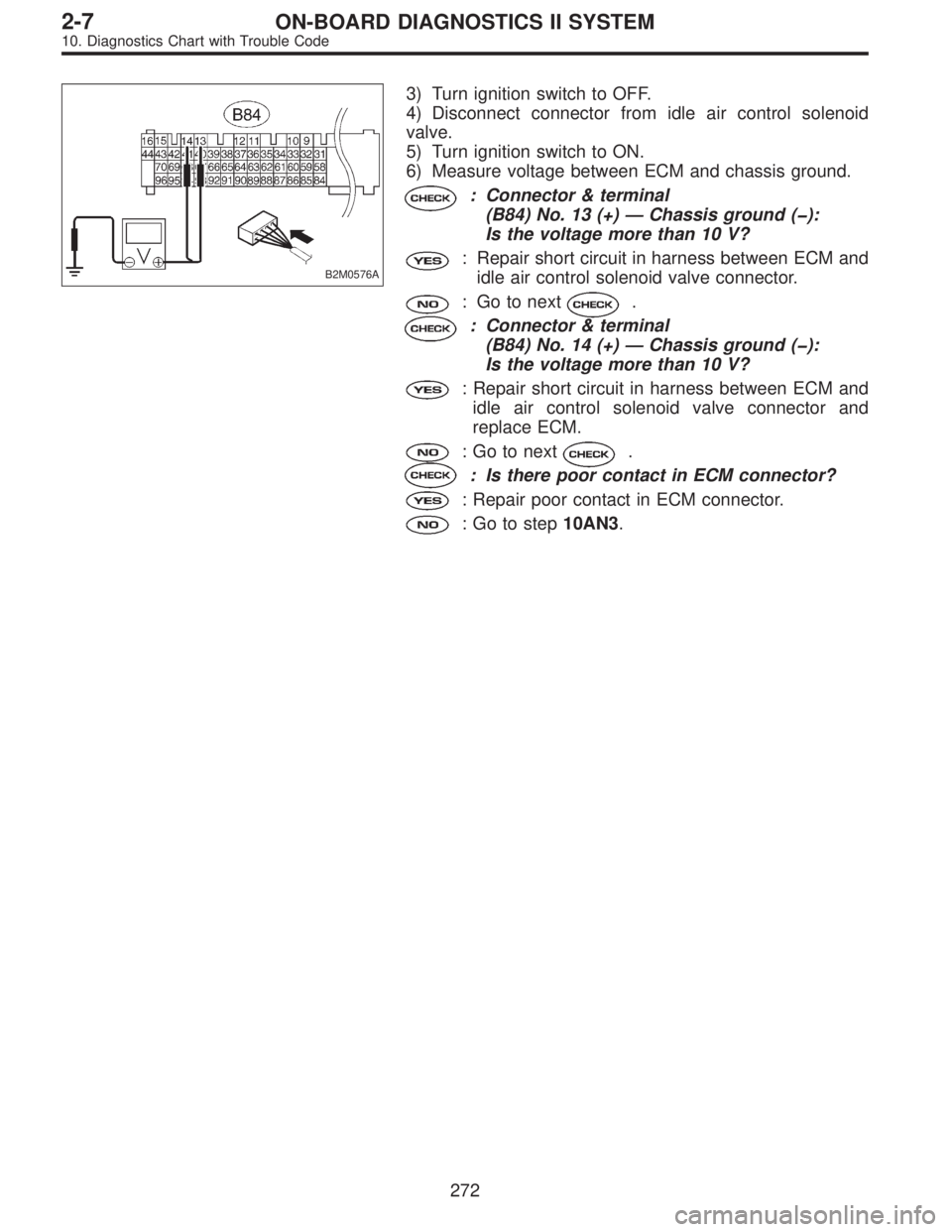

3) Turn ignition switch to OFF.
4) Disconnect connector from idle air control solenoid
valve.
5) Turn ignition switch to ON.
6) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 13 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Repair short circuit in harness between ECM and
idle air control solenoid valve connector.
: Go to next.
: Connector & terminal
(B84) No. 14 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Repair short circuit in harness between ECM and
idle air control solenoid valve connector and
replace ECM.
: Go to next.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Go to step10AN3.
272
2-7ON-BOARD DIAGNOSTICS II SYSTEM
