10BB7
CHECK INHIBITOR SWITCH CIRCUIT.
: Is there any trouble in inhibitor switch cir-
cuit?
NOTE:
For the diagnostic procedure on inhibitor switch circuit,
refer to 2-7 [T10AT0].
: Repair or replace inhibitor switch circuit.
: Go to step10BB8.
10BB8
CHECK BRAKE LIGHT SWITCH CIRCUIT.
: Is there any trouble in brake light switch cir-
cuit?
NOTE:
For the diagnostic procedure on brake light switch circuit,
refer to 2-7 [T10AS0].
: Repair or replace brake light switch circuit.
: Go to step10BB9.
10BB9CHECK ATF TEMPERATURE SENSOR
CIRCUIT.
: Is there any trouble in ATF temperature sen-
sor circuit?
NOTE:
For the diagnostic procedure on ATF temperature sensor
circuit, refer to 3-2 [T7F0].
: Repair or replace ATF temperature sensor circuit.
: Go to next.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Go to next.
: Is there any mechanical trouble in automatic
transmission?
: Repair or replace automatic transmission.
: Replace TCM.
303
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0662
BC: DTC P0743
—TORQUE CONVERTER CLUTCH SYSTEM
(DUTY SOLENOID B) ELECTRICAL (ATLU)
—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

No lock-up (after engine warm-up)
10BC1Check DTC P0743 on display.
Check duty solenoid B circuit.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
OBD0413
10BC1
CHECK DTC P0743 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0743?
: Check duty solenoid B circuit.
NOTE:
For the diagnostic procedure on duty solenoid B circuit,
refer to 3-2 [T7B0].

304
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0663

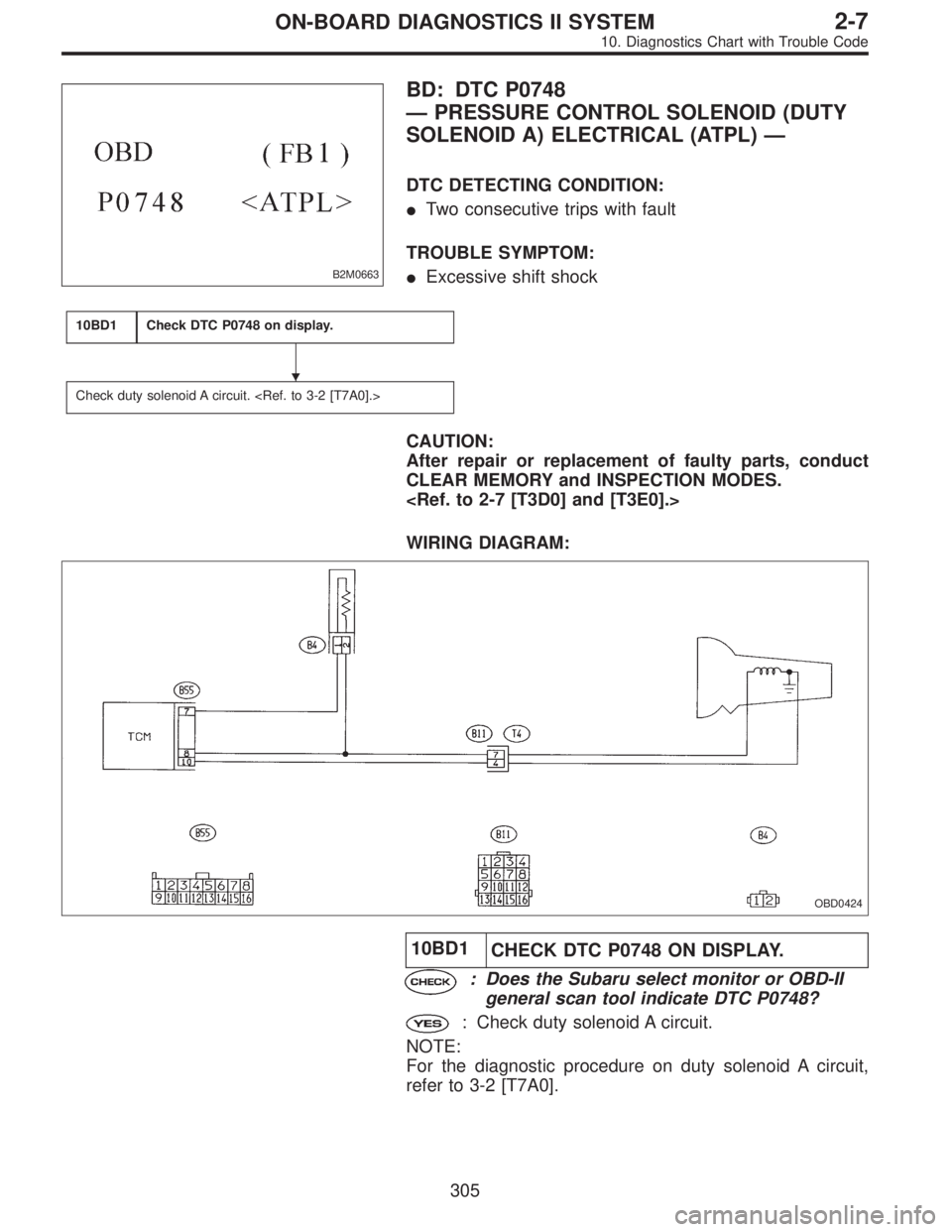

BD: DTC P0748
—PRESSURE CONTROL SOLENOID (DUTY
SOLENOID A) ELECTRICAL (ATPL)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

Excessive shift shock
10BD1Check DTC P0748 on display.
Check duty solenoid A circuit.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
OBD0424
10BD1
CHECK DTC P0748 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0748?
: Check duty solenoid A circuit.
NOTE:
For the diagnostic procedure on duty solenoid A circuit,
refer to 3-2 [T7A0].

305
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0664

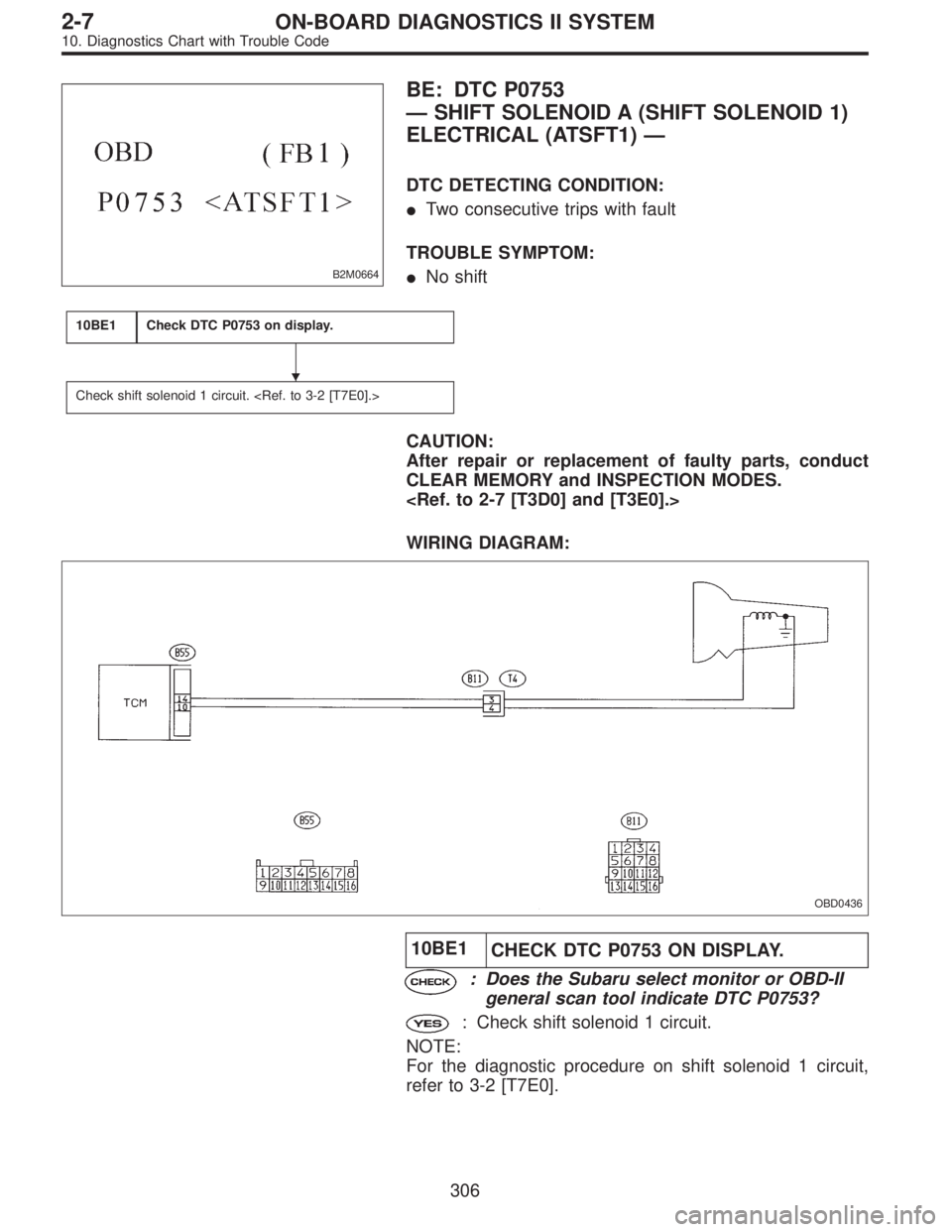

BE: DTC P0753
—SHIFT SOLENOID A (SHIFT SOLENOID 1)
ELECTRICAL (ATSFT1)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

No shift
10BE1Check DTC P0753 on display.
Check shift solenoid 1 circuit.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
OBD0436
10BE1
CHECK DTC P0753 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0753?
: Check shift solenoid 1 circuit.
NOTE:
For the diagnostic procedure on shift solenoid 1 circuit,
refer to 3-2 [T7E0].

306
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0665

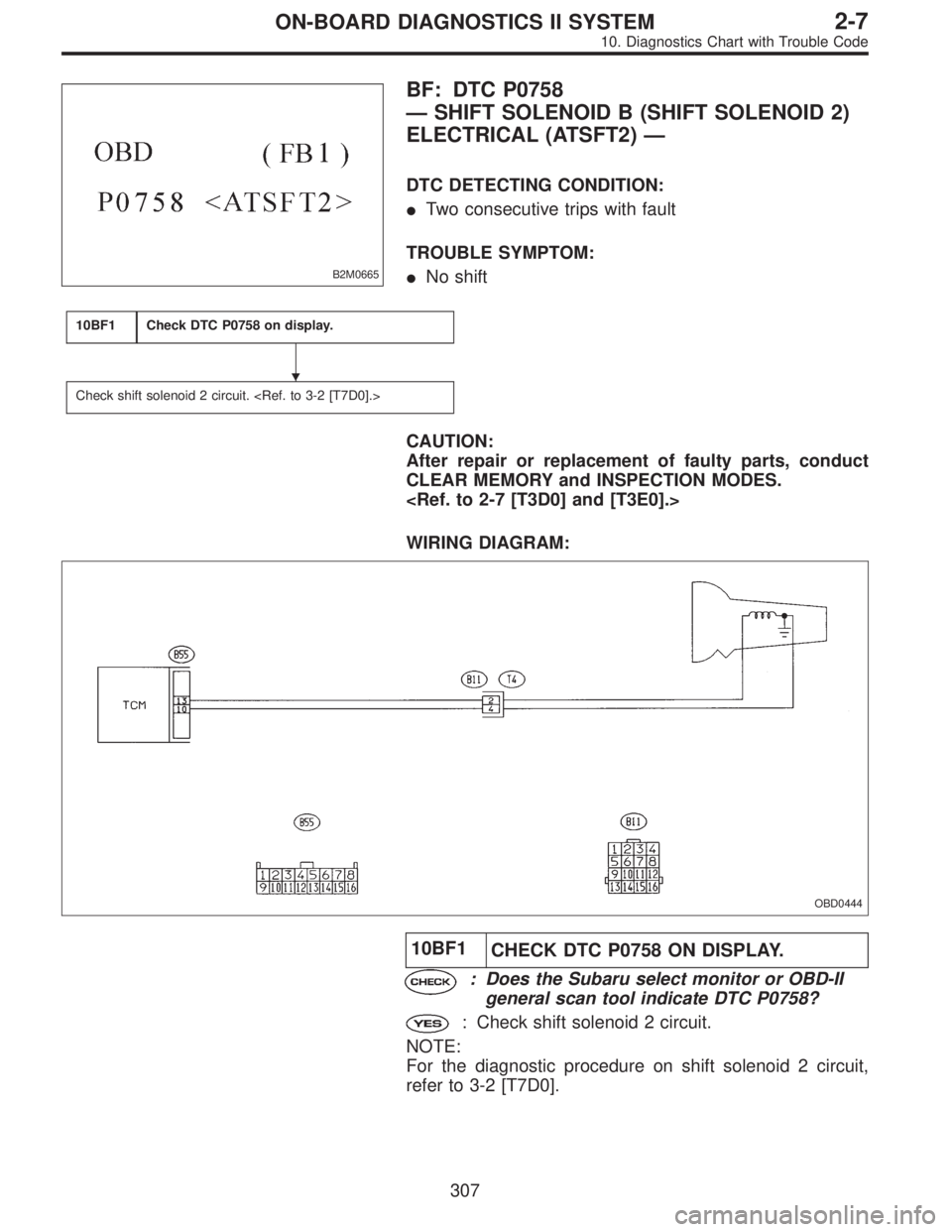

BF: DTC P0758
—SHIFT SOLENOID B (SHIFT SOLENOID 2)
ELECTRICAL (ATSFT2)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

No shift
10BF1Check DTC P0758 on display.
Check shift solenoid 2 circuit.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
OBD0444
10BF1
CHECK DTC P0758 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0758?
: Check shift solenoid 2 circuit.
NOTE:
For the diagnostic procedure on shift solenoid 2 circuit,
refer to 3-2 [T7D0].

307
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0666

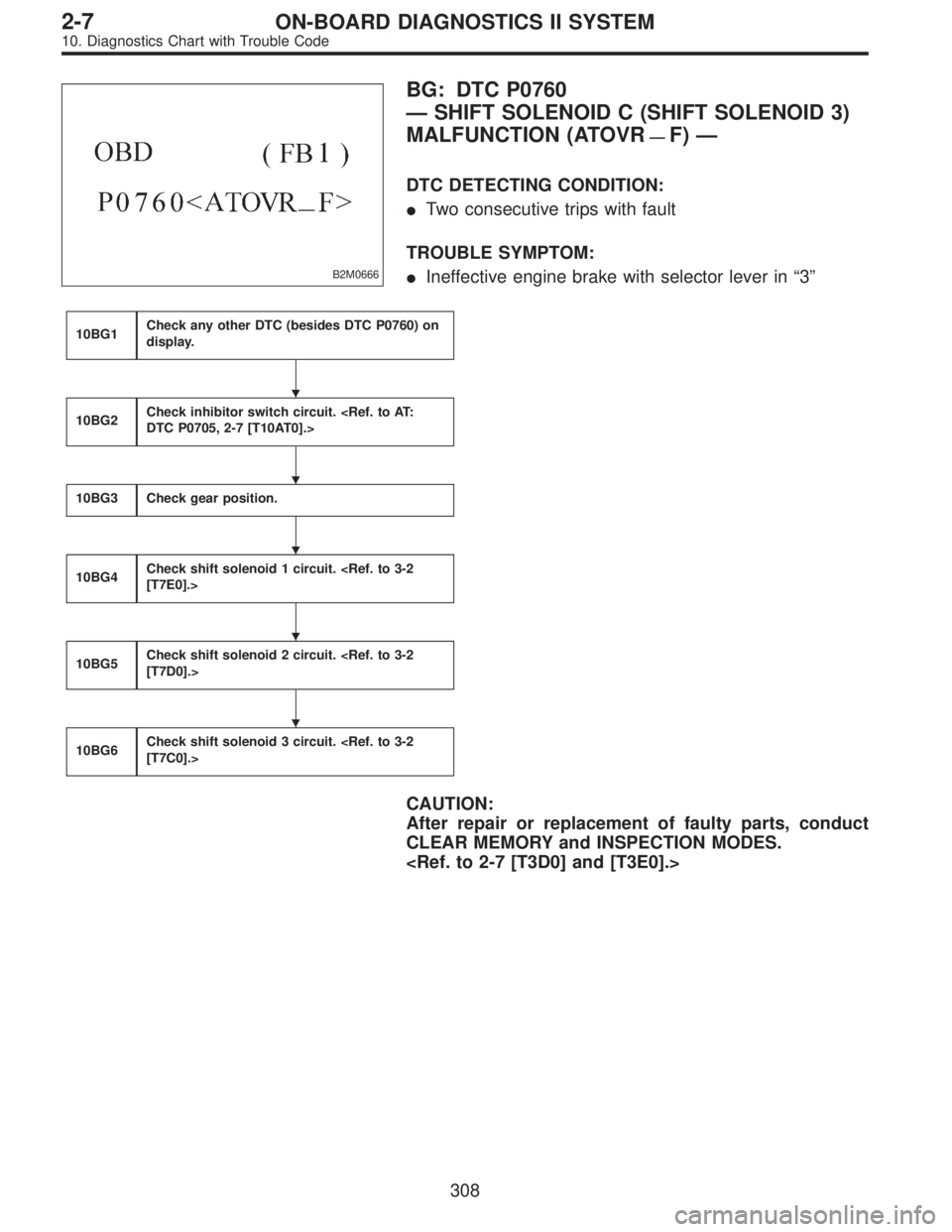

BG: DTC P0760
—SHIFT SOLENOID C (SHIFT SOLENOID 3)
MALFUNCTION (ATOVR
—F)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

Ineffective engine brake with selector lever in“3”
10BG1Check any other DTC (besides DTC P0760) on
display.
10BG2Check inhibitor switch circuit. DTC P0705, 2-7 [T10AT0].>
10BG3Check gear position.
10BG4Check shift solenoid 1 circuit. [T7E0].>
10BG5Check shift solenoid 2 circuit. [T7D0].>
10BG6Check shift solenoid 3 circuit. [T7C0].>
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.






308
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

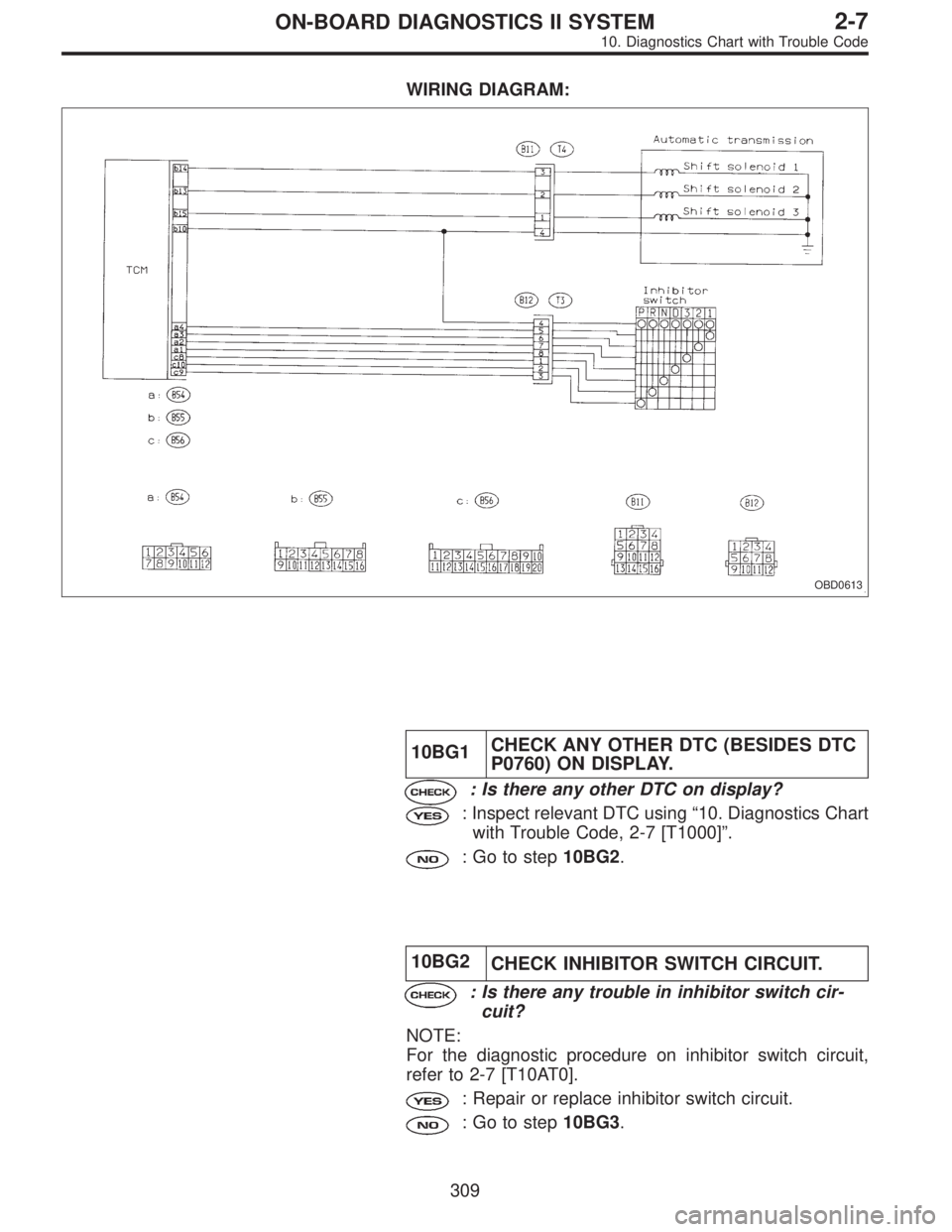

WIRING DIAGRAM:
OBD0613
10BG1CHECK ANY OTHER DTC (BESIDES DTC
P0760) ON DISPLAY.
: Is there any other DTC on display?
: Inspect relevant DTC using“10. Diagnostics Chart
with Trouble Code, 2-7 [T1000]”.
: Go to step10BG2.
10BG2
CHECK INHIBITOR SWITCH CIRCUIT.
: Is there any trouble in inhibitor switch cir-
cuit?
NOTE:
For the diagnostic procedure on inhibitor switch circuit,
refer to 2-7 [T10AT0].
: Repair or replace inhibitor switch circuit.
: Go to step10BG3.
309
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0145A

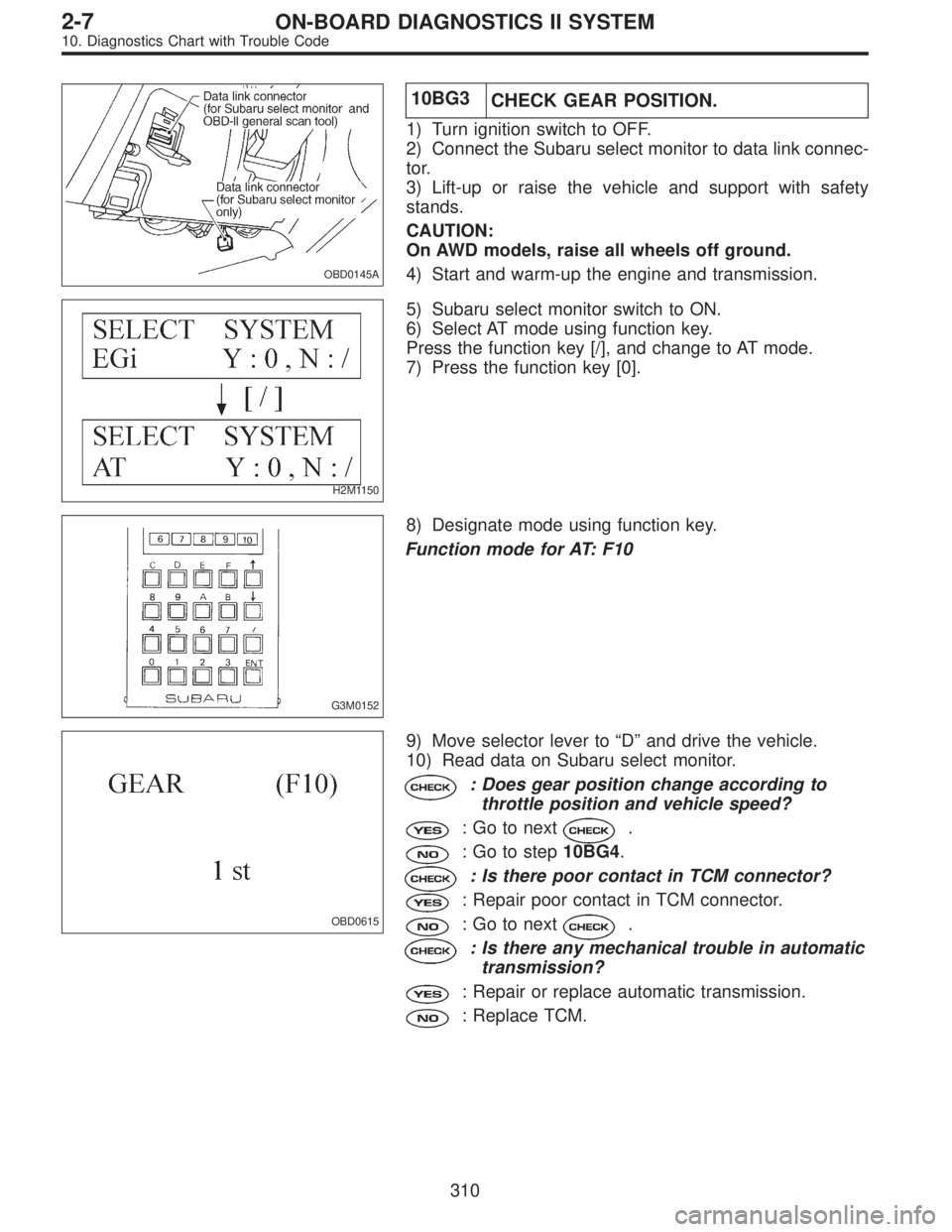

10BG3
CHECK GEAR POSITION.
1) Turn ignition switch to OFF.
2) Connect the Subaru select monitor to data link connec-
tor.
3) Lift-up or raise the vehicle and support with safety
stands.
CAUTION:
On AWD models, raise all wheels off ground.
4) Start and warm-up the engine and transmission.
H2M1150
5) Subaru select monitor switch to ON.
6) Select AT mode using function key.
Press the function key [/], and change to AT mode.
7) Press the function key [0].
G3M0152
8) Designate mode using function key.
Function mode for AT: F10
OBD0615
9) Move selector lever to“D”and drive the vehicle.
10) Read data on Subaru select monitor.
: Does gear position change according to
throttle position and vehicle speed?
: Go to next.
: Go to step10BG4.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Go to next.
: Is there any mechanical trouble in automatic
transmission?
: Repair or replace automatic transmission.
: Replace TCM.
310
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

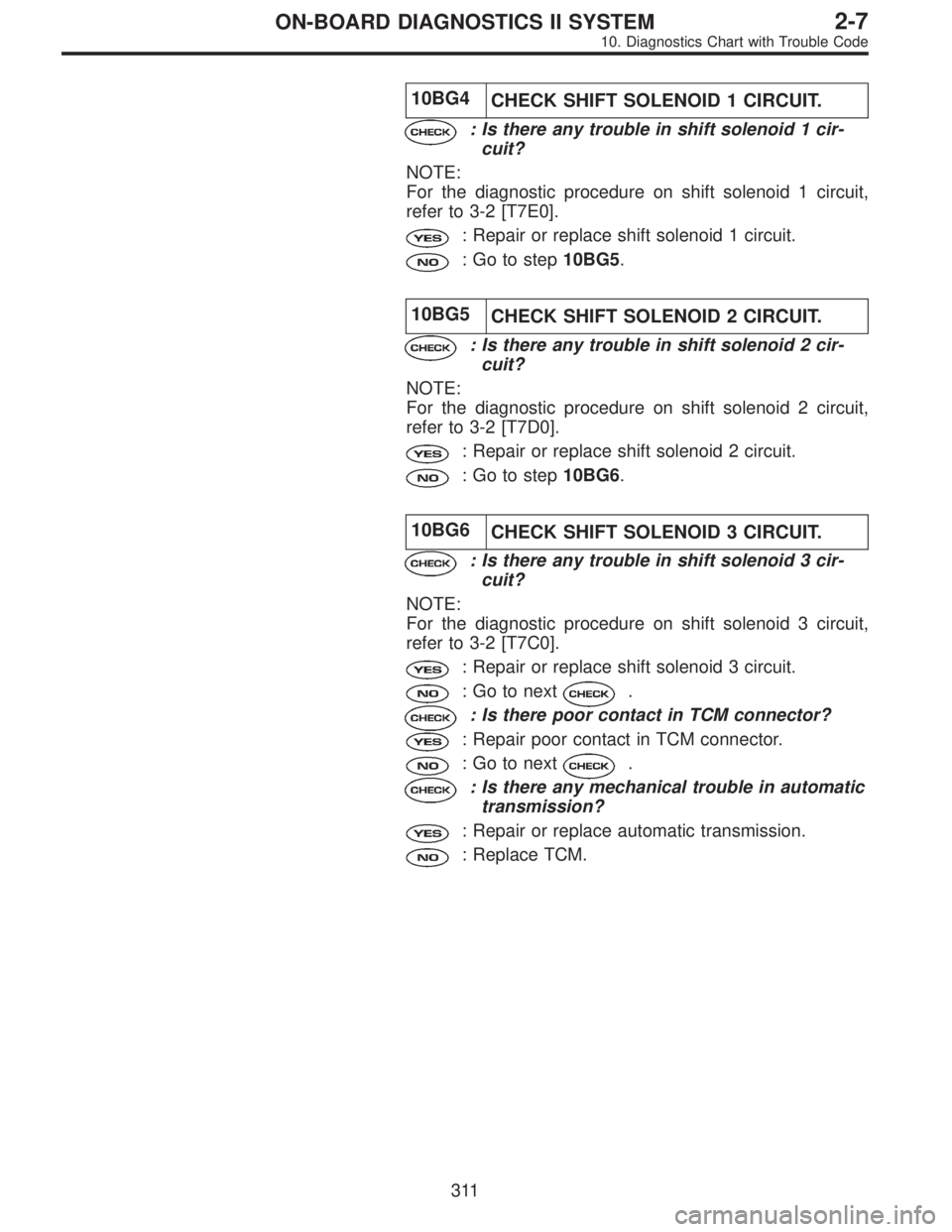

10BG4
CHECK SHIFT SOLENOID 1 CIRCUIT.
: Is there any trouble in shift solenoid 1 cir-
cuit?
NOTE:
For the diagnostic procedure on shift solenoid 1 circuit,
refer to 3-2 [T7E0].
: Repair or replace shift solenoid 1 circuit.
: Go to step10BG5.
10BG5
CHECK SHIFT SOLENOID 2 CIRCUIT.
: Is there any trouble in shift solenoid 2 cir-
cuit?
NOTE:
For the diagnostic procedure on shift solenoid 2 circuit,
refer to 3-2 [T7D0].
: Repair or replace shift solenoid 2 circuit.
: Go to step10BG6.
10BG6
CHECK SHIFT SOLENOID 3 CIRCUIT.
: Is there any trouble in shift solenoid 3 cir-
cuit?
NOTE:
For the diagnostic procedure on shift solenoid 3 circuit,
refer to 3-2 [T7C0].
: Repair or replace shift solenoid 3 circuit.
: Go to next.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Go to next.
: Is there any mechanical trouble in automatic
transmission?
: Repair or replace automatic transmission.
: Replace TCM.
311
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0667

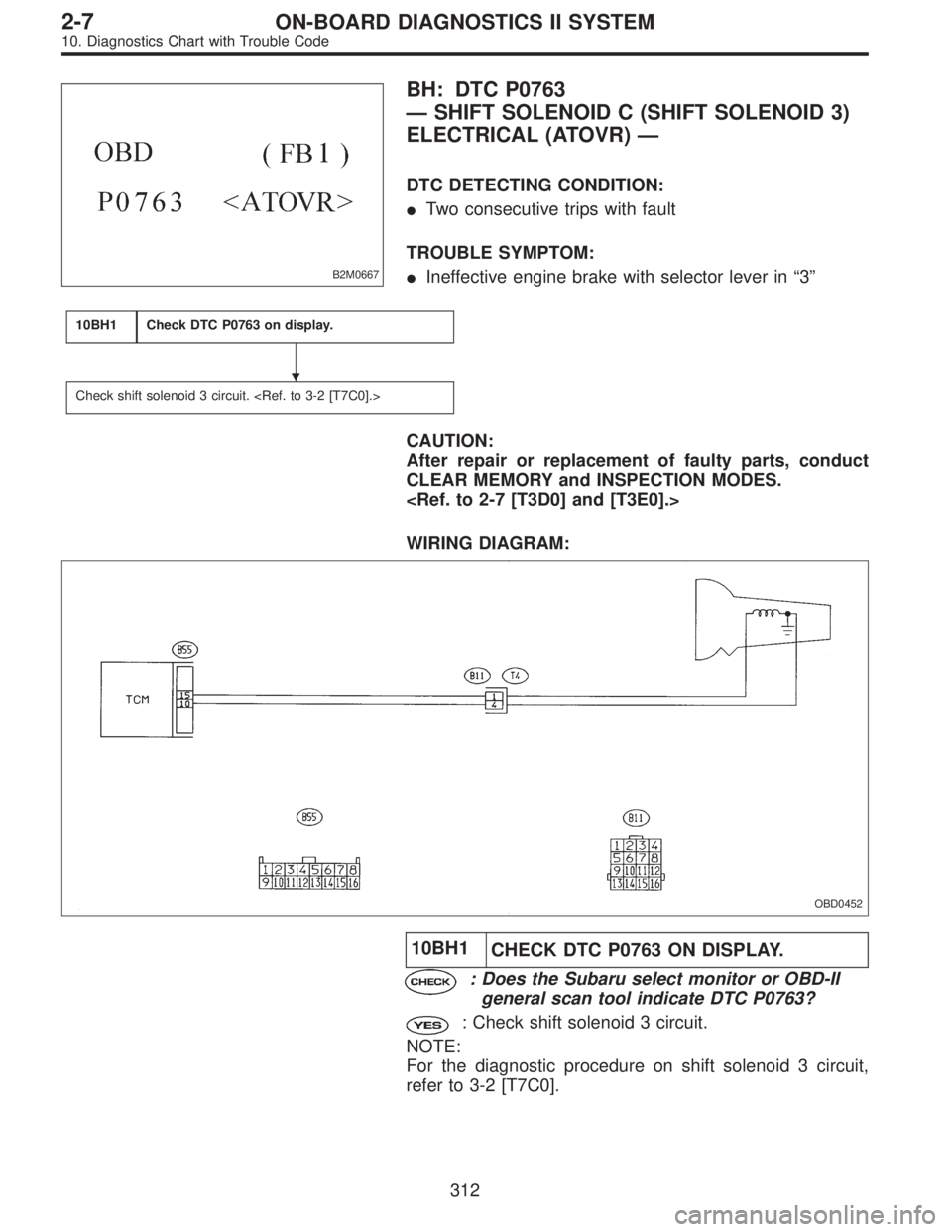

BH: DTC P0763
—SHIFT SOLENOID C (SHIFT SOLENOID 3)
ELECTRICAL (ATOVR)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

Ineffective engine brake with selector lever in“3”
10BH1Check DTC P0763 on display.
Check shift solenoid 3 circuit.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
OBD0452
10BH1
CHECK DTC P0763 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0763?
: Check shift solenoid 3 circuit.
NOTE:
For the diagnostic procedure on shift solenoid 3 circuit,
refer to 3-2 [T7C0].

312
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
