SUBARU LEGACY 1996 Service Repair Manual

OBD0380
AU: DTC P0710
—TRANSMISSION FLUID TEMPERATURE
SENSOR CIRCUIT MALFUNCTION (ATF)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

No shift up to 4th speed (after engine warm-up)

No lock-up (after engine warm-up)

Excessive shift shock
10AU1Check DTC P0710 on display.
Check ATF temperature sensor circuit.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
OBD0383
10AU1
CHECK DTC P0710 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0710?
: Check ATF temperature sensor circuit.
NOTE:
For the diagnostic procedure on transmission fluid tem-
perature sensor circuit, refer to 3-2 [T7F0].

293
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0392
AV: DTC P0720
—OUTPUT SPEED SENSOR (VEHICLE
SPEED SENSOR 1) CIRCUIT MALFUNCTION
(ATVSP)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

No shift or excessive tight corner“braking”
10AV1Check DTC P0720 on display.
Check vehicle speed sensor 1 circuit.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
B2M0584
10AV1
CHECK DTC P0720 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0720?
: Check vehicle speed sensor 1 circuit.
NOTE:
For the diagnostic procedure on vehicle speed sensor 1
circuit, refer to 3-2 [T7L0].

294
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

OBD0404

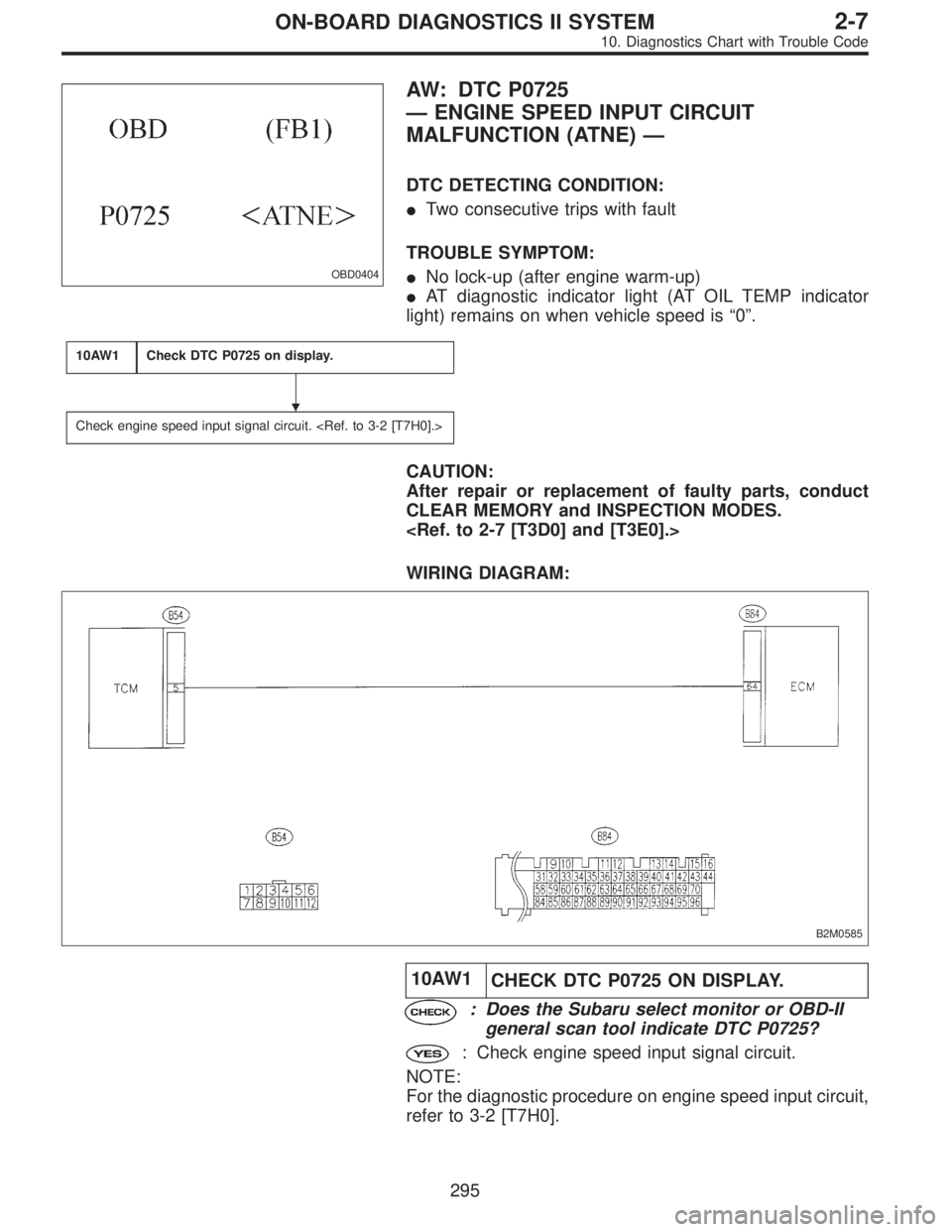

AW: DTC P0725
—ENGINE SPEED INPUT CIRCUIT
MALFUNCTION (ATNE)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

No lock-up (after engine warm-up)

AT diagnostic indicator light (AT OIL TEMP indicator
light) remains on when vehicle speed is“0”.
10AW1Check DTC P0725 on display.
Check engine speed input signal circuit.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

WIRING DIAGRAM:
B2M0585
10AW1
CHECK DTC P0725 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0725?
: Check engine speed input signal circuit.
NOTE:
For the diagnostic procedure on engine speed input circuit,
refer to 3-2 [T7H0].

295
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0657
AX: DTC P0731
—GEAR 1 INCORRECT RATIO (ATGR1)—
B2M0658
AY: DTC P0732
—GEAR 2 INCORRECT RATIO (ATGR2)—
B2M0659
AZ: DTC P0733
—GEAR 3 INCORRECT RATIO (ATGR3)—
B2M0660
BA: DTC P0734
—GEAR 4 INCORRECT RATIO (ATGR4)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

Shift point too high or too low; engine brake not effected
in“3”range; excessive shift shock; excessive tight corner
“braking”
296
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

10BA1Check any other DTC (besides DTC P0731,
P0732, P0733, P0734) on display.
10BA2Check throttle position sensor circuit. 3-2 [T7K0].>
10BA3Check vehicle speed sensor 1 circuit. 3-2 [T7L0].>
10BA4Check vehicle speed sensor 2 circuit. 3-2 [T7M0].>
10BA5Check engine speed input circuit.

CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.





297
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

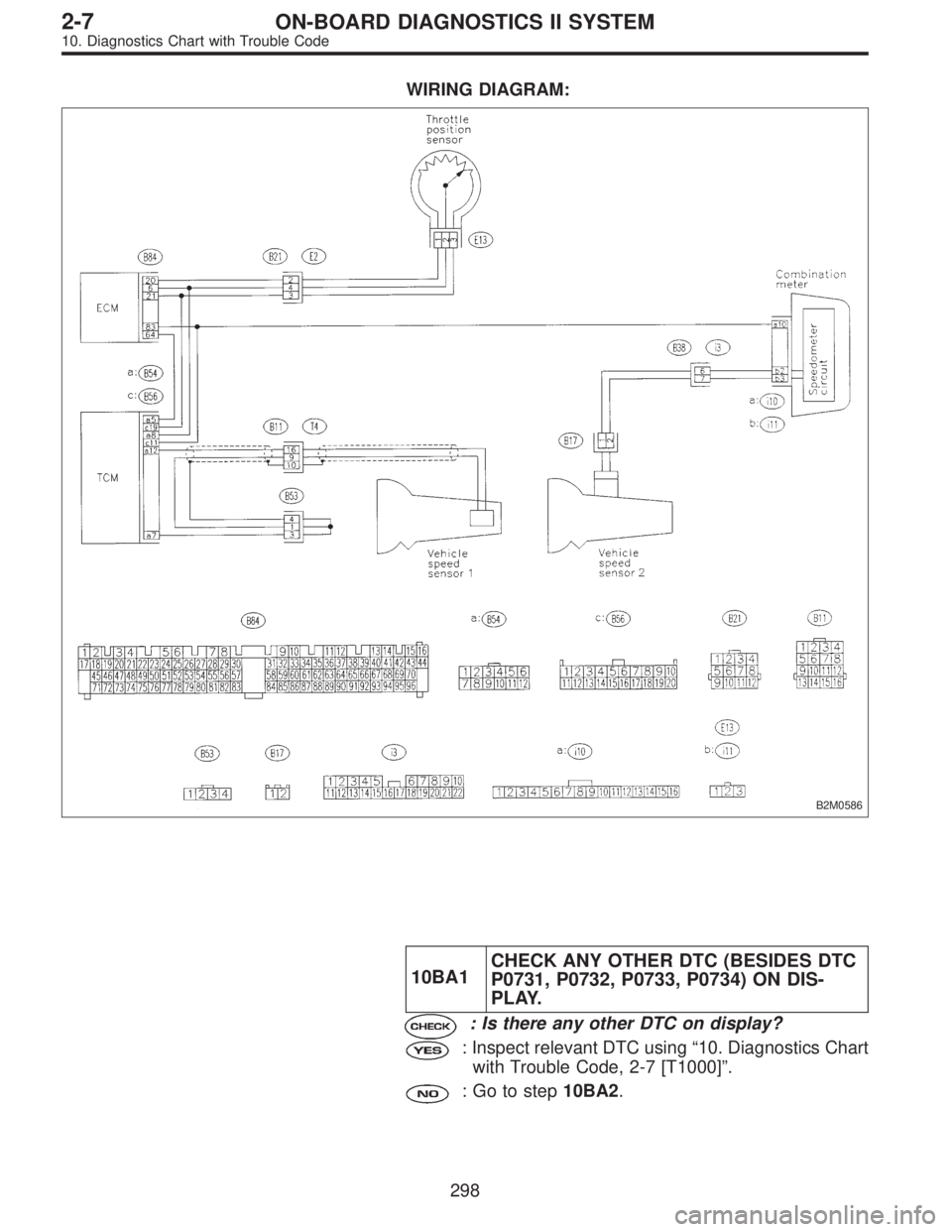

WIRING DIAGRAM:
B2M0586
10BA1CHECK ANY OTHER DTC (BESIDES DTC
P0731, P0732, P0733, P0734) ON DIS-
PLAY.
: Is there any other DTC on display?
: Inspect relevant DTC using“10. Diagnostics Chart
with Trouble Code, 2-7 [T1000]”.
: Go to step10BA2.
298
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

10BA2CHECK THROTTLE POSITION SENSOR
CIRCUIT.
: Is there any trouble in throttle position sen-
sor circuit?
NOTE:
For the diagnostic procedure on throttle position sensor
circuit, refer to 3-2 [T7K0].
: Repair or replace throttle position sensor circuit.
: Go to step10BA3.
10BA3CHECK VEHICLE SPEED SENSOR 1 CIR-
CUIT.
: Is there any trouble in vehicle speed sensor
1 circuit?
NOTE:
For the diagnostic procedure on vehicle speed sensor 1
circuit, refer to 3-2 [T7L0].
: Repair or replace vehicle speed sensor 1 circuit.
: Go to step10BA4.
10BA4CHECK VEHICLE SPEED SENSOR 2 CIR-
CUIT.
: Is there any trouble in vehicle speed sensor
2 circuit?
NOTE:
For the diagnostic procedure on vehicle speed sensor 2
circuit, refer to 3-2 [T7M0].
: Repair or replace vehicle speed sensor 2 circuit.
: Go to step10BA5.
10BA5
CHECK ENGINE SPEED INPUT CIRCUIT.
: Is there any trouble in engine speed input
circuit?
NOTE:
For the diagnostic procedure on engine speed input signal
circuit, refer to 3-2 [T7H0].
: Repair or replace engine speed input circuit.
: Go to next.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Go to next.
: Is there any mechanical trouble in automatic
transmission?
: Repair or replace automatic transmission.
: Replace TCM.
299
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

B2M0661
BB: DTC P0740
—TORQUE CONVERTER CLUTCH SYSTEM
MALFUNCTION (ATLU
—F)—
DTC DETECTING CONDITION:

Two consecutive trips with fault
TROUBLE SYMPTOM:

No lock-up (after engine warm-up)

No shift or excessive tight corner“braking”
10BB1Check any other DTC (besides DTC P0740) on
display.
10BB2Check duty solenoid B circuit. [T7B0].>
10BB3Check throttle position sensor circuit. 3-2 [T7K0].>
10BB4Check vehicle speed sensor 1 circuit. 3-2 [T7L0].>
10BB5Check vehicle speed sensor 2 circuit. 3-2 [T7M0].>
10BB6Check engine speed input circuit. [T7H0].>
10BB7Check inhibitor switch circuit. DTC P0705, 2-7 [T10AT0].>
10BB8Check brake light switch circuit. DTC P0703, 2-7 [T10AS0].>
10BB9Check ATF temperature sensor circuit. 3-2 [T7F0].>
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.









300
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

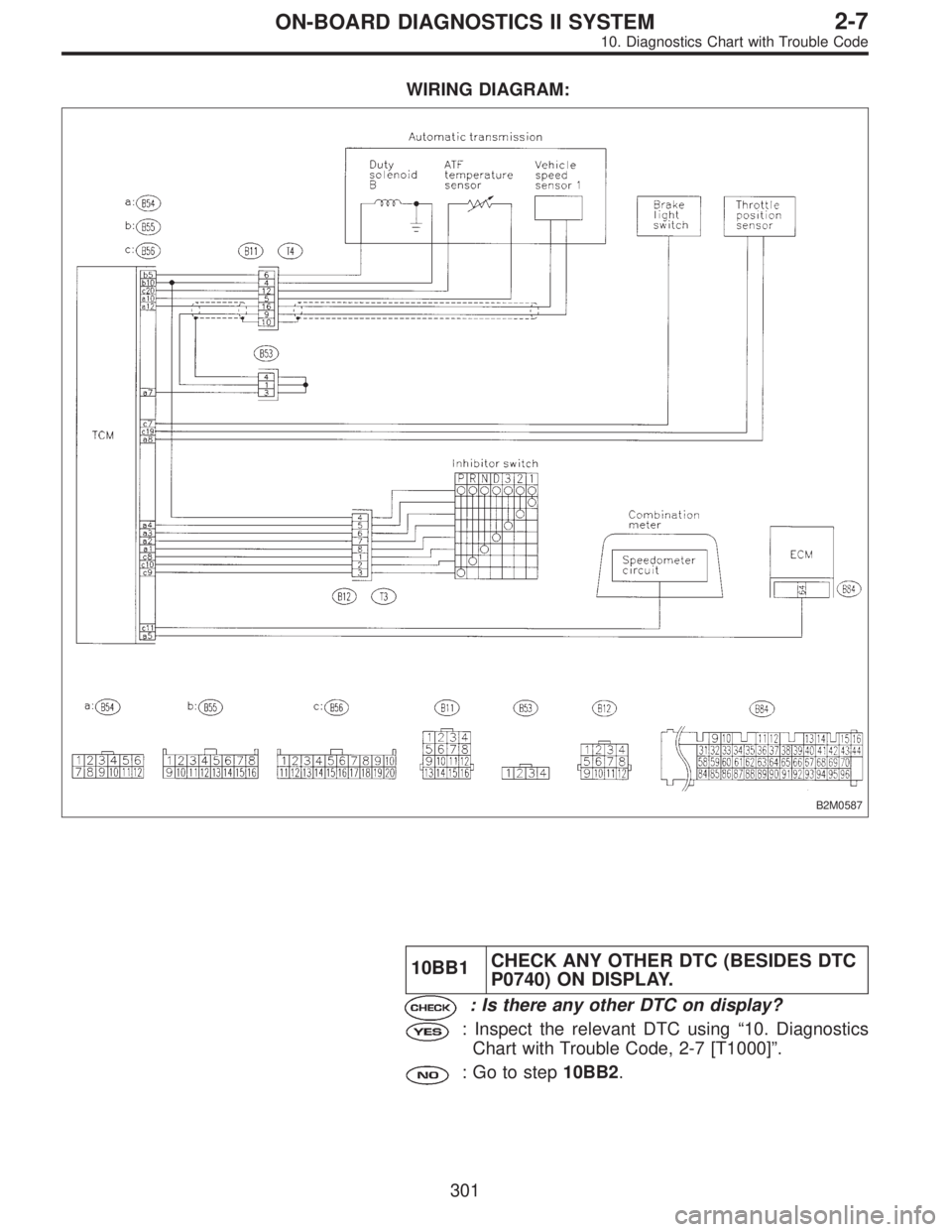

WIRING DIAGRAM:
B2M0587
10BB1CHECK ANY OTHER DTC (BESIDES DTC
P0740) ON DISPLAY.
: Is there any other DTC on display?
: Inspect the relevant DTC using“10. Diagnostics
Chart with Trouble Code, 2-7 [T1000]”.
: Go to step10BB2.
301
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code

10BB2
CHECK DUTY SOLENOID B CIRCUIT.
: Is there any trouble in duty solenoid B cir-
cuit?
NOTE:
For the diagnostic procedure on duty solenoid B circuit,
refer to 3-2 [T7B0].
: Repair or replace duty solenoid B circuit.
: Go to step10BB3.
10BB3CHECK THROTTLE POSITION SENSOR
CIRCUIT.
: Is there any trouble in throttle position sen-
sor circuit?
NOTE:
For the diagnostic procedure on throttle position sensor
circuit, refer to 3-2 [T7K0].
: Repair or replace throttle position sensor circuit.
: Go to step10BB4.
10BB4CHECK VEHICLE SPEED SENSOR 1 CIR-
CUIT.
: Is there any trouble in vehicle speed sensor
1 circuit?
NOTE:
For the diagnostic procedure on vehicle speed sensor 1
circuit, refer to 3-2 [T7L0].
: Repair or replace vehicle speed sensor 1 circuit.
: Go to step10BB5.
10BB5CHECK VEHICLE SPEED SENSOR 2 CIR-
CUIT.
: Is there any trouble in vehicle speed sensor
2 circuit?
NOTE:
For the diagnostic procedure on vehicle speed sensor 2
circuit, refer to 3-2 [T7M0].
: Repair or replace vehicle speed sensor 2 circuit.
: Go to step10BB6.
10BB6
CHECK ENGINE SPEED INPUT CIRCUIT.
: Is there any trouble in engine speed input
circuit?
NOTE:
For the diagnostic procedure on engine speed input signal
circuit, refer to 3-2 [T7H0].
: Repair or replace engine speed input circuit.
: Go to step10BB7.
302
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
