SUBARU LEGACY 1996 Service Repair Manual

G2M0096

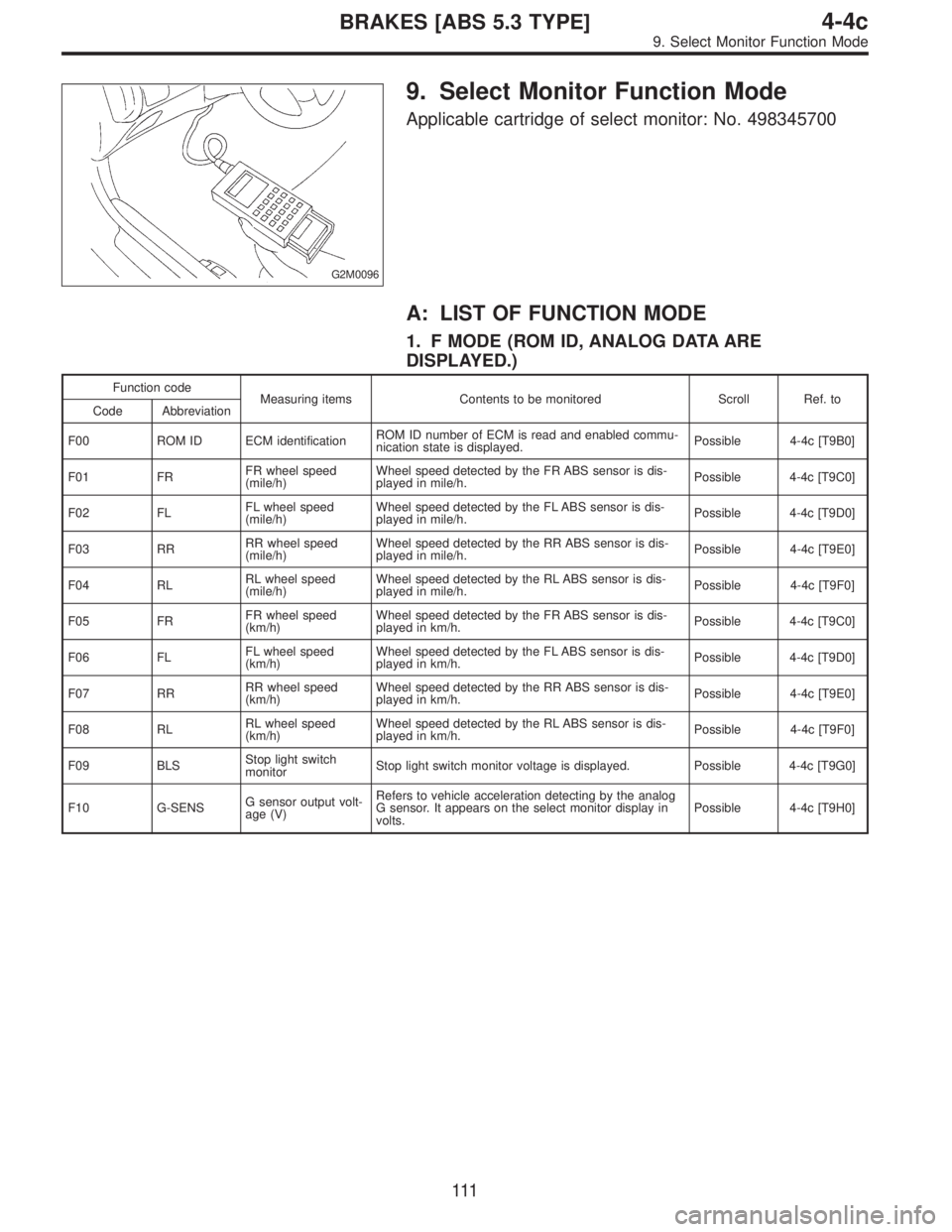

9. Select Monitor Function Mode
Applicable cartridge of select monitor: No. 498345700
A: LIST OF FUNCTION MODE
1. F MODE (ROM ID, ANALOG DATA ARE
DISPLAYED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
F00 ROM ID ECM identificationROM ID number of ECM is read and enabled commu-
nication state is displayed.Possible 4-4c [T9B0]
F01 FRFR wheel speed
(mile/h)Wheel speed detected by the FR ABS sensor is dis-
played in mile/h.Possible 4-4c [T9C0]
F02 FLFL wheel speed
(mile/h)Wheel speed detected by the FL ABS sensor is dis-
played in mile/h.Possible 4-4c [T9D0]
F03 RRRR wheel speed
(mile/h)Wheel speed detected by the RR ABS sensor is dis-
played in mile/h.Possible 4-4c [T9E0]
F04 RLRL wheel speed
(mile/h)Wheel speed detected by the RL ABS sensor is dis-
played in mile/h.Possible 4-4c [T9F0]
F05 FRFR wheel speed
(km/h)Wheel speed detected by the FR ABS sensor is dis-
played in km/h.Possible 4-4c [T9C0]
F06 FLFL wheel speed
(km/h)Wheel speed detected by the FL ABS sensor is dis-
played in km/h.Possible 4-4c [T9D0]
F07 RRRR wheel speed
(km/h)Wheel speed detected by the RR ABS sensor is dis-
played in km/h.Possible 4-4c [T9E0]
F08 RLRL wheel speed
(km/h)Wheel speed detected by the RL ABS sensor is dis-
played in km/h.Possible 4-4c [T9F0]
F09 BLSStop light switch
monitorStop light switch monitor voltage is displayed. Possible 4-4c [T9G0]
F10 G-SENSG sensor output volt-
age (V)Refers to vehicle acceleration detecting by the analog
G sensor. It appears on the select monitor display in
volts.Possible 4-4c [T9H0]
111
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

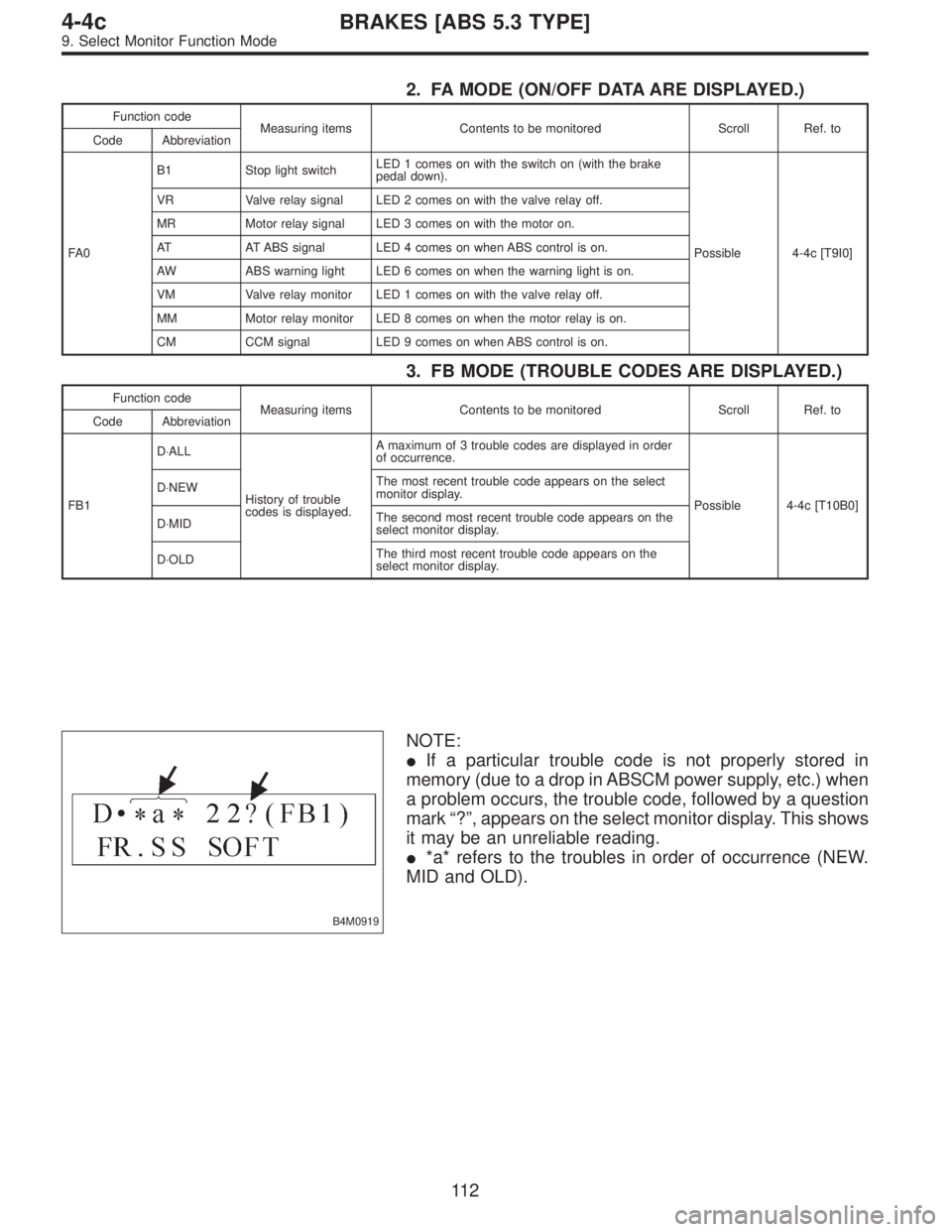

2. FA MODE (ON/OFF DATA ARE DISPLAYED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FA 0B1 Stop light switchLED 1 comes on with the switch on (with the brake
pedal down).
Possible 4-4c [T9I0] VR Valve relay signal LED 2 comes on with the valve relay off.
MR Motor relay signal LED 3 comes on with the motor on.
AT AT ABS signal LED 4 comes on when ABS control is on.
AW ABS warning light LED 6 comes on when the warning light is on.
VM Valve relay monitor LED 1 comes on with the valve relay off.
MM Motor relay monitor LED 8 comes on when the motor relay is on.
CM CCM signal LED 9 comes on when ABS control is on.
3. FB MODE (TROUBLE CODES ARE DISPLAYED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FB1D⋅ALL
History of trouble
codes is displayed.A maximum of 3 trouble codes are displayed in order
of occurrence.
Possible 4-4c [T10B0] D⋅NEWThe most recent trouble code appears on the select
monitor display.
D⋅MIDThe second most recent trouble code appears on the
select monitor display.
D⋅OLDThe third most recent trouble code appears on the
select monitor display.
B4M0919
NOTE:

If a particular trouble code is not properly stored in
memory (due to a drop in ABSCM power supply, etc.) when
a problem occurs, the trouble code, followed by a question
mark“?”, appears on the select monitor display. This shows
it may be an unreliable reading.

*a* refers to the troubles in order of occurrence (NEW.
MID and OLD).
11 2
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

4. FC MODE (TROUBLE CODES AND FREEZE
FRAME DATA ARE ERASED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FC0 D⋅CLRHistory of trouble
codes and freeze
frame data is erased.Function of clearing trouble code and freeze frame
data stored in memory.Possible4-4c [T9J0]
5. FD MODE (ABS SEQUENCE CHECK MODE)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FD1 A⋅CHKABS sequence con-
trolPerform ABS sequence control by operating valve and
pump motor sequentially.Impossible4-4
[W19D1]
6. FE MODE (FREEZE FRAME DATA)
NOTE:
Data stored at the time of trouble occurrence is shown on
display.
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FE1 FR FR wheel speed (mile/h)Wheel speed detected by the FR ABS sensor is displayed in
mile/h.Possible 4-4c [T9K0]
FE2 FL FL wheel speed (mile/h)Wheel speed detected by the FL ABS sensor is displayed in
mile/h.Possible 4-4c [T9L0]
FE3 RR RR wheel speed (mile/h)Wheel speed detected by the RR ABS sensor is displayed in
mile/h.Possible 4-4c [T9M0]
FE4 RL RL wheel speed (mile/h)Wheel speed detected by the RL ABS sensor is displayed in
mile/h.Possible 4-4c [T9N0]
FE5 FR FR wheel speed (km/h)Wheel speed detected by the FR ABS sensor is displayed in
km/h.Possible 4-4c [T9K0]
FE6 FL FL wheel speed (km/h)Wheel speed detected by the FL ABS sensor is displayed in
km/h.Possible 4-4c [T9L0]
FE7 RR RR wheel speed (km/h)Wheel speed detected by the RR ABS sensor is displayed in
km/h.Possible 4-4c [T9M0]
FE8 RL RL wheel speed (km/h)Wheel speed detected by the RL ABS sensor is displayed in
km/h.Possible 4-4c [T9N0]
FE13 POWERABSCM power supply
voltage (V)Power (in volts) supplied to ABSCM appears on the select
monitor display.Possible 4-4c [T9O0]
FE14 G-SENSG sensor output voltage
(V)Refers to vehicle acceleration detected by the analog G sen-
sor. It appears on the select monitor display in volts.Possible 4-4c [T9P0]
FE15MM Motor relay monitor LED 1 comes on when motor relay is on.
Possible 4-4c [T9Q0] B1 Stop light switchLED 2 comes on with the stop light switch on (with the brake
pedal depressed).
AT AT ABS signal LED 3 comes on when ABS control is on.
CM CCM signal LED 4 comes on when ABS control is on.
A0 ABS control LED 5 comes on when ABS control is on.
11 3
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

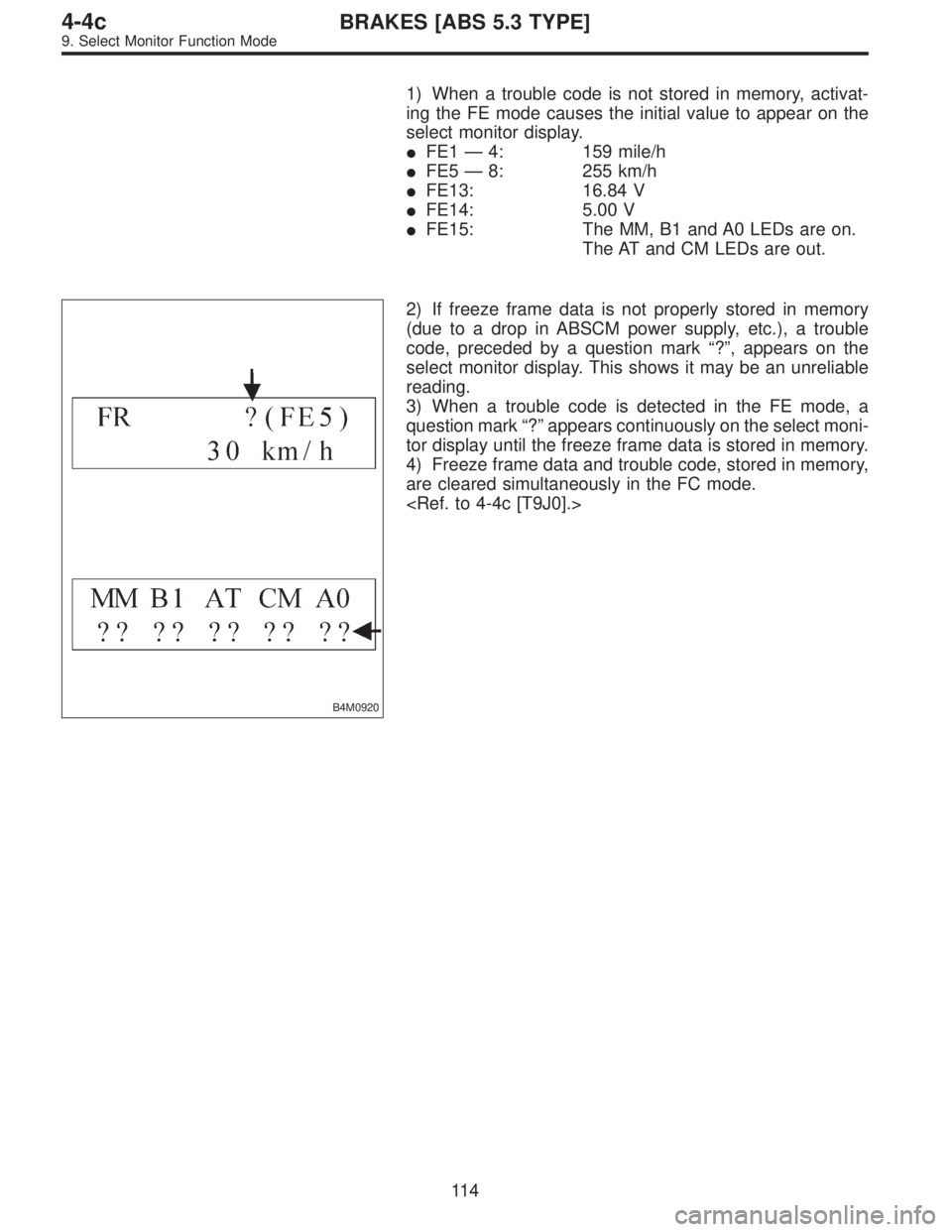

1) When a trouble code is not stored in memory, activat-
ing the FE mode causes the initial value to appear on the
select monitor display.

FE1—4: 159 mile/h

FE5—8: 255 km/h

FE13: 16.84 V

FE14: 5.00 V

FE15: The MM, B1 and A0 LEDs are on.
The AT and CM LEDs are out.
B4M0920
2) If freeze frame data is not properly stored in memory
(due to a drop in ABSCM power supply, etc.), a trouble
code, preceded by a question mark“?”, appears on the
select monitor display. This shows it may be an unreliable
reading.
3) When a trouble code is detected in the FE mode, a
question mark“?”appears continuously on the select moni-
tor display until the freeze frame data is stored in memory.
4) Freeze frame data and trouble code, stored in memory,
are cleared simultaneously in the FC mode.

11 4
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

B4M0921
B: MODE F00
—ROM ID NUMBER (ROM)—
CONDITION:
Ignition switch ON
SPECIFIED DATA:
Presentation display

Probable cause (Item outside“specified data”)
1. Error 1
Check for loose or disconnected connector, and
discontinued circuit, etc.
2. Error 2Check for poor contact of cartridge, or different type
cartridge.
B4M0922
C: MODE F01 AND F05
—FRONT RIGHT WHEEL SPEED SIGNAL
(FR)—

Compare speedometer with monitor indications.

F01: FR wheel speed is indicated in mile per hour (mile/
h).

F05: FR wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that FR wheel speed is 30
km/h.
11 5
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

B4M0923

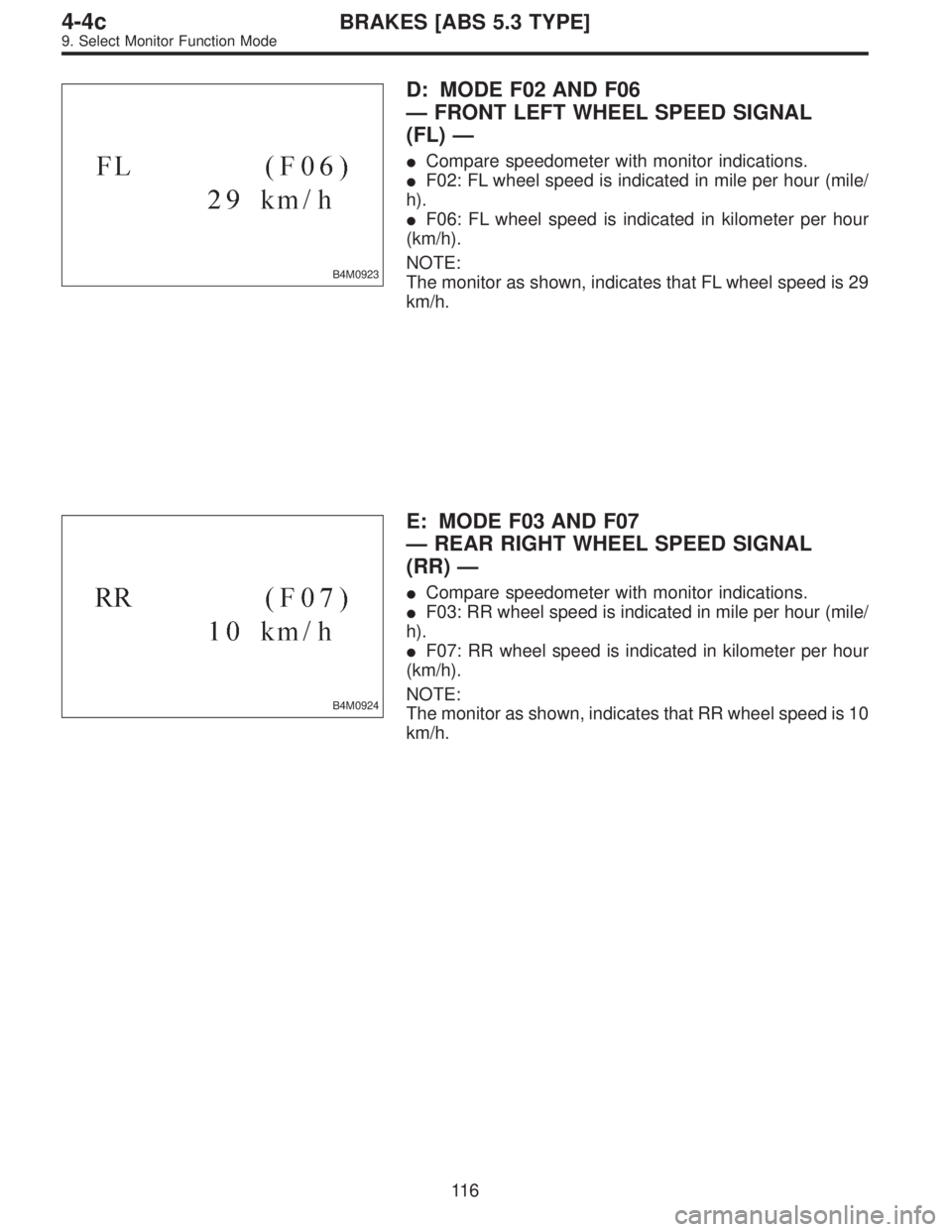

D: MODE F02 AND F06
—FRONT LEFT WHEEL SPEED SIGNAL
(FL)—

Compare speedometer with monitor indications.

F02: FL wheel speed is indicated in mile per hour (mile/
h).

F06: FL wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that FL wheel speed is 29
km/h.
B4M0924
E: MODE F03 AND F07
—REAR RIGHT WHEEL SPEED SIGNAL
(RR)—

Compare speedometer with monitor indications.

F03: RR wheel speed is indicated in mile per hour (mile/
h).

F07: RR wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that RR wheel speed is 10
km/h.
11 6
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

B4M0925

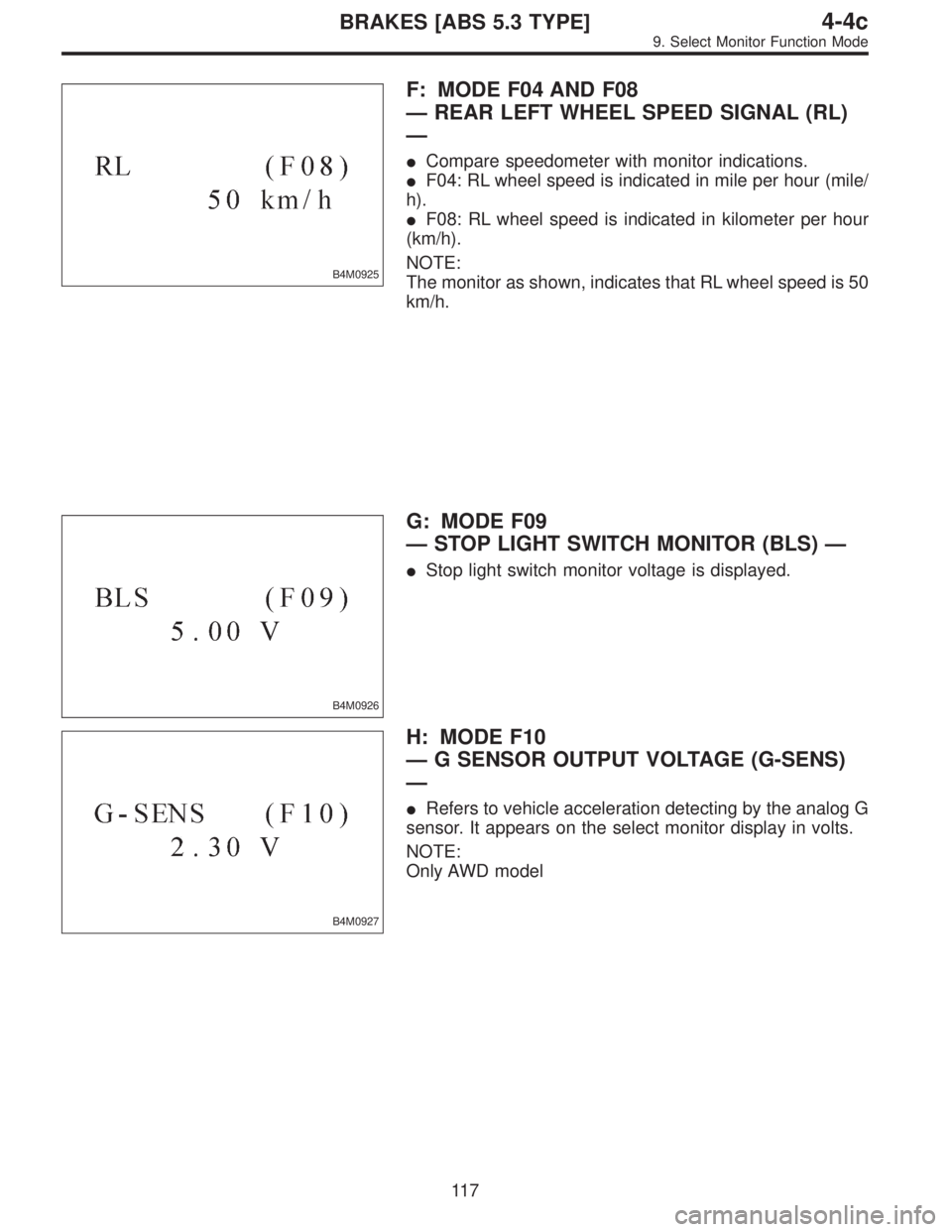

F: MODE F04 AND F08
—REAR LEFT WHEEL SPEED SIGNAL (RL)
—

Compare speedometer with monitor indications.

F04: RL wheel speed is indicated in mile per hour (mile/
h).

F08: RL wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that RL wheel speed is 50
km/h.
B4M0926
G: MODE F09
—STOP LIGHT SWITCH MONITOR (BLS)—

Stop light switch monitor voltage is displayed.
B4M0927
H: MODE F10
—G SENSOR OUTPUT VOLTAGE (G-SENS)
—

Refers to vehicle acceleration detecting by the analog G
sensor. It appears on the select monitor display in volts.
NOTE:
Only AWD model
11 7
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

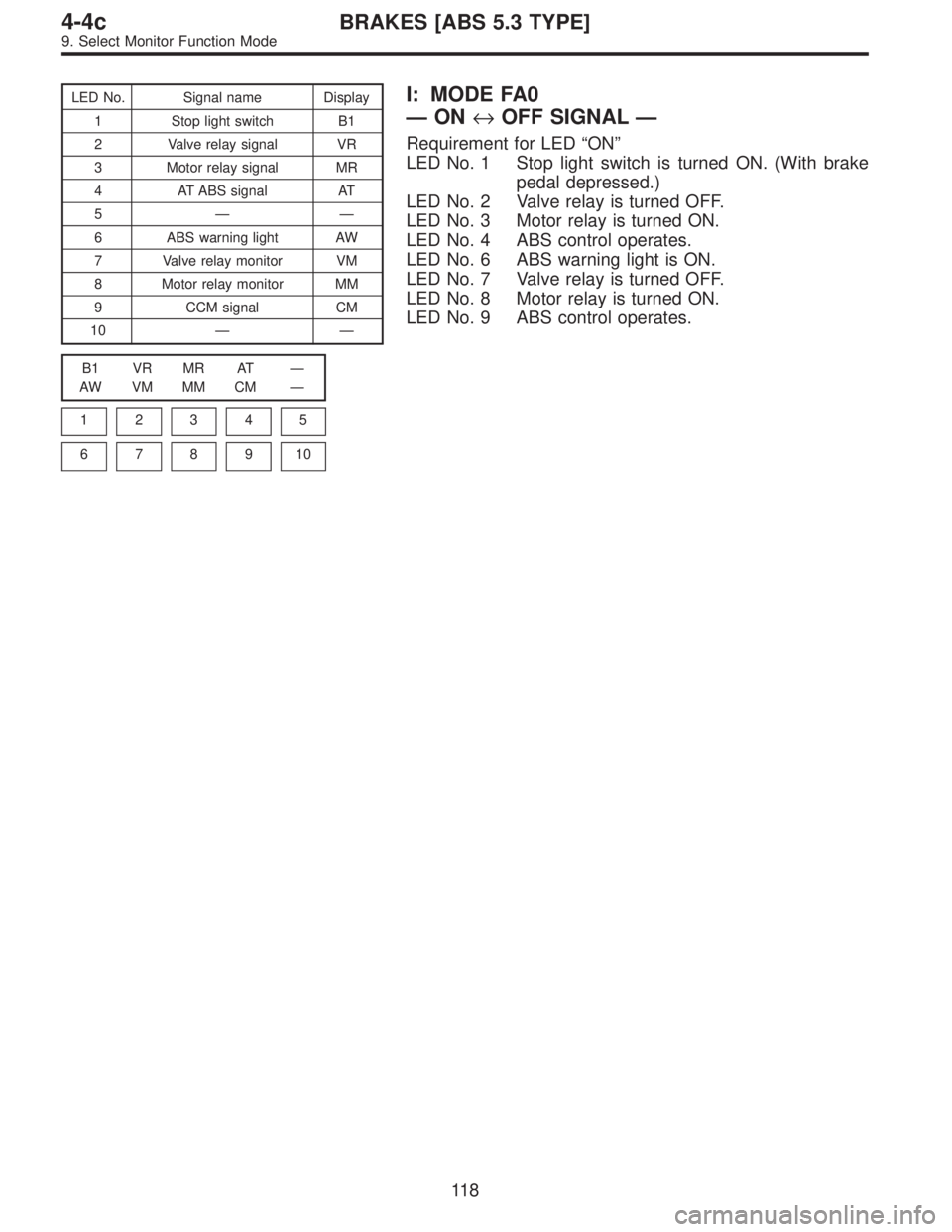

LED No. Signal name Display
1 Stop light switch B1
2 Valve relay signal VR
3 Motor relay signal MR
4 AT ABS signal AT
5——
6 ABS warning light AW
7 Valve relay monitor VM
8 Motor relay monitor MM
9 CCM signal CM
10——
B1 VR MR AT—
AW VM MM CM—
1
2345
678910
I: MODE FA0
—ON↔OFF SIGNAL—
Requirement for LED“ON”
LED No. 1 Stop light switch is turned ON. (With brake
pedal depressed.)
LED No. 2 Valve relay is turned OFF.
LED No. 3 Motor relay is turned ON.
LED No. 4 ABS control operates.
LED No. 6 ABS warning light is ON.
LED No. 7 Valve relay is turned OFF.
LED No. 8 Motor relay is turned ON.
LED No. 9 ABS control operates.
11 8
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

B4M0930

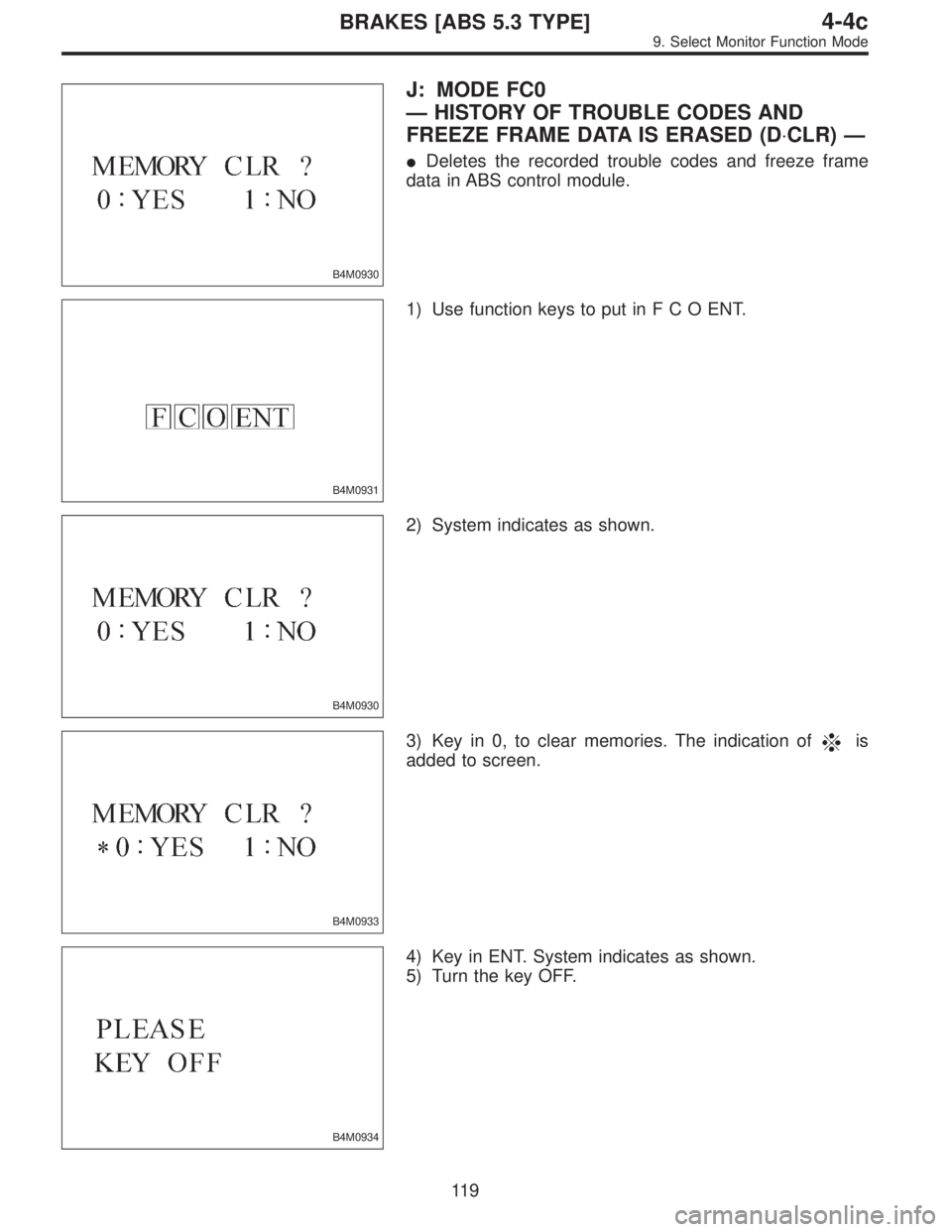

J: MODE FC0
—HISTORY OF TROUBLE CODES AND
FREEZE FRAME DATA IS ERASED (D⋅CLR)—

Deletes the recorded trouble codes and freeze frame
data in ABS control module.
B4M0931
1) Use function keys to put inFCOENT.
B4M0930
2) System indicates as shown.
B4M0933
3) Key in 0, to clear memories. The indication ofis
added to screen.
B4M0934
4) Key in ENT. System indicates as shown.
5) Turn the key OFF.
11 9
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

B4M0935

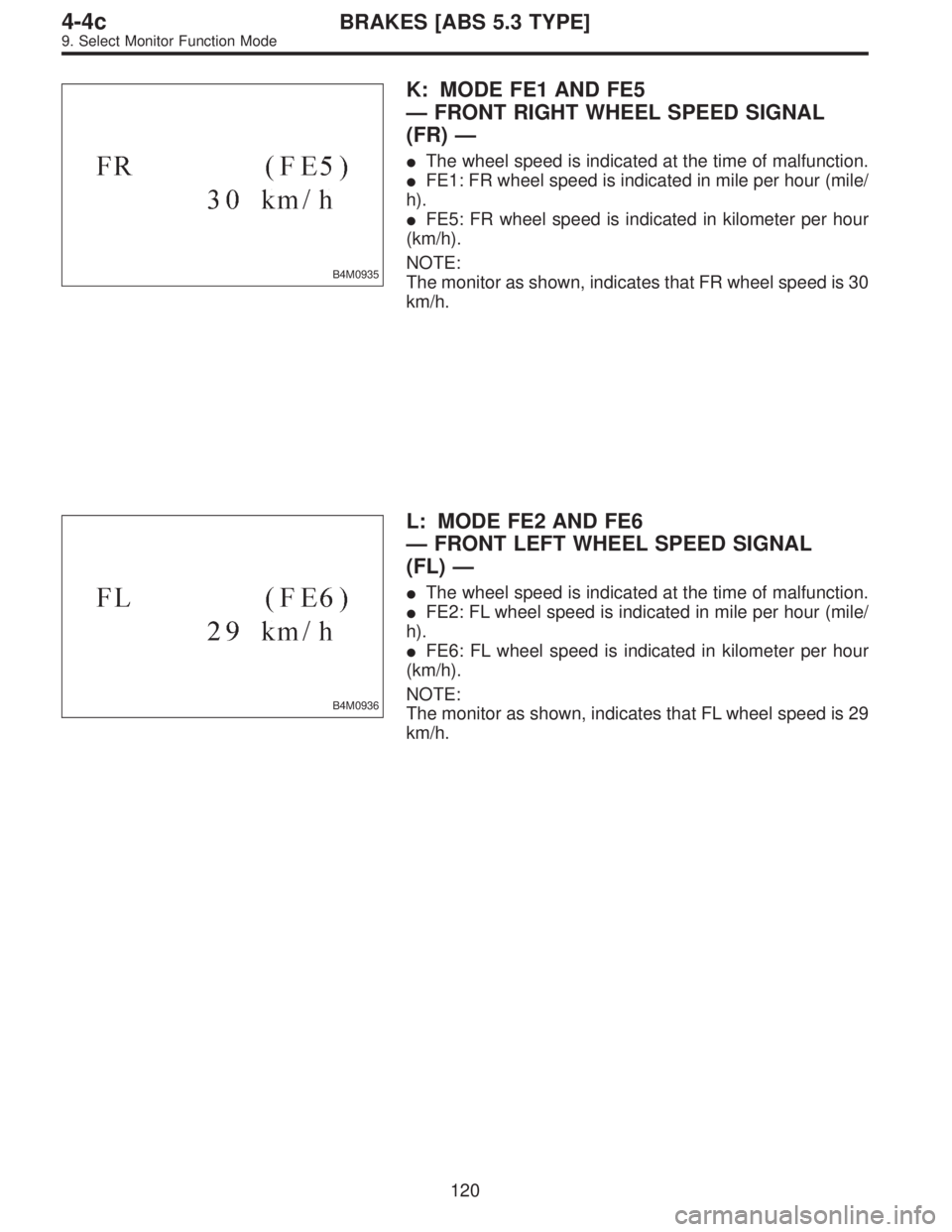

K: MODE FE1 AND FE5
—FRONT RIGHT WHEEL SPEED SIGNAL
(FR)—

The wheel speed is indicated at the time of malfunction.

FE1: FR wheel speed is indicated in mile per hour (mile/
h).

FE5: FR wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that FR wheel speed is 30
km/h.
B4M0936
L: MODE FE2 AND FE6
—FRONT LEFT WHEEL SPEED SIGNAL
(FL)—

The wheel speed is indicated at the time of malfunction.

FE2: FL wheel speed is indicated in mile per hour (mile/
h).

FE6: FL wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that FL wheel speed is 29
km/h.
120
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode
