Page 2771 of 2890

SUBARU LEGACY 1996 Service Repair Manual 7. AUDIO SYSTEM LHD model BU76-01 41 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2772 of 2890

SUBARU LEGACY 1996 Service Repair Manual 7. AUDIO SYSTEM RHD model 42 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2773 of 2890

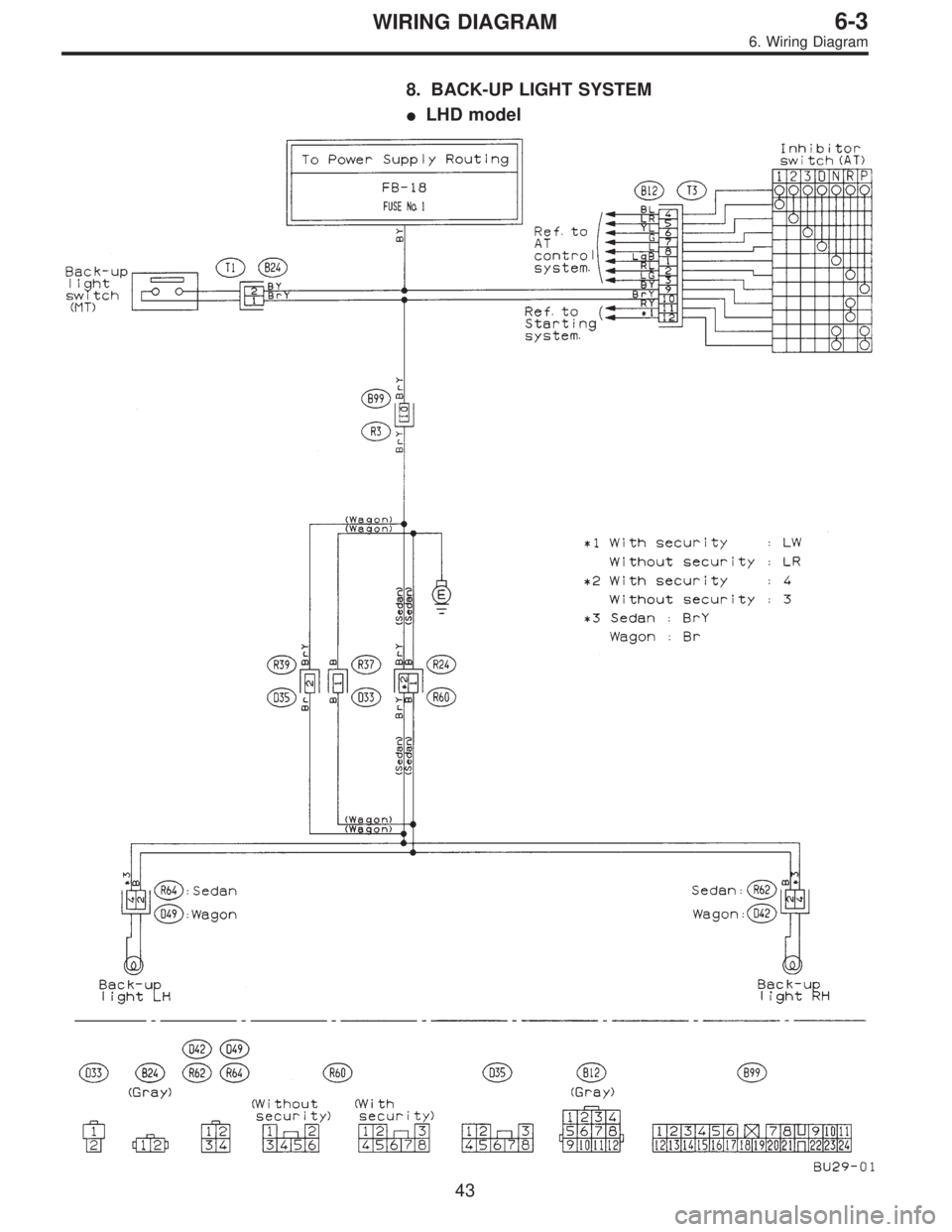

SUBARU LEGACY 1996 Service Repair Manual 8. BACK-UP LIGHT SYSTEM LHD model 43 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2774 of 2890

SUBARU LEGACY 1996 Service Repair Manual 8. BACK-UP LIGHT SYSTEM RHD model BUR29-01 44 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2775 of 2890

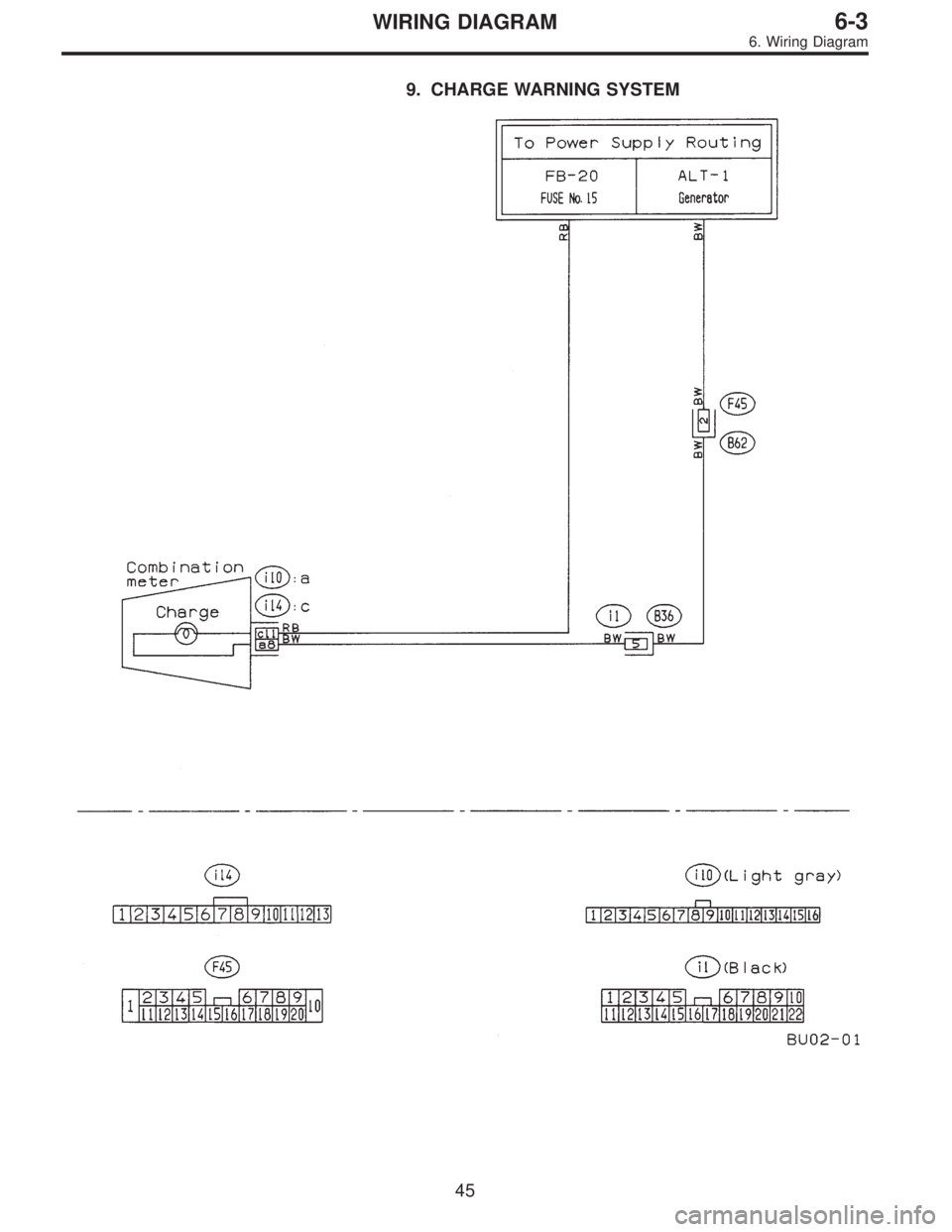

SUBARU LEGACY 1996 Service Repair Manual 9. CHARGE WARNING SYSTEM 45 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2776 of 2890

SUBARU LEGACY 1996 Service Repair Manual 10. COMBINATION METER BU65-01A 46 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2777 of 2890

SUBARU LEGACY 1996 Service Repair Manual BU65-01B 47 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2778 of 2890

SUBARU LEGACY 1996 Service Repair Manual 11. CRUISE CONTROL SYSTEM BU71-03 48 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2779 of 2890

SUBARU LEGACY 1996 Service Repair Manual 12. DOOR LOCK SYSTEM LHD model BU73-02 49 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2780 of 2890

SUBARU LEGACY 1996 Service Repair Manual 12. DOOR LOCK SYSTEM RHD model BUR73-01 50 6-3WIRING DIAGRAM 6. Wiring Diagram
