Page 2791 of 2890

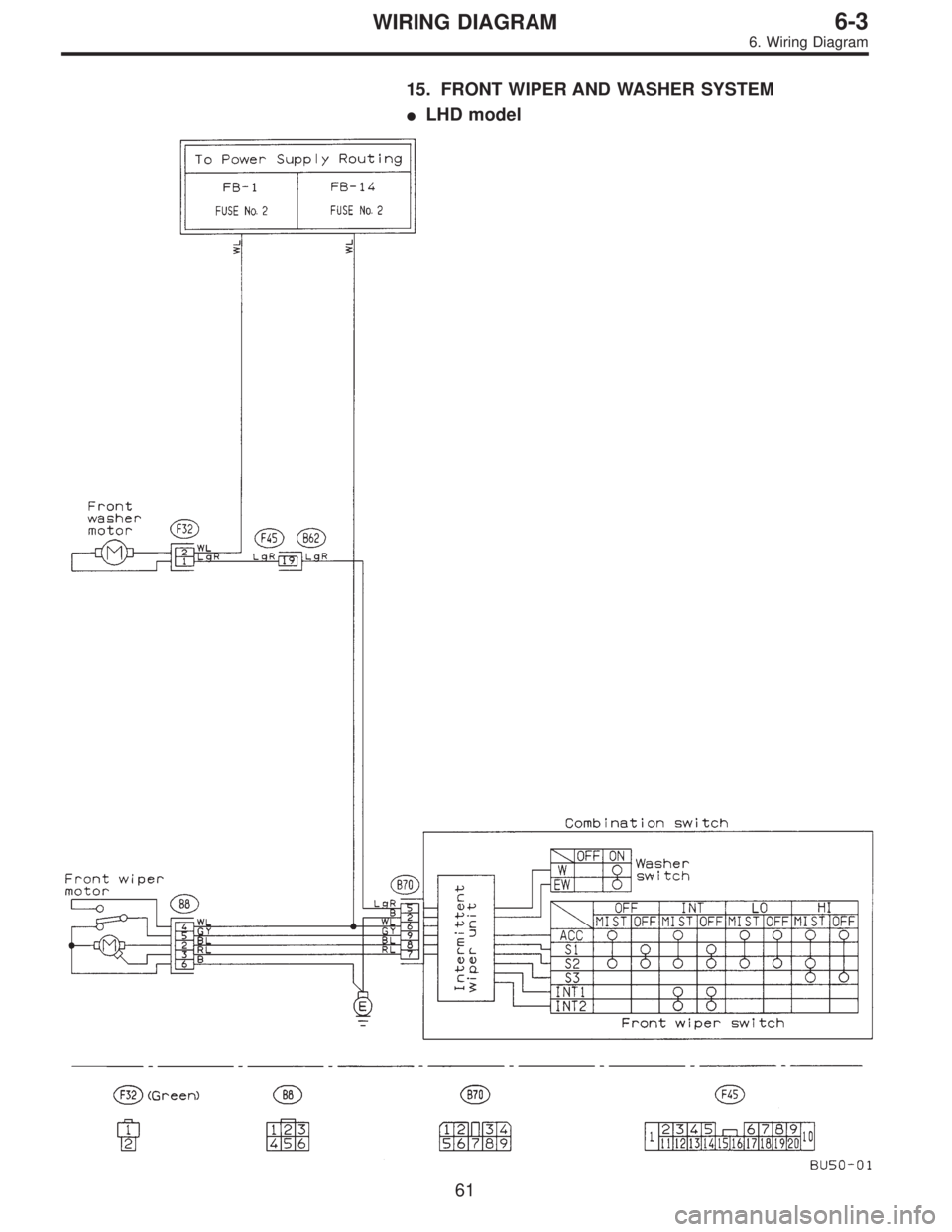

SUBARU LEGACY 1996 Service Repair Manual 15. FRONT WIPER AND WASHER SYSTEM LHD model 61 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2792 of 2890

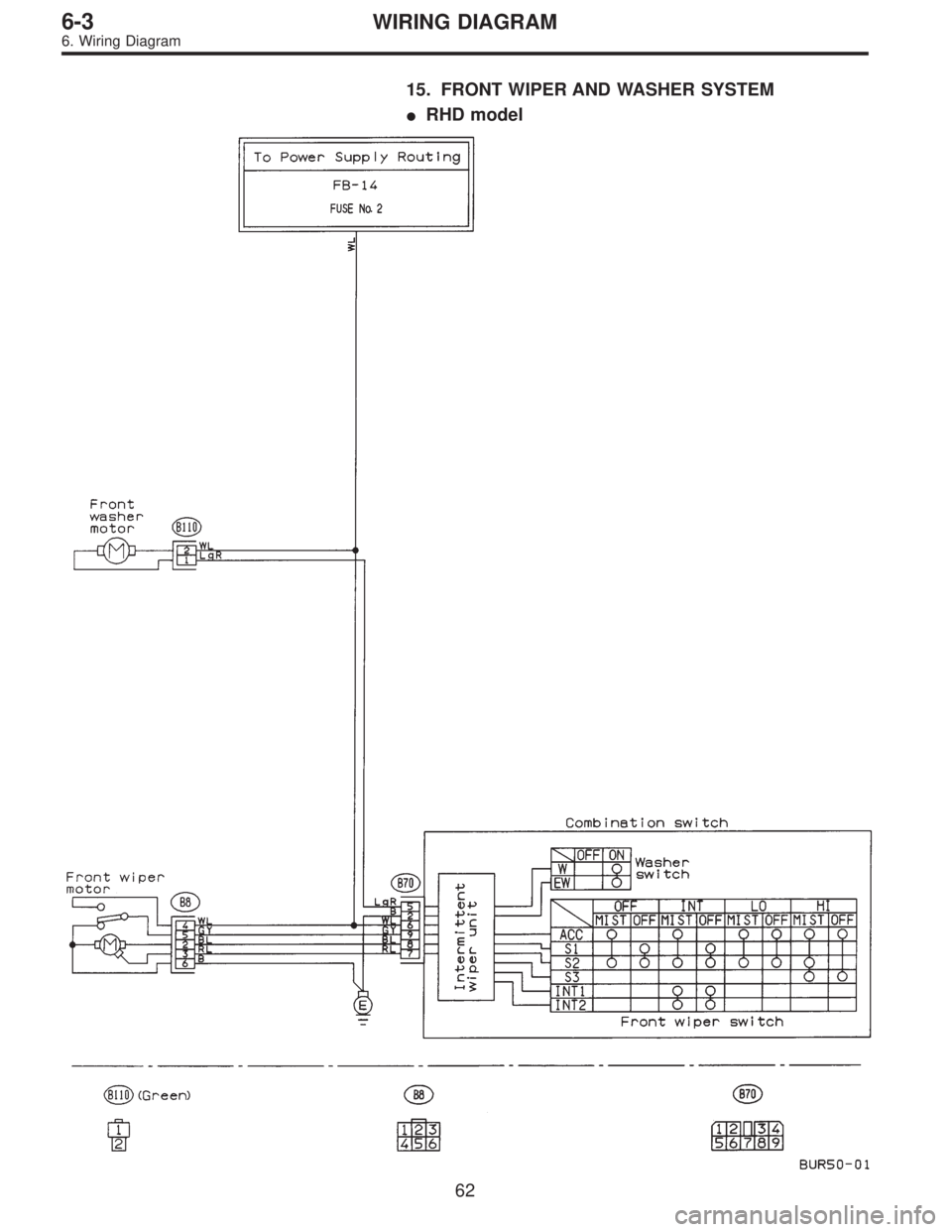

SUBARU LEGACY 1996 Service Repair Manual 15. FRONT WIPER AND WASHER SYSTEM RHD model 62 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2793 of 2890

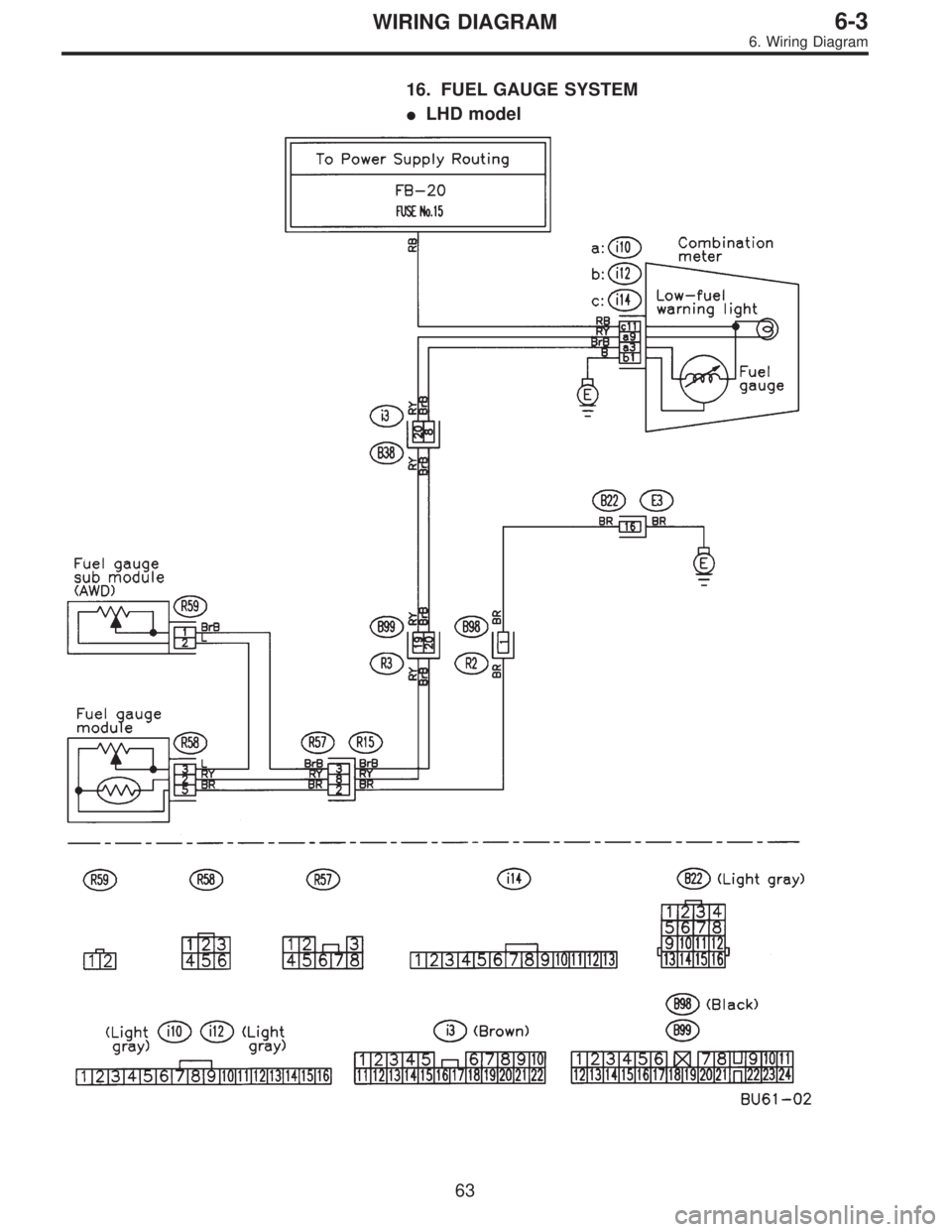

SUBARU LEGACY 1996 Service Repair Manual 16. FUEL GAUGE SYSTEM LHD model 63 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2794 of 2890

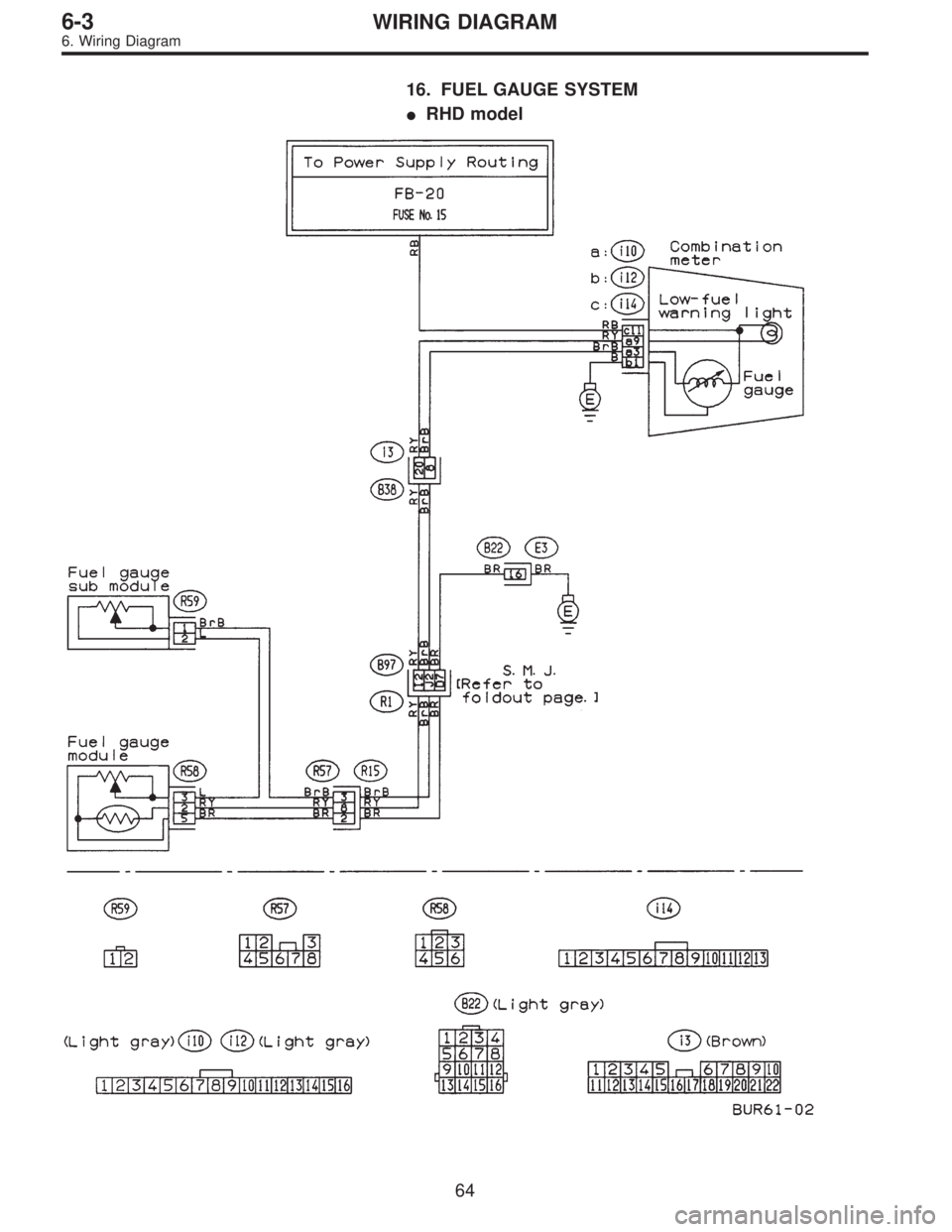

SUBARU LEGACY 1996 Service Repair Manual 16. FUEL GAUGE SYSTEM RHD model 64 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2795 of 2890

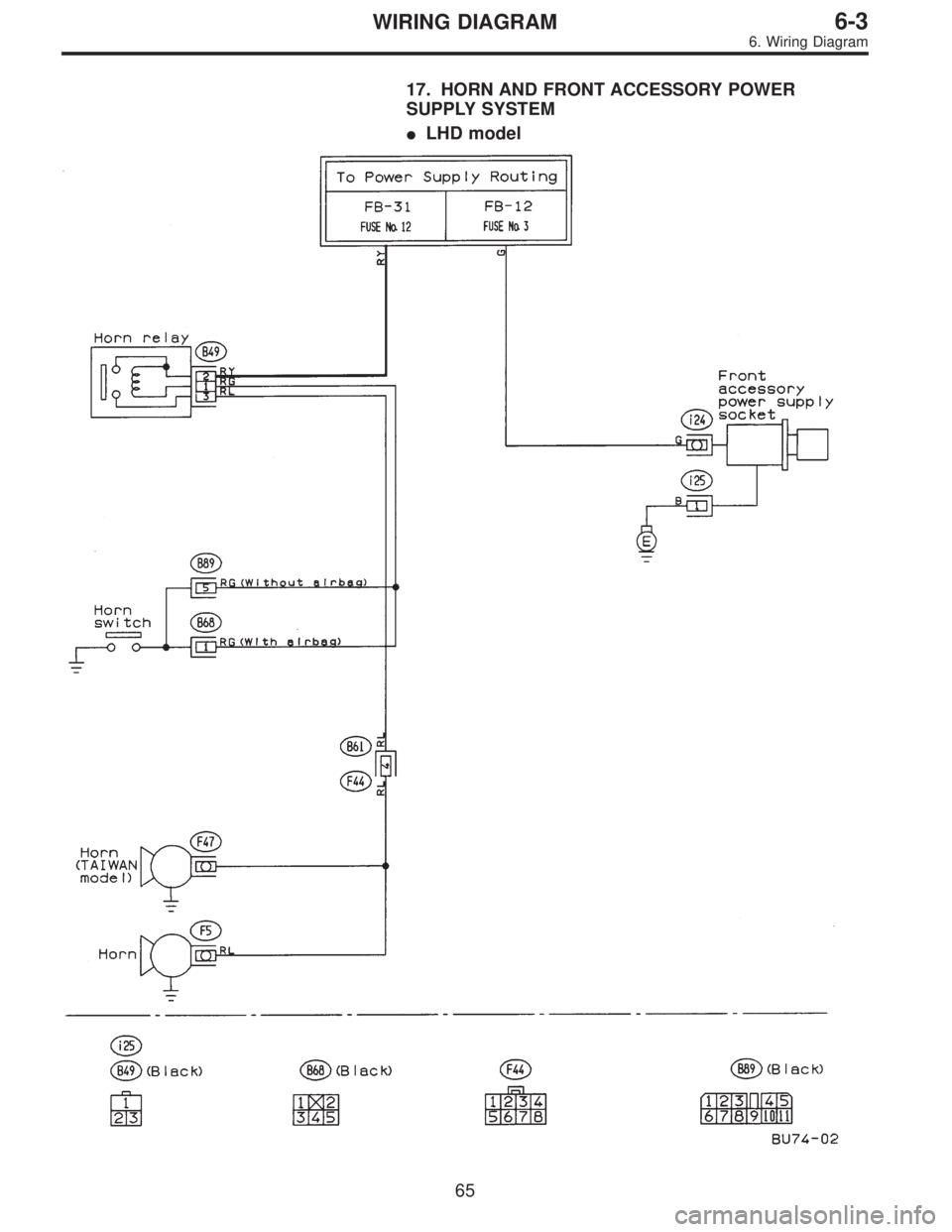

SUBARU LEGACY 1996 Service Repair Manual 17. HORN AND FRONT ACCESSORY POWER SUPPLY SYSTEM LHD model 65 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2796 of 2890

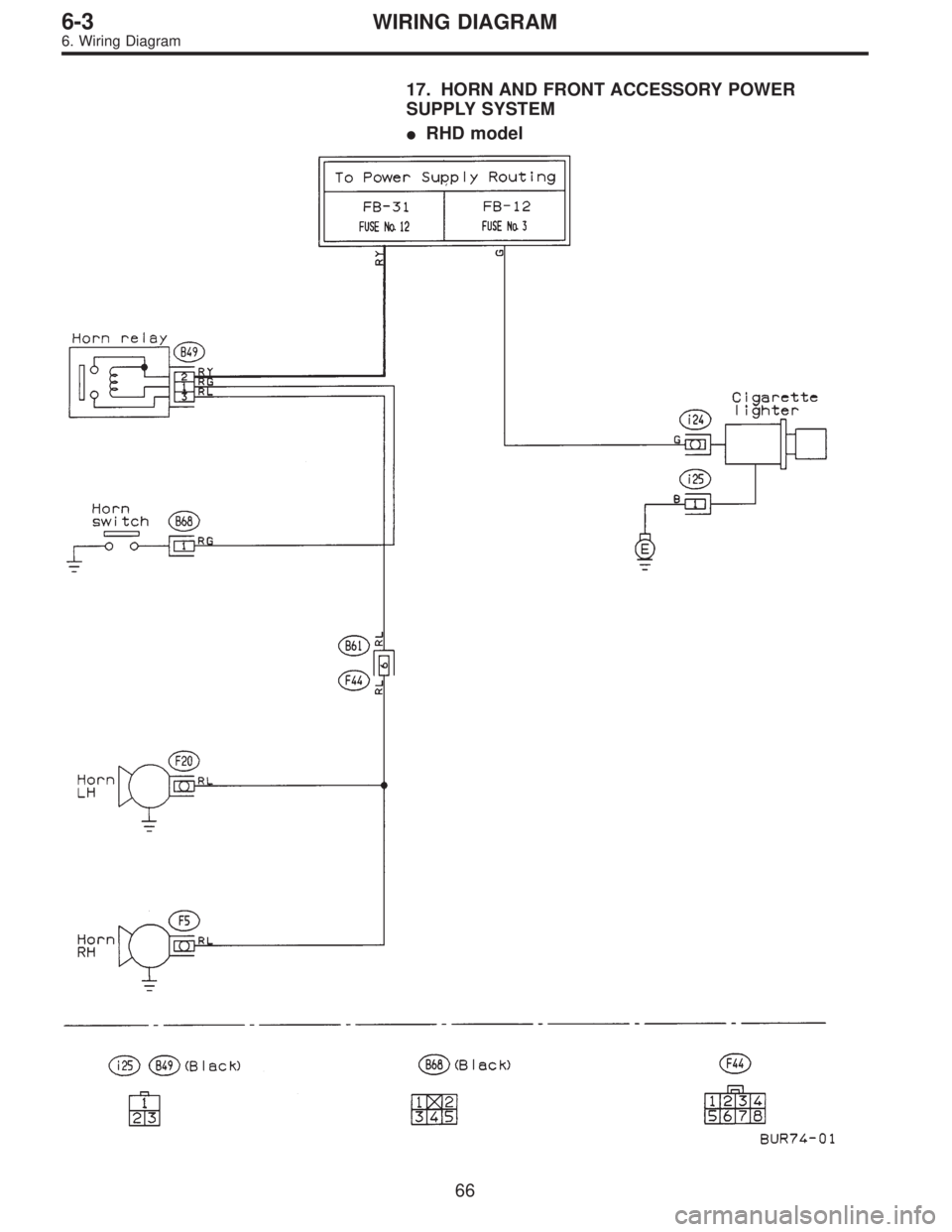

SUBARU LEGACY 1996 Service Repair Manual 17. HORN AND FRONT ACCESSORY POWER SUPPLY SYSTEM RHD model 66 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2797 of 2890

SUBARU LEGACY 1996 Service Repair Manual 18. LIGHTING (HEADLIGHT) SYSTEM LHD without DRL model BU20-01 67 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2798 of 2890

SUBARU LEGACY 1996 Service Repair Manual 18. LIGHTING (HEADLIGHT) SYSTEM LHD with DRL model BC20-02A 68 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2799 of 2890

SUBARU LEGACY 1996 Service Repair Manual BC20-02B 69 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 2800 of 2890

SUBARU LEGACY 1996 Service Repair Manual 18. LIGHTING (HEADLIGHT) SYSTEM RHD model BUR20-01 70 6-3WIRING DIAGRAM 6. Wiring Diagram
