SUBARU LEGACY 1996 Service Repair Manual

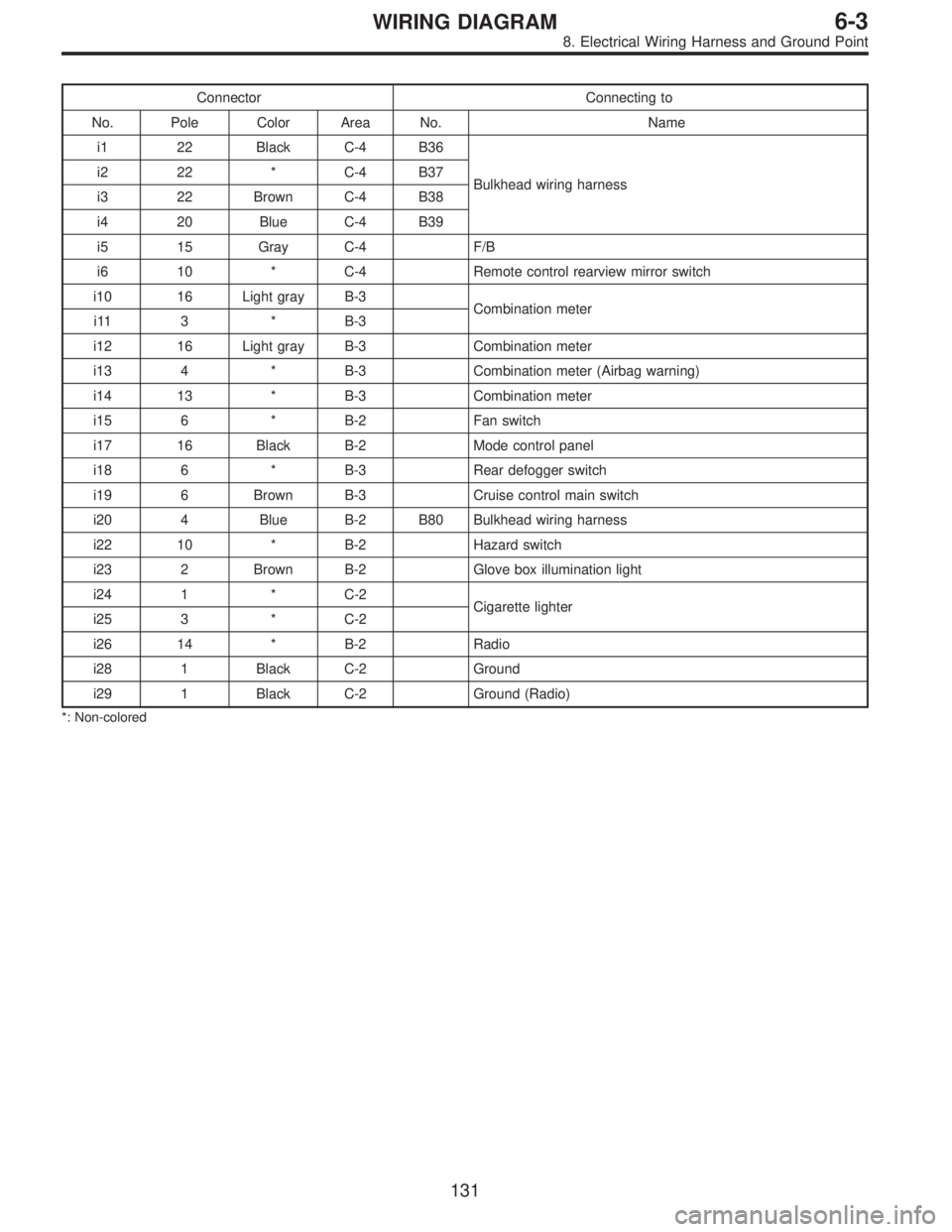

Connector Connecting to
No. Pole Color Area No. Name
i1 22 Black C-4 B36
Bulkhead wiring harness i2 22 * C-4 B37
i3 22 Brown C-4 B38
i4 20 Blue C-4 B39
i5 15 Gray C-4 F/B
i6 10 * C-4 Remote control rearview mirror switch
i10 16 Light gray B-3
Combination meter
i11 3 * B-3
i12 16 Light gray B-3 Combination meter
i13 4 * B-3 Combination meter (Airbag warning)
i14 13 * B-3 Combination meter
i15 6 * B-2 Fan switch
i17 16 Black B-2 Mode control panel
i18 6 * B-3 Rear defogger switch
i19 6 Brown B-3 Cruise control main switch
i20 4 Blue B-2 B80 Bulkhead wiring harness
i22 10 * B-2 Hazard switch
i23 2 Brown B-2 Glove box illumination light
i24 1 * C-2
Cigarette lighter
i25 3 * C-2
i26 14 * B-2 Radio
i28 1 Black C-2 Ground
i29 1 Black C-2 Ground (Radio)
*: Non-colored
131
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

6. REAR WIRING HARNESS AND GROUND POINT

LHD model
EPA0094
132
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

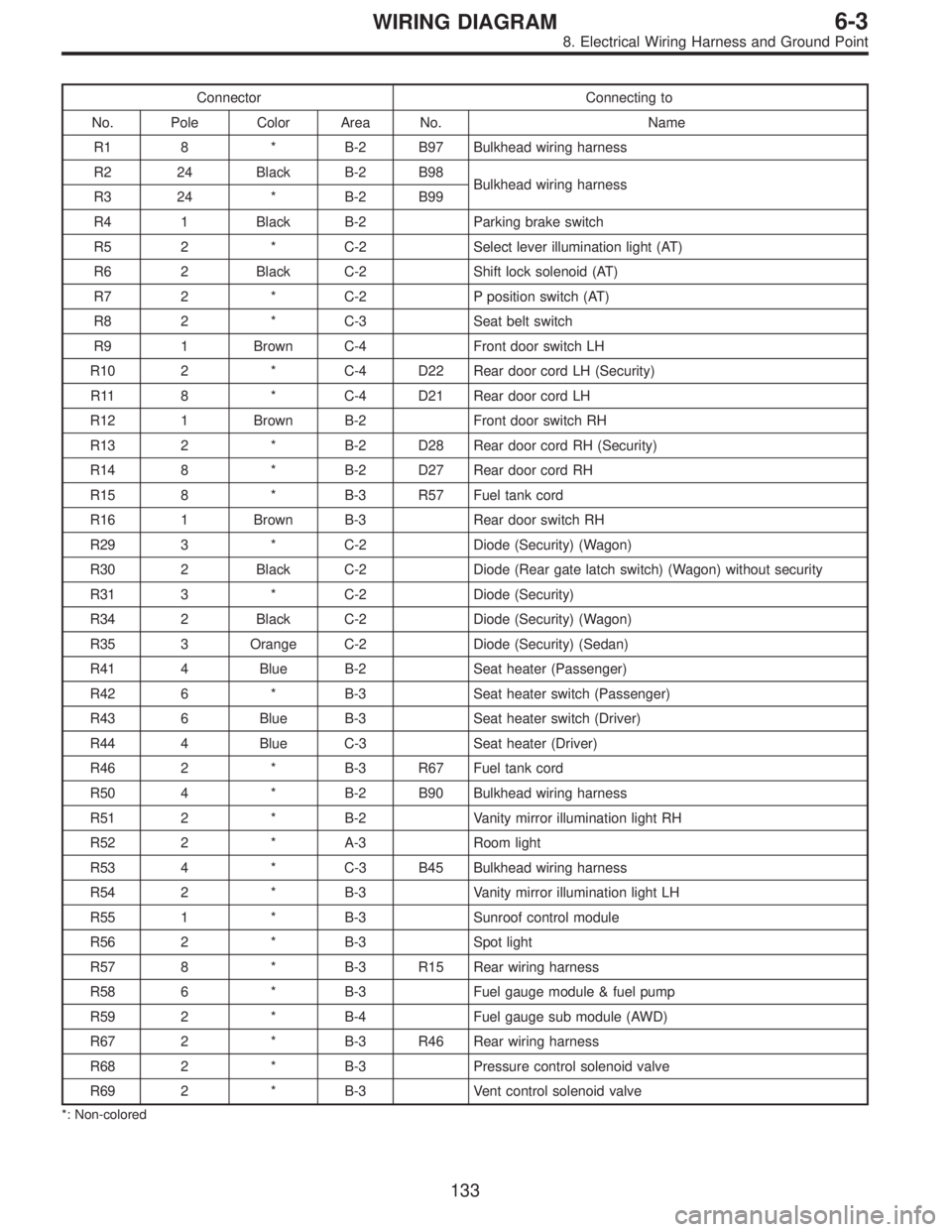

Connector Connecting to
No. Pole Color Area No. Name
R1 8 * B-2 B97 Bulkhead wiring harness
R2 24 Black B-2 B98
Bulkhead wiring harness
R3 24 * B-2 B99
R4 1 Black B-2 Parking brake switch
R5 2 * C-2 Select lever illumination light (AT)
R6 2 Black C-2 Shift lock solenoid (AT)
R7 2 * C-2 P position switch (AT)
R8 2 * C-3 Seat belt switch
R9 1 Brown C-4 Front door switch LH
R10 2 * C-4 D22 Rear door cord LH (Security)
R11 8 * C-4 D21 Rear door cord LH
R12 1 Brown B-2 Front door switch RH
R13 2 * B-2 D28 Rear door cord RH (Security)
R14 8 * B-2 D27 Rear door cord RH
R15 8 * B-3 R57 Fuel tank cord
R16 1 Brown B-3 Rear door switch RH
R29 3 * C-2 Diode (Security) (Wagon)
R30 2 Black C-2 Diode (Rear gate latch switch) (Wagon) without security
R31 3 * C-2 Diode (Security)
R34 2 Black C-2 Diode (Security) (Wagon)
R35 3 Orange C-2 Diode (Security) (Sedan)
R41 4 Blue B-2 Seat heater (Passenger)
R42 6 * B-3 Seat heater switch (Passenger)
R43 6 Blue B-3 Seat heater switch (Driver)
R44 4 Blue C-3 Seat heater (Driver)
R46 2 * B-3 R67 Fuel tank cord
R50 4 * B-2 B90 Bulkhead wiring harness
R51 2 * B-2 Vanity mirror illumination light RH
R52 2 * A-3 Room light
R53 4 * C-3 B45 Bulkhead wiring harness
R54 2 * B-3 Vanity mirror illumination light LH
R55 1 * B-3 Sunroof control module
R56 2 * B-3 Spot light
R57 8 * B-3 R15 Rear wiring harness
R58 6 * B-3 Fuel gauge module & fuel pump
R59 2 * B-4 Fuel gauge sub module (AWD)
R67 2 * B-3 R46 Rear wiring harness
R68 2 * B-3 Pressure control solenoid valve
R69 2 * B-3 Vent control solenoid valve
*: Non-colored
133
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

6. REAR WIRING HARNESS AND GROUND POINT

RHD model
EPA0098
134
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

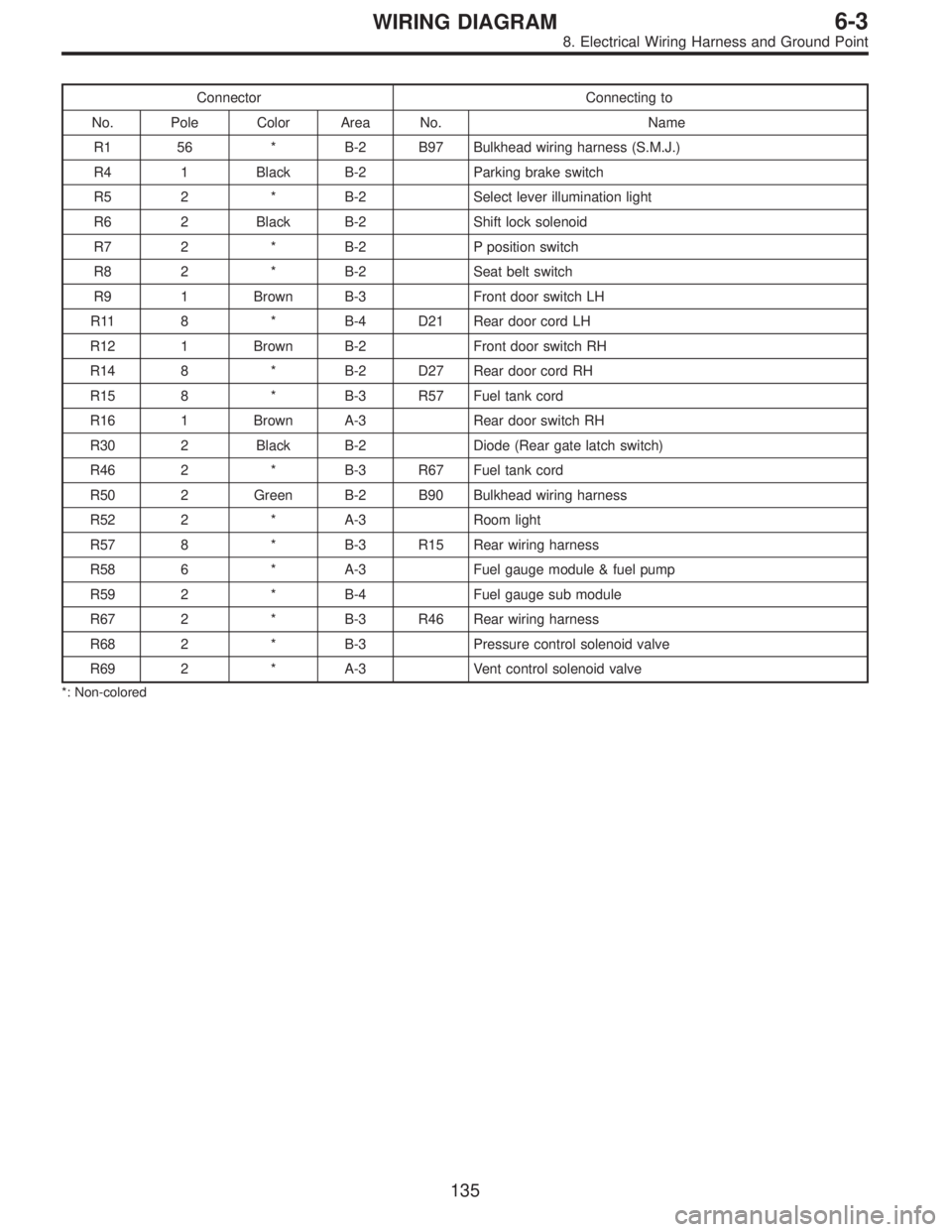

Connector Connecting to
No. Pole Color Area No. Name
R1 56 * B-2 B97 Bulkhead wiring harness (S.M.J.)
R4 1 Black B-2 Parking brake switch
R5 2 * B-2 Select lever illumination light
R6 2 Black B-2 Shift lock solenoid
R7 2 * B-2 P position switch
R8 2 * B-2 Seat belt switch
R9 1 Brown B-3 Front door switch LH
R11 8 * B-4 D21 Rear door cord LH
R12 1 Brown B-2 Front door switch RH
R14 8 * B-2 D27 Rear door cord RH
R15 8 * B-3 R57 Fuel tank cord
R16 1 Brown A-3 Rear door switch RH
R30 2 Black B-2 Diode (Rear gate latch switch)
R46 2 * B-3 R67 Fuel tank cord
R50 2 Green B-2 B90 Bulkhead wiring harness
R52 2 * A-3 Room light
R57 8 * B-3 R15 Rear wiring harness
R58 6 * A-3 Fuel gauge module & fuel pump
R59 2 * B-4 Fuel gauge sub module
R67 2 * B-3 R46 Rear wiring harness
R68 2 * B-3 Pressure control solenoid valve
R69 2 * A-3 Vent control solenoid valve
*: Non-colored
135
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

7. FLOOR WIRING HARNESS, DOOR CORD AND GROUND POINT

LHD model
EPA0095
136
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

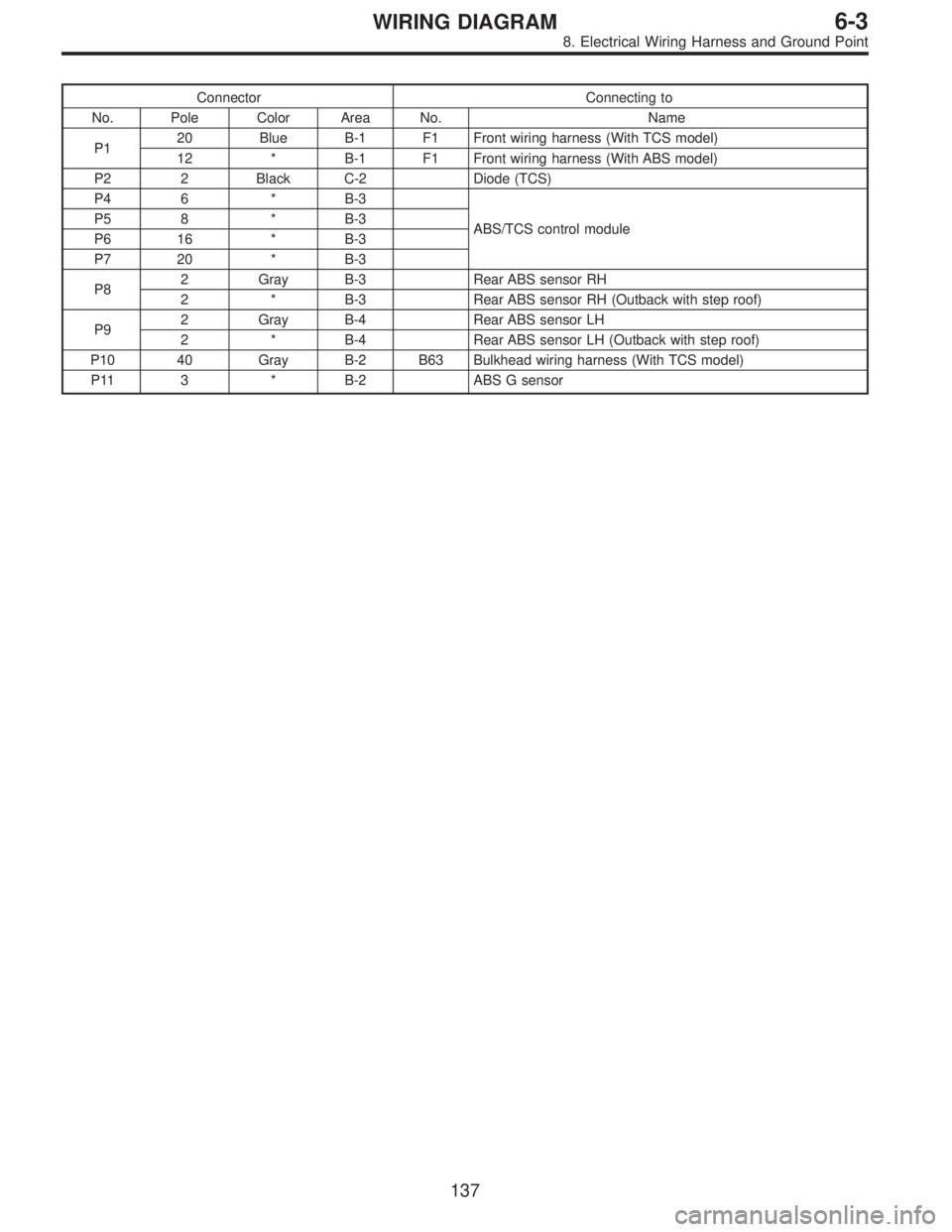

Connector Connecting to
No. Pole Color Area No. Name
P120 Blue B-1 F1 Front wiring harness (With TCS model)
12 * B-1 F1 Front wiring harness (With ABS model)
P2 2 Black C-2 Diode (TCS)
P4 6 * B-3
ABS/TCS control module P5 8 * B-3
P6 16 * B-3
P7 20 * B-3
P82 Gray B-3 Rear ABS sensor RH
2 * B-3 Rear ABS sensor RH (Outback with step roof)
P92 Gray B-4 Rear ABS sensor LH
2 * B-4 Rear ABS sensor LH (Outback with step roof)
P10 40 Gray B-2 B63 Bulkhead wiring harness (With TCS model)
P11 3 * B-2 ABS G sensor
137
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

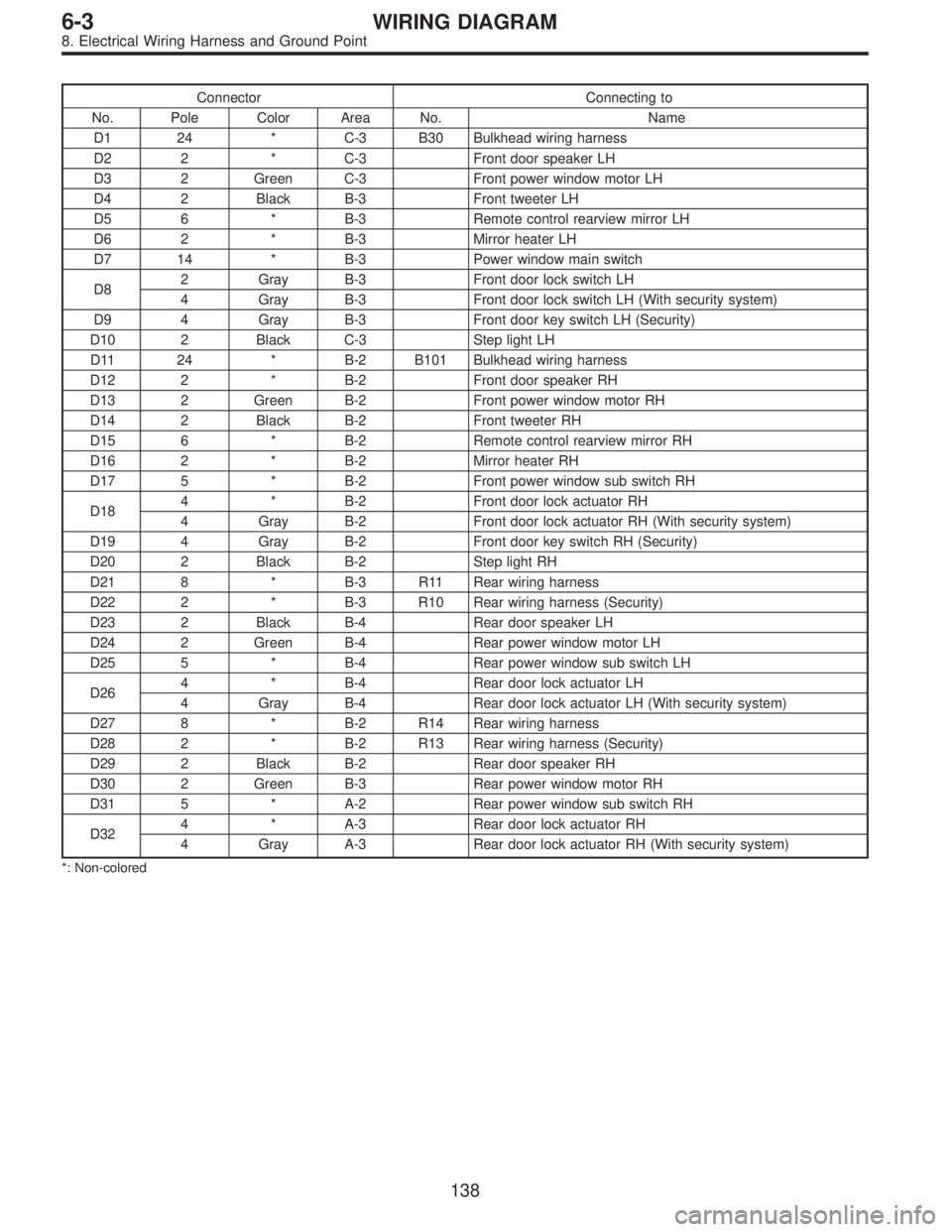

Connector Connecting to
No. Pole Color Area No. Name
D1 24 * C-3 B30 Bulkhead wiring harness
D2 2 * C-3 Front door speaker LH
D3 2 Green C-3 Front power window motor LH
D4 2 Black B-3 Front tweeter LH
D5 6 * B-3 Remote control rearview mirror LH
D6 2 * B-3 Mirror heater LH
D7 14 * B-3 Power window main switch
D82 Gray B-3 Front door lock switch LH
4 Gray B-3 Front door lock switch LH (With security system)
D9 4 Gray B-3 Front door key switch LH (Security)
D10 2 Black C-3 Step light LH
D11 24 * B-2 B101 Bulkhead wiring harness
D12 2 * B-2 Front door speaker RH
D13 2 Green B-2 Front power window motor RH
D14 2 Black B-2 Front tweeter RH
D15 6 * B-2 Remote control rearview mirror RH
D16 2 * B-2 Mirror heater RH
D17 5 * B-2 Front power window sub switch RH
D184 * B-2 Front door lock actuator RH
4 Gray B-2 Front door lock actuator RH (With security system)
D19 4 Gray B-2 Front door key switch RH (Security)
D20 2 Black B-2 Step light RH
D21 8 * B-3 R11 Rear wiring harness
D22 2 * B-3 R10 Rear wiring harness (Security)
D23 2 Black B-4 Rear door speaker LH
D24 2 Green B-4 Rear power window motor LH
D25 5 * B-4 Rear power window sub switch LH
D264 * B-4 Rear door lock actuator LH
4 Gray B-4 Rear door lock actuator LH (With security system)
D27 8 * B-2 R14 Rear wiring harness
D28 2 * B-2 R13 Rear wiring harness (Security)
D29 2 Black B-2 Rear door speaker RH
D30 2 Green B-3 Rear power window motor RH
D31 5 * A-2 Rear power window sub switch RH
D324 * A-3 Rear door lock actuator RH
4 Gray A-3 Rear door lock actuator RH (With security system)
*: Non-colored
138
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

7. FLOOR WIRING HARNESS, DOOR CORD AND GROUND POINT

RHD model
139
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

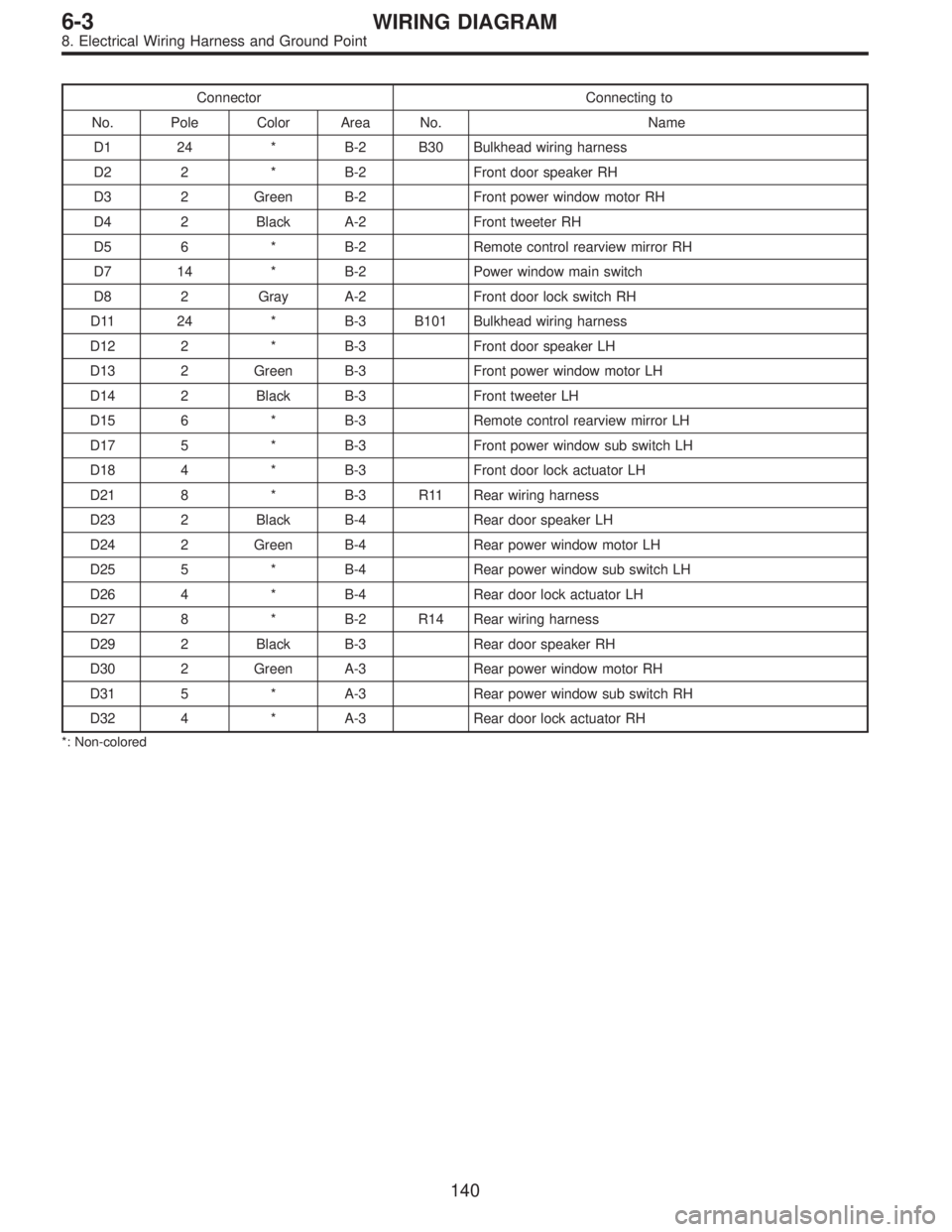

Connector Connecting to
No. Pole Color Area No. Name
D1 24 * B-2 B30 Bulkhead wiring harness
D2 2 * B-2 Front door speaker RH
D3 2 Green B-2 Front power window motor RH
D4 2 Black A-2 Front tweeter RH
D5 6 * B-2 Remote control rearview mirror RH
D7 14 * B-2 Power window main switch
D8 2 Gray A-2 Front door lock switch RH
D11 24 * B-3 B101 Bulkhead wiring harness
D12 2 * B-3 Front door speaker LH
D13 2 Green B-3 Front power window motor LH
D14 2 Black B-3 Front tweeter LH
D15 6 * B-3 Remote control rearview mirror LH
D17 5 * B-3 Front power window sub switch LH
D18 4 * B-3 Front door lock actuator LH
D21 8 * B-3 R11 Rear wiring harness
D23 2 Black B-4 Rear door speaker LH
D24 2 Green B-4 Rear power window motor LH
D25 5 * B-4 Rear power window sub switch LH
D26 4 * B-4 Rear door lock actuator LH
D27 8 * B-2 R14 Rear wiring harness
D29 2 Black B-3 Rear door speaker RH
D30 2 Green A-3 Rear power window motor RH
D31 5 * A-3 Rear power window sub switch RH
D32 4 * A-3 Rear door lock actuator RH
*: Non-colored
140
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
