33. SUNROOF SYSTEM
BU75-01
101
6-3WIRING DIAGRAM
6. Wiring Diagram

34. TRACTION CONTROL SYSTEM
BU100-02A
102
6-3WIRING DIAGRAM
6. Wiring Diagram

BU100-02B
103
6-3WIRING DIAGRAM
6. Wiring Diagram

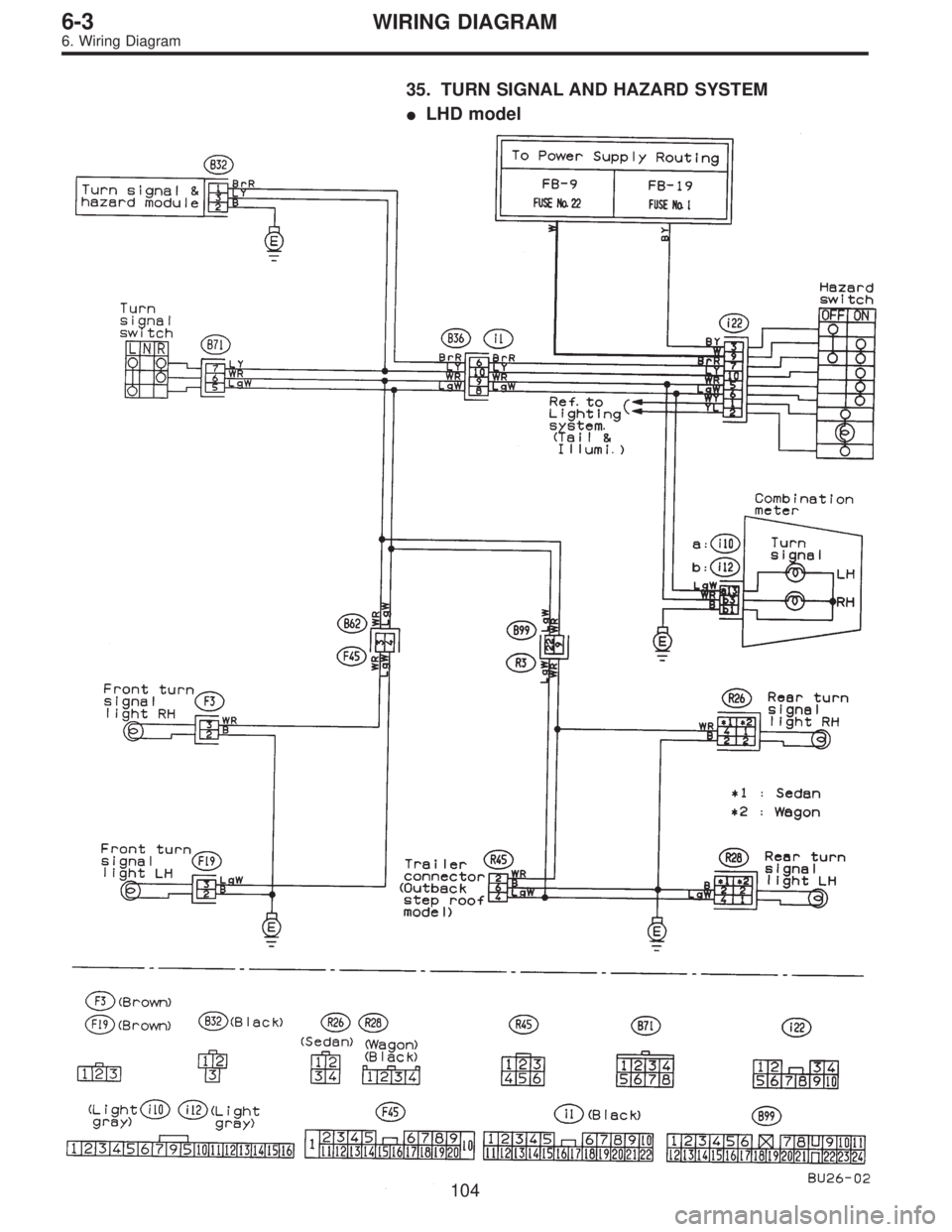

35. TURN SIGNAL AND HAZARD SYSTEM

LHD model
104
6-3WIRING DIAGRAM
6. Wiring Diagram

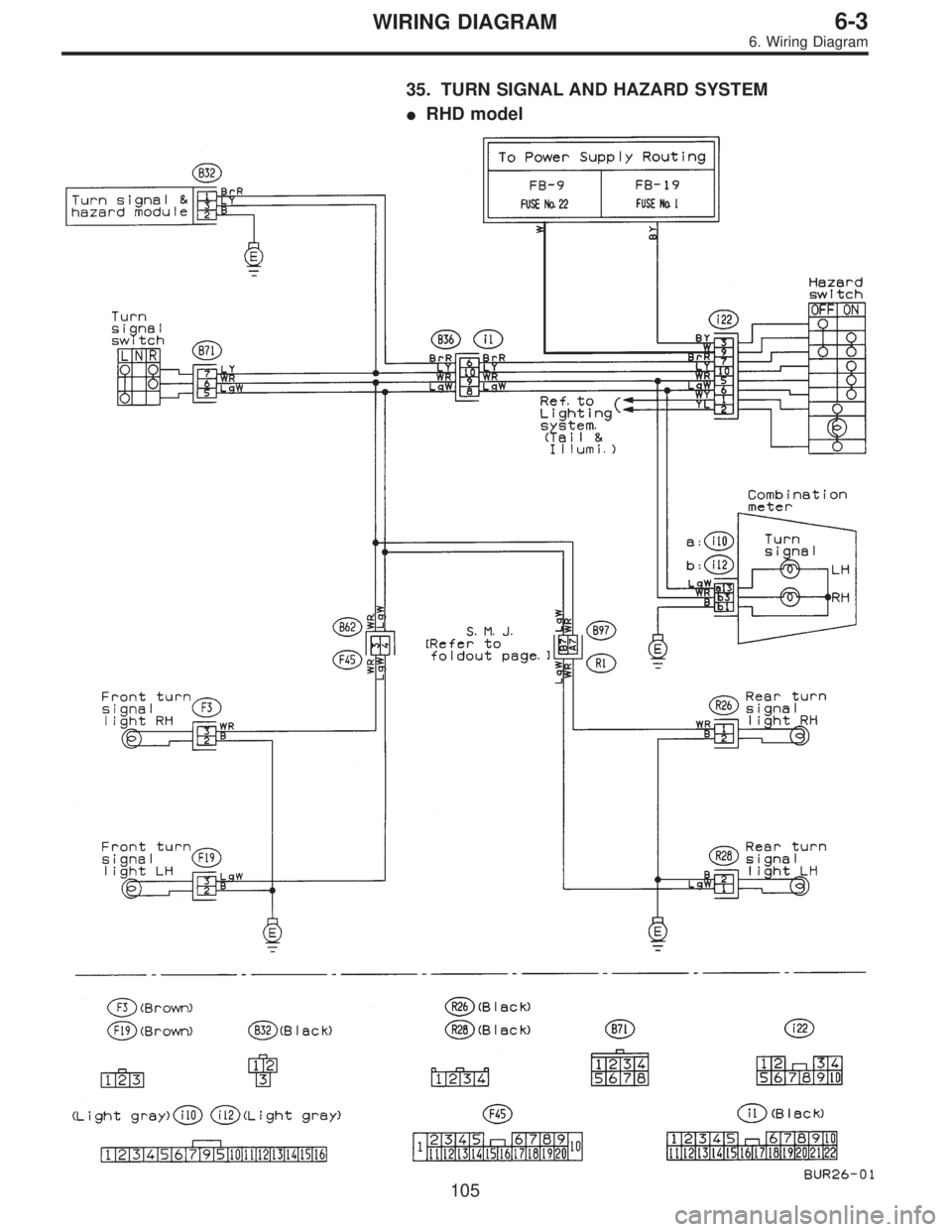

35. TURN SIGNAL AND HAZARD SYSTEM

RHD model
105
6-3WIRING DIAGRAM
6. Wiring Diagram

36. SEAT HEATER SYSTEM
BU84-02
106
6-3WIRING DIAGRAM
6. Wiring Diagram

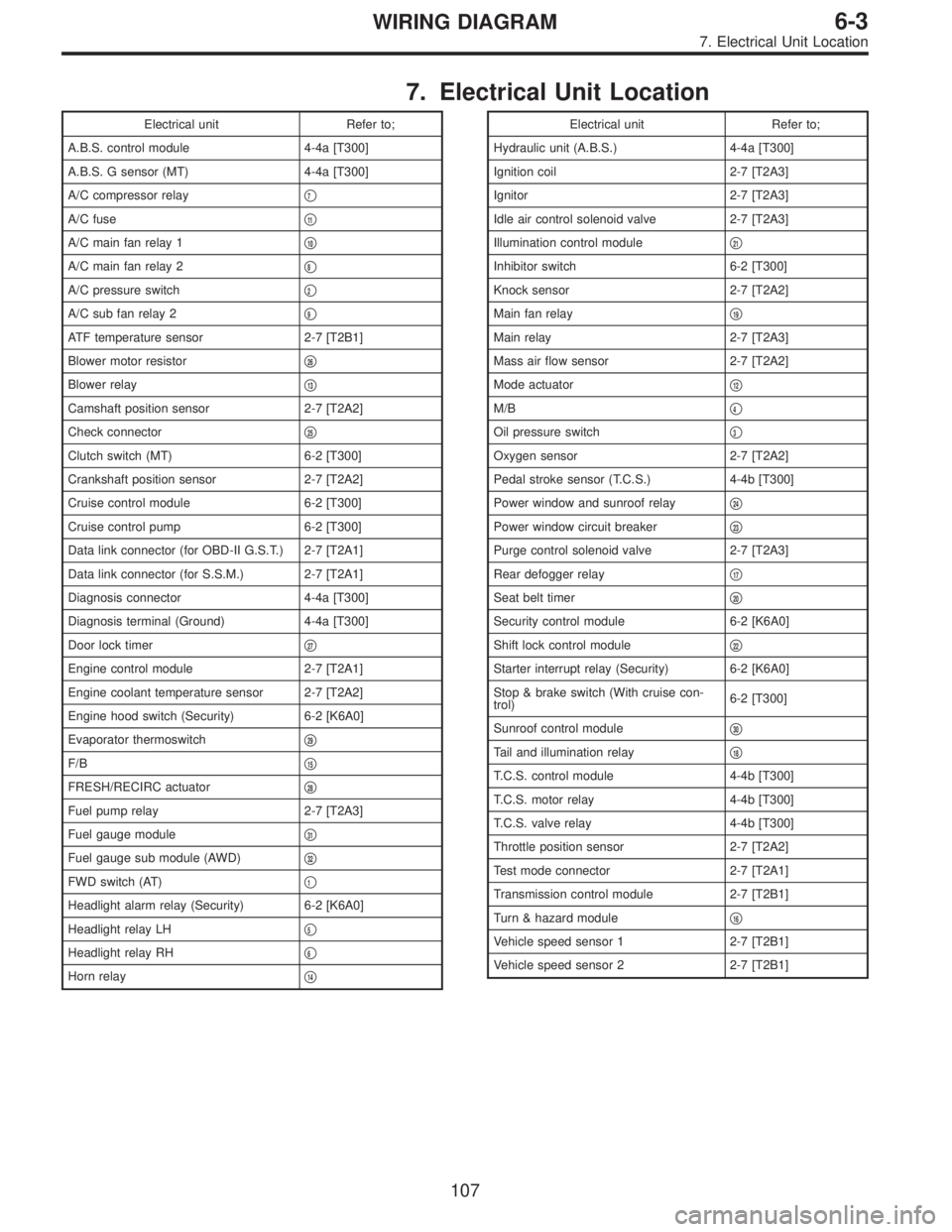

7. Electrical Unit Location
Electrical unit Refer to;
A.B.S. control module 4-4a [T300]
A.B.S. G sensor (MT) 4-4a [T300]
A/C compressor relay
7
A/C fuse11
A/C main fan relay 110
A/C main fan relay 28
A/C pressure switch2
A/C sub fan relay 29
ATF temperature sensor 2-7 [T2B1]
Blower motor resistor
26
Blower relay13
Camshaft position sensor 2-7 [T2A2]
Check connector
25
Clutch switch (MT) 6-2 [T300]
Crankshaft position sensor 2-7 [T2A2]
Cruise control module 6-2 [T300]
Cruise control pump 6-2 [T300]
Data link connector (for OBD-II G.S.T.) 2-7 [T2A1]
Data link connector (for S.S.M.) 2-7 [T2A1]
Diagnosis connector 4-4a [T300]
Diagnosis terminal (Ground) 4-4a [T300]
Door lock timer
27
Engine control module 2-7 [T2A1]
Engine coolant temperature sensor 2-7 [T2A2]
Engine hood switch (Security) 6-2 [K6A0]
Evaporator thermoswitch
29
F/B15
FRESH/RECIRC actuator28
Fuel pump relay 2-7 [T2A3]
Fuel gauge module
31
Fuel gauge sub module (AWD)32
FWD switch (AT)1
Headlight alarm relay (Security) 6-2 [K6A0]
Headlight relay LH
5
Headlight relay RH6
Horn relay14
Electrical unit Refer to;
Hydraulic unit (A.B.S.) 4-4a [T300]
Ignition coil 2-7 [T2A3]
Ignitor 2-7 [T2A3]
Idle air control solenoid valve 2-7 [T2A3]
Illumination control module
21
Inhibitor switch 6-2 [T300]
Knock sensor 2-7 [T2A2]
Main fan relay
19
Main relay 2-7 [T2A3]
Mass air flow sensor 2-7 [T2A2]
Mode actuator
12
M/B4
Oil pressure switch3
Oxygen sensor 2-7 [T2A2]
Pedal stroke sensor (T.C.S.) 4-4b [T300]
Power window and sunroof relay
24
Power window circuit breaker23
Purge control solenoid valve 2-7 [T2A3]
Rear defogger relay
17
Seat belt timer20
Security control module 6-2 [K6A0]
Shift lock control module
22
Starter interrupt relay (Security) 6-2 [K6A0]
Stop & brake switch (With cruise con-
trol)6-2 [T300]
Sunroof control module
30
Tail and illumination relay18
T.C.S. control module 4-4b [T300]
T.C.S. motor relay 4-4b [T300]
T.C.S. valve relay 4-4b [T300]
Throttle position sensor 2-7 [T2A2]
Test mode connector 2-7 [T2A1]
Transmission control module 2-7 [T2B1]
Turn & hazard module
16
Vehicle speed sensor 1 2-7 [T2B1]
Vehicle speed sensor 2 2-7 [T2B1]
107
6-3WIRING DIAGRAM
7. Electrical Unit Location

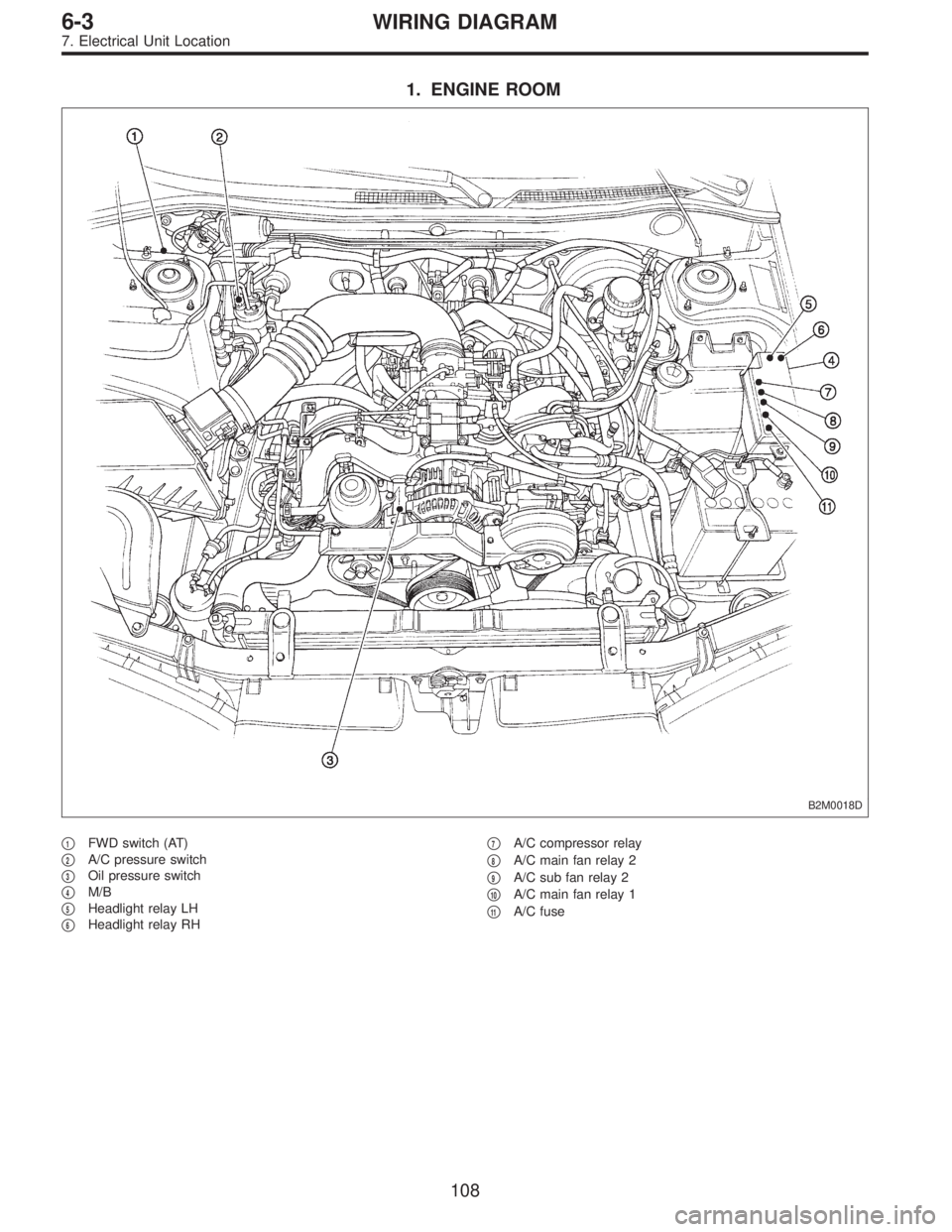

1. ENGINE ROOM
B2M0018D
1FWD switch (AT)

2A/C pressure switch

3Oil pressure switch

4M/B

5Headlight relay LH

6Headlight relay RH
7A/C compressor relay

8A/C main fan relay 2

9A/C sub fan relay 2

10A/C main fan relay 1

11A/C fuse
108
6-3WIRING DIAGRAM
7. Electrical Unit Location

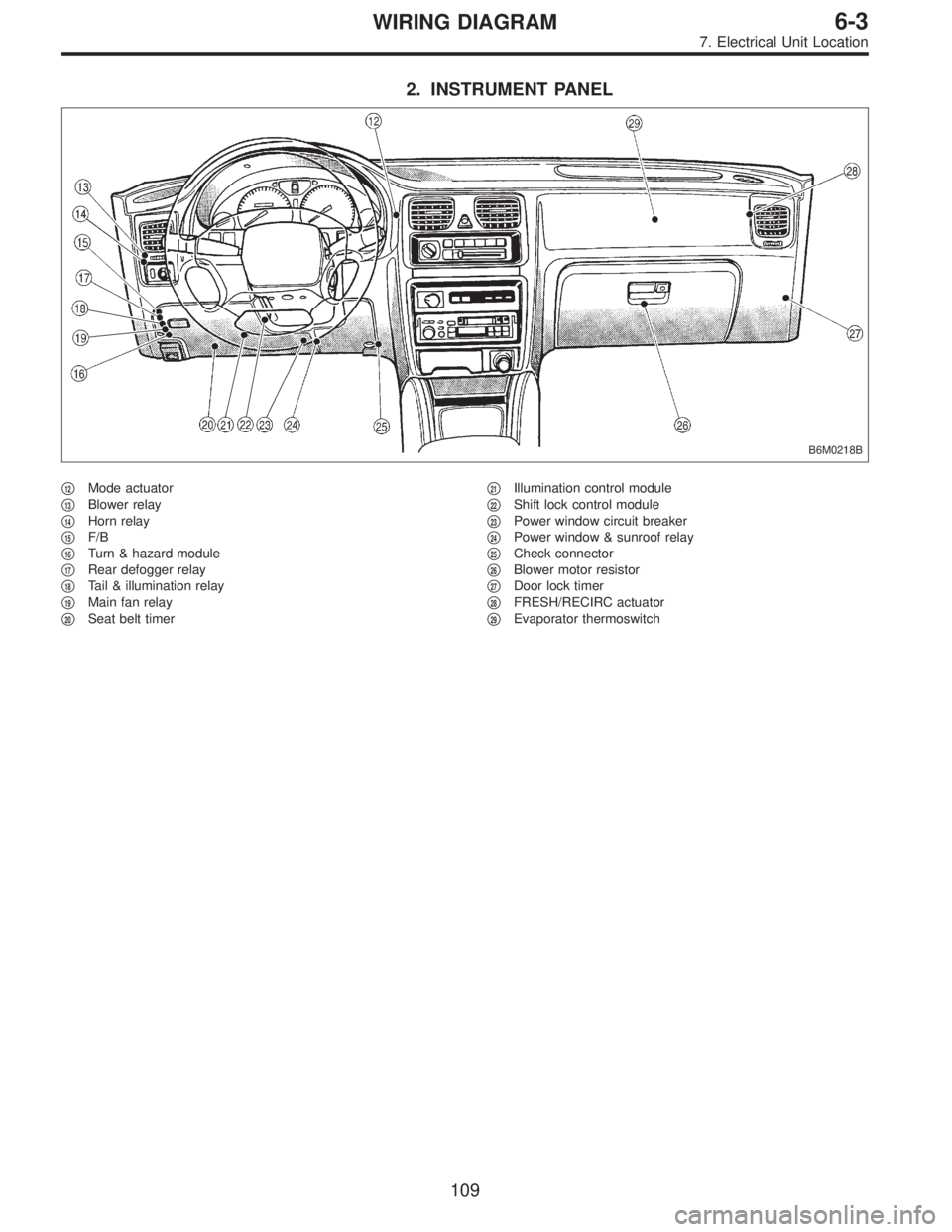

2. INSTRUMENT PANEL
B6M0218B
12Mode actuator

13Blower relay

14Horn relay

15F/B

16Turn & hazard module

17Rear defogger relay

18Tail & illumination relay

19Main fan relay

20Seat belt timer
21Illumination control module

22Shift lock control module

23Power window circuit breaker

24Power window & sunroof relay

25Check connector

26Blower motor resistor

27Door lock timer

28FRESH/RECIRC actuator

29Evaporator thermoswitch
109
6-3WIRING DIAGRAM
7. Electrical Unit Location

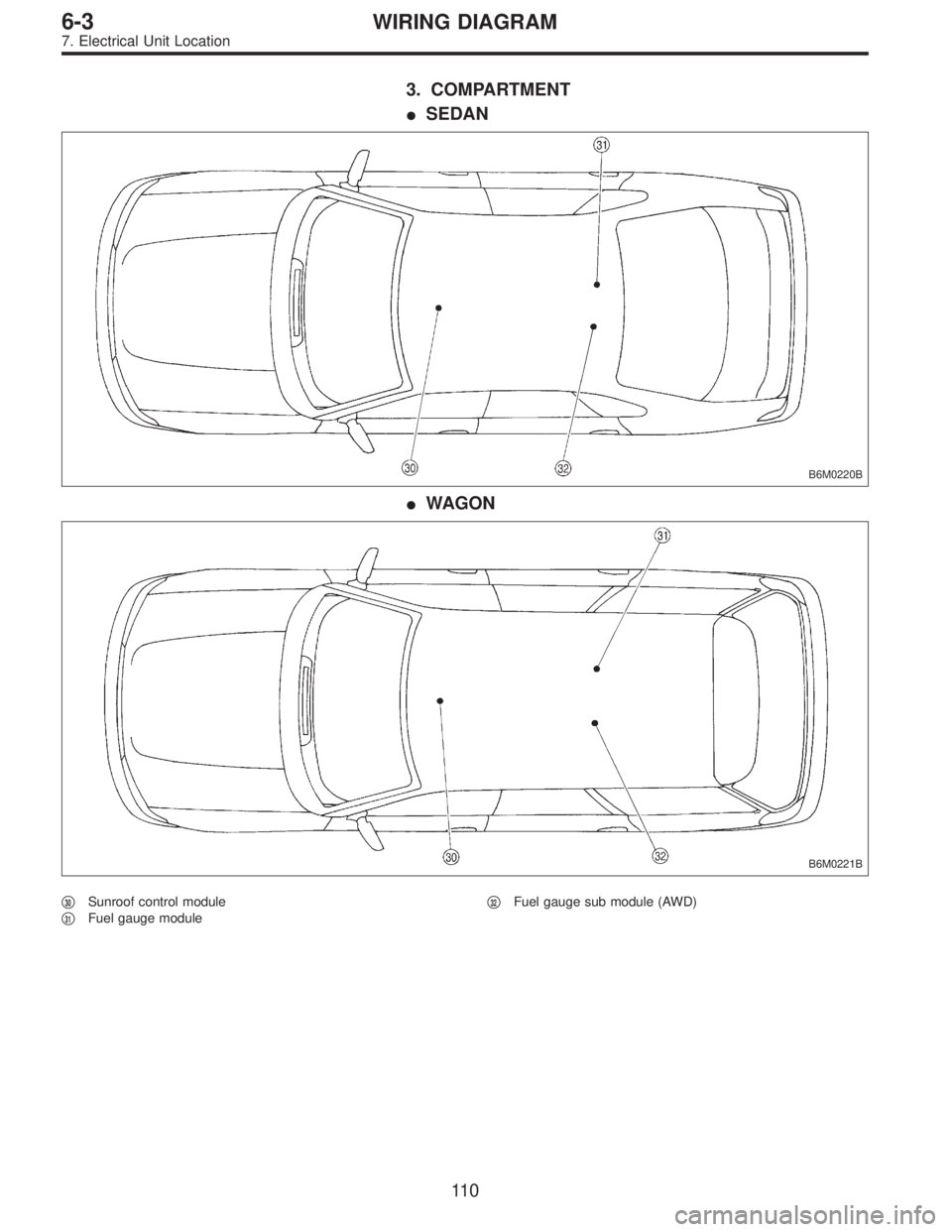

3. COMPARTMENT

SEDAN
B6M0220B

WAGON
B6M0221B
30Sunroof control module

31Fuel gauge module
32Fuel gauge sub module (AWD)
11 0
6-3WIRING DIAGRAM
7. Electrical Unit Location
