SUBARU LEGACY 1997 Service Repair Manual

B4M0157A
8) Remove nuts and bolts which secure pedal bracket.
5. BRAKE AND CLUTCH PEDAL (2500 cc MODEL)
1) Remove steering bolts.
2) Raise vehicle on hoist and remove the two bolts which
secure steering unit to underside of body.
3) Lower vehicle to floor.
4) Remove instrument panel lower cover from instrument
panel.
5) Disconnect the following parts from pedal bracket.
Operating rod of brake booster
Electrical connectors (for stop light switch, etc.)
6) Remove clevis pin which secures lever to push rod.
7) Remove nut which secures clutch master cylinder.
8) Remove steering assembly.
9) Remove bolts and nuts which secure brake and clutch
pedals, and remove pedal assembly.
12
4-5SERVICE PROCEDURE
1. Pedal

G4M0325
G4M0326
C: INSPECTION
1. BRAKE AND CLUTCH PEDALS
Move brake and clutch pedal pads in the lateral direction
with a force of approximately 10 N (1 kg, 2 lb) to ensure
pedal deflection is in specified range.
Deflection of brake and clutch pedal:
Service limit
5.0 mm (0.197 in) or less
CAUTION:
If excessive deflection is noted, replace bushings with
new ones.
G4M0333
2. ACCELERATOR PEDAL
Lightly move pedal pad in lateral the direction to ensure
pedal deflection is in specified range.
Deflection of accelerator pedal:
Service limit
5.0 mm (0.197 in) or less
CAUTION:
If excessive deflection is noted, replace bushing and
clip with new ones.
G4M0327
3. STOP LIGHT SWITCH
If stop light switch does not operate properly (or if it does
not stop at the specified position), replace with a new one.
Specified position: L
2.8
+1.5
0mm (0.110+0.059
0in)
13
4-5SERVICE PROCEDURE
1. Pedal

G4M0329

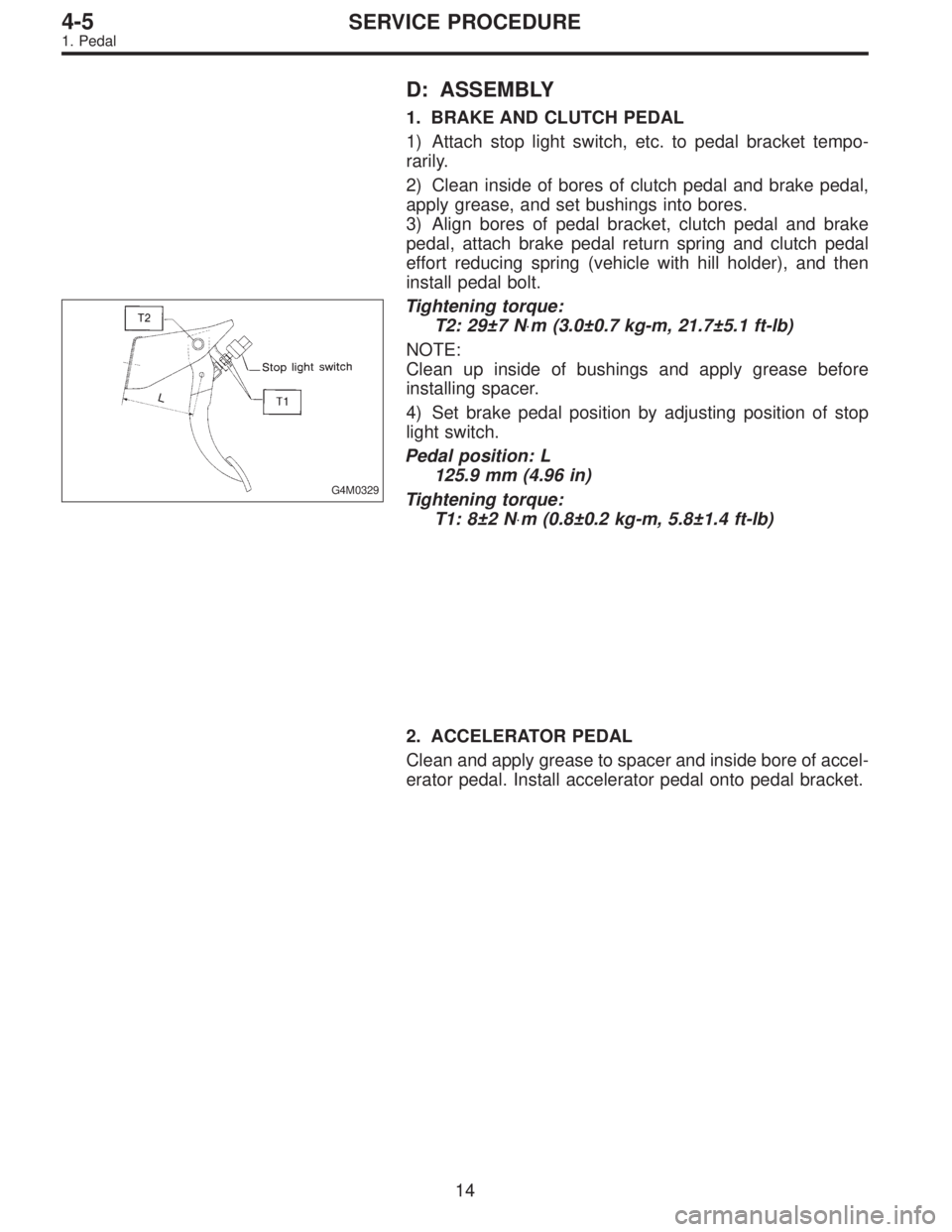

D: ASSEMBLY
1. BRAKE AND CLUTCH PEDAL
1) Attach stop light switch, etc. to pedal bracket tempo-
rarily.
2) Clean inside of bores of clutch pedal and brake pedal,
apply grease, and set bushings into bores.
3) Align bores of pedal bracket, clutch pedal and brake
pedal, attach brake pedal return spring and clutch pedal
effort reducing spring (vehicle with hill holder), and then
install pedal bolt.
Tightening torque:
T2: 29±7 N⋅m (3.0±0.7 kg-m, 21.7±5.1 ft-lb)
NOTE:
Clean up inside of bushings and apply grease before
installing spacer.
4) Set brake pedal position by adjusting position of stop
light switch.
Pedal position: L
125.9 mm (4.96 in)
Tightening torque:
T1: 8±2 N⋅m (0.8±0.2 kg-m, 5.8±1.4 ft-lb)
2. ACCELERATOR PEDAL
Clean and apply grease to spacer and inside bore of accel-
erator pedal. Install accelerator pedal onto pedal bracket.
14
4-5SERVICE PROCEDURE
1. Pedal

G4M0330

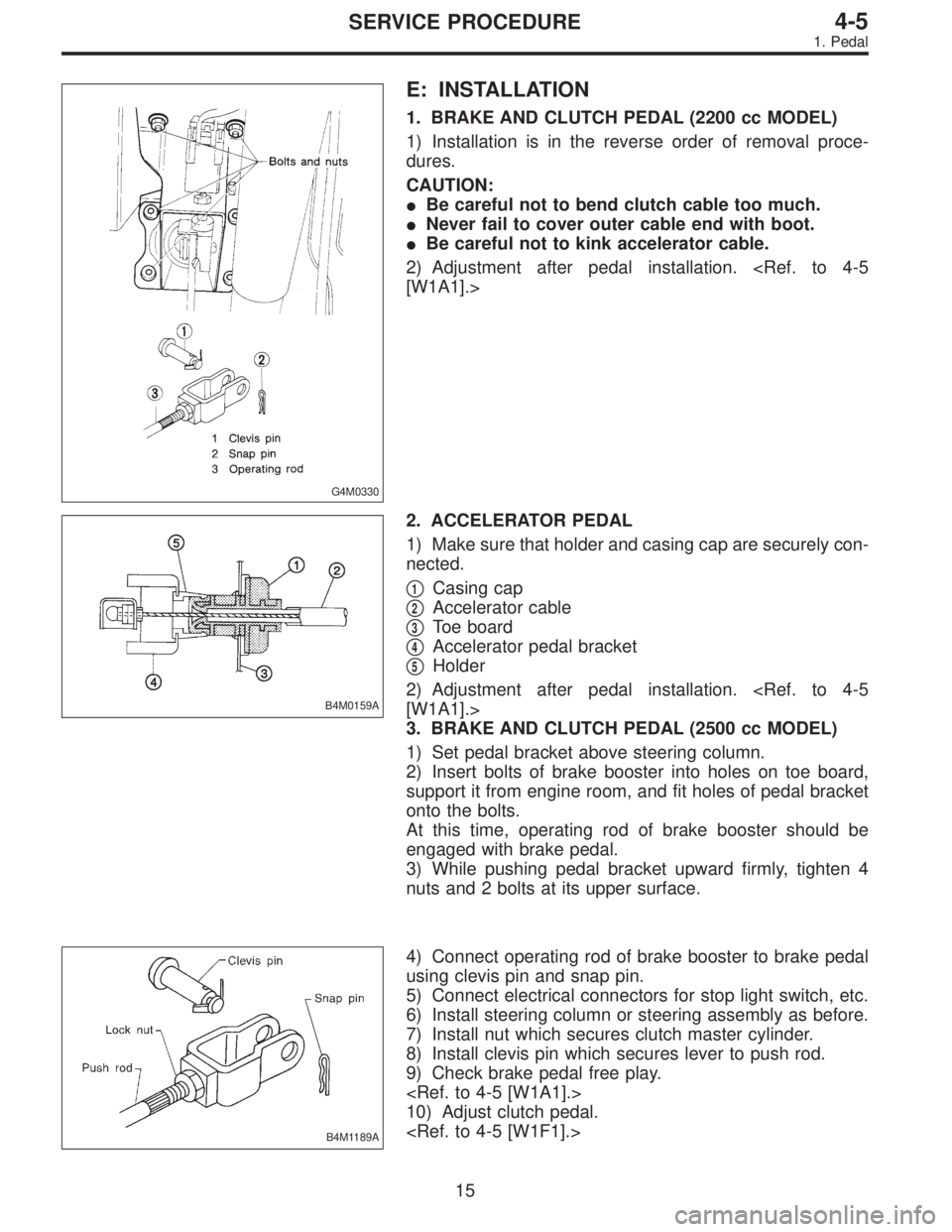

E: INSTALLATION
1. BRAKE AND CLUTCH PEDAL (2200 cc MODEL)
1) Installation is in the reverse order of removal proce-
dures.
CAUTION:
Be careful not to bend clutch cable too much.
Never fail to cover outer cable end with boot.
Be careful not to kink accelerator cable.
2) Adjustment after pedal installation. [W1A1].>
B4M0159A
2. ACCELERATOR PEDAL
1) Make sure that holder and casing cap are securely con-
nected.


1Casing cap


2Accelerator cable


3Toe board


4Accelerator pedal bracket


5Holder
2) Adjustment after pedal installation. [W1A1].>
3. BRAKE AND CLUTCH PEDAL (2500 cc MODEL)
1) Set pedal bracket above steering column.
2) Insert bolts of brake booster into holes on toe board,
support it from engine room, and fit holes of pedal bracket
onto the bolts.
At this time, operating rod of brake booster should be
engaged with brake pedal.
3) While pushing pedal bracket upward firmly, tighten 4
nuts and 2 bolts at its upper surface.
B4M1189A
4) Connect operating rod of brake booster to brake pedal
using clevis pin and snap pin.
5) Connect electrical connectors for stop light switch, etc.
6) Install steering column or steering assembly as before.
7) Install nut which secures clutch master cylinder.
8) Install clevis pin which secures lever to push rod.
9) Check brake pedal free play.

10) Adjust clutch pedal.

15
4-5SERVICE PROCEDURE
1. Pedal

B4M1190A

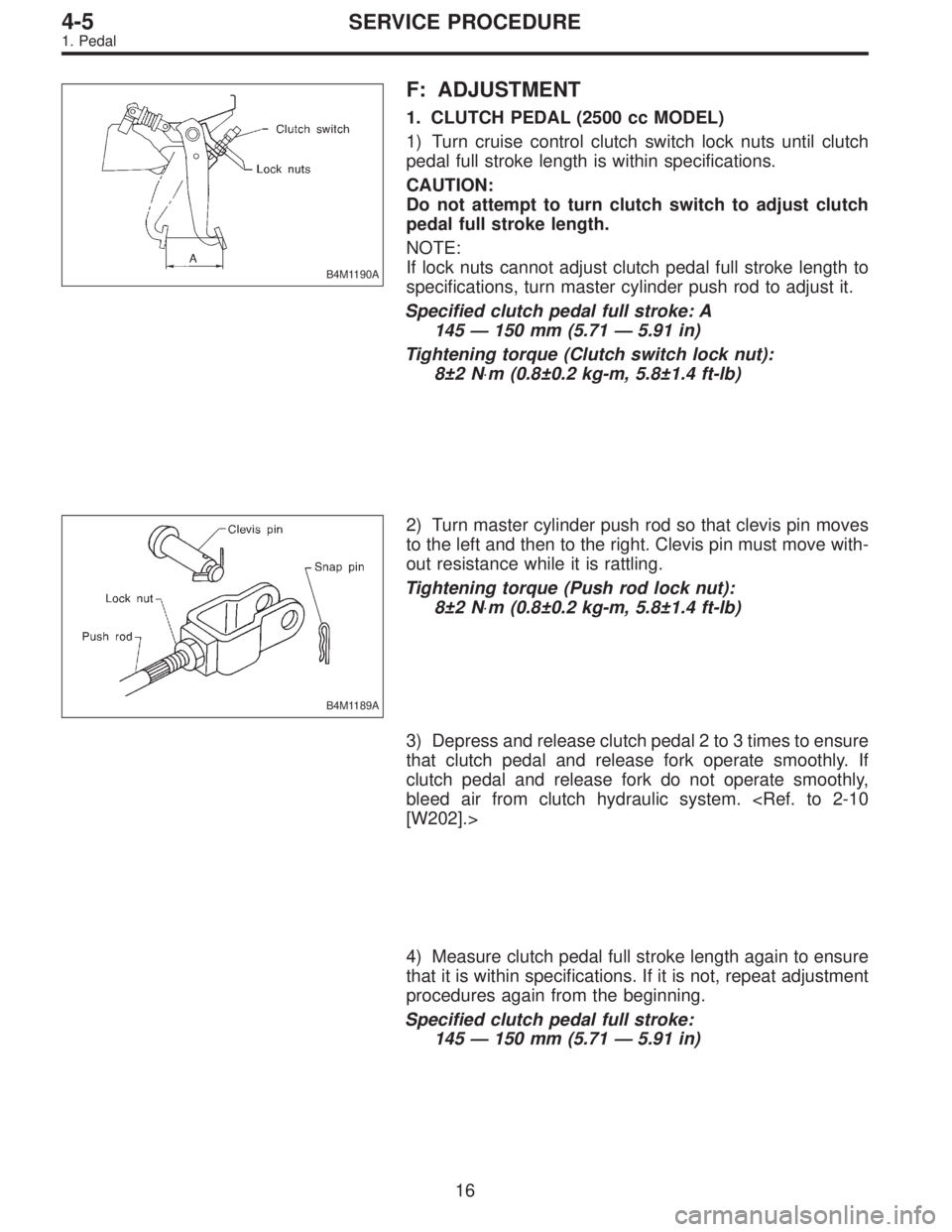

F: ADJUSTMENT
1. CLUTCH PEDAL (2500 cc MODEL)
1) Turn cruise control clutch switch lock nuts until clutch
pedal full stroke length is within specifications.
CAUTION:
Do not attempt to turn clutch switch to adjust clutch
pedal full stroke length.
NOTE:
If lock nuts cannot adjust clutch pedal full stroke length to
specifications, turn master cylinder push rod to adjust it.
Specified clutch pedal full stroke: A
145—150 mm (5.71—5.91 in)
Tightening torque (Clutch switch lock nut):
8±2 N⋅m (0.8±0.2 kg-m, 5.8±1.4 ft-lb)
B4M1189A
2) Turn master cylinder push rod so that clevis pin moves
to the left and then to the right. Clevis pin must move with-
out resistance while it is rattling.
Tightening torque (Push rod lock nut):
8±2 N⋅m (0.8±0.2 kg-m, 5.8±1.4 ft-lb)
3) Depress and release clutch pedal 2 to 3 times to ensure
that clutch pedal and release fork operate smoothly. If
clutch pedal and release fork do not operate smoothly,
bleed air from clutch hydraulic system. [W202].>
4) Measure clutch pedal full stroke length again to ensure
that it is within specifications. If it is not, repeat adjustment
procedures again from the beginning.
Specified clutch pedal full stroke:
145—150 mm (5.71—5.91 in)
16
4-5SERVICE PROCEDURE
1. Pedal

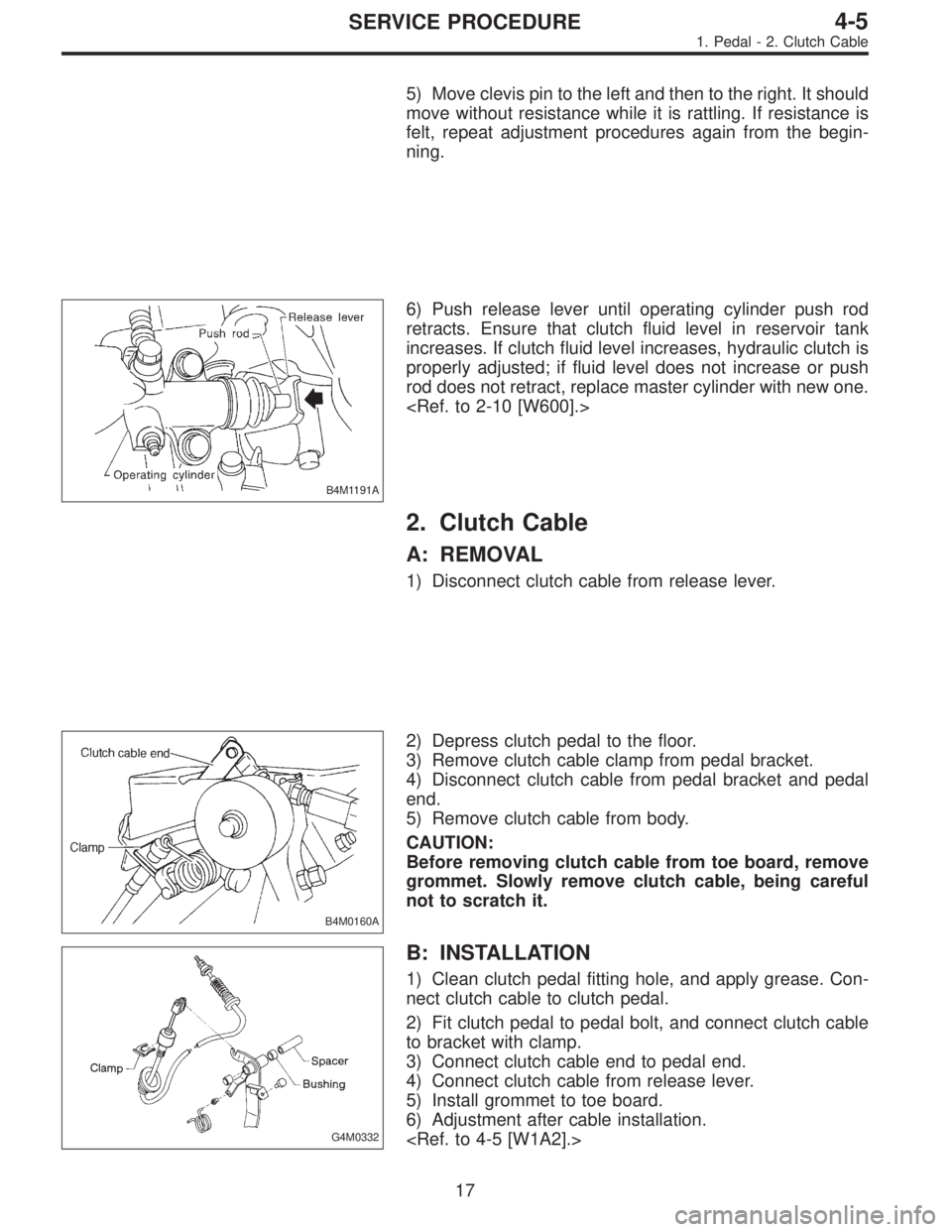

5) Move clevis pin to the left and then to the right. It should
move without resistance while it is rattling. If resistance is
felt, repeat adjustment procedures again from the begin-
ning.
B4M1191A
6) Push release lever until operating cylinder push rod
retracts. Ensure that clutch fluid level in reservoir tank
increases. If clutch fluid level increases, hydraulic clutch is
properly adjusted; if fluid level does not increase or push
rod does not retract, replace master cylinder with new one.

2. Clutch Cable
A: REMOVAL
1) Disconnect clutch cable from release lever.
B4M0160A
2) Depress clutch pedal to the floor.
3) Remove clutch cable clamp from pedal bracket.
4) Disconnect clutch cable from pedal bracket and pedal
end.
5) Remove clutch cable from body.
CAUTION:
Before removing clutch cable from toe board, remove
grommet. Slowly remove clutch cable, being careful
not to scratch it.
G4M0332
B: INSTALLATION
1) Clean clutch pedal fitting hole, and apply grease. Con-
nect clutch cable to clutch pedal.
2) Fit clutch pedal to pedal bolt, and connect clutch cable
to bracket with clamp.
3) Connect clutch cable end to pedal end.
4) Connect clutch cable from release lever.
5) Install grommet to toe board.
6) Adjustment after cable installation.

17
4-5SERVICE PROCEDURE
1. Pedal - 2. Clutch Cable

5) Move clevis pin to the left and then to the right. It should
move without resistance while it is rattling. If resistance is
felt, repeat adjustment procedures again from the begin-
ning.
B4M1191A
6) Push release lever until operating cylinder push rod
retracts. Ensure that clutch fluid level in reservoir tank
increases. If clutch fluid level increases, hydraulic clutch is
properly adjusted; if fluid level does not increase or push
rod does not retract, replace master cylinder with new one.

2. Clutch Cable
A: REMOVAL
1) Disconnect clutch cable from release lever.
B4M0160A
2) Depress clutch pedal to the floor.
3) Remove clutch cable clamp from pedal bracket.
4) Disconnect clutch cable from pedal bracket and pedal
end.
5) Remove clutch cable from body.
CAUTION:
Before removing clutch cable from toe board, remove
grommet. Slowly remove clutch cable, being careful
not to scratch it.
G4M0332
B: INSTALLATION
1) Clean clutch pedal fitting hole, and apply grease. Con-
nect clutch cable to clutch pedal.
2) Fit clutch pedal to pedal bolt, and connect clutch cable
to bracket with clamp.
3) Connect clutch cable end to pedal end.
4) Connect clutch cable from release lever.
5) Install grommet to toe board.
6) Adjustment after cable installation.

17
4-5SERVICE PROCEDURE
1. Pedal - 2. Clutch Cable

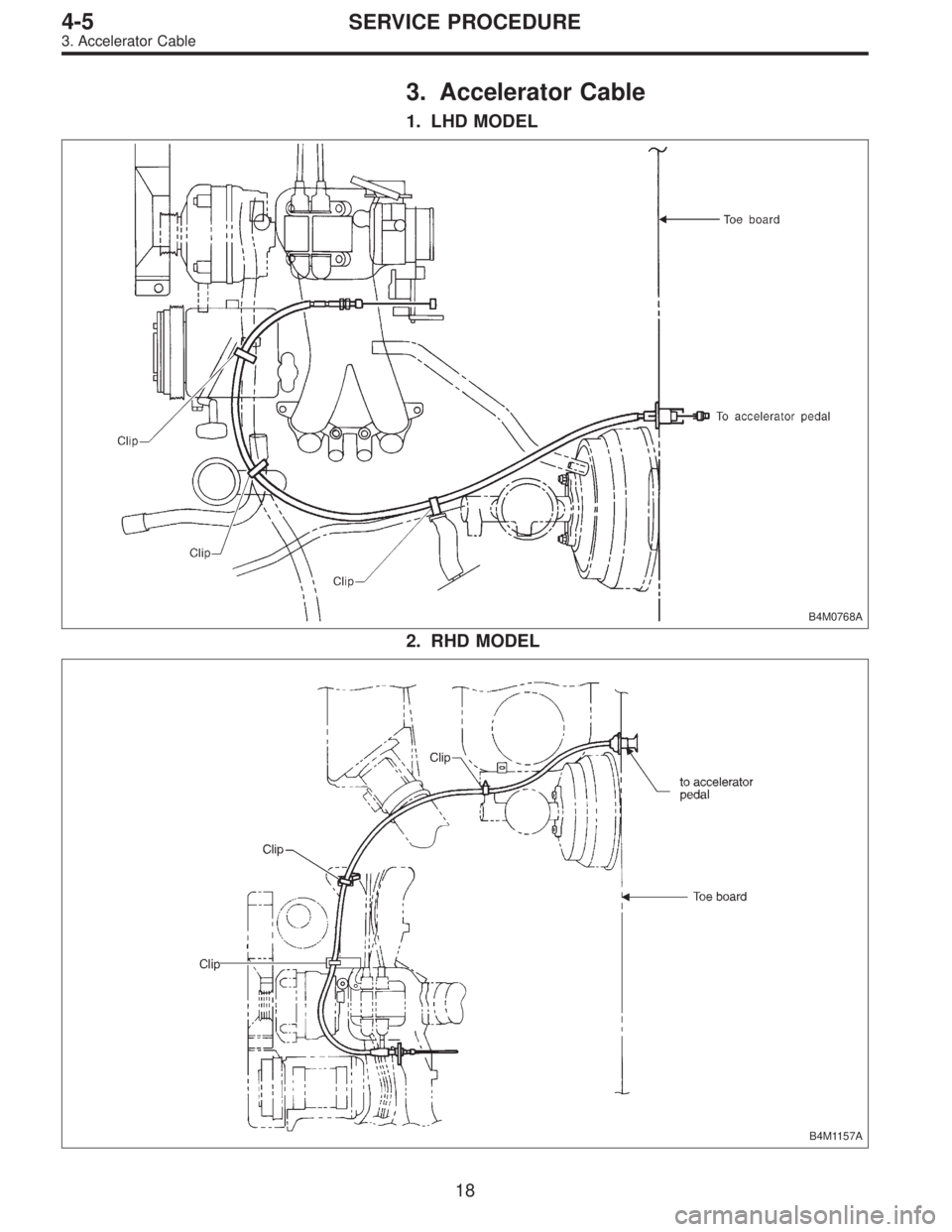

3. Accelerator Cable
1. LHD MODEL
B4M0768A
2. RHD MODEL
B4M1157A
18
4-5SERVICE PROCEDURE
3. Accelerator Cable

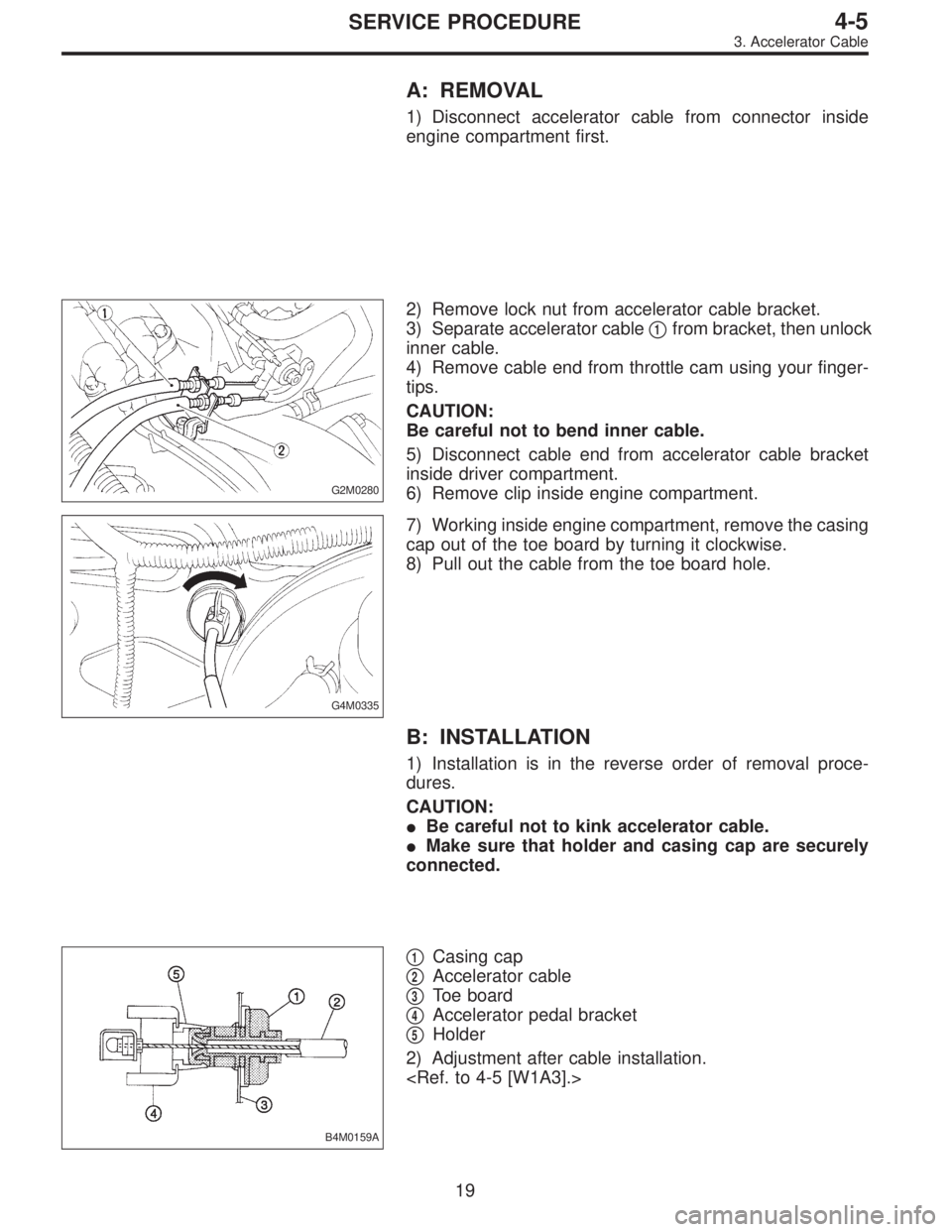

A: REMOVAL
1) Disconnect accelerator cable from connector inside
engine compartment first.
G2M0280
2) Remove lock nut from accelerator cable bracket.
3) Separate accelerator cable

1from bracket, then unlock
inner cable.
4) Remove cable end from throttle cam using your finger-
tips.
CAUTION:
Be careful not to bend inner cable.
5) Disconnect cable end from accelerator cable bracket
inside driver compartment.
6) Remove clip inside engine compartment.
G4M0335
7) Working inside engine compartment, remove the casing
cap out of the toe board by turning it clockwise.
8) Pull out the cable from the toe board hole.
B: INSTALLATION
1) Installation is in the reverse order of removal proce-
dures.
CAUTION:
Be careful not to kink accelerator cable.
Make sure that holder and casing cap are securely
connected.
B4M0159A

1Casing cap


2Accelerator cable


3Toe board


4Accelerator pedal bracket


5Holder
2) Adjustment after cable installation.

19
4-5SERVICE PROCEDURE
3. Accelerator Cable

1. Pedal System and Control Cables
Trouble Corrective action
Excessively worn brake pedal pad Replace.
Failure of clutch and/or accelerator pedals to operate Connect cables correctly.
Stop light switch does not light up. Adjust position of stop light switch.
Stop light switch is not smooth and/or stroke is not correct. Replace.
Insufficient pedal play Adjust pedal play.
Clutch and/or brake pedal free play insufficient Adjust pedal free play.
Maladjustment of brake pedal or booster push rod Inspect and adjust.
Excessively worn and damaged pedal shaft and/or bushing Replace bushing and/or shaft with new one.
20
4-5DIAGNOSTICS
1. Pedal System and Control Cables
