SUBARU LEGACY 1997 Service Repair Manual

B2M1080

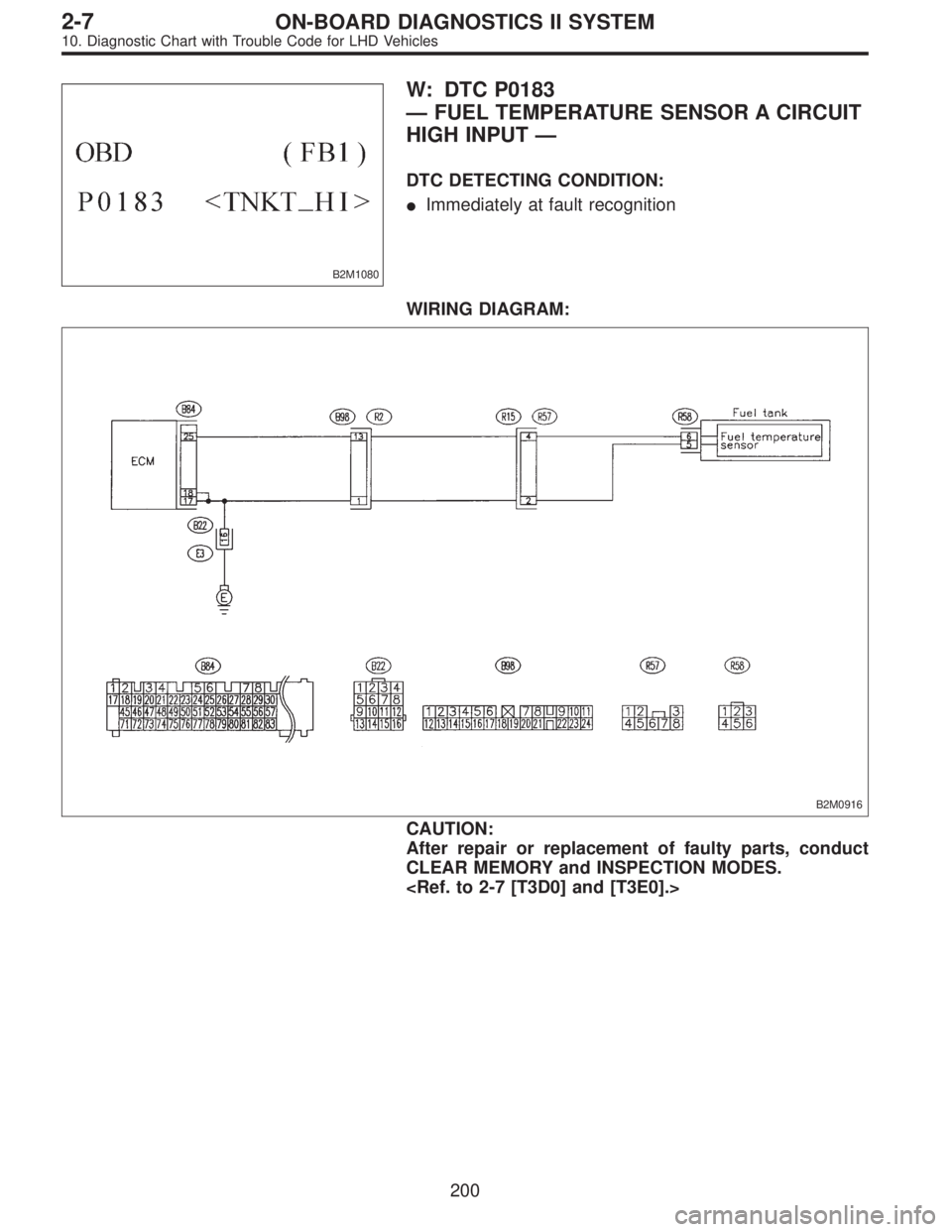

W: DTC P0183
—FUEL TEMPERATURE SENSOR A CIRCUIT
HIGH INPUT—
DTC DETECTING CONDITION:

Immediately at fault recognition
WIRING DIAGRAM:
B2M0916
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

200
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0145A

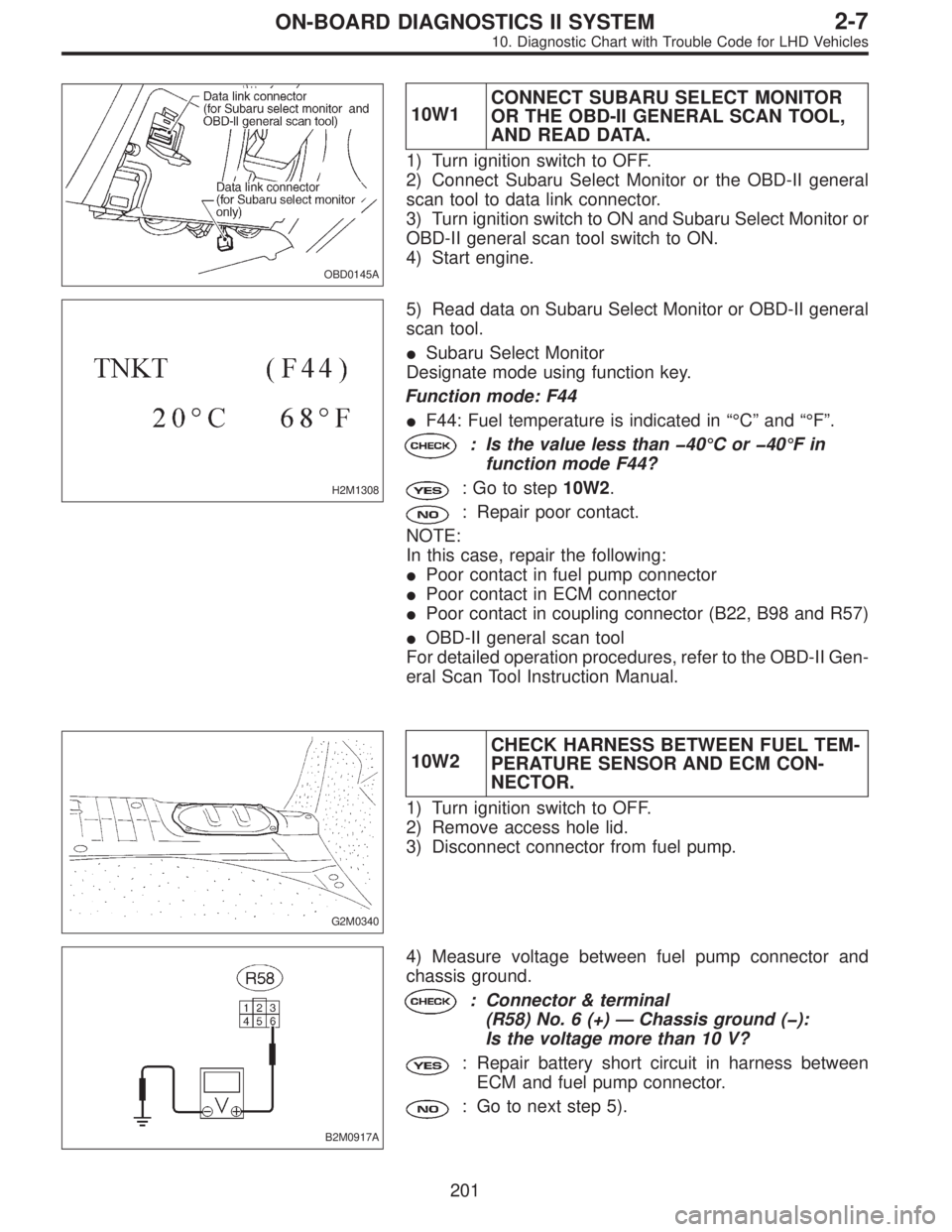

10W1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
3) Turn ignition switch to ON and Subaru Select Monitor or
OBD-II general scan tool switch to ON.
4) Start engine.
H2M1308
5) Read data on Subaru Select Monitor or OBD-II general
scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F44

F44: Fuel temperature is indicated in“°C”and“°F”.
: Is the value less than40°Cor40°Fin
function mode F44?
: Go to step10W2.
: Repair poor contact.
NOTE:
In this case, repair the following:

Poor contact in fuel pump connector

Poor contact in ECM connector

Poor contact in coupling connector (B22, B98 and R57)

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
G2M0340
10W2CHECK HARNESS BETWEEN FUEL TEM-
PERATURE SENSOR AND ECM CON-
NECTOR.
1) Turn ignition switch to OFF.
2) Remove access hole lid.
3) Disconnect connector from fuel pump.
B2M0917A
4) Measure voltage between fuel pump connector and
chassis ground.
: Connector & terminal
(R58) No. 6 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Repair battery short circuit in harness between
ECM and fuel pump connector.
: Go to next step 5).
201
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0917A

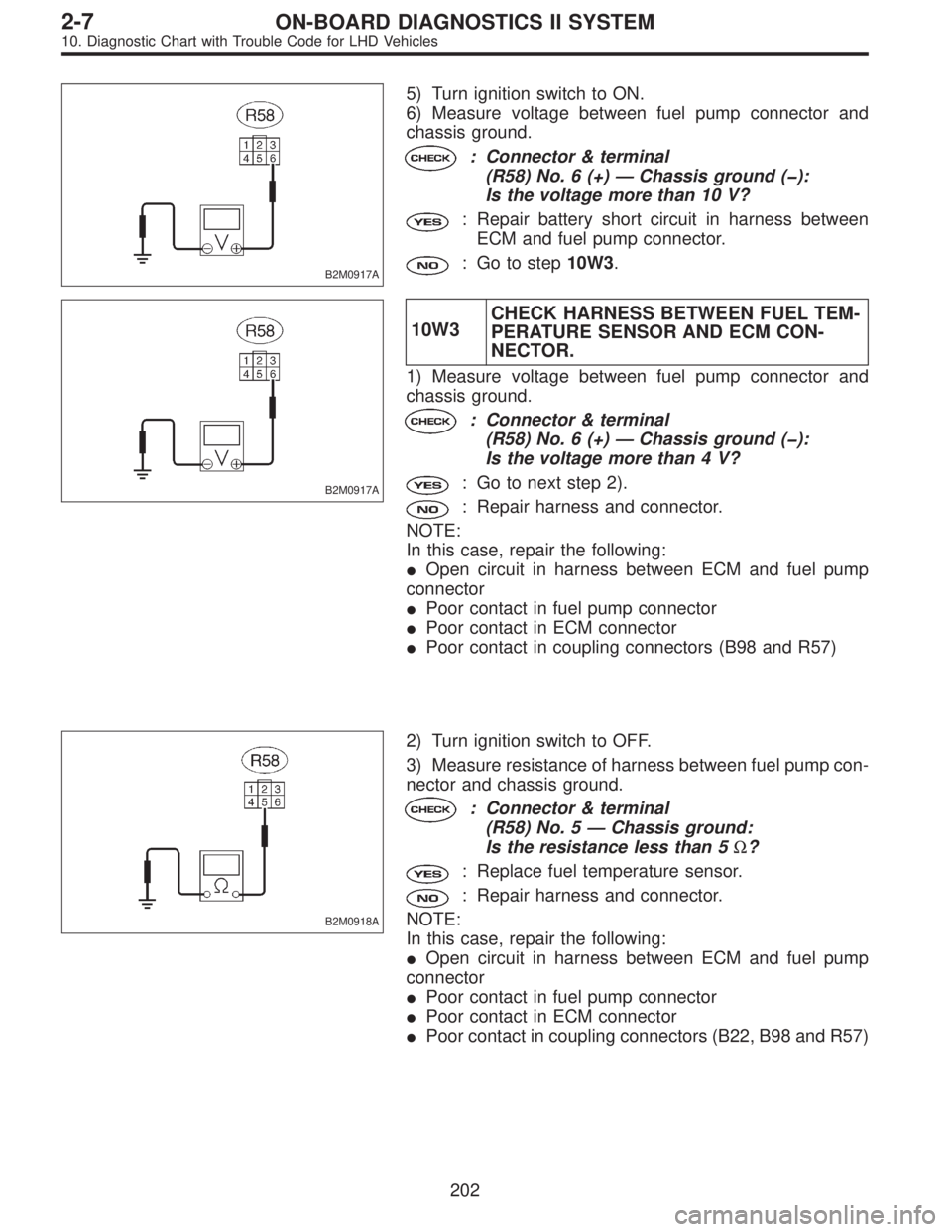

5) Turn ignition switch to ON.
6) Measure voltage between fuel pump connector and
chassis ground.
: Connector & terminal
(R58) No. 6 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Repair battery short circuit in harness between
ECM and fuel pump connector.
: Go to step10W3.
B2M0917A
10W3CHECK HARNESS BETWEEN FUEL TEM-
PERATURE SENSOR AND ECM CON-
NECTOR.
1) Measure voltage between fuel pump connector and
chassis ground.
: Connector & terminal
(R58) No. 6 (+)—Chassis ground ():
Is the voltage more than 4 V?
: Go to next step 2).
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM and fuel pump
connector

Poor contact in fuel pump connector

Poor contact in ECM connector

Poor contact in coupling connectors (B98 and R57)
B2M0918A
2) Turn ignition switch to OFF.
3) Measure resistance of harness between fuel pump con-
nector and chassis ground.
: Connector & terminal
(R58) No. 5—Chassis ground:
Is the resistance less than 5Ω?
: Replace fuel temperature sensor.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM and fuel pump
connector

Poor contact in fuel pump connector

Poor contact in ECM connector

Poor contact in coupling connectors (B22, B98 and R57)
202
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M1081

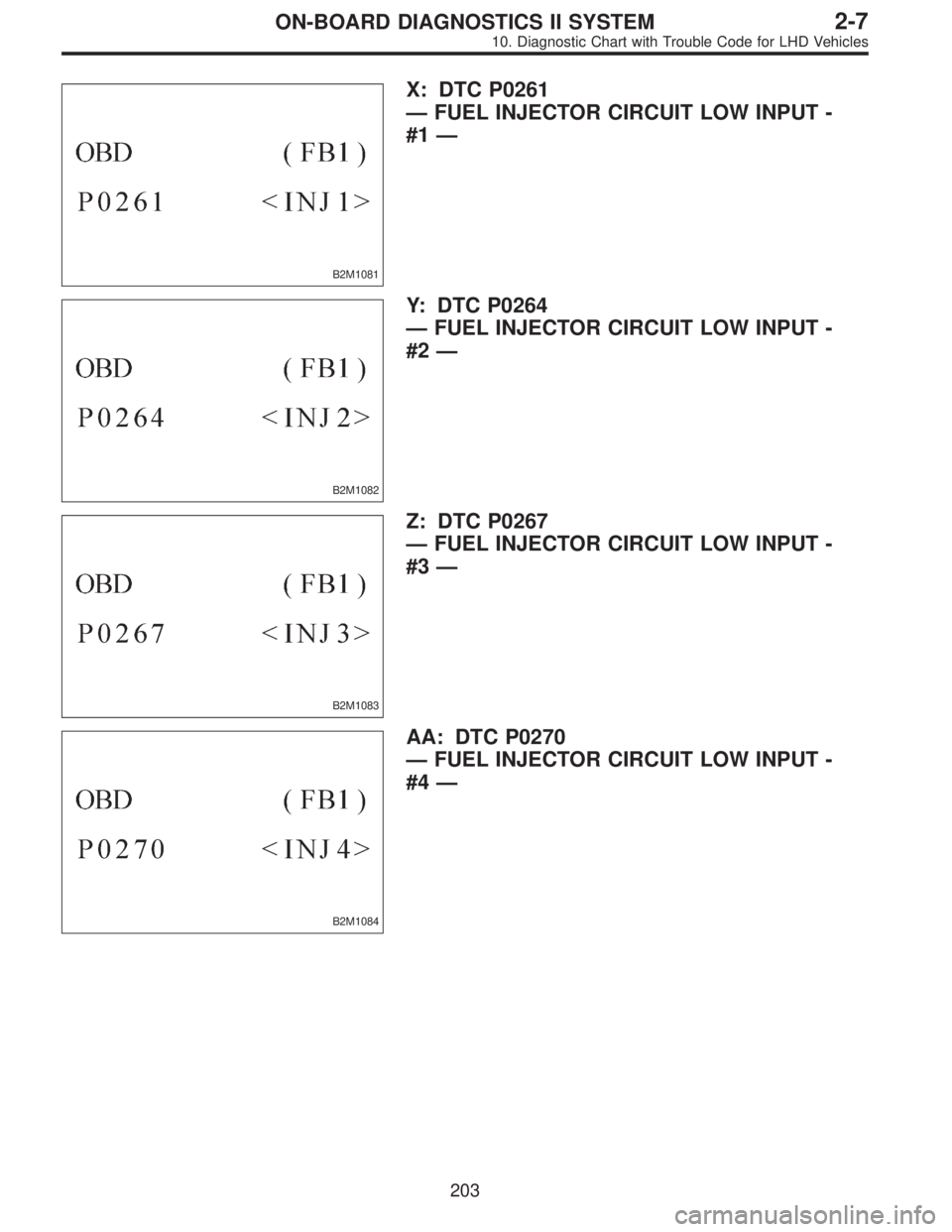

X: DTC P0261
—FUEL INJECTOR CIRCUIT LOW INPUT -
#1—
B2M1082
Y: DTC P0264
—FUEL INJECTOR CIRCUIT LOW INPUT -
#2—
B2M1083
Z: DTC P0267
—FUEL INJECTOR CIRCUIT LOW INPUT -
#3—
B2M1084
AA: DTC P0270
—FUEL INJECTOR CIRCUIT LOW INPUT -
#4—
203
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

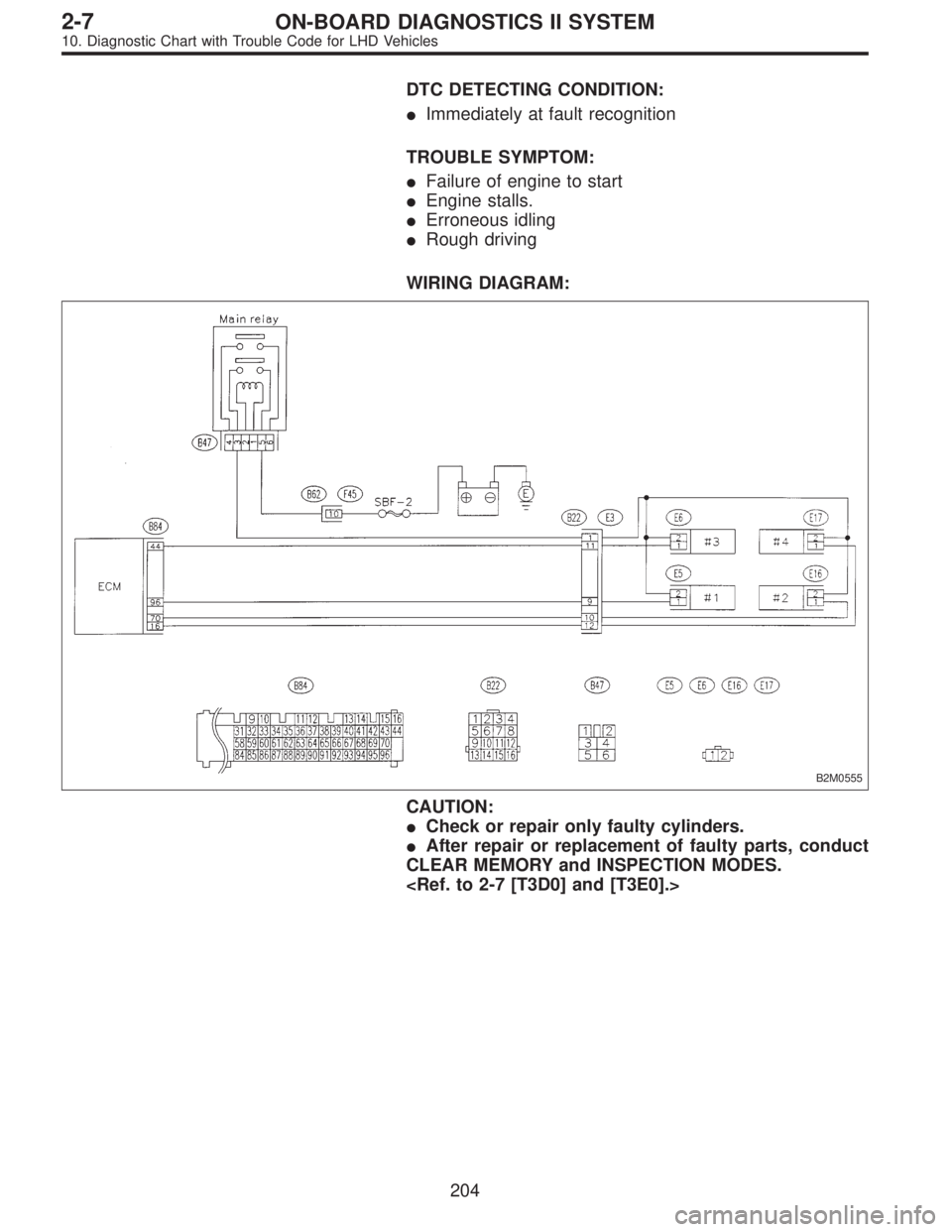

DTC DETECTING CONDITION:

Immediately at fault recognition
TROUBLE SYMPTOM:

Failure of engine to start

Engine stalls.

Erroneous idling

Rough driving
WIRING DIAGRAM:
B2M0555
CAUTION:

Check or repair only faulty cylinders.

After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

204
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0556A
10AA1
CHECK OUTPUT SIGNAL FROM ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM connector and chassis
ground on faulty cylinders.
: Connector & terminal
#1 (B84) No. 96 (+)—Chassis ground ():
#2 (B84) No. 70 (+)—Chassis ground ():
#3 (B84) No. 44 (+)—Chassis ground ():
#4 (B84) No. 16 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Go to next.
: Go to step10AA2.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Contact with SOA service.
NOTE:
Inspection by DTM is required, because probable cause is
deterioration of multiple parts.
OBD0713A
10AA2CHECK HARNESS BETWEEN FUEL
INJECTOR AND ECM CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from fuel injector on faulty cylin-
ders.
3) Measure voltage between ECM connector and engine
ground on faulty cylinders.
: Connector & terminal
#1 (E5) No. 1—Engine ground:
#2 (E16) No. 1—Engine ground:
#3 (E6) No. 1—Engine ground:
#4 (E17) No. 1—Engine ground:
Is the resistance less than 10Ω?
: Repair ground short circuit in harness between
fuel injector and ECM connector.
: Go to next step 4).
205
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0557A

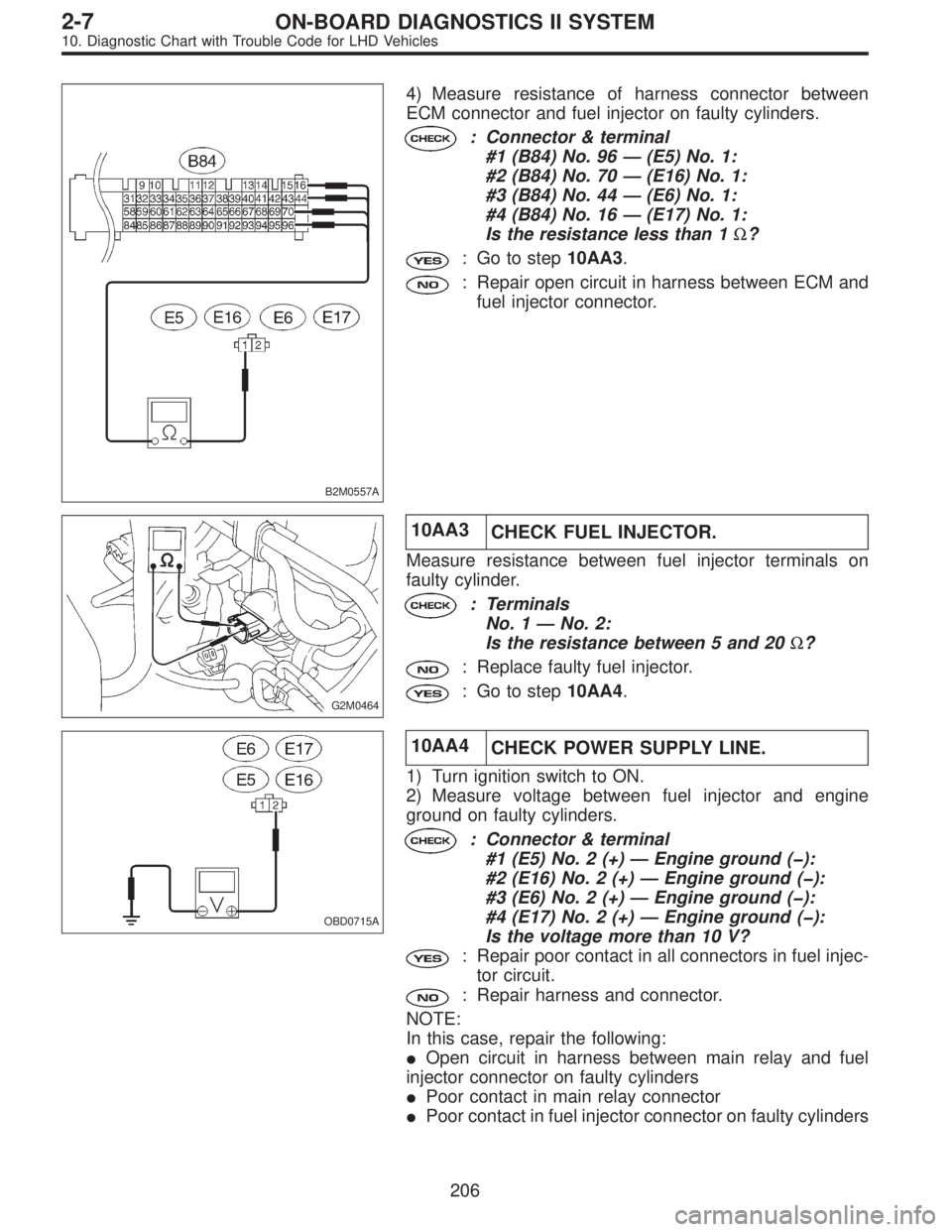

4) Measure resistance of harness connector between
ECM connector and fuel injector on faulty cylinders.
: Connector & terminal
#1 (B84) No. 96—(E5) No. 1:
#2 (B84) No. 70—(E16) No. 1:
#3 (B84) No. 44—(E6) No. 1:
#4 (B84) No. 16—(E17) No. 1:
Is the resistance less than 1Ω?
: Go to step10AA3.
: Repair open circuit in harness between ECM and
fuel injector connector.
G2M0464
10AA3
CHECK FUEL INJECTOR.
Measure resistance between fuel injector terminals on
faulty cylinder.
: Terminals
No. 1—No. 2:
Is the resistance between 5 and 20Ω?
: Replace faulty fuel injector.
: Go to step10AA4.
OBD0715A
10AA4
CHECK POWER SUPPLY LINE.
1) Turn ignition switch to ON.
2) Measure voltage between fuel injector and engine
ground on faulty cylinders.
: Connector & terminal
#1 (E5) No. 2 (+)—Engine ground ():
#2 (E16) No. 2 (+)—Engine ground ():
#3 (E6) No. 2 (+)—Engine ground ():
#4 (E17) No. 2 (+)—Engine ground ():
Is the voltage more than 10 V?
: Repair poor contact in all connectors in fuel injec-
tor circuit.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between main relay and fuel
injector connector on faulty cylinders

Poor contact in main relay connector

Poor contact in fuel injector connector on faulty cylinders
206
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M1085

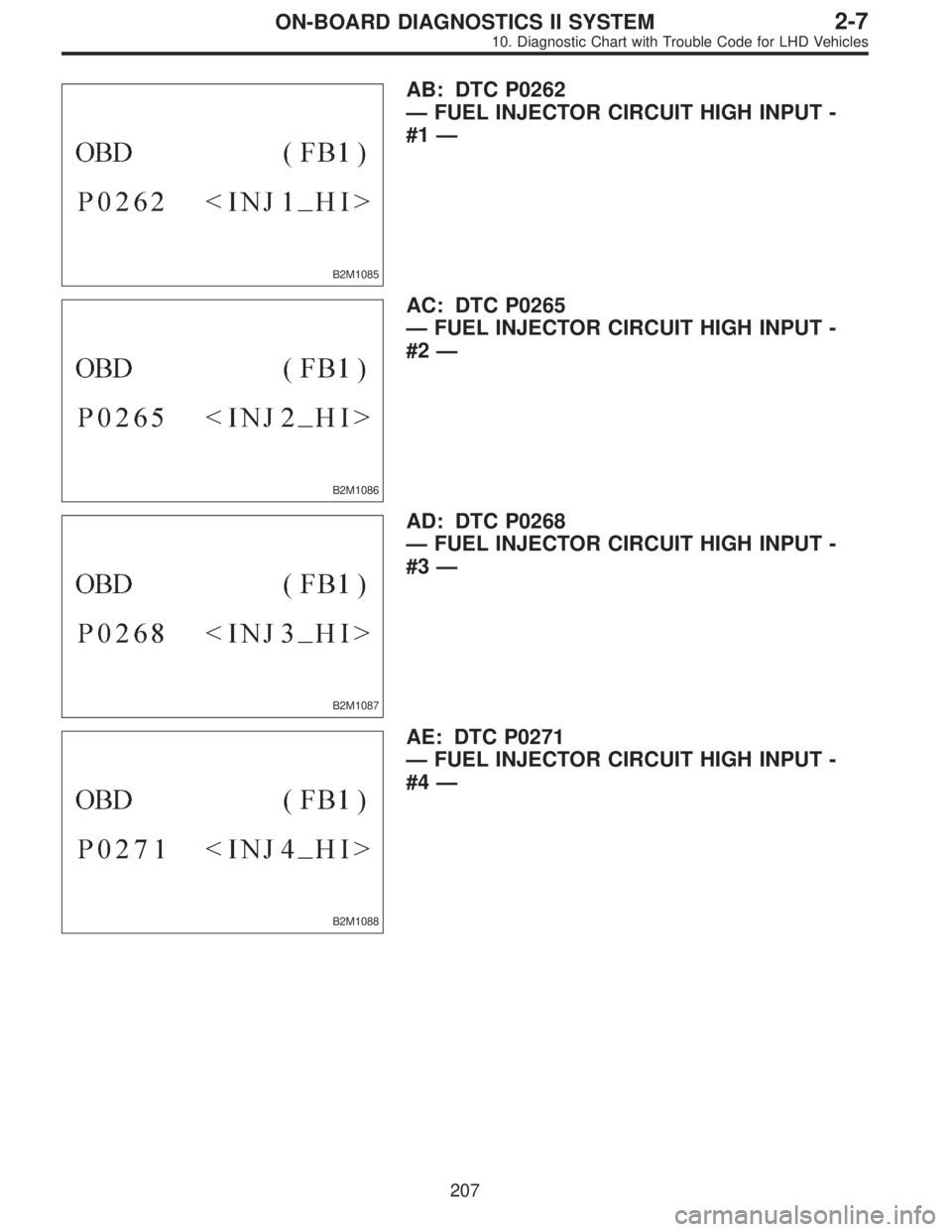

AB: DTC P0262
—FUEL INJECTOR CIRCUIT HIGH INPUT -
#1—
B2M1086
AC: DTC P0265
—FUEL INJECTOR CIRCUIT HIGH INPUT -
#2—
B2M1087
AD: DTC P0268
—FUEL INJECTOR CIRCUIT HIGH INPUT -
#3—
B2M1088
AE: DTC P0271
—FUEL INJECTOR CIRCUIT HIGH INPUT -
#4—
207
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

DTC DETECTING CONDITION:

Immediately at fault recognition
TROUBLE SYMPTOM:

Failure of engine to start

Engine stalls.

Erroneous idling

Rough driving
WIRING DIAGRAM:
B2M0555
CAUTION:

Check or repair only faulty cylinders.

After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

208
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0556A

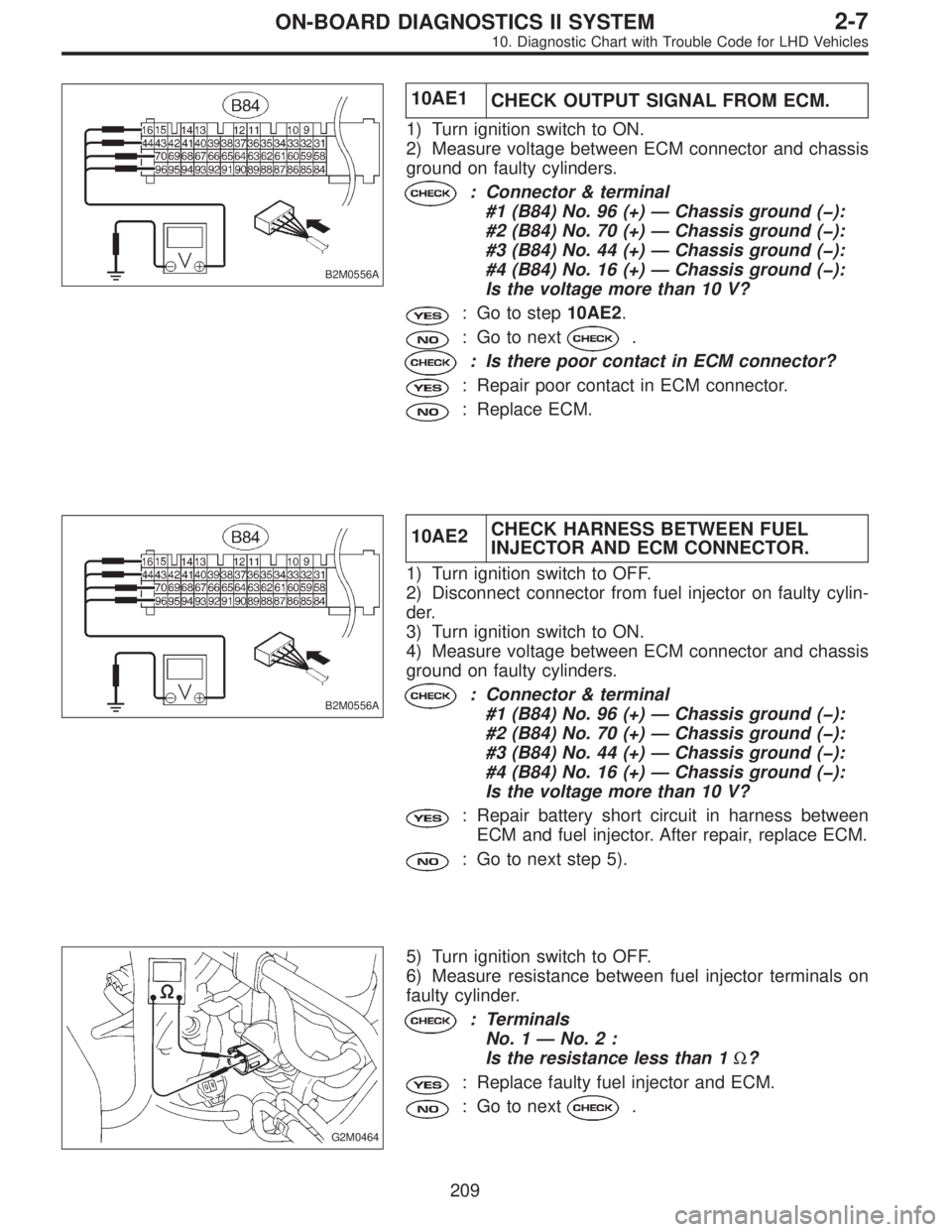

10AE1
CHECK OUTPUT SIGNAL FROM ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM connector and chassis
ground on faulty cylinders.
: Connector & terminal
#1 (B84) No. 96 (+)—Chassis ground ():
#2 (B84) No. 70 (+)—Chassis ground ():
#3 (B84) No. 44 (+)—Chassis ground ():
#4 (B84) No. 16 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Go to step10AE2.
: Go to next.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Replace ECM.
B2M0556A
10AE2CHECK HARNESS BETWEEN FUEL
INJECTOR AND ECM CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from fuel injector on faulty cylin-
der.
3) Turn ignition switch to ON.
4) Measure voltage between ECM connector and chassis
ground on faulty cylinders.
: Connector & terminal
#1 (B84) No. 96 (+)—Chassis ground ():
#2 (B84) No. 70 (+)—Chassis ground ():
#3 (B84) No. 44 (+)—Chassis ground ():
#4 (B84) No. 16 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Repair battery short circuit in harness between
ECM and fuel injector. After repair, replace ECM.
: Go to next step 5).
G2M0464
5) Turn ignition switch to OFF.
6) Measure resistance between fuel injector terminals on
faulty cylinder.
: Terminals
No. 1—No.2:
Is the resistance less than 1Ω?
: Replace faulty fuel injector and ECM.
: Go to next.
