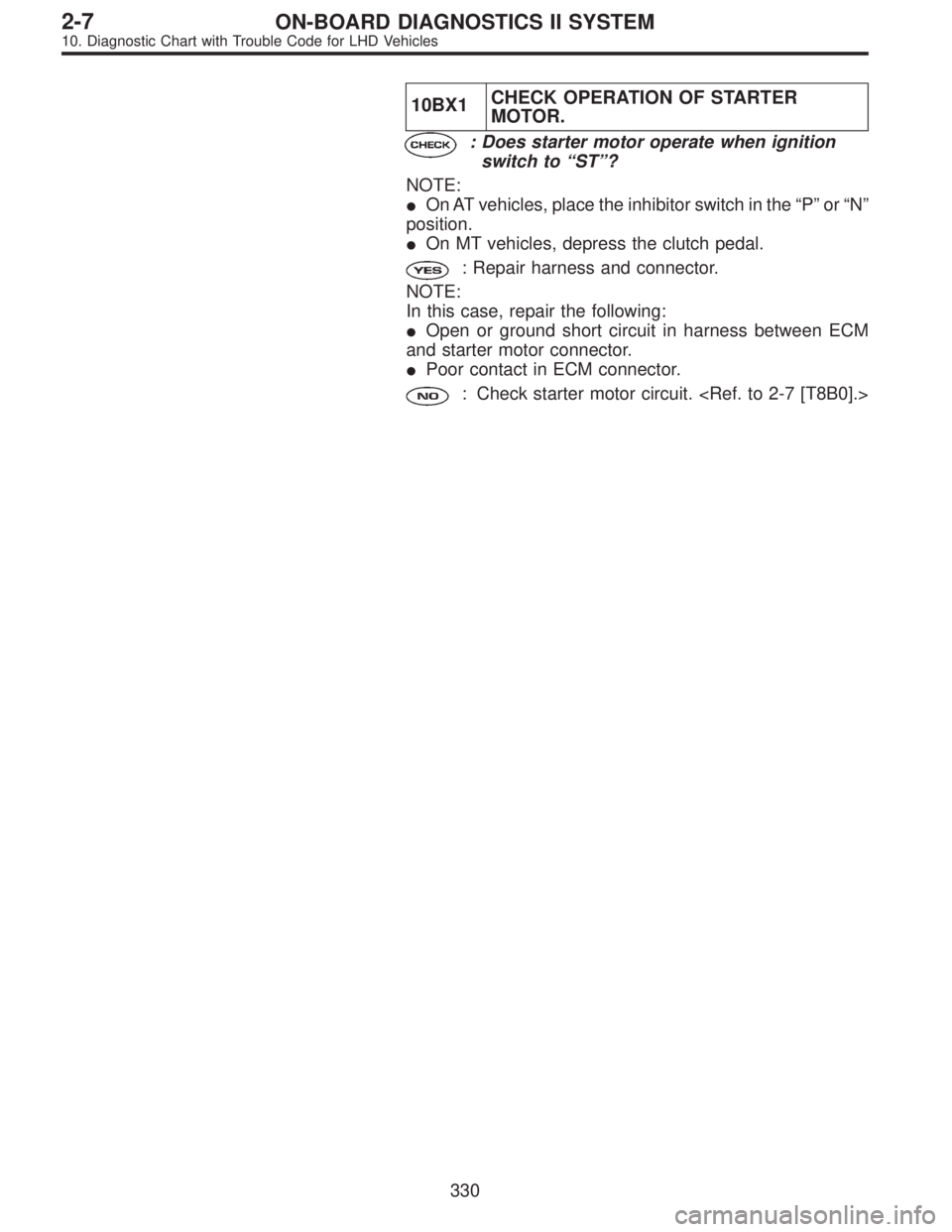

10BX1CHECK OPERATION OF STARTER
MOTOR.
: Does starter motor operate when ignition
switch to“ST”?
NOTE:

On AT vehicles, place the inhibitor switch in the“P”or“N”
position.

On MT vehicles, depress the clutch pedal.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open or ground short circuit in harness between ECM
and starter motor connector.

Poor contact in ECM connector.
: Check starter motor circuit.
330
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M1114

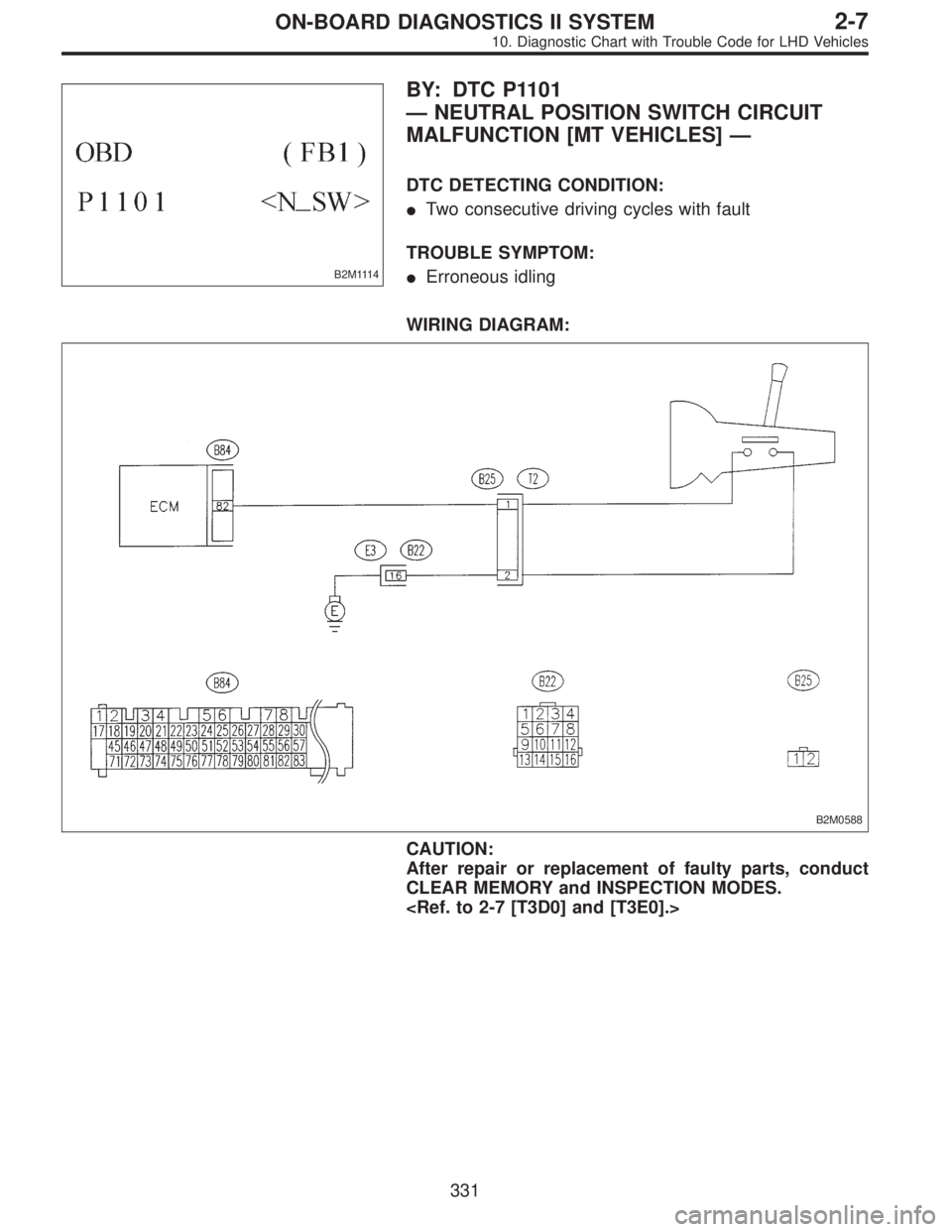

BY: DTC P1101
—NEUTRAL POSITION SWITCH CIRCUIT
MALFUNCTION [MT VEHICLES]—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

Erroneous idling
WIRING DIAGRAM:
B2M0588
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

331
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0589A
10BY1

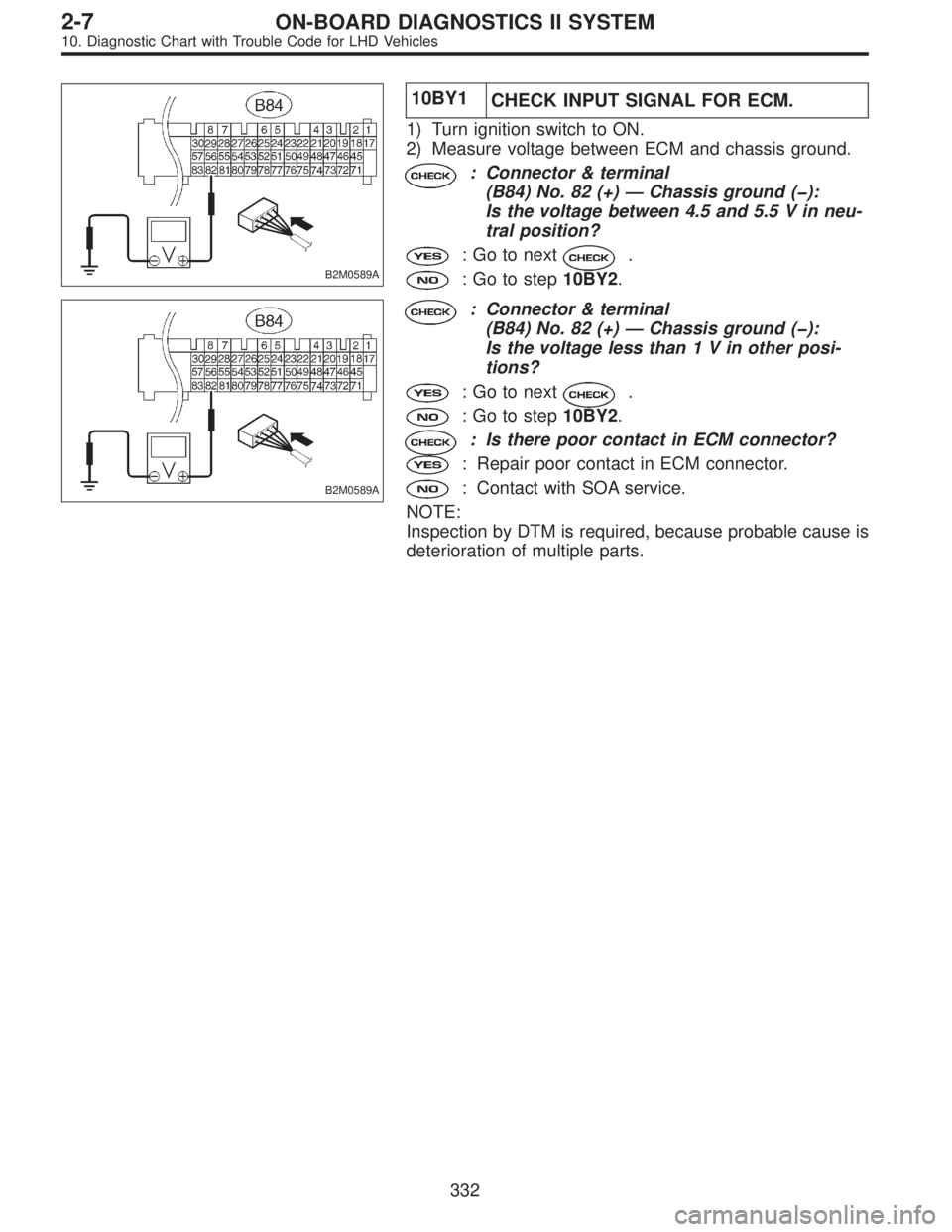

CHECK INPUT SIGNAL FOR ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 82 (+)—Chassis ground ():
Is the voltage between 4.5 and 5.5 V in neu-
tral position?
: Go to next.
: Go to step10BY2.
B2M0589A
: Connector & terminal
(B84) No. 82 (+)—Chassis ground ():
Is the voltage less than1Vinother posi-
tions?
: Go to next.
: Go to step10BY2.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Contact with SOA service.
NOTE:
Inspection by DTM is required, because probable cause is
deterioration of multiple parts.
332
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0469A
10BY2

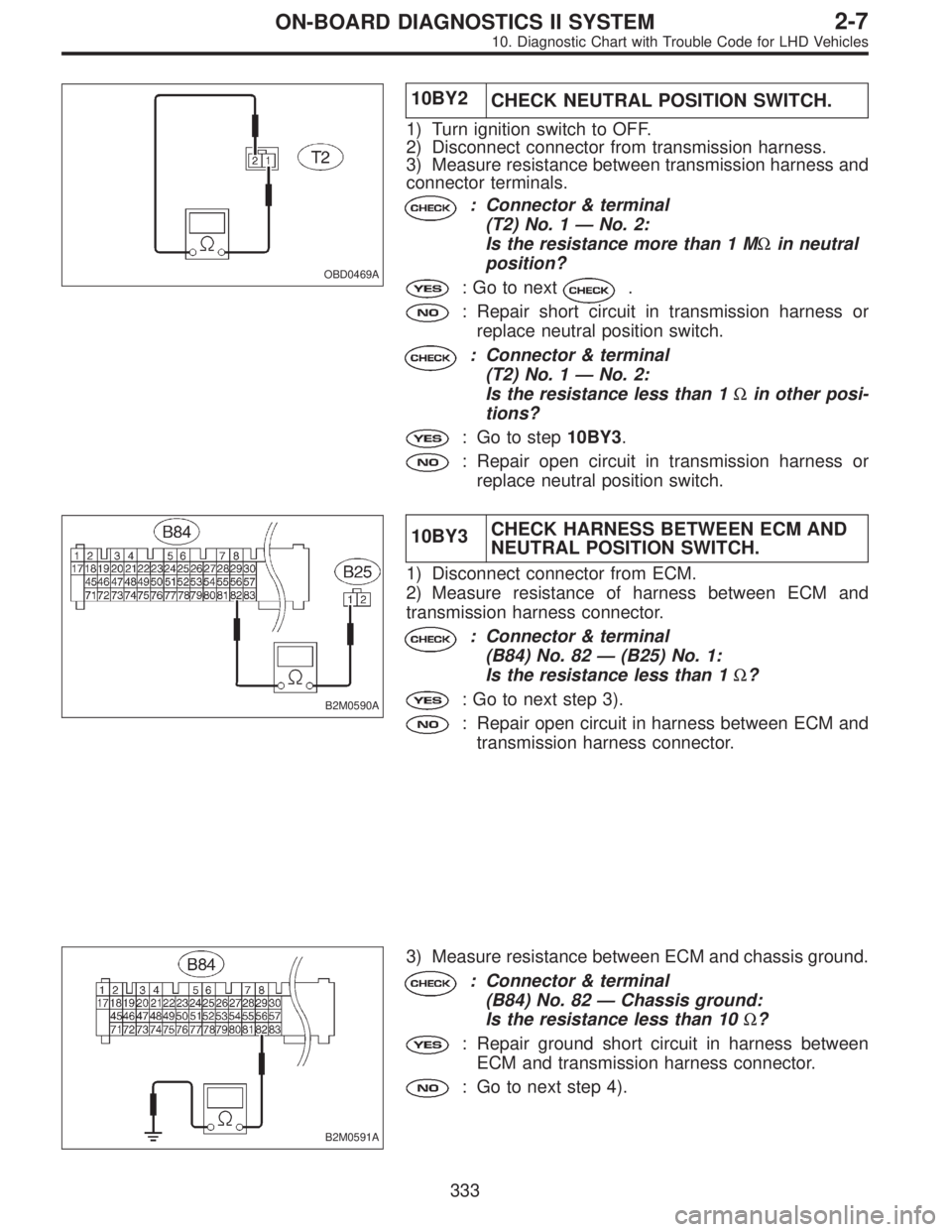

CHECK NEUTRAL POSITION SWITCH.
1) Turn ignition switch to OFF.
2) Disconnect connector from transmission harness.
3) Measure resistance between transmission harness and
connector terminals.
: Connector & terminal
(T2) No. 1—No. 2:
Is the resistance more than 1 MΩin neutral
position?
: Go to next.
: Repair short circuit in transmission harness or
replace neutral position switch.
: Connector & terminal
(T2) No. 1—No. 2:
Is the resistance less than 1Ωin other posi-
tions?
: Go to step10BY3.
: Repair open circuit in transmission harness or
replace neutral position switch.
B2M0590A
10BY3CHECK HARNESS BETWEEN ECM AND
NEUTRAL POSITION SWITCH.
1) Disconnect connector from ECM.
2) Measure resistance of harness between ECM and
transmission harness connector.
: Connector & terminal
(B84) No. 82—(B25) No. 1:
Is the resistance less than 1Ω?
: Go to next step 3).
: Repair open circuit in harness between ECM and
transmission harness connector.
B2M0591A
3) Measure resistance between ECM and chassis ground.
: Connector & terminal
(B84) No. 82—Chassis ground:
Is the resistance less than 10Ω?
: Repair ground short circuit in harness between
ECM and transmission harness connector.
: Go to next step 4).
333
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0472A

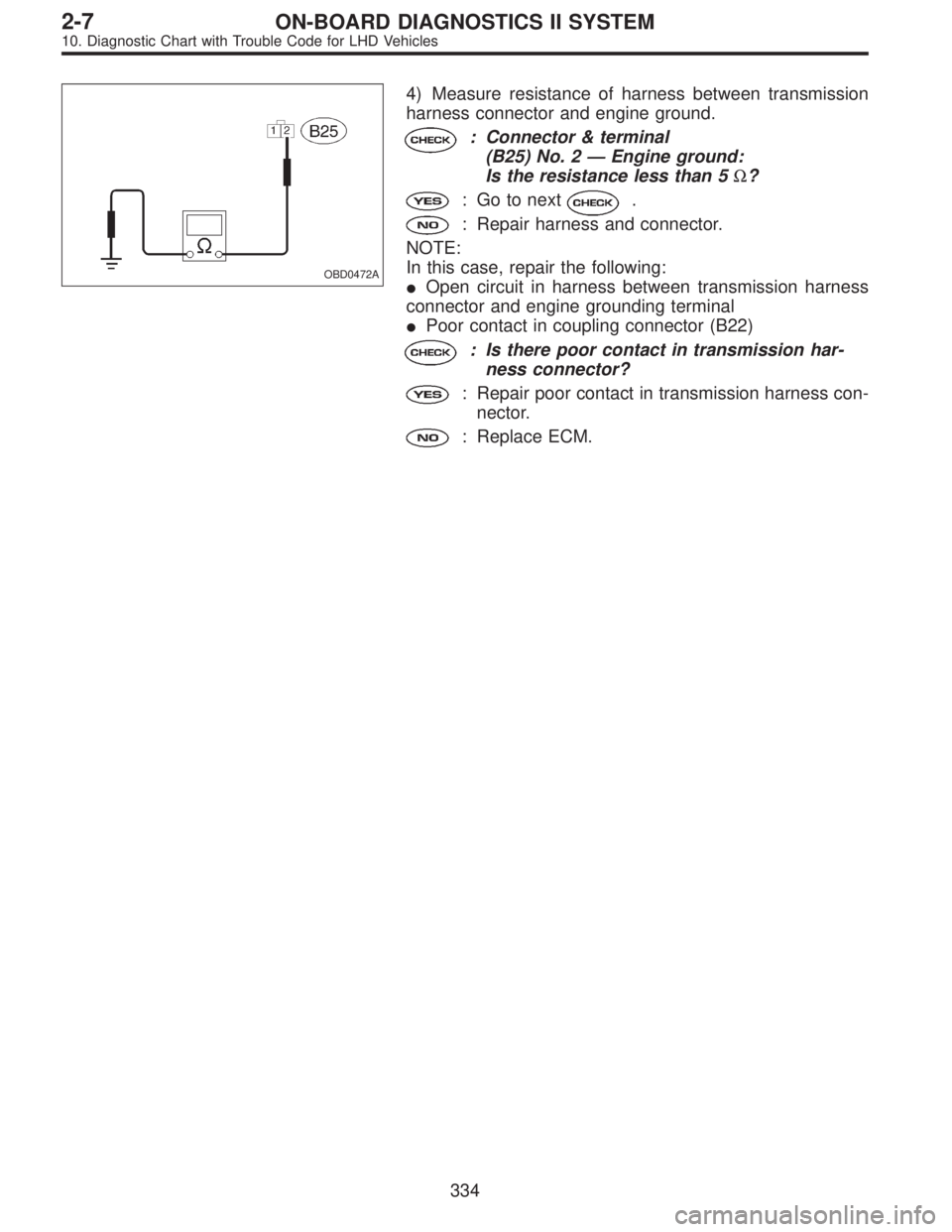

4) Measure resistance of harness between transmission
harness connector and engine ground.
: Connector & terminal
(B25) No. 2—Engine ground:
Is the resistance less than 5Ω?
: Go to next.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between transmission harness
connector and engine grounding terminal

Poor contact in coupling connector (B22)
: Is there poor contact in transmission har-
ness connector?
: Repair poor contact in transmission harness con-
nector.
: Replace ECM.
334
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M1115

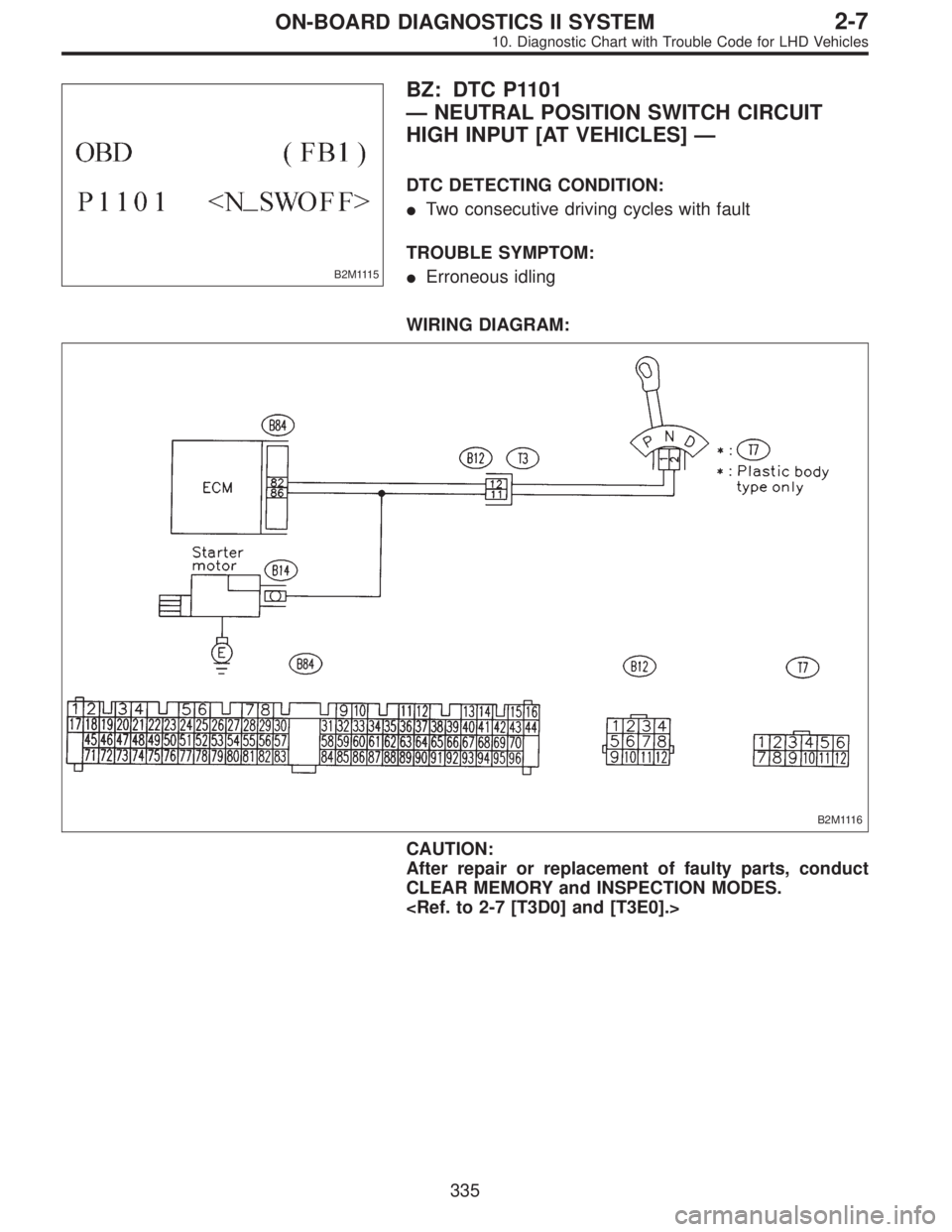

BZ: DTC P1101
—NEUTRAL POSITION SWITCH CIRCUIT
HIGH INPUT [AT VEHICLES]—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

Erroneous idling
WIRING DIAGRAM:
B2M1116
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

335
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

10BZ1
CHECK DTC P0705 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0705?
: Inspect DTC P0705 using“10. Diagnostics Chart
with Trouble Code”.
: Go to step10BZ2.
B2M0593A
10BZ2
CHECK INPUT SIGNAL FOR ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 82 (+)—Chassis ground ():
Is the voltage less than1Vin“N”and“P”
positions?
: Go to next.
: Go to step10BZ3.
B2M0593A
: Connector & terminal
(B84) No. 82 (+)—Chassis ground ():
Is the voltage between 4.5 and 5.5 V in other
positions?
: Go to next.
: Go to step10BZ3.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Replace ECM.
B2M0593A
10BZ3
CHECK INPUT SIGNAL FOR ECM.
Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 82 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Repair battery short circuit in harness between
ECM and inhibitor switch connector.
: Go to step10BZ4.
10BZ4
CHECK INHIBITOR SWITCH TYPE.
: Is inhibitor switch type plastic body?
: Go to step10BZ5.
: Go to step10BZ7.
336
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M1117A

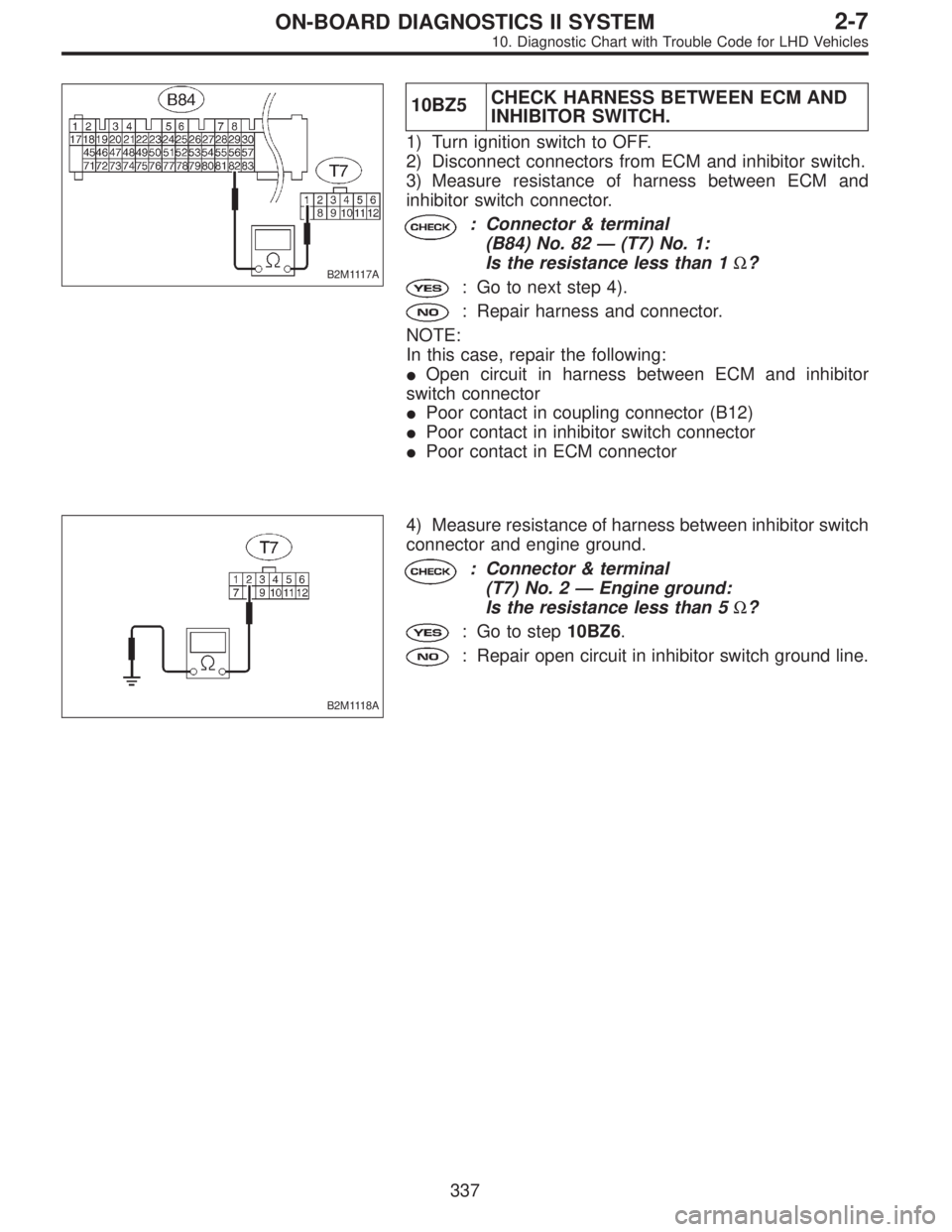

10BZ5CHECK HARNESS BETWEEN ECM AND
INHIBITOR SWITCH.
1) Turn ignition switch to OFF.
2) Disconnect connectors from ECM and inhibitor switch.
3) Measure resistance of harness between ECM and
inhibitor switch connector.
: Connector & terminal
(B84) No. 82—(T7) No. 1:
Is the resistance less than 1Ω?
: Go to next step 4).
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM and inhibitor
switch connector

Poor contact in coupling connector (B12)

Poor contact in inhibitor switch connector

Poor contact in ECM connector
B2M1118A
4) Measure resistance of harness between inhibitor switch
connector and engine ground.
: Connector & terminal
(T7) No. 2—Engine ground:
Is the resistance less than 5Ω?
: Go to step10BZ6.
: Repair open circuit in inhibitor switch ground line.
337
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M1119
10BZ6
CHECK INHIBITOR SWITCH.
Measure resistance between inhibitor switch connector
receptacle’s terminals.
: Terminals
No. 1—No. 2:
Is the resistance less than 1Ωin“N”and
“P”positions?
: Go to next.
: Replace inhibitor switch.
: Is there any fault in selector cable connec-
tion to inhibitor switch?
: Repair selector cable connection. [W2B2].>
: Replace ECM.
B2M0594A
10BZ7CHECK HARNESS BETWEEN ECM AND
TRANSMISSION HARNESS CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connectors from ECM and transmission
harness connector.
3) Measure resistance of harness between ECM and
transmission harness connector.
: Connector & terminal
(B84) No. 82—(B12) No. 12:
Is the resistance less than 1Ω?
: Go to next step 4).
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM and transmission
harness connector

Poor contact in transmission harness connector

Poor contact in ECM connector
OBD0479A
4) Measure resistance of harness between transmission
harness connector and engine ground.
: Connector & terminal
(B12) No. 11—Engine ground:
Is the resistance less than 5Ω?
: Go to step10BZ8.
: Repair open circuit in inhibitor switch ground line.
338
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M1288A

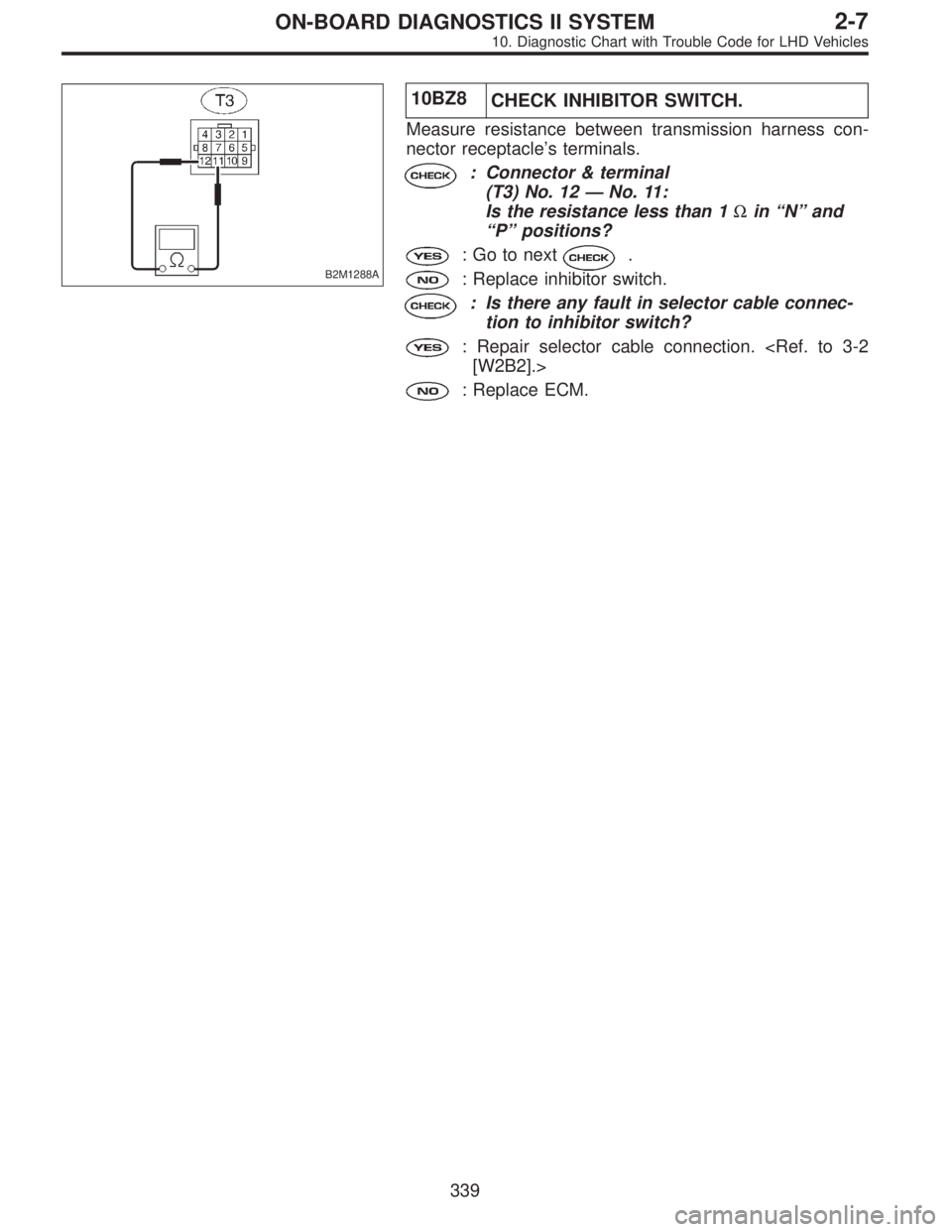

10BZ8
CHECK INHIBITOR SWITCH.
Measure resistance between transmission harness con-
nector receptacle’s terminals.
: Connector & terminal
(T3) No. 12—No. 11:
Is the resistance less than 1Ωin“N”and
“P”positions?
: Go to next.
: Replace inhibitor switch.
: Is there any fault in selector cable connec-
tion to inhibitor switch?
: Repair selector cable connection. [W2B2].>
: Replace ECM.
339
2-7ON-BOARD DIAGNOSTICS II SYSTEM
